ZyXEL Communications P-660RU-Tx User Manual
P-660RU-Tx v2
ADSL2+ Ethernet / USB Router
Quick Start Guide
Version 3.40
Edition 3
5/2008
P-660RU-Tx v2 Quick Start Guide
Overview
The P-660RU-Tx v2 is an ADSL router with both USB and
Ethernet ports.
See your User’s Guide for background information on all
features.
This Quick Start Guide shows you how to:
• Connect the hardware.

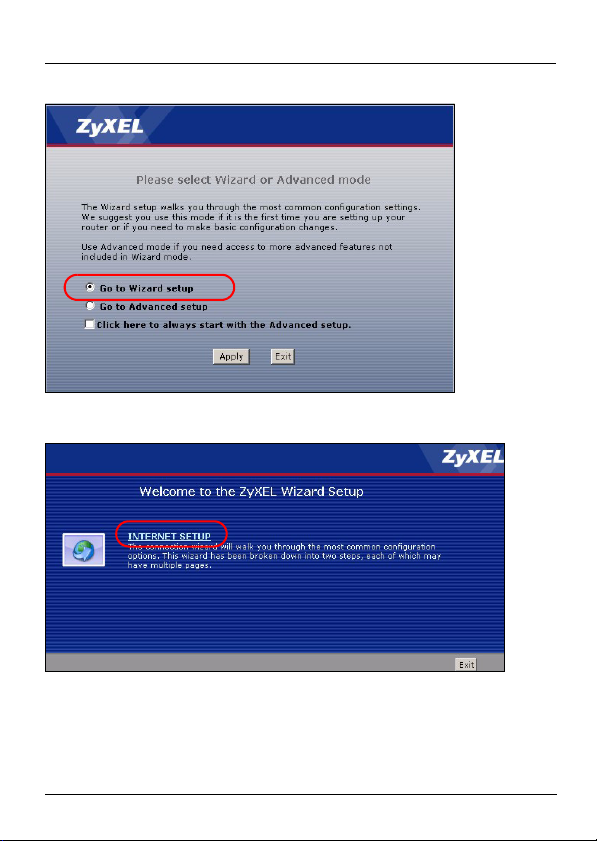

• Set up your Internet connection. The device should connect
to the Internet automatically if it is preconfigured. If you were
given Internet connection information from your Internet
Service Provider (ISP), you may have to set up the connection manually (See section 3).
How to use the included CD
If you prefer to see a multi-media animation of how to make
hardware connections, see the installation tutorial on the
included CD.
1 On the included CD, click Multimedia Auto Provisioner >
Installation Tutorial.
2 At the end of the tutorial, click Configuration Genie to set
up your P-660RU-Tx v2 to connect to the Internet.
1
P-660RU-Tx v2 Quick Start Guide
1 Hardware Connections
There are two ways to connect your computer or computer
network to the P-660RU-Tx v2:
Option A: Connect via Ethernet. See page 2.
Option B: Connect via USB (you will need to install the USB
driver). See page 4.
Option A: Connect via Ethernet
1ETHERNET: Use the yellow Ethernet cable to connect a
computer to the ETHERNET port for initial configuration
and/or Internet access.
2
P-660RU-Tx v2 Quick Start Guide
2DSL: Use the gray telephone wire to connect your P-
660RU-Tx v2’s DSL port to a telephone jack (or to a
splitter, if one is already installed).
3POWER: Use the power adaptor provided with your P-
660RU-Tx v2 to connect an appropriate power source to
the POWER socket. Make sure the power source is on.
4 Push in the POWER button.
5 Look at the lights on the front panel.
•The POWER light blinks while your P-660RU-Tx v2 starts up
and stays on once it is ready.
•The DSL light is on when the P-660RU-Tx v2 has a DSL
connection.
•The INTERNET light is on when you are able to access the
Internet and blinks when the P-660RU-Tx v2 is sending or
receiving data.
•The ETHERNET light stays on if the corresponding ETHER-
NET port is properly connected and blinks when there is traffic.
3
P-660RU-Tx v2 Quick Start Guide
V If any of these lights are not on, check your
connections and inspect your cables for
damage. If the lights are still off, contact your
local vendor.
Option B: Connect via USB
4
P-660RU-Tx v2 Quick Start Guide
" Do NOT connect the same computer to both the
USB and ETHERNET ports on the P-660RU-Tx
v2.
1USB: Connect the provided USB cable to the P-660RU-Tx
v2’s USB port.
2DSL: Use the gray telephone wire to connect your P-
660RU-Tx v2’s DSL port to a telephone jack (or to a
splitter, if one is already installed).
3POWER: Use the power adaptor provided with your P-
660RU-Tx v2 to connect an appropriate power source to
the POWER socket. Make sure the power source is on.
4 Push in the POWER button.
5 Look at the lights on the front panel.
•The POWER light blinks while your P-660RU-Tx v2 starts up
and stays on once it is ready.
•The DSL light is on when the P-660RU-Tx v2 has a DSL
connection.
•The USB light turns on if the USB port is properly connected,
and blinks when there is traffic.
5
P-660RU-Tx v2 Quick Start Guide
V If any of these lights are not on, check your
connections and inspect your cables for
damage. If the lights are still off, contact your
local vendor.
Install the USB Software
If you want to connect to the Internet through the P-660RU-Tx
v2's USB port, install the USB driver before you connect the
P-660RU-Tx v2 to the USB port. Follow the steps for your
operating system to install the USB driver.
Windows Computer
System Requirements
• Windows 98 SE (Second Edition), Windows ME (Millennium
Edition), Windows 2000, Windows XP, or Windows Vista
• An available USB port
Procedures
1 Save your work and close all applications.
2 Insert the included CD. The CD automatically runs and the
main screen displays.
3 Click the Setup icon on the main screen.
4 Select the Windows version of your computer.
6
