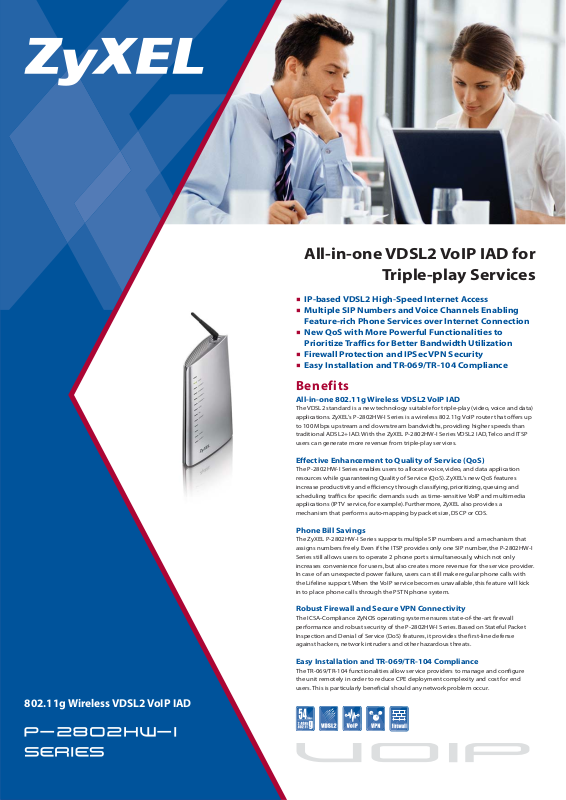

ZyXEL Communications P-2802HW-i User Manual

All-in-one VDSL2 VoIP IAD for

Triple-play Services

ł

IP-based VDSL2 High-Speed Internet Access

ł

Multiple SIP Numbers and Voice Channels Enabling

Feature-rich Phone Services over Internet Connection

ł

New QoS with More Powerful Functionalities to

Prioritize Traffics for Better Bandwidth Utilization

ł

Firewall Protection and IPSec VPN Security

ł

Easy Installation and TR-069/TR-104 Compliance

Benefits

All-in-one 802.11g Wireless VDSL2 VoIP IAD

The VDSL2 standard is a new technology suitable for triple-play (video, voice and data)

applications. ZyXEL’s P-2802HW-I Series is a wireless 802.11g VoIP router that offers up

to 100 Mbps upstream and downstream bandwidths, providing higher speeds than

traditional ADSL2+ IAD. With the ZyXEL P-2802HW-I Series VDSL2 IAD, Telco and ITSP

users can generate more revenue from triple-play services.

Effective Enhancement to Quality of Service (QoS)

The P-2802HW-I Series enables users to allocate voice, video, and data application

resources while guaranteeing Quality of Service (QoS). ZyXEL’s new QoS features

increase productivity and efficiency through classifying, prioritizing, queuing and

scheduling traffics for specific demands such as time-sensitive VoIP and multimedia

applications (IPTV service, for example). Furthermore, ZyXEL also provides a

mechanism that performs auto-mapping by packet size, DSCP or COS.

Phone Bill Savings

The ZyXEL P-2802HW-I Series supports multiple SIP numbers and a mechanism that

assigns numbers freely. Even if the ITSP provides only one SIP number, the P-2802HW-I

Series still allows users to operate 2 phone ports simultaneously, which not only

increases convenience for users, but also creates more revenue for the service provider.

In case of an unexpected power failure, users can still make regular phone calls with

the Lifeline support. When the VoIP service becomes unavailable, this feature will kick

in to place phone calls through the PSTN phone system.

802.11g Wireless VDSL2 VoIP IAD

p-2802hw-i
series

Robust Firewall and Secure VPN Connectivity

The ICSA-Compliance ZyNOS operating system ensures state-of-the-art firewall

performance and robust security of the P-2802HW-I Series. Based on Stateful Packet

Inspection and Denial of Service (DoS) features, it provides the first-line defense

against hackers, network intruders and other hazardous threats.

Easy Installation and TR-069/TR-104 Compliance

The TR-069/TR-104 functionalities allow service providers to manage and configure

the unit remotely in order to reduce CPE deployment complexity and cost for end

users. This is particularly beneficial should any network problem occur.

Specifications

PSTN

Network

Mobil

Network

rk

P-2802HW

P

2.11g Wireless VDSL2

80

Vo

P-2802HW-I

802.11g Wire

V

D

r

Cab

J-45 Et

Cable

DS

e

Coaxial Cable

y

S

System Specifications

VDSL2 Standard Commpliancece

• ITU-T G.993.1 (VDSL)

• 12b, ITU-T G.993.2 (VDSL2 Profile 8c/8d, 12a/12eleses: 8a/8b/8c
and 17a (30a 100/100M, OOptioional)

• Band plan 997 and 99898

• LR-VDSL2

Router Featureses

• while t wEthernet WAN N (Port 1 con WAN port wonfigured as W
VDSL2 disababled) V

• NAT (includedes multi-NA ti-to-multi NAT)/SUA

• AT Server (PoPort FNAT rt Forwarding)

• (IPSec, PPTVPN ( PTPTP, & L2TP) Pass through

• ProxyDNS Pr y

• ic icDynamicc DNS

• asIP Alias

• HCP ClientDHC nt/Server/ReRelay

• RIP I/RIP II SupRI upported

•• Support IP Statatic Route

• IGMP Snooping

• d v2IP Multicasting, IGMGMP v1 anddv

• IP Policy Routing

• UPnP Support

• NTP

Voice

• on 2SIP (RFC 3261) Versio

• G711 a/µ b; G.726*, G.723.1*, G.729a/b

• ellationG.168 Echo Cance

• T.38 FAX Relay*

• Fax Relay over G.711Transparent Fa

• m Detection and Pass-throughFax/modem D

• vity Detection (VAD)Voice Activi

• uppressionSilence Su

• Noise Generation (CNG)Comfort N

• Jitter ButterDynamic Jit

• ction and GenerationDTMF Detect

• y In-Band and Out-of-BandDTMF relay by

INFO) (RFC 2833, SIP IN

entary ServiceVoice Suppleme

• Caller ID

• Call-Waiting CID

• e the source calling number)Anonymous Call (hide

• Call Waiting

• dition, Busy, No answer)Call Forwarding (No cond

• nsultOnHold, Attendant)Call Transferring (Blind, Con

• Call Accept

• Call Block

• Three Way Conference

• Conference-DSP Local Mixer

• Conference: Ad-Hoc Conference

• erenceConference: Call Transfer after Confe

• Conference-in Media Mixer Server

• Call Park/Call PickupC

•• Call Hold/Call Retrieve

• Second Call

• Early Media

• IVR (Interactive Voice Response)

• Flash Hook Timer

• Music on Hold

• Message Waiting Indicator (RFC 3842)

• Call Fallback

• Abbreviated Dialing (Speed Dial)

• Phone Book

• Internal Call

• Do NOT Disturb*

• Distinctive Ringing*

• Call Return*

• Emergency Call

• Hot Line

Lifeline Support (For P-2802HWL-Ix)

• Analog phone connected to FXS can receive
incoming PSTN phone Call

• Make a PSTN call by dialing pre-fix number

• Send emergency call through PSTN line

• PSTN relay when device power down (FXS1 Only)

• Forward calls between PSTN and VoIP with PIN
authentication*

QoS

• Voice data as highest priority

• Layer 2 to Layer 3 QoS

• Priority Auto-Mapping by Packet Size, DSCP or COS

• TR-098 QoS*

• 802.1p and 802.1q Auto priority Mapping

Management

• SNMP v1 & v2 with MIB II

• Embedded FTP/TFTP Server for f/w upgrade and
romfile backup and restore

• Telnet for remote management

• Remote Management Control: Telnet, FTP, Web, SNMP
and DNS

• Centrialized Logs

• TR-069/TR-104/TR-111*

Firewall Security

• Stateful Packet Inspection

• Prevent DoS Attack

• Access Control of Service

• Content Filtering

• IP & Generic Packet Filtering

• Real-time Attack Alert and Logs

Virtual Private Network

• 2 IPSec VPN Tunnels running

• IKE and Manual Key Management

• AH and ESP Protocol

• DES/3DES and AES Encryption (S/W)

802.11g Wireless VDSL2 VoIP IAD

p-2802hw-i
series

• SHA-1 and MD5 Authentication

• Tunnel and Transport Mode Encapsulation

• IPSec NAT Traversal

• NETBIOS pass-through for IPSec

Wireless

• IEEE 802.11b/g Compliance

• Reset button for WLAN on/off

• WPA/WPA2 support 802.11i

• OTIST (ZyXEL’s One-Touch Intelligent Security
Technology)

• 32 MAC Address filter

• Support IEEE 802.1x

• 32 Built-in user profile: EAP-MD5 challenge

• External Radius server: EAP-MD5, TLS, TTLS

• Multiple ESSID*

• WPS*

Hardware Specifications

• Antenna: 2.9 dBi, non-detachable

• WAN: RJ-11 for over POTS; RJ-45 for over ISDN

• LAN: 4 port Ethernet

• FXS: 2 POTs port

• FXO: 1 POTs port (For P-2802HWL-Ix)

• Power switch: push button

• Reset button: Restore Factory Defaults

Physical Specifications

• Dimensions: 165 ( W) x 65 (D) x 242 (H) mm

• Weight: 600 g

Environmental Specifications

• Operating temperature: 0°C ~ 40°C

• Operating humidity: 20% ~ 85% RH (non-condensing)

• Storage temperature: -20°C ~ 60°C

• Storage humidity: 20% ~ 90% RH (non-condensing)

Certification

• Safety: CSA international

• EMI: CE, FCC part 15B

* Firmware upgradeable for future enhancement.

Product Description

P-2802HW-I1 802.11g Wireless VDSL2 VoIP IAD

over POTS

P-2802HW-I3 802.11g Wireless VDSL2 VoIP IAD

over ISDN

P-2802HWL-I1 802.11g Wireless VDSL2 VoIP IAD

over POTS with Lifeline

P-2802HWL-I3 802.11g Wireless VDSL2 VoIP IAD

over ISDN with Lifeline

Application Diagram

HDTV

IP Telephon

802.11b/g Client Adapte

Wi-Fi Phone

Home

Set-top Box

Phone

SOHO

Phone

oIP IA

DSL Line

Internet

DSL Line

ervice Provider

VoIP

Call

Center

Trunking
Gateway

Cellular Phone

For more product information, visit us on the web www.ZyXEL.com

Copyright © 2007 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logo are registered trademarks of ZyXEL Communications Corp. All other brands,
product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.

RJ-11 Phone

R

L Lin

PSTN Phone

le

hernet

65-100-280201G 06/07
