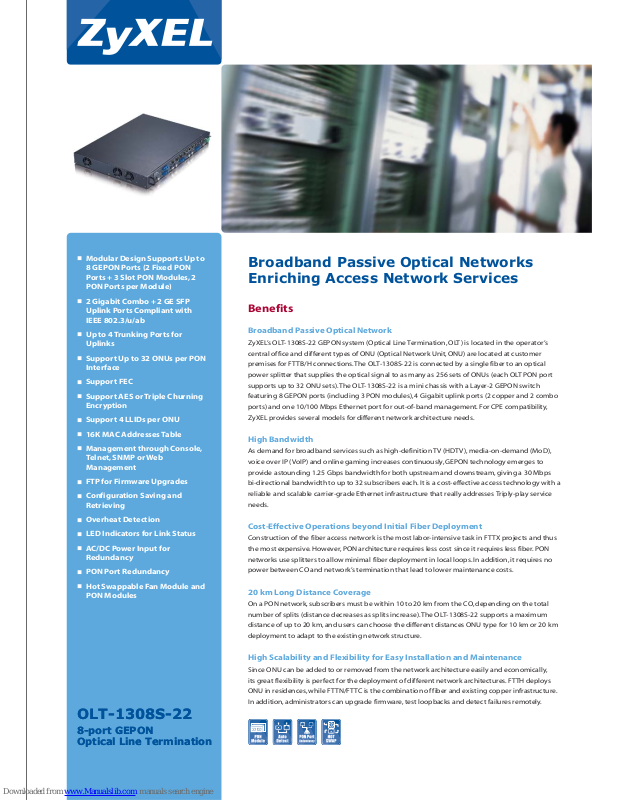

ZyXEL OLT-1308S-22 Specifications
Broadband Passive Optical Networks
Enriching Access Network Services
Benefits
Broadband Passive Optical Network
ZyXEL’s OLT-1308S-22 GEPON system (Optical Line Termination, OLT) is located in the operator’s
central office and different types of ONU (Optical Network Unit, ONU) are located at customer
premises for FTTB/H connections. The OLT-1308S-22 is connected by a single fiber to an optical
power splitter that supplies the optical signal to as many as 256 sets of ONUs (each OLT PON port
supports up to 32 ONU sets). The OLT-1308S-22 is a mini chassis with a Layer-2 GEPON switch
featuring 8 GEPON ports (including 3 PON modules), 4 Gigabit uplink ports (2 copper and 2 combo
ports) and one 10/100 Mbps Ethernet port for out-of-band management. For CPE compatibility,
ZyXEL provides several models for different network architecture needs.
High Bandwidth
As demand for broadband services such as high-definition TV (HDTV), media-on-demand (MoD),
voice over IP (VoIP) and online gaming increases continuously, GEPON technology emerges to
provide astounding 1.25 Gbps bandwidth for both upstream and downstream, giving a 30 Mbps
bi-directional bandwidth to up to 32 subscribers each. It is a cost-effective access technology with a
reliable and scalable carrier-grade Ethernet infrastructure that really addresses Triply-play service
needs.
Cost-Effective Operations beyond Initial Fiber Deployment
Construction of the fiber access network is the most labor-intensive task in FTTX projects and thus
the most expensive. However, PON architecture requires less cost since it requires less fiber. PON
networks use splitters to allow minimal fiber deployment in local loops. In addition, it requires no
power between CO and network’s termination that lead to lower maintenance costs.
20 km Long Distance Coverage
On a PON network, subscribers must be within 10 to 20 km from the CO, depending on the total
number of splits (distance decreases as splits increase). The OLT-1308S-22 supports a maximum
distance of up to 20 km, and users can choose the different distances ONU type for 10 km or 20 km
deployment to adapt to the existing network structure.
High Scalability and Flexibility for Easy Installation and Maintenance
Since ONU can be added to or removed from the network architecture easily and economically,
its great flexibility is perfect for the deployment of different network architectures. FTTH deploys
ONU in residences, while FTTN/FTTC is the combination of fiber and existing copper infrastructure.
In addition, administrators can upgrade firmware, test loopbacks and detect failures remotely.
OLT-1308S-22
8-port GEPON
Optical Line Termination
OLT-1308S-22
8-port GEPON
Optical Line Termination
Ł
Modular Design Supports Up to
8 GEPON Ports (2 Fixed PON
Ports + 3 Slot PON Modules, 2
PON Ports per Module)
Ł
2 Gigabit Combo + 2 GE SFP
Uplink Ports Compliant with
IEEE 802.3/u/ab
Ł
Up to 4 Trunking Ports for
Uplinks
Ł
Support Up to 32 ONUs per PON
Interface
Ł
Support FEC
Ł
Support AES or Triple Churning
Encryption
Ł
Support 4 LLIDs per ONU
Ł
16K MAC Addresses Table
Ł
Management through Console,
Telnet, SNMP or Web
Management
Ł
FTP for Firmware Upgrades
Ł
Configuration Saving and
Retrieving
Ł
Overheat Detection
Ł
LED Indicators for Link Status
Ł
AC/DC Power Input for
Redundancy
Ł
PON Port Redundancy
Ł
Hot Swappable Fan Module and
PON Modules
OLT-1308S-22
8-port GEPON
Optical Line Termination
OLT-1308S-22
8-port GEPON
Optical Line Termination
System Specifications
Standard Compliance
• IEEE 802.3ah
• IEEE 802.3ab
• IEEE 802.3 Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.3z Gigabit Ethernet
• IEEE 802.3x flow control
• IEEE 802.3ad LACP aggregation
• IEEE 802.1d spanning tree protocol
• IEEE 802.1w rapid spanning tree protocol
• IEEE 802.1Q VLAN tagging
• IEEE 802.1p QoS
• IEEE 802.1x port authentication
• IEEE 802.11 MIB
MAC and Packet Buffer
• 16K MAC entries
Traffic Management and QoS
• IEEE 802.1p QoS with 8 priority queues per port
• IEEE 802.1Q tag-based VLAN
• 2K static VLAN, up to 4K dynamic VLAN
• VLAN trunking
• Supports to GVRP, automatic VLAN member
registration
• IGMP v1, v2 & v3
User Security and Authentication
• MAC filtering per port, secure access to
each port
• Specific MAC forwarding per port: only specified
MAC addresses can access the network
(per lock)
• Limits to the number of MAC address per port
• 802.1x port-based security that prevent
unauthorized client access to the network
• Private VLAN provides security and isolation
between ports on a switch that prevent users to
snoop on each others’ traffic
• VLAN stacking provides CVLAN and SVLAN to
help separate different user traffic for security
concern and also enable the flexible VLAN usage
for users
Network Administration Security
• User name/password required for
web/Telnet/local console administrators
• Two-level security by specific SNMP read/write
community
• SSH provides network security by encryption
administration traffic
Network Management
• Web-based management
• Telnet CLI
• SNMP v1, v2c & v3
• RS-232 local console
• Out of band management
• NetAtlas EPON manager
Remote ONU Management through
OAM Channel
• Firmware upgrade
• Configuration/provisioning
• Status/alarm report
• Loop-back tests
Hardware Specifications
• 2 embedded GEPON ports
• 3 open slots for GEPON modules, each module
supports 2 PON ports
• Wavelength: 1.31 um for upstream and 1.49 um
for downstream
• Distance: 1000Base-PX20 for distances up to
20 km
• 4 GE uplinks with 2-port RJ-45 1000Base-T and 2
combo ports
• One 10/100Base-T for out-band management
• 1 DB9 RS-232 for craft interface
• 1 alarm input port
• Power input:
- AC: 100 V ~ 240 V
- DC: -48 V
• Power consumption:
- AC: 90 Watt max
- DC: 80 Watt max
Physical Specifications
• Item weight: 4,500 g (9.94 lb)
• Item dimensions:
440 (W ) x 312 (D) x 44 (H) mm
(17.32 (W ) x 12.28 (D) x 1.73 (H) inch)
• Item and package weight: 6,000 g (13.26 lb)
• Package dimensions:
574 (W ) x 460 (D) x 161 (H) mm
(22.59 (W ) x 18.11 (D) x 6.34 (H) inch)
Environmental Specifications
• Operating temperature: 0ºC ~ 45ºC
• Storage temperature: -40ºC ~ 70ºC
• Operating humidity: 10% ~ 90%
(non-condensing)
• Storage humidity: Less than 95% RH
(non-condensing)
Certifications
• CE-EMC Class A
• FCC Part15 Class A
• CSA-International
Product Accessories
• OFA-1308: Fan module
• OLC-1302-22: OLT PON module, each module
supports two PON ports
• OPA-1300-DC: DC power module to support
-48 V DC
