ZyXEL AMG1302-T10B, AMG1302-T10D User Manual
Quick Start Guide
AMG1302-TSeries
Wireless N ADSL2+ 4-port Gateway
AMG1202-TSeries
Wireless N-lite ADSL2+ 4-port Gateway
Version 2.00(AAJC.0)
Edition 2, 5/2013
User’s Guide
Default Login Details
LAN IP Address http://192.168.1.1
User Name admin
Password 1234
www.zyxel.com
Copyright © 2013 ZyXEL Communications Corporation
IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP THIS GUIDE FOR FUTURE REFERENCE.
Note: This guide is a reference for a series of products. Therefore some features or
options in this guide may not be available in your product.
Graphics in this book may differ slightly from the product due to differences in operating systems,
operating system versions, or if you installed updated firmware/software for your device. Every
effort has been made to ensure that the information in this manual is accurate.
Related Documentation
•Quick Start Guide
The Quick Start Guide shows how to connect the AMG1302/AMG1202-TSeries and access the
Web Configurator. It contains information on setting up your wireless network.
AMG1302/AMG1202-TSeries User’s Guide2
Contents Overview
Contents Overview
User’s Guide .......................................................................................................................................13
Introduction .............................................................................................................................................15
Introducing the Web Configurator ...........................................................................................................21
Internet / Wireless Setup Wizard............................................................................................................. 29
Tutorials ..................................................................................................................................................37
Technical Reference ..........................................................................................................................65
Connection Status and System Info Screens ..........................................................................................67
Broadband ....................................... ... .... ... ... ... .......................................... ... .... ... ....................................73
Wireless LAN .................. ... ... .... ... ... ... .... .......................................... .......................................................91
Home Networking ..................................................................................................................................121
Static Route ...........................................................................................................................................135
Quality of Service (QoS) .................... .... ... ... ... .......................................... ... .... ... ... ... .... ... .....................139
Network Address Translation (NAT) ................................................. ...................................... ............... 151
Port Binding ..................................... ... .... .......................................... .....................................................161
Dynamic DNS Setup .............................................................................................................................165
Filters ....................................................................................................................................................167
Firewall ...................................... ................................ ................................... .........................................173
Parental Control ....................................................................................................................................191
Certificate .................................. ................................................................ ............................................195
Logs .....................................................................................................................................................201
Traffic Status ................................... ... .... ... ... .......................................... ... ............................................203
User Account ................................... ... .... .......................................... .....................................................207
TR-069 Client ............... .......................................... ... ... ... .......................................... .... ........................209
System Settings .............................................. ... .......................................... .... .....................................213
Firmware Upgrade ................................................................................................................................217
Backup/Restore .................................. .... ... ... ... ... .......................................... .... ... ... ...............................219
Remote Management ............................................................................................................................223
Diagnostic .............................................................................................................................................235
Troubleshooting ....................................................................................................................................239
AMG1302/AMG1202-TSeries User’s Guide
3
Contents Overview
4
AMG1302/AMG1202-TSeries User’s Guide
Table of Contents
Table of Contents
Contents Overview ..............................................................................................................................3
Table of Contents .................................................................................................................................5
Part I: User’s Guide .........................................................................................13
Chapter 1
Introduction.........................................................................................................................................15
1.1 Overview ................................................ ... .......................................... ..............................................15
1.2 Ways to Manage the AMG1302/AMG1202-TSeries ..................................... ... ... .... ... ... ... ... .... ... ... ... .15
1.3 Good Habits for Managing the AMG1302/AMG1202-TSeries ..........................................................15
1.4 Applications for the AMG1302/AMG1202-TSeries ........................... ...... ....... ...... ....... ...... ....... ...... ....16
1.4.1 Internet Access .......................................................... .......................................... ....................16
1.4.2 Wireless Access ........................ ... ... ... .... ... ... ... .......................................... ..............................16
1.5 General Hardware Features ............................. ... ... ... .... ... ... ... .... ... ....................................................17
1.6 Using the WPS Button ........................................................ .......................................... ....................18
1.7 The RESET Button ........................... ... ... ... ... .... ... ... .......................................... .................................19
1.7.1 Using the Reset Button ........... ... ... ... ... .......................................... .... ... ... .................................19
1.8 Ways to Manage the AMG1302/AMG1202-TSeries ........................................................................19
Chapter 2
Introducing the Web Configurator ....................................................................................................21
2.1 Overview ................................................ ... .......................................... ..............................................21
2.1.1 Accessing the Web Configurator .............................................................................................21
2.2 The Web Configurator Layout ... ... .... ... ... ... ... .... ... ... ... .......................................... .... ... .......................23
2.2.1 Title Bar ........................ ... ... .... ... ... ....................................... ... ... ... .... ... ... .................................24
2.2.2 Main Window ............................................................. ... .... .......................................................25
2.2.3 Navigation Panel ... .... ... ... ... .... ... ... ... ... .... .................................................................................25
Chapter 3
Internet / Wireless Setup Wizard.......................................................................................................29
3.1 Overview ................................................ ... .......................................... ..............................................29
3.2 Internet / Wireless Wizard Setup ............ ...... ....... ...... .... ...... ....... ...... ...... ....... ...... ....... ...... .................29
Chapter 4
Tutorials...............................................................................................................................................37
4.1 Overview ................................................ ... .......................................... ..............................................37
4.2 Setting Up Your DSL Connection .............................. .... ... ... ... .... ... ... ... ... .... .......................................37
AMG1302/AMG1202-TSeries User’s Guide
5
Table of Contents
4.3 IPv6 Address Configuration ..............................................................................................................39
4.4 Setting Up a Secure Wireless Network ................................................................... ... ... ... ... .... ..........40
4.4.1 Configuring the Wireless Network Settings .............................................................................40
4.4.2 Using WPS ............................. ... .......................................... ....................................................41
4.4.3 Connecting Wirelessly to your AMG1302/AMG1202-TSeries .................................................45
4.5 Configuring the MAC Address Filter for Restricting Wireless Internet Access ..................................47
4.6 Setting Up NAT Forwarding for a Game Server ................................................................................48
4.6.1 Port Forwarding ............................................................ .... ... ... ... ... .... .......................................49
4.7 Configuring Firewall Rules to Allow a Specified Service ...................................................................50
4.8 Configuring Static Route for Routing to Another Network ............................................. ....................53
4.9 Port Binding Configuration ...............................................................................................................55
4.9.1 Configuring ATM QoS for Multiple WAN Connections .............................................................55
4.9.2 Configuring Port Binding ......... ... ... ... ... .... ... ... .......................................... ... .... ... .......................58
4.10 Configuring QoS to Prioritize Traffic ................................................................................................59
4.11 Access the AMG1302/AMG1202-TSeries from the Internet Using DDNS ......................................62
4.11.1 Registering a DDNS Account on www.dyndns.org ................................................................62
4.11.2 Configuring DDNS on Your AMG1302/AMG1202-TSeries .................................................... 63
4.11.3 Testing the DDNS Setting ......................................................................................................63
Part II: Technical Reference............................................................................65
Chapter 5
Connection Status and System Info Screens ..................................................................................67
5.1 Overview ................................................ ... .......................................... ..............................................67
5.2 The Connection Status Screen .........................................................................................................67
5.3 The System Info Screen ................................................................................ ... ... .... ... ... ... .................68
Chapter 6
Broadband...........................................................................................................................................73
6.1 Overview ................................................ ... .......................................... ..............................................73
6.1.1 What Yo u Can Do in the WAN Screens ...................................................................................73
6.1.2 What You Need to Know About WAN . .... ... ... ... .... ... ... ... .... ... .......................................... ... ... ... .73
6.1.3 Before You Begin ....... ... ... .......................................... ... .... ... ....................................................74
6.2 The Internet Connection Screen .......................................................................................................74
6.2.1 Advanced Setup ........................ ... ... ... .... .......................................... .......................................79
6.3 The More Connections Screen ........................ ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... .................81
6.3.1 More Connections Edit ....................... .... ... ... ... .......................................... .... ... ... ....................82
6.3.2 Configuring More Connections Advanced Setup . ... ... ..............................................................85
6.4 WAN Technical Reference ................................................................................................................86
6.4.1 Encapsulation ...................................................... ... ... ... .... .......................................................86
6.4.2 Multiplexing ...... ... ... .... ... ... ... .......................................... ...........................................................87
6
AMG1302/AMG1202-TSeries User’s Guide
Table of Contents
6.4.3 VPI and VCI ........................ .......................................... .......................................... .................87
6.4.4 IP Address Assignment ................................ ... .... ... ... ... .... ... ... .................................................87
6.4.5 Nailed-Up Connection (PPP) ...................................................................................................88
6.4.6 NAT ..................................... .... ... ... ....................................... ... ... ... .... .......................................88
6.5 Traffic Shaping ....... ... ... ... .......................................... .......................................... ..............................88
6.5.1 ATM Traffic Classes .................................................................................................................89
Chapter 7
Wireless LAN.......................................................................................................................................91
7.1 Overview ................................................ ... .......................................... ..............................................91
7.1.1 What You Can Do in the Wireless LAN Screens .....................................................................91
7.1.2 What You Need to Know About Wireless ..................... .... ... ... ... ... .... ... ... ... ..............................92
7.1.3 Before You Start ......................... ... ... .......................................... ..............................................92
7.2 The General Screen ..........................................................................................................................92
7.2.1 No Security ............................................................. ... ... .......................................... .................94
7.2.2 Basic (WEP Encryption) ..........................................................................................................94
7.2.3 More Secure (WPA(2)-PSK) ....................................................................................................95
7.2.4 WPA(2) Authentication .................................................................. .... ... ... ... .... ... ... ... ... ..............96
7.3 The More AP Screen .................................... .... ... ... ... .... ... ... ... .... .......................................................98
7.3.1 More AP Edit ...........................................................................................................................98
7.4 The MAC Authentication Screen .....................................................................................................100
7.5 The WPS Screen ......................... .... ... ... ... ... .... .......................................... ... ... ... .... ... ... ..................101
7.6 The WDS Screen ............................................................................................................................103
7.7 The WMM Screen ...........................................................................................................................104
7.8 The Scheduling Screen ...................................................................................................................105
7.9 The Advanced Screen .....................................................................................................................106
7.10 Wireless LAN Technical Reference .......................................... ......................................... ............107
7.10.1 Wireless Network Overview ..................... .......................... .......................... ........................107
7.10.2 Additional Wireless Terms ...................................................................................................109
7.10.3 Wireless Security Overview ..................... ....................................................... .....................109
7.10.4 Signal Problems .................................................................................................................. 111
7.10.5 BSS .....................................................................................................................................112
7.10.6 MBSSID ...............................................................................................................................112
7.10.7 Wireless Distribution System (WDS) ...................................................................................113
7.10.8 WiFi Protected Setup (WPS) ...............................................................................................113
Chapter 8
Home Networking.............................................................................................................................121
8.1 Overview ................................................ ... .......................................... ............................................121
8.1.1 What Yo u Can Do in the LAN Screens ..................................................................................121
8.1.2 What You Need To Know ........................... ... ... .... ... .......................................... ... ... ...............121
8.1.3 Before You Begin ....... ... ... ... .......................................... .... ... ... ...............................................123
8.2 The LAN Setup Screen ...................................................................................................................123
AMG1302/AMG1202-TSeries User’s Guide
7
Table of Contents
8.3 The Static DHCP Screen .................................................................. ... ... .... ... ... ... .... ... .....................125
8.4 The UPnP Screen ...........................................................................................................................126
8.5 The IP Alias Screen ......................... ... ... ... ... .... .......................................... ... ... ... .... ... ... ..................126
8.5.1 Configuring the LAN IP Alias Screen ......... ............................................................................127
8.6 The IPv6 LAN Setup Screen ............ ... .......................................... ... ... ... .... ... ... ... ............................127
8.7 Home Networking Technical Reference ..........................................................................................131
8.7.1 LANs, WANs and the AMG1302/AMG1202-TSeries ........................................ ..................... 131
8.7.2 DHCP Setup .................................................................................................. ........................131
8.7.3 DNS Server Addresses ....................................... ... ... ... .... ... ... ............................................. ..131
8.7.4 LAN TCP/IP ..................................................... .... ... ... ....................................... ... ... ...............132
8.7.5 RIP Setup ........................... .... ... ... .......................................... ... ............................................133
8.7.6 Multicast .................................... ............................................................................................133
Chapter 9
Static Route.......................................................................................................................................135
9.1 Overview .................................................. ... .......................................... .........................................135
9.1.1 What You Can Do in the Static Route Screens ......................................................................136
9.2 The Static Route Screen ........... ... .... ... ... ... ... .... ... ... ... .... .......................................... ... ... ... ...............136
9.2.1 Static Route Add/Edit ...........................................................................................................136
9.3 IPv6 Static Route .............................................................................................................................137
9.3.1 IPv6 Static Route Edit ..........................................................................................................138
Chapter 10
Quality of Service (QoS)...................................................................................................................139
10.1 Overview .......................................................................................................................................139
10.1.1 What You Can Do in the QoS Screens ................................................................................139
10.1.2 What You Need to Know About QoS ...................................................................................140
10.2 The Quality of Service General Screen .........................................................................................140
10.3 The Queue Screen ........................................................................................................................141
10.3.1 Adding a QoS Queue .........................................................................................................142
10.4 The Class Setup Screen ..............................................................................................................143
10.4.1 Class Setup Add/Edit ...........................................................................................................143
10.5 The QoS Game List Screen .........................................................................................................147
10.6 QoS Technical Reference .............................................................................................................148
10.6.1 IEEE 802.1p ........................................................................................................................148
10.6.2 IP Precedence .....................................................................................................................148
10.6.3 Automatic Priority Queue Assignment ............................ ..................................................... 149
Chapter 11
Network Address Translation (NAT)................................................................................................151
11.1 Overview .......................................................................................................................................151
11.1.1 What You Can Do in the NAT Screens ................................................................................151
11.1.2 What You Need To Know About NAT ....................... ... .... ... ... ... ... .... ... ..................................151
8
AMG1302/AMG1202-TSeries User’s Guide
Table of Contents
11.2 The NAT General Screen ..............................................................................................................152
11.3 The Port Forwarding Screen .........................................................................................................153
11.3.1 Configuring the Port Forwarding Screen ..............................................................................153
11.3.2 Port Forwarding Rule Add/Edit ............................................................................................154
11.4 The DMZ Screen ...........................................................................................................................156
11.5 NAT Technical Reference ..............................................................................................................156
11.5.1 NAT Definitions ....................................................................................................................156
11.5.2 What NAT Does ...................................................................................................................157
11.5.3 How NAT Works ...................................................................................................................157
11.5.4 NAT Application ...................................................................................................................158
11.5.5 NAT Mapping Types .............................................................................................................158
Chapter 12

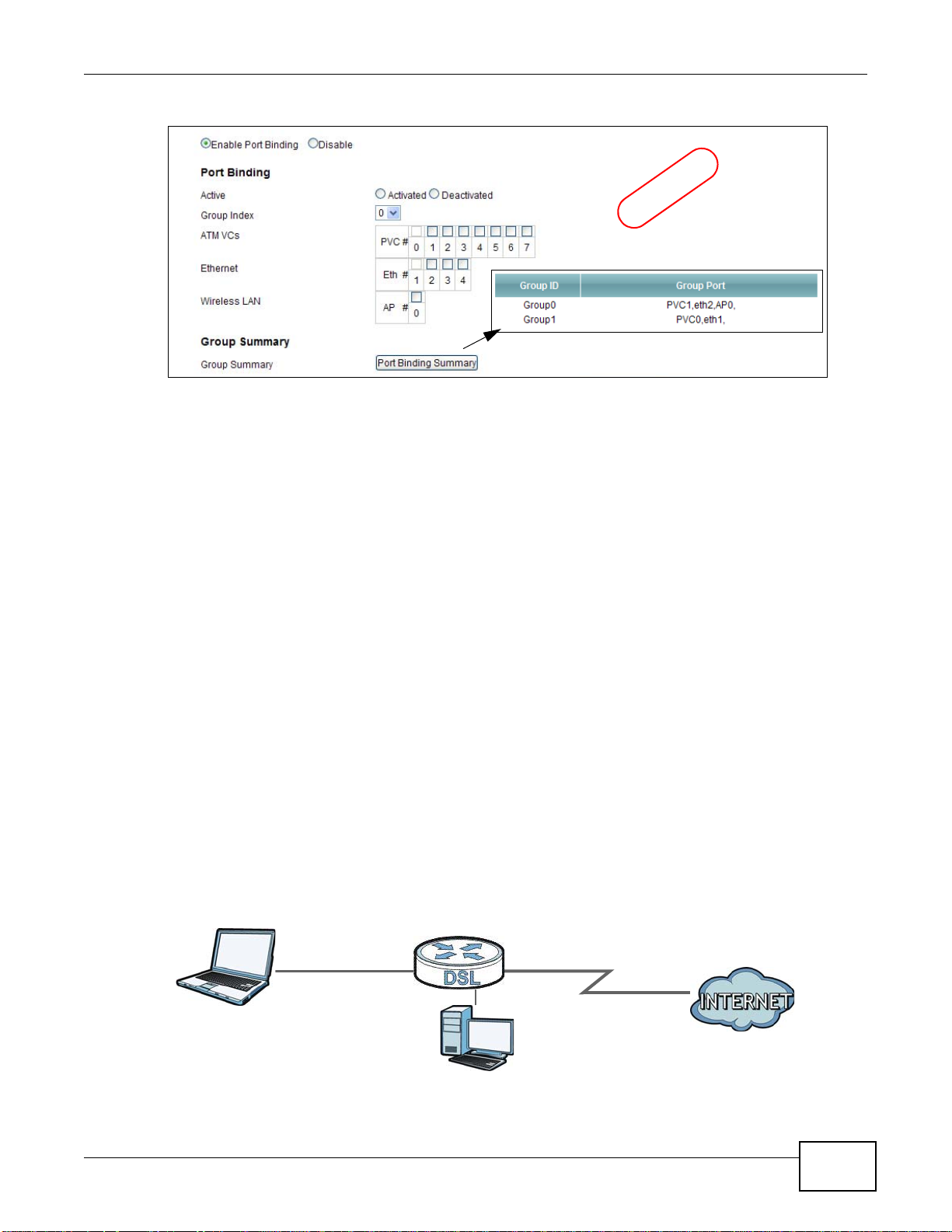

Port Binding ......................................................................................................................................161
12.1 Overview .......................................................................................................................................161
12.1.1 What You Can Do in the Port Binding Screens ...................................................................162
12.2 The Port Binding General Screen .................................................................................................162
12.3 The Port Binding Screen ...............................................................................................................162
12.3.1 Port Binding Summary Screen ............................................................................................163
Chapter 13
Dynamic DNS Setup .........................................................................................................................165
13.1 Overview .......................................................................................................................................165
13.1.1 What You Can Do in the DDNS Screen ...............................................................................165
13.1.2 What You Need To Know About DDNS ...............................................................................165
13.2 The Dynamic DNS Screen ................ ... ... ... .... .......................................... ... ... ... .... ... ... ... ... ............165
Chapter 14
Filters.................................................................................................................................................167
14.1 Overview ......................................................................................................................................167
14.1.1 What You Can Do in the Filter Screens ...............................................................................167
14.1.2 What You Need to Know About Filtering .............................................................................167
14.2 The IP/MAC Filter Screen .............................................................................................................167
14.3 IPv6/MAC Filter .............................................................................................................................170
Chapter 15
Firewall .............................................................................................................................................. 173
15.1 Overview .......................................................................................................................................173
15.1.1 What You Can Do in the Firewall Screens ...........................................................................173
15.1.2 What You Need to Know About Firewall ..............................................................................174
15.2 The Firewall General Screen ........................................................................................................175
15.3 The Default Action Screen ................................................................ ... .... ... ... ... .... ... ... ... ...............176
15.4 The Rules Screen .........................................................................................................................178
AMG1302/AMG1202-TSeries User’s Guide
9
Table of Contents
15.4.1 The Rules Add Screen ........................................................................................................179
15.4.2 Customized Services ..........................................................................................................181
15.4.3 Customized Service Add/Edit .................................................... .........................................182
15.5 The DoS Screen ............................................................................................................................184
15.5.1 The DoS Advanced Screen .................................................................................................184
15.5.2 Configuring Firewall Thresholds ..........................................................................................185
15.6 Firewall Technical Reference ........................................................................................................186
15.6.1 Firewall Rules Overview ......................................................................................................186
15.6.2 Guidelines For Enhancing Security With Your Firewall .......................................................187
15.6.3 Security Considerations ........................... ....................... ...................... ....................... ........188
15.6.4 Triangle Route .....................................................................................................................188
Chapter 16
Parental Control................................................................................................................................191
16.1 Overview .......................................................................................................................................191
16.2 The Parental Control Screen ............................. ............. ............. ............. ............. ............ ............191
16.2.1 Add/Edit Parental Control Rule ....................................................... .....................................192
Chapter 17
Certificate..........................................................................................................................................195
17.1 Overview .......................................................................................................................................195
17.1.1 What You Can Do in this Chapter ........................................................................................195
17.2 What You Need to Know ...............................................................................................................195
17.3 Local Certificates ..................................... ... .... ... ... ... .... ... ... ... .... .....................................................195
17.4 The Trusted CA Screen ................................................................................................................197
17.5 Trusted CA Import .......................................................................................................................197
17.6 View Certificate .............................................................................................................................198
Chapter 18
Logs ..................................................................................................................................................201
18.1 Overview ......................................................................................................................................201
18.1.1 What You Can Do in this Chapter ........................................................................................201
18.1.2 What You Need To Know ............................................................ .........................................201
18.2 The System Log Screen ................................................................................................................202
Chapter 19
Traffic Status.....................................................................................................................................203
19.1 Overview .......................................................................................................................................203
19.1.1 What You Can Do in this Chapter ........................................................................................203
19.2 The WAN Status Screen ...............................................................................................................203
19.3 The LAN Status Screen .................................................................................................................204
19.4 The NAT Screen ............................. ... ... .......................................... ... ... .... .....................................205
10
AMG1302/AMG1202-TSeries User’s Guide
Table of Contents
Chapter 20
User Account ....................................................................................................................................207
20.1 Overview .......................................................................................................................................207
20.2 The User Account Screen .............. ... ... ... ... .......................................... .... ... ... ... .... ... ... ... ... ............207
Chapter 21
TR-069 Client.....................................................................................................................................209
21.1 Overview .......................................................................................................................................209
21.2 The TR-069 Client Screen ............................................................................................................209
Chapter 22
System Settings................................................................................................................................213
22.1 Overview .......................................................................................................................................213
22.1.1 What You Can Do in the System Settings Screens .............................................................213
22.2 The System Screen .................... .... ... ... ....................................... ... ... ... .... ... ... ... ............................213
22.3 The Time Screen ..........................................................................................................................213
Chapter 23
Firmware Upgrade ............................................................................................................................217
23.1 Overview .......................................................................................................................................217
23.2 The Firmware Screen ....................................................................................................................217
Chapter 24
Backup/Restore ................................................................................................................................219
24.1 Overview .......................................................................................................................................219
24.2 The Backup/Restore Screen .........................................................................................................219
24.3 The Reboot Screen .......................................................................................................................221
Chapter 25
Remote Management........................................................................................................................223
25.1 Overview .......................................................................................................................................223
25.1.1 What You Can Do in the Remote Management Screens ....................................................223
25.1.2 What You Need to Know About Remote Management ........................................................224
25.2 The WWW Screen ........................................................................................................................224
25.2.1 Configuring the WWW Screen ........................... ...................... ....................... .....................224
25.3 The Telnet Screen .........................................................................................................................226
25.4 The FTP Screen ......... ... .... .......................................... ... ... ... .... ... ... ... ............................................226
25.5 The SNMP Screen ........................................................................................................................227
25.5.1 Configuring SNMP ...............................................................................................................228
25.6 The DNS Screen .................... ... .... ... .......................................... ... ... ... .... ... ... ... ............................230
25.7 The ICMP Screen ..........................................................................................................................230
25.8 The SSH Screen ...........................................................................................................................231
25.8.1 SSH Example ......................................................................................................................232
AMG1302/AMG1202-TSeries User’s Guide
11
Table of Contents
Chapter 26
Diagnostic .........................................................................................................................................235
26.1 Overview .......................................................................................................................................235
26.1.1 What You Can Do in the Diagnostic Screens ......................................................................235
26.2 The General Screen ......................................................................................................................235
26.3 The DSL Line Screen ....................................................................................................................236
Chapter 27
Troubleshooting................................................................................................................................239
27.1 Power, Hardware Connections, and LEDs ........................ ... .... ... ... ... ............................................239
27.2 AMG1302/AMG1202-TSeries Access and Login ..........................................................................240
27.3 Internet Access .............................................................................................................................242
Appendix A Setting up Your Computer’s IP Address.......................................................................245
Appendix B IP Addresses and Subnetting.......................................................................................265
Appendix C Pop-up Windows, JavaScripts and Java Permissions.................................................273
Appendix D Wireless LANs..............................................................................................................281
Appendix E IPv6..............................................................................................................................295
Appendix F Services........................................................................................................................305
Appendix G Legal Information.........................................................................................................309
Index ..................................................................................................................................................313
12
AMG1302/AMG1202-TSeries User’s Guide
PART I
User’s Guide
13
14
1.1 Overview
The AMG1302/AMG1202-TSeries are ADSL2+ routers. By integrating DSL and NAT, you are
provided with ease of installation and high-speed, shared Internet access. The AMG1302/
AMG1202-TSeries are also a complete security solution with a robust firewall and content filtering.
Only use firmware for your AMG1302/AMG1202-TSeries’s specific model.
Refer to the label on the bottom of your AMG1302/AMG1202-TSeries.
Note: Not all models have all of the features shown in this User’s Guide.
CHAPTER 1
Introduction
1.2 Ways to Manage the AMG1302/AMG1202-TSeries
Use any of the following methods to manage the AMG1302/AMG1202-TSeries.
• Web Configurator. This is recommended for everyday management of the AMG1302/AMG1202TSeries using a (supported) web browser.
• Command Line Interface. Line commands are mostly used for troubleshooting by service
engineers.
• FTP for firmware upgrades and configuration backup/restore.
• TR-069. This is an auto-configuration server used to remotely configure your device.
1.3 Good Habits for Managing the AMG1302/AMG1202TSeries
Do the following things regularly to make the AMG1302/AMG1202-TSeries more secure and to
manage the AMG1302/AMG1202-TSeries more effectively.
• Change the password. Use a password that’s not easy to guess and that consists of different
types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an earlier
working configuration may be useful if the device becomes unstable or even crashes. If you
forget your password, you will have to reset the AMG1302/AMG1202-TSeries to its factory
default settings. If you backed up an earlier configuration file, you would not have to totally reconfigure the AMG1302/AMG1202-TSeries. You could simply restore your last configuration.
AMG1302/AMG1202-TSeries User’s Guide 15
Chapter 1 Introduction
DSL
LAN WAN
1.4 Applications for the AMG1302/AMG1202-TSeries
Here are some example uses for which the AMG1302/AMG1202-TSeries is well suited.
1.4.1 Internet Access
Your AMG1302/AMG1202-TSeries provides shared Internet access by connecting the DSL port to
the DSL or MODEM jack on a splitter or your telephone jack. Computers can connect to the
AMG1302/AMG1202-TSeries’s Ethernet ports (or wirelessly).
Figure 1 AMG1302/AMG1202-TSeries’s Router Features
You can also configure firewall and filtering feature on the AMG1302/AMG1202-TSeries for secure
Internet access. When the firewall is on, all incoming traffic from the Internet to your network is
blocked unless it is initiated from your network. This means that probes from the outside to your
network are not allowed, but you can safely browse the Internet and download files.
Use the filtering feature to block access to specific web sites or Internet applications such as MSN or
Yahoo Messenger. You can also configure IP/MAC filtering rules for incoming or outgoing traffic.
Use QoS to efficiently manage traffic on your network by giving priority to certain types of traffic
and/or to particular computers. For example, you could make sure that the AMG1302/AMG1202TSeries gives voice over Internet calls high priority, and/or limit bandwidth devoted to the boss’s
excessive file downloading.
1.4.2 Wireless Access
The ZyXEL Device is a wireless Access Point (AP) for IEEE 802.11b/g/n compliant clients, such as
notebook computers or PDAs and iPads. It allows them to connect to the Internet without having to
rely on inconvenient Ethernet cables. You can set up a wireless network with WPS (WiFi Protected
Setup) or manually add a client to your wireless network.
16
AMG1302/AMG1202-TSeries User’s Guide
Figure 2 Wireless Access Example
1.5 General Hardware Features
Figure 3 General Hardware Features
Chapter 1 Introduction
The following table describes the LEDs..
Table 1 LED Descriptions
LED COLOR STATUS DESCRIPTION
Green On The AMG1302/AMG1202-TSeries is receiving power and ready for
(POWER)
Red On The AMG1302/AMG1202-TSeries detected an error while self-
Ethernet 1-4 Green On The AMG1302/AMG1202-TSeries has an Ethernet connection with
AMG1302/AMG1202-TSeries User’s Guide
use.
Blinking The AMG1302/AMG1202-TSeries is self-testing.
testing, or there is a device malfunction.
Off The AMG1302/AMG1202-TSeries is not receiving power.
a device on the Local Area Network (LAN).
Blinking The AMG1302/AMG1202-TSeries is sending/receiving data to /
from the LAN.
Off The AMG1302/AMG1202-TSeries does not have an Ethernet
connection with the LAN.
17
Chapter 1 Introduction
WPS
Table 1 LED Descriptions
LED COLOR STATUS DESCRIPTION
(WPS/WLAN)
(DSL)
(INTERNET)
Green On The wireless network is activated.
Blinking The AMG1302/AMG1202-TSeries is communicating with other
wireless clients.
Green Blinking The AMG1302/AMG1202-TSeries is setting up a WPS connection.
Off The wireless network is not activated.
Green On The DSL line is up.
Blinking The AMG1302/AMG1202-TSeries is initializing the DSL line.
Off The DSL line is down.
Green On The AMG1302/AMG1202-TSeries has an IP connection but no
traffic.
Your device has a WAN IP address (either static or assigned by a
DHCP server), PPP negotiation was successfully completed (if
used) and the DSL connection is up.
Blinking The AMG1302/AMG1202-TSeries is sending or receiving IP traffic.
Red On The AMG1302/AMG1202-TSeries attempted to make an IP
connection but failed. Possible causes are no response from a
DHCP server, no PPPoE response, PPPoE authentication failed.
Off The AMG1302/AMG1202-TSeries does not have an IP connection.
1.6 Using the WPS Button
You can also use the WPS button to quickly set up a secure wireless connection between the
AMG1302/AMG1202-TSeries and a WPS-compatible client by adding one device at a time.
To activate WPS:
1 Make sure the POWER LED is on and not blinking.
2 Press the WPS button for 1-5 seconds and release it. See below for WPS button location.
3 Press the WPS button on another WPS-enabled device within range of the AMG1302/AMG1202-
TSeries. The WPS LED should flash while the AMG1302/AMG1202-TSeries sets up a WPS
connection with the other wireless device.
4 Once the connection is successfully made, the WPS LED shines green.
18
AMG1302/AMG1202-TSeries User’s Guide
Chapter 1 Introduction
1.7 The RESET Button
If you forget your password or cannot access the web configurator, you will need to use the RESET
button at the back of the device to reload the factory-default configuration file. This means that you
will lose all configurations that you had previously and the user name and password will be reset to
the default.
1.7.1 Using the Reset Button
1 Make sure the POWER LED is on (not blinking).
2 To set the device back to the factory default settings, press the RESET button for ten seconds or
until the POWER LED begins to blink and then release it. When the POWER LED begins to blink,
the defaults have been restored and the device restarts.
1.8 W ays to Manage the AMG1302/AMG1202-TSeries
Use any of the following methods to manage the AMG1302/AMG1202-TSeries.
• Web Configurator. This is recommended for everyday management of the AMG1302/AMG1202TSeries using a (supported) web browser.
• FTP for firmware upgrades and configuration backup/restore.
AMG1302/AMG1202-TSeries User’s Guide
19
Chapter 1 Introduction
20
AMG1302/AMG1202-TSeries User’s Guide
2.1 Overview
The web configurator is an HTML-based management interface that allows easy device setup and
management via Internet browser. Use Internet Explorer 6.0 and later versions, Mozilla Firefox 3
and later versions, or Safari 2.0 and later versions. The recommended screen resolution is 1024 by
768 pixels.
In order to use the web configurator, you need to allow:
• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in
Windows XP SP (Service Pack) 2.
• JavaScript (enabled by default).
• Java permissions (enabled by default).
CHAPTER 2
Introducing the Web Configurator
See Appendix C on page 273 if you need to make sure these functions are allowed in Internet
Explorer.
2.1.1 Accessing the Web Configurator
1 Make sure your AMG1302/AMG1202-TSeries hardware is properly connected (refer to the Quick
Start Guide).
2 Launch your web browser.
3 Type "192.168.1.1" as the URL.
4 A password screen displays. Type “admin” (default) as the username and “1234” as the password,
and click Login. If you have changed the password, enter your password and click Login.
Figure 4 Password Screen
AMG1302/AMG1202-TSeries User’s Guide 21
Chapter 2 Introdu cing the Web Configurator
Note: For security reasons, the AMG1302/AMG1202-TSeries automatically logs you out if
you do not use the web configurator for five minutes (default). If this happens, log
in again.
5 The following screen displays if you have not yet changed your password. It is strongly
recommended you change the default password. Enter a new password, retype it to confirm and
click Apply; alternatively click Skip to proceed to the Connection Status screen if you do not want
to change the password now.
Figure 5 Change Password Screen
6 The Connection Status screen appears.
Figure 6 Connection Status
7 Click System Info to display the System Info screen, where you can view the AMG1302/
AMG1202-TSeries’s interface and system information.
22
AMG1302/AMG1202-TSeries User’s Guide
2.2 The Web Configurator Layout
A
B
C
Click Connection Status > System Info to show the following screen.
Figure 7 Web Configurator Layout Screen
Chapter 2 Introducing the Web Configurator
AMG1302/AMG1202-TSeries User’s Guide
23
Chapter 2 Introdu cing the Web Configurator
As illustrated above, the main screen is divided into these parts:
• A - title bar
• B - main window
• C - navigation panel
2.2.1 Title Bar
The title bar shows the following icon in the upper right corner.
Click this icon to log out of the web configurator.
24
AMG1302/AMG1202-TSeries User’s Guide
2.2.2 Main Window
The main window displays information and configuration fields. It is discussed in the rest of this
document.
After you click System Info on the Connection Status screen, the System Info screen is
displayed. See Chapter 5 on page 68 for more information about the System Info screen.
If you click LAN Device on the System Info screen, the Connection Status screen appears. See
Chapter 5 on page 67 for more information about the Connection Status screen.
If you click Virtual Device on the System Info screen, a visual graphic appears, showing the
connection status of the AMG1302/AMG1202-TSeries’s ports. The connected ports are in color and
disconnected ports are gray.
2.2.3 Navigation Panel
Use the menu items on the navigation panel to open screens to configure AMG1302/AMG1202TSeries features. The following table describes each menu item.
Table 2 Navigation Panel Summary
LINK TAB FUNCTION
Connection Status This screen shows the network status of the AMG1302/AMG1202-
Network Setting
Broadband Internet
Wireless General Use this screen to turn the wireless connection on or off, specify
Chapter 2 Introducing the Web Configurator
TSeries and computers/devices connected to it.

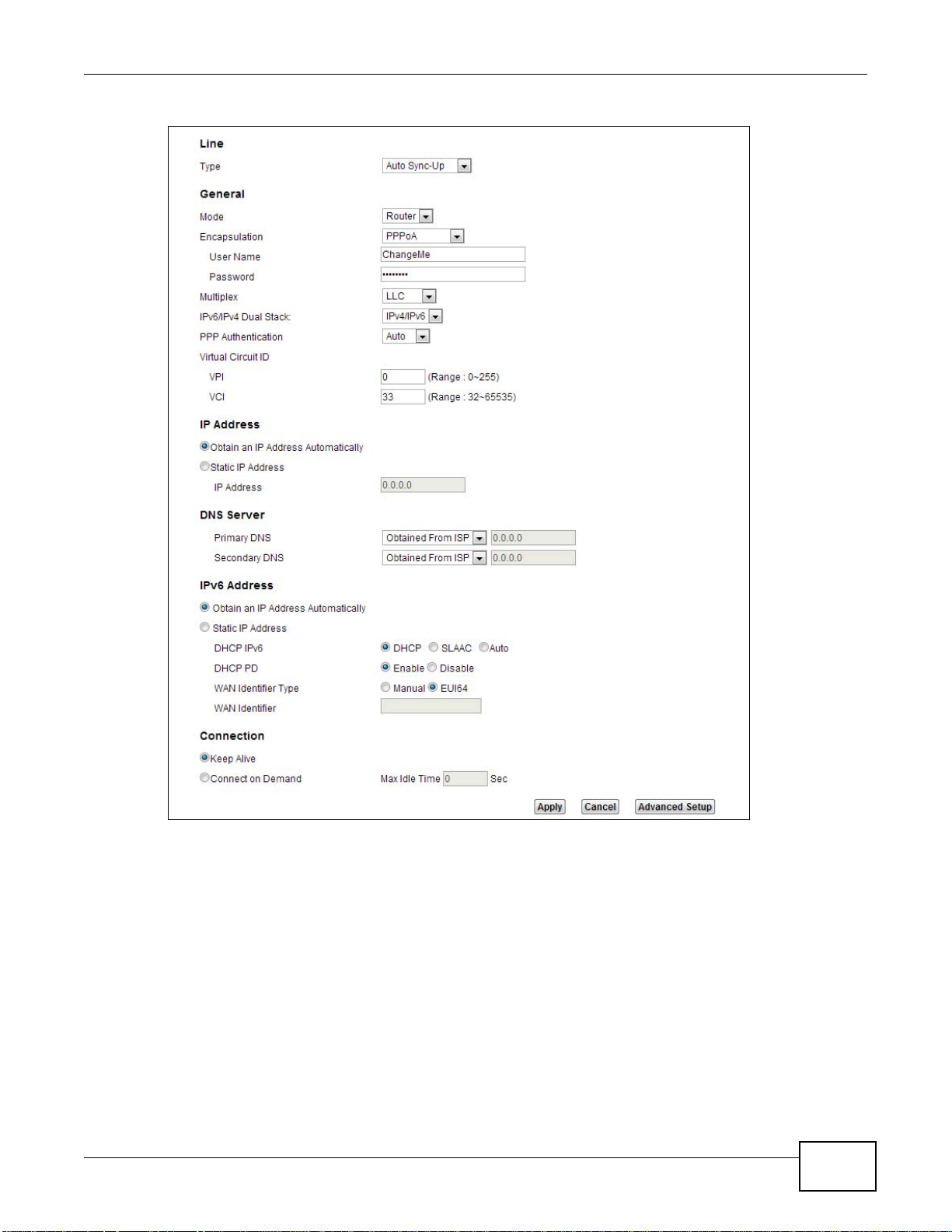

Use this screen to configure ISP parameters, WAN IP address
Connection
More Connections Use this screen to configure additional WAN connections.
More AP Use this screen to configure multiple BSSs on the AMG1302/
MAC
Authentication
WPS Use this screen to use WPS (Wi-Fi Protected Setup) to establish a
WDS
WMM Use this screen to enable or disable Wi-Fi MultiMedia (WMM).
Scheduling Use this screen to configure when the AMG1302/AMG1202-
Advanced Use this screen to configure advanced wireless settings such as
assignment, DNS servers and other advanced properties.
the SSID(s) and configure the wireless LAN settings and WLAN
authentication/security settings.
AMG1202-TSeries.

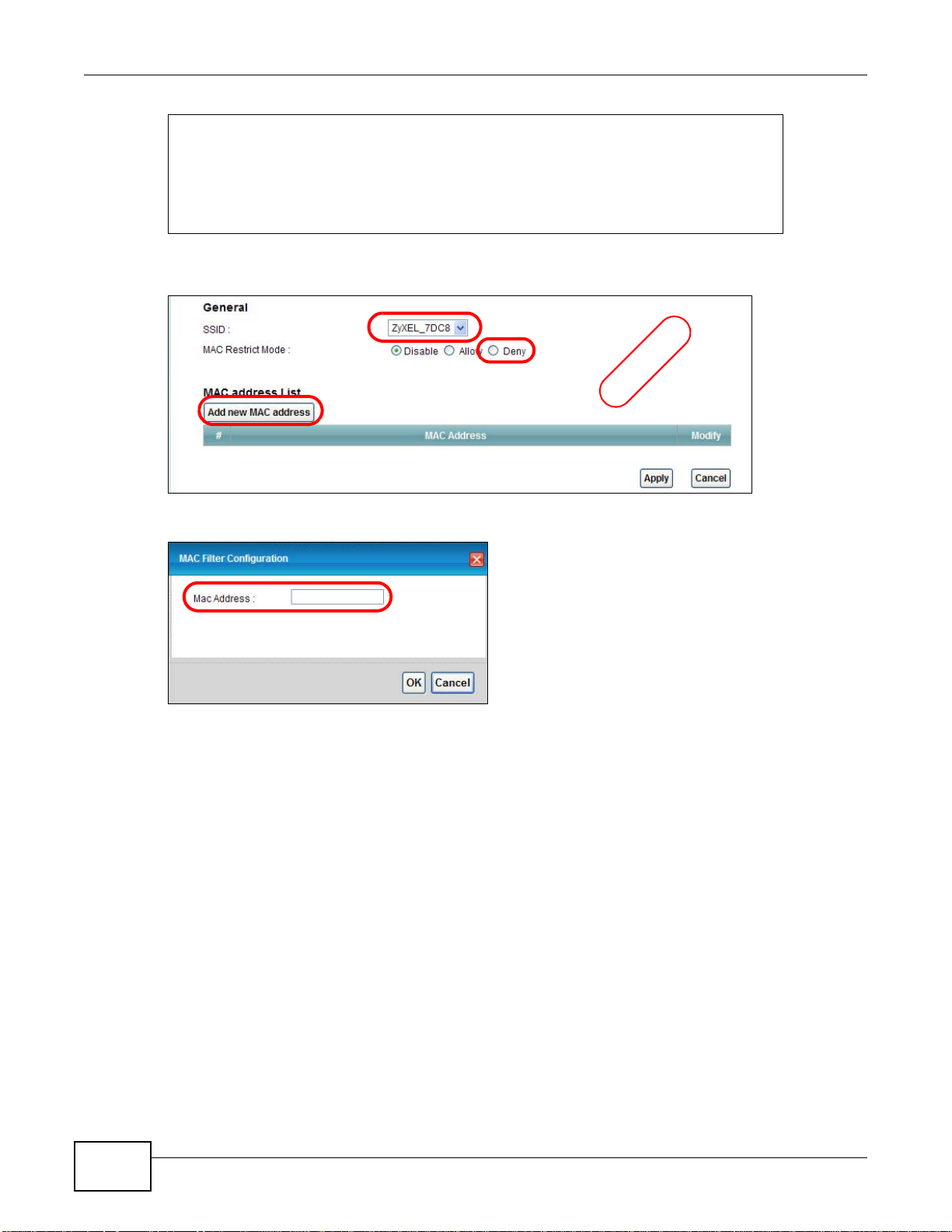

Use this screen to block or allow wireless traffic from wireless
devices of certain SSIDs and MAC addresses to the AMG1302/
AMG1202-TSeries.
wireless connection.
Use this screen to set up Wireless Distribution System (WDS) links
to other access points.
TSeries enables or disables the wireless LAN.
output power.
AMG1302/AMG1202-TSeries User’s Guide
25
Chapter 2 Introdu cing the Web Configurator
Table 2 Navigation Panel Summary
LINK TAB FUNCTION
Home
Networking

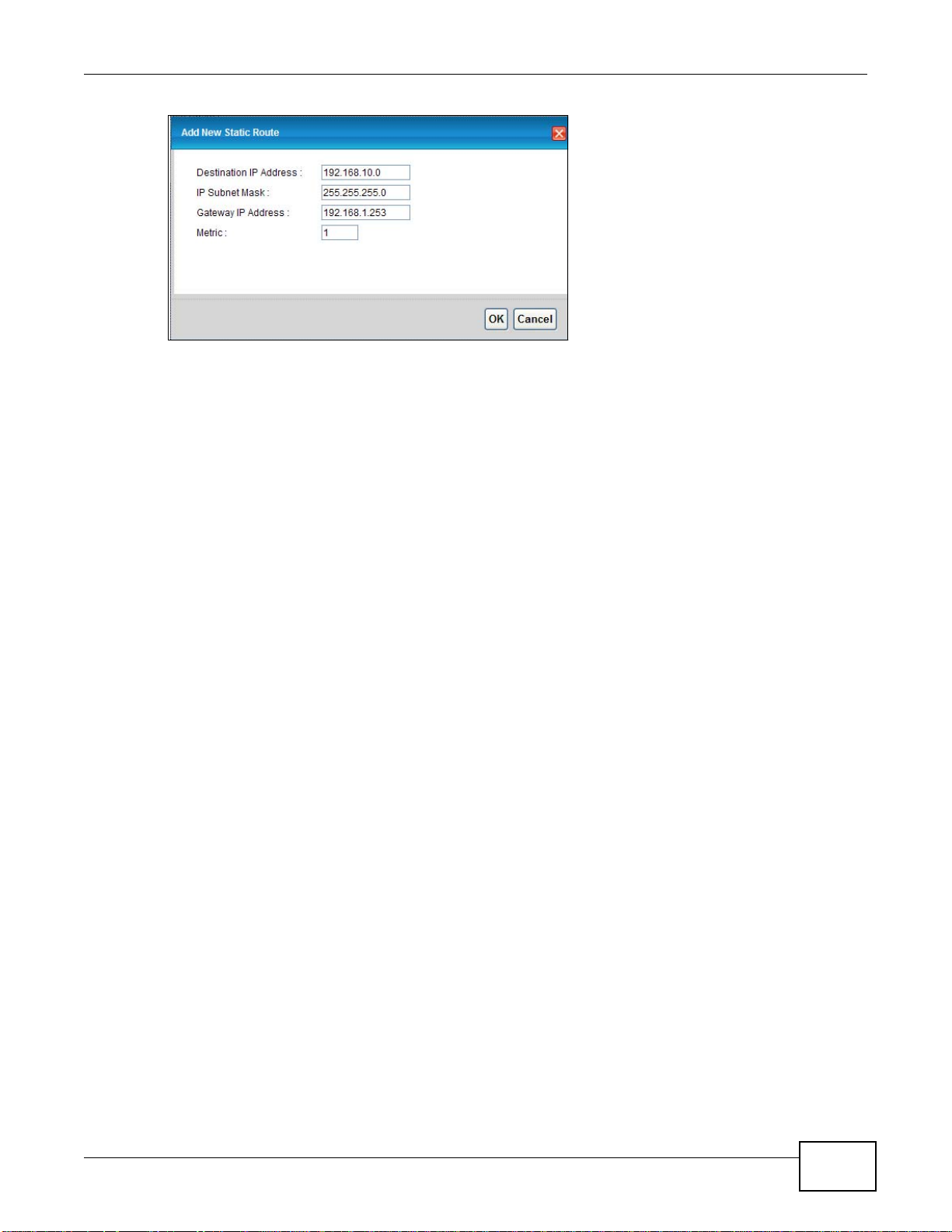

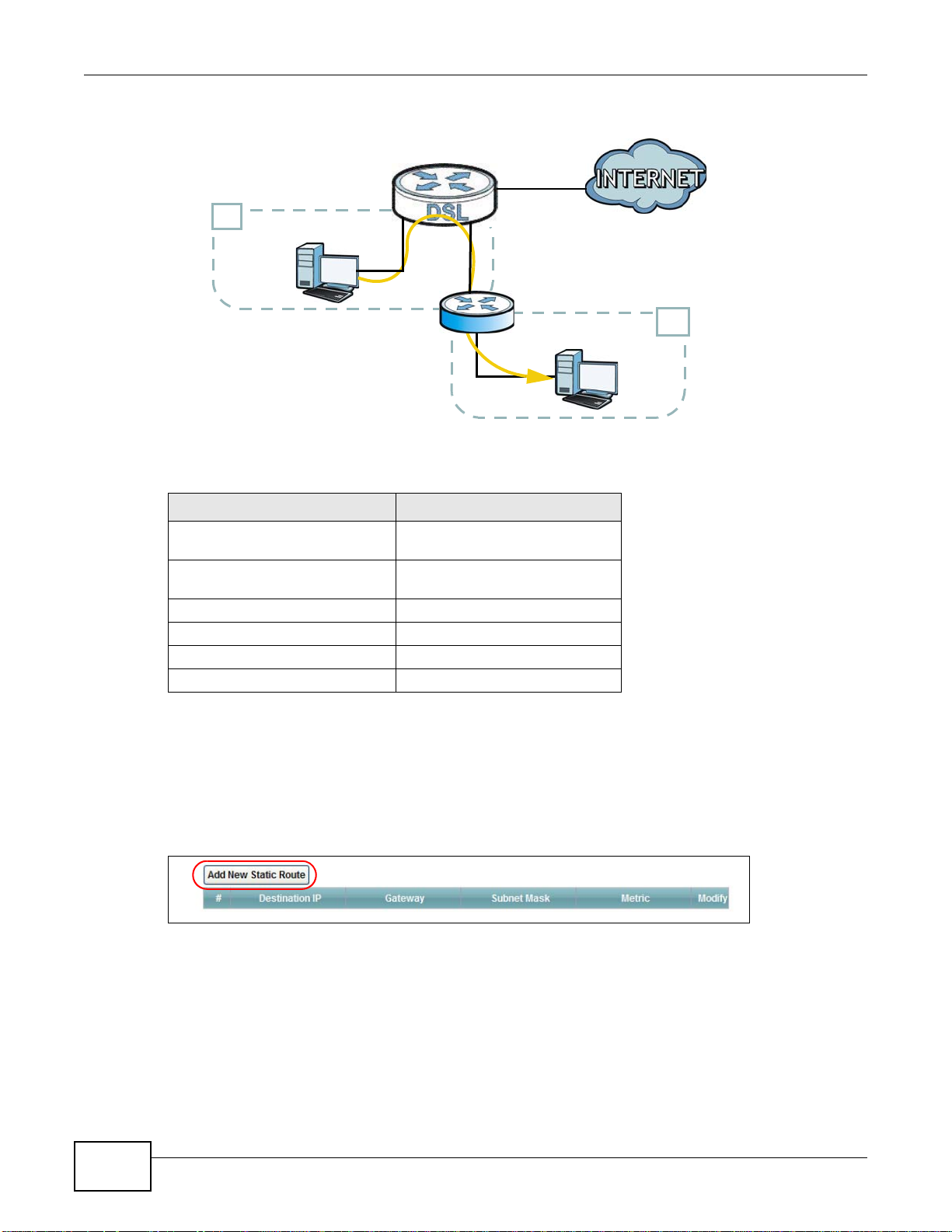

Static Route Static Route Use this screen to view and set up static routes on the AMG1302/
QoS General Use this screen to enable QoS and decide allowable bandwidth
NAT General Use this screen to activate/deactivate NAT.
Port Binding General Use this screen to activate/deactivate port binding.
Dynamic DNS Dynamic DNS Use this screen to allow a static hostname alias for a dynamic IP
Security
Filter IP/MAC Filter
Firewall General Use this screen to activate/deactivate the firewall.
Parental Control Parental Control
LAN Setup Use this screen to configure LAN TCP/IP settings, and other
Static DHCP Use this screen to assign specific IP addresses to individual MAC
IP Alias Use this screen to partition your LAN interface into different logical
UPnP Use this screen to enable the UPnP function.
IPv6 LAN Setup
IPv6 Static Route Use this screen to configure IPv6 static routes.
Queue
Class Setup Use this screen to set up classifiers to sort traffic into different
Game List
Port Forwarding Use this screen to make your local servers visible to the outside
DMZ
Port Binding Use this screen to configure and view port binding groups.
IPv6/MAC Filter
Default Action
Rules
Dos
advanced properties.
addresses.
networks.
Use this screen to configure the IPv6 settings on the AMG1302/
AMG1202-TSeries’s LAN interface.
AMG1202-TSeries.
using QoS.
Use this screen to configure QoS queue assignment.
flows and assign priority and define actions to be performed for a
classified traffic flow.
Use this screen to give priority to traffic for specific games.
world.
Use this screen to configure a default server which receives
packets from ports that are not specified in the Port Forwarding
screen.
address.
Use this screen to configure IPv4/MAC filtering rules for incoming
or outgoing traffic.
Use this screen to configure IPv6/MAC filtering rules for incoming
or outgoing traffic.
Use this screen to set the default action that the firewall takes on
packets that do not match any of the firewall rules.
Use this screen to view the configured firewall rules and add, edit
or remove a firewall rule.
Use this screen to set the thresholds that the AMG1302/
AMG1202-TSeries uses to determine when to start dropping
sessions that are not fully established (half-open sessions).
Use this screen to define time periods and days during which the
AMG1302/AMG1202-TSeries performs parental control and/or
block web sites with the specific URL.
26
AMG1302/AMG1202-TSeries User’s Guide
Chapter 2 Introducing the Web Configurator
Table 2 Navigation Panel Summary
LINK TAB FUNCTION
Certificates Local Certificates Use this screen to export self-signed certificates or certification
requests and import the AMG1302/AMG1202-TSeries’s CA-signed
certificates.
Trusted CA Use this screen to save CA certificates to the AMG1302/AMG1202-
System Monitor
Log Log
Traffic Status WAN Use this screen to view the status of all network traffic going
LAN Use this screen to view the status of all network traffic going
NAT Use this screen to view the status of NAT sessions on the
Maintenance
Users Account Users Account Use this screen to configure the passwords your user accounts.
TR-069 Client TR-069 Client
System System Use this screen to configure management inactivity time-out
Time Time Setting Use this screen to change your AMG1302/AMG1202-TSeries’s time
Log Setting Log Setting Use this screen to select which logs and/or immediate alerts your
Firmware
Upgrade
Backup/Restore Backup/Restore Use this screen to backup and restore your device’s configuration
Reboot Reboot Use this screen to reboot the AMG1302/AMG1202-TSeries without
Remote MGMT WWW, Telnet, FTP,
Diagnostic Ping Use this screen to test the connections to other devices.
Firmware Upgrade Use this screen to upload firmware to your device.
SNMP, DNS, ICMP,
SSH
DSL Line Use this screen to identify problems with the DSL connection.
TSeries.
Use this screen to view the logs for the level that you selected.
You can export or e-mail the logs.
through the WAN port of the AMG1302/AMG1202-TSeries.
through the LAN ports of the AMG1302/AMG1202-TSeries.
AMG1302/AMG1202-TSeries.
Use this screen to configure the AMG1302/AMG1202-TSeries to be
managed by an Auto Configuration Server (ACS).
setting.
and date.
device is to record. You can also set it to e-mail the logs to you.
(settings) or reset the factory default settings.
turning the power off.
Use this screen to enable specific traffic directions for specific
network service.
AMG1302/AMG1202-TSeries User’s Guide
27
Chapter 2 Introdu cing the Web Configurator
28
AMG1302/AMG1202-TSeries User’s Guide
CHAPTER 3
Internet / Wireless Setup Wizard
3.1 Overview
Use the wizard setup screens to configure your system for Internet access with the
information given to you by your ISP.
Note: See the advanced menu chapters for background information on these fields.
3.2 Internet / Wireless Wizard Setup
1 After you enter the password to access the web configurator, click the Wizard icon ( ) in
the top right corner of the web configurator to go to the Wizard.
2 Click INTERNET/WIRELESS SETUP to configure the system for Internet access and
wireless connection.
AMG1302/AMG1202-TSeries User’s Guide 29
Chapter 3 Internet / Wireless Setup Wizard
3 Select your Time Zone from the drop-down menu, and click Next.
Figure 8 Wizard Welcome
Enter your Internet access information in the wizard screen exactly as your service
provider gave it to you. Leave the defaults in any fields for which you were not given
information.
4 Configure the field and click Next to continue. See Section 3.2 on page 29 for wireless
connection wizard setup.

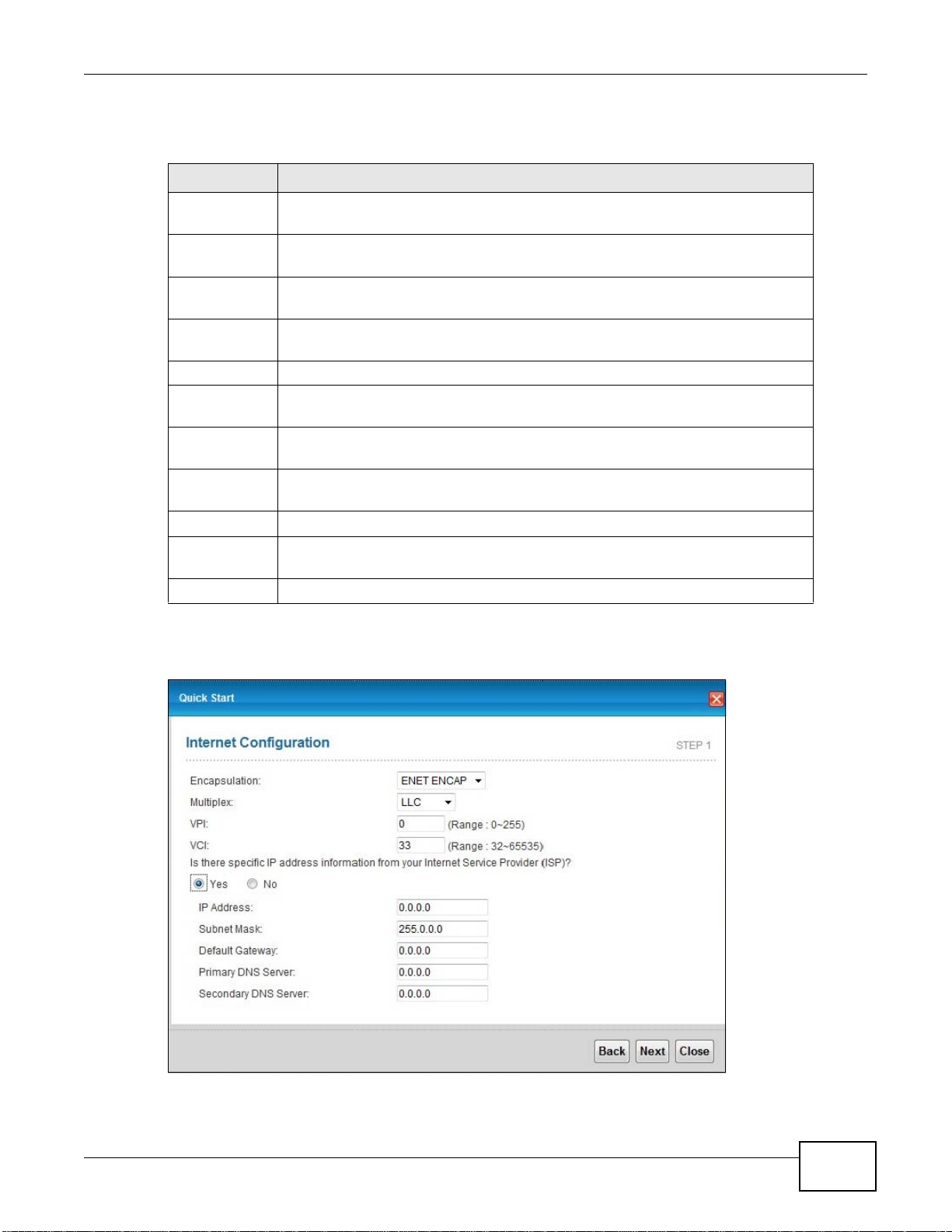

Figure 9 Internet Access Wizard Setup: IPoA Configuration
30
AMG1302/AMG1202-TSeries User’s Guide
