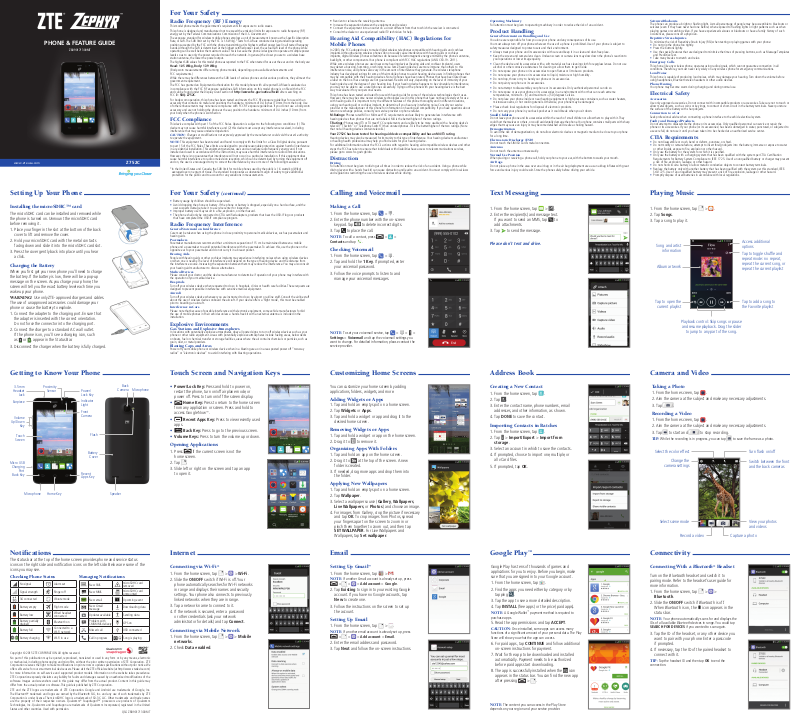

ZTE Z752C, Zephyr User Manual

www.zteusa.com

PHONE & FEATURE GUIDE

Z8090171300MT

Z752C

For Your Safety

Radio Frequency (RF) Energy

This model phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)

energy set by the Federal Communications Commission of the U.S. Government: The exposure standard for wireless mobile phones employs a unit of measurement known as the Speciﬁc Absorption

Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certiﬁed power level in all tested frequency bands. Although the SAR is determined at the highest certiﬁed power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

The highest SAR values for this model phone as reported to the FCC when tested for use at the ear and on the body are: Head: 1.05 W/kg, Body: 1.39 W/kg (Body-worn measurements differ among phone models, depending upon available enhancements and

FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the

government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as

in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on ﬁle with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/ea/fccid/ after searching on FCC ID: SRQ-Z752C.

For body-worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and positions the handset a minimum of 0.4 inches (10 mm) from the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 0.4 inches (10 mm) from your body when the phone is switched on.

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modiﬁcations not expressly approved by the manufacturer could void the user’s authority

to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg)

averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements.

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Hearing Aid Compatibility (HAC) Regulations for Mobile Phones

In 2003, the FCC adopted rules to make digital wireless telephones compatible with hearing aids and cochlear implants. Although analog wireless phones do not usually cause interference with hearing aids or cochlear implants, digital wireless phones sometimes do because of electromagnetic energy emitted by the phone’s antenna, backlight, or other components. Your phone is compliant with FCC HAC regulations (ANSI C63.19- 2011).

While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed ratings for some of their mobile phones to assist hearing device users in ﬁnding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that have been rated have a label on the box. These ratings are not guaranteed. Results will vary, depending on the level of immunity of your hearing device and the degree of your hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference with hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices contain telecoils.)

Your Z752C has been tested for hearing aid device compatibility and has an M4/T3 rating. Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer

or hearing health professional may help you ﬁnd results for your hearing device. For additional information about the FCC’s actions with regard to hearing aid compatible wireless devices and other

steps the FCC has taken to ensure that individuals with disabilities have access to telecommunications services, please go to www.fcc.gov/cgb/dro.

Distraction

Driving

Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) can cause distraction and lead to an accident. You must comply with local laws and regulations restricting the use of wireless devices while driving.

Operating Machinery

Full attention must be given to operating machinery in order to reduce the risk of an accident.

Product Handling

General Statement on Handling and Use

You alone are responsible for how you use your phone and any consequences of its use. You must always turn off your phone wherever the use of a phone is prohibited. Use of your phone is subject to

safety measures designed to protect users and their environment.

• Always treat your phone and its accessories with care and keep it in a clean and dust-free place.

• Keep the screen and camera lens clean. Unclean screen or camera lens may slow down the phone’s reaction to

your operations or lower image quality.

• Clean the device and its accessories with a soft material such as cleaning cloth for eyeglass lenses. Do not use

alcohol or other corrosive substances for cleaning or allow them to get inside.

• Do not expose your phone or its accessories to open ﬂames or lit tobacco products.

• Do not expose your phone or its accessories to liquid, moisture or high humidity.

• Do not drop, throw or try to bend your phone or its accessories.

• Do not paint your phone or its accessories.

• Do not attempt to disassemble your phone or its accessories. Only authorized personnel can do so.

• Do not expose or use your phone or its accessories in an environment with or that can reach extreme

temperatures, minimum - [5] and maximum + [50] degrees Celsius.

• Do not place your phone inside or near heating equipment or high-pressure containers, such as water heaters,

microwave ovens, or hot cooking utensils. Otherwise, your phone may be damaged.

• Please check local regulations for disposal of electronic products.

• Do not carry your phone in your back pocket as it could break when you sit down.

Small Children

Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the phone. Your phone contains small parts with sharp edges that may cause an injury or may become detached and create a choking hazard

Demagnetization

To avoid the risk of demagnetization, do not allow electronic devices or magnetic media to be close to your phone for a long time.

Electrostatic Discharge (ESD)

Do not touch the SIM/SD card’s metal connectors.

Antenna

Do not touch the antenna unnecessarily.

Normal Use Position

When placing or receiving a phone call, hold your phone to your ear, with the bottom towards your mouth.

Air Bags

Do not place a phone in the area over an air bag or in the air bag deployment area as an airbag inﬂates with great force and serious injury could result. Store the phone safely before driving your vehicle.

Seizures/Blackouts

The phone can produce a bright or ﬂashing light. A small percentage of people may be susceptible to blackouts or seizures (even if they have never had one before) when exposed to ﬂashing lights or light patterns such as when playing games or watching video. If you have experienced seizures or blackouts or have a family history of such occurrences, please consult a physician.

Repetitive Stress Injuries

To minimize the risk of Repetitive Strain Injury (RSI) when texting or playing games with your phone:

• Do not grip the phone too tightly.

• Press the buttons lightly.

• Use the special features that are designed to minimize the times of pressing buttons, such as Message Templates

and Predictive Text.

• Take many breaks to stretch and relax.

Emergency Calls

This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless phone for emergency communications.

Loud Noise

This phone is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth stereo headsets or other audio devices.

Phone Heating

Your phone may become warm during charging and during normal use.

Electrical Safety

Accessories

Use only approved accessories. Do not connect with incompatible products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit in the battery terminals. Never puncture the surface of the battery with sharp objects.

Connection to a Car

Seek professional advice when connecting a phone interface to the vehicle electrical system.

Faulty and Damaged Products

Do not attempt to disassemble the phone or its accessories. Only qualiﬁed personnel can service or repair the phone or its accessories. If your phone (or its accessories) has been submerged in water, punctured, or subjected to a severe fall, do not use it until you have taken it to be checked at an authorized service center.

CTIA Requirements

• Do not disassemble or crush, bend or deform, puncture, or shred.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water

or other liquids, expose to ﬁre, explosion or other hazard.

• Only use the battery for the system for which it is speciﬁed.

• Only use the battery with a charging system that has been qualiﬁed with the system per CTIA Certiﬁcation

Requirements for Battery System Compliance to IEEE 1725. Use of an unqualiﬁed battery or charger may present a risk of ﬁre, explosion, leakage, or other hazard.

• Do not short-circuit a battery or allow metallic conductive objects to contact battery terminals.

• Replace the battery only with another battery that has been qualiﬁed with the system per this standard, IEEE-

Std-1725. Use of an unqualiﬁed battery may present a risk of ﬁre, explosion, leakage or other hazard.

• Promptly dispose of used batteries in accordance with local regulations.

Setting Up Your Phone

Installing the microSDHC™ card

The microSDHC card can be installed and removed while the phone is turned on. Unmount the microSDHC card before removing it.

1. Place your ﬁnger in the slot at the bottom of the back cover to lift and remove the cover.

2. Hold your microSDHC card with the metal contacts facing down and slide it into the microSDHC card slot.

3. Press the cover gently back into place until you hear a click.

Charging the Battery

When you ﬁrst get your new phone you’ll need to charge the battery. If the battery is low, there will be a pop-up message on the screen. As you charge your phone, the screen will tell you the exact battery level each time you wake up your phone.

WARNING! Use only ZTE-approved chargers and cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

1. Connect the adapter to the charging port. Ensure that the adapter is inserted with the correct orientation. Do not force the connector into the charging port.

2. Connect the charger to a standard AC wall outlet. If the phone is on, you’ll see a charging icon, such as or , appear in the Status Bar.

3. Disconnect the charger when the battery is fully charged.

• Battery usage by children should be supervised.

• Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the

user suspects damage, take it to a service center for inspection.

• Improper battery use may result in a ﬁre, explosion, or other hazard.

• The phone shall only be connected to CTIA certiﬁed adapters, products that bear the USB-IF logo or products

that have completed the USB-IF compliance program.

Radio Frequency Interference

General Statement on Interference

Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket.

Hearing Aids

People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source. Increasing the separation between them may reduce the interference. You may also consult your hearing aid manufacturer to discuss alternatives.

Medical Devices

Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.

Hospitals

Turn off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Aircraft

Turn off your wireless device whenever you are instructed to do so by airport or airline staff. Consult the airline staff about the use of wireless devices onboard the aircraft. If your device offers a ‘ﬂight mode’, this must be enabled prior to boarding an aircraft.

Interference in Cars

Please note that because of possible interference with electronic equipment, some vehicle manufacturers forbid the use of mobile phones in their vehicles unless a hands-free kit with an external antenna is included in the installation.

Explosive Environments

Gas Stations and Explosive Atmospheres

In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your phone or other radio equipment. Areas with potentially explosive atmospheres include fueling areas, below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

Blasting Caps and Areas

Power off your mobile phone or wireless device when in a blasting area or in areas posted power off “two-way radios” or “electronic devices” to avoid interfering with blasting operations.

Calling and VoicemailFor Your Safety (continued) Text Messaging Playing Music

Making a Call

1. From the home screen, tap

2. Enter the phone number with the on-screen keypad. Tap to delete incorrect digits.

3. Tap to place the call.

NOTE: To call a contact, press > >

Contacts and tap

> .

Checking Voicemail

1. From the home screen, tap

2. Tap and hold the 1 Key. If prompted, enter your voicemail password.

3. Follow the voice prompts to listen to and manage your voicemail messages.

NOTE: To set your voicemail service, tap

Settings > Voicemail and tap the voicemail settings you want to change. For detailed information, please contact the service provider.

> .

> >

1. From the home screen, tap > .

2. Enter the recipient(s) and message text. If you want to send an MMS, tap to add attachments.

3. Tap to send the message.

Please don’t text and drive.

1. From the home screen, tap > .

2. Tap Songs.

3. Tap a song to play it.

Song and artist

information

Album artwork

Tap to open the

current playlist

Playback control: Skip songs or pause

and resume playback. Drag the slider

to jump to any part of the song.

Access additional options

Tap to toggle shufﬂe and repeat mode: no repeat, repeat the current song, or repeat the current playlist

Tap to add a song to the Favorite playlist

Getting to Know Your Phone

3.5mm

Headset

Jack

Earpiece

Volume

Up/Down

Key

Touch

Screen

Micro USB

Charging

Port

Back Key

Microphone Home Key

Proximity

Sensor

Power/ Lock Key

Indicator Light

Front Camera

Battery

Cover

Recent Apps Key

Flash

Back

Camera Microphone

Speaker

Touch Screen and Navigation Keys Customizing Home Screens Address Book Camera and Video

• Power/Lock Key: Press and hold to power on,

restart the phone, turn on/off airplane mode, or power off. Press to turn on/off the screen display.

•

Home Key: Press to return to the home screen from any application or screen. Press and hold to access Google Now™.

• Recent Apps Key: Press to view recently used

apps.

• Back Key: Press to go to the previous screen.

• Volume Keys: Press to turn the volume up or down.

Opening Applications

1. Press if the current screen is not the home screen.

2. Tap .

3. Slide left or right on the screen and tap an app to open it.

You can customize your home screen by adding applications, folders, widgets, and more.

Adding Widgets or Apps

1. Tap and hold an empty spot on a home screen.

2. T ap Widgets or Apps.

3. Tap and hold a widget or app and drag it to the desired home screen.

Removing Widgets or Apps

1. Tap and hold a widget or app on the home screen.

2. Drag it to

to remove it.

Organizing Apps With Folders

1. Tap and hold an app on the home screen.

2. Drag it to

at the top of the screen. A new

folder is created.

3. If needed, drag more apps and drop them into the folder.

Applying New Wallpapers

1. Tap and hold an empty spot on a home screen.

2. Tap Wallpaper.

3. Select a wallpaper source (Gallery, Wallpapers, Live Wallpapers, or Photos) and choose an image.

4. For images from Gallery, crop the picture if necessary and tap OK. To crop images from Photos, spread your ﬁngers apart on the screen to zoom in or pinch them together to zoom out, and then tap SET WALLPAPER. For Live Wallpapers and Wallpapers, tap Set wallpaper.

Creating a New Contact

1. From the home screen, tap .

2. Tap .

3. Enter the contact name, phone numbers, email addresses, and other information, as shown.

4. Tap DONE to save the contact.

Importing Contacts in Batches

1. From the home screen, tap .

2. Tap > Import/Export > Import from storage.

3. Select an account in which to save the contacts.

4. If prompted, choose to import one, multiple, or all vCard ﬁles.

5. If prompted, tap OK.

Taking a Photo

1. From the home screen, tap .

2. Aim the camera at the subject and make any necessary adjustments.

3. Tap .

Recording a Video

1. From the home screen, tap .

2. Aim the camera at the subject and make any necessary adjustments.

3. Tap to start and to stop recording.

TIP: While the recording is in progress, you can tap

Select the color effect

Change the

camera settings

Select scene mode

Record a video

to save the frame as a photo.

Turn ﬂash on/off

Switch between the front and the back cameras

Viewyourphotos

and videos

Capture a photo

The status bar at the top of the home screen provides phone and service status icons on the right side and notiﬁcation icons on the left side. Below are some of the icons you may see.

Checking Phone Status Managing Notiﬁcations

No signal Alarm set

Signal strength Ringer off

3G connected Vibratemode

Battery empty Flight mode

Battery low

Battery partially drained

Battery full

Battery charging Wi-Fi in use

or mechanical, including photocopying and microﬁlm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modiﬁcations on print errors or update speciﬁcations without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE ofﬁcial website (at http://www.ztedevice.com) for more information on self-service and supported product models. Information on the website takes precedence. ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modiﬁcations of the software. Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software. This guide is published by ZTE Corporation.

ZTE and the ZTE logos are trademarks of ZTE Corporation. Google and Android are trademarks of Google, Inc. The Bluetooth Corporation is under license. The microSDHC logo is a trademark of SD-3C, LLC. Other trademarks and trade names are the property of their respective owners. Qualcomm Technologies, Inc. Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission.

trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE

Wired headset connected

Bluetooth on

Connected to a Wi-Fi network

New SMS

New MMS

New email Upcoming event

New Gmail message

Updates available Sending data

Problem with SMS/MMS delivery

Missed call USB connected

Call in progress

Snapdragon™ processors are products of Qualcomm

microSDHC card removed

microSDHC card unmounted

Downloading data

GPS on

Song is playing

QSG Z8090171300MT

Internet Email Google Play

Connecting via Wi-Fi

1. From the home screen, tap > > Wi-Fi.

2. Slide the ON/OFF switch if Wi-Fi is off. Your phone automatically searches for Wi-Fi networks in range and displays their names and security settings. Your phone also connects to previously linked networks when they are in range.

3. Tap a network name to connect to it.

4. If the network is secured, enter a password or other credentials (ask your network administrator for details) and tap Connect.

Connecting via Mobile Network

1. From the home screen, tap > > Mobile networks.

2. Check Data enabled.

Setting Up Gmail

1. From the home screen, tap > .

NOTE: If another Gmail account is already set up, press

> > > Add account > Google.

2. Tap Existing to sign in to your existing Google account. If you have no Google accounts, tap New to create one.

3. Follow the instructions on the screen to set up the account.

Setting Up Email

1. From the home screen, tap > .

NOTE: If another email account is already set up, press

> > > Add account > Email.

2. Enter the email address and password.

3. Tap Next and follow the on-screen instructions.

™

Google Play has tens of thousands of games and applications for you to enjoy. Before you begin, make sure that you are signed in to your Google account.

1. From the home screen, tap

2. Find the apps you need either by category or by tapping .

3. Tap the app to see a more detailed description.

4. Tap INSTALL (free apps) or the price (paid apps).

NOTE: A Google Wallet

purchase apps.

5. Read the app permissions and tap ACCEPT.

CAUTION: Once installed, some apps can access many

functions of a signiﬁcant amount of your personal data. The Play Store will show you what the app can access.

6. For paid apps, tap CONTINUE and follow additional on-screen instructions for payment.

7. Wait for the app to be downloaded and installed automatically. Payment needs to be authorized before paid apps start downloading.

8. The app is successfully installed when the icon appears in the status bar. You can ﬁnd the new app after pressing > .

NOTE: The content you can access in the Play Store

depends on your region and your service provider.

™

payment method is required to

ConnectivityNotiﬁcations

Connecting With a Bluetooth® Headset

Turn on the Bluetooth headset and switch it to pairing mode. Refer to the headset’s user guide for more information.

1. From the home screen, tap > > Bluetooth.

2. Slide the ON/OFF switch if Bluetooth is off. When Bluetooth is on, the icon appears in the status bar.

NOTE: Your phone automatically scans for and displays the

IDs of all available Bluetooth devices in range. You could tap SEARCH FOR DEVICES if you wanted to scan again.

3. Tap the ID of the headset, or any other device you want to pair with your phone. Enter a passcode if prompted.

4. If necessary, tap the ID of the paired headset to connect with it.

TIP: Tap the headset ID and then tap OK to end the

connection.
