ZTE Z933W User Manual

第 1 页

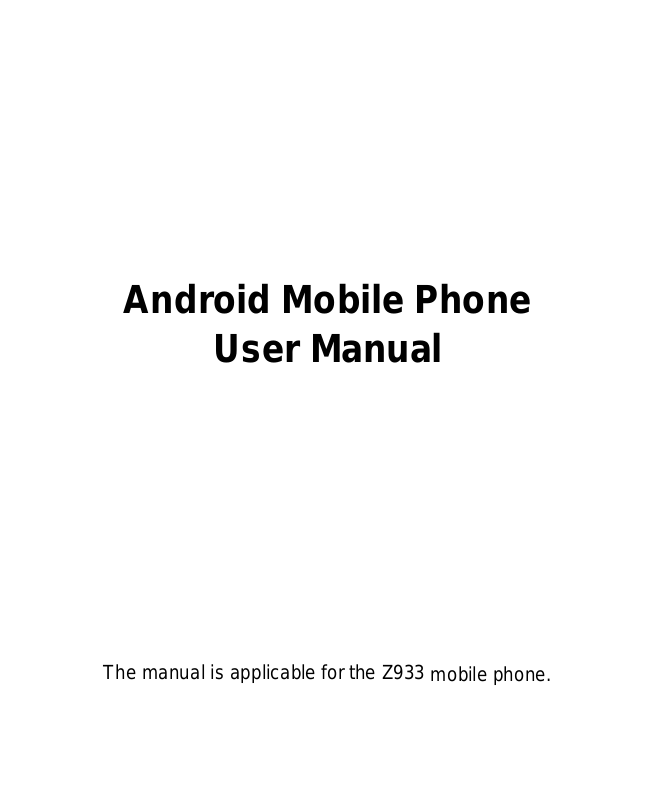

Android Mobile Phone

User Manual

The manual is applicable for the Z933

mobile phone.

or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice.

Google, Android, Android Market, Google Mail are trademarks of Google, Inc.

Other trademarks and trade names are the property of their respective owners.

Third-party Software Statement

When you install the software from a third-party, the phone might be restarted repeatedly or the software might not be used normally due to the incompatibility of the software itself. It is not the fault of the phone itself.

Version 1.0 2014

第 1 页

Using your phone

Thanks for choosing the Z933, It’s a WCDMA Digital Mobile Phone, which will refer to as ‘phone’ from now on. Powered

by AndroidTM, the phone supports 3G high-speed Internet access, which brings you brand new experiences.

Don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on the screen. It’s the functions that matter.

-1-

Before getting started

Inserting and removing the SIM

1. Switch off your phone and disconnect any external power.

2. Remove the back cover

and then the battery.

3. Hold your SIM on the cut

corner, and slide it face down into the card holder.

4. Insert the battery.

5. Replace the back cover.

Inserting a memory card

1. Remove the back cover.

2. Push tightly until the card is installed in the correct

position and replace the back cover.

-2-

第 3 页

Using the battery

Inserting the battery

1. Open the battery cover on the back of your phone.

2. Align the battery's contact points with those of the phone

and gently press the battery down into place.

3. Replace the battery cover clicking it back into position.

Removing the battery

1. Switch off your phone.

2. Open the battery cover.

3. Lift the battery up and out of your phone.

-3-

Charging the battery

The battery is not fully charged when you unpack it for the first time. Please exhaust the capacity of the battery before you recharge it for the first time. To ensure the battery is always in its best condition, please charge the battery 8 hours for the first time and recharge it later at least 2 hours each time.

1. Connect the charger to the phone,

and insert the charger to the standard power socket.

2. Please disconnect the charger from

the power socket after the charging is completed.

Tips:

 To charge the battery, you can also connect the phone to

the PC through the USB cable.

 During charging, the phone and charger may normally

become hot.

-4-

第 5 页

Speaker

Touch screen

Back key Home key

Menu key

Earpiece

Camera

Power key

Headset jack

USB port

Volume

keys

Front

camera

Getting to know your phone

-5-

Keys

Functions

Menu key

Touch it to open a menu with items that affect the current screen or application.

Home key

Touch it to open the home screen. If you’re

viewing the left or right extended home screen, Press it to open the central home screen.

Back key

Touch it to open the previous screen you were working in.

If the onscreen keyboard is open, touch it to close the keyboard.

Power key

Press it to turn on/off the display. Long press it to open a menu with options for

Airplane mode, for Silent mode, for Vibration mode, and for powering off and for rebooting the phone.

Volume keys

Adjust the volume. Long press it to quickly adjust the ring tone

volume to maximum or minimum.

Descriptions of Keys

-6-

第 7 页

Onscreen icons

Icons

Descriptions

Icons

Descriptions

Signal strength

Full battery

Charging

In a call

Missed calls

You have an unread message.

You have an unread E-mail.

Music playing

Connected to a PC

Airplane mode

Bluetooth® function is on

Alarm clock on

Vibration mode

Silent mode

Wi-Fi function on

-7-

Power on/off

Powering on

Long press the Power key until the power-on animation appears.

Powering off

Long press the Power key to display the phone options and select Power off.

-8-
