Zte WP755 User Manual

1

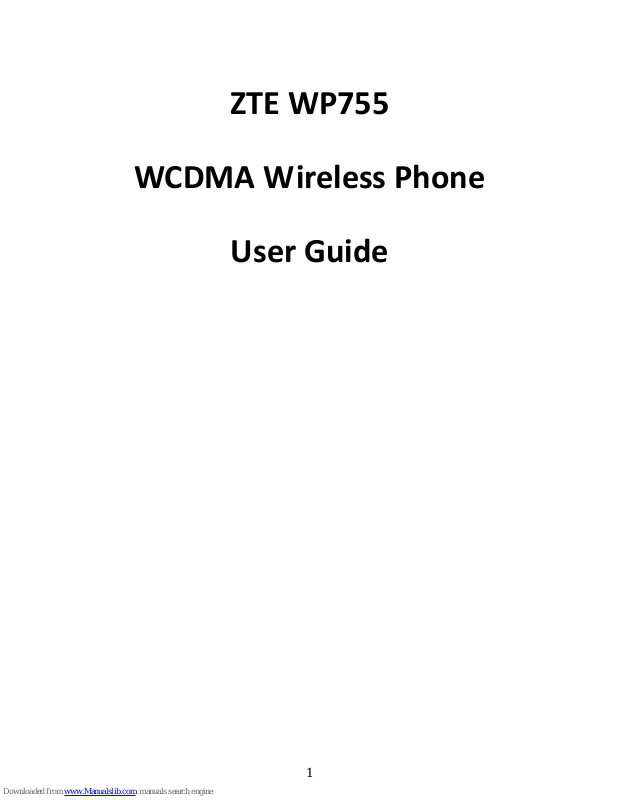

ZTE WP755

WCDMA Wireless Phone

User Guide

2

Feature list

 Support WCDMA850/2100 MHz, GSM 850/900/1800/1900 MHz
 Phone book function
 Hand-free function
 Volume adjust of handset and speaker
 10 group of incoming ring selected,
 6 group of SMS ring and silent selectable
 Received and send SMS, which can save 500 item SMS.
 LCD display date, time, signal, battery capacity.
 Call Log 250 groups
 Size:145*52*19mm
 Working voltage:AC220V,50Hz;DC 5V 500mA
 Additional battery: recharger battery
 Standby time: more than 48 hours
 Talk time: around 4 hours.

Noted: the standby time and talk time is affected by network preference.

3

Know Your Phone

Key Instruction

Key

Description

1. Message

• To edit message

2. Profiles

• Set profiles of your phone.

3. OK

• Enter main menu.

• Performs the function indicated at the left bottom of the screen.

4. CALL

• Make a call or answer an incoming call.

• In standby mode, press this key to enter Dialed calls list.

5. END

• To turn ON/OFF the unite

4

Key

Description

6.Scrolling

• Press these keys to scroll cursor to the left, right, up or down
when inputting characters or selecting items.

• Default functions in standby mode are set in Settings menu.

7. Number

• Use these keys to enter numbers and characters.

8. # , *

• Perform different functions under different conditions.

Installation

1. {tc "Handset" \f A}{tc "Handset" \f B}{tc " Handset" \f E}Battery

Install the battery as below diagram,

2. {tc "SIM card" \f A}{tc "SIM card" \f B}{tc " SIM card" \f E}SIM card

Always switch the phone off before removing or inserting SIM card.
Open the bottom cover of the battery. Remove the battery, slide the SIM card into the SIM card slot.

Make sure that the contact area of the card is facing down, and the beveled corner matches with the
SIM card slot. Put in the battery and install the bottom cover.

5

How to Power on/off

 To power on the phone, well installed the battery and then hold the END key till the phone is

powered on.

 To power off the phone, at standby mode, hold the END key till the phone is powered off.

Notes:

The phone will charge the internal battery automatically when it is connected to external

power outlet.

How to Make a Call

Enter the number or select recipient’s number from Phonebook, or press CALL key to select a number
from the Dialed calls list, then press CALL key to make the call.

Notes:

Add the international prefix, country code and area code (without the leading 0) before the

number when making an international call.

Message

Select Message in Menu,

• Select Write message to choose New SMS or New New MMS, Press Options select Send, Insert
template, Add contact info, Add phiz or Save as draft.

• Select Inbox to view messages received.
