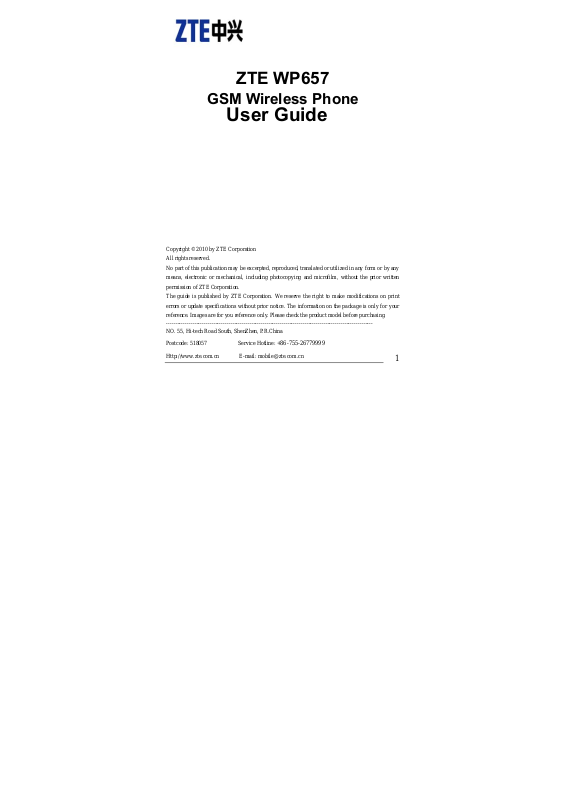

ZTE WP657 User Manual

ZTE WP657

GSM Wireless Phone

User Guide

Copyright © 2010 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
The guide is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice. The information on the package is only for your
reference. Images are for you reference only. Please check the product model before purchasing.

------------------------------------------------------------------------------------------------------------­NO. 55, Hi-tech Road South, ShenZhen, P.R.China

Postcode: 518057 Service Hotline: [phone]

Http://www.zte.com.cn E-mail: [e-mail]

1

Know Your Phone

LCD Screen

4

1

2

3

5
6

10

7
8

Key Instruction

Key Description

1. MENU/SELECT It is used to enter main Menu, select or confirm

options in menus, or confirm the character chosen in

condition of character input.

2. Number Use the number keys to enter characters.

3.# , * It differs in different mode, option or function menu.

4.Scrolling Press these keys to scroll cursor to the left, right, up

or down when inputting characters or selecting items.

2

Or default functions in standby mode are set in

Settings menu.

5. EXT PWR Lights on when the phone is connected to external

power supply.

6.

NAMES/CLR/BACK

7.MESSAGE This is the shortcut key to enter message menu in

8. EXIT It is used to power on/power off the phone; end an

9. CALL/REDIAL Press this key to make a call after having entered the

10.HANDS-FREE If you are using the handset to call and want to

It is used to erase input information, or cancel

operating, exit to previous interface, or enter Names

list in standby mode.

standby mode.

active call or reject a call.

telephone number intended for calling. Or press to

enter all recent calls list in standby mode.

transfer the call to the speakerphone, press this key

and hang up the handset to put conversation on the

speakerphone. Press this key to end a hands-free

call.

3

Interface Icons

Icon Description Icon Description

Signal strength New Message (blinks when memory is

full)

Mute Divert always

Power Indicator Alarm clock

Roaming Keypad Lock

Installation

1. Handset

Connect phone set and handset with the phone cord.

2. External power adapter

Plug the external power adapter to the external AC socket.

3. SIM card

Always switch the phone off before removing or inserting SIM card.

Open the bottom cover of the battery before inserting the SIM card. Remove the

battery, slide the SIM card into the SIM slot. Make sure that the contact area of the

card is facing down. And the beveled corner matches with the SIM slot. Put in the

battery and install the bottom cover.

4

How to power on/off

 To power on the phone, connect phone and external power outlet with the power

adapter and then hold the Exit key for about three seconds.

 To power off the phone, hold the Exit key till it is powered off.

※ It is strongly recommended to connect the phone to external power outlet, and

use internal battery to power your phone only when external power fails or is not

available.

How to Make a Call

 Pick up the handset or press the HANDS-FREE key, or go to step 2 directly.
 Enter the telephone number by using the Number keys (add country code,

area code when making an international call) or select from Names, or press

CALL/REDIAL Key to enter the recent calls list, select a number.

 Press the CALL/REDIAL Key to make the call.

Voice Mail

Before using Voicemail, please consult with service provider to confirm that the voice
mailbox has been activated.
The system automatically sends a message to your phone informing a new voice
message. Read the message in Inbox and then dial voice mail box number to listen to
your voice message.

To read or send your voice mail quickly, you set the Voicemail No. first, Then pick up

the handset or press HANDS-FREE key, and then hold ”1” key to dial voice mail

number directly.

Message

Select Short Messages in Menu.
¾ Select New message to write and edit message text, select Options to send or

save the message.

¾ Select Inbox to view messages received.
¾ Select Outbox to view the messages sent unsuccessfully.
¾ Select Draftbox to view draft messages.

5
