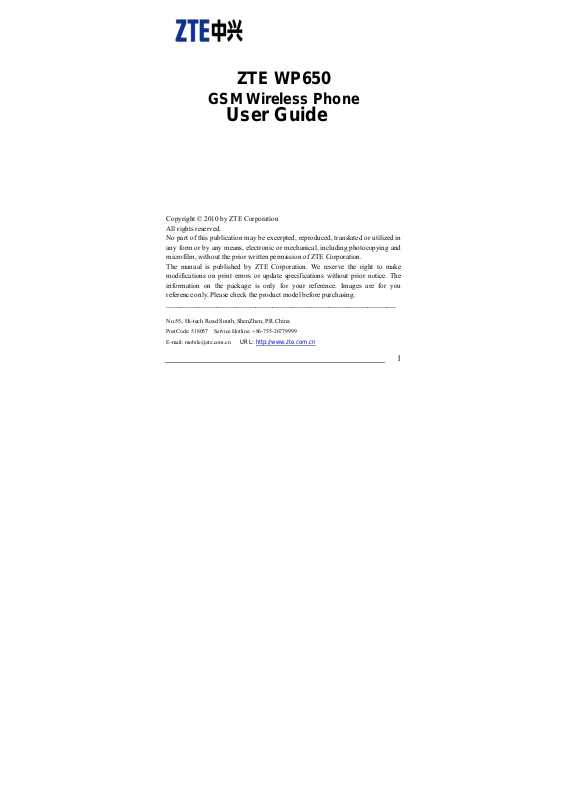

ZTE WP650
GSM Wireless Phone
User Guide
Copyright © 2010 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in
any form or by any means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice. The
information on the package is only for your reference. Images are for you
reference only. Please check the product model before purchasing.
----------------------------------------- ------------------------------------- ------------------------------------- ------
No.55, Hi-tech Road South, ShenZhen, P.R.China
PostCode: 518057 Service Hotline: +86-755-26779999
E-mail: mobile@zte.com.cn URL: http://www.zte.com.cn
1
Know Your Phone
Earpiece
LCD Screen
5
1
2
3
4
Note: Refer to the real object, and this image is only for your reference.
6
7
8
Microphone
Desk charger
2
Key Instruction
Key Description
1、Menu/Select key Enter main Menu.
Select or confirm options in Menu.
Confirm the character chosen in condition of character
input.
2、Call key Make a call or answer an incoming call.
In standby mode, press Call key to enter recent calls
list.
3、Number key Use the number keys to input numbers and
characters.
4、# key, * key It differs in different mode, option or function menu.
5、 Up/Down/Left/Right
key(Scrolling key)
6、Clear key Enter right bottom submenu such as Contacts on the
7、Exit Key End an active call or reject calls.
8、 SMS (message) This is the shortcut key to enter message menu.
Press these keys to scroll cursor to the left, right, up or
down when inputting characters or selecting items.
Default functions in standby state are set in Settings
menu.
display.
Press this key to erase character(s) while editing or
dialing.
Press this Key to return to the previous page during
menu navigation.
Power on/power off.
Exit from any operation screen to standby mode.
3
key
Note： “Press the key” in manual means pressing certain key once, “Hold the k
ey” means pressing key for 2 or 3 seconds.
Interface Icons
Icon Description Icon Description
Signal strength
New voicemail
Divert always
Alarm clock
New Message(flop when
memory is full)
Mute
Power Indicator
Keypad Lock
Installation
1. Charge the battery
z Connect the desk charger and external AC socket via power adapter.
z Put the phone on the desk charger. The charge spring of the desk
charger should be inserted in the apertures in the phone below.
z Meanwhile, power indicator in up-right corner of the display flops
cyclically, indicating the charging is going. In power-off mode while
charging, the display only shows the charging indicator. If the battery is
completely flat in storage or used up, it may take for a while before the
power indicator appears on the display or any calls can be made.
4
z When the power indicator on the screen stops flopping, the charging is
completed. The charging takes usually up to 4 hours. In the process of
charging, it is a normal phenomenon that the battery, phone and charger
get into hot accordingly.
z After the completion of charging, disconnect the charger from the p hone
and AC socket.
：
Note
The data interface in the phone below is only for updating the software of the
phone, not for charging.
When it is in charge, place the phone on condition of goo d ventilation and
temperature between 0
manufacturer. Using unauthorized charger may cause danger and viol ate the
authorization of the phone and the guarantee article.
When the phone is automatically switched off or indicates the alarm information
of power shortage, charge the battery in time.
The duration time of the standby status or conversation of the phone is based
on ideal working environment. In practice, the working time of battery varies
with network condition, working environment and application methods.
Please install the battery firstly before charge or use it.
℃～＋45℃
. Ensure to use the charger offered by the
2. SIM Card
z Power off the phone and remove other external power.
z Press and push the back-cover of the phone down to release and
remove it.
5
z Insert SIM card into SIM card slot in the phone or pull out SIM card out of
slot, as shown in picture hereinafter.
z Direct the back cover towards the locking catches on the both sides of
the phone and push the back-cover of the phone upward to lock the
cover into its place.
How to Power on/off
Hold the Exit key to power on the phone.
In state of power-on, hold the Exit ke y to power off the phone.
6
How to Make a Call
Enter telephone number.
Add the international prefix, country code and area code
the number when making an international call.
Press the Call Key to make the call.
Note: If required, press the * key twice for the international prefix “+”, or input
international prefix e.g. “00” directly. Press # key twice for the pause symbol “P”.
(without the leading 0) before
Voice Mail
Before using voice mail, please consult with service provider to confirm that the voice
mailbox has been activated.
The system automatically sends a message to your phone informing a new voice
message. Read the message and then dial voice mail box number to listen to your
voice message.
To send voice mail or read your new voice mail, hold “1” key to dial voice mail box
number in standby state.
Message
Select Short Messages in Menu.
¾ Select New message to write message text (select templates to select message
template), select Options to send or save the message.
¾ Select Inbox to view messages received.
¾ Select Outbox to view the sent messages.
¾ Select Draftbox to view draft messages.
¾ Select Msg settings to make some necessary short message settings.
¾ Select Voicemail to Get voicemail, or set the Voicemail No..
Phone code
Phone code could prevent your phone from illegal use. The default phon e code is
1234. Change it to your own phone password as soon as possible.
7
PIN1 Code and PUK Code
PIN1 Co de (SIM password): PIN1 Code c ould prevent your SIM Card fro m illegal
use. When SIM password is on, you should enter the PIN1 code when opening the
phone again. Change the default PIN1 code password to your own PIN1 Code
password as soon as possible.
PUK Code: Consecutive in putting wrong PIN1 code for se veral times can cause
locking of SIM Card. To unlock, you need PUK code.
PIN1 code and PUK Code may be offered together with the SIM Card. I f not,
contact with network operator.
Text Input
Operation Method
Input Letters In “ABC” or “abc” input mode, press corresponding letter
key till the letter appears.
Input Words In “Eng” input mode, press the Number keys to input the
characters of the word.
Input Digits In “123” input mode, press digit key once.
Input Symbol Press * key, then select corresponding symbol by pressing
Scrolling key.
In ABC/abc Input mode, press “1” key till the symbol
(common symbols) appears.
Input Space Press “0” key, except for being in numbers mode.
Erase Character Press Clear key.
Erase all the
characters
Move cursor Press Scrolling key.
Change input mode Press # key to change text input mode.
Hold Clear key till all the characters to be erased.
8
Menu Tree
1. Short Message
1.1 New message
1.2 Inbox
1.3 Outbox
1.4 Draftbox
1.5 Voice mail
1.6 Message settings
2.Phonebook
2.1 Browse
2.2 Create
2.3 Search
2.4 Speed dial
2.5 Setting
2.6 Storage status
2.7 Fixed dial
2.8 SDN phonebook
2.9 Record manager
3. Call Records
3.1 Missed call
3.2 Outgoing call
3.3 Incoming call
3.4 Call duration
4. Settings
4.1 Profiles
4.2 Clock settings
4.3 Back light
4.4 Phone settings
4.5 Call settings
4.6 Network service
4.7 Security settings
4.8 Version Info
5. T ools
5.1 Alarm
5.2 Calculator
5.3 FM radio
Menu Function
Hereinafter are brief instructions on menu functions of the phone.
Function Description Selection
Browse
contact
Add contact Save phone number Phonebook→Create→Save to SIM
Search
contact
Ringtone Set ringtone for the contact Menu→Phonebook→Setting→
Browse phone number Phonebook→Browse→ALL
Search for a contact entry Menu→Phonebook→Search
Ringtone
9
Save No. to Set the contact saving
method
Used space View the number of saved
entries and maximum
number of entries capacity
in phone and SIM
Speed dial list View speed dial list Menu→Phonebook → Fixed dial →
Batch
operation
Copy/move all the
contact information
between SIM card and
phone. Delete all
contacts in SIM card or
phone.
Send message Send message to others Menu→Short Message→ New message
Read message Read message in
Inbox, Outbox, Draftbox
Templates
message
Some common used
messages preformatted
Voicemail Receive and listen to
Voice messages
Recent calls View or dial all recent calls Menu→ Call Records→ Missed call
Call
forwarding
Firewall Set Incoming Calls Bar Menu→Settings→Callsettings→
Forward an incoming call
to a designated phone
number
Menu→Phonebook→ Setting→Save to
Menu→Phonebook→Storage status
Fix dialling enable
Menu→Phonebook→Record manager
→Copy SIM to phone
Menu→Short Message→ Inbox/Outbox
/Draftbox
Menu→Short Message→
Message settings→Templates
Menu→Short Message→Voice mail
→Listen to voice mail messages
/Outgoing call/Incoming call
Menu→Settings→Network service→
call divert/Call waiting
Firewall
10
Language Set the displayed
language
Shortcut key Set the scrolling key as
shortcut key of some menu
Keypad lock Lock t he keypad
automatically
Backlight Set the backlight On/off
when using the phone
Tone Select phone‘s
Ring/Key/Warn tone
Missed alert When there are missed
calls, alert or not.
Message alert Select type of tone to
prompt when there is a
message
Volume Set the volume of
ringtone/speaker/handfree
Power on/off
ring
Date and
Time
Date format Set the date format Menu→Settings→Clock settings→
Minute
minder
Call waiting
Network
service
Open/Close power on/off
function
Set the date and the time Menu→Settings→Clock settings
Set minute minder Menu→Settings→Call settings→
Put the current call on hold
to answer the other
incoming call
Set the way of searching
network
Menu→Settings→Phone settings→
Language
Menu→Settings→Phone settings→
Shortcut settings
Menu→Settings→Phone settings→
Auto lock keypad
Menu→Settings→Back light
Menu→Settings→Profiles→Standard
Menu→Settings→Profiles→Missed
alert
Menu→Settings→Profiles→Message
alert
Menu→Settings→Profiles→
Ringtone/Speaker/Handfree volume
Menu→Settings→Profiles→Power
on/off ring
→ Date & Time settings
Date display format
Minute beep
Menu→Settings→Network service→
Call waiting
Menu→Settings→Network service→
Call divert
11
SIM
password
Phone lock Set or change the phone
Alarm clock Set alarm alert time Menu→Tools →Alarm
Calculator Execute basic math
FM radio Listen to the FM radio Menu→Tools→FM radio
Care View the hotline
Set or change the SIM
password
lock code
calculation
information
Menu→Settings→Security settings
→SIM password
Menu→Settings→Security settings
→Phone lock
Menu→Tools→Calculator
Menu →Care
Safety Warning
To the Owner
Some electronic devices are susceptible to electromagnetic interference sent by
phone if inadequately shielded. Use phone at least 20 cm or as far away as you
can from TV sets, radio and other automated office equipment so as t o avoid
electromagnetic interference.
Operating phone may interfere with medical devices like hearing aids and
pacemakers, or other medical devices in hospital. Consult a physician or the
manufacturer of the medical device before using phone.
Be aware of the usage limitation when using phone at places such as oil
warehouses, or chemical factories, where there are explosive gases or
explosive products being processed, because even if your phone is in idle state,
it still transmits radio frequency (RF) energy. Therefore, power off your phone if
required.
Do not touch the antenna while calling. Otherwise it will affect the quality of
calling and waste battery energy. The damaged antenna will cause slight burn
while touching your skin.
Keep out of the r eac h of sm all chi ldren. P hone m a y cause i nju ry if use d as a
12
toy.
Do not put other things on the terminal to avoid overlaying radiator.
Keep the antenna free from obstructions and positio n the antenna straight up.
This will ensure best call quality.
Phone Use
Please use original accessories or accessories that are authorized by the
manufacturer. Using any unauthorized accessories may affect your phone’s
performance, and violate related national regulations about telecom terminals,
or even endanger your body.
As your p hone ca n p roduce elec troma gne tic fiel d, d o n ot p lace it n ear magn eti c
items such as computer disks.
Do not expose your phone to direct sunlight or store it in hot areas. High
temperatures can shorten the life of electronic devices.
Prevent liquid from leaking into your phone.
Disconnect external power supply and do not use your phone during
thunderstorm.
Unplug the e xternal po wer adapter or re mo ve batter y when your phon e is not i n
use, esp. for a long period of time.
It is highly re commended to charge the battery before initial use. The battery
might have been discharged during storage and delivery.
Do not unplug the connecto r of the data cable from phone, and not install or
remove battery, when the power is on.
Keep pho ne power on and in service area when make emergency call. Enter
emergency call number in status of standby, and then press Call key to send.
Do not attempt t o disassemble the phone by yourself. Non-expert handling of
the devices may damage them.
Battery Use
Do not short-circuit the battery, as this can cause excessive heat and fire.
Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
Never use any charger or battery damaged or worn out.
Return the wear-out battery to the provider or put it in the appointed recycle
13
place. Do not put it in familial rubbish.
Warning: If the battery is broken, keep away from substance inside. If it taints your
skin, wash your skin with abundant fresh water and ask doctor for help if necessary.
Safety and General Use in Vehicles
Before making or answering a call, you should pay attention to the loc al laws
about using wireless mobile phones and take them into account in practical
use.
Safety airbag, brake, speed control system and oil eject system shouldn’t be
affected by wireless transmitting. If you do meet problems above, contact your
automobile provider.
Power off your mobile phone when refueling your automobile, and so do the
place where duplex wireless equipments are banned. Don’t put your phone
together with flammable or explosive items, inner spark may cause fire.
Cleaning and Maintenance
The phone is non-waterproof, keep it dry and store in shaded and cool place.
If you want to clean your phone, use clean fabric that is a bit wet or anti-s tatic.
Do not use harsh chemical cleaning solvents or strong deterg ents to clean your
phone such as alcohol, dilution agent and benzene. Power-off your phone
before you clean it.
Use phone within a temperature range of -10°C~+55°C and the humidity less
than 95%.
Limit Warranty
The warranty does not apply to defects or errors in the product caused by:
(a) Reasonable abrasion.
(b) Misuse including mishandling, physical damage, improper installation,
unauthorized disassembly of the product.
(c) Water or any other liquid damage.
(d) Any unauthorized repair or modification.
(e) Power surges, lightning damage, fire, flood or other events outside ZTE’s
14
reasonable control.
(f) Use of the product with any unauthorized third party products such as generic
chargers.
(g) Any other cause beyond the range of normal usage for products.
End User shall have no right to reject, return, or receive a refund for any product from
ZTE under the above-mentioned situations.
This warranty is end user’s sole remedy and ZTE’s sole liability for defective or
nonconforming items, and is in lieu of all other warranties, expressed, implied or
statutory, including but not limited to the implied warranties of merchantability and
fitness for a particular purpose, unless otherwise required under the mandatory
provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or
consequential damages resulting from or arising out of or in connection with using this
product, whether or not ZTE had been advised, knew or should have known the
possibility of such damages.
Declaration
We, ZTE Corporation, declared that:
The user is cautioned that changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operat ion is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Some electronic devices are susceptible to electromagnetic interference sent by
phone if inadequately shielded. Please use phone at least 20cm or as far as you can
from TV set, radio and other automated office equipment so as to avoid interference.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the
Federal Communications Commission (FCC) of the U.S. Government. These limits are
15
part of comprehensive guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all persons,
regardless of age or health.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
The exposure standard for this phone employs a unit of measurement known as the
Specific absorption Rate, or SAR. The SAR limits set by the FCC are 1.6W/kg. Tests for SAR
are conducted using standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the phone
while operating can be well below the max imu m val ue. This is bec aus e the pho ne is d esig ned
to operate at multiple power levels so as to use only the power required to reach the network.
In general, the closer you are to a wireless base station, the lower the output power.
16
Before a phone model is available for sale to the public in the U.S. and Canada, it must be
tested and certified by the FCC that it does not exceed the limits established by each
government for safe exposure. The tes t s ar e p er for me d in positions and locations (e.g., at the
ear and worn on the body) that conform to a uniform testing methodology determined by an
expert standards body and then reported to the FCC.
While there may be differences between the SAR levels of various phones and at various
positions, they all met the governmental requirements for safe exposure. Please note that
improvements to this product model could generate differences in the SAR value for later
products; in all cases, products are designed to be within the guidelines.
The highest SAR value for this ZTE WP650 model phone when tested for use on the
right cheek was 1.32 mW/g.
Troubleshooting
If your phone appears following phenomenon in the process of application, read
following relative information at first. If the problems still can not be solved, please
contact with the distributor or service provider.
Problem Check Point
When switching on the phone, it
prompts “Enter PIN1”.
When switching on the phone, it
prompts “Emergency only”.
When switching on the phone, it
prompts “Enter phone code”.
No ring tone prompt for a
incoming call.
No display on screen when
disconnect external power
supply.
Press Call key, but no number is
sent.
Input your PIN1 Code which offered
with SIM card together. If you have
changed PIN1 code, input the new
PIN1 Code.
Check whether valid SIM card is
inserted or not.
Enter phone lock code you set
already to unlock the phone.
Check volume setting of ring tone.
Check whether the battery has
electricity, or it is damaged; or power
on the phone again.
Check whether you have set
Network Call Bar.
17
Certain call cannot be received. Check whether the number is
restricted to come.
Cannot send short message. Check the network condition, or
Other abnormal phenomenon. First refer to user manual, then check
message center setting.
whether the power is connected
correctly or not, if there are no
problems, please power off and
re-start the phone again.
18
Loading...
