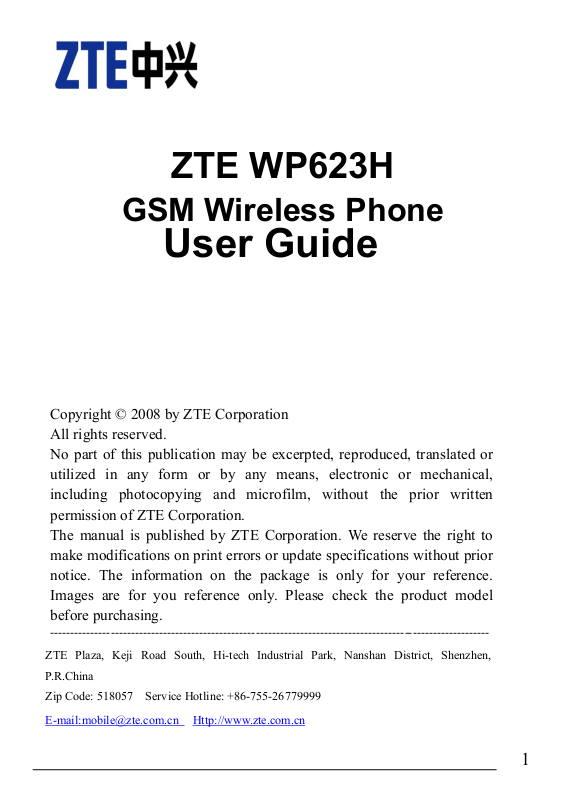

ZTE WP623H Users Manual
ZTE WP623H
GSM Wireless Phone
User Guide
Copyright © 2008 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or
utilized in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to
make modifications on print errors or update specifications without prior
notice. The information on the package is only for your reference.
Images are for you reference only. Please check the product model
before purchasing.
-------------------------------------------------------------------------------------------------------------
ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District, Shenzhen,
P.R.China
Zip Code: 518057 Service Hotline: +86-755-26779999
E-mail:mobile@zte.com.cn Http://www.zte.com.cn
1
Know Your Phone
LCD Screen
MESSAGE
NAMES/
CLR/BACK
MENU/SELECT
Number key
# key
* key
Scrolling key
EXT PWR
EXIT
CALL/REDIAL
HAND-FREE
Key Instruction
MENU/SELECT key It is used to enter main Menu, select or confirm options in
NAMES/CLR/BACK Key It is used to erase input information, or cancel operating,
MESSAGE key This is the shortcut key to enter message menu.
Key Description
Menu, or confirm the character chosen in condition of character
input.
exit to previous interface, or enter Contacts list in standby state.
Number key Use the number keys to enter numbers and characters.
2
# key, * key It differs in different mode, option or function menu.
Scrolling key Press these keys to scroll cursor to the left, right, up or down
when inputting characters or selecting items. Or default
functions in standby state are set in Settings menu.
EXT PWR Lights on when the phone is connected to external power supply.
EXIT Key It is used to power on/power off or exit from any window
interface to standby state.
CALL/REDIAL key In condition of off-hook or hand-free, press this key to m ake a
call after having entered the telephone number intended for
calling.
HAND-FREE key If you are using the handset to call and want to transfer t he
call to the speakerphone, press “HAND-FREE” key and hang
up the handset to put conversation on the speakerphone.
Interface Icons
Icon Description Icon Description
Signal strength New Message (flop when memory if full)
Mute Call Forwarding
Power Indicator Alarm clock
Roaming Keypad Lock
3
Installation
1. Handset
Connect phone set and handset with the phone cord.
2. Antenna
Install the antenna to antenna connec tor ANT. Hold the plastic stick of the anten na
and rotate the metal screw cap in clockwise direction to fix it up.
antenna directly.
Do not rotate
3. External power adapter
Plug the external power adapter to the external AC socket.
How to Power on/off
Switch the power t oggle switch BATT (which located at the phone’s back) to “∣”
side.
Press the
In state of power-on, press and hold
key for about 3 seconds to power on the phone.
key to power off the phone.
※ As usual, suggest make use of external power supply. When power down
or unavailable power supply nearby, you can use battery for backup.
How to Make a Call
Pick up the handset or press the HAND-FREE key.
Enter the telephone number by using the Number keys (add area code
when making a long distance call) or select from Contacts, or press
CALL/REDIAL Key to enter the recent calls list, select a number.
Press the CALL/REDIAL Key to make the call.
4
