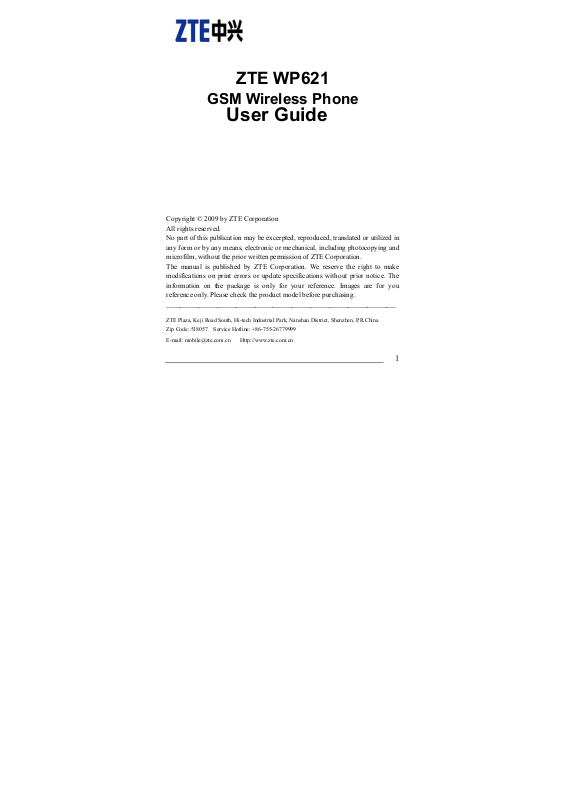

ZTE WP621 Users Manual

ZTE WP621

GSM Wireless Phone

User Guide

Copyright © 2009 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in
any form or by any means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice. The
information on the package is only for your reference. Images are for you
reference only. Please check the product model before purchasing.

----------------------------------------- ------------------------------------- ------------------------------------- ------

ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District, Shenzhen, P.R.China
Zip Code: 518057 Service Hotline: [phone]

E-mail: [e-mail] Http://www.zte.com.cn

1

y

Know Your Phone

Earpiece

LCD Screen

Up/Down key

Menu/Select key

Left key

Call key

Number key

# key
* key

Key Instruction

Key Description

Menu/Select key  Enter main Menu.

 Select or confirm options in Menu.

 Confirm the character chosen in condition of character

input.

Call key  Make a call or answer an incoming call.

 In standby mode, press Call key to enter recent calls

Clear key
Right key

Exit key
SMS k e

Charge LED

Desk charger

2

list.

Clear key  Enter right bottom submenu such as Contacts on the

display.

 Press this key to erase character(s) while editing or

dialing.

Exit Key  End an active call or reject calls.

 Power on/power off.

SMS (message) key  This is the shortcut key to enter message menu.

Up/Down/Left/Right

key(Scrolling key)

Number key  Use the number keys to input numbers and

# key, * key  It differs in different mode, option or function menu.

Charge LED  Lights on when the phone is connected to external

Note： “Press the key” in manual means pressing certain key once, “Hold the

key” means pressing key for 2 or 3 seconds.

 Press these keys to scroll cursor to the left, right, up or
down when inputting characters or selecting items.

 Default functions in standby state are set in Settings

menu.

characters.

power supply.

Interface Icons

Icon Description Icon Description

Signal strength

New voicemail
Divert always
Alarm clock

New Message(flop when
memory is full)
Mute
Power Indicator
Keypad Lock

3

Installation

1. Battery

 Remove：(1) Press and push the back-cover of the phone down to release and

remove it off the phone. (2) Put finger on the side finger grips, and then lift up
the battery from the finger grips to remove the battery.

 Installation：(1) Replace the battery into the battery slot, to be noted that the

lower end of the battery firstly inserted. (2) Put the bac k-cover of the phone
flatly upon the body of phone. Direct the back cover towards the locking
catches on the both sides of the phone and push the back-cover of the phone
upward to lock the cover into its place.

4

2. Charging the battery

 Connect the lead of the charger to the power jack at the back of phone.
 Connect the charger to a standard AC socket.
 Meanwhile, the charge LED in front of the phone lights on. And the charging

indicator in up-right corner of the display flops cyclically, indicating the
charging is going. In power-off mode while charging, the display only shows
the charge indicator. If the battery is completely flat in storage or used up, it
may take for a while before the charging indicator appears on the display or
any calls can be made.

 When the charging indicator on the screen stops flopping, the charging is

completed. The charging takes usually up to 4 hours. In the proc ess of
charging, it is a normal phenomenon that the battery, phone and charger get
into hot accordingly.

 After the completion of charging, disconnect the charger from the phone

and AC socket.

：

Note

 When it is in charge, place the phone on condition of good ventilati on and

5

temperature between -10
manufacturer. Using unauthorized charger may cause danger and violate the
authorization of the phone and the guarantee article.

 When the phone is automatically switched off or indicates the alarm

information of power shortage, charge the battery in time.

 The duration time of the standby status or conversation of the phone is b ased

on ideal working environment. In practice, the working time of battery varies
with network condition, working environment and application methods.

℃～＋55℃

. Ensure to use the charger offered by the

3. SIM Card

Power off the phone, remove the battery and other external power. Insert SIM card
into SIM card slot in the phone or pull out SIM card out of slot, as shown in picture
hereinafter.

How to Power on/off

 Hold the Exit key to power on the phone.
 In state of power-on, hold the Exit key to power off the phone.

6
