ZTE MF97V User Manual

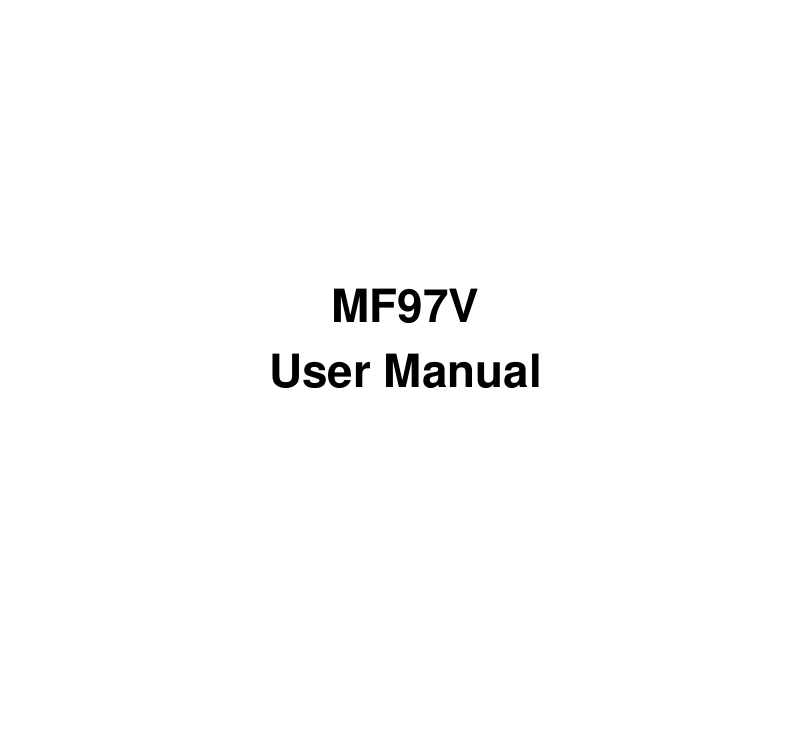

MF97V

User Manual

LEGAL INFORMATION

No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

Notice

ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice.

We offer self-service for our smart terminal device users. Please visit the ZTE official website (at

www.ztedevice.com) for more information on

self-service and supported product models. Information on the website takes precedence.

Disclaimer

ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.

Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software.

Trademarks

ZTE and the ZTE logos are trademarks of the ZTE Corporation.

Google and Android are trademarks of Google, Inc. The Bluetooth® trademark and logos are owned by the Bluetooth SIG, Inc.

and any use of such trademarks by ZTE Corporation is under license.

microSDHC Logo is a trademark of SD-3C, LLC.

Qualcomm® Snapdragon™ processors are products of Qualcomm Technologies, Inc.

Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Other trademarks and trade names are the property of their respective owners.

Version No.: R1.0 Edition Time: January 7, 2015 Manual No.:

Projection Lens

Focus Sensor

Touch Screen

Home Key

Menu Key

Back Key

Power Key

Volume Up

Main Microphone

Volume

Down

Getting to Know Your MF97V

USB Jack

Auxiliary

Microphone

HDMI Port

Power Socket

micro-SIM

Card Tray

Headset Jack

microSDHC Card Tray

Ventilation Port

Kickstand

Speaker

Projection Lens

Project the display on a surface.

WARNING!

Do not look directly into the projection lens or point the lens toward people or animals’ eyes when the projector is on as this may cause injury to the eyes.

Focus Sensor

Analyze the clarity of the projected image in order for the projector to adjust its focus automatically.

Back Key

Touch to go to the previous screen.

Home Key

 Touch to return to the home screen from any application or screen.

 Touch and hold to open the Google app.

Menu Key

 Touch to get the options for the current screen.

 Touch and hold to see recently used apps.

Power Key

 Press and hold to enable or disable airplane mode, sound, or vibration,

power off or restart your MF97V.

 Press to turn off or on the screen display.

Volume Up/Down Key

Press or hold to turn the volume up or down.

Main Microphone / Auxiliary Microphone

Transmit your voice. The auxiliary microphone is useful for canceling ambient noise.

Ventilation Port

Exhaust the hot air when the projector is on.

WARNING!

Do not place anything near the ventilation port as this may cause internal heat buildup. Do not place your hand near the ventilation holes as this may cause injury.

Installing the micro-SIM Card

1. Insert the end of a small paper clip or other eject tool into the hole on

the micro-SIM card tray and take the tray out of the slot.

2. Place the micro-SIM card on the tray as shown and carefully install the tray back.

Installing the microSDHC™ Card (Not Included)

A microSDHC card can be installed or removed while MF97V is turned on. You need to unmount the microSDHC card before removing it.

1. Insert the end of a small paper clip or other eject tool into the hole on the microSDHC card tray and take the tray out of the slot.

2. Place the microSDHC card on the tray as shown. Then carefully install the tray back.

NOTE:
