BS8922ZXSDR
eNodeBIntegratedLTE-TD
DescriptionProduct
HV2.1Version:Hardware
CORPORATIONZTE P.R.ChinaShenZhen,South,Roadtech-Hi55,No. 518057Postcode: 26771900-755-+86Tel: 26770801-755-+86Fax: http://support.zte.com.cnURL: 800@zte.com.cnmail:-E
LEGAL INFORMATION
Copyright © 2015 ZTE CORPORATION.
The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations.
All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular purpose, title or non-infringement. ZTE CORPORATION and its licensors shall not be liable for damages resulting from the use of or reliance on the information contained herein.
ZTE CORPORATION or its licensors may have current or pending intellectual property rights or applications covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein.
ZTE CORPORATION reserves the right to upgrade or make technical change to this product without further notice. Users may visit the ZTE technical support website http://support.zte.com.cn to inquire for related information.
The ultimate right to interpret this product resides in ZTE CORPORATION.
Revision History
Revision No. |
Revision Date |
Revision Reason |
|
|
|
R1.0 |
2015–09–15 |
First edition |
|
|
|
Serial Number: SJ-20141015122637-001
Publishing Date: 2015-09-15 (R1.0)
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
About This Manual
Purpose
This manual provides information about the features, structure, functions, and technical indices of the ZXSDR BS8922 TD-LTE integrated micro base station.
Intended Audience
This manual is intended for:
•Network planning engineers
•System maintenance engineers
What Is in This Manual
This manual contains the following chapters.
Chapter 1, Overview |
Describes the product positioning and advantage features. |
|
|
Chapter 2, System Architecture |
Describes the hardware and software architecture. |
|
|
Chapter 3, Applications and |
Describes the application scenarios and maintenance methods. |
Maintenance |
|
|
|
Chapter 4, Technical Indices |
Describes the technical indices. |
|
|
Chapter 5, Environmental |
Describes the environmental requirements. |
Requirements |
|
|
|
Chapter 6, Compliant |
Describes the international and domestic standards that the product |
Standards |
complies with. |
|
|
Related Documentation
The following documentation is related to this manual:
•ZXSDR BS8922 TD-LTE Integrated eNodeB Hardware Description
•ZXSDR BS8922 TD-LTE Integrated eNodeB Hardware Installation
I
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
This page intentionally left blank.
II
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
Chapter 1
Overview
Table of Contents
Product Positioning .................................................................................................... |
1-1 |
Functions ................................................................................................................... |
1-3 |
Features..................................................................................................................... |
1-3 |
1.1 Product Positioning
Market Positioning
The ZXSDR BS8922, which is an LTE product, is an integrated outdoor micro base station. The ZXSDR BS8922 covers dead spots and hot spots to supplement macro-networks effectively.
The ZXSDR BS8922 has lower requirements for site selection and installation than macro base stations, and can be used for rapid base station construction to reduce costs. The ZXSDR BS8922 is applicable to installation scenarios with no equipment rooms, transmission resource shortage, or limit on equipment size and weight.
Position of the ZXSDR BS8922 in a Network
Figure 1-1 shows the position of the ZXSDR BS8922 in a network. The red dotted-line indicates the data flow when the ZXSDR BS8922 acts as a traditional micro base station.
1-1
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
ZXSDR BS8922 Product Description
Figure 1-1 Position of the ZXSDR BS8922 in a Network
For a description of the external systems related to the ZXSDR BS8922, refer to Table 1-1.
Table 1-1 External System Descriptions
External System |
Description |
Related Interface |
EPC |
Core network |
S1 interface. |
|
|
Physical interface: Ethernet optical |
|
|
interface or Ethernet electrical interface. |
|
|
|
Cascade BS8922 |
BS cascade networking |
S1 interface. |
|
|
Physical interface: Ethernet optical |
|
|
interface or Ethernet electrical interface. |
|
|
|
LTE antenna |
Converts radio frequency signals |
Antenna interface. |
|
of RRUs into wireless signals |
Physical interface: N-type connector. |
|
|
|
UE |
User equipment |
Uu interface. |
|
|
|
User device |
Implements transparent channel |
Customized. |
or environment |
functions, and assists external |
Physical interface: input relay and |
surveillance |
equipment in transmission |
RS485 interface. |
|
networking |
|
|
|
|
LMT |
Local operation and maintenance |
Customized. |
|
terminal of the BS |
Physical interface: Ethernet electrical |
|
|
interface. |
|
|
|
1-2
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
|
|
|
Chapter 1 Overview |
|
|
|
|
|
|
|
|
|
External System |
Description |
Related Interface |
|
|
|
|
|
GPS antenna |
Receives GPS signals |
GPS signal receiving antenna. |
|
|
|
Physical interface: coaxial interface. |
|
|
|
|
|
AC/DC power |
Power supply |
AC or DC power supply. |
|
|
|
|
1.2 Functions
The ZXSDR BS8922 accomplishes the following basic functions:
•User Equipment (UE) access and radio link transmission including RF processing, channel coding and decoding, channel multiplexing and de-multiplexing, baseband resource pooling function, measurement and report, power control, transmit diversity, receiving diversity, calibration and synchronization.
•LTE radio interface and Evolved Packet Core (EPC) interface processing, mobility management, radio resource management and controlling.
•System management functions including configuration management, alarm management, status checking and system monitoring.
•Supports the configuration of 10 MHz and 20 MHz bandwidth.
•Supports 2T2R.
•Supports 64QAM modulation in both downlink and uplink.
•Spatial diversity, frequency diversity, time diversity, polarization diversity and maximum ratio combination diversity.
•Improves the channel decoding performance and enhances the receive sensitivity by using the Viterbi algorithm.
•Supports Mode 1 and Mode 2 (2DL:2UL, and 3DL:1UL) slot configuration, and supports other configuration modes through software settings.
•Supports special sub-frame 5 and sub-frame 7 (3:9:2, 10:2:2, and 9:3:2), and supports other configuration modes through software settings.
•Supports IPsec and PON public network backhaul.
1.3Features
The ZXSDR BS8922 has the following features:
•Large Capacity and Easy Expansion
The ZXSDR BS8922 supports: (The following refers to the maximum capability. The specific capability is limited to the license.)
à2 x 5 W output power, and 2T2R
àA maximum of 2 x 20 MHz cell configuration
à111 Mbps DL /30 Mbps UL (site type S1@20 MHz MIMO 2×2)
à200 RRC_CONNECTED users
1-3
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
ZXSDR BS8922 Product Description
It supports expansion to S1/1/1 with 3 units. 2×5 W TOC and close to antenna installation improves coverage. Compared with traditional indoor, hot spot and rural coverage solutions, it provides higher capacity and coverage.
•High Integration
Small size, light weight, and easy installation Integrated antenna design, and easy deployment
•Unified Platform
The ZXSDR BS8922 uses the unified SDR platform, supports smooth evolution to future technologies, and reduces the operator investment.
•Green eNodeB
The ZXSDR BS8922 supports Doherty, Digital PreDistortion (DPD) and MCPA technologies in power amplifier module which provides high Power Amplifier (PA) power efficiency. High efficiency MCPA, natural convection cooling and high density design reduce the power consumption. Zero noise pollution makes it easy for indoor and outdoor installation.
•IP RAN and Rich Interfaces
It provides FE/GE interfaces, and supports various transmission modes such as PTN/PON microwave.
1-4
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
Chapter 2
System Architecture
Table of Contents
External Structure ...................................................................................................... |
2-1 |
Software Architecture................................................................................................. |
2-1 |
2.1 External Structure
Figure 2-1 shows an external view of the ZXSDR BS8922.
Figure 2-1 External View
1. |
Lower chassis body |
3. |
Upper chassis body |
5. Maintenance cavity |
2. |
Handle |
4. |
Indices |
|
2.2 Software Architecture

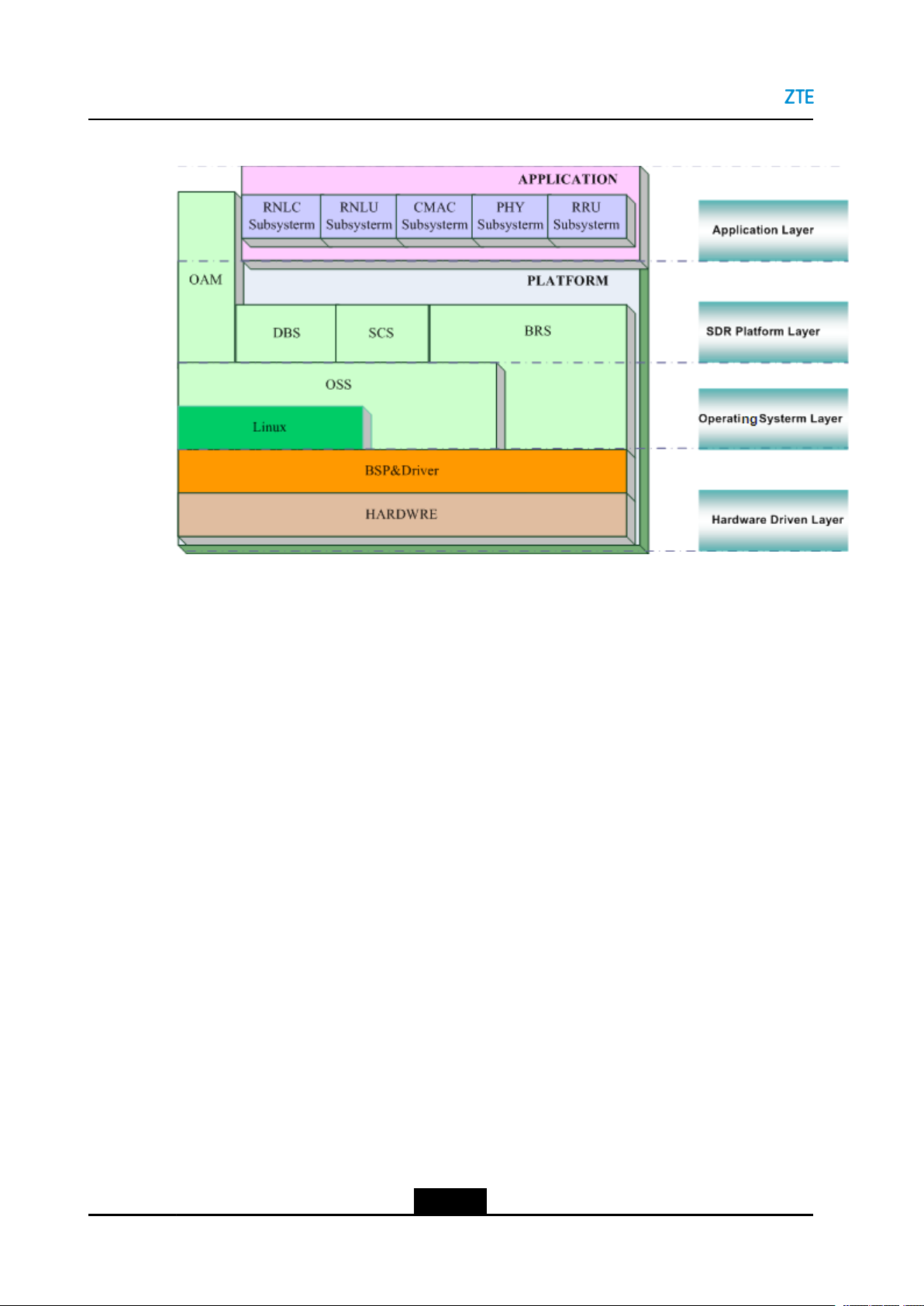

The software architecture of ZXSDR BS8922 can be divided into four layers: Hardware Driven Layer, Operating System Layer, SDR Platform Layer, and LTE Application Layer.
2-1
SJ-20141015122637-001|2015-09-15 (R1.0) |
ZTE Proprietary and Confidential |
