Z86E33/733/E34
Z86E43/743/E44

1

CMOS Z8

®

OTP M

ICROCONTROLLERS

FEATURES

■

Standard Temperature (V

CC

= 3.5V to 5.5V)

■

Extended Temperature (V

CC

= 4.5V to 5.5V)

■

28-Pin DIP/SOIC/PLCC Packages (E33/733/E34)
40-Pin DIP Package (E43/743/E44)
44-Pin PLCC/QFP Packages (E43/743/E44)

■

Software Enabled Watch-Dog Timer (WDT)

■

Push-Pull/Open-Drain Programmable on
Port 0, Port 1, and Port 2

■

Low-Power Consumption: 60 mW

■

Programmable Crystal Oscillator, EPROM Protect,
RAM Protect, Auto Latch Disable, Permanent WDT,
32 KHz Oscillator, and EPROM /Test Mode Disable

■

Fast Instruction Pointer: 0.6 µ s

■

Two Standby Modes: STOP and HALT

■

24/32 Input and Output Lines

■

Digital Inputs CMOS Levels, Schmitt-Triggered

■

Software Programmable Low EMI Mode

■

Two Programmable 8-Bit Counter/Timers Each with a 6­Bit Programmable Prescaler

■

Six Vectored, Priority Interrupts from Six Different
Sources

■

Auto Latches

■

Auto Power-On Reset (POR)

■

Two Comparators

■

On-Chip Oscillator that Accepts a Crystal, Ceramic
Resonator, LC, RC, or External Clock Drive

GENERAL DESCRIPTION

The Z86E33/733/E34/E43/743/E44 8-bit CMOS One-Time
Programmable (OTP) microcontrollers are members of
Zilog's Z8

®

single-chip microcontroller family featuring en­hanced wake-up circuitry, programmable Watch-Dog Tim­ers, Low Noise EMI options, and easy hardware/software
system expansion capability.

Four basic address spaces support a wide range of mem­ory configurations. The designer has easy access to regis­ter mapped peripheral and I/O circuits.

For applications demanding powerful I/O capabilities, the
Z86E33/733/E34 have 24 pins and the Z86E43/743/E44
have 32 pins of dedicated input and output. These lines are
grouped into four ports, eight lines per port, and are config­urable under software control to provide timing, status sig­nals, and parallel I/O with or without handshake, and ad­dress/data bus for interfacing external memory.

Notes: All Signals with a preceding front slash, "/", are

active Low, e.g., B//W (WORD is active Low); /B/W (BYTE
is active Low, only).

Device

ROM

(KBytes)

RAM*

(Bytes)

I/O

Lines

Speed

(MHz)

Z86E33 4 237 24 16
Z86733 8 237 24 16
Z86E34 16 237 24 16
Z86E43 4 236 32 16
Z86743 8 236 32 16
Z86E44 16 236 32 16

Note: *General-Purpose

Z86E33/733/E34/E43/743/E44
CMOS Z8® OTP Microcontrollers Zilog

2

P R E L I M I N A R Y

CP97DZ83300

Power connections follow conventional descriptions be­low:

Connection Circuit Device

Power V

CC

V

DD

Ground GND V

SS

Figure 1. Functional Block Diagram

Port 3

Counter/

Timers (2)

Interrupt

Control

T wo Analog

Comparators

Port 2

I/O

(Bit Programmable)

ALU

FLAGS

Machine T iming

&

Instruction Control

Program

Counter

VCC

GND

XTAL

44

Port 0

Output Input

Address or I/O

(Nibble Programmable)

8

Address/Data or I/O

(Byte Programmable)

/AS /DS R//W /RESET

RESET

WDT, POR

Port 1

OTP

Register File

Register

Pointer

(E43/743/E44)

(E43/743/E44 Only)

Z86E33/733/E34/E43/743/E44

Zilog CMOS Z8® OTP Microcontrollers

CP97DZ83300

P R E L I M I N A R Y

3

1

PIN IDENTIFICATION

Figure 2. 40-Pin DIP Pin Configuration

Standard Mode

R//W

P25

P26

P27

P04

P05

P06

P14

P15

P07

VCC

P16

P17

XTAL2
XTAL1

P31

P32

P33

P34

/AS

/DS
P24
P23
P22
P21
P20
P03
P13
P12
GND
P02
P11
P10
P01
P00
P30
P36
P37
P35
/RESET

40

DIP

1

20 21

Table 1. 40-Pin DIP Pin Identification

Standard Mode

Pin # Symbol Function Direction

1 R//W Read/Write Output
2-4 P25-P27 Port 2, Pins 5,6,7 In/Output
5-7 P04-P06 Port 0, Pins 4,5,6 In/Output
8-9 P14-P15 Port 1, Pins 4,5 In/Output

10 P07 Port 0, Pin 7 In/Output
11 V

CC

Power Supply

12-13 P16-P17 Port 1, Pins 6,7 In/Output

14 XTAL2 Crystal Oscillator Output
15 XTAL1 Crystal Oscillator Input

16-18 P31-P33 Port 3, Pins 1,2,3 Input

19 P34 Port 3, Pin 4 Output
20 /AS Address Strobe Output
21 /RESET Reset Input
22 P35 Port 3, Pin 5 Output
23 P37 Port 3, Pin 7 Output
24 P36 Port 3, Pin 6 Output

25 P30 Port 3, Pin 0 Input
26-27 P00-P01 Port 0, Pins 0,1 In/Output
28-29 P10-P11 Port 1, Pins 0,1 In/Output

30 P02 Port 0, Pin 2 In/Output

31 GND Ground
32-33 P12-P13 Port 1, Pins 2,3 In/Output

34 P03 Port 0, Pin 3 In/Output
35-39 P20-P24 Port 2, Pins

0,1,2,3,4

In/Output

40 DS Data Strobe Output

Notes:

Pin Configuration and Identification identical on DIP
and Cerdip Window Lid style packages.

Z86E33/733/E34/E43/743/E44
CMOS Z8® OTP Microcontrollers Zilog

4

P R E L I M I N A R Y

CP97DZ83300

Figure 3. 44-Pin PLCC Pin Configuration

Standard Mode

PLCC 44 - Pin

7

17

P21
P22
P23
P24

/DS

NC

R//W

P25
P26
P27
P04

P30
P36
P37
P35
/RESET
R//RL
/AS
P34
P33
P32
P31

P05

P06

P14

P15

P07

VCC

VCC

P16

P17

XTAL2

XTAL1

P20

P03

P13

P12

GND

GND

P02

P11

P10

P01

P00

1

2818

40

39

29

6

Table 2. 44-Pin PLCC Pin Identification

Pin # Symbol Function Direction

1-2 GND Ground
3-4 P12-P13 Port 1, Pins 2,3 In/Output
5 P03 Port 0, Pin 3 In/Output
6-10 P20-P24 Port 2, Pins

0,1,2,3,4

In/Output

11 /DS Data Strobe Output
12 NC No Connection
13 R//W Read/Write Output
14-16 P25-P27 Port 2, Pins 5,6,7In/Output
17-19 P04-P06 Port 0, Pins 4,5,6In/Output
20-21 P14-P05 Port 1, Pins 4,5 In/Output
22 P07 Port 0, Pin 7 In/Output
23-24 VCC Power Supply
25-26 P16-P17 Port 1, Pins 6,7 In/Output
27 XTAL2 Crystal OscillatorOutput
28 XTAL1 Crystal OscillatorInput
29-31 P31-P33 Port 3, Pins 1,2,3Input
32 P34 Port 3, Pin 4 Output

33 /AS Address Strobe Output
34 R//RL ROM/ROMless

select

Input

35 /RESET Reset Input
36 P35 Port 3, Pin 5 Output
37 P37 Port 3, Pin 7 Output
38 P36 Port 3, Pin 6 Output
39 P30 Port 3, Pin 0 Input
40-41 P00-P01 Port 0, Pins 0,1 In/Output
42-43 P10-P11 Port 1, Pins 0,1 In/Output
44 P02 Port 0, Pin 2 In/Output

Table 2. 44-Pin PLCC Pin Identification

Pin # Symbol Function Direction

Z86E33/733/E34/E43/743/E44

Zilog CMOS Z8® OTP Microcontrollers

CP97DZ83300

P R E L I M I N A R Y

5

1

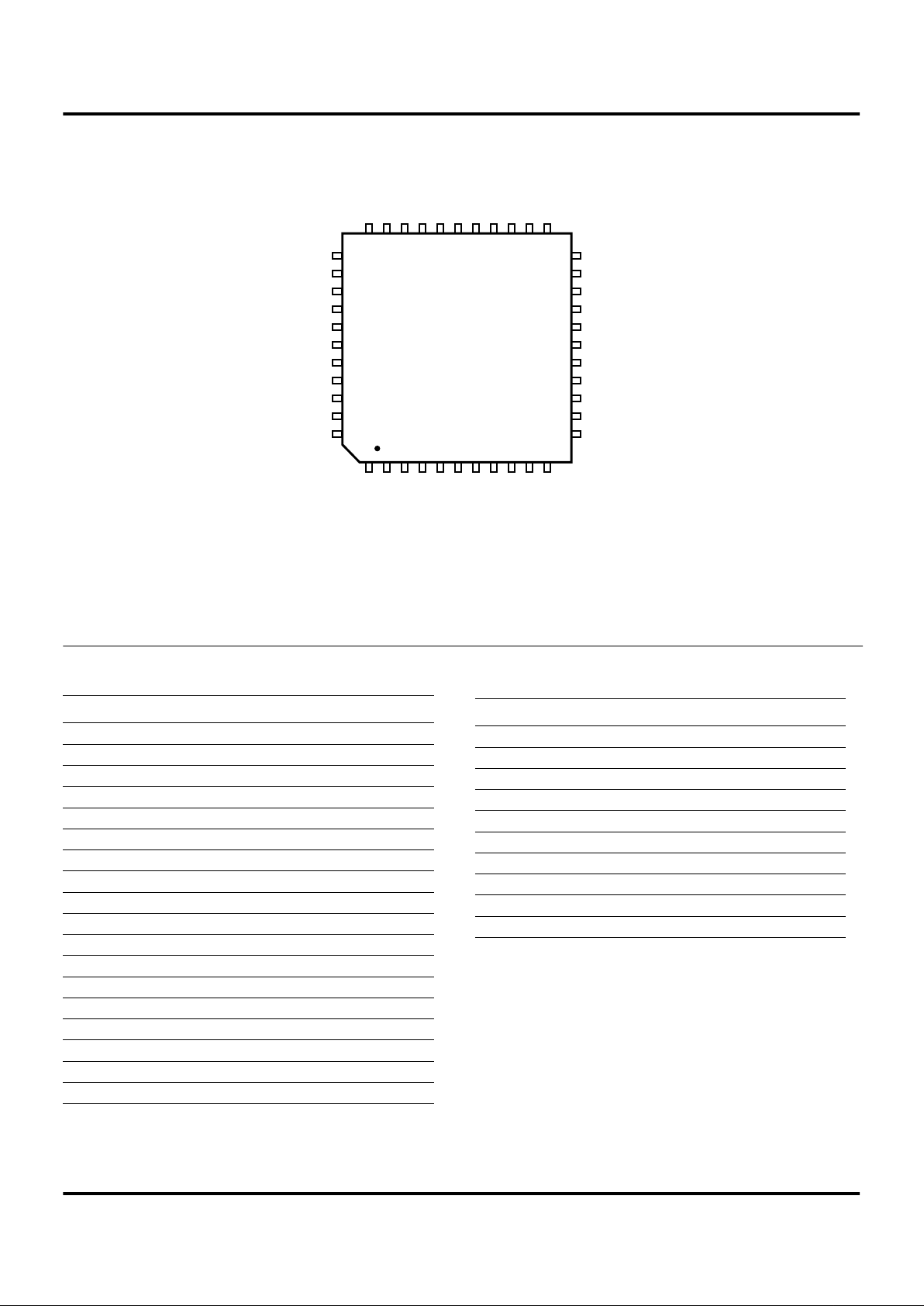

Figure 4. 44-Pin QFP Pin Configuration

Standard Mode

34

44

P21
P22
P23
P24

/DS

NC

R//W

P25
P26
P27
P04

P30
P36
P37
P35
/RESET
R//RL
/AS
P34
P33
P32
P31

P05

P06

P14

P15

P07

VCC

VCC

P16

P17

XTAL2

XTAL1

P20

P03

P13

P12

GND

GND

P02

P11

P10

P01

P00

1

2333

QFP 44 - Pin

11

22

12

Table 3. 44-Pin QFP Pin Identification

Pin # Symbol Function Direction

1-2 P05-P06 Port 0, Pins 5,6 In/Output
3-4 P14-P05 Port 1, Pins 4,5 In/Output
5 P07 Port 0, Pin 7 In/Output
6-7 VCC Power Supply
8-9 P16-P17 Port 1, Pins 6,7 In/Output
10 XTAL2 Crystal Oscillator Output
11 XTAL1 Crystal Oscillator Input
12-14 P31-P13 Port 3, Pins 1,2,3 Input
15 P34 Port 3, Pin 4 Output
16 /AS Address Strobe Output
17 R//RL ROM/ROMless select Input
18 /RESET Reset Input
19 P35 Port 3, Pin 5 Output
20 P37 Port 3, Pin 7 Output
21 P36 Port 3, Pin 6 Output
22 P30 Port 3, Pin 0 Input
23-24 P00-P01 Port 0, Pins 0,1 In/Output
25-26 P10-P11 Port 1, Pins 0,1 In/Output

27 P02 Port 0, Pin 2 In/Output
28-29 GND Ground
30-31 P12-P13 Port 1, Pins 2,3 In/Output
32 P03 Port 0, Pin 3 In/Output
33-37 P20-4 Port 2, Pins 0,1,2,3,4 In/Output
38 /DS Data Strobe Output
39 NC No Connection
40 R//W Read/Write Output
41-43 P25-P27 Port 2, Pins 5,6,7 In/Output
44 P04 Port 0, Pin 4 In/Output

Table 3. 44-Pin QFP Pin Identification

Pin # Symbol Function Direction

Z86E33/733/E34/E43/743/E44
CMOS Z8® OTP Microcontrollers Zilog

6

P R E L I M I N A R Y

CP97DZ83300

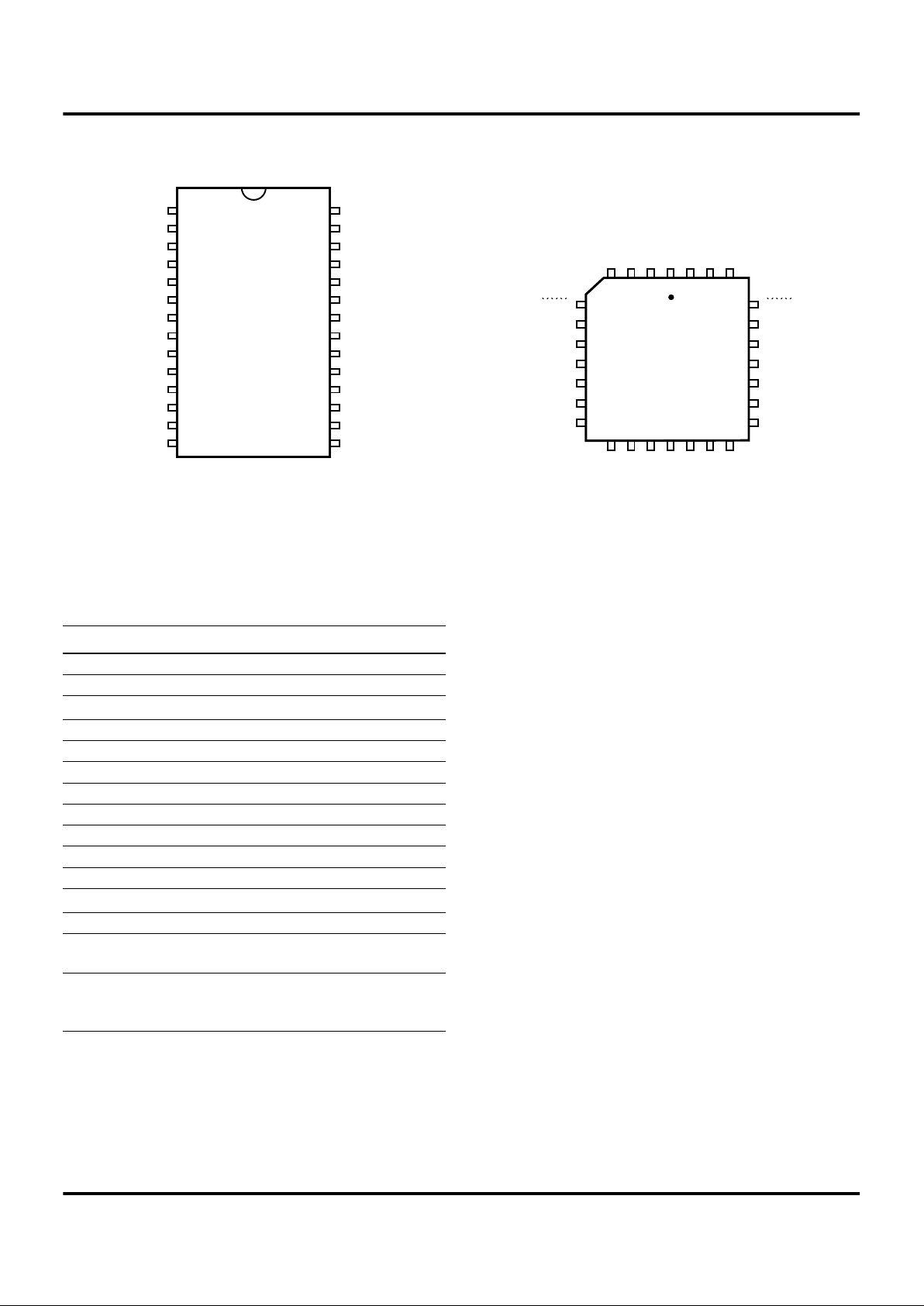

Figure 5. Standard Mode

28-Pin DIP/SOIC Pin Configuration

Table 4. 28-Pin DIP/SOIC/PLCC

Pin Identification

Pin # Symbol Function Direction

1-3 P25-P27 Port 2, Pins 5,6,7 In/Output
4-7 P04-P07 Port 0, Pins 4,5,6,7 In/Output
8V

CC

Power Supply

9 XTAL2 Crystal Oscillator Output
10 XTAL1 Crystal Oscillator Input
11-13 P31-P33 Port 3, Pins 1,2,3 Input
14-15 P34-P35 Port 3, Pins 4,5 Output
16 P37 Port 3, Pin 7 Output
17 P36 Port 3, Pin 6 Output
18 P30 Port 3, Pin 0 Input
19-21 P00-P02 Port 0, Pins 0,1,2 In/Output
22 V

SS

Ground

23 P03 Port 0, Pin 3 In/Output
24-28 P20-P24 Port 2, Pins

0,1,2,3,4

In/Output

Notes:

Pin Identification and Configuration identical on DIP and
Cerdip Window Lid style packages.

P25
P26
P27
P04
P05
P06
P07

VCC
XTAL2
XTAL1

P31
P32
P33
P34

P24
P23
P22
P21
P20
P03
VSS
P02
P01
P00
P30
P36
P37
P35

15

DIP 28 - Pin

1

14 28

Figure 6. Standard Mode

28-Pin PLCC Pin Configuration

25

19

5

11

18

12

264

PLCC 28 - Pin

1

XXX
XXX
XXX
XXX
XXX
XXX
XXX

XXX
XXX
XXX
XXX
XXX
XXX
XXX

P21
P20
P03
VSS
P02
P01
P00

P05
P06
P07

VCC

XT2
XT1
P31

P04

P27

P26

P25

P24

P23

P22

P32

P33

P34

P35

P37

P36

P30

Z86E33/733/E34/E43/743/E44

Zilog CMOS Z8® OTP Microcontrollers

CP97DZ83300

P R E L I M I N A R Y

7

1

ABSOLUTE MAXIMUM RATINGS

Stresses greater than those listed under Absolute Maxi­mum Ratings may cause permanent damage to the de­vice. This is a stress rating only; functional operation of the
device at any condition above those indicated in the oper­ational sections of these specifications is not implied. Ex­posure to absolute maximum rating conditions for an ex­tended period may affect device reliability.

Total power dissipation should not exceed 1.2 W for the
package. Power dissipation is calculated as follows:

Total Power Dissipation = V

DD

x [ I

DD

– (sum of I

OH

) ]

+ sum of [ (V

DD

– V

OH

) x I

OH

]

+ sum of (V

0L

x I

0L

)

STANDARD TEST CONDITIONS

The characteristics listed below apply for standard test
conditions as noted. All voltages are referenced to
Ground. Positive current flows into the referenced pin
(Test Load).

Parameter Min Max Units

Ambient Temperature under Bias –40 +105 C
Storage Temperature –65 +150 C
Voltage on any Pin with Respect to V

SS

[Note 1] –0.6 +7 V

Voltage on V

DD

Pin with Respect to V

SS

–0.3 +7 V

Voltage on XTAL1 and /RESET Pins with Respect to V

SS

[Note 2] –0.6 V

DD

+1 V

Total Power Dissipation 1.21 W
Maximum Allowable Current out of V

SS

220 mA

Maximum Allowable Current into V

DD

180 mA

Maximum Allowable Current into an Input Pin [Note 3] –600 +600

µ

A

Maximum Allowable Current into an Open-Drain Pin [Note 4] –600 +600

µ

A
Maximum Allowable Output Current Sinked by Any I/O Pin 25 mA
Maximum Allowable Output Current Sourced by Any I/O Pin 25 mA

Notes:

1. This applies to all pins except XTAL pins and where otherwise noted.

2. There is no input protection diode from pin to V

DD

.

3. This excludes XTAL pins.

4. Device pin is not at an output Low state.

Figure 7. Test Load Diagram

150 pF

From Output

Under T est

Z86E33/733/E34/E43/743/E44
CMOS Z8® OTP Microcontrollers Zilog

8 P R E L I M I N A R Y CP97DZ83300

CAPACITANCE

TA = 25°C, VCC = GND = 0V, f = 1.0 MHz; unmeasured pins returned to GND.

Parameter Min Max

Input capacitance 0 12 pF
Output capacitance 0 12 pF
I/O capacitance 0 12 pF

Z86E33/733/E34/E43/743/E44

Zilog CMOS Z8® OTP Microcontrollers

CP97DZ83300 P R E L I M I N A R Y 9

1

© 1997 by Zilog, Inc. All rights reserved. No part of this
document may be copied or reproduced in any form or by
any means without the prior written consent of Zilog, Inc.
The information in this document is subject to change
without notice. Devices sold by Zilog, Inc. are covered by
warranty and patent indemnification provisions appearing
in Zilog, Inc. Terms and Conditions of Sale only. Zilog, Inc.
makes no warranty, express, statutory, implied or by
description, regarding the information set forth herein or
regarding the freedom of the described devices from
intellectual property infringement. Zilog, Inc. makes no
warranty of merchantability or fitness for any purpose.
Zilog, Inc. shall not be responsible for any errors that may
appear in this document. Zilog, Inc. makes no commitment
to update or keep current the information contained in this
document.

Zilog’s products are not authorized for use as critical
components in life support devices or systems unless a
specific written agreement pertaining to such intended use
is executed between the customer and Zilog prior to use.
Life support devices or systems are those which are
intended for surgical implantation into the body, or which
sustains life whose failure to perform, when properly used
in accordance with instructions for use provided in the
labeling, can be reasonably expected to result in
significant injury to the user.

Zilog, Inc. 210 East Hacienda Ave.
Campbell, CA 95008-6600
Telephone [phone]
FAX [phone]
Internet: http://www.zilog.com

Z86E33/733/E34/E43/743/E44
CMOS Z8® OTP Microcontrollers Zilog

10 P R E L I M I N A R Y CP97DZ83300
