Zhone Technologies 6218-I2 User Manual

6218-I2 Wireless Router User’s Guide

November 2005 Document Part Number: 6218-A2-ZB23-10
Zhone Technologies @Zhone Way 7001 Oakport Street Oakland, CA 94621 USA
www.zhone.com info@zhone.com
COPYRIGHT 2000–2005 Zhone Technologies, Inc. All rights reserved.
This publication is protected by copyright law. No part of this publication may be copied, distributed, displayed, modified, transmitted, stored in a retrieval system, or translated without express written permission from Zhone Technologies, Inc.
Acculink, ADSL/R, Bitstorm, Comsphere, DSL the Easy Way, ETC, Etherloop, FrameSaver, GranDSLAM, GrandVIEW, Hotwire, the Hotwire logo, iMarc, Jetstream, MVL, NextEDGE, Net to Net Technologies, OpenLane, Paradyne, the Paradyne logo, Performance Wizard, ReachDSL, StormPort, and TruePut are registered trademarks of Zhone Technologies, Inc.
BAN, Connect to Success, GigMux, Hotwire Connected, JetFusion, JetVision, MALC, MicroBurst, PacketSurfer, Quick Channel, Raptor, Reverse Gateway, SLMS, Spectrum Manager, StormTracker, Z-Edge, Zhone, ZMS, and the Zhone logo are trademarks of Zhone Technologies, Inc.
All other products names or service marks mentioned herein are the trademarks, trade names and service names of their respective owners.
Zhone Technologies makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability, noninfringement, or fitness for a particular purpose. Further, Zhone Technologies reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of Zhone Technologies to notify any person of such revision or changes.
!
Important Safety Instructions
1. Read and follow all warning notices and instructions marked on the product or included in the manual.
2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered.
3. Do not allow anything to rest on the power cord and do not locate the product where persons will walk on the power cord.
4. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous high voltage points or other risks. Refer all servicing to qualified service personnel.
5. General purpose cables are used with this product for connection to the network. Special cables, which may be required by the regulatory inspection authority for the installation site, are the responsibility of the customer. Use a UL Listed, CSA certified, minimum No. 24 AWG line cord for connection to the Digital Subscriber Line (DSL) network.
6. When installed in the final configuration, the product must comply with the applicable Safety Standards and regulatory requirements of the country in which it is installed. If necessary, consult with the appropriate regulatory agencies and inspection authorities to ensure compliance.
7. A rare phenomenon can create a voltage potential between the earth grounds of two or more buildings. If products installed in separate buildings are interconnected, the voltage potential may cause a hazardous condition. Consult a qualified electrical consultant to determine whether or not this phenomenon exists and, if necessary, implement corrective action prior to interconnecting the products.
8. Input power to this product must be provided by one of the following: (1) a UL Listed/CSA certified power source with a Class 2 or Limited Power Source (LPS) output for use in North America, or (2) a certified transformer, with a Safety Extra Low Voltage (SELV) output having a maximum of 240 VA available, for use in the country of installation.
9. In addition, since the equipment is to be used with telecommunications circuits, take the following precautions:
— Never install telephone wiring during a lightning storm.
— Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
— Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
— Use caution when installing or modifying telephone lines.
— Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from lightning.
— Do not use the telephone to report a gas leak in the vicinity of the
leak.
6218-I2 Wireless Router User’s Guide 3
CE Marking
When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be downloaded from the Zhone World Wide Web site at www.zhone.com.
FCC Part 15 Declaration
An FCC Declaration of Conformity may be downloaded from the Zhone World Wide Web site at www.zhone.com.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The authority to operate this equipment is conditioned by the requirement that no modifications will be made to the equipment unless the changes or modifications are expressly approved by the responsible party.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
n Reorient or relocate the receiving antenna.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
n Consult the dealer or an experienced radio/TV technician for help.
Notice to Users of the United States Telephone Network
The following notice applies to versions of the modem that have been FCC Part 68 approved.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the Administrative Council for Terminal Attachment (ACTA). On the bottom side of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the Telephone Company.
This equipment is intended to connect to the Public Switched Telephone Network through a Universal Service Order Code (USOC) type RJ11C jack. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular
4 6218-I2 Wireless Router User’s Guide
plug is provided with this product. It has been designed to be connected to a compatible modular jack that is also compliant.
The Ringer Equivalence Number (or REN) is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local Telephone Company. The REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point. For example, 03 represents a REN of 0.3.
If the modem causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the Telephone Company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The Telephone Company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the Telephone Company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If trouble is experienced with the modem, refer to the repair and warranty information in this document.
If the equipment is causing harm to the telephone network, the Telephone Company may request that you disconnect the equipment until the problem is resolved.
The user may make no repairs to the equipment.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
If the site has specially wired alarm equipment connected to the telephone line, ensure the installation of the modem does not disable the alarm equipment. If you have questions about what will disable alarm equipment, consult your Telephone Company or a qualified installer.
Notice to Users of the Canadian Telephone Network
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation IC before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is labeled on the equipment. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the
6218-I2 Wireless Router User’s Guide 5
requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.
If your equipment is in need of repair, contact your local sales representative, service representative, or distributor directly.
!
CANADA - EMI NOTICE:
This Class B digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du règlement sur le matérial brouilleur du Canada.
Japan Notices
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
6 6218-I2 Wireless Router User’s Guide

CONTENTS

Document Purpose and Intended Audience ............................................................11
Document Summary...................................................................................................11
Product-Related Documents......................................................................................12
Contacting Global Service and Support ..................................................................12
Technical Support.......................................................................................................12
Service Requirements.................................................................................................12
Chapter 1 Introduction ............................................................................................................13
Introduction .................................................................................................................13
Features ........................................................................................................................13
System Requirements.................................................................................................14
Parts List ......................................................................................................................14
Front Panel...................................................................................................................15
Rear Panel ....................................................................................................................16
Chapter 2 Hardware Installation and PC Setup ............................................................17
Overview......................................................................................................................17
Connecting the Hardware ..........................................................................................18
Configuring Your Computer .....................................................................................20
Windows XP ...........................................................................................................21
Windows 2000 ........................................................................................................23
Windows ME ..........................................................................................................23
Windows 95 and Windows 98 ................................................................................24
Windows NT 4.0.....................................................................................................25
Logging in to Your Router ........................................................................................26
Chapter 3 Device Information ...............................................................................................29
Status Summary ..........................................................................................................29
WAN.............................................................................................................................30
LAN Statistics .............................................................................................................31
WAN Statistics............................................................................................................31
ATM Statistics.............................................................................................................32
ADSL Statistics...........................................................................................................33
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 7

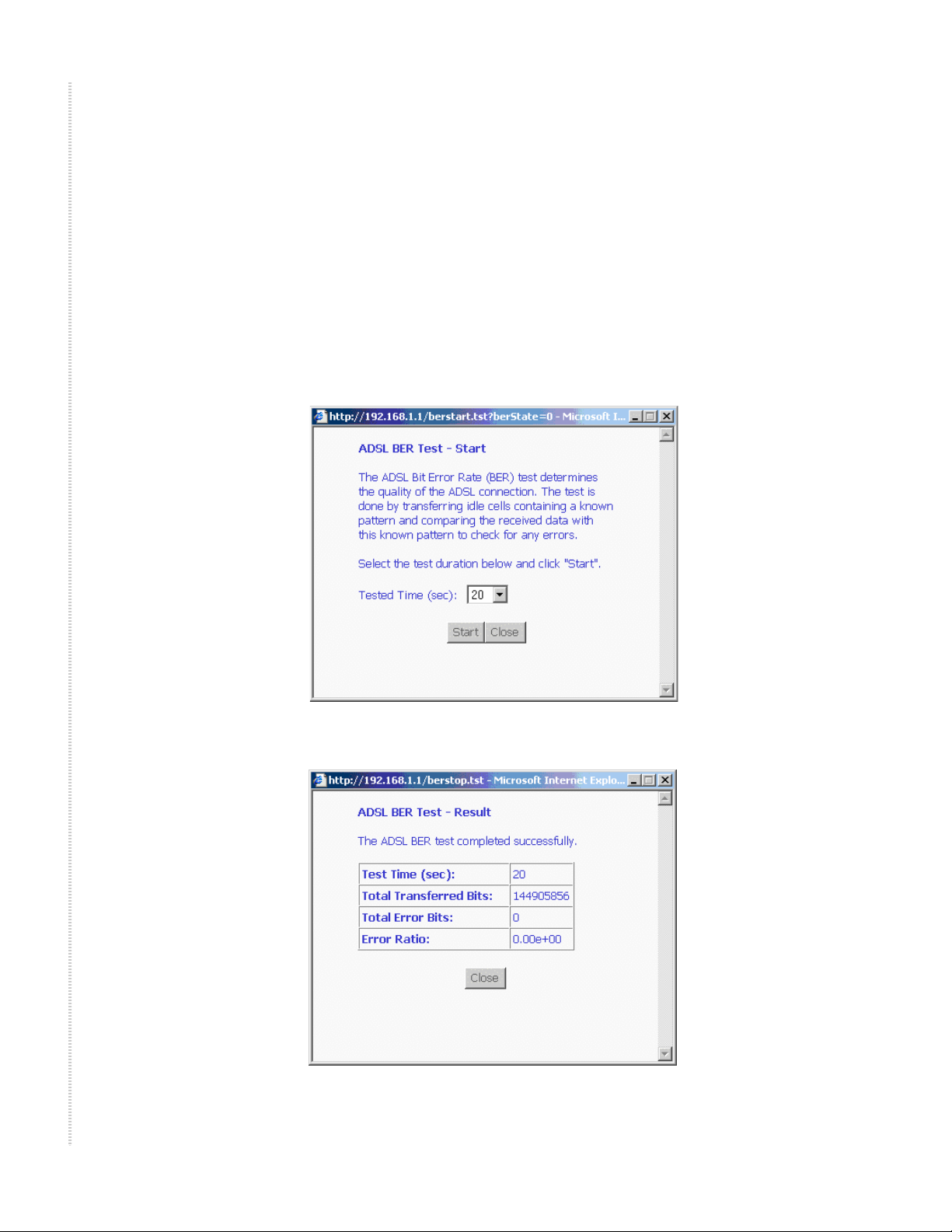

ADSL BER Test .........................................................................................................34
Route.............................................................................................................................35
ARP...............................................................................................................................35
Chapter 4 Quick Setup ............................................................................................................37
Quick Setup with Auto-Connect Enabled ...............................................................37

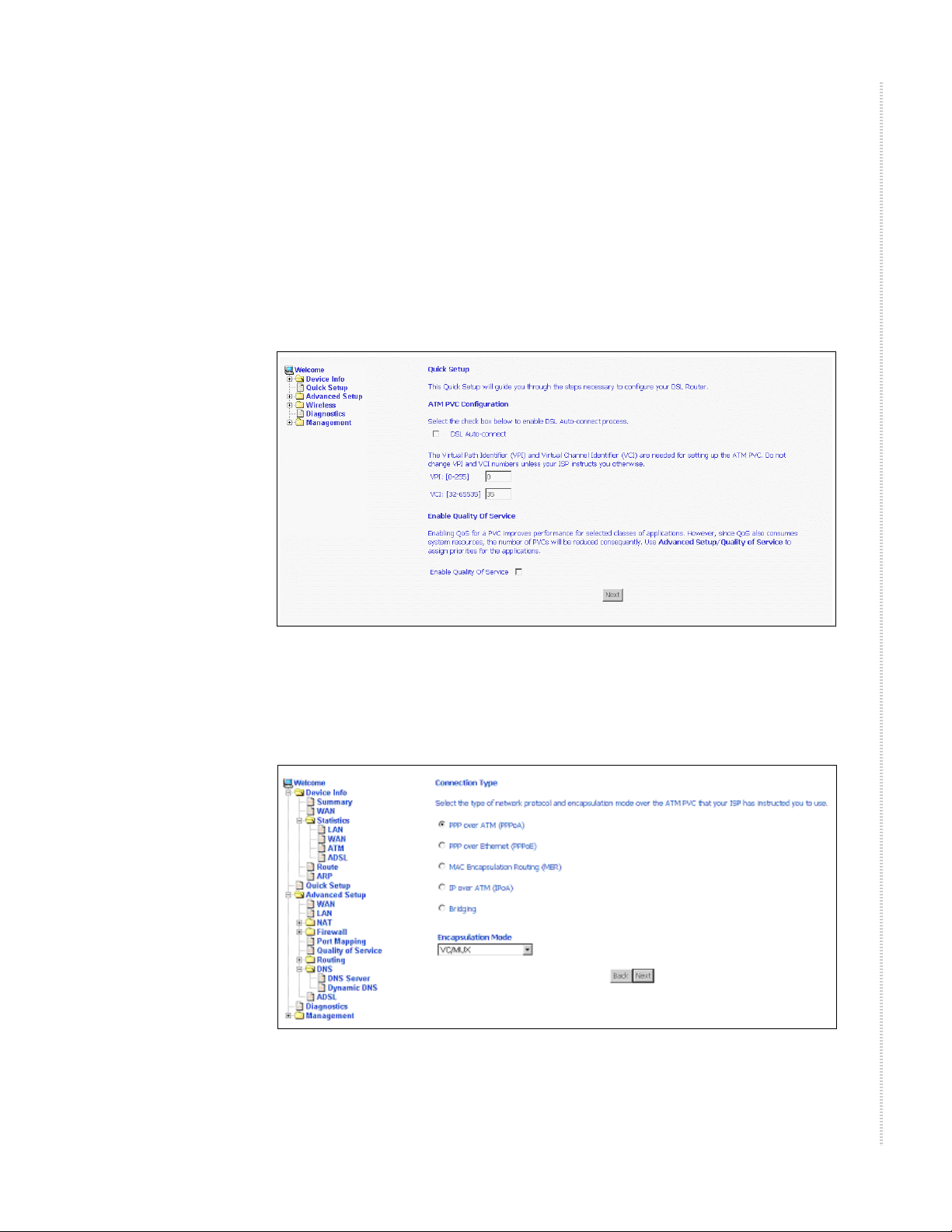

Quick Setup with Auto-Connect Disabled ..............................................................39
Chapter 5 Advanced Setup ....................................................................................................43
WAN.............................................................................................................................43

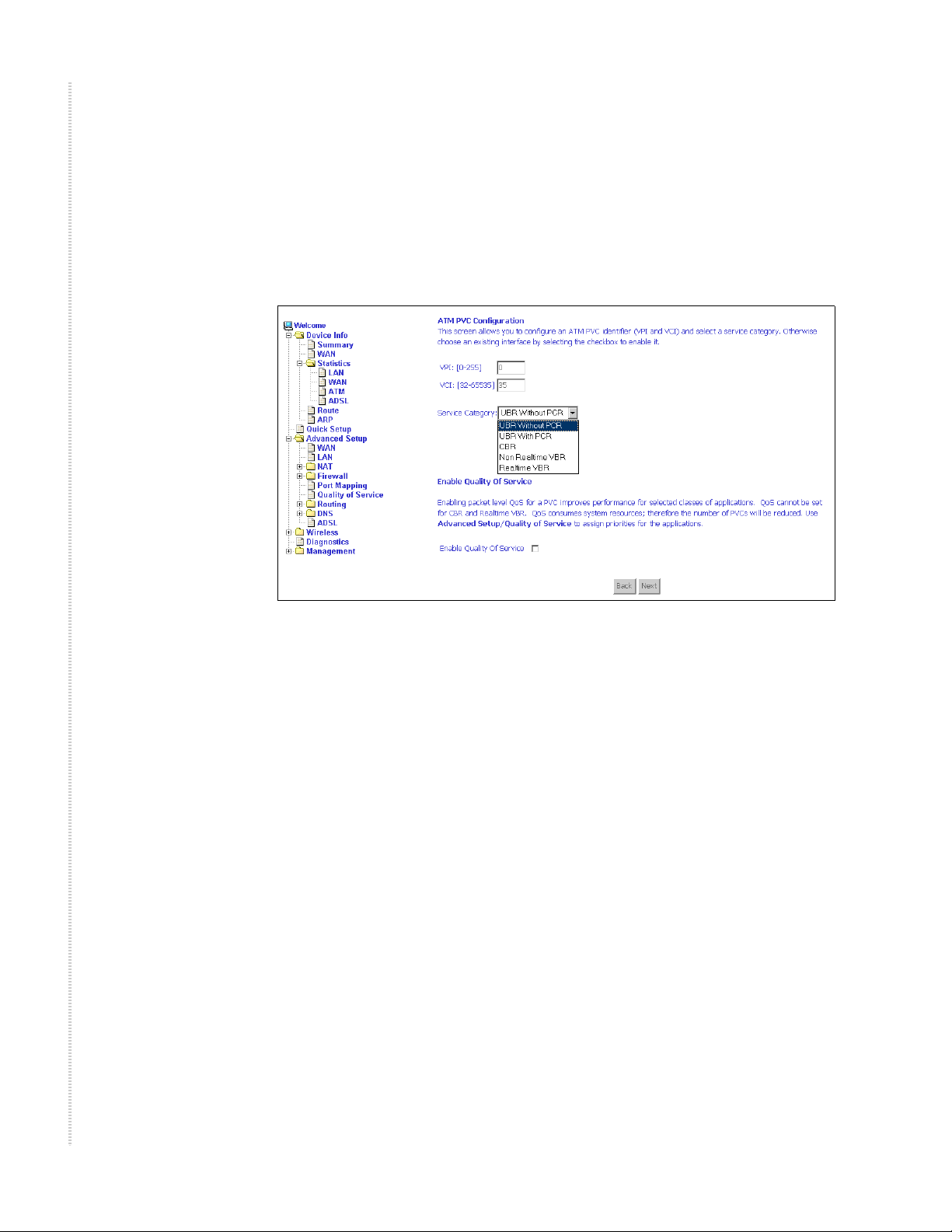

Add Function – ATM PVC Configuration .............................................................44

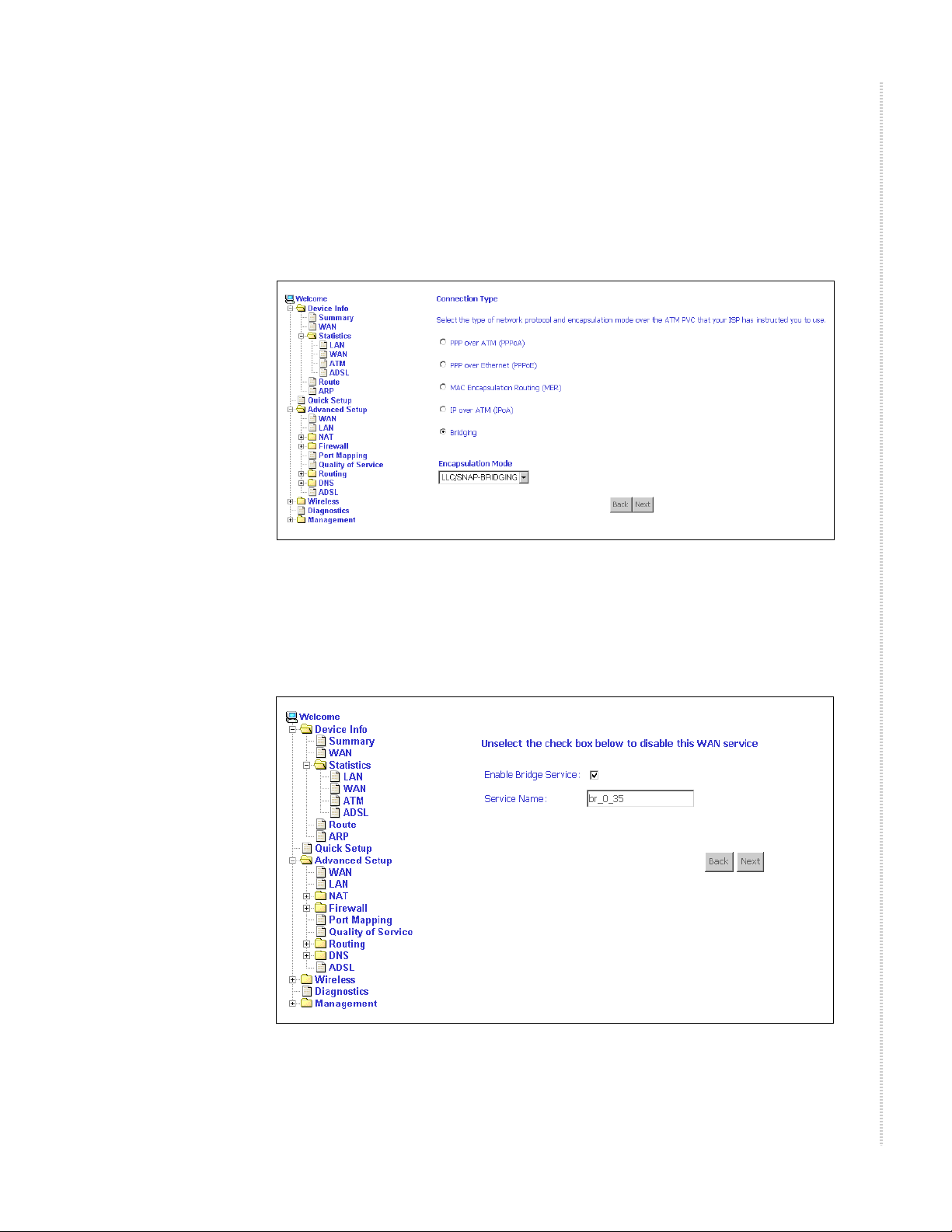

Connection Type Screen .........................................................................................45
WAN Setup - Summary..........................................................................................46
Remove Function....................................................................................................46
WAN Setup Finish..................................................................................................47

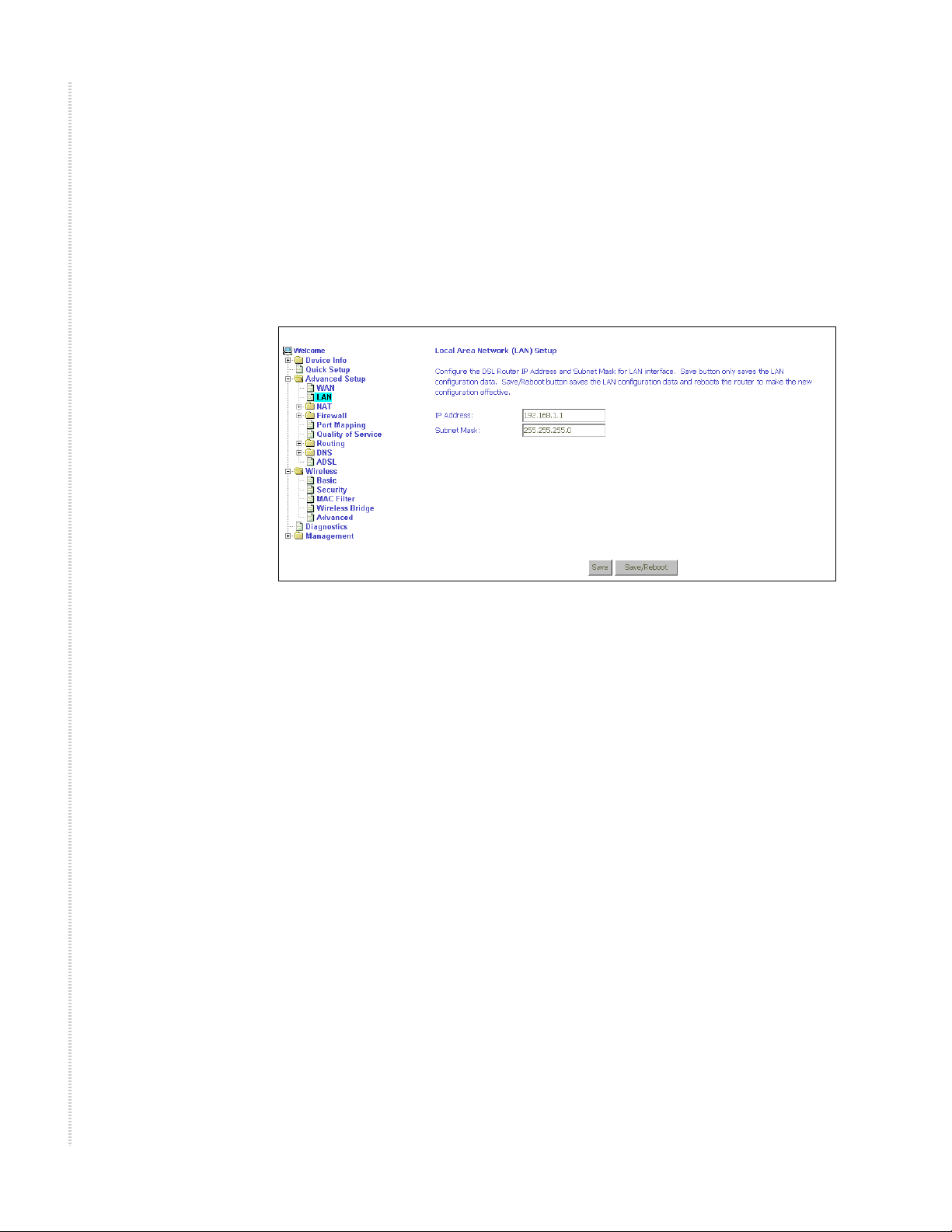

Local Area Network (LAN) Setup ...........................................................................48
NAT ..............................................................................................................................49
Virtual Servers ........................................................................................................49
Port Triggering ............................................................................................................51
DMZ Host ....................................................................................................................52
Firewall.........................................................................................................................53
IP Filtering – Outgoing ...........................................................................................53
IP Filtering – Incoming...........................................................................................54

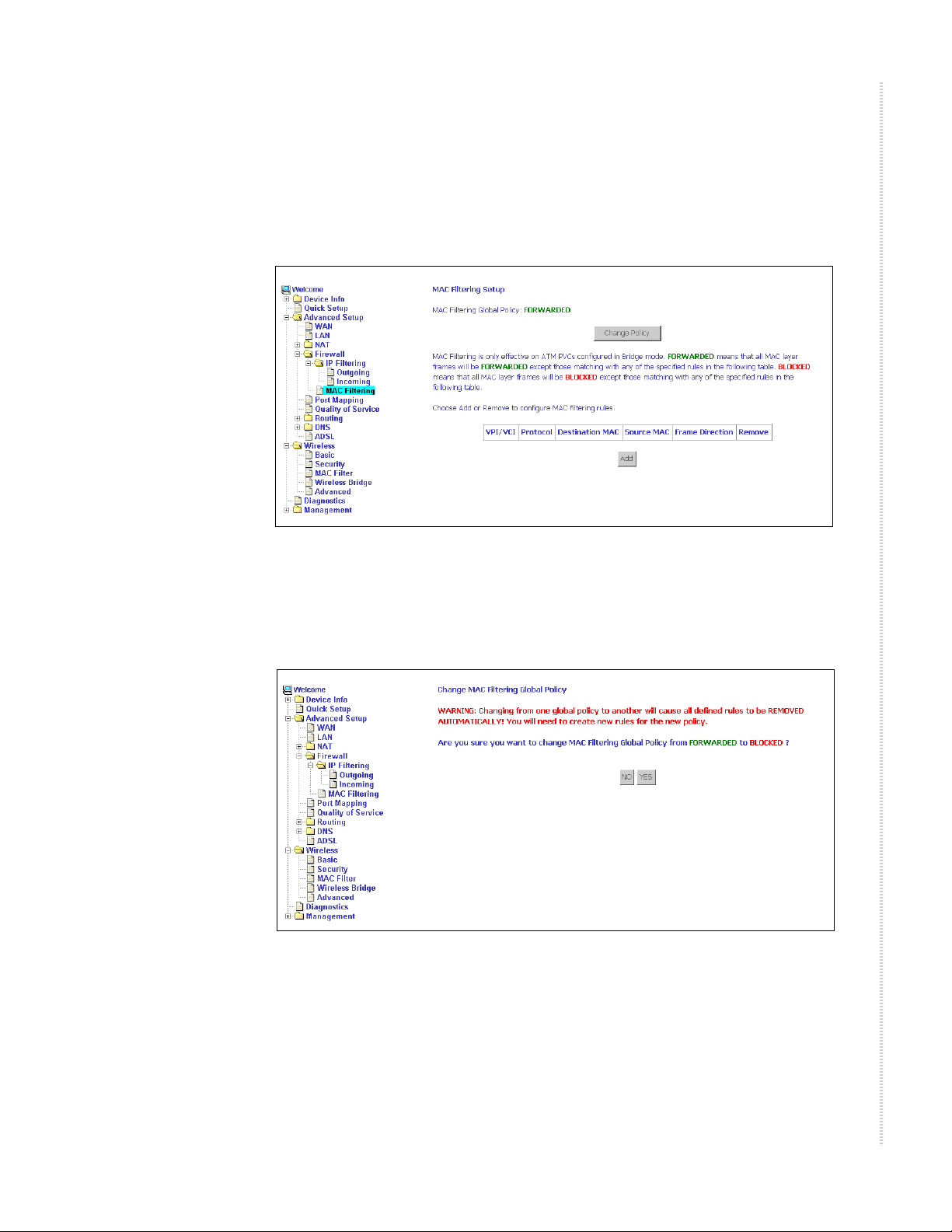

Firewall – MAC Filtering .......................................................................................55
Port Mapping...............................................................................................................57
Quality of Service .......................................................................................................58
Routing – Default Gateway.......................................................................................59
Routing – Static Route ...............................................................................................60
Routing – RIP..............................................................................................................61
DNS Server..................................................................................................................62
Dynamic DNS .............................................................................................................62
ADSL............................................................................................................................64
Modulation Methods...............................................................................................64
Phone Line Pair.......................................................................................................64
Capability................................................................................................................65
DSL Advanced Settings.............................................................................................65
Tone Selection.............................................................................................................66
Wireless........................................................................................................................67

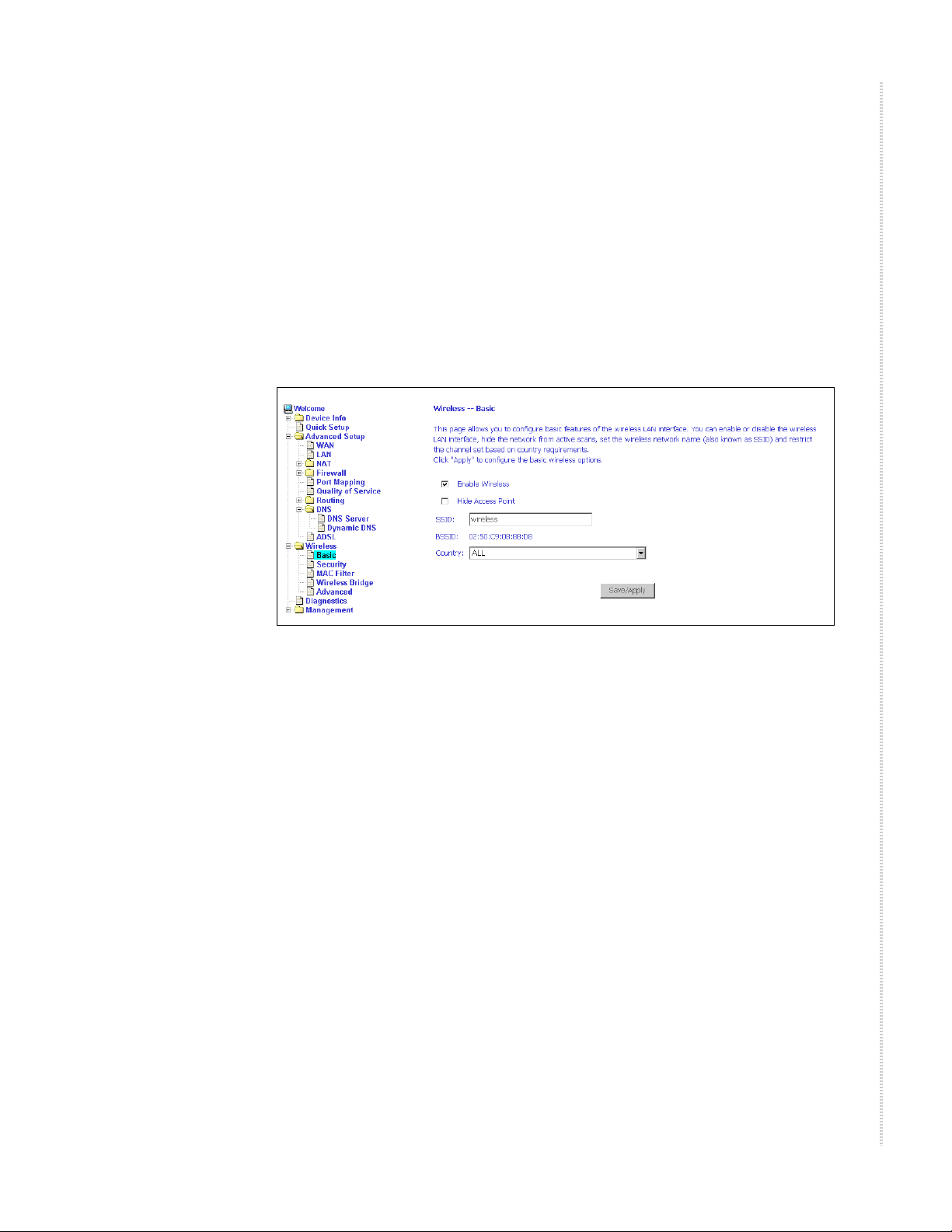

Wireless - Basic ......................................................................................................67
Wireless - Security..................................................................................................67
Wireless - MAC Filter ............................................................................................69
Wireless - Bridge ....................................................................................................70
Wireless - Advanced ...............................................................................................70
Chapter 6 Diagnostics .............................................................................................................73
Testing the DSL Connection.....................................................................................73
8 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Chapter 7 Management ...........................................................................................................75
Saving and Restoring the Configuration .................................................................75

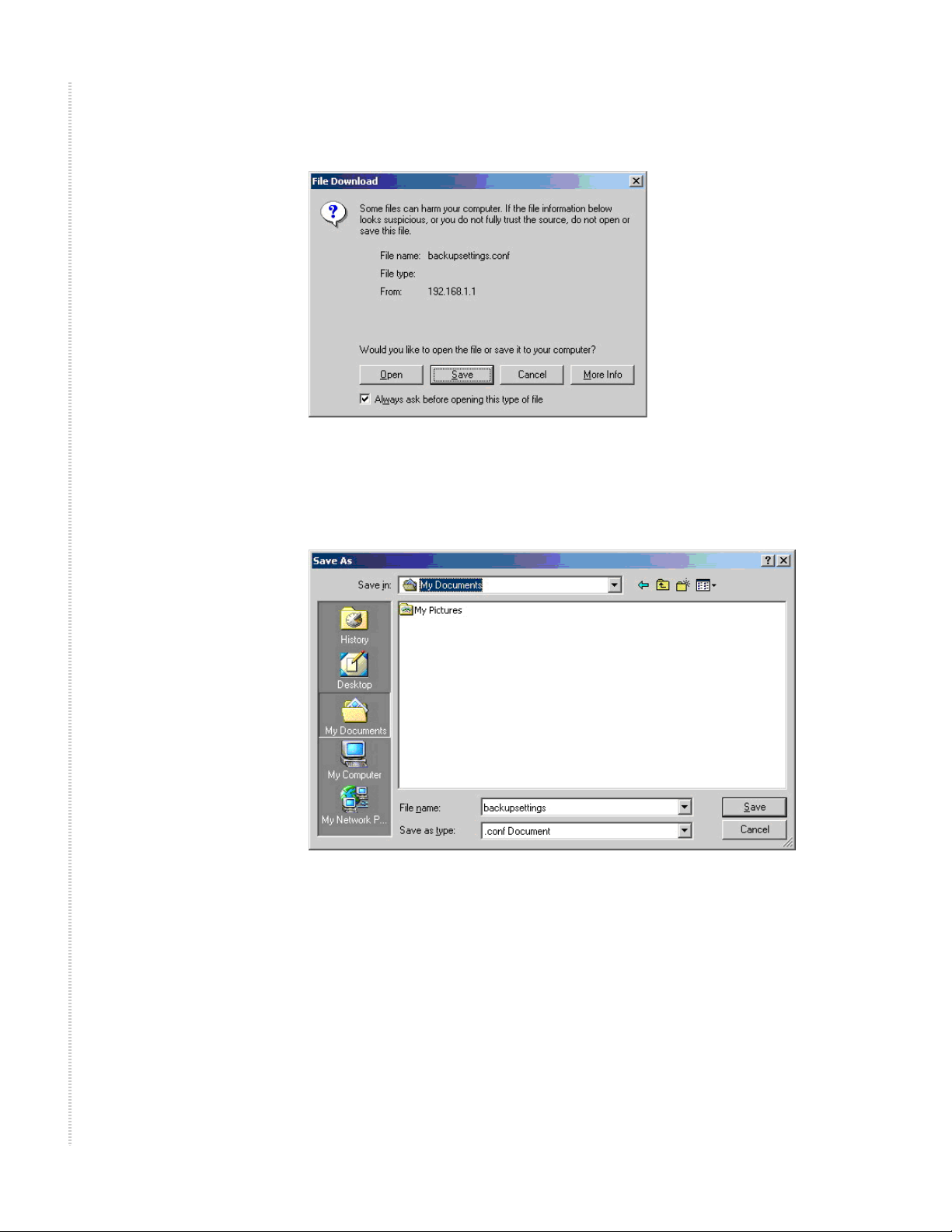

Backing Up Configuration Settings .........................................................................75
Restoring Configuration Settings .............................................................................77

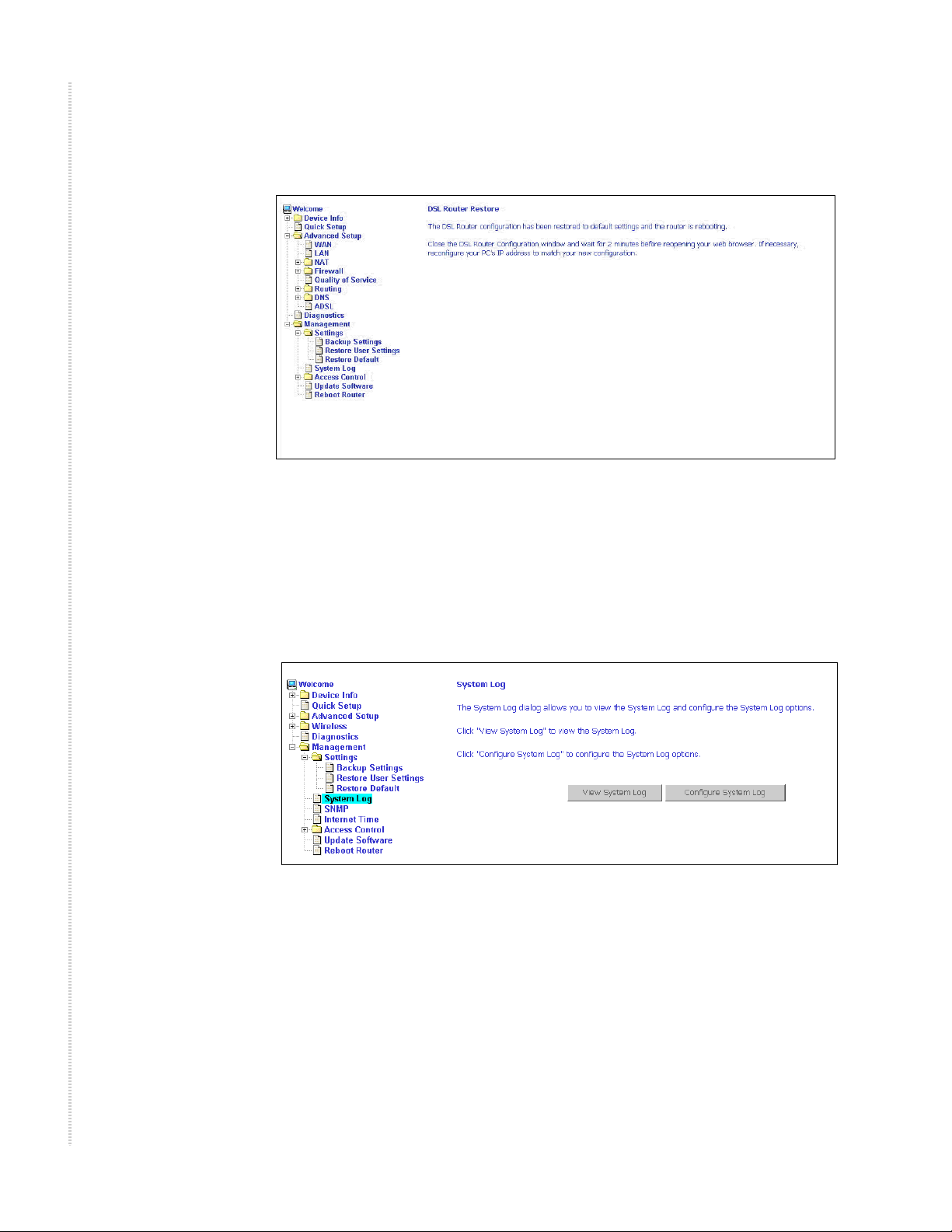

Restoring Default Settings.........................................................................................79
System Log ..................................................................................................................80

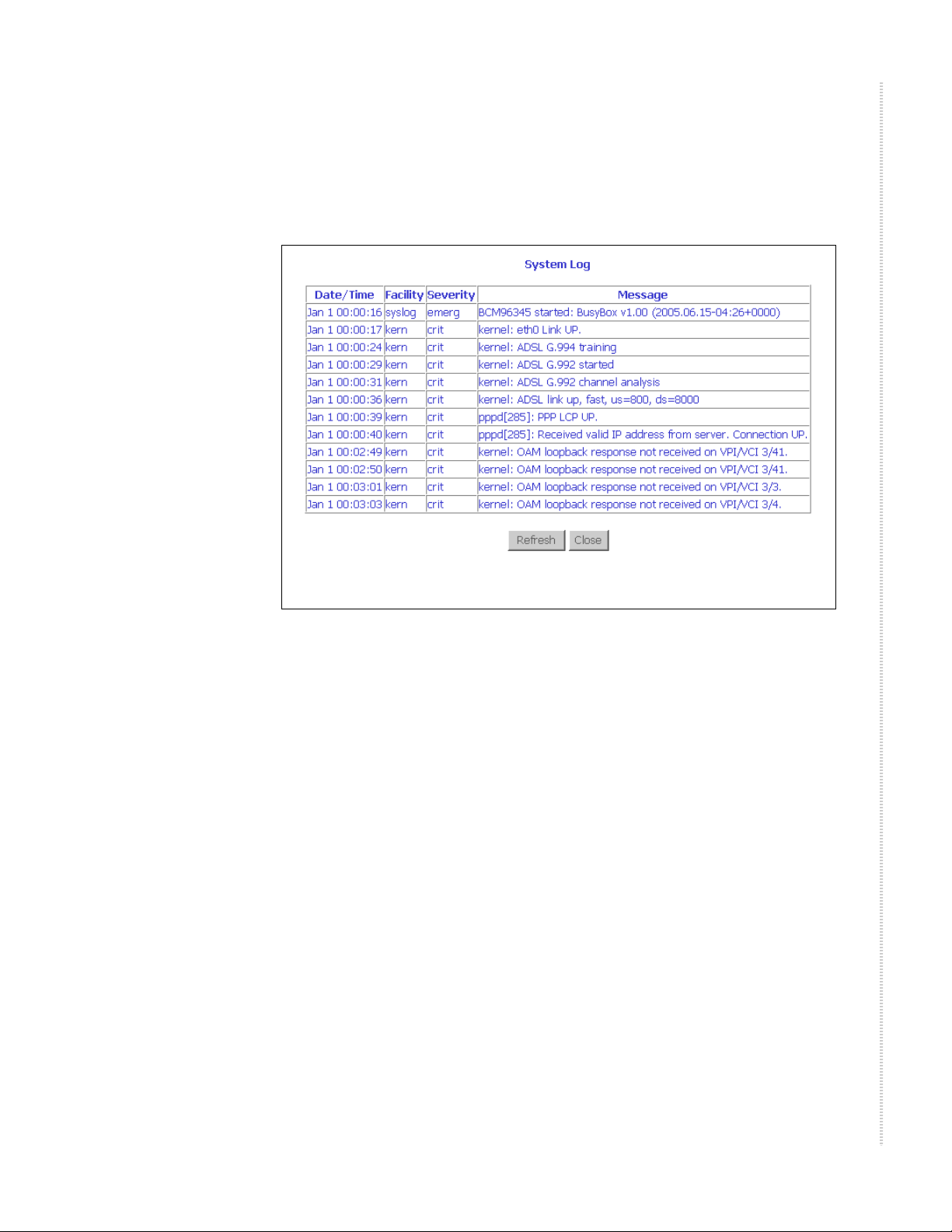

View System Log....................................................................................................81
Configure System Log ............................................................................................82

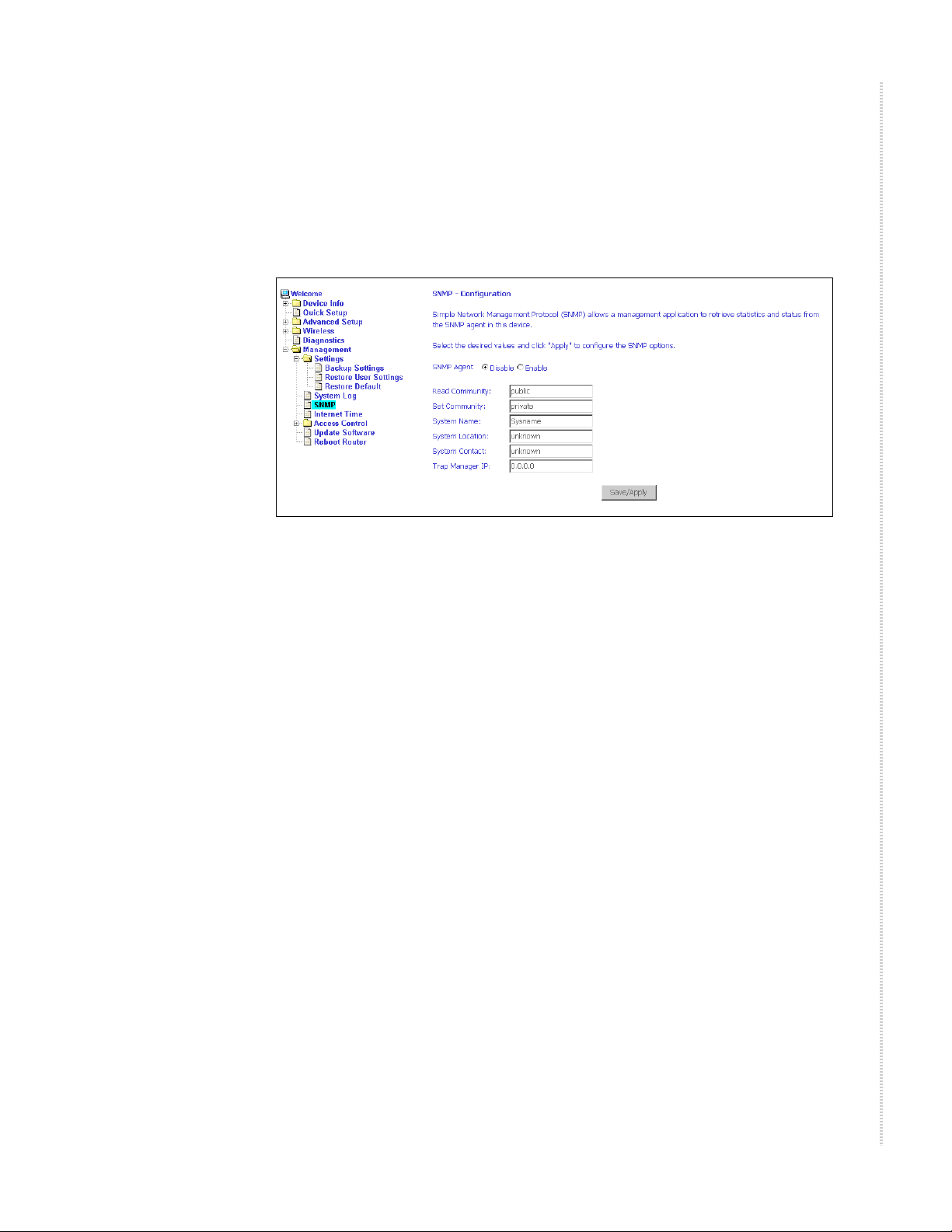

SNMP ...........................................................................................................................83
Internet Time ...............................................................................................................84
Access Control – Services .........................................................................................85

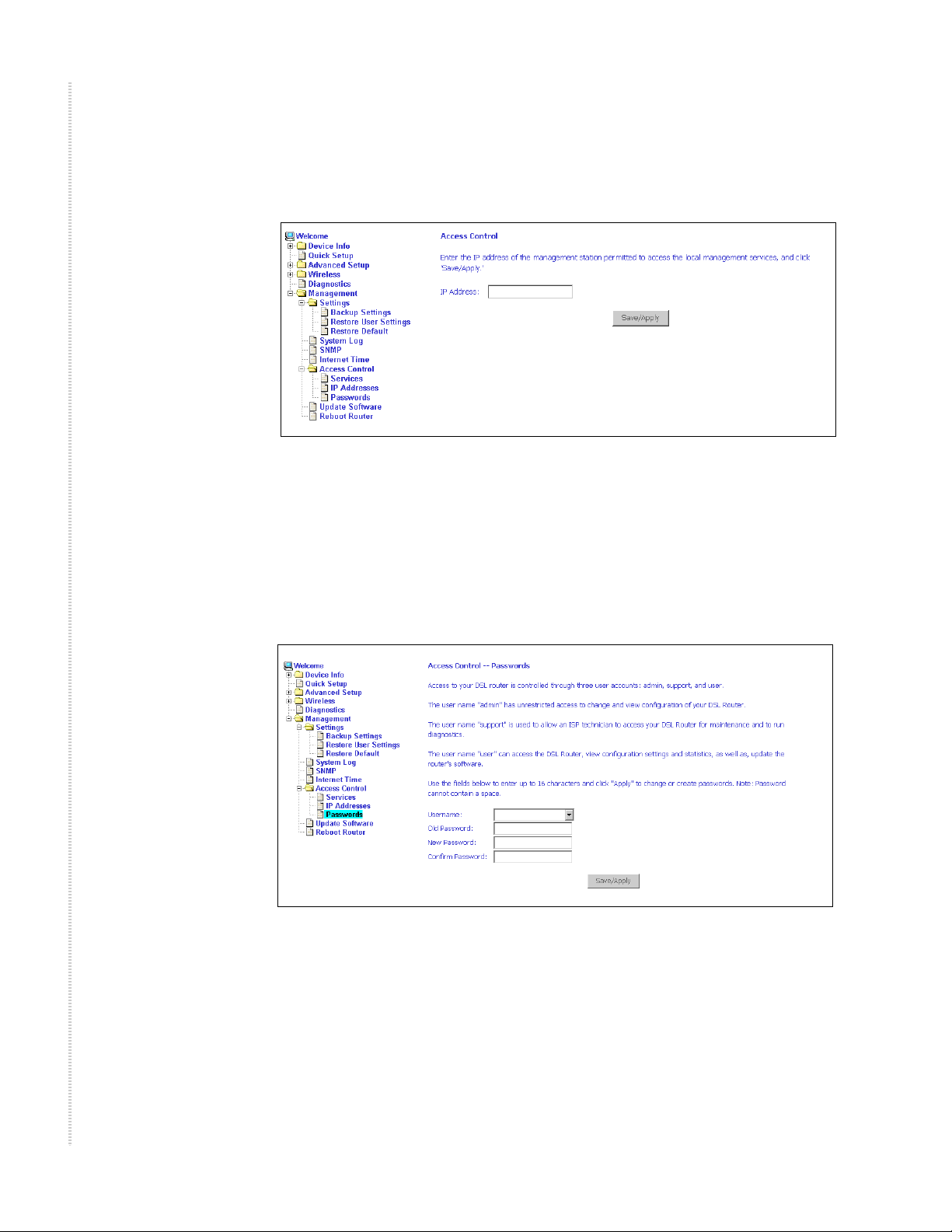

Access Control – IP Addresses.................................................................................85
Access Control – Passwords .....................................................................................86
Update Software..........................................................................................................87

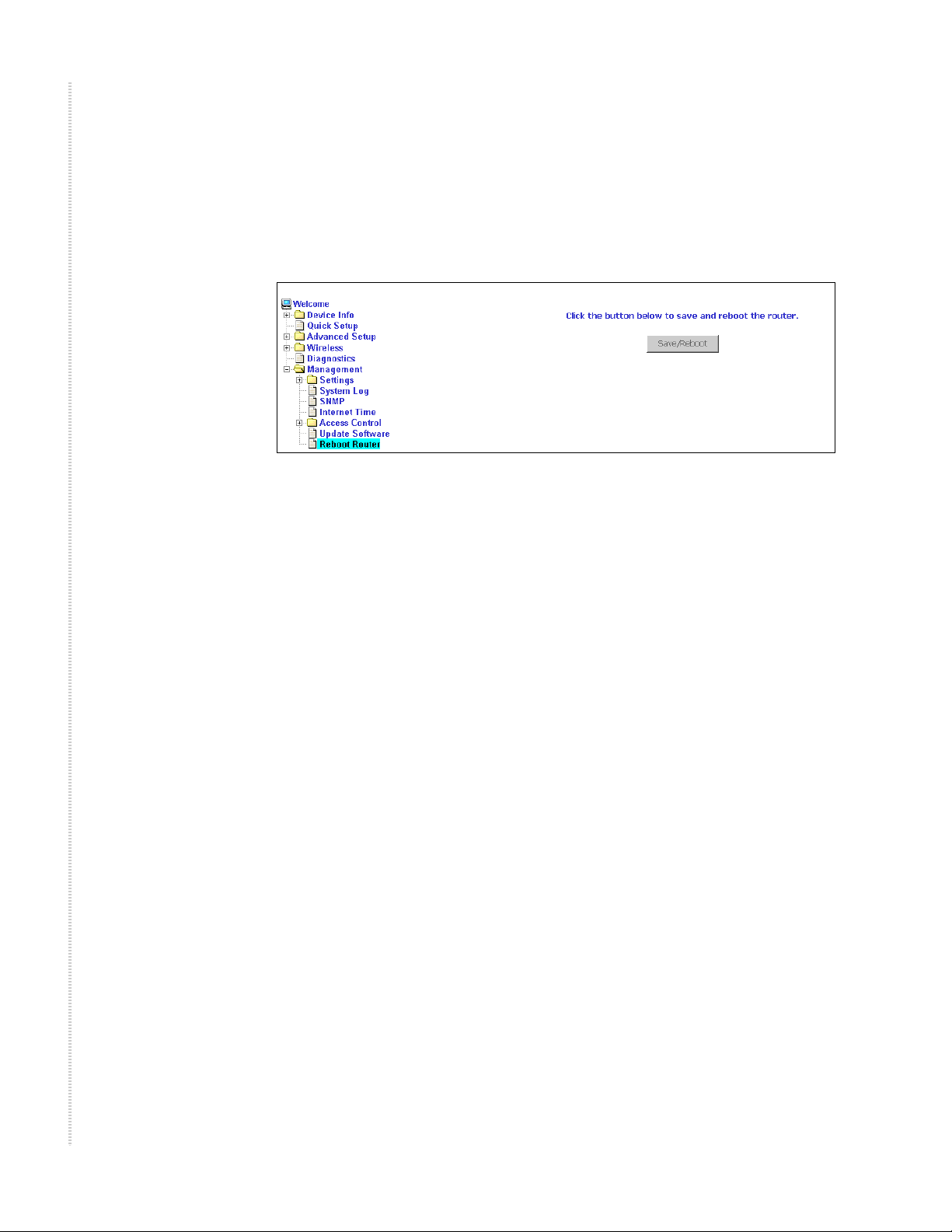

Reboot Router .............................................................................................................88
Chapter A Specifications ........................................................................................................89
Index......................................................................................................................................................91
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 9
10 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

ABOUT THIS GUIDE

Document Purpose and Intended Audience

This guide contains detailed information about the 6218-I2 router. It is intended for all users of the router.

Document Summary

Section Description
Chapter 1, Introduction Describes the features of the router.
Chapter 2, Hardware Installation and PC Setup
Chapter 3, Device Information
Chapter 4, Quick Setup Describes the Quick Setup configuration
Chapter 5, Advanced Setup Describes configuration of the advanced
Chapter 6, Diagnostics Describes the test screen.
Chapter 7, Management Describes the management functions of the
Appendix A, Specifications Lists the specifications of the router.
Index Lists key terms, concepts, and sections in
Shows how to connect the router and set up your PC to manage the router.
Explains how to use the web interface to obtain statistics and other information about the router.
process.
router features.
router, including backing up and restoring configuration settings, viewing the system log, configuraing access control, and upgrading software.
alphabetical order.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 11

Product-Related Documents

Complete documentation for Zhone products is available online at www.zhone.com.

Contacting Global Service and Support

Contact Global Service and Support (GSS) if you have any questions about this or other Zhone products. Before contacting GSS, make sure you have the following information:
z Zhone product you are using
z System configuration
z Software version running on the system
z Description of the issue

Technical Support

If you require assistance with the installation or operation of your product, or if you want to return a product for repair under warranty, contact GSS. The contact information is as follows:
E-mail
Telephone (North America) 877-ZHONE20
Telephone (International) 510-777-7133
Internet www.zhone.com/support
If you purchased the product from an authorized dealer, distributor, Value Added Reseller (VAR), or third party, contact that supplier for technical assistance and warranty support.

Service Requirements

If the product malfunctions, all repairs must be performed by the manufacturer or a Zhone-authorized agent. It is the responsibility of users requiring service to report the need for service to GSS.
support@zhone.com
12 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

INTRODUCTION

Introduction

Congratulations on becoming the owner of a 6218 wireless router.
This User’s Guide will show you how to set up the router, and how to customize its configuration to get the most out of this product.

Features

The 6218 router has the following features:
z Built-in Asynchronous Digital Subscriber Line (ADSL) modem which
z Four 10/100BaseT Ethernet ports to provide Internet connectivity to
z 802.11g Wi-Fi wireless support to provide Internet connectivity to all
offers G.dmt, G.lite, T1.413, ADSL2, Annex L, and ADSL2+ to meet different linking speeds from your Internet Service Provider (ISP)
computers on your Local Area Network (LAN)
wireless devices on your LAN
z Easy-to-use configuration program accessible through a standard web
browser
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 13
Introduction

System Requirements

In order to use the 6218 wireless router for Internet access, you must have the following:
z ADSL service subscription from your ISP
z A PC with:
— An Ethernet 10/100BaseT network interface card
— A processor equivalent to or faster than a Pentium II 133 MHz
— 32 MB RAM or greater
— Windows 95b, 98, 98SE, 2000, ME, NT, or XP (Note: Windows 95
requires the installation of the Winsock program, not included.)
— (Optional) An Ethernet hub or switch, if you wish to connect the
router to several computers on an Ethernet network.
— For system configuration using the supplied web-based program: a
web browser such as Internet Explorer Version 6.0 or later. Netscape is not supported.

Parts List

In addition to this document, your 6218 wireless router should come with the following:
z 6218 wireless router
z Power adapter
z Ethernet cable (RJ45, straight-through type)
z Phone cable (RJ11)
14 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Front Panel

The front panel contains LED indicators that show the status of the unit.
AP
xDSL LINK
xDSL ACT
LAN1
LAN2
LAN3
ALARM
LAN4
POWER
05-17713
Figure 1: Front Panel LEDs
Front Panel
Table 1: Front Panel Label and LEDs
Label Color Function
xDSL LNK Green On: ADSL link is established.
Flashing: ADSL link is established and active.
Off: No ADSL link.
xDSL ACT Green Off: No PPP connection is established or the
connection is not used.
Blinking: a PPP connection is being attempted.
Solid: A PPP connection is established.
Flickering: There is activity over the link.
LAN 1–4 Green On: The Ethernet interface is successfully
connected to a device through the LAN port.
Flashing: Data transfer at LAN connection
Off: No LAN link
ALARM Red On: ADSL is not connected.
Off: ADSL is connected.
POWER Green On: Unit is powered on.
Off: Unit is powered off.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
15
Introduction

Rear Panel

ON/OFF
POWER
RESET
DEFAULT
Figure 2: Back Panel
LAN4
LAN3
LAN2
LAN1
LINE
CONSOLE
05-17714
The rear panel contains the ports for the router's data and power connections.
Table 2: Rear Panel Labels and Connectors
Label Function
LINE Connects to your ADSL line
LAN 1–4 Connects the router to Ethernet devices on your
LAN, such as your PC's Ethernet port, or the uplink port on a hub or switch
RESET/DEFAULT To reset the router to its default settings
POWER Connects to the supplied power adapter
16 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

HARDWARE INSTALLATION AND PC SETUP

Overview

This chapter provides basic instructions for connecting the router to a computer or a LAN and to the Internet using DSL. The first part provides instructions to set up the hardware, and the second part describes how to prepare your PC for use with the router.
It is assumed that you have already subscribed to DSL service with your Internet service provider (ISP).
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 17
Hardware Installation and PC Setup

Connecting the Hardware

Shut down your PC and any other equipment before connecting it to the router. To connect your router:
1 Verify that the router’s power switch is in the Off (outward) position.
Verify that any PCs and other LAN devices you will attach (such as hubs or switches) are turned off.
2 Use the provided modular phone cable to connect the LINE jack of the
router to your RJ11 wall jack.
3 Use the provided Ethernet cable to connect your computer to the router.
Attach one end of the Ethernet cable to one of the LAN ports on the back of the router and connect the other end to the Ethernet port or Network Interface Card (NIC) in your PC.
Connect any other PCs, hubs, and switches to the remaining LAN ports. Either a crossover or a straight-through Ethernet cable can be used: the router determines the type of signal required.
4 Connect the cylindrical power plug into the POWER connector on the
back of the device. Next:
— If you have a wall-mount adapter, plug the AC adapter into a wall
— If you have a table-top adapter, use the AC power cord to connect the
outlet or a power strip.
adapter to a wall outlet or power strip.
The supplied power adapter may look different than the one illustrated here.
5 Turn on your PC and any other LAN devices, such as hubs or switches.
6 Turn on the router using its power switch.
7 Verify that the router's LEDs are illuminated as shown in Table 3.
18 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
ON/OFF
POWER
RESET
DEFAULT
LAN4
LAN3
LAN2
LAN1
Connecting the Hardware
LINE
CONSOLE
05-17715
Figure 3: Hardware Installation
Table 3: LED Indicators
This LED . . . Should be:
POWER Solid green to indicate that the device is turned on. If this
light is not on, check if the power adapter is attached to the router and plugged into an AC power source.
STATUS Solid green to indicate that the router can communicate with
your ISP via ADSL, or flashing when the router is trying to connect to your ISP.
ACTIVITY Flashing when the device is sending or receiving data over
the ADSL connection.
LAN Solid green to indicate that the device can communicate
with your PC via Ethernet, or flashing when the router is sending or receiving data over Ethernet.
If the LEDs are illuminated as expected, the router is working properly.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
19
Hardware Installation and PC Setup

Configuring Your Computer

Before you can access the router over the LAN you have to configure your PC's TCP/IP address to be 192.168.1.x (where x is any number between 3 and
254), with a subnet mask of 255.255.255.0. Your router's default IP address is
192.168.1.1.
If you know the version of Windows that you use, go to the appropriate section below to learn how to set the IP address of your PC. To determine the version of Windows running on your PC, click on the Windows Start button, then click on Run... in the Start menu. Type winver in the Open selection box and click on OK.
Figure 4: Windows Run Dialog
The Windows version is displayed.
Figure 5: Windows Version
20 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Windows XP

Configuring Your Computer
1 In the Windows task bar, click on the Start button, and then click on
Control Panel.
2 Double-click on the Network Connections icon.
3 In the LAN or High-Speed Internet window, right-click on the icon
corresponding to your network interface card (NIC), and select Properties. (Often this icon is labeled Local Area Connection). The Local Area Connection dialog box displays with a list of currently installed network items.
4 Ensure that the check box to the left of the item labeled Internet Protocol
(TCP/IP) is checked, and click on Properties.
Figure 6: Network Connections (Windows XP)
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
21
Hardware Installation and PC Setup
Figure 7: Local Area Connection Properties (Windows XP)
5 In the Internet Protocol (TCP/IP) Properties dialog box, click on the radio
button labeled Use the following IP address. Type an address between
192.168.1.3 and 192.168.1.254 in the IP Address field (192.168.1.20 is shown here as an example) and 255.255.255.0 in the Subnet Mask field.
Figure 8: TCP/IP Properties (Windows XP)
6. Click on OK twice to confirm your changes, and close the Control Panel.
22 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Windows 2000

Configuring Your Computer
1 In the Windows task bar, click on the Start button, point to Settings, and
then click on Control Panel.
2 Double-click on the Network and Dial-up Connections icon.
3 In the Network and Dial-up Connections window, right-click on the Local
Area Connection icon, and then select Properties.
The Local Area Connection Properties dialog box display a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), the protocol has already been enabled; skip to Step 10.
4 If Internet Protocol (TCP/IP) does not appear as an installed component,
click on Install.
5 In the Select Network Component Type dialog box, select Protocol, and
then click on Add.
6 Select Internet Protocol (TCP/IP) in the Network Protocols list, and then
click on OK.
You may be prompted to install files from your Windows 2000 installation CD or other medium. Follow the instructions to install the files.

Windows ME

7 If prompted, click on OK to restart your computer with the new settings.
8 After restarting your PC, double-click on the Network and Dial-up
Connections icon in the Control Panel.
9 In Network and Dial-up Connections window, right-click on the Local
Area Connection icon, and then select Properties.
10 In the Local Area Connection Properties dialog box, select Internet
Protocol (TCP/IP), and then click on Properties.
11 In the Internet Protocol (TCP/IP) Properties dialog box, click on the radio
button labeled Use the following IP address. Type an address between
192.168.1.3 and 192.168.1.254 in the IP Address field and 255.255.255.0 in the Subnet Mask field.
12 Click on OK twice to confirm and save your changes, and then close the
Control Panel.
1 In the Windows task bar, click on the Start button, point to Settings, and
then click on Control Panel.
2 Double-click on the Network and Dial-up Connections icon.
3 In the Network and Dial-up Connections window, right-click on the
Network icon, and then select Properties.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
23
Hardware Installation and PC Setup
The Network Properties dialog box displays a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), the protocol has already been enabled; skip to Step 11.
4 If Internet Protocol (TCP/IP) does not appear as an installed component,
click on Add.
5 In the Select Network Component Type dialog box, select Protocol, and
then click on Add.
6 Select Microsoft in the Manufacturers box.
7 Select Internet Protocol (TCP/IP) in the Network Protocols list, and then
click on OK.
You may be prompted to install files from your Windows Me installation CD or other media. Follow the instructions to install the files.
8 If prompted, click on OK to restart your computer with the new settings.
9 After restarting your PC, double-click on the Network and Dial-up
Connections icon in the Control Panel.
10 In Network and Dial-up Connections window, right-click on the Network
icon, and then select Properties.
11 In the Network Properties dialog box, select TCP/IP, and then click on
Properties.
12 In the TCP/IP Settings dialog box, click on the radio button labeled Use
the following IP address. Type an address between 192.168.1.3 and
192.168.1.254 in the IP Address field and 255.255.255.0 in the Subnet Mask field.
13 Click on OK twice to confirm and save your changes, and then close the
Control Panel.

Windows 95 and Windows 98

1 In the Windows task bar, click on the Start button, point to Settings, and
then click on Control Panel.
2 Double-click on the Network icon.
The Network dialog box displays a list of currently installed network components. If the list includes TCP/IP, the protocol has already been enabled. Skip to step 9.
3 If TCP/IP does not appear as an installed component, click on Add. The
Select Network Component Type dialog box appears.
4 Select Protocol, and then click on Add.
The Select Network Protocol dialog box appears.
5 Click on Microsoft in the Manufacturers list box, and then click on TCP/
IP in the Network Protocols list box.
6 Click on OK to return to the Network dialog box, and then click on OK
again.
24 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Windows NT 4.0

Configuring Your Computer
You may be prompted to install files from your Windows 95/98 installation CD. Follow the instructions to install the files.
7 Click on OK to restart the PC and complete the TCP/IP installation.
8 After restarting your PC, open the Control Panel window, and then click
on the Network icon.
9 Select the network component labeled TCP/IP, and then click on
Properties.
If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.
10 In the TCP/IP Properties dialog box, click on the IP Address tab.
11 Click in the radio button labeled Use the following IP address. Type an
address between 192.168.1.3 and 192.168.1.254 in the IP Address field and 255.255.255.0 in the Subnet Mask field.
12 Click on OK twice to confirm and save your changes. You will be
prompted to restart Windows. Click on Yes.
1 In the Windows NT task bar, click on the Start button, point to Settings,
and then click on Control Panel.
2 In the Control Panel window, double click on the Network icon.
3 In the Network dialog box, click on the Protocols tab.
The Protocols tab displays a list of currently installed network protocols. If the list includes TCP/IP, the protocol has already been enabled. Skip to
Step 9.
4 If TCP/IP does not appear as an installed component, click on Add.
5 In the Select Network Protocol dialog box, select TCP/IP, and then click
on OK.
You may be prompted to install files from your Windows NT installation CD or other medium. Follow the instructions to install the files.
After all files are installed, a window appears to inform you that a TCP/IP service called DHCP can be set up to dynamically assign IP information.
6 Click on Yes to continue, and then click on OK, if prompted, to restart
your computer.
7 After restarting your PC, open the Control Panel window, and then
double-click on the Network icon.
8 In the Network dialog box, click on the Protocols tab.
9 In the Protocols tab, select TCP/IP, and then click on Properties.
10 In the Microsoft TCP/IP Properties dialog box, click on the radio button
labeled Use the following IP address. Type an address between
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
25
Hardware Installation and PC Setup
192.168.1.3 and 192.168.1.254 in the IP Address field and 255.255.255.0 in the Subnet Mask field.
11 Click on OK twice to confirm and save your changes, and then close the
Control Panel.

Logging in to Your Router

This section shows how to connect to the router's web interface, configure settings, and observe some statistics of your Internet connection.
1 Open your Web browser, and type the following URL in the address/
location box, and press Enter:
This is the default IP address for the LAN port on the router.
A login screen appears.
http://192.168.1.1
Figure 9: Login Screen
If you have problem connecting to the router, verify that your PC is properly configured within the subnet of the router's default IP address
192.168.1.1. Setup is described in Configuring Your Computer on
page 20.
26 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Logging in to Your Router
2 Enter your user name and password, and then click on OK to display the
home page of the router's web interface. There are two default user name and password combinations:
Table 4: Default User Names and Passwords
User Name Password Capability
user user Can display device status, but cannot
change or save configuration options.
admin admin Can perform all functions.
You can change the passwords at any time.
The home page is shown in Figure 10.
Figure 10: Web Interface Home Page
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
27
Hardware Installation and PC Setup
28 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

DEVICE INFORMATION

Status Summary

Display the general status report for the router by clicking on Summary under Device Info (Figure 11).
Figure 11: Status Summary
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 29
Device Information
WAN
Display the WAN status report from the by clicking on WAN under Device Info (Figure 12).
Figure 12: WAN Status
When a WAN connection is configured, the screen looks like Figure 13.
Figure 13: WAN Status with WAN Connection
30 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

LAN Statistics

LAN Statistics
Display LAN statistics by clicking on LAN under Statistics (Figure 14).
Figure 14: LAN Statistics

WAN Statistics

Display WAN statistics by clicking on WAN under Statistics (Figure 15).
Figure 15: WAN Statistics
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
31
Device Information

ATM Statistics

Display ATM statistics by clicking on ATM under Statistics (Figure 16).
Figure 16: ATM Statistics
32 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

ADSL Statistics

ADSL Statistics
Display ADSL statistics by clicking on ADSL under Statistics (Figure 17).
Figure 17: ADSL Status
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
33
Device Information

ADSL BER Test

The ADSL Bit Error Rate (BER) test determines the quality of the ADSL connection. The test is performed by transferring idle cells containing a known pattern and comparing the received data with this known pattern to check for any errors (Figure 18 and Figure 19).
To run a BER test:
1 Click on the ADSL BER Test button.
2 Select the test duration and click on Start
3 Check the result.
Figure 18: ADSL BER Test — Start
Figure 19: ADSL BER Test — Result
34 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Route

Route
Obtain the Routing status report by clicking on the Route item under Device Info (Figure 20)
Figure 20: Route Information
ARP
Display the ARP status report by clicking on ARP under Device Info (Figure 21)
Figure 21: ARP Status
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
35
Device Information
36 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

QUICK SETUP

Quick Setup with Auto-Connect Enabled

Auto-connect will automatically detect the first usable PVC and automatically detect PPPoE, PPPoA, and Bridge Protocol (with DHCP Server available). To use auto-connect:
1 Select Quick Setup. The Quick Setup initial screen appears.
Figure 22: Quick Setup Initial Screen
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 37
Quick Setup
2 Select DSL Auto-Connect, then click on Next. The progress information
screen appears.
Figure 23: Detecting Available PVC
Figure 24: Detecting available PVC – Available PVC Detected
38 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Quick Setup with Auto-Connect Disabled

Quick Setup with Auto-Connect Disabled
1 Select Quick Setup. The Quick Setup initial screen appears.
2 Verify that DSL Auto-Connect is not selected. Entry boxes for VPI and
VCI appear when DSL Auto-Connect is not selected.
3 Specify VPI and VCI as directed by your ISP.
Figure 25: Specifying VPI and VCI
4 Click on Next. The Connection Type screen appears.
Figure 26: Connection Type
5 Select the protocol and encapsulation type required by your ISP.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
39
Quick Setup
6 Click on Next. Further parameters for the selected protocol are presented.
For example, if you selected PPPoA, the PPP Username and Password screen appears.
Figure 27: PPP Username and Password
7 Click on Next. The Network Address Translation Settings screen appears.
Figure 28: NAT Settings
40 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Quick Setup with Auto-Connect Disabled
8 Enter the settings specified by your ISP and click on Next. The Device
Setup screen appears.
Figure 29: Device Setup
9 If desired, configure configure the DSL Router IP address and Subnet
Mask for the LAN interface to correspond to your LAN's IP Subnet. If you want the DHCP server to automatically assign IP addresses, then enable the DHCP server and enter the range of IP addresses that the DHCP server can assign to your computers. Disable the DHCP server if you would like to manually assign IP addresses.
If you have a second IP address and subnet mask for the LAN interface, click on the checkbox to configure it.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
41
Quick Setup
10 Click on Next to continue. The WAN Setup Summary screen displays all
WAN settings that you have made. Check that the settings are correct before clicking on the Save / Reboot button. Clicking on Save / Reboot saves your settings and restarts your router.
Figure 30: WAN Setup - Summary
42 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

ADVANCED SETUP

WAN
Set up WAN parameters as directed by your ISP.
Figure 31: WAN Setup Screen
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 43
Advanced Setup
Add Function – ATM PVC Configuration
If you want to add a new rule for the WAN interface, click on the Add button. The ATM PVC Configuration screen appears. The ATM PVC Configuration screen allows you to configure an ATM PVC identifier (VPI and VCI) and select a service category.
Figure 32: ATM PVC Configuration Screen
Verify the following values with your ISP before you change them.
z VPI (Virtual Path Identifier) – The valid range is 0 to 255.
z VCI (Virtual Channel Identifier) – The valid range is 32 to 65535.
z Service Category – Five classes of traffic defined are defined:
— UBR Without PCR (Unspecified Bit Rate without Peak Cell Rate)
— UBR With PCR (Unspecified Bit Rate with Peak Cell Rate) – UBR
service is suitable for applications that can tolerate variable delays and some cell loss, such as data transfer, messaging, distribution, and retrieval, and remote terminal applications such as telecommuting.
— CBR (Constant Bit Rate) – Used by applications that require a fixed
data rate that is continuously available during the connection time. It is commonly used for uncompressed audio and video information such as videoconferencing, interactive audio (telephony), and audio and video distribution and retrieval.
— Non-Realtime VBR (Non-Real-time Variable Bit Rate) – Can be used
for data transfers that have critical response-time requirements such as airline reservations, banking transactions, and process monitoring.
— Realtime VBR (Real-time Variable Bit Rate) – Used for
time-sensitive applications such as real-time video. Rt-VBR service allows the network more flexibility than CBR.
44 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Connection Type Screen

1 Select the type of network protocol and encapsulation mode over the
ATM PVC that your ISP has instructed you to use, then click on Next button.
WAN
Figure 33: Connection Type Screen
2 Select a connection type and click on Next. In this example, the Bridge
Service screen appears.
Figure 34: Bridge Service Screen
3 Enter or select the parameters presented for the service type, and click on
Next. The WAN Setup - Summary screen appears.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
45
Advanced Setup

WAN Setup - Summary

1 Make sure that the settings on the WAN Setup - Summary screen match
the settings provided by your ISP. If all settings are correct, click on the Save button to save these settings; if not, click on the Back button to make any modifications. If you want to change any item after saving, click on the Edit button to make any modifications.

Remove Function

Figure 35: WAN Setup Summary
2 Activate this WAN interface by clicking on the Finish button and further
configuring services over this interface. The router supports up to five WAN connections.
If you want to delete a connection from the listed WAN setup, click in the Remove check box next to the item, then click on the Remove button.
Figure 36: WAN Setup List
46 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

WAN Setup Finish

WAN
After you change any item in WAN Setup, click on the Finish button to apply the changes and reboot the system.
Figure 37: WAN Setup Reboot Message
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
47
Advanced Setup

Local Area Network (LAN) Setup

You can configure the DSL Router IP address and Subnet Mask for the LAN interface to conform your LAN's IP Subnet.
The Save button only saves the LAN configuration data. The Save/Reboot button saves the LAN configuration data and reboots the router to make the new configuration effective.
Figure 38: LAN Setup
48 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
NAT

Virtual Servers

NAT
You can configure the Virtual Server, Port Triggering, and DMZ Host when NAT is enabled.
A virtual server allows you to direct incoming traffic from the WAN side to a specific IP address on the LAN side. Click on the Add button to add a virtual server.
Figure 39: NAT Virtual Server Setup
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
49
Advanced Setup
You can select a Service or make new one. Enter the Server IP Address, then click on Save/Apply to submit your configuration.
Figure 40: Virtual Server Add Screen
On this screen you can view and delete servers. Click in the check box under Remove and click on the Remove button to delete selected virtual servers.
Figure 41: Removing Selected Virtual Servers
50 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Port Triggering

Port Triggering
Click the on the Add button to add Port Triggering for your Internet application.
Figure 42: Port Triggering Setup Page
You can select an application every time or create new one for your application. Then click on Save/Apply to save your settings.
Figure 43: Port Triggering Add Page
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
51
Advanced Setup
The Port Triggering list screen appears after you save your selections. You can delete an entry by clicking in the Remove column then clicking on the Remove button.
Figure 44: Port Triggering List

DMZ Host

You can define the IP address of the DMZ Host on this screen. Enter the IP address and click on Save/Apply.
Figure 45: DMZ Host Setup
52 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Firewall

For security reasons, firewall options can be configured only from the LAN side of the router.
IP Filtering – Outgoing
The outgoing filter will block the traffic from the LAN side to the WAN side. Click on Add to create filters.
Firewall
Figure 46: IP Filtering – Outgoing Filter Setup
Input the filter name, source information (from the LAN side), and Destination information (from the WAN side). Then click on Save/Apply.
Figure 47: IP Filtering - Outgoing Filter Add Page
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
53
Advanced Setup
IP Filtering – Incoming
Incoming filter filters the traffic from the WAN side to the LAN side. Click on Add to add incoming filter settings.
Figure 48: IP Filtering – Incoming Filter Setup Page
Enter a filter name, information about the source address (from the WAN side), and information about the destination address ( to the LAN side). Select the protocol and WAN interface. Then click on Save/Apply to add the setting.
Figure 49: IP Filtering - Incoming Filter Add
54 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Firewall – MAC Filtering
MAC filtering can forward or block traffic by MAC address. You can change the policy or add settings to the MAC filtering table using the MAC Filtering Setup screen.
Firewall
Figure 50: IP Filtering - MAC Filtering Setup
If you click on Change Policy, a confirmation dialog lets you verify your change.
Figure 51: IP Filtering - MAC Filtering Policy Change Confirmation
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
55
Advanced Setup
If you want to add a setting to the MAC filtering table, enter the Source and Destination MAC address, and select protocol type, frame direction, and WAN interface. Then click on Save/Apply to save it.
Figure 52: IP Filtering - MAC Filtering Add Page
56 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Port Mapping

Port Mapping
Use the Port Mapping screen to map multiple ports to a PVC and create bridging groups. Each group will perform as an independent network.
Figure 53: Port Mapping
To create a new mapping group:
1 Click on Add. The Port Mapping Configuration screen appears.
Figure 54: Creating a Port Mapping Entry
2 Enter a unique Group name.
3 Select interfaces from the available interface list and add them to the
grouped interface list using the arrow buttons to create the required mapping of the ports.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
57
Advanced Setup

Quality of Service

4 Click on Save/Apply.
You can configure the Quality of Service to apply different priorities to traffic on the router.
Figure 55: Quality of Service Setup
Click on Add and the Add Network Traffic Class Rule screen appears. To add a rule:
1 Give a name to this traffic class.
2 Assign a priority level-low, medium, and high-to this traffic class.
3 Select an IP precedence from the range of 0–7.
4 Enter an IP Type of Service from the following selections-
— Normal Service
— Minimize Cost
— Maximize Reliability
— Maximize Throughput
— Minimize Delay
5 Last, enter the traffic conditions for the class such as the protocol (TCP /
UDP, TCP, UDP, or ICMP) to be used.
6 Click on Save / Apply to save the settings.
58 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Routing – Default Gateway
Figure 56: Quality of Service Add Screen
Routing – Default Gateway
You can change the Default Gateway on the Routing - Default Gateway screen. By default the Enable Automatic Assigned Default Gateway box is checked.
Figure 57: Default Gateway Setup
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
59
Advanced Setup
If you want to specify the default gateway address, then uncheck the box as seen below. Enter the default gateway address and, optionally, the WAN interface you will use. Click on Save / Apply to save the settings.
If you add or change the default gateway address, you must reboot the router to put the new default gateway IP address into effect.
Figure 58: Default Gateway Setup
Routing – Static Route
Use the Routing - Static Route screen to add a static route to the routing table.
Figure 59: Static Route Setup
60 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Routing – RIP
Enter the route information and click on Save/Apply to make it active. No reboot is required.
Figure 60: Static Route Add
Routing – RIP
If RIP is enabled, the router operation can be configured as Active or Passive.
Figure 61: RIP Setup
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
61
Advanced Setup

DNS Server

Use the DNS Server screen to request automatic assignment of a DNS or to specify a primary and secondary DNS.
Figure 62: DNS Setup

Dynamic DNS

Use the Dynamic DNS screen to alias a dynamic IP address to a static hostname, allowing your router to be easily accessed from anywhere on the Internet.
Figure 63: Dynamic DNS
62 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
To set up a Dynamic DNS entry:
1 Click on Add. The Add Dynamic DNS screen appears.
Figure 64: Adding a Dynamic DNS Entry
2 Select a D-DNS Provider from the drop-down list.
3 Enter the Hostname you have selected for the interface.
4 Select the router Interface from the drop-down list.
Dynamic DNS
5 Enter the information you used to register with the dynamic DNS service:
for DynDNS, enter your Username and Password; for TOZ, enter your E-mail address and Key.
6 Click on Save/Apply.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
63
Advanced Setup

ADSL

There are three major items in the ADSL settings.
Figure 65: DSL Settings

Modulation Methods

The following modulation methods are supported by the 6218 wireless router:
z G.dmt Enabled
z G.lite Enabled
z T1.413 Enabled
z ADSL Enabled
z Annex L Enabled
z ADSL2+ Enabled.
Do not change this setting unless so directed by your ISP.

Phone Line Pair

The 6218 wireless router supports phone lines on pins 2 and 3 or pins 1 and 4 to connect your ADSL line. If your phone system uses pins 2 and 3, attach a normal RJ11 cable to the router and select "Inner pair" on the screen; if your phone system uses pins 1 and 4, attach the phone with the supplied RJ11 cable and select "Outer pair" on the screen.
64 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Capability

The following are included under Capability:
z Bitswap Enable
z SRA (Seamless Rate Adaptation) Enable
Do not change these settings unless so directed by your ISP.

DSL Advanced Settings

Do not change the DSL Advanced Settings unless so directed by your ISP. To view the DSL Advanced Settings screen, click on the Advanced Settings button on the DSL Settings screen (see Figure 65).
DSL Advanced Settings
Figure 66: DSL Advanced Settings
There are five test modes between the router and your ISP:
z Normal test: Puts the router in a test mode in which it only sends a
Normal signal.
z Reverb test: Puts the router in a test mode in which it only sends a Reverb
signal.
z Medley test: Puts the router in a test mode in which it only sends a
Medley signal.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
65
Advanced Setup

Tone Selection

z No Retrain: In this mode the router will try to establish a connection as in
normal mode, but once the connection is up it will not retrain if the signal is lost.
z L3: Puts the router into the L3 power state.
Select a test mode and click on Apply. Then click on Tone Selection.
To view the ADSL Tone Settings screen, click on the Tone Selection button of the DSL Advanced Settings screen (see Figure 66).
The frequency band of ADSL is split up into 256 separate tones, each spaced
4.3125 kHz apart. With each tone carrying separate data, the technique operates as if 256 separate modems were running in parallel. The tone range is from 0 to 31 for upstream and from 32 to 255 for downstream.
Do not change these settings unless so directed by your ISP.
Figure 67: Tone Settings
66 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Wireless

Wireless - Basic

Wireless
The Wireless screens let you configure the settings for wireless access, security, and protocols.
The Wireless - Basic screen lets you enable or disable Wi-Fi capability in the router. The default setting for wireless is enabled. From this screen you can also hide the access point so others cannot see your ID on the network.

Wireless - Security

Figure 68: Wireless – Basic
The next screen is the Wireless - Security screen which allows you to select the network authentication method and to enable or disable WEP encryption. Note that depending on the network authentication that is selected, the screen will change accordingly so additional fields can be configured for the specific authentication method.
Network authentication methods include the following-
z Open – Anyone can access the network. The default is a disabled WEP
encryption setting.
z Shared – WEP encryption is enabled and encryption key strength of
64-bit or 128-bit needs to be selected. Click on Set Encryption Keys to manually set the network encryption keys. Up to 4 different keys can be set and you can come back to select which one to use at any time.
z 802.1X – Requires mutual authentication between a client station and the
router by including a RADIUS-based authentication server. Information
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
67
Advanced Setup
about the RADIUS server such as its IP address, port and key must be entered. WEP encryption is also enabled and the encryption strength must also be selected.
z WPA (Wi-Fi Protected Access) – Usually used for the larger enterprise
environment, it uses a RADIUS server and TKIP (Temporal Key Integrity Protocol) encryption (instead of WEP encryption, which is disabled). TKIP uses 128-bit dynamic session keys (per user, per session, and per packet keys).
z WPA-PSK (Wi-Fi Protected Access - Pre-Shared Key) – WPA for home
and SOHO environments using the same strong TKIP encryption, per-packet key construction, and key management that WPA provides in the enterprise environment. The main difference is that the password is entered manually. A Group Re-Key Interval time is also required.
z WPA2 (Wi-Fi Protected Access 2) – Second generation of WPA, which
uses AES (Advanced Encryption Standard) instead of TKIP as its encryption method. Network Re-Auth Interval is the time in which another key needs to be dynamically issued.
z WPA2-PSK (Wi-Fi Protected Access 2 - Pre-Shared Key) – Suitable for
home and SOHO environments, WPA2-PSK uses AES encryption and requires you to enter a password and a re-key interval time.
z Mixed WPA2 / WPA – During transitional times for upgrades in the
enterprise environment, this mixed authentication method allows upgraded users and users not yet upgraded to access the network via the router. RADIUS server information must be entered for WPA as well as a group re-key interval time. Both TKIP and AES are used.
z Mixed WPA2 / WPA-PSK – Useful during transitional times for upgrades
in the home or SOHO environment, a pre-shared key must be entered along with the group re-key interval time. Both TKIP and AES are also used.
Figure 69: Wireless – Security
68 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Wireless - MAC Filter

The MAC filter screen allows you to manage MAC address filters. Add the MAC addresses that you want to manage and then select the mode that you want to use to manage them. You can disable this feature or you can allow or deny access to the MAC addresses that you add to the list.
Wireless
Figure 70: Wireless – MAC Filter
The following screen appears when you want to add a MAC address to the filter. Enter a MAC address in the form xx-xx-xx-xx-xx-xx where each xx is a two-digit hexadecimal number (for example, 00-05-13-ba-c8-01), then click on the Save / Apply button.
Figure 71: Wireless – MAC Filter Add
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
69
Advanced Setup

Wireless - Bridge

The Wireless - Bridge screen lets you determine whether the router acts as an access point or a wireless bridge.
Figure 72: Wireless – Bridge

Wireless - Advanced

The Wireless - Advanced screen lets you configure advanced features of the wireless LAN network:
z AP Isolation – If you select enable, then each of your wireless clients will
z Band – The default setting is 2.4GHz - 802.11g
z Channel – 802.11b and 802.11g use channels to limit interference from
z Multicast Rate – The rate at which a message is sent to a specified group
z Basic Rate – The set of data transfer rates that all the stations will be
z Fragmentation Threshold – Used to fragment packets which help improve
not be able to communicate with each other.
other devices. If you are experiencing interference with another 2.4 Ghz device such as a baby monitor, security alarm, or cordless phone, then change the channel on your router.
of recipients.
capable of using to receive frames from a wireless medium.
performance in the presence of radio frequency (RF) interference.
z RTS Threshold (Request to Send Threshold) – Determines the packet size
of a transmission through the use of the router to help control traffic flow.
z DTIM Interval – Sets the Wake-up interval for clients in power-saving
mode.
70 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
z Beacon Interval – A packet of information that is sent from a connected
device to all other devices where it announces its availability and readiness. A beacon interval is a period of time (sent with the beacon) before sending the beacon again. The beacon interval may be adjusted in milliseconds (ms).
z Xpress Technology – A technology that utilizes standards based on
framebursting to achieve higher throughput. With Xpress Technology enabled, aggregate throughput (the sum of the individual throughput speeds of each client on the network) can improve by up to 25 percent in
802.11g only networks and up to 75 percent in mixed networks comprising 802.11g and 802.11b equipment.
z 54g Mode – 54g is a proprietary Wi-Fi technology that provides higher
speed, reach, and security.
z 54g Protection – The 802.11g standards provide a protection method so
802.11g and 802.11b devices can co-exist in the same network without "speaking" at the same time. Do not disable 54g Protection if there is a possibility that a 802.11b device may need to use your wireless network. In Auto Mode, the wireless device will use RTS/CTS (Request to Send / Clear to Send) to improve 802.11g performance in mixed 802.11g/
802.11b networks. Turn protection off to maximize 802.11g throughput under most conditions.
Wireless
z WMM (Wi-Fi Multimedia) – WMM provides QoS functionality for
Wi-Fi multimedia applications by prioritizing traffic demands from different applications on the network.
Figure 73: Wireless – Advanced
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
71
Advanced Setup
72 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

DIAGNOSTICS

Testing the DSL Connection

The diagnostics screen allows you to run diagnostic tests to check your DSL connection. The screen shows test results for three connections:
z Connection to your local network
z Connection to your DSL service provider
z Connection to your Internet service provider
Use the Test and Test with OAM F4 buttons to retest if necessary.
Figure 74: Diagnostics
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 73
Diagnostics
74 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

MANAGEMENT

Saving and Restoring the Configuration

The configuration of your router can be backed up to a file, and also can be restored from a file. You can also restore the router to its factory default configuration.

Backing Up Configuration Settings

To back up your settings, select Management -> Settings -> Backup Settings.
Figure 75: Back Up Settings Screen
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 75
Management
Verify that you would like to save the file.
Figure 76: Backup Settings Upload Confirmation
Select the location where you want to save the file.
Figure 77: Backup Settings File Location
76 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Restoring Configuration Settings

To restore saved settings, select Management -> Settings -> Restore User Settings.
Restoring Configuration Settings
Figure 78: Restore User Settings Screen
Select the backup file you want to restore and click on Update Settings.
Figure 79: Restore Settings File Location
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
77
Management
The router will restore settings and reboot to activate the restored settings.
Figure 80: Upload in Progress Screen
78 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Restoring Default Settings

Restore Default will erase all current settings and restore the router to factory default settings.
To restore the router to factory default settings, select Management -> Settings -> Restore Default.
Restoring Default Settings
Figure 81: Restore Default Settings Screen
Reply OK to the confirmation dialog.
Figure 82: Restore Default Confirmation Dialog
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
79
Management
The router will restore the default settings and reboot.
Figure 83: Restore Default Settings Reboot

System Log

The System Log dialog allows you to view the System Log and configure the System Log options.
Figure 84: System Log
80 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

View System Log

System Log
Click on the "View System Log" button to check the log file.
Figure 85: View System Log
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
81
Management

Configure System Log

If the log is enabled, the system will log selected events: Emergency, Alert, Critical, Error, Warning, Notice, Informational, and Debugging. All events above or equal to the selected log levels will be logged (maintained in the system log file) and displayed.
If the selected mode is Remote or Both, events will be sent to the specified IP address and UDP port of a remote system log server. If the selected mode is Local or Both, events will be recorded in the local memory.
Figure 86: System Log Configuration
Select the desired values and click on the "Save/Apply" button to configure the system log options.
82 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

SNMP

SNMP
Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in the router. Use the SNMP screen to set up parameters for SNMP access.
Figure 87: SNMP Screen
Select the desired values and click on Save/Apply to configure the SNMP options.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
83
Management

Internet Time

Use the Internet Time screen to specify whether the router uses Simple Network Time Protocol (SNTP) to obtain the time of day from NTP servers on the Internet.
To set up the router to obtain time from an NTP server:
1 Select “Automatically synchronize with Internet time servers”. The SNTP
fields appear.
Figure 88: Internet Time Screen
2 Select NTP servers.
3 Specify the time zone offset for your router’s location.
4 Click on Save/Apply.
84 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
Access Control – Services
You can enable or disable some services of your router by LAN or WAN. If no WAN connection is defined, only the LAN side can be configured.
Access Control – Services
Figure 89: Services Setup
Access Control – IP Addresses
Web access to the router can be limited when Access Control Mode is enabled. The IP addresses of allowed hosts can be added using Access Control -> IP Address.
Figure 90: IP Address Setup
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
85
Management
To assign the IP address of the management station that is permitted to access the local management services, enter the IP address in the box and click on the Save/Apply button.
Figure 91: Access Control – IP Address Add Screen
Access Control – Passwords
Use Access Control -> Passwords to change a password. Select an account and enter the current password and the new password. Then click on Save/ Apply.
Figure 92: Access Control – Passwords Screen
86 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

Update Software

If your ISP releases new software for this router, follow these steps to perform an upgrade.
1. Obtain an updated software image file from your ISP.
2. Enter the path to the image file location or click on the "Browse" button to locate the image file.
3. Click on the Update Software button once to upload the new image file.
Update Software
Figure 93: Update Software
Note
The update process takes about two minutes to complete, and your router will reboot automatically.
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide
87
Management

Reboot Router

Select Management -> Reboot Router to reboot the router using the web interface. The router will save the current configuration and reboot itself using the new configuration. The rebooting process takes about two minutes to complete.
Figure 94: Reboot Router Screen
88 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10

SPECIFICATIONS

Specifications are subject to change without notice.
Table 5: 6218-I2 Specifications
Specification Criteria
DSL Protocol Support
Environment Operating Temperature: 32° F to 104° F (0° C to
Interfaces DSL Line: RJ11
Power 100 VAC, 50 Hz
Size 1.2" High x 6.5" Wide x 4.4" Deep
Weight (Shipping) 1.5 lbs (0.7 kg)
ANSI T1.413 (Full Rate ADSL) ITU G.992.1 (DMT) ITU G.992.2 (G.lite) ITU G.992.3 (ADSL2) ITU G.992.5 (ADSL2+) ITU G.994.1 (G.hs) ITU G.997.1
40° C) Storage Temperature: –4° F to 149° F (–20° C to 65° C) Humidity: 5% to 95%, non-condensing
Ethernet: 10/100BaseT, RJ45 Wireless: 802.11b, 802.11g
110 VAC, 60 Hz 220 VAC, 50/60 Hz
(3.0 cm High x 16.5 cm Wide x 11.2 cm Deep)
6218-A2-ZB23-10 6218-I2 Wireless Router User’s Guide 89
Specifications
90 6218-I2 Wireless Router User’s Guide 6218-A2-ZB23-10
INDEX
A
About This Guide 11 Access Control
IP Addresses 85 Passwords 86 Services 85
ADSL 64
BER Test 34
Statistics 33 Advanced Settings, DSL 65 Advanced Setup 43 ARP 35 ATM
PVC Configuration 44
Statistics 32
B
Backing Up Configuration Settings 75 BER Test 34 Bridge Service 46 Bridging groups 57
C
DNS 62
Dynamic 62
Document
Purpose and Intended Audience 11
Summary 11 Domain Name Server 62 Dynamic DNS 62
E
EMI Notice
Canada 6
Japan 6 Environment 89 Ethernet
cable 18
F
