Zhone Technologies 4821-A2 User Manual

BitStorm 4800 Express Model 4821-A2 Installation Guide

March 2006
Document Part Number: 4821-A2-ZN21-30
Zhone Technologies @Zhone Way 7001 Oakport Street Oakland, CA 94621 USA
510.777.7000
www.zhone.com info@zhone.com
COPYRIGHT 2000–2005 Zhone Technologies, Inc. All rights reserved.
This publication is protected by copyright law. No part of this publication may be copied, distributed, displayed, modified, transmitted, stored in a retrieval system, or translated without express written permission from Zhone Technologies, Inc.
Acculink, ADSL/R, Bitstorm, Comsphere, DSL the Easy Way, Etherloop, FrameSaver, GigMux, GranDSLAM, GrandVIEW, Hotwire, the Hotwire logo, iMarc, JetFusion, Jetstream, JetVision, MALC, MVL, NextEDGE, Net to Net Technologies, Paradyne, the Paradyne logo, Quick Channel, Raptor, ReachDSL, SLMS, StormPort, TruePut, Z-Edge, Zhone, ZMS, and the Zhone logo are trademarks owned by Zhone Technologies, Inc., which may be registered in some jurisdictions.
Zhone Technologies makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability, noninfringement, or fitness for a particular purpose. Further, Zhone Technologies reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of Zhone Technologies to notify any person of such revision or changes.

End User License Agreement (Zhone and Affiliates)

Do not install this Software unless you agree to these provisions. Return the Software promptly for a refund if you do not agree.
License. Zhone Technologies, Inc. and/or an affiliate ("Zhone") hereby grants you ("User")—either an individual or a single business entity—the non-exclusive right to install, access, run, or interact with ("Use") one copy of the enclosed software (which may have been, or may be, provided on media, as part of a hardware platform, through download, or otherwise) and associated documentation ("Software") on the first computer system on which User installs the Software ("System") solely for internal business purposes (including, without limitation, providing products and services to User's customers) and subject to the restrictions below). Zhone may, in its sole discretion, make available future updates or upgrades to the Software each of which is also Software subject hereto. Title to and all patent rights, copyrights and other intellectual property rights in the Software are retained by Zhone and its direct and indirect suppliers and licensors ("Licensors").
2 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
End User License Agreement (Zhone and Affiliates)
Restrictions. The Software may not be (a) Used on or from any system other than the System; (b) Used with more than any maximum number of subscribers stated in the documentation accompanying the Software; (c) Used so as to circumvent any technological measure included therein or provided by Zhone from time to time to control access to or limit use of the Software; (d) sublicensed, rented, leased or lent to third parties; (e) imported or exported into any jurisdiction except in compliance with all applicable laws of the United States and such jurisdiction; (f) transferred to a third party unless (A) User transfers the original and all surviving copies to a third party who has agreed in writing to be bound hereby and (B) such third party pays to Zhone such reasonable additional fee as Zhone may impose from time to time with respect to such transfer; or (g) made available to third parties as part of any time-sharing or service bureau arrangement. User shall not have the right to use the Software or any portion thereof for a use other than that contemplated by its documentation. User will not copy all or any part of the Software or attempt, or encourage or permit any third party, to modify, adapt, make derivative works from, reverse engineer, reverse compile, disassemble or decompile the Software or any portion thereof except and only to the extent that such activity is expressly permitted by law notwithstanding this limitation. Violation of any of the foregoing shall be deemed a material breach hereof. User may make a reasonable number of copies solely for archival or disaster recovery and subject to the restrictions imposed by copyright law, but may not modify or otherwise copy the Software. User agrees to reproduce product identification, copyright and other proprietary notices of Zhone and Licensors on all copies. User's rights are only as expressly stated herein. Zhone may immediately terminate your rights if you violate the provisions hereof.
Limited Warranty. Zhone warrants that the media containing the Software is free from defects in material and workmanship for ninety (90) days following your purchase of the Software. You may provide written notice of such defect (addressed to Zhone Technologies, Inc., Attention: Customer Service, 7001 Oakport Street @ Zhone Way, Oakland, CA 94621) no later than ten (10) days following expiration of such period and, as your sole and exclusive remedy, Zhone will provide replacement media. NEITHER ZHONE NOR ITS LICENSORS MAKE ANY OTHER WARRANTY, EXPRESS, IMPLIED OR STATUTORY. ZHONE AND ITS LICENSORS DISCLAIM ALL WARRANTIES OF FITNESS FOR PARTICULAR PURPOSE, MERCHANTABILITY AND NON-INFRINGEMENT. Some states or other jurisdictions do not allow the exclusion of implied warranties on limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from one state or jurisdiction to another.
Limit of Liability. In case of any claim hereunder or related to the Software, neither Zhone nor its Licensors shall be liable for direct damages exceeding the price paid by User for the Software or for special, incidental, consequential or indirect damages, even if advised in advance of the potential thereof.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
3
U.S. Government Users. The Software is a "commercial item" as defined at 48 C.F.R. 2.101, consisting of "commercial computer software" and "commercial computer software documentation" as such terms are used in 48 C.F.R. 12.212. Under 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 to
227.7202-4, U.S. Government Users acquire the Software only with the rights set forth therein.
Third Party Licensors. This Zhone End User License Agreement may be accompanied by differing or additional provisions applicable to portions of the Software provided by one or more Licensors ("Licensor Provisions"). User acknowledges and agrees that its Use of such portions of the Software is subject to the Licensor Provisions.
!
Important Safety Instructions
1 Read and follow all warning notices and instructions marked on the
product or included in the manual.
2 This product is intended to be used with a 3-wire grounding type plug —
a plug that has a grounding pin. This is a safety feature. Equipment grounding is vital to ensure safe operation. Do not defeat the purpose of the grounding type plug by modifying the plug or using an adapter. Prior to installation, use an outlet tester or a voltmeter to check the AC receptacle for the presence of earth ground. If the receptacle is not properly grounded, the installation must not continue until a qualified electrician has corrected the problem.
If a 3-wire grounding type power source is not available, consult a qualified electrician to determine another method of grounding the equipment.
3 Slots and openings in the cabinet are provided for ventilation. To ensure
reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered.
4 Do not allow anything to rest on the power cord and do not locate the
product where persons will walk on the power cord.
5 Do not attempt to service this product yourself, as it will void the
warranty. Opening or removing covers may expose you to dangerous high voltage points or other risks. Refer all servicing to qualified service personnel.
6 General purpose cables are described for use with this product. Special
cables, which may be required by the regulatory inspection authority for the installation site, are the responsibility of the customer. To reduce the risk of fire, use a UL Listed or CSA Certified, minimum No. 26 AWG (0.128 mm
2
) telecommunication cable, or comparable cables certified for
use in the country of installation.
7 When installed in the final configuration, the product must comply with
the applicable Safety Standards and regulatory requirements of the country in which it is installed. If necessary, consult with the appropriate regulatory agencies and inspection authorities to ensure compliance.
4 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
End User License Agreement (Zhone and Affiliates)
8 A rare phenomenon can create a voltage potential between the earth
grounds of two or more buildings. If products installed in separate buildings are interconnected, the voltage potential may cause a hazardous condition. Consult a qualified electrical consultant to determine whether or not this phenomenon exists and, if necessary, implement corrective action prior to interconnecting the products.
9 In addition, if the equipment is to be used with telecommunications
circuits, take the following precautions:
— Never install telephone wiring during a lightning storm.
— Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
— Never touch uninsulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
— Use caution when installing or modifying telephone lines.
— Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from lightning.
— Do not use the telephone to report a gas leak in the vicinity of the
leak.
10 CLASS 1 LASER PRODUCT: This product has provisions for the
customer to install a Class 1 laser transciever, which provides optical coupling to the telecommunication network. Once a Class 1 laser product is installed, the equipment is to be considered to be a Class 1 Laser Product (Appareil à Laser de Classe 1). The customer is responsible for selecting and installing the laser transciever and for insuring that the Class 1 AEL (Allowable Emission Limit) per EN/IEC 60825 is not exceeded after the laser transponders have been installed. Do not install laser products whose class rating is greater than 1. Refer to all important safety instructions that accompanied the transciever prior to installation. Only laser Class 1 devices, certified for use in the country of installation by the cognizant agency are to be utilized in this product.
11 The equipment is intended for installation in a max. 50° C ambient
temperature, in an environment that is free of dust and dirt.
12 The power supply cord for countries other than North America is to be a
minimum H05 V V-F type, min. 0.75 mm
2
, 2-conductor and earth ground terminated in an IEC 320 connector on one end, and a plug which is certified for use in the country of installation at the other end.
13 Do not physically stack more than eight (8) 26x1 units high. Physical
stability has not been evaluated for stacking higher than eight units, and any configuration greater than eight may result in an unstable (tip-over) condition. Ensure that the four (4) rubber feet supplied with the product have been installed on the bottom of each unit prior to stacking any 26x1 units on top of one another.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
5
EMI Notices
!
UNITED STATES – EMI NOTICE:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne Corporation.
If the equipment includes a ferrite choke or chokes, they must be installed per the installation instructions.
!
CANADA – EMI NOTICE:
This Class A digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du réglement sur le matérial brouilleur du Canada.
6 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
End User License Agreement (Zhone and Affiliates)
Notices to Users of the Canadian Telephone Network
NOTICE: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation IC before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is labeled on the equipment. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.
When the equipment is used in a customer premises environment, a Model 6051 POTS Splitter must be used to ensure CS-03 compliance. Refer to the POTS splitter installation instructions for details.
CE Marking
When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be downloaded from the Zhone Worl d Wi d e Web s ite a t www.zhone.com.
Japan
Class A ITE
This is a Class A product based on the standard of the Voluntary Control Council for interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
7
8 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

CONTENTS

End User License Agreement (Zhone and Affiliates)........................2
Document Purpose and Intended Audience ......................................11
Document Summary .............................................................................11
Related Product Documents ................................................................12
Chapter 1- Installation .............................................................................................................13
Overview ................................................................................................13
Preparation .............................................................................................14
Cables Required ....................................................................................15
Unpacking the Hardware......................................................................16
Package Contents ..................................................................................16
Mounting Configurations ....................................................................17
Mounting Brackets................................................................................17
Installing the Brackets for Rack Mounting........................................17

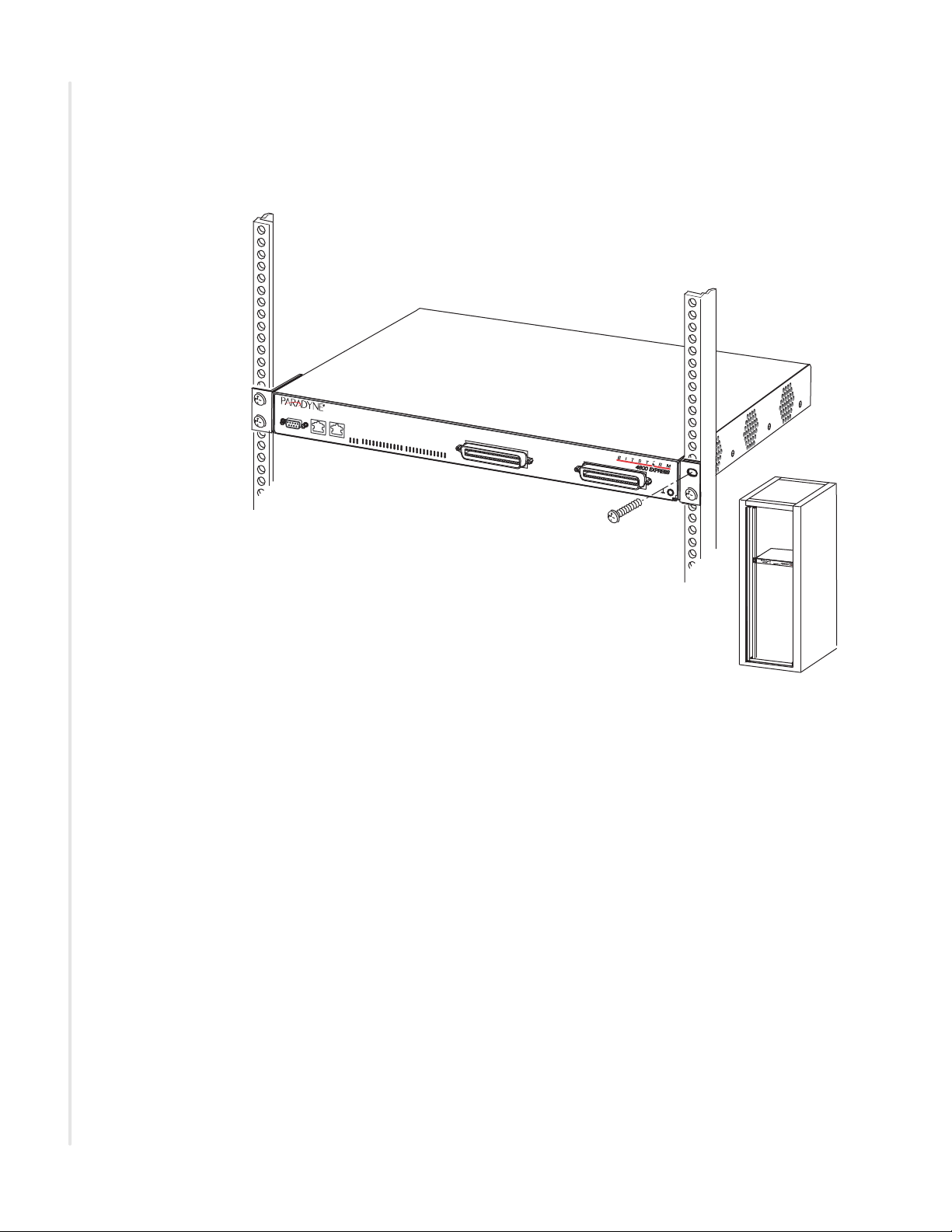

Installing the BitStorm 4800 Express Into a Rack ...........................19

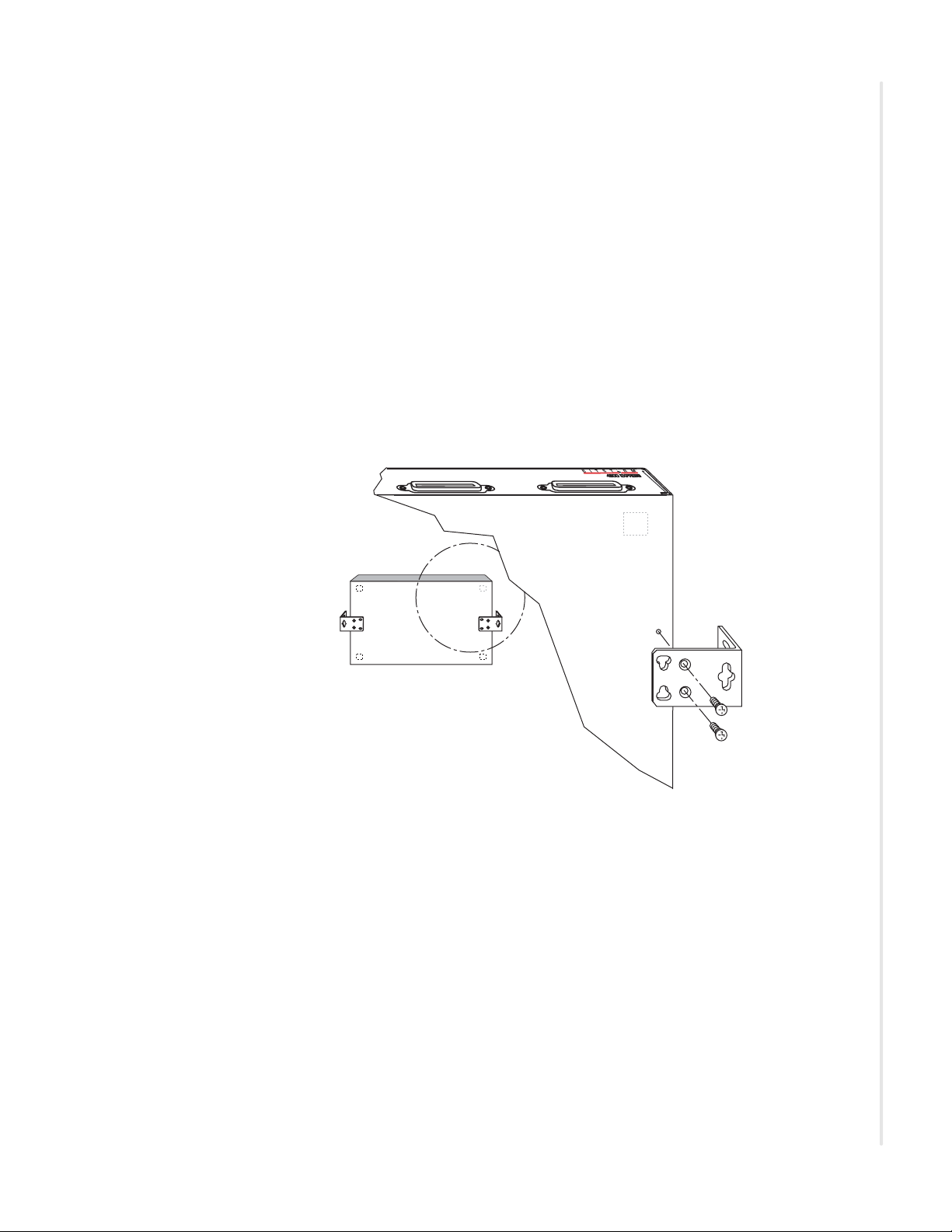

Installing the BitStorm 4800 Express on a Wall...............................21
Installing the BitStorm 4800 Express on a Shelf or Desktop .........23
Chapter 2- Cabling ....................................................................................................................25
Cabling Overview .................................................................................25
DSL Ports ...............................................................................................26
10/100BaseT Uplink (Port 2) ..............................................................27
Management Port ..................................................................................28
Console Port...........................................................................................29
Connecting a Terminal or PC to the Console Port .....................29
Connecting a Modem to the Console Port..................................30
Ground ....................................................................................................31

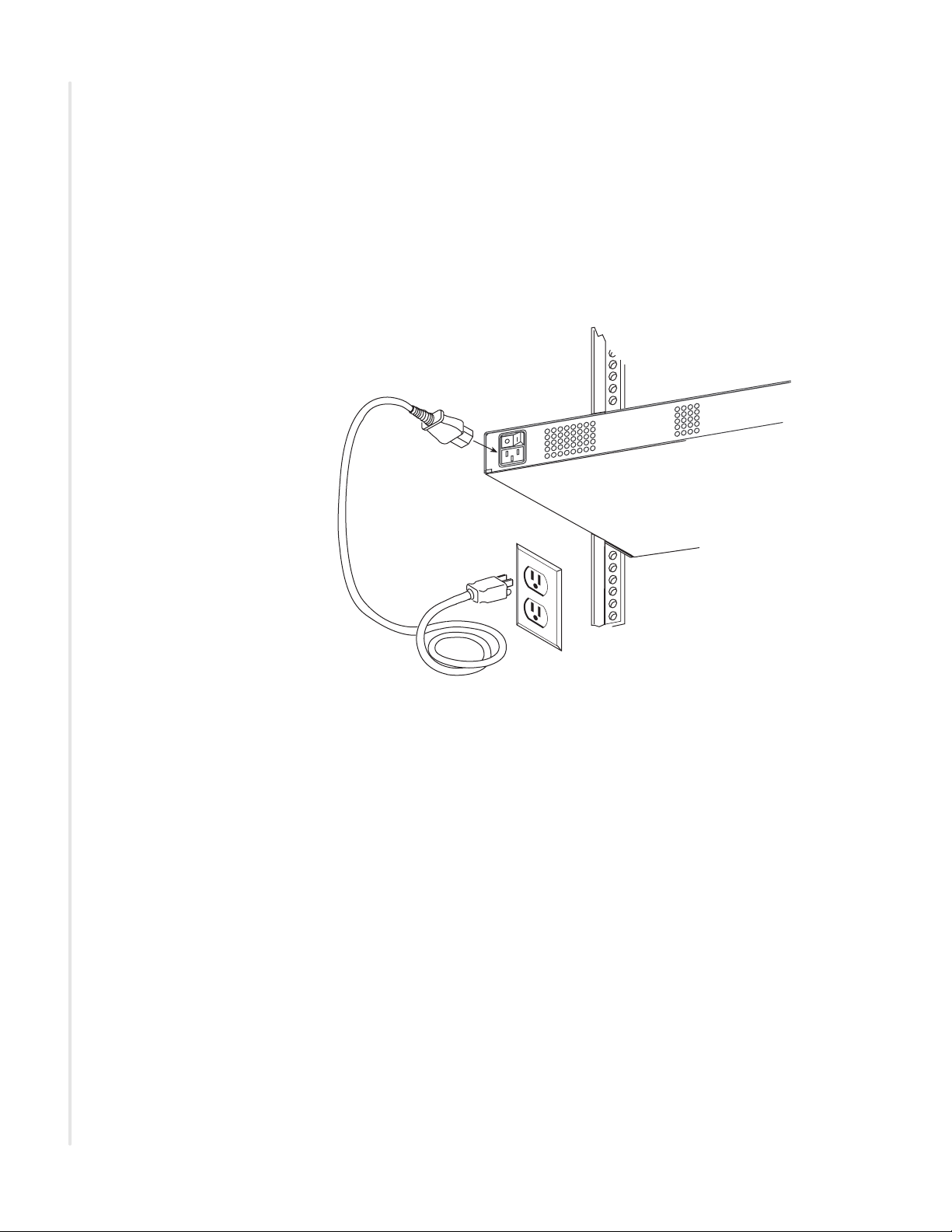

Connecting to Power.............................................................................32

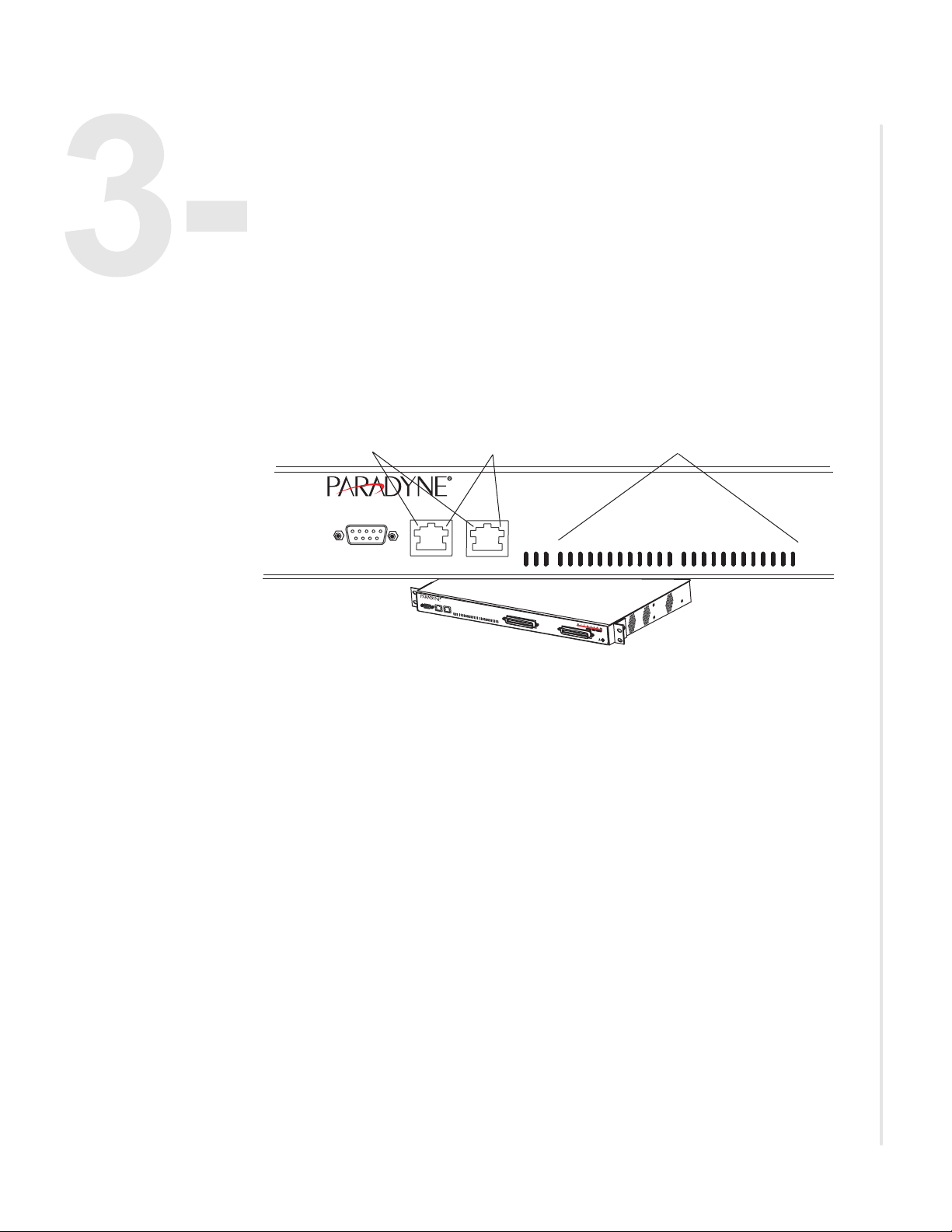

Chapter 3- LEDs .........................................................................................................................33
LED Locations.......................................................................................33
LED Meanings.......................................................................................34
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 9
Chapter 4- Configuration .......................................................................................................35
Overview ................................................................................................35
Using the CLI .......................................................................................36
Configure Management Default Gateway Address....................37
Configure Management Inband Address ....................................37
Configure Management Out-of-Band Address...........................38
BitStorm 4800 Express Startup Procedure ........................................39
Login...........................................................................................39
Management Modes....................................................................39
Startup Procedure for Inband Management.......................................40
Startup Procedure for Out-of-Band Management.............................40
Using the Web Interface.......................................................................41
System / Users .......................................................................................41
Configuration / Management / SNMP ...............................................42
Chapter A- Connectors and Pin Assignments ..............................................................43
Overview ................................................................................................43

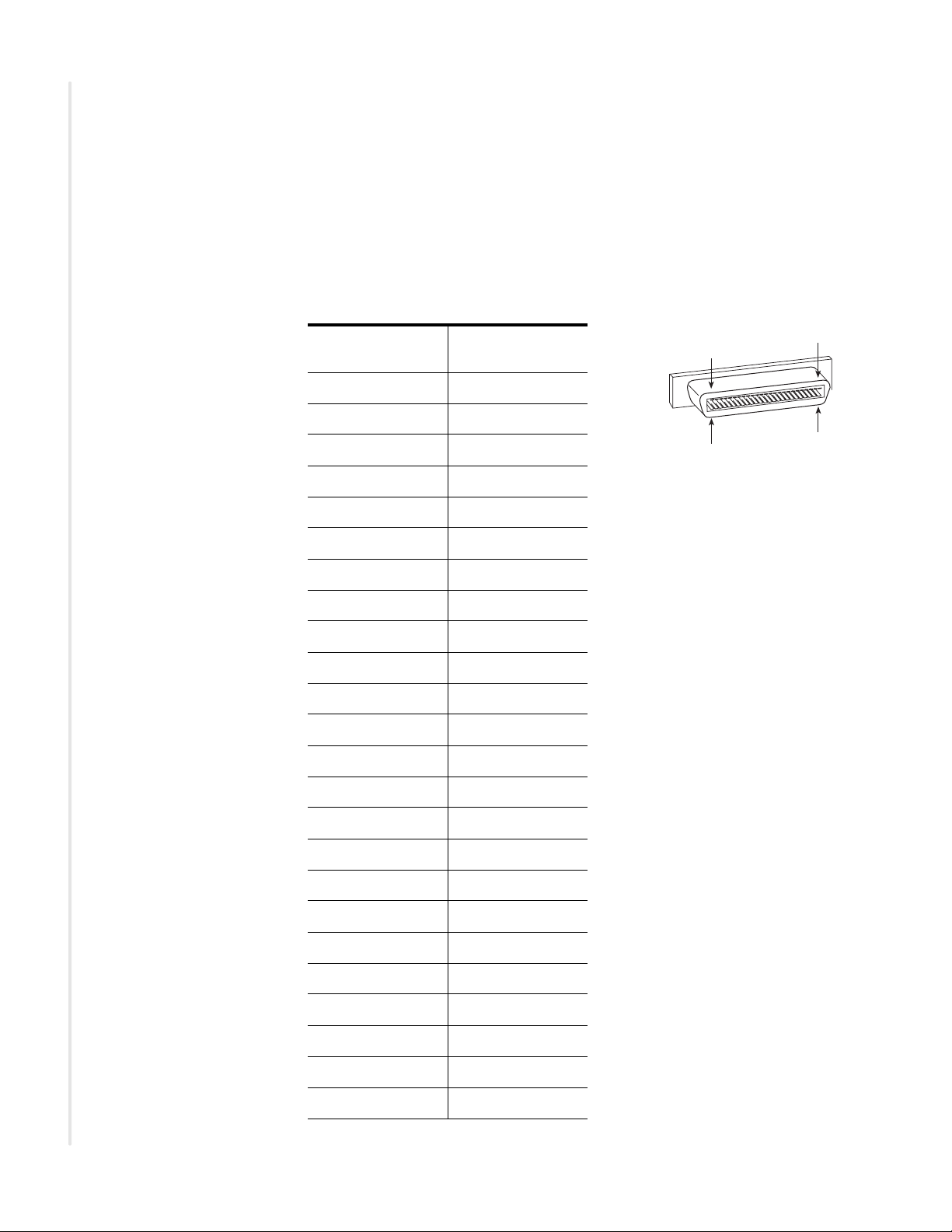

DSL Ports Connectors ..........................................................................44
Port 1 and Port 2 10/100BaseT Connectors ......................................45

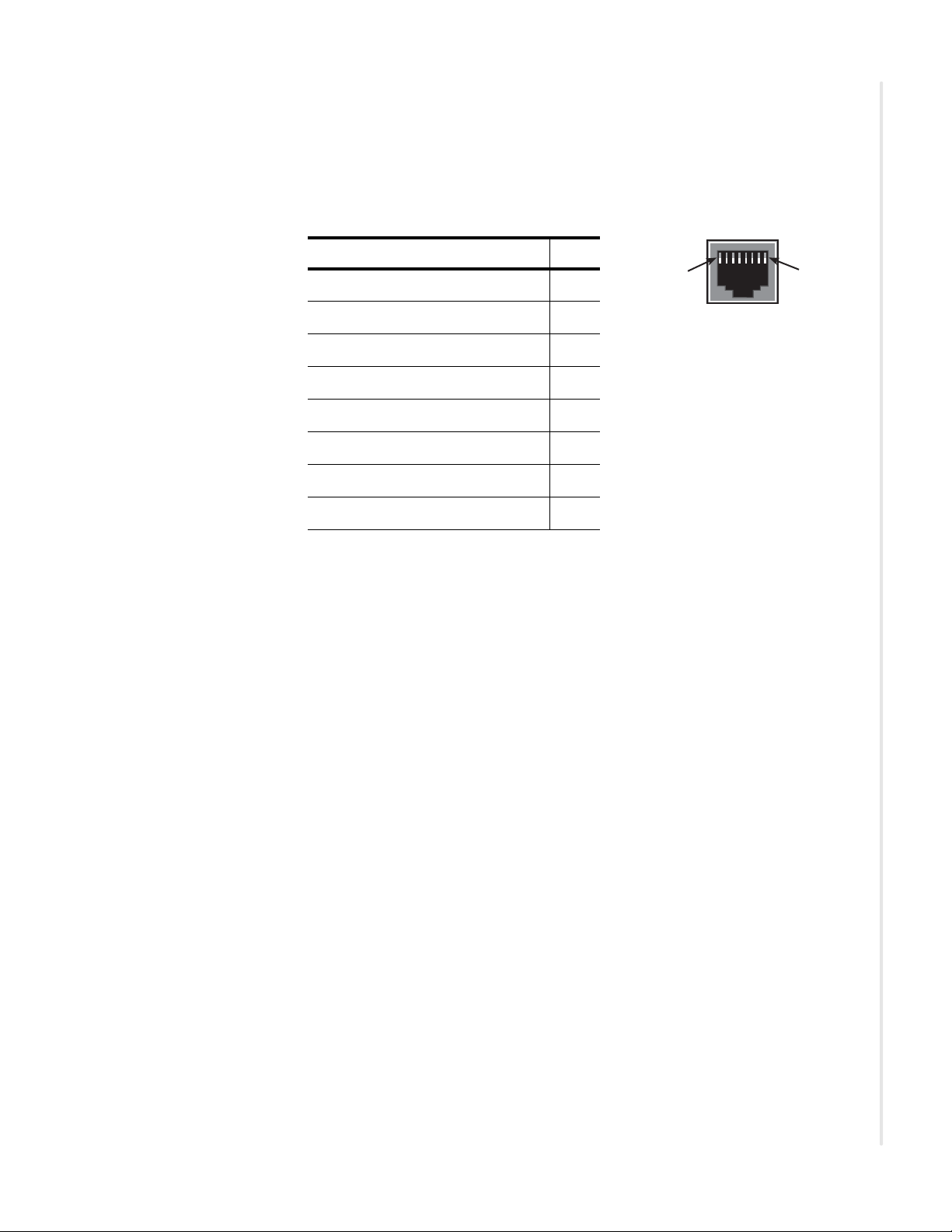

Console Port Connector .......................................................................46
Chapter B- Equipment List ....................................................................................................47
Chapter C- Technical Specifications .................................................................................49
Index......................................................................................................................................................51
10 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

ABOUT THIS GUIDE

Document Purpose and Intended Audience

This document is written for technicians who install the BitStorm® 4800 Express Model 4821-A2 IP DSLAM.

Document Summary

Section Description
Chapter 1-, Installation Describes the physical installation of the
BitStorm 4800 Express into a rack.
Chapter 2-, Cabling Describes how to install all cables for the
BitStorm 4800 Express.
Chapter 3-, LEDs Explains the meaning and usage of the front
panel LEDs.
Chapter 4-,
Configuration
Appendix A-,
Connectors and Pin Assignments
Appendix B-, Equipment List
Appendix C-, Tec hn ic al Specifications
Index Lists key terms, acronyms, concepts, and
Describes the minimal configuration steps required to prepare the BitStorm 4800 Express for remote access, using the command line interface and web interface.
Provides pinouts for connectors on the BitStorm 4800 Express.
Provides part numbers for the BitStorm 4800 Express and related products.
Lists the technical characteristics of the BitStorm 4800 Express.
sections in alphabetical order.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 11

Related Product Documents

Documentation for the BitStorm 4800 Express IP DSLAM is available on the Worl d Wi d e Web a t www.zhone.com.
Document Title
BitStorm 4800 Express Model 4821-A2 Command Line Interface Reference
Describes the Command Line Interface (CLI) used to configure and monitor the BitStorm 4800 Express.
BitStorm 4800 Express Model 4821-A2 SNMP Reference
Contains the information necessary to use Simple Network Management Protocol (SNMP) to configure and monitor the BitStorm 4800 Express.
BitStorm 6051 POTS Splitter Installation Instructions
Describes how to install the BitStorm 6051 POTS splitter.
Hotwire 6210-A2, 6211-A2, and 6381-A2 User’s Guide
Describes the installation and operation of the 6210 ADSL bridge, 6211 ADSL router, and 6381 ADSL/R router.
GrandVIEW EMS User’s Guide
Contains instructions for maintaining network services and resources using the GrandVIEW Element Management System (EMS).
12 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

INSTALLATION

Overview

The BitStorm® 4800 Express is a stackable IP DSLAM designed for installation in a Central Office (CO), multi-tenant unit (MTU), or multi-dwelling unit (MDU) environment.
C
O
N
S
O
L
E
The BitStorm 4800 Express is interoperable with the Hotwire 6381 ADSL/R modem, as well as any standard ADSL CPE.
P
O
R
T
1
1
0
/1
P
0
0
O
B
R
T
T
2
1
0
/1
0
0
B
T
STATUS
ALARM
TEST
1
3 5 7 9 11 13 15 17 19 21
23
2
25
4
27 29 31 33 35 37 39 41 43 45
6 8 10 12 14 16 18 20 22
24
47
26
28 30 32 34
36 38 40 42 44 46
48
D
S
L
P
O
R
T
S
1
-2 4
POTS 1-24
D
S
L
P
O
R
T
S
2
5
-4 8
04-17534
A Command Line Interface (CLI) and a web browser interface are provided. The unit also may be managed using a network manager such as the Paradyne GrandVIEW™ Element Management System (EMS).
BitStorm 4800 Express IP DSLAM models and features are listed in Table 1,
BitStorm 4800 Express Models and Features.
Table 1: BitStorm 4800 Express Models and Features
Number of
Model Number Type
4821-A2-417 ADSL
4821-A2-427 ADSL
4821-A2-447 ADSL
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 13
Ports
12
24
48
Installation

Preparation

Consider the following before installing the BitStorm 4800 Express IP DSLAM:
z Installation Site
Your installation site should be well ventilated, clean, and free of environmental extremes.
z Installation Options
The BitStorm 4800 Express may be:
— Mounted with the included mounting brackets in a standard 19-inch
(483 mm) or 23-inch (584 mm) rack (including both Bay Networks and Nortel 23-inch racks), or, with separately purchased mounting brackets, in a 21-inch (535 mm) ETSI rack. ETSI brackets are available from Paradyne. See Appendix B-, Equipment List.
As many BitStorm 4800 Express units may be mounted in a standard rack as there are 1.75-inch (44.45 mm) spaces in the rack, so long as adequate cooling is provided.
— Mounted vertically against a wall.
The standard mounting brackets provided can be fastened to the base of the unit for wall mounting.
— Set on a shelf or desktop.
Up to five BitStorm 4800 Express units may be stacked on a shelf or desktop.
z Power
The BitStorm 4800 Express operates from a 90 to 265 VAC, 47 to 63 Hz power source.
z Cabling
No cable except the power cable is provided with the BitStorm 4800 Express. See Table 2, Cable Descriptions, to determine what cables you need to procure before installation.
14 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Cables Required

Table 2 shows all the cables that may be required for your installation.
Table 2: Cable Descriptions
Connector Name Connector and Cable For Connecting . . .
Cables Required
DSL PORTS 1–24
50-pin RJ21X Telco-type straight connector and 50-wire cable. Two cables
DSL Ports 25–48
required for 48-port model.
(if installed)
Port 2 10/100BaseT
8-position modular plug and 8-wire Category 5 or better unshielded twisted pair (UTP) cable.
Port 1 10/100BaseT
8-position modular plug and 8-wire Category 5 or better unshielded twisted pair (UTP) cable.
CONSOLE DB9 plug connector and
shielded cable.
z The other connector
depends on the serial port on your terminal or PC, but normally is a DB9 socket.
Up to 24 DSL ports per cable to a POTS splitter.
The BitStorm 4800 Express to a network.
A Network Management System (NMS) over a Local Area Network (LAN) employing 10BaseT or 100BaseT.
The BitStorm 4800 Express to one of the following:
z A terminal or a PC
with a terminal emulation program, or
z The other connector
z A modem.
depends on the serial port on your modem, but normally is a DB25 plug. A null modem (crossover) cable is required.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
15
Installation

Unpacking the Hardware

HANDLING PRECAUTIONS FOR
!
STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive components from damage due to electrostatic discharge (ESD) during normal operation. When performing installation procedures, however, take proper static control precautions to prevent damage to equipment. If you are not sure of the proper static control precautions, contact your nearest sales or service representative.
The BitStorm 4800 Express is shipped in a cardboard shipping container. Carefully remove the unit from its shipping container and check for physical damage. If the unit shows signs of shipping damage, notify your sales representative.

Package Contents

In addition to this installation guide, the BitStorm 4800 Express shipping carton should contain:
z BitStorm 4800 Express DSLAM
z AC Power Cable
z Two sets of mounting brackets: one set suitable for a 19-inch (483 mm)
rack and one set suitable for a 23-inch (584 mm) rack (including Bay Networks and Nortel)
z Hardware kit
If anything is missing, notify your sales representative.
Before installing the BitStorm 4800 Express, read the Important Safety
Instructions in the beginning of this document.
16 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Mounting Configurations

Three basic installation configurations are available:
z Rack mount – see Installing the Brackets for Rack Mounting on page 17
and Installing the BitStorm 4800 Express Into a Rack on page 19.
z Wall mount – see Installing the BitStorm 4800 Express on a Wall on
page 21.
z Shelf or desktop – see Installing the BitStorm 4800 Express on a Shelf or
Desktop on page 23.

Mounting Brackets

Your BitStorm 4800 Express can be installed in a rack or on the wall using mounting brackets. Two brackets suitable for a 19-inch (483 mm) rack (marked EIA-19) and two brackets suitable for a 23-inch (584 mm) Bay Networks or Nortel rack (marked with Paradyne Part Number 868-6282-0020) are shipped with the unit. Two brackets suitable for a 21-inch (535 mm) rack (marked ETSI) are available from Paradyne as a separate feature (see Appendix B-, Equipment List).
Mounting Configurations
Rack-mounting brackets may also be used to attach the unit to a wall.
NOTE:
In this guide, the term rack refers to any rack, cabinet, frame, or bay suitable for mounting telecommunications equipment.

Installing the Brackets for Rack Mounting

To install the mounting brackets for rack mounting:
1 Locate the black screw nearest the front panel on each side of the unit, as
shown.
C O
N
S
O
P L E
O
R
T
1
1
0
/1
P
0
0
O
B
R
T
T
2 1 0
/1
0
0 B
T
STATUS
ALARM
TEST
1
35
791
1
1 3
1 5
1 7
1 9
2 1
2
3
2
2
5
2
46
729
3
8
1
1
3
012
3
3 5
1
3
4
7
1
3
6
9
1
4
8
1
2
4
0
3
2
4
2
5
2
4
4
7
2
6
2
8
3 0
3
2
3
4
3
6
3
8
4
0
4
2
4
44
6
4
8
D
S
L P
O
R
T
S
1
-2 4
P
O
T
S
1
- 2
4
D
S
L P
O
R
T
S
2
5
-4 8
04-17525
2 Remove these two black screws (one from each side) before attempting to
install the mounting brackets.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
17
Installation
3 Identify six flat-head screws (for 19-inch racks) or six machine screws
(for 23-inch racks) provided with the mounting brackets in the hardware kit.
4 Attach the brackets appropriate to your rack size. Tighten all screws
firmly.
19-inch (483 mm) Rack Mount
23-inch (584 mm) EIA and Bay Networks
Rack Mount
21.1-inch (535 mm) Rack Mount
23-inch (584 mm) Nortel
Rack Mount
18 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
02-17324

Installing the BitStorm 4800 Express Into a Rack

Installing the BitStorm 4800 Express Into a Rack
Two types of mounting screws are provided. Use:
z #10-32 mounting screws for rails with threaded screw holes
z #12-24 mounting screws and self-retaining nuts for rails with unthreaded
screw holes
To install the BitStorm 4800 Express into a rack:
1 Determine where in the rack you will mount the BitStorm 4800 Express.
If your rack does not have threaded screw holes, slip self-retaining nuts onto the rails where the BitStorm 4800 Express will be fastened.
02-17070
2 Place the unit so that the brackets rest against the front of the rails. Insert
screws in the bottom screw positions and hand-tighten them.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
19
Installation
3 Insert and tighten the screws in the top screw positions, then tighten the
bottom screws.
C
O
N
S
O
PO
LE
R
T
1
10/1
P
O
00
R
BT
T
2
10
/10
0 B
T
STATUS
ALARM
TEST
1
35791
1
1
3
1
517
1
9
2
1
2
3
2
5
2
4681
7
2 93
1
3
335
0
1 2
3 7
1
3
4
94
1
618
1
4
3
4 2 0
5
2
4
7
2
2
4
2 6
2 8
3 03
2
3
4
3
6
3 8
4 04
2
4
4
4
6
4
8
D
S
L P
O
R
T
S
1
-2 4
P
O
TS
1
-2 4
D
S
L P
O
R
T
S
25
-48
2
04-17526
P O R T 1
­1
0 / 1 0 0 B T
P O R T 2
­1 0 / 1 0 0 B
T 1 0 0 0 B T
P O R T 3
K T
G i
N
g E
I C L A
S M U T R
T A A
S T L
P
E
O T
C
S
S
O
1
N
- 2
S
A
4 O L
E
T
A L
A R M
1 3
5 7 9
1 1 1 3
1 5
2
1 7
4
1 9
6
2 1
8
2
3 1 0
1 2 1 4
1 6 1 8
2 0 2 2
2
4
D S L P O R
T S 1
­2 4
20 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Installing the BitStorm 4800 Express on a Wall

Installing the BitStorm 4800 Express on a Wall
Wall mounting requires two wood screws suitable for the weight of the fully cabled unit. These are not included. Use at a minimum 1/4-inch (6 mm) diameter screws in 3/4-inch (19 mm) plywood (not drywall).
To install the BitStorm 4800 Express on a wall:
1 Identify the 6-32 x 3/16-inch flat-head screws provided in the hardware
kit and the brackets suitable for a 23-inch rack. Two screws are required for each bracket.
2 Orient the unit so that the bottom is facing you and the faceplate is at the
top.
3 Locate the supplied Right Side mounting bracket and fasten it to the right
side of the unit.
05-17634
4 Locate the supplied Left Side mounting bracket and fasten it to the left
side of the unit.
5 Tighten all screws firmly.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
21
Installation
6 Install two wood screws (not provided) at the same height above the floor
and 18.75 inches (476.25 mm) apart. Do not completely tighten the screws. Leave them so their heads are about 1/4 inch (6 mm) from the wall.
17.85 in (453 mm)
04-17528
7 Hang the unit from the wood screws to verify that the screws are properly
placed. The screws should freely slide into the top of the key slots in the brackets.
Do not fasten the unit to the wall until after it is completely cabled and tested.
22 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Installing the BitStorm 4800 Express on a Shelf or Desktop

Installing the BitStorm 4800 Express on a Shelf or Desktop
If the BitStorm 4800 Express will be placed on a shelf or desktop, install the provided rubber feet before putting the unit in position.
To install the BitStorm 4800 Express on a shelf or desktop, as a standalone unit or in a stack:
1 Locate the rubber feet in the hardware kit provided with the unit.
2 Turn the unit upside down on a work surface. Squares stamped into the
bottom of the unit show the proper positions for the feet.
3 Remove the protective sheet from the bottom of each foot, then press the
foot onto a corner of the bottom of the unit.
03-17439
4 Turn the unit right side up and place it in position on a shelf or desktop.
If the installation includes more than one unit, one can be stacked atop another. Up to five units can be stacked together.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
23
Installation
24 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

CABLING

Cabling Overview

The BitStorm 4800 Express has a large variety of possible cabling configurations. This chapter describes all possible connections, not all of which are required:
z DSL Ports on page 26
z 10/100BaseT Uplink (Port 2) on page 27
z Management Port on page 28
z Console Port on page 29
z Ground on page 31
z Connecting to Power on page 32
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 25
Cabling

DSL Ports

The BitStorm 4800 Express DSL connector supports the tip and ring connections of up to 24 DSL ports over a 50-position cable. There are two DSL connectors on the 48-port model.
You must connect the unit to a separate POTS splitter. The Model 6051 POTS Splitter must be used for customer premises applications in Canada.
To cable the DSL Ports:
1 Insert a cable tie (provided) through the top of the anchor mount next to
the DSL PORTS 1–24 connector.
2 If the connector for your cable has a short captive screw, attach the cable
to the DSL PORTS 1–24 connector and fasten it to the jack screw with its short captive screw.
#4-40
Jack Screw
Short
Screw
50-Pin
Connector
Anchor
Mount
02-17083
3 If the connector for your cable has a long captive screw, remove the
provided jack screw from the threaded hole next to the DSL PORTS 1–24 connector. Attach the DSL PORTS 1–24 connector to the unit using the long, captive pan-head screw (provided).
Anchor
Mount
Long
Screw
50-Pin
Connector
02-17346
4 Tighten the cable tie around the connector and trim the excess.
02-17084
5 For a 48-port model, repeat Step 1 through Step 4, substituting
DSL Ports 25–48 for DSL PORTS 1–24.
26 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
6 Secure the cables as required for strain relief.

10/100BaseT Uplink (Port 2)

Port 2 is the uplink for the DSLAM. A straight-through cable can be used regardless of the destination interface, since the port automatically distinguishes between an MDI and an MDIX.
To use Port 2 as the uplink:
1 Connect an 8-position modular cable to Port 2.
2 Connect the other end of the cable to the uplink interface, such as an
Ethernet switch.
10/100BaseT Uplink (Port 2)
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
27
Cabling

Management Port

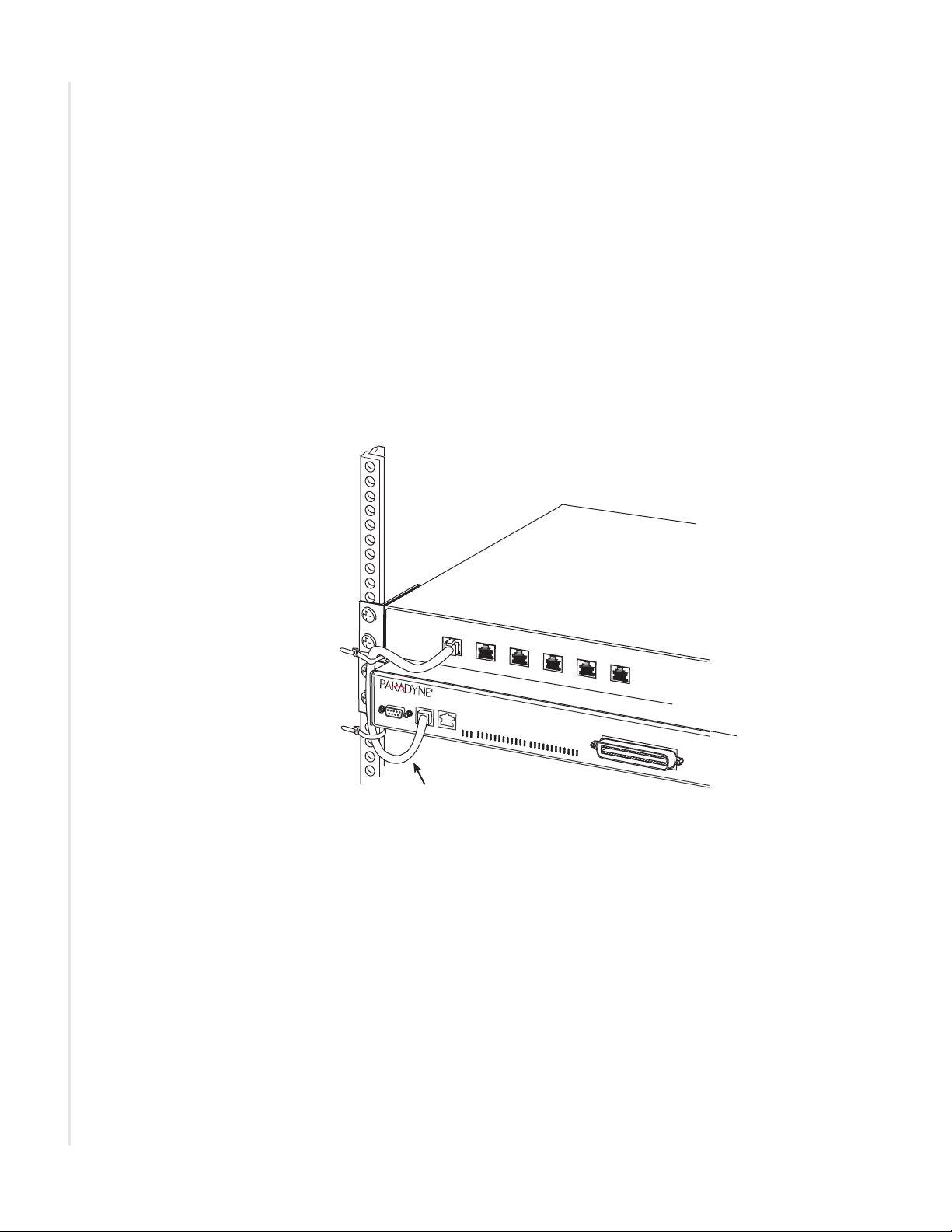

Port 1 can be used to connect the BitStorm 4800 Express to a network management system using a 10BaseT or 100BaseT LAN. A straight-through cable can be used regardless of the destination interface, since the port automatically distinguishes between an MDI and an MDIX.
To use Port 1 as the out-of-band management port:
1 Connect an 8-position modular cable to Port 1.
2 If the BitStorm 4800 Express is in a rack, fasten the cable to a rail with a
cable tie.
3 Connect the other end of the cable to your Ethernet switch or a network
interface card in a PC.
PORT1
10/100BTCONSOLE
Port 1
PORT2
10/100BT
STATUS
ALARM
TEST
1
3
5791
1
1
315
2
4681
0
1
2
1
41618
Ethernet Switch
1
7
1
9
2
1
2
3
2
5
2
729
3
133
3
5
3 7
3
9
4
1 2 022
4
3
4
5 2 4
4
2
7
6
2 83
0
3 234
3 6
3 840
4 2
4 4
4 6
4 8
DSL PORTS 1-24
04-17529
28 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Console Port

The CONSOLE port normally serves as the primary user interface with the BitStorm 4800 Express during installation. You can connect a terminal or PC directly to the CONSOLE port using a DTE cable (see procedure below). You can also use the CONSOLE port to attach a modem to the BitStorm 4800 Express for remote dial-in management of the unit using a DCE cable (see
Connecting a Modem to the Console Port on page 30).

Connecting a Terminal or PC to the Console Port

To connect a terminal or PC to the CONSOLE port:
1 Configure the terminal or terminal emulation program to use the
following parameters:
— Speed: 9600 bps
— Data bits: 8
— Parity: None
Console Port
— Flow Control: None
— Stop bits: 1
2 Determine and procure the proper Data Terminal Equipment (DTE) cable
type. The CONSOLE port requires a DB9 plug connector. The other connector depends on the serial port on your terminal or PC.
3 Connect the DB9 plug connector to the CONSOLE port socket. The
CONSOLE port is ordinarily used only during installation, so do not fasten the connector.
4 Connect the other end of the cable to the serial port of your terminal or
PC.
Serial
Por t
C O
N
S
O
P
L
O
E
R
T
1 1 0
/1
P
0
O
0
B
R
T
T
2 1 0
/1
0
0
B
T
S
M U T
R
T
A
A
S
T
L
E
S
A
T
1
3 5 7 9 11 13 15
17
19 21
23
25
2
27
46810121416182022
29
31
33 35 37 39 41 43 45
47
24
26
28 30 32 34 36
38
40 42 44 46
48
D
S
L
P
O
R
T S
1
-2 4
04-17530
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
29
Cabling

Connecting a Modem to the Console Port

To connect a modem to the CONSOLE port:
1 Determine and procure the proper DCE cable type for your modem. The
CONSOLE port requires a DB9 plug connector. The other connector depends on the serial port on your modem, but normally a DB25 plug is required. The cable must be an EIA-232-E crossover (null modem) cable.
2 Connect the DB9 plug connector to the CONSOLE port socket.
3 If the modem will be permanently connected, fasten the connector to the
Management Module with its captive screws. If the BitStorm 4800 Express is in a rack, dress the cable to the left and attach it to the rail with a cable tie.
4 Connect the other end of the cable to the serial port of your modem.
PORT1
10/100BTCONSOLE
CONSOLE
Por t
PORT2
10/100BT
Serial Port
W
R
A
LMP
TS
T
L IN
E
E
TH
ER
NE
T
T
STATUS
ALARM
TES
1
35791
1
1
315
1
7
1
9
2
1
2
3
2
4681
2 5
2
7
2 931
3
0
1
2
3
3
1
4
537
1
6
1
8
3
9
4
1
2
0
2
2
4
3
4
5
2
4
2 6
4
7
2
8
3 032
3
4
3
638
4
0
4
2
4
4
4 6
4 8
Modem
DSL PORTS 1-24
04-17531
30 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Ground

Ground
To connect the unit to a ground:
1 Crimp a ring terminal onto the stripped end of 14 AWG or heavier copper
ground wire.
2 Remove the screw marked by the ground symbol ( ) at the right side
of the front panel.
3 Fasten the ring terminal to the front panel using the same screw.
4 Attach the ground wire to an earth ground.
POTS 1-24
D
SL PO
R
TS 25-48
To Earth Ground
04-17532
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
31
Cabling

Connecting to Power

The BitStorm 4800 Express can be powered by any AC power source supplying 90–265 VAC at 47–63 Hz.
To connect the BitStorm 4800 Express to a power source:
1 Insert the supplied power cord into the power socket on the back of the
unit.
02-17248
2 If the BitStorm 4800 Express is in a rack, dress the power cord to the left
and fasten it to the rail with a cable tie.
3 Connect the other end of the power cord to a grounded AC power source.
4 Make sure the STATUS LED on the front panel is ON (green). See
Chapter 3-, LEDs.
32 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

LEDS

LED Locations

The locations of the System and DSL Port LEDs on the front panel of the BitStorm 4800 Express are shown in Figure 1, Front Panel LEDs.
Link LEDs
Activity LEDS
PORT1
10/100BTCONSOLE
C
O N
S O
P
L
E
O R
T 1
1
0
/ 1
P
0
0
O
B
R
T
T
2
1
0 / 1
0 0 B
T
STATUS
ALARM
TEST
1
3
5
79
2
46
8
10/100BT
1 1 1
3
1 5
1 7
1
9 2
1 0
1 2
1 4
1
6 1
8 2
0
Figure 1: Front Panel LEDs
PORT2
1
2 3
2
5
2 7
2 9
3 1
3
3
2 2
2 4
2 6
2 8
3 0
3 2
3
4
DSL Ports LEDs
STATUS
ALARM
TEST
1233 5 7 9 11 13 15 17 19 21
22446810121416182022
3 5 3
7 3
9
4 14
3 4 5
4 7
3 6
3 84
0
4 2
4
44 6
4 8
D S
L P
O
R T
S 1
­2
4
P O
T
S 1
- 2 4
D
S
L P
O R
T
S 2
5
- 4 8
254727 29 31 33 35 37 39 41 43 45
264828 30 32 34 36 38 40 42 44 46
04-17533
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 33
LEDs

LED Meanings

When power is first applied to the unit, it performs a power-on self-test. When this test is successfully completed, the Status LED blinks. The meaning of all the LEDs is shown in Table 3, Front Panel LEDs.
Table 3: Front Panel LEDs
LED Color State Meaning
Link*
Green Off
On
Flashing
Activity* Green Off
On
STATUS Green Off
On
ALARM Amber Off
On
TEST Amber Off
On
DSL Ports
Green Off (LEDs numbered 1–24 or 1–48
On
correspond to DSL ports 1–24 or 1–48)
No Ethernet link present.
Ethernet Link present.
Ethernet link is present, but port is administratively disabled.
No data is being transferred.
Data is being transferred.
No power, or the unit has not completed initialization.
Unit has power and has completed initialization.
No Alarms.
Unit failed self-test, or the unit has exceeded a safe temperature, or a fan has failed.
Normal operating mode.
At least one port is in test mode.
The port is disabled or no signal is detected on the line.
Port has successfully trained with the remote and is active.
* The RJ45-type connectors for Port 1 and Port 2 bear two LEDs: the left one is
the Link LED and the right one is the Activity LED.
34 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

CONFIGURATION

Overview

The BitStorm 4800 Express is designed to require minimal configuration before it can be accessed by a Network Operations Center (NOC). When the BitStorm 4800 Express is first powered up it is a fully functional bridge, and all DSL ports are set to their maximum speed.
Initial configuration is performed using the Command Line Interface (CLI). The CLI is available from a terminal or PC connected to the CONSOLE port, or through the management port (Port 1).
Additional configuration may be necessary, depending on the mode used to manage the BitStorm 4800 Express:
z Inband
z Out of band through Port 1
This can be performed using the CLI, SNMP, or the web interface.
For more configuration information, see the BitStorm 4800 Express Model
4821-A2 Command Line Interface Reference (for the CLI) and the online
Help (for the web interface).
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 35
Configuration

Using the CLI

A command line interface (CLI) can be used to configure and monitor the unit. The CLI is available from a PC or terminal connected to the Console port, or from a Telnet session with the device.
The following commands are available:
Table 4: CLI Commands
Command Function
clear Clear the system log.
configure Enter Configuration mode.
copy Copy from one file to another.
date Set the time zone and date format.
end If user is in Administrator mode, shifts to User mode; if
user is in User mode, positions interface at top of menu tree.
exit Terminate current session.
firmware Download or apply new firmware.
paging Enable or disable paging (more prompt) for this
session.
privilege Enable administrator mode.
restart Restart a unit.
show Display configuration, statistics, and status.
technical-support Display information for contacting technical support.
test Test the system.
Descriptions of some essential configuration commands follow.
36 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Configure Management Default Gateway Address

The configure management default gateway command specifies the IP address of the next hop router for the management traffic.
configure management default-gateway {ip_address}
Minimum Access Level: Administrator
ip_address – Specifies the IP address of the default gateway for the
management ports.
Example:
PDYN# configure management default-gateway 137.90.127.1

Configure Management Inband Address

The configure management inband address command specifies the IP address of the unit.
Using the CLI
configure management inband address {ip_address} { subnet_mask}
Minimum Access Level: Administrator
ip_address – Specifies the management IP address. Default is 0.0.0.0
(disabled). Do not configure inband and out-of-band management on the same subnet.
subnet_mask – Specifies the subnet mask to be applied to the IP address. The default mask is 255.255.255.0.
Example:
PDYN# configure management inband address 137.90.127.3
255.255.255.0
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
37
Configuration

Configure Management Out-of-Band Address

The configure management out-of-band address command specifies the IP address of the unit that will accept management traffic on the out-of-band management port.
configure management out-of-band address {bootp | {{ip_address} { subnet_mask} }
Minimum Access Level: Administrator
bootp – Specifies that a BOOTP server will determine the management IP
address.
ip_address – Specifies the management IP address. The default address is
10.10.10.10. Do not configure inband and out-of-band management on the same subnet.
subnet_mask – Specifies the subnet mask to be applied to the IP address. The default mask is 255.255.255.0.
Example:
PDYN# configure management out-of-band address bootp
PDYN# configure management out-of-band address 137.90.127.3
255.255.255.0
38 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

BitStorm 4800 Express Startup Procedure

BitStorm 4800 Express Startup Procedure
You can initialize your BitStorm 4800 Express via a PC or terminal connected to the unit’s CONSOLE port. Then, using a series of CLI commands, GrandVIEW EMS or another Element Management System, or the web interface, you can configure the unit according to your requirements.

Login

To log in to the BitStorm 4800 Express:
1 Connect a PC or terminal to the CONSOLE port. (See Console Port in
Chapter 2-, Cabling.)
2 At the login> prompt, type admin and press Enter.
3 At the password> prompt, press Enter. The default login password is
blank.
4 At the PDYN> prompt, type privilege and press Enter.
5 At the password# prompt, press Enter. The default privileged password is
blank.

Management Modes

You are now logged on and in privileged mode, which allows you to configure the unit.
The startup procedure for the BitStorm 4800 Express system differs depending on the type of management used:
z Inband Management – Operates over the uplink.
z Out-of-Band Management – Operates over Port 1.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
39
Configuration

Startup Procedure for Inband Management

With inband management, the BitStorm 4800 Express is managed using the uplink port.
To start up the BitStorm 4800 Express using inband management:
1 To avoid losing your connection when the IP address is changed, access
the CLI using the CONSOLE port.
2 Assign an IP address, netmask, and next-hop router using the configure
management command. For example:
PDYN# configure management inband address 137.90.127.3
255.255.255.0
PDYN# configure management default-gateway 137.90.127.1
Do not configure inband and out-of-band management on the same subnet.

Startup Procedure for Out-of-Band Management

In out-of-band management, you manage the unit through Port 1.
To start up the BitStorm 4800 Express using out-of-band management:
1 To avoid losing your connection when the IP address is changed, access
the CLI using the CONSOLE port.
2 Assign an IP address, netmask, and next-hop router using the configure
management command. For example:
PDYN# configure management out-of-band address 137.90.80.3
255.255.255.0
PDYN# configure management default-gateway 137.90.80.1
You can now access the web interface by typing into the Location field of your web browser the IP address assigned to the Port 1. See Using the
Web Interface on page 41.
Do not configure inband and out-of-band management on the same subnet.
3 Configure routers as necessary to route data from the NOC to the
BitStorm 4800 Express.
40 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Using the Web Interface

To access the web interface:
1 Open your web browser. (Internet Explorer Version 6 or above is
recommended.)
2 Type http:// and the IP address of the BitStorm 4800 Express into the
Address field of your browser window. For example:
3 A login window appears. Enter the default User ID (admin) and leave
Password blank. Click on OK. The web interface screen appears.
4 Click on the menu tab appropriate to what you would like to do:
— Configuration – To configure the system and interfaces
— Status – To display statistics, status, and contents of memory
— System – To display system information, download firmware, back
up configurations, and modify users
— Diagnostics – To start and stop tests
Using the Web Interface

System / Users

For security reasons, it is a good idea to change the default password the first time you use the system.
To change the default password for user admin:
1 Click on the System menu tab, then click on Users. The folllowing screen
appears.
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
41
Configuration
2 In the Configured Users box, select admin by clicking in the circle next
to it.
3 Click on Modify Selected. The System / Users / admin screen appears.
4 Type in a new Login Password and a new Privilege Password, then click
on Apply. Keep a record of the new password.

Configuration / Management / SNMP

SNMP access to the unit is disabled by default. The read-only community string is public, and the read-write string is private. Community strings, network management system addresses, and trap manager addresses can be set using the System/Management/SNMP screen.
To set SNMP parameters:
1 Click on the Configuration menu tab, then click on SNMP. The
System/Management/SNMP screen appears.
2 Enter new SNMP parameters as desired. Click on Apply.
42 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

CONNECTORS AND PIN ASSIGNMENTS

Overview

The following sections provide pin assignments for:
z DSL Ports Connectors on page 44
z Port 1 and Port 2 10/100BaseT Connectors on page 45
z Console Port Connector on page 46
PORT1
PORT2
10/100BTCONSOLE
10/100BT
STATUS
ALARM
TEST
1233 5 7 9 11 13 15 17 19 21
22446810121416182022
Figure 2: BitStorm 4800 Express IP Front Panel
254727 29 31 33 35 37 39 41 43 45
264828 30 32 34 36 38 40 42 44 46
DSL PORTS 1-24
DSL PORTS 25-48
04-17535
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 43
Connectors and Pin Assignments

DSL Ports Connectors

The 50-pin RJ21X Telco connectors labeled DSL Ports 1–24 and (on the 48-port model) DSL Ports 25–48 provide the 2-wire loop interface from each DSL port to the POTS splitter. The Canadian designation for this connector is CA21A.
Table 5 lists the pin assignments for these interfaces. Note that Pins 25 and 50
are not used.
Table 5: DSL Connector Pinouts
Connector Pins
DSL Port
(Ring, Tip)
1 or 25 1, 26
2 or 26 2, 27
3 or 27 3, 28
4 or 28 4, 29
25
50
1
26
02-17151
5 or 29 5, 30
6 or 30 6, 31
7 or 31 7, 32
8 or 32 8, 33
9 or 33 9, 34
10 or 34 10, 35
11 or 35 11, 36
12 or 36 12, 37
13 or 37 13, 38
14 or 38 14, 39
15 or 39 15, 40
16 or 40 16, 41
17 or 41 17, 42
18 or 42 18, 43
19 or 43 19, 44
20 or 44 20, 45
21 or 45 21, 46
22 or 46 22, 47
23 or 47 23, 48
24 or 48 24, 49
44 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

Port 1 and Port 2 10/100BaseT Connectors

Port 1 and Port 2 10/100BaseT Connectors
Port 1 and Port 2 are 8-pin unkeyed modular jacks for a 10/100BaseT interface.
Table 6: Port 1 and Port 2 Pinouts
Signal Pin
Pin 1
Transmitted Data + 1
Transmitted Data – 2
Received Data + 3
Unused 4
Unused 5
Received Data – 6
Unused 7
Pin 8
97-15449
Unused 8
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide
45
Connectors and Pin Assignments

Console Port Connector

The CONSOLE port connector is a DB9 socket connector that supports an EIA-232-E circuit as shown in Tabl e 7 .
Table 7: Console Port Connector
RS-232 Signal
Ground Out 1
Receive Data Out 2
Send Data In 3
Data Terminal Ready In 4
Ground 5
Ground Out 6
NC 7
Directio nPin
Ground Out 8
NC 9
46 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

EQUIPMENT LIST

Table 8: BitStorm 4800 Express Equipment List
Description Model Number
BitStorm 4800 Express Model 4821-A2 Command Line Interface Reference (paper copy)
BitStorm 4800 Express Model 4821-A2 SNMP Reference
(paper copy)
BitStorm 4800 Express 24-Port IP DSLAM, with North America power cord
Includes BitStorm 4800 Express, 19- and 23-inch mounting brackets and hardware, and Installation Guide.
BitStorm 4800 Express 48-Port IP DSLAM, with North America power cord
Includes BitStorm 4800 Express, 19- and 23-inch mounting brackets and hardware, and Installation Guide.
Mounting Brackets for ETSI 21-inch (535 mm) Rack 4200-F1-001
1-Slot POTS Splitter Chassis 5011-A1-000
6-Slot POTS Splitter Chassis 5016-A1-000
BitStorm 6051 Universal Line Sharing POTS Splitter 6051-B1-001
4821-A2-GB21
4821-A2-GB22
4821-A2-427
4821-A2-447
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 47
Equipment List
48 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30

TECHNICAL SPECIFICATIONS

Technical specifications are subject to change without notice.
Table 9: BitStorm 4800 Express Technical Specifications (Sheet 1 of 2)
Specifications Criteria
Cooling and Air Handling
DSL Compatibility
Electromagnetic Compatibility (EMC)
Interfaces
Each BitStorm 4800 Express is independently cooled with integral fans and does not rely on vertical air flow.
z G.dmt (G.992.1)
z G.lite (G.992.2)
z ANSI T1.413-1998
Meets the following standards:
z EN 300 386-2
z EN 55024
z EN 55022, Class A
z FCC Part 15, Class A
z VCCI, Class A
z DSL PORTS: 50-pin RJ21X Telco-type connector
z CONSOLE: DB9 (EIA-232-E)
z Port 1 and Port 2: 8-pin modular jack
(10/100BaseT)
Operating Environment
Ambient Temperature: 0° to 50° C (32° to 122° F) Relative Humidity: 5% to 95% noncondensing Storage Temperature: –40° to 85° C (–40° to 185° F) Shock and vibration tolerance sufficient to withstand normal shipping
Physical Dimensions
Height: 1.75 (44.5 mm, or 1U as defined in EIA-310-C) without feet Width: 17.2 (437 mm) without mounting brackets Depth: 16.0 (406 mm) with cables
Power 90–265 VAC, 47–63 Hz
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 49
Technical Specifications
Table 9: BitStorm 4800 Express Technical Specifications (Sheet 2 of 2)
Specifications Criteria
Power Consumption
Model 4821-A2-417: 12 Watts Maximum
Model 4821-A2-427: 26 Watts Maximum
Model 4821-A2-447: 40 Watts Maximum
Weight Model 4821-A2-417: 11.2 lbs (5.1 kg)
Model 4821-A2-427: 11.2 lbs (5.1 kg)
Model 4821-A2-447: 10.7 lbs (4.8 kg)
50 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
INDEX
Numerics
10/100BaseT pinouts 45
A
AC power 32 Activity LEDs 34 administrator, login 39 Alarm LED 34 audience for this document 11 autosensing 27, 28
B
BitStorm 4800 Express
description 13 features 13 models 13
brackets
installation for rack mount 17
C
cables 43
DSL ports 44 MGMT port 45 required 15
cabling 25
console port 29 DSL ports 26 ground 31 management port 28 Port 1 28 Port 2 27 POTS ports 26 power 32
uplink 27 CO grounding screw 31 Command Line Interface (CLI) 36 commands 36 community strings 42 configuration 35
CLI commands 37
mounting brackets 17
configuring
inband management 40 out-of-band management 40 SNMP parameters 42
connectors 43
DSL ports 44 front panel 43 Management port 45, 46 POTS splitter 44
CONSOLE port 29
cabling and settings 29 connecting modem 30 description 15
pinouts 46 contents of shipping carton 16 cooling and air handling 49
D
DB9
cabling 29
pinouts 46 default gateway 37 default password 39
changing 41 desktop installation 23 dimensions 49 document purpose 11 documents
ordering 12
related 12 DSL ports
cabling 26
description 15
LEDs 34
pin assignments 44
E
earth ground 31 EIA-232-E 46 Electromagnetic Compatibility (EMC) 49 EMS 39
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 51
Enter key 36 environment 49 equipment list
package contents 16
part numbers 47 ESD precautions 16 Ethernet
LEDs 34
F
feature numbers 47 features 13 feet 23 front panel 33, 43
illustration 43
LEDs 33
G
Link LEDs 34 login 39 lug for grounding 31
M
management modes 39 Management port
cabling 28 connector 45, 46 description 15
pin assignments 45, 46 management port 28 menu tabs 41 models 13 modem
connecting to Console port 30 mounting brackets, description 17 mounting configurations 14, 17
grounding screw 31
I
inband management
configuring 40
described 39 initialization procedures 39 installation 13
options 14 installing
feet for shelf installation 23
in rack 19
mounting brackets for rack mount 17
mounting brackets for wall mount 21
on shelf or desktop 23
screws for wall mount 22
self-retaining nuts 19
unit into rack 19
unit on wall 21 interfaces 49
J
jack screw 26
L
LEDs 33
N
network management systems 42 NMS 42
O
operating environment 49 optional mounting brackets 17 order numbers 47 out-of-band management
configuring 40 described 39
overview
cabling 25 configuration 35 management modes 39 of BitStorm 4800 Express 13 of book 11
P
package contents 16 part numbers 47 password 39
changing 41
default 39 PC cabling and settings 29 physical dimensions 49
52 BitStorm 4800 Express Model 4821-A2 Installation Guide 4821-A2-ZN21-30
pin assignments 43
Console port 46 Management port 45, 46 Ports 1 and 2 45 RJ21X connectors 44 Telco connectors 44
Port 1
cabling 28 pinouts 45
Port 2
cabling 27 pinouts 45
POTS splitter
cabling 26 pin assignments 44 port description 15
power 49
connecting to 32 consumption 50
requirements 32, 49 preinstallation 14 product-related documents 12 purpose of this document 11
T
technical specifications 49 Telco connectors
fastening 26
pinouts 44 terminal cabling and settings 29 Test LED 34 trap managers 42 troubleshooting, LEDs 33 turn-up procedures 39 typographic conventions 36
U
unpacking 16 uplink
cabling 27
Port 2 27
V
VT100 cabling and settings 29
R
rack installation 19
bracket installation 17 example 20
procedure 19 related documents 12 Return key 36 RJ21X connectors 44 RJ45 pinouts 46
S
shelf installation 23 shipping carton 16 site preparation 14 site requirements 14, 49 SNMP, configuring parameters 42 specifications
product 49 stacking 14 startup procedures 39 Status LED 34 synopsis of chapters 11
W
wall mount
bracket installation 21 screw positions 22
web interface
password 41 starting 41 using 41
weight 49
4821-A2-ZN21-30 BitStorm 4800 Express Model 4821-A2 Installation Guide 53
