Zenec ZE-NC2010, ZE-NC5010, ZE-NC3810 OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS FOR NAVI-UPDATE

(CONTENT & FEATURES) FOR E>GO (ZE-NC2010, ZE-NC2040, ZE-NC5010XX, ZE-NC3810)

Use/Coverage:

The so called “SyncTool” in combination with the Naviextras Toolbox Software allows to download new map
data, Teleatlas map bugfixes, as well as new add-on’s like speedcams, activation of TMC Pro with a USB stick,
and to transfer the downloaded files to your E>GO unit. Please note that you can find updates that are free of
charge, as well as updates that will have to be paid with a credit card.

Requirements:

1) You need a USB stick of at least 4GB data size (max. 8GB).

Note: The USB stick must be formatted to FAT32 before use (right click on the USB drive in the Win Explorer,
then choose “Format”  FAT32).

2) You need the SyncTool software – see the instructions below.

3) You need the Naviextras Toolbox - see the instructions below.

How to use SyncTool / Toolbox:

1) Download the ZIP-file called “SyncTool”.

Image 1

2) Unzip the file with either WinZIP or the native unpacking software that comes with Windows XP/Vista/Win7.

3) You obtain a folder called “Update”.

Image2 Image3

1 of 3

WWW.ZENEC.COM

4) Copy the “Update” folder to the root directory of your USB stick which has been formatted to FAT32 file
system before.

Image 4

5) Connect the USB stick to the media link box of your E>GO in the vehicle.

6) Turn on the E>GO and navigate to the “Setup-Menu” of the E>GO and choose “Misc”. While on

“Misc” go to the second page (press the orange arrow in the right hand corner) to find the option “Navi Update”.
Confirm with “Yes”

Image 5

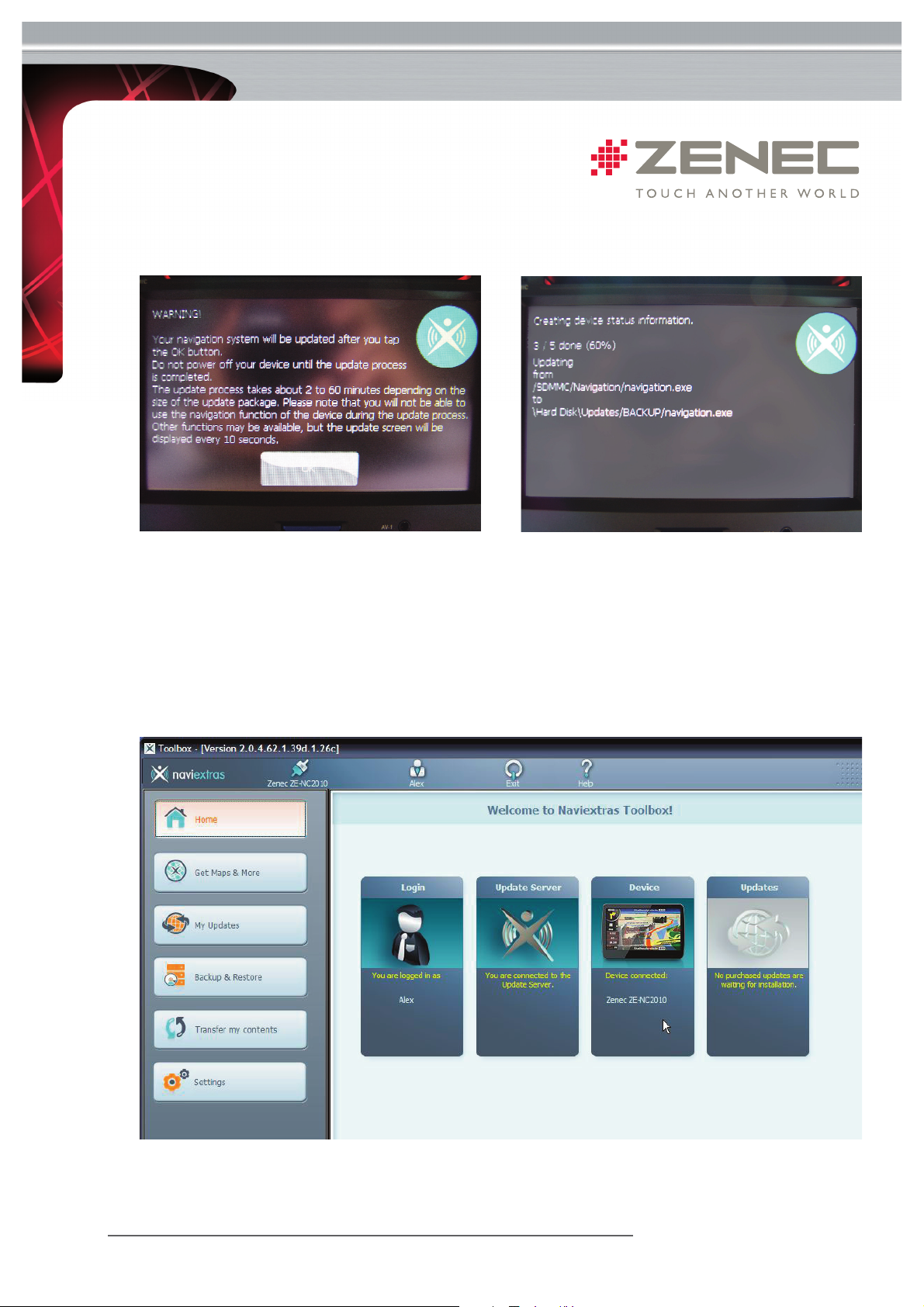

7) Follow the instructions that appear on the E>GO screen.

Image7 Image 8

2 of 3

Image 6
