1. Notice
This Unified Utility Manual provides information on the utility program used to set printer
operation conditions and add functions.
The utility program consists of three functions.
1. A function that sets printer operation conditions via non-hardware control,
software-based virtual switches (VMSM: Virtual Memory Switch Manager).
2. A function that facilitates the downloading of image files, such as logos, intended for
repetitive printing (NV Image Download Manager).
3. A function that downloads and installs the latest firmware, which is subject to
ongoing modifications for the enhancement of product performance (Firmware
Download Manager).
2. Operating System (OS) Environment
The following operating systems are supported:
Microsoft Windows XP (32bit/64bit)
Microsoft Windows 2003 Server (32bit/64bit)
Microsoft Windows Embedded For Point Of Service
Microsoft Windows VISTA (32bit/64bit)
Microsoft Windows 7 (32bit/64bit)
Microsoft Windows 8 (32bit/64bit)
Microsoft Windows CE 5.0
Microsoft Windows CE 6.0
Microsoft Windows Mobile 5.0
Microsoft Windows Mobile 6.x
Rev. 1.00
- 7 -
Mobile Printer
Unified Utility Manual
3. Virtual Memory Switch Manager
3-1 When Using on a PC
1. Connect the printer and the PC via the interface cable (USB type). If using
Bluetooth, a cable connection is not necessary.
ZQ110
2. Turn on the printer.
3. Prepare the Unified Utility executable file to be used on the PC.
The executable file can be found on the enclosed CD.
(ZQ110_Unified Utility for PC ver 1.x.x.exe)
4. Run the Unified Utility executable file.
Rev. 1.00
- 8 -
Mobile Printer
Unified Utility Manual

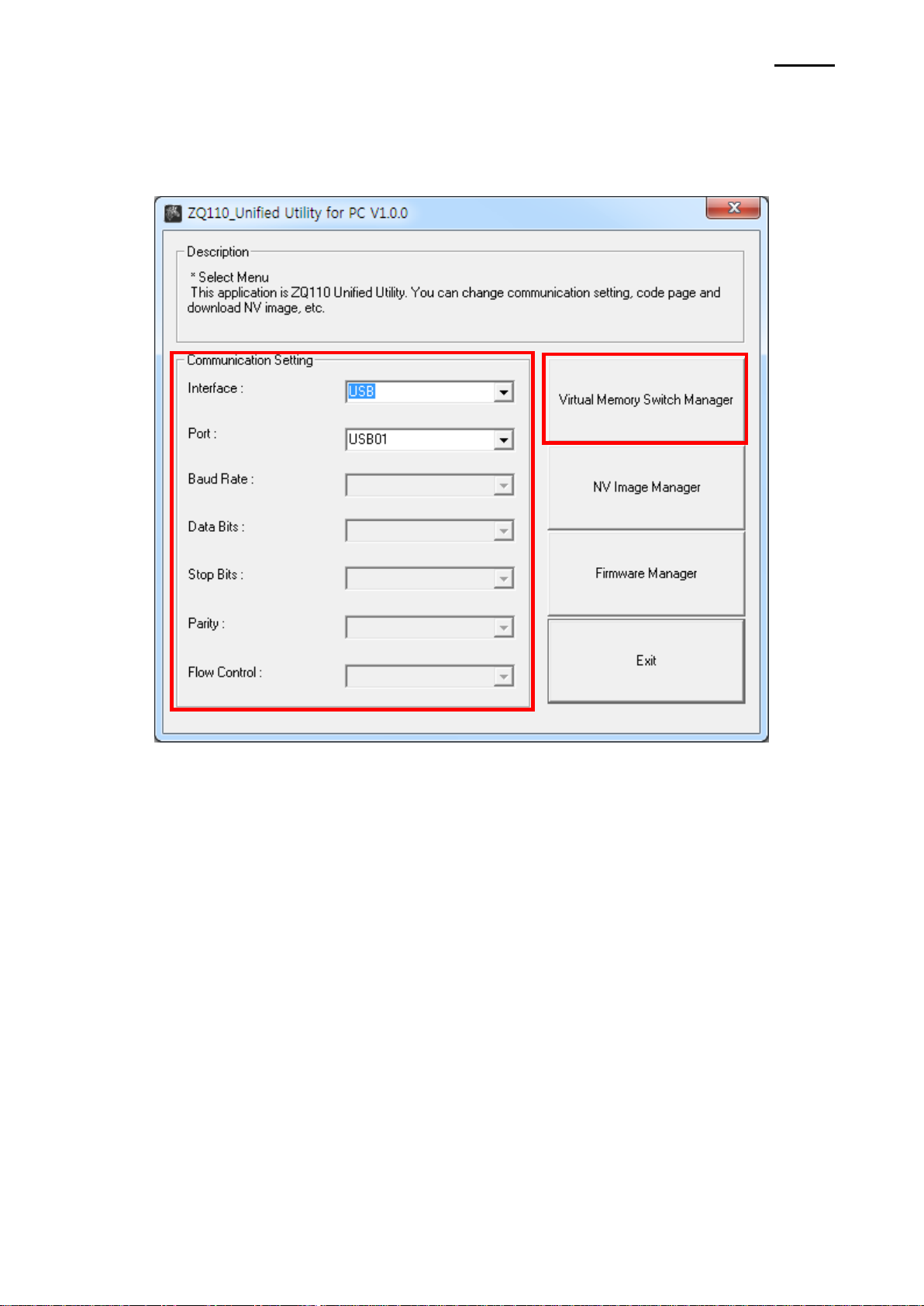

5. Select Port and click Virtual Memory Switch Manager.
Refer to the Bluetooth Connection Manual regarding the port (may vary according
to device).
ZQ110
Rev. 1.00
