Zebra MC3300x Product Reference Guide

MC3300x

Mobile Computer

Product Reference Guide
for Android™ 10

MN-003568-03EN Rev A

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in
many jurisdictions worldwide. All other trademarks are the property of their respective owners.
© 2022 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

Information in this document is subject to change without notice. The software described in this document
is furnished under a license agreement or nondisclosure agreement. The software may be used or copied
only in accordance with the terms of those agreements.

For further information regarding legal and proprietary statements, please go to:

SOFTWARE:www.zebra.com/linkoslegal
COPYRIGHTS:www.zebra.com/copyright.
PATENTS:ip.zebra.com.
WARRANTY:www.zebra.com/warranty.
END USER LICENSE AGREEMENT: www.zebra.com/eula.

Terms of Use

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and
maintaining the equipment described herein. Such proprietary information may not be used, reproduced,
or disclosed to any other parties for any other purpose without the express, written permission of Zebra
Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.

Liability Disclaimer

.

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever
(including, without limitation, consequential damages including loss of business profits, business
interruption, or loss of business information) arising out of the use of, the results of use of, or inability to
use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.

Publication Date

October 5, 2022

2

Contents

About This Guide ................................................................................................................................ 13

Configurations................................................................................................................ 13

Notational Conventions.................................................................................................. 15

Icon Conventions ........................................................................................................... 16

Service Information ........................................................................................................ 16

Determining Software Versions...................................................................................... 17

Determining the Serial Number...................................................................................... 17

Getting Started.................................................................................................................................... 18

Unpacking ...................................................................................................................... 18

MC3300x-G Features..................................................................................................... 19

Front View .............................................................................................................. 19

Back View............................................................................................................... 20

MC3300x-R Features.................................................................................................... 21

Rotating Scan Turret .............................................................................................. 21

Front View .............................................................................................................. 21

Back View............................................................................................................... 22

MC3300x-S Features..................................................................................................... 23

Front View .............................................................................................................. 23

Back View............................................................................................................... 24

Setting Up the Device .................................................................................................... 25

Installing a microSD Card....................................................................................... 25

Installing the MC3300x-G Battery........................................................................... 27

Installing the MC3300x-R/S Battery ....................................................................... 28

Charging the Battery............................................................................................... 29

Charging Indicators ................................................................................................ 30

Charging Temperature ..................................................................................... 30

Charging Spare Batteries................................................................................. 31

Hot Swap Mode/Backup Power ....................................................................... 31

Real-Time Clock Backup................................................................................................ 31

3

Contents

Zebra Visibility Services................................................................................................. 31

Replacing the Battery in the MC3300x-G...................................................................... 32

Replacing the Battery in the MC3300x-R/S ................................................................... 33

Using the Device................................................................................................................................. 36

Home Screen ................................................................................................................. 36

Setting Home Screen Rotation ............................................................................... 37

Status Bar............................................................................................................... 37

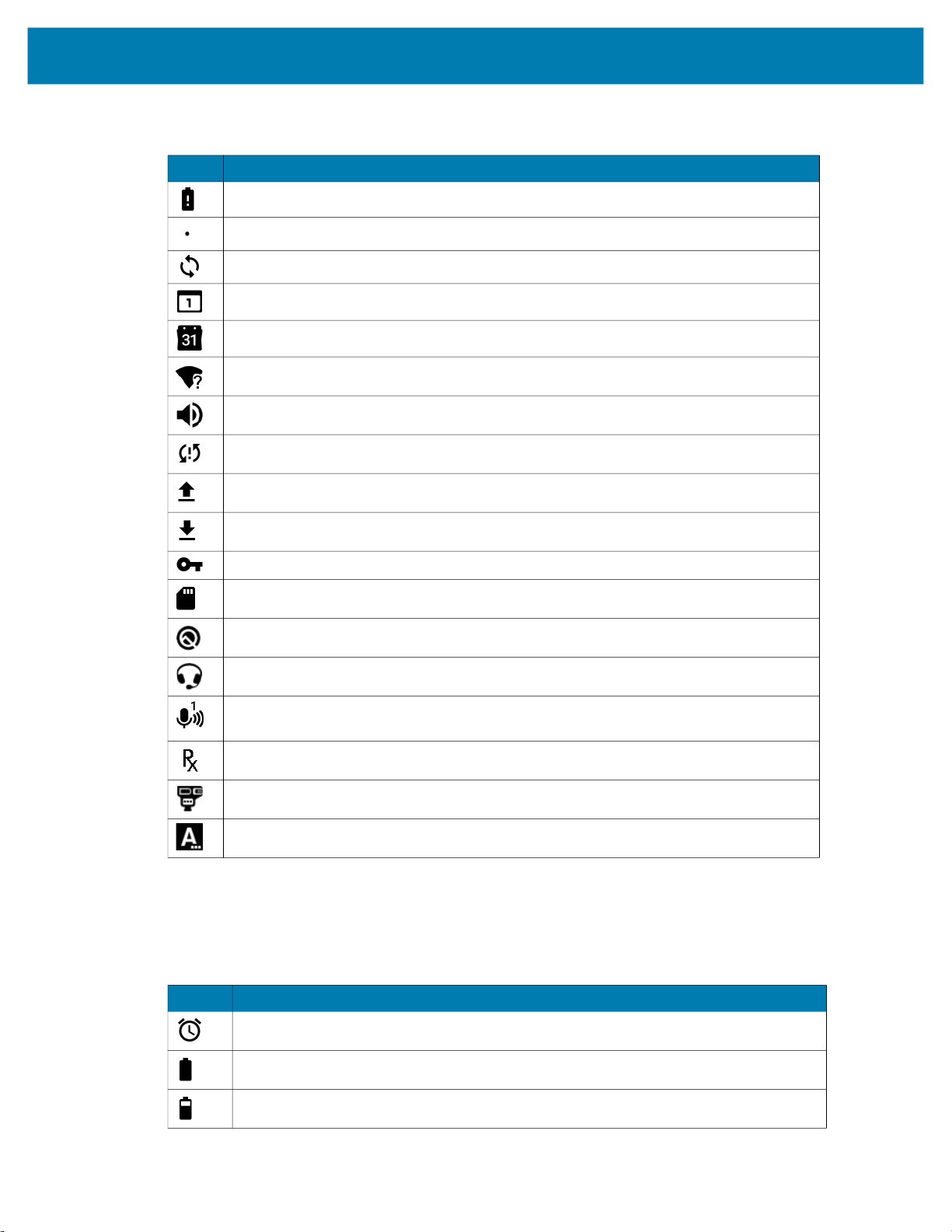

Notification Icons.............................................................................................. 37

Status Icons ..................................................................................................... 38

Managing Notifications ........................................................................................... 39

Opening the Quick Access Panel ........................................................................... 40

Quick Access Panel Icons................................................................................ 41

Editing Icons on the Quick Settings Bar ................................................................. 41

Battery Management...................................................................................................... 41

Checking Battery Status ......................................................................................... 42

Monitoring Battery Usage ....................................................................................... 42

Low Battery Notification.......................................................................................... 42

Interactive Sensor Technology....................................................................................... 42

Waking the Device ......................................................................................................... 43

USB Communication...................................................................................................... 43

Transferring Files.................................................................................................... 43

Transferring Photos ................................................................................................ 43

Disconnect from the Host Computer ...................................................................... 44

Settings............................................................................................................................................... 45

Accessing Settings......................................................................................................... 45

Display Settings ............................................................................................................. 45

Setting the Screen Brightness Manually................................................................. 45

Setting Night Light .................................................................................................. 45

Setting Screen Rotation.......................................................................................... 46

Setting Screen Timeout .......................................................................................... 46

Setting Font Size .................................................................................................... 46

Touch Panel Mode ................................................................................................. 47

Setting the Date and Time ............................................................................................. 47

General Sound Setting................................................................................................... 48

Sound Options........................................................................................................ 48

Setting Wake-Up Sources.............................................................................................. 48

Remapping a Button ...................................................................................................... 49

Remappable Keys.......................................................................................................... 50

UI Listed Keys ........................................................................................................ 50

4

Contents

Other Remappable Keys ........................................................................................ 50

Non-Remappable Keys .......................................................................................... 51

Keyboards...................................................................................................................... 51

Keyboard Configuration.......................................................................................... 51

Enabling Keyboards......................................................................................... 51

Switching Between Keyboards......................................................................... 51

Using the Android and Gboard Keyboards............................................................. 51

Edit Text ........................................................................................................... 52

Entering Numbers, Symbols, and Special Characters..................................... 52

Using the Enterprise Keyboard............................................................................... 52

Numeric Tab..................................................................................................... 52

Alpha Tab......................................................................................................... 52

Additional Character Tab ................................................................................. 52

Scan Tab.......................................................................................................... 52

Language Usage............................................................................................................ 53

Changing the Language Setting ............................................................................. 53

Adding Words to the Dictionary .............................................................................. 53

Notifications.................................................................................................................... 53

Setting App Notifications ........................................................................................ 53

Viewing Notification Settings for All Apps ........................................................ 54

Controlling Lock Screen Notifications .............................................................. 54

Blink Light......................................................................................................... 54

Applications ........................................................................................................................................ 55

Accessing Apps.............................................................................................................. 58

Switching Between Recent Apps............................................................................ 58

Battery Manager............................................................................................................. 58

Opening Battery Manager ...................................................................................... 58

Battery Manager Information Tab........................................................................... 58

Camera ......................................................................................................................... 61

Taking Photos......................................................................................................... 61

Recording Videos ................................................................................................... 62

Camera Settings..................................................................................................... 63

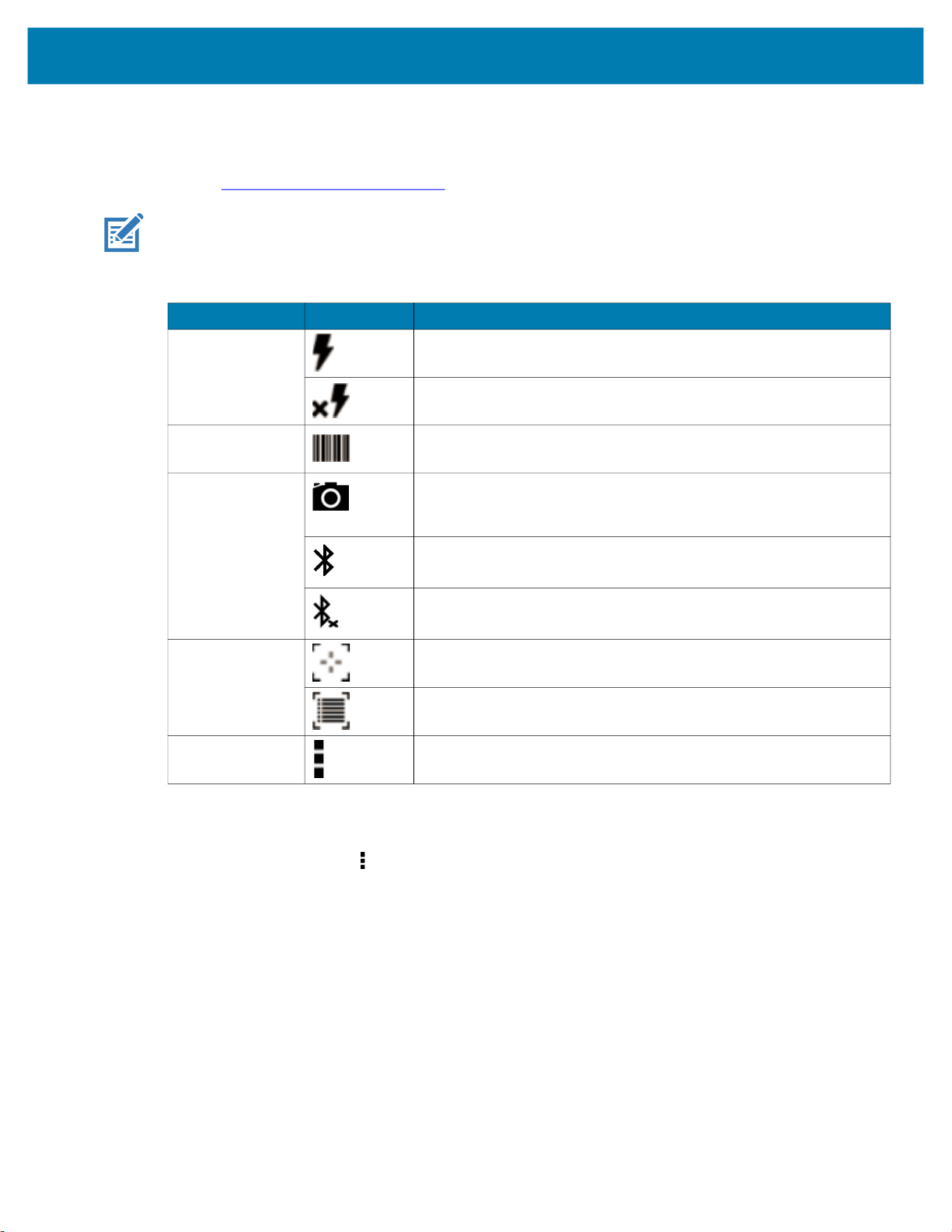

DataWedge Demonstration........................................................................................... 65

Scanner Selection .................................................................................................. 65

PTT Express Voice Client ............................................................................................. 66

PTT Express User Interface ................................................................................... 66

PTT Audible Indicators ........................................................................................... 67

PTT Notification Icons ............................................................................................ 67

Enabling PTT Communication................................................................................ 67

Selecting a Talk Group ........................................................................................... 68

PTT Communication............................................................................................... 68

5

Contents

Creating a Group Call ...................................................................................... 68

Responding with a Private Response .............................................................. 68

Disabling PTT Communication ............................................................................... 68

RxLogger....................................................................................................................... 69

RxLogger Configuration.......................................................................................... 69

Configuration File ................................................................................................... 69

Enabling Logging.................................................................................................... 69

Disabling Logging ................................................................................................... 69

Extracting Log Files ................................................................................................ 69

Backing Up ............................................................................................................. 69

RxLogger Utility ...................................................................................................... 70

Initiating the Main Chat Head........................................................................... 70

Removing the Main Chat Head........................................................................ 70

Viewing Logs.................................................................................................... 70

Removing a Sub Chat Head Icon..................................................................... 70

Backing Up In Overlay View............................................................................. 70

Sound Recorder............................................................................................................ 71

Data Capture ...................................................................................................................................... 72

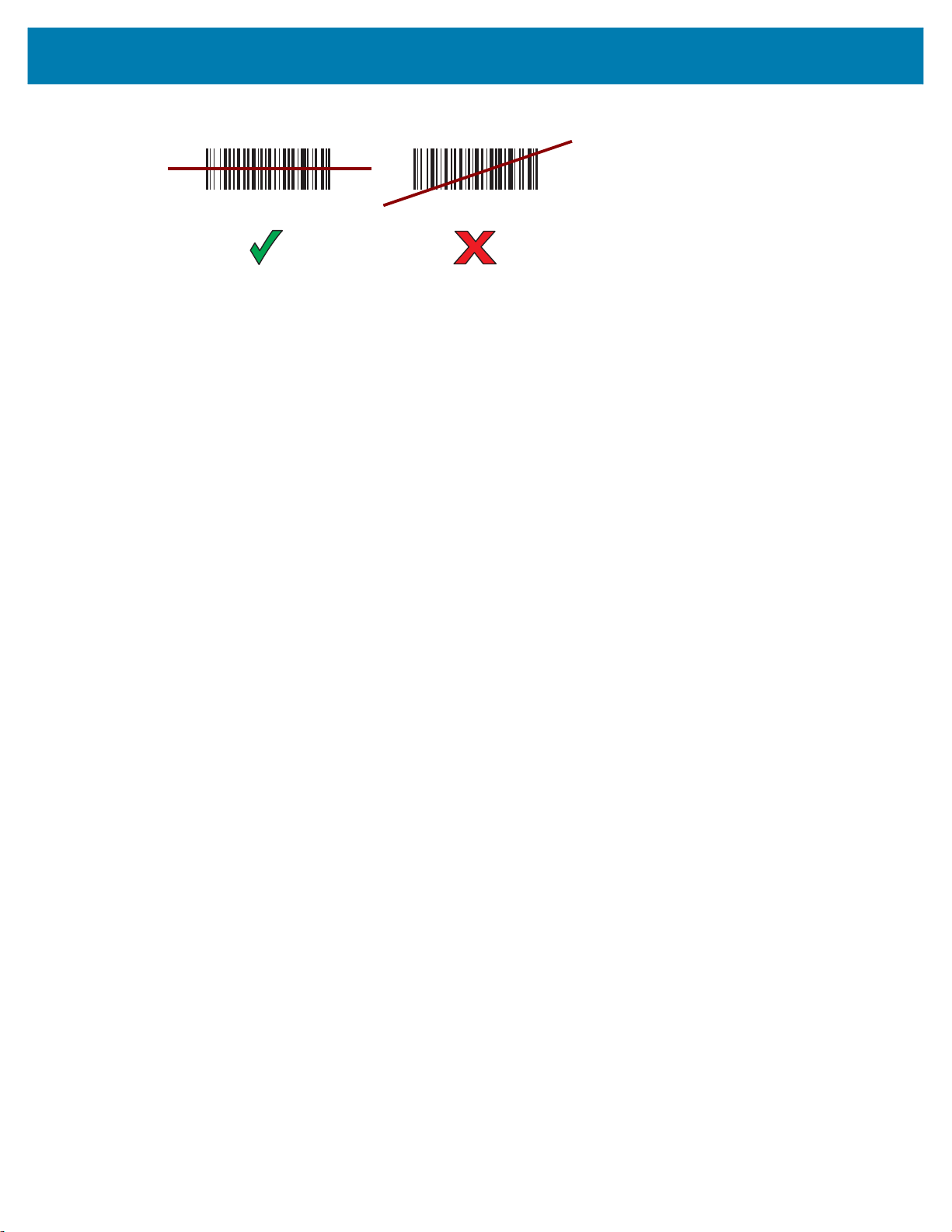

Laser Scanner................................................................................................................ 72

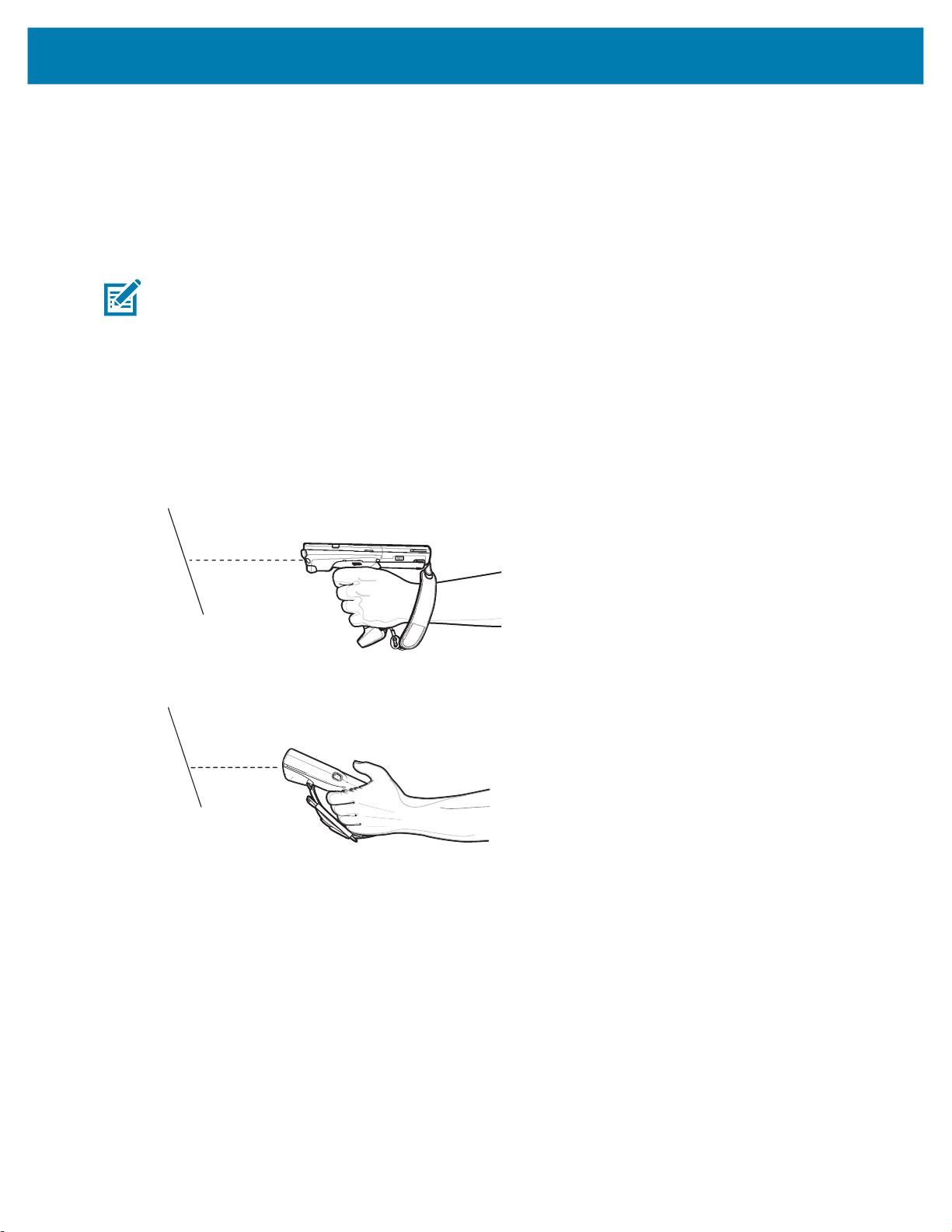

Integrated Imager........................................................................................................... 72

Operational Modes ................................................................................................. 72

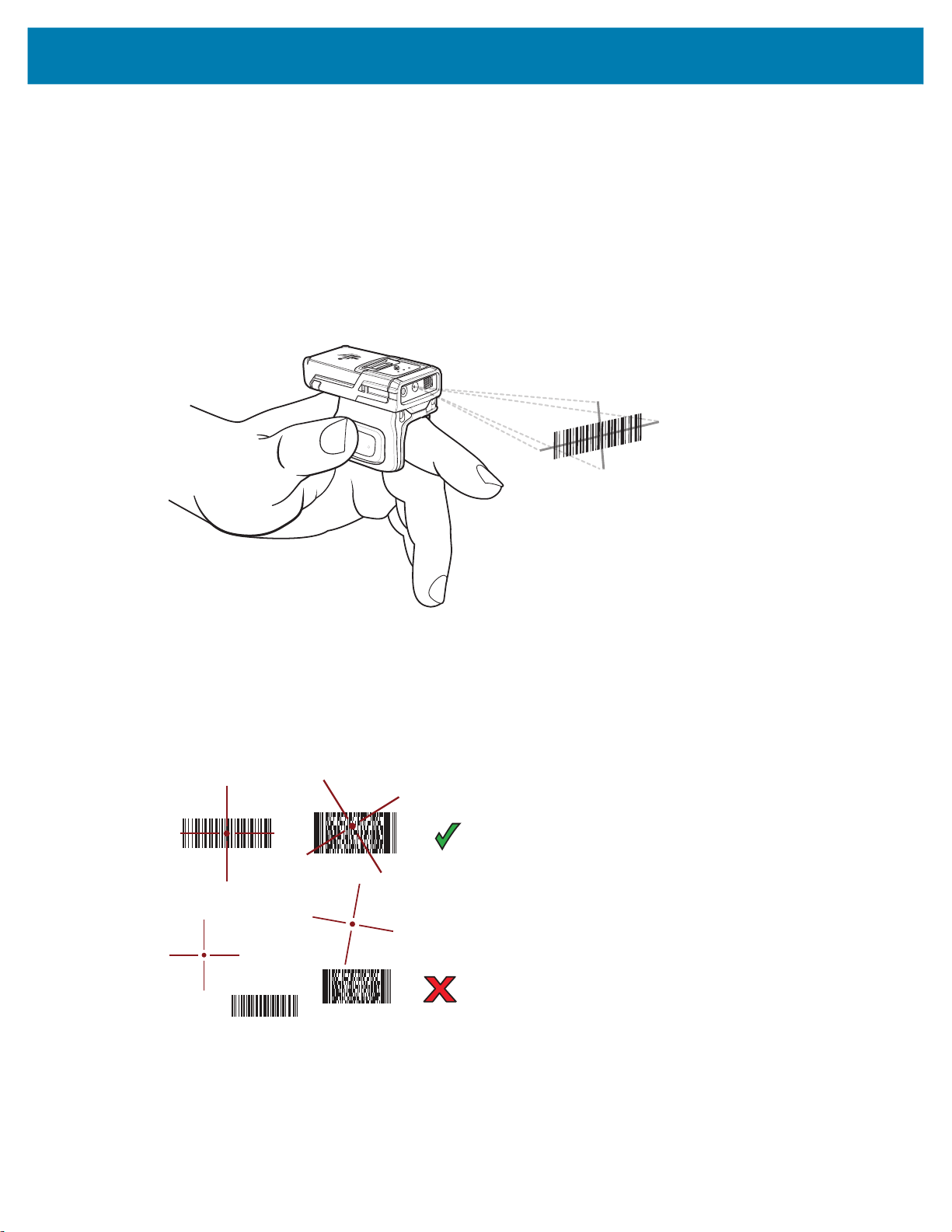

RS5100 Ring Scanner ................................................................................................... 73

RS6000 Bluetooth Ring Scanner ................................................................................... 74

RS507/RS507X Hands-Free Imager.............................................................................. 74

DS3678 Digital Scanner................................................................................................. 74

DS2278 Digital Scanner................................................................................................. 75

Scanning Considerations ............................................................................................... 75

Scanning with Internal Imager........................................................................................ 76

Scanning with Laser Scanner ........................................................................................ 77

Scanning with RS5100 Ring Scanner........................................................................... 79

Scanning with RS6000 Bluetooth Ring Scanner............................................................ 80

Scanning with RS507/RS507X Hands-Free Imager ...................................................... 81

Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner ..................... 83

Scanning with LI3678 Linear Imager.............................................................................. 84

Scanning with DS2278 Digital Scanner ......................................................................... 84

Pairing the Bluetooth Ring Scanner............................................................................... 85

Pairing Using Near Field Communication ...................................................................... 85

Pairing in HID Mode Using Near Field Communication.......................................... 86

Pairing Using Simple Serial Interface ..................................................................... 87

Pairing Using Bluetooth Human Interface Device .................................................. 88

Pairing a Bluetooth Scanner................................................................................... 89

6

Contents

Pairing Using Bluetooth Human Interface Device .................................................. 89

DataWedge .................................................................................................................... 90

Enabling DataWedge.............................................................................................. 90

Disabling DataWedge............................................................................................. 90

Supported Decoders............................................................................................... 90

Wireless .............................................................................................................................................. 94

Wireless Local Area Networks ....................................................................................... 94

Connecting to a Wi-Fi Network............................................................................... 95

Removing a Wi-Fi Network..................................................................................... 95

WLAN Configuration ...................................................................................................... 95

Configuring a Secure Wi-Fi Network ...................................................................... 95

Manually Adding a Wi-Fi Network .......................................................................... 96

Configuring for a Proxy Server ............................................................................... 97

Configuring the Device to Use a Static IP Address ................................................ 98

Wi-Fi Preferences................................................................................................... 98

Additional Wi-Fi Settings ........................................................................................ 98

Wi-Fi Direct............................................................................................................. 99

Bluetooth........................................................................................................................ 99

Adaptive Frequency Hopping ............................................................................... 100

Security................................................................................................................. 100

Bluetooth Profiles ................................................................................................. 101

Bluetooth Power States ........................................................................................ 101

Bluetooth Radio Power......................................................................................... 102

Enabling Bluetooth......................................................................................... 102

Disabling Bluetooth ........................................................................................ 102

Discovering Bluetooth Device(s) .......................................................................... 102

Changing the Bluetooth Name ............................................................................. 102

Connecting to a Bluetooth Device ........................................................................ 103

Selecting Profiles on the Bluetooth Device........................................................... 103

Unpairing a Bluetooth Device ............................................................................... 103

Using a Bluetooth Headset................................................................................... 103

Cast.............................................................................................................................. 103

Near Field Communications......................................................................................... 104

Reading NFC Cards ............................................................................................. 104

Sharing Information Using NFC............................................................................ 105

Enterprise NFC Settings....................................................................................... 106

Accessories ...................................................................................................................................... 107

Introduction .................................................................................................................. 107

7

Contents

MC3300x Accessories ................................................................................................. 107

Battery Charging .......................................................................................................... 113

Main Battery Charging.......................................................................................... 113

Spare Battery Charging ........................................................................................ 113

Charging Temperature ......................................................................................... 114

1-Slot USB Charge Cradle.......................................................................................... 115

Setup .................................................................................................................... 116

Charging the MC3300x Battery ............................................................................ 116

Charging an MC3300x Spare Battery................................................................... 116

Battery Charging in 1- Slot USB Charge Cradle................................................... 117

5-Slot Charge Only ShareCradle ................................................................................ 118

Setup .................................................................................................................... 119

Charging the MC3300x Battery ............................................................................ 119

Battery Charging in the 5-Slot Charge Only ShareCradle .................................... 119

5-Slot Ethernet ShareCradle....................................................................................... 120

Setup .................................................................................................................... 121

Charging the MC3300x Battery ............................................................................ 121

Battery Charging in the 5-Slot Ethernet ShareCradle........................................... 121

Daisy-chaining Ethernet ShareCradles ................................................................ 121

Ethernet Settings............................................................................................ 122

Configuring Ethernet Proxy Settings.............................................................. 122

Configuring Ethernet Static IP Address.......................................................... 123

Establishing Ethernet Connection ........................................................................ 124

LED Indicators ...................................................................................................... 125

5-Slot ShareCradle with 4-Slot Battery Charger ......................................................... 126

Setup .................................................................................................................... 127

Charging the MC3300x Battery ............................................................................ 127

Charging Spare Batteries ..................................................................................... 127

Battery Charging in the 5-Slot ShareCradle with 4-Slot Battery Charger ............. 127

5-Slot Ethernet ShareCradle with 4-Slot Battery Charger........................................... 128

Setup .................................................................................................................... 129

Charging the MC3300x Battery ............................................................................ 129

Charging Spare Batteries ..................................................................................... 129

Battery Charging in the 5-Slot Ethernet ShareCradle with 4-Slot Battery Charger .....

129

Daisy-chaining Ethernet Cradles .......................................................................... 130

Ethernet Settings............................................................................................ 130

Configuring Ethernet Proxy Settings.............................................................. 131

Configuring Ethernet Static IP Address.......................................................... 131

Establishing Ethernet Connection ........................................................................ 132

LED Indicators ...................................................................................................... 132

4-Slot Spare Battery Charger...................................................................................... 134

8

Contents

Setup .................................................................................................................... 134

Charging Spare Batteries ..................................................................................... 134

20-Slot Spare Battery Charger.................................................................................... 136

Setup .................................................................................................................... 136

Charging Spare Batteries ..................................................................................... 136

USB Charge Cable...................................................................................................... 138

Connecting the USB Charge Cable to Device...................................................... 138

Connecting the USB Charge Cable to Host Computer......................................... 139

Main Battery Charging ................................................................................... 139

Charging the Device ............................................................................................. 140

Main Battery Charging ................................................................................... 140

Disconnecting the USB Charge Cable ................................................................. 140

MC33XX Charge Only Adapter................................................................................... 142

MC33XX Charge Only Adapter Installation .......................................................... 142

MC3300x-G Rubber Boot............................................................................................ 144

MC3300x-R Rubber Boot............................................................................................ 145

MC3300x-S Rubber Boot............................................................................................ 146

Rigid Holster................................................................................................................ 147

MC3300x-G Fabric Holster ......................................................................................... 149

Belt Strap.............................................................................................................. 149

Shoulder Strap...................................................................................................... 149

Using the Belt Strap.............................................................................................. 150

Using the Shoulder Strap ..................................................................................... 151

MC3300x-R/S Fabric Holster ...................................................................................... 153

Belt Clip ................................................................................................................ 153

Shoulder Strap...................................................................................................... 153

Using the Belt Clip ................................................................................................ 154

Using the Shoulder Strap ..................................................................................... 155

Un-powered Forklift Mount.......................................................................................... 156

Replacement Hand Strap for MC3300x-G .................................................................. 158

Replacement Hand Strap for MC3300x-R/S................................................................ 159

Application Deployment .................................................................................................................... 161

Security ........................................................................................................................ 161

Secure Certificates....................................................................................................... 161

Installing a Secure Certificate ...................................................................................... 161

Configuring Credential Storage Settings .............................................................. 162

Development Tools ...................................................................................................... 162

Android Application Development ........................................................................ 162

Development Workstation .............................................................................. 162

Enabling Developer Options .......................................................................... 162

9

Contents

EMDK for Android................................................................................................. 163

StageNow ............................................................................................................. 163

GMS Restricted............................................................................................................ 163

ADB USB Setup........................................................................................................... 163

Enabling USB Debugging..................................................................................... 163

Application Installation ................................................................................................. 164

Installing Applications Using the USB Connection ............................................... 164

Installing Applications Using the Android Debug Bridge ...................................... 165

Installing Applications Using a microSD Card ...................................................... 165

Uninstalling an Application ................................................................................... 166

Performing a System Update....................................................................................... 166

Downloading the System Update Package .......................................................... 167

Performing a System Update Using microSD Card.............................................. 167

Performing a System Update Using ADB............................................................. 167

Verifying System Update Installation.................................................................... 168

Enterprise Reset .......................................................................................................... 168

Performing an Enterprise Reset From Device Settings........................................ 168

Downloading the Enterprise Reset Package ........................................................ 168

Performing an Enterprise Reset Using microSD Card ......................................... 169

Performing an Enterprise Reset Using ADB......................................................... 169

Performing a Factory Reset ......................................................................................... 170

Downloading the Factory Reset Package ............................................................ 170

Performing a Factory Reset Using microSD Card................................................ 170

Performing a Factory Reset Using ADB ............................................................... 171

Storage......................................................................................................................... 171

Random Access Memory ..................................................................................... 172

Viewing Memory............................................................................................. 172

Internal Storage .................................................................................................... 172

Viewing Internal Storage................................................................................ 172

External Storage................................................................................................... 172

Viewing External Storage............................................................................... 172

Formatting a microSD Card or USB Drive as Portable Storage..................... 173

Formatting a microSD Card as Internal Memory............................................ 173

Enterprise Folder .................................................................................................. 173

Managing Apps ............................................................................................................ 173

App Details ........................................................................................................... 173

Managing Downloads................................................................................................... 174

Maintenance and Troubleshooting ................................................................................................... 175

Maintaining the Device................................................................................................. 175

Battery Safety Guidelines............................................................................................. 175

10

Contents

Cleaning Instructions.................................................................................................... 176

Approved Cleanser Active Ingredients ................................................................. 176

Harmful Ingredients .............................................................................................. 177

Device Cleaning Instructions ................................................................................ 177

Special Cleaning Notes ........................................................................................ 177

Cleaning Materials Required ................................................................................ 177

Cleaning Frequency ............................................................................................. 178

Cleaning the Device..................................................................................................... 178

Housing .......................................................................................................... 178

Display ........................................................................................................... 178

Camera and Exit Window............................................................................... 178

Cleaning Battery Connectors................................................................................ 178

Cleaning Cradle Connectors ................................................................................ 178

Troubleshooting ........................................................................................................... 179

Resetting the Device ............................................................................................ 179

Performing a Soft Reset................................................................................. 179

Performing a Hard Reset ............................................................................... 179

MC3300x .............................................................................................................. 180

1-Slot USB Charge Cradle ................................................................................... 181

5-Slot Charge Only ShareCradle.......................................................................... 183

5-Slot Ethernet ShareCradle ................................................................................ 184

5-Slot ShareCradle with 4-Slot Battery Charger................................................... 184

5-Slot Ethernet ShareCradle with 4-Slot Battery Charger .................................... 185

4-Slot Spare Battery Charger ............................................................................... 186

20-Slot Spare Battery Charger ............................................................................. 187

USB Charge Cable ............................................................................................... 188

Technical Specifications ................................................................................................................... 189

Introduction .................................................................................................................. 189

Data Capture Supported Symbologies......................................................................... 189

SE965 Decode Zone ............................................................................................ 189

SE4770/SE4720 Decode Zone ............................................................................ 190

SE4770/SE4720 Decode Zone Dark Room ......................................................... 191

SE4850-ER Decode Zone .................................................................................... 191

MC3300x Accessory Technical Specifications............................................................. 192

MC3300x Connector Pin-Out ............................................................................... 192

1-Slot USB Charge Cradle with Spare Battery Charger Technical Specifications 193

5-Slot Charge Only ShareCradle Technical Specifications .................................. 194

5-Slot Ethernet ShareCradle Technical Specifications......................................... 194

5-Slot Charge ShareCradle with 4-Slot Battery Charger Technical Specifications .....

195

5-Slot Ethernet ShareCradle with 4-Slot Battery Charger Technical Specifications....

11

Contents

195

4-Slot Spare Battery Charger Technical Specifications........................................ 196

20-Slot Spare Battery Charger Technical Specifications...................................... 196

USB Charge Cable Technical Specifications ....................................................... 197

Keypads............................................................................................................................................ 198

Introduction .................................................................................................................. 198

MC3300x 29-Key Keypad ............................................................................................ 198

MC3300x 38-Key Keypad ............................................................................................ 201

MC3300x 47-Key Keypad ............................................................................................ 205

Index ................................................................................................................................................. 209

12

About This Guide

Configurations

MC3300x used in this guide refers to all configurations, except where noted. MC3300x-G refers to the
Trigger configuration. MC3300x-R refers to the Rotate configuration. MC3300x-S refers to the Straight
configuration. MC3300x-S45 refers to the 45 degree angle Straight configuration.

This guide covers the following configurations:

Table 1 Configurations

Form

Factor

Gun

Gun

Gun

Radios

WLAN: IEEE

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

®

®

®

Display

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

Memory

4 GB RAM

/ 16 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

Data Capture

Options

SE965 1D

SE4720

1D/2D Imager

SE965, 1D

SE4770

1D/2D Imager

SE4850

1D/2D ERI

SE965 1D

SE4770

1D/2D Imager

SE4850

1D/2D ERI

Laser

Laser

Laser

USB

Camera

No Yes Android-based

No No

No No Android-based

Cable &

Power

Adapter

Operating

System

AOSP 10

Android-based

AOSP 10

GMS 10

13

Table 1 Configurations (Continued)

Form

Factor

Radios

WLAN: IEEE

®

802.11a/b/g/n/ac

Rotate

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Rotate

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Rotate

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

About This Guide

Display

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

Memory

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

Data Capture

Options

SE965 1D

Laser

SE965 1D

Laser

SE965 1D

Laser

USB

Camera

Cable &

Power

Adapter

Operating

System

No No Android-based

AOSP 10

No No Android-based

GMS 10

Yes No Android-based

GMS 10

Straight

Straight

Straight

WLAN: IEEE

®

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

4 GB RAM

/ 16 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

SE965 1D

Laser

SE4720

1D/2D Imager

SE4770

1D/2D Imager

SE4850

1D/2D ERI

SE4770

1D/2D Imager

SE4850

1D/2D ERI

No Yes Android-based

AOSP 10

No No Android-based

AOSP 10

Yes No Android-based

AOSP 10

14

Table 1 Configurations (Continued)

Form

Factor

Radios

WLAN: IEEE

®

802.11a/b/g/n/ac

Straight

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Straight

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Straight

@45

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Straight

@45

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

WLAN: IEEE

®

802.11a/b/g/n/ac

Straight

@ 45

WPAN: Bluetooth V5.0, V2.1

+ EDR w/ Bluetooth Low

Energy (BLE)

NFC

About This Guide

Display

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

4.0”

WVGA

Color

Memory

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

4 GB RAM

/ 32 GB

Flash

Data Capture

Options

SE965 1D

Laser

SE4770

1D/2D Imager

SE4850

1D/2D ERI

SE965 1D

Laser

SE4770

1D/2D Imager

SE4850

1D/2D ERI

SE4770

1D/2D Imager

SE4850

1D/2D ERI

SE4770

1D/2D Imager

SE4770

1D/2D Imager

USB

Camera

Cable &

Power

Adapter

Operating

System

Android-based

No No

GMS 10

Yes No Android-based

GMS 10

No No Android-based

AOSP 10

No No Android-based

GMS 10

Yes No Android-based

GMS 10

Notational Conventions

Notational conventions are used to highlight important information.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

15

• Key names on a keypad

• Button names on a screen.

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The following icons are used throughout the document. The icons and their associated meanings are
described below.

NOTE: The text here indicates information that is supplemental for the user to know and that is not
required to complete a task.

IMPORTANT: The text here indicates information that is important for the user to know.

About This Guide

CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.

WARNING: If danger is not avoided, the user CAN be seriously injured or killed.

DANGER: If danger is not avoided, the user WILL be seriously injured or killed.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information
is available at: zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit (found on manufacturing label)

• Model number or product name (found on manufacturing label)

• Software type and version number

Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.

If the problem cannot be solved by Customer Support, the user may need to return the equipment for
servicing and will be given specific directions. We are not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void
the warranty. Remove the microSD card from the device before shipping for service.

.

If the device was purchased from a business partner, contact that business partner for support.

16

Determining Software Versions

Before contacting Customer Support, determine the current software version on your device.

1. Swipe down from the Status bar with two fingers to open the Quick Access panel and then touch .

2. Touch About phone.

3. Scroll to view the following information:

• Android security patch level

Determining the Serial Number

Before contacting Customer Support, determine the serial number of your device.

• Touch About phone > Model & hardware > Serial number.

About This Guide

17

Getting Started

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later

storage and shipping.

2. Verify that the following are included:

• Mobile computer

• Lithium-ion battery

• Regulatory Guide.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global

Customer Support center immediately.

18

MC3300x-G Features

Front View

Figure 1 MC3300x-G Front View

1

Getting Started

8

2

3

4

NOTE: The MC3300x-G does not ship with a pre-installed hand strap. However, one can be purchased
separately as a standalone accessory (SG-MC33-HDSTPG-01) if required.

7

6

5

Table 2 MC3300x-G Features - Front View

Number Item Function

1 Display Displays all information needed to operate the device.

2 Charge

/Application

Notification LED

or Scan/Decode

Status

3 Trigger Initiates data capture when a scan application is enabled.

4 Battery Release

Latch

5 Microphone Use for communications in Handset mode.

Indicates the battery charge state while charging, an application
notification was received, or the scan/decode status.

Release the battery from the device.

19

Getting Started

Table 2 MC3300x-G Features - Front View (Continued)

Number Item Function

6 Power Key Press to suspend and resume device. Provides the following options:

Power off - Turn off the device.

Restart - Reboot the device when software stops responding.

Screenshot - Takes a snapshot of the current screen.

7 Keypad Use to enter data and navigate on screen functions.

8 Scan Button Initiates data capture when a scan application is enabled.

Back View

Figure 2 MC3300x-G Back View

14

10

11

12

13

Table 3 MC3300x-G Features - Back View

Number Item Function

10 Battery Provides power for operating the device.

11 Battery Release

Latch

12 Speaker Provides audio output for video and music playback.

13 Scanner Exit

Window

14 NFC Antenna Provides communication with other NFC-enabled devices.

Release the battery from the device.

Provides data capture using integrated scanner/imager option.

20

MC3300x-R Features

Rotating Scan Turret

The MC3300x-R features a Rotating Turret with three position stops. This feature offers greater scanning
flexibility.

CAUTION: Do not try to rotate the turret past the side position stops. Damage to device may occur.

Figure 3 MC3300x-R Rotating Turret

Position Stop

Getting Started

Position Stop

Position Stop

Front View

Figure 4 MC3300x-R Front View

1

2

3

9

8

7

6

4

5

21

Getting Started

Table 4 MC3300x-R Features - Front View

Number Item Function

1 Rotating Turret Rotates for easy scanning positions.

2 Display Displays all information needed to operate the device.

3 Charge

/Application

Notification LED

or Scan/Decode

Status

4 Side Key Scan

Button

5 Battery Release

Latch

6 Power Key Press to suspend and resume device. Provides the following options:

7 Microphone Use for communications in Handset mode.

8 Keypad Use to enter data and navigate on screen functions.

9 Scan Button Initiates data capture when a scan application is enabled.

Indicates the battery charge state while charging, an application
notification was received, or the scan/decode status.

Initiates data capture when a scan application is enabled.

Release the battery from the device.

Power off - Turn off the device.

Restart - Reboot the device when software stops responding.

Screenshot - Takes a snapshot of the current screen.

Back View

10

Figure 5 MC3300x-R Back View

17

16

15

11

12

13

14

22

Getting Started

Table 5 MC3300x-R Features - Back View

Number Item Function

10 Battery Provides power for operating the device.

11 Battery Release

Latch

12 Side Key Scan

Button

13 Speaker Provides audio output for video and music playback.

14 Scanner Exit

Window

15 NFC Antenna Provides communication with other NFC-enabled devices.

16 Camera/Flash Provides image capture capability with LED illumination.

17 Hand Strap Use for securely holding the device. Comes pre-installed on every

Release the battery from the device.

Initiates data capture when a scan application is enabled.

Provides data capture using the scanner.

MC3300x-S & MC3300x-R device.

MC3300x-S Features

Front View

Figure 6 MC3300x-S Front View

1

2

8

7

3

4

6

5

23

Getting Started

Table 6 MC3300x-S Features - Front View

Number Item Function

1 Display Displays all information needed to operate the device.

2 Charge

/Application

Notification LED

or Scan/Decode

Status

3 Side Key Scan

Button

4 Battery Release

Latch

5 Power Key Press to suspend and resume device. Provides the following options:

6 Microphone Use for communications in Handset mode.

7 Keypad Use to enter data and navigate on screen functions.

8 Scan Button Initiates data capture when a scan application is enabled.

Indicates the battery charge state while charging, an application
notification was received, or the scan/decode status.

Initiates data capture when a scan application is enabled.

Release the battery from the device.

Power off - Turn off the device.

Restart - Reboot the device when software stops responding.

Screenshot - Takes a snapshot of the current screen.

Back View

9

Figure 7 MC3300x-S Back View

16

15

14

10

11

12

13

24

Getting Started

Table 7 MC3300x-S Features - Back View

Number Item Function

9 Battery Provides power for operating the device.

10 Battery Release

Latch

11 Side Key Scan

Button

12 Speaker Provides audio output for video and music playback.

13 Scanner Exit

Window

14 NFC Antenna Provides communication with other NFC-enabled devices.

15 Camera/Flash Provides image capture capability with LED illumination.

16 Hand Strap Use for securely holding the device. Comes pre-installed on every

Release the battery from the device.

Initiates data capture when a scan application is enabled.

Provides data capture using the scanner.

MC3300x-S & MC3300x-R device.

Setting Up the Device

To start using the device for the first time:

• Install a micro secure digital (SD) card (optional)

• Install the battery

• Charge the device

• Power on the device.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack.
Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.

CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card.
Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the
operator is properly grounded.

1. Using a coin or finger, remove the microSD card cover.

25

Getting Started

Slide the microSD card holder to the Open position.

2.

3. Lift the microSD card holder.

4. Place the microSD card into the contact area with the contacts facing down.

5. Close the microSD card holder and slide the microSD card holder to the Lock position.

6. Replace the microSD card cover and ensure that it is installed properly.

26

Installing the MC3300x-G Battery

The MC3300x-G is compatible with the following batteries:

• MC3300x 7000 mAh PowerPrecision+ extended battery

• MC33XX 5200 mAh PowerPrecision+ high capacity battery

To install the battery:

1. Loosen the hand strap (if installed).

2. Align the battery into the battery compartment.

Getting Started

3. Slide the front of the battery into the battery compartment.

4. Press battery down firmly. Ensure that both battery release buttons on the sides of the MC3300x-G

return to the home position.

5. Tighten the hand strap (if installed).

6. Press and hold the Power key (until you see a Zebra splash screen) to turn on the device.

27

Installing the MC3300x-R/S Battery

The MC3300x-R/S is compatible with the following batteries:

• MC3300x 7000 mAh PowerPrecision+ extended battery

• MC33XX 5200 mAh PowerPrecision+ high capacity battery

• MC33XX 2740 mAh PowerPrecision+ standard battery

To install the battery:

1. Loosen the hand strap, if needed.

2. Align the top of the battery into the battery compartment.

Getting Started

3. Slide the front of the battery into the battery compartment.

4. Press battery down firmly. Ensure that both battery release buttons on the sides of the MC3300x-R/S

return to the home position.

5. Tighten the hand strap, if needed.

6. Press and hold the Power key (until you see a Zebra splash screen) to turn on the device.

28

Charging the Battery

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines

on page 175.

Use the mobile computer cradles, cables and spare battery chargers to charge the mobile computer main
battery. The main battery can be charged before insertion into the mobile computer or after it is installed.

The main battery that ships with the MC3300x device is the 7000 mAh PowerPrecision+ extended capacity
battery pack (2.5X). The two legacy MC33 PowerPrercision+ batteries; 5200 mAh high capacity battery
pack (2X) and the 2740 mAh standard capacity battery pack (1X) can be purchased separately for the
MC3300x device.

The MC3300x-G is only compatible with the 7000 mAh (2.5X) and the 5200 mAh (2X) PowerPrecision+
batteries.

The MC3300x-R/S is compatible with all three PowerPrecision+ battery packs; 7000 mAh (2.5X), 5200
mAh (2X) and 2740 mAh (1X).

Use one of the spare battery chargers to charge the main battery (out of the mobile computer) or one of the
cradles to charge the main battery while it is installed in the mobile computer.

Before using the mobile computer for the first time, fully charge the main battery until the green Charge
LED indicator remains lit and charge the battery using a cable or a cradle with the appropriate power
supply. For information about the accessories available for the MC3300x, see Accessories.

Getting Started

The MC3300x retains data in memory for at least five minutes when the mobile computer’s main battery is
removed.

When the main battery reaches a critical battery level state (6%), the battery retains data in memory for at
least 15 hours.

Batteries must be charged within the 0° to +40° C (32° to 104° F) ambient temperature range.

The following accessories can be used to charge batteries:

• Cradles (and a power supply):

• 1-Slot USB Charge Cradle

• 5-Slot Charge Only ShareCradle

• 5-Slot Ethernet ShareCradle

• 5-Slot Charge ShareCradle + 4-Slot Spare Battery Charger

• 5-Slot Ethernet ShareCradle + 4-Slot Spare Battery Charger.

• Cables (and a power supply):

• USB Charge Cable.

• Spare Battery Chargers (and a power supply):

• 4-Slot Spare Battery Charger

• 20-Slot Spare Battery Charger.

NOTE: It is safe to leave the mobile computer and/or batteries on the charger for prolong durations. Both
the spare and terminal-based chargers stop charging when they detect that the battery is fully charged.
Upon stopping, the batteries will slowly self-discharge, and if left on the charger long enough, will
eventually fall to a point where the charger re-initiates a charge until the batteries are fully charged again.

To charge the mobile computer using the cradles:

1. Insert the mobile computer into a cradle. See Accessories for accessory setup.

29

Getting Started

2. The mobile computer starts to charge automatically. The Charge LED Indicator indicates the charge
status. See the table below for charging indications.

To charge the mobile computer using the cables:

1. Connect the MC3300x Communication/Charge Cable to the appropriate power source and connect to
the mobile computer. See Accessories for accessory setup.

2. The mobile computer starts to charge automatically. The Charge LED Indicator indicates the charge
status.

NOTE: To function properly, ensure that the MC3300x hand strap, if attached, does not interfere with the
charging contacts when the MC3300x is inserted into a charging cradle or cable.

Charging Indicators

Table 8 LED Charge Indicators

Status Indications

Off • The battery is not charging.

• The battery is not inserted correctly in the
cradle or connected to a power source.

• Cradle is not powered.

Blinking Amber • Active wireless connectivity session during

battery hot swap.

Solid Amber • Battery is charging.

Solid Green • Battery charging is complete.

Fast Blinking Red

2 blinks/second

The MC3300x 7000 mAh PowerPrecision+ extended battery charges from 0% to 90% in less than 5.2
hours at room temperature.

The MC33XX 5200 mAh PowerPrecision+ high capacity battery charges from 0% to 90% in less than 3.8
hours at room temperature.

The MC33XX 2740 mAh PowerPrecision+ standard battery charges from 0% to 90% in less than 2.2 hours
at room temperature.

Charging error, e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without
completion (typically eight hours).

Charging Temperature

Charge batteries in ambient temperatures from 0°C to 40°C (32°F to 104°F). To view battery temperature,
go to Settings > About phone > Battery information.

The device or cradle always performs battery charging in a safe and intelligent manner. At higher
temperatures (for example, approximately +37°C (+98°F)) the device or cradle may for small periods of
time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The
device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

30

Charging Spare Batteries

See the Accessories section for information on using accessories to charge spare batteries.

Hot Swap Mode/Backup Power

The device provides a Hot Swap mode where you can replace the battery without powering off the device.
When you remove the battery, the display turns off and the device enters the Hot Swap mode. WLAN and
Bluetooth connectivity are retained for the first 30 seconds (indicated by a flashing amber LED). After 30
seconds, the device enters a critical suspend mode with RAM data persistence for approximately 5
minutes. In the critical suspend mode, WLAN and Bluetooth radios are disabled and will only resume if you
insert a battery with sufficient charge into the device.

Getting Started

MPORTANT:
is fully depleted. It can take up to 10 minutes to fully charge the supercap. Hot Swap mode will not retain
data unless the supercap is fully charged.

The supercap requires time to recharge after performing a Hot Swap or after the main battery

Real-Time Clock Backup

The device provides a Real-time Clock (RTC) backup feature. After boot-up, the device saves the system
time in a file in persistent storage. When the device re-boots, it compares the system time to the time
saved in a file. If the system time in not the latest, it restores the time from the file.

Zebra Visibility Services

The device captures and provides device analytics to a system administrator. The first time the device
boots (or after a Factory reset), the Zebra Services agreement screen displays.

1. Leave Device Data enabled if you want the device to send analytics data.

2. Touch the Device Data switch to disable the device from sending analytics data.

3. Touch OK to confirm selection.

31

Getting Started

Replacing the Battery in the MC3300x-G

To replace the battery:

1. Push in the two Battery Release buttons.

The battery ejects slightly. With Hot Swap mode, when the user removes the battery, the display turns
off and the device enters low power state. The MC3300x-G supports wireless connectivity persistence
for 30 sec (indicated by flashing Amber LEDs), followed by RAM data persistence for approximately
five minutes. Replace the battery within five minutes to preserve memory persistence.

2. Remove the battery from the battery compartment.

32

Getting Started

Align the battery into the battery compartment.

3.

4. Slide the front of the battery into the battery compartment.

5. Press battery down firmly. Ensure that both battery release buttons on the sides of the MC3300x-G

return to the home position.

6. The device automatically resumes after a battery removal and installation (in a hot swap change). The

only time the Power key needs to be pressed is if the device has been powered off or left for a
prolonged duration without a battery pack.

Replacing the Battery in the MC3300x-R/S

To replace the battery:

1. Push in the two Battery Release buttons.

The battery ejects slightly. With Hot Swap mode, when the user removes the battery, the display turns
off and the device enters low power state. The MC3300x-R/S supports wireless connectivity
persistence for 30 sec (indicated by flashing Amber LEDs), followed by RAM data persistence for
approximately five minutes. Replace the battery within five minutes to preserve memory persistence.

33

Getting Started

Remove the battery from the battery compartment.

2.

34

Getting Started

Align the battery into the battery compartment.

3.

4. Slide the front of the battery into the battery compartment.

5. Press battery down firmly. Ensure that both battery release buttons on the sides of the MC3300x-R/S

return to the home position.

6. The device automatically resumes after a battery removal and installation (in a hot swap change). The

only time the Power key needs to be pressed is if the device has been powered off or left for a
prolonged duration without a battery pack.

35

Using the Device

Home Screen

Turn on the device to display the Home screen. Depending on how your system administrator configured
your device, your Home screen may appear differently than the graphics in this section.

After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and
slide up to unlock.

The Home screen provides four additional screens to place widgets and shortcuts. Swipe the screen left or
right to view the additional screens.

NOTE: By default, AOSP devices do not have the same icons on the Home screen as GMS devices. Icons
are shown below for example only.

Home screen icons can be configured by the user and may look different than shown.

Figure 8 Home Screen

1

2

3

4

6

5

7

36

1 Status Bar Displays the time, status icons (right side), and notification icons (left side).

For more information see Notification Icons on page 37 and Managing

Notifications on page 39.

2 Widgets Launches stand-alone apps that run on the Home screen.

3 Shortcut Icons Opens apps installed on the device.

4 Folder Contains apps.

5 Back Displays the previous screen.

6 Home Displays the Home screen.

7 Recent Displays recently used applications.

Setting Home Screen Rotation

By default, the Home screen rotation is disabled.

1. Touch and hold anywhere on the Home screen until the options appear.

2. Touch Home settings.

3. Touch the Allow Home screen rotation switch.

Using the Device

4. Touch the Home button.

5. Rotate the device.

NOTE: Auto-rotate needs to be enabled in the Quick Access panel or in Settings before the Home Screen
Rotation setting can be used to enable or disable Home Screen Rotation.

Status Bar

The Status bar displays the time, notification icons (left side), and status icons (right side).

If there are more notifications than can fit in the Status bar, a dot displays indicating that more notifications
exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.

Figure 9 Notification and Status Icons

1

1 Notification Icons. See Notification Icons on page 37.

2 Status Icons. See Status Icons on page 38.

2

Notification Icons

Notification icons indicate app events and messages.

37

Using the Device

Table 9 Notification Icons

Icon Description

Main battery is low.

More notifications are available for viewing.

Data is syncing.

Indicates an upcoming event. AOSP devices only.

Indicates an upcoming event. GMS devices only.

Open Wi-Fi network is available.

Audio is playing.

Problem with sign-in or sync has occurred.

Device is uploading data.

Status Icons

Status icons display system information for the device.

Table 10 Status Icons

Animated: the device is downloading data. Static: the download is complete.

Device is connected to or disconnected from a virtual private network (VPN).

Preparing internal storage by checking it for errors.

USB debugging is enabled on the device.

BT Headset is connected to the device.

PTT Express Voice client status. See the PTT Express PTT Notification Icons for a
complete list.

Indicates the RxLogger app is running.

Indicates the Bluetooth scanner is connected to the device.

Indicates the ring scanner is connected to the device in HID mode.

Icon Description

Alarm is active.

Main battery is fully charged.

Main battery is partially drained.

38

Using the Device

Table 10 Status Icons (Continued)

Icon Description

Main battery charge is low.

Main battery charge is very low.

Main battery is charging.

Indicates that all sounds except media and alarms are muted.

Do Not Disturb mode active.

Airplane Mode is active. All radios are turned off.

Bluetooth is on.

The device is connected to a Bluetooth device.

Connected to a Wi-Fi network. Indicates the Wi-Fi version number.

Not connected to a Wi-Fi network or no Wi-Fi signal.

Connected to an Ethernet network.

Speakerphone enabled.

Indicates that the Orange key is locked.

Indicates that the Blue key is pressed.

Indicates that the Blue key is locked.

Indicates that the ALT key is pressed.

Indicates that the CTRL key is pressed.

Indicates that the Shift key is pressed.

Indicates that the Shift key is locked.

Indicates that the Large Key Indicator is selected.

To enable the large key indicator, go to Settings > Accessibility > Display > Large
Key Indicator.

Indicates that a BT headset is connected to the device.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When
a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons for a
list of possible notification icons and their description.

39

Using the Device

• To view a list of all notifications, open the Notification panel by dragging the Status bar down from the
top of the screen.

Quick Settings Bar

• To respond to a notification, open the Notification panel and then touch a notification. The Notification
panel closes and the corresponding app opens.

• To manage recent or frequently used notifications, open the Notification panel and then touch Manage
notifications. Touch the toggle switch next to an app to turn off all notifications, or touch an app for
more notification options.

• To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based
notifications are removed. Ongoing notifications remain in the list.

• To close the Notification panel, swipe the Notification panel up.

Opening the Quick Access Panel

Use the Quick Access panel to access frequently used settings (for example, Airplane mode). To get to the
Quick Access Panel:

• If the device is locked, swipe down once.

• If the device is unlocked, swipe down once with two fingers, or twice with one finger.

• If the Notification panel is open, swipe down from the Quick Settings bar.

40

Using the Device

NOTE: Not all icons are pictured. Icons may vary.

Quick Access Panel Icons

• Display brightness - Use the slider to decrease or increase the brightness of the screen.

• Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

• Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.

• Battery power - Indicates percentage of battery power remaining. Touch to view battery usage.

• Do not disturb - Control how and when to receive notifications.

• Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect
to Wi-Fi or Bluetooth.

• Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

• Flashlight - Turn flashlight on or off. Turn camera flash on or off.

• Screen Cast - Share phone content on Chromecast or a television with Google Cast built-in. Touch cast
screen to display a list of devices, then touch a device to begin casting.

Editing Icons on the Quick Settings Bar

The first several setting tiles from the Quick Access panel become the Quick Settings bar.

• Open the Quick Access panel and touch to edit, add, or remove settings tiles.

Battery Management

Observe the recommended battery optimization tips for your device.

• Set the screen to turn off after a short period of non-use.

• Reduce screen brightness.

• Turn off all wireless radios when not in use.

• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.

41

• Minimize use of apps that keep the device from suspending, for example, music and video apps.

NOTE: Before checking the battery charge level, remove the device from any AC power source (cradle or
cable).

Checking Battery Status

At temperatures below 0°C, the Battery level may report a reduced value. This is normal due to
temperature compensation.

• Open Settings and touch About phone > Battery Information.

Or, swipe up from the bottom of the screen and touch to open the Battery Manager app. See Battery

Manager on page 58.

• Battery present status indicates if the battery is present.

• Battery level lists the battery charge (as a percentage of fully charged).

• Swipe down with two fingers from the status bar to open the quick access panel.

• Battery percentage is displayed next to the battery icon.

Using the Device

Monitoring Battery Usage

The Battery screen provides battery charge details and power management options to extend battery life.

1. Go to Settings.

2. Touch Battery.

Display battery information and power management options for a specific app.

1. Go to Settings.

2. Touch Apps & notifications.

3. Touch an app.

4. Touch Advanced > Battery.

Different apps display different information. Some apps include buttons that open screens with settings to
adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too much
power.

Low Battery Notification

When the battery charge level drops below 15%, the device displays a notice to connect the device to
power. The user should charge the battery using one of the charging accessories.

When the battery charge drops below 8%, the device displays a notice to connect the device to power. The
user must charge the battery using one of the charging accessories.

When the battery charge drops below 6%, the device turns off. The user must charge the battery using one
of the charging accessories.

• Disable DataWedge Launcher profile.

Interactive Sensor Technology

The device contains sensors that monitor movement and orientation.

42

• Gyroscope - Measures angular rotational velocity to detect rotation of the device.

• Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.

In order to take advantage of these sensors, applications use API commands. Refer to the Google Android
Sensor APIs for more information. For information on the Zebra Android EMDK, go to:

techdocs.zebra.com

Waking the Device

The device goes into Suspend mode when you press the Power button or after a period of inactivity (set in
the Display settings window).

1. To wake the device from Suspend mode, press the Power button.

The Lock screen displays.

2. Swipe the screen up to unlock.

• If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.

• If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the
screen.

Using the Device

.

NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before
trying again.

If you forget the PIN, password, or pattern contact your system administrator.

USB Communication

Connect the device to a host computer to transfer files between the device and the host computer.

When connecting the device to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files. For information on USB communication
accessories available for this device, see Accessories.

Transferring Files

Use Transfer files to copy files between the device and the host computer.

1. Connect the device to a host computer using a USB accessory.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

By default, No data transfer is selected.

3. Touch File Transfer.

4. On the host computer, open a file explorer application.

5. Locate the device as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy files to and from the device or delete files as required.

Transferring Photos

Use PTP to copy photos from the device to the host computer.

43

Using the Device

Connect the device to a host computer using a USB accessory.

1.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

3. Touch PTP.

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Disconnect from the Host Computer

CAUTION: Carefully follow the host computer’s instructions to unmount the microSD card and disconnect
USB devices correctly to avoid losing information.

To disconnect the device from the host computer:

1. On the host computer, unmount the device.

2. Remove the device from the USB accessory.

44

Settings

Accessing Settings

There are multiple ways to access settings on a device.

• Swipe down with two fingers from the top of the Home screen to open the Quick Access panel and

touch .

• Double-swipe down from the top of the Home screen to open the Quick Access panel and touch .

• Swipe up from the bottom of the Home screen to open APPS and touch Settings.

Display Settings

Use Display settings to change the screen brightness, enable night light, change the background
image, enable screen rotation, set sleep time, and change font size.

Setting the Screen Brightness Manually

Manually set the screen brightness using the touchscreen.

1. Swipe down with two fingers from the Status bar to open the Quick Access panel.

2. Slide the icon to adjust the screen brightness level.

Setting Night Light

The Night Light setting tints the screen amber, making the screen easier to look at in low light.

1. Go to Settings.

2. Touch Display.

3. Touch Night Light.

4. Touch Schedule.

5. Select one of the schedule values:

• None (default)

• Turns on at custom time

• Turns on from sunset to sunrise.

45

6. By default, Night Light is disabled. Touch TURN ON NOW to enable.

Adjust the tint using the Intensity slider.

7.

Touch the Home button.

8.

Setting Screen Rotation

By default, screen rotation is enabled.

1.

Go to Settings.

2.

Touch Display > Advanced.

3.

Touch Auto-rotate screen.

NOTE: To change the Home screen rotation, see Setting Home Screen Rotation on page 37.

4. Touch the Home button.

Settings

Setting Screen Timeout

Set the screen sleep time.

1. Go to Settings.

2. Touch Display > Screen timeout.

3. Select one of the sleep values.

• 15 seconds

• 30 seconds

• 1 minute

• 2 minutes

• 5 minutes

• 10 minutes

• 30 minutes (default)

• Never

Setting Font Size

Set the size of the font in system apps.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Font size.

46

4. Select one of the font size values.

• Small

• Default

• Large

• Largest.

5. Touch the Home button.

Touch Panel Mode

The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.

NOTE: A glove can be made of medical latex, leather, cotton, or wool.
For optimal performance use a Zebra certified stylus.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Touch panel mode.

Settings

4. Select:
a. Finger and Stylus to use a finger or a stylus on the screen.
b. Finger and Glove to use a finger or a gloved finger on the screen.

5. Touch the Home button.

Setting the Date and Time

You are only required to set the time zone or set the date and time if the wireless LAN does not support
Network Time Protocol (NTP).

1. Go to Settings.

2. Touch System > Date & time.

3. Touch Date.

4. In the calendar, set today’s date.

5. Touch OK.

6. Touch Time.

7. Touch the green circle, drag to the current hour and then release.

8. Touch the green circle, drag to the current minute and then release.

9. Touch AM or PM.

10.Touch OK.

11.Touch Use 24-hour format.

12.Touch the Home button.

47

General Sound Setting

Use the Sound settings to configure media and alarm volumes.

1.

Go to Settings.

2.

Touch Sound.

3.

Touch an option to set sounds.

Sound Options

* NOTE: The MC3300x does not support haptic feedback, so it will not vibrate.

• Zebra volume controls

• Ring volume - Controls the ringtone volume.

• Media volume - Controls the music, games, and media volume.

• Alarm volume - Controls the alarm clock volume.

• Notifications volume - Controls the notification volume.

• Scanner volume - Controls the scanner volume.

• Volume presets

• - Mutes the ring, notifications, and scanner so that the device does not make sounds.

• - Enables all sounds at the user defined levels.

• Do Not Disturb - Mutes some or all sounds.

• * Shortcut to prevent ringing - Select how the shortcut method prevents ringing.

• Default notification sound - Select a sound to play for all system notifications.

• Default alarm sound - Select a sound to play for alarms.

• Other sounds

• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).

• Charging sounds - Not applicable.

• * Charging sounds and vibration - Not applicable.

• Touch sounds - Play a sound when making screen selections (default – enabled).

• Wireless Emergency alerts - Touch to configure emergency broadcast settings and notifications.

Settings

Setting Wake-Up Sources

By default the device wakes from suspend mode when the user presses the Power button or Center Scan key.
In addition, the device can be configured to wake when the user press the grip trigger, left trigger or right
trigger keys.

NOTE: There is no dedicated PTT key on the MC3300x. Any physical key or trigger can be programmed as the

PTT key including either of the Programmable P1 or Diamond keys.

1. Go to Settings.

2. Touch Wake-Up Sources.

48

• GUN_TRIGGER - Programmable button on the Trigger Handle accessory.

• LEFT_TRIGGER_1 - Left scan button.

• RIGHT_TRIGGER_1 - Right scan button.

• SCAN - Left scan button

3. Touch a checkbox. A check appears in the checkbox.

4. Touch the Home button.

Remapping a Button

Buttons on the device can be programmed to perform different functions or as shortcuts to installed apps. For
a list of key names and descriptions, refer to: techdocs.zebra.com

Settings

.

NOTE:

1. Go to Settings.

2. Touch Key Programmer. A list of programmable buttons displays.

3. Select the button to remap.

4. Touch the BUTTON REMAPPING tab, the SHORTCUT tab, or swipe to touch the TRIGGERS tab that lists

Figure 10 Key Programmer Tabs

It is not recommended to remap the scan button.

the available functions, applications and triggers.

5. Touch a function or application shortcut to map to the button.

NOTE:

screen.

6. Touch the Home button.

If you select an application shortcut, the application icon appears next to the button on the Key Programmer

49

Remappable Keys

Figure 11 Key Positions

Settings

LEFT_TRIGGER_1

P1

UI Listed Keys

• GRIP_TRIGGER

• SCAN

• P1

• DIAMOND

• LEFT_TRIGGER_1

• RIGHT_TRIGGER_1

RIGHT_TRIGGER_1

DIAMOND

SCAN

GRIP_TRIGGER

Other Remappable Keys

• 0-9

• A-Z

• F1-F10

• LEFT

• UP

• DOWN

• RIGHT

• ENTER

• SPACE

• ESC

• DOT (via XML only, not StageNow)

• TAB

50

• DELETE

• COMMA

• SHIFT

• CTRL

• ALT

• BLUE

• ORANGE

Non-Remappable Keys

• POWER

• BACK (Not a physical key)

• HOME (Not a physical key)

• RECENT (Not a physical key)

Keyboards

Settings

The device provides multiple keyboard options.

• Android Keyboard - AOSP devices only

• Gboard - GMS devices only

• Enterprise Keyboard- Not pre-installed on the device. Contact Zebra Support for more information.

NOTE: By default the Enterprise and Virtual Keyboards are disabled.

Keyboard Configuration

Enabling Keyboards

1. Go to Settings.

2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.

3. Touch a keyboard to enable.

Switching Between Keyboards

1. To switch between keyboards, touch in a text box to display the current keyboard.

• On the Gboard keyboard, touch and hold (GMS devices only).

• On the Android keyboard, touch and hold (AOSP devices only).

• On the Enterprise keyboard, touch .

Using the Android and Gboard Keyboards

Use the Android or Gboard keyboards to enter text in a text field.

51

Settings

To configure the keyboard settings, touch and hold , (comma) and then select Android keyboard settings.

Edit Text

Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do
not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols, and Special Characters

Enter numbers and symbols.

1.

• Touch and hold one of the top-row keys until a menu appears then select a number or special character.

• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch

the Shift key a third time to unlock Capslock.

• Touch ?123 to switch to the numbers and symbols keyboard.

• Touch the =\< key on the numbers and symbols keyboard to view additional symbols.

2. Enter special characters.

• Touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the

key displays briefly over the keyboard.

Using the Enterprise Keyboard

The Enterprise Keyboard contains multiple keyboard types.

• Numeric

• Alpha

• Special characters

• Data capture.

Numeric Tab

The numeric keyboard is labeled 123. The keys displayed vary on the app being used. For example, an arrow
displays in Contacts, however Done displays in Email account setup.

Alpha Tab

The alpha keyboard is labeled using the language code. For English, the alpha keyboard is labeled EN.

Additional Character Tab

The additional characters keyboard is labeled #*/.

Touch to enter emoji icons in a text message.

Touch ABC to return to the Symbols keyboard.

Scan Tab

The Scan tab provides an easy data capture feature for scanning barcodes.

52

Language Usage

Use the Language & input settings to change the device’s language, including words added to the dictionary.

Changing the Language Setting

1. Go to Settings.

2. Touch System > Languages & input.

3. Touch Languages. A list of available languages displays.

4. If the desired language is not listed, touch Add a language and select a language from the list.

5. Touch and hold to the right of the desired language, then drag it to the top of the list.

6. The operating system text changes to the selected language.

Adding Words to the Dictionary

Settings

1. Go to Settings.

2. Touch System > Languages & input > Advanced > Personal dictionary.

3. If prompted, select the language where this word or phase is stored.

4. Touch + to add a new word or phrase to the dictionary.

5. Enter the word or phrase.

6. In the Shortcut text box, enter a shortcut for the word or phrase.

7. Touch the Home button.

Notifications

Setting App Notifications

To set notification settings for a specific app:

1. Go to Settings.

2. Touch Apps & notifications > SEE ALL XX APPS. The App info screen displays.

3. Select an app.

4. Touch Notifications.

Options vary depending on the app selected.

5. Select an available option:

Show notifications - Select to turn all notifications from this app on (default) or off.

Touch a notification category to display additional options.

• Alerting - Allow notifications from this app to make sound.

53

• Pop on screen - Allow notifications from this app to pop notifications on the screen.

• Silent - Do not allow notifications from this app to make sound.

• Minimize - In the Notification panel, collapse notifications to one line.

• Advanced - Touch for additional options.

• Sound - Select a sound to play for notifications from this app.

• Blink light - Allow notifications from this app the light the Notification LED blue.

• Show notification dot - Allow notifications from this app to add a notification dot to the app icon.

• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is enabled.

Advanced

• Allow notification dot - Do not allow this app to add a notification dot to the app icon.

• Additional settings in the app - Open the app settings.

Viewing Notification Settings for All Apps

To view the notification settings for all apps:

1. Go to Settings.

Settings

2. Touch Apps & Notifications.

3. Scroll down to Notifications to view how many apps have notifications turned off.

4. To set or view notifications settings for a specific app, see Setting App Notifications.

Controlling Lock Screen Notifications

To control whether notifications can be seen when the device is locked:

1. Go to Settings.

2. Touch Apps & notifications > Notifications.

3. Touch Notifications on lockscreen and select one of the following:

• Show alerting and silent notifications (default)

• Show alerting notifications only

• Don’t show notifications.

Blink Light

The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification
or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.

To change the notification setting:

1. Go to Settings.

2. Touch Apps & notifications > Notifications > Advanced.

3. Touch Blink light to toggle the notification on or off.

54

Applications

The APPS screen displays icons for all installed apps. See Application Deployment for information on
installing and uninstalling apps. For information on standard Android apps, go to the Google Play Apps

store.

The following table describes the apps installed on the device.

Table 11 Apps

Icon Description

Battery Manager - Displays battery information, including charge level, status, health
and wear level.

Bluetooth Pairing Utility – Use to pair a Zebra Bluetooth scanner with the device by
scanning a barcode.

Calculator - Provides the basic and scientific arithmetic functions.

Calendar - Use to manage events and appointments. GMS/GMS-Restricted only.

Calendar - Use to manage events and appointments. AOSP only.

Camera - Take photos or record videos. For more information, see Camera on page 61.

Chrome - Use to access the Internet or intranet. GMS devices only.

Chromium - Use to access the Internet or intranet. AOSP only.

Clock - Use to schedule alarms for appointments or as a wake-up.

55

Applications

Table 11 Apps (Continued)

Icon Description

Contacts - Use to manage contact information.

DataWedge - Enables data capture using the imager. For more information, see

DataWedge Demonstration on page 65.

DisplayLink Presenter - Use to present the device screen onto a connected monitor.

Drive - Upload photos, videos, documents, and other files to personal storage site. GMS
devices only.

Duo - A one-to-one video calling app. GMS devices only.

DWDemo - Provides a way to demonstrate the data capture features using the imager.
For more information, see DataWedge Demonstration on page 65.

Email - Use to send and receive email. AOSP only.

Files - Organize and manage files on the device.

Gallery - Use to view photos stored on the microSD card. AOSP only.

Gmail - Use to send and receive email using a Google email account.
GMS/GMS-Restricted only.

Google - Launches Google ™ search app. GMS devices only.

KeepNotes - Use to create, edit, and share notes. GMS/GMS-Restricted only.

License Manager - Use to manage software licenses on the device.

Maps - Use to see your location on a map (with public transit, traffic, or satellite
overlays). Search for any business or place of interest. Provides turn-by-turn navigation
with voice guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers,
and users of public transportation. GMS/GMS-Restricted only.

56

Applications

Table 11 Apps (Continued)

Icon Description

Photos - Use to sync photos with Google account. GMS/GMS-Restricted only.

Play Movies & TV - View movies and video on your device. GMS/GMS-Restricted only.

Play Music - Use to listen to music. GMS/GMS-Restricted only.

Play Store - Download music, movies, books, and Android apps and games from the
Google Play Store. GMS/GMS-Restricted only.

PTT Express - Use to launch PTT Express client for VoIP communication.

RxLogger - Use to diagnose device and app issues. For more information, see RxLogger

on page 69.

Search - Use to search the Web. Requires an Internet connection. AOSP only.

Settings - Use to configure the device.

Sound Recorder - Use to record audio. For more information, see Sound Recorder on

page 71.

StageNow - Allows the device to stage a device for initial use by initiating the
deployment of settings, firmware, and software.

Velocity - Opens the Ivanti (formerly Wavelink) terminal emulation app.

Videos - Use to view videos on the device. AOSP only.

Voice Search - Use to perform searches by asking questions. GMS/GMS-Restricted
oniy.

Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding
area and display network stats, such as coverage hole detection, or AP in vicinity. Refer
to the Worry Free Wi-Fi Analyzer Administrator Guide for Android.

57

Table 11 Apps (Continued)

Icon Description

Accessing Apps

Applications

YouTube - Use to view videos on the YouTube

YT Music - Use to listen to music.

Zebra Bluetooth Settings - Use to configure Bluetooth logging.

Zebra Data Services - Use to enable or disable Zebra Data Services. Some options are
set by the system administrator.

™ web site. GMS/GMS-Restricted only.

All apps installed on the device are accessed using the APPS window.

1. On the Home screen, swipe up from the bottom of the screen.

2. Slide the APPS window up or down to view more app icons.

3. Touch an icon to open the app.

Switching Between Recent Apps

Use the Recent button to switch between recently used apps.

1. Touch Recent button.

A window appears on the screen with icons of recently used apps.

2. Slide the apps displayed up and down to view all recently used apps.

3. Swipe left or right to remove app from the list and force close the app.

4. Touch an icon to open an app or touch Back button to return to the current screen.

Battery Manager

The Battery Manager provides detailed information about the battery and battery swap procedures on
supported devices.

Opening Battery Manager

To open the Battery Manager app, swipe up from the bottom of the Home screen, and then touch .

Battery Manager Information Tab

The Battery Manager displays detailed information about battery charging, health, and status.

58

Applications

Table 12 Battery Icon Description

Battery Icon Description

Battery charge level is between 85% and 100%.

Battery charge level is between 19% and 84%.

Battery charge level is between 0% and 18%.

• Level - The current battery charge level as a percentage. Displays -% when level is unknown.

• Wear - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color
changes to red.

• Health - The health of the battery. If a critical error occurs, appears. Touch to view the error
description.

• Decommission - The battery is past its useful life and should be replaced. See system

administrator.

• Good - The battery is good.

• Charge error - An error occurred while charging. See system administrator.

• Over Current - An over-current condition occurred. See system administrator.

• Dead - The battery has no charge. Replace the battery.

• Over Voltage - An over-voltage condition occurred. See system administrator.

• Below Temperature - The battery temperature is below the operating temperature. See system

administrator.

• Failure Detected - A failure has been detected in the battery. See system administrator.

• Unknown - See system administrator.

• Charge Status

• Not charging - The device is not connected to AC power.

• Charging-AC - The device is connected to AC power and charging.

• Charging-USB - The device is connected to a host computer with a USB cable and charging.

• Discharging - The battery is discharging.

• Full - That the battery is fully charged.

• Unknown - The battery status is unknown.

• Time until empty - The amount of time until the battery is empty.

• Advanced info - Touch to view additional battery information.

• Battery present status - Indicates that the battery is present.

• Battery level - The battery charge level as a percentage of scale.

• Battery scale - The battery scale level used to determine battery level (100).

59

Applications

• Battery voltage - The current battery voltage in millivolts.

• Battery temperature - The current battery temperature in degrees Centigrade.

• Battery technology - The type of battery.

• Battery current - The average current into or out of the battery over the last second in mAh.

• Battery manufacture date - The date of manufacture.

• Battery serial number - The battery serial number. The number matches the serial number printed

on the battery label.

• Battery part number - The battery part number.

• Battery decommission status - Indicates if the battery is past its life span.

• Battery Good - The battery is in good health.

• Decommissioned Battery - The battery is past its useful life and should be replaced.

• Base cumulative charge - Cumulative charge using Zebra charging equipment only.

• Battery present capacity - Maximum amount of charge that could be pulled from the battery under

the present discharge conditions if the battery were fully charged.

• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to

“design_capacity” at a discharge rate of “design_capacity”.

• % decommission threshold - The default % decommission threshold for a gifted battery as 80%.

• Battery present charge - Amount of usable charge remaining in the battery at present under the

current discharge conditions.

• Battery total cumulative charge - The total accumulated charge in all chargers.

• Battery time since first use - The time passed since the battery was placed in a Zebra terminal for

the first time.

• Battery error status - The error status of the battery.

• App version - The application version number.

60

Camera

Taking Photos

Applications

NOTE: The Camera app is only available on MC3300x-S/R configurations.

This section provides information for taking photos and recording videos using the integrated digital
cameras.

NOTE: The device saves photos and videos on the microSD card, if installed and the storage path is
changed manually. By default, or if a microSD card is not installed, the device saves photos and videos on
the internal storage.

NOTE: It is recommended to install a microSD card in devices with 2 GB RAM / 16 GB Flash due to
limited internal storage.

On camera only devices without an internal scan engine, the back camera is used for barcode scanning.

NOTE: See Photo Settings for camera setting descriptions.

1. Swipe up from the bottom of the Home screen and touch Camera.

Filters

Scene Mode

Camera Switch

HDR

Settings

Gallery

Camera Mode

Shutter Button

61

If necessary, touch the Camera Mode icon and touch .

2.

3. Frame the subject on the screen.

4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

appear on the screen.

5. Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.

6. Touch .

The camera takes a photo and a shutter sound plays.

The photo momentarily displays as a thumbnail in the lower left corner.

Recording Videos

1. Swipe up from the bottom of the Home screen and touch Camera.

2. Touch the camera mode menu and touch .

Applications

Audio

Take Photo

Gallery

Flash

Stop Recording

Pause
Recording

Shutter Button

3. Point the camera and frame the scene.

4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

appear on the screen.

5. Touch to start recording.

The video time remaining appears in the top left of the screen.

62

Touch to the end recording.

6.

The video momentarily displays as a thumbnail in the lower left corner.

Camera Settings

In Photo mode, photo settings appear on screen. Touch ••• > to display the photo settings options.

• General - These settings apply to both the still camera and video camera.

• Face Detection - Select to turn face detection Off (default) or On.

• Storage – Set the location to store the photo to: Phone or SD Card.

• Still Camera - These settings apply only to the still camera.

• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.

• Continuous Shot - Select to take a series of photos quickly while holding the capture button. Off

(default) or On.

• Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M

pixels, HD1080, 2M pixels, HD720, 1M pixels, or WVGA.

• Picture quality - Set the picture quality setting to: Low, Standard, or High (default).

Applications

• Redeye reduction - Helps eliminate redeye effect. Options: Disabled (default), or Enable.

• Exposure - Set the exposure settings to: -2, -1.5, -1, -0.5, 0 (default), +0.5, +1, +1.5, +2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable or Enable

(default).

• Picture Format - All still images are saved in JPEG format.

• Video Camera - These settings apply only to the video camera.

• Video quality - Set video quality to: 4k UHD, HD 1080p (default), HD 720p, SD 480p, VGA, CIF, or

QVGA.

• Video duration - Set to: 30 seconds (MMS), 10 minutes, 30 minutes (default), or no limit.

• Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off

(default).

• Noise Reduction - Off (default), Fast, High Quality

• Video Encoder - Set the video encoder to: MPEG4, H264 (default), H265.

• Audio Encoder - Set the audio encoder to: AMRNB, or AAC (default).

• Video Rotation - Set the rotation of the video to: 0 (default), 90, 180, or 270.

• Time Lapse - Set the time lapse interval to: Off (default), or a time between 0.5 seconds and 24

hours.

63

Applications

• System

• Restore default - Select to restore all settings to the default values.

• Version Info - Displays the software version of the camera app.

64

DataWedge Demonstration

Use DataWedge Demonstration to demonstrate data capture functionality. To configure DataWedge,
refer to techdocs.zebra.com/datawedge/

NOTE: DataWedge is enabled on the Home screen. To disable this feature, go to the DataWedge settings
and disable the Launcher profile.

Table 13 DataWedge Demonstration Icons

Illumination Imager illumination is on. Touch to turn illumination off.

Data Capture The data capture function is through the internal imager.

Applications

.

Icon Description

Imager illumination is off. Touch to turn illumination on.

The data capture function is through the rear camera. Only
available on MC3300x-S/R devices configured with the camera
option.

An RS507 or RS6000 Bluetooth imager is connected.

Scan Mode Imager is in picklist mode. Touch to change to normal scan mode.

Scanner Selection

To select a scanner, touch > Settings > Scanner selection.

See the Data Capture section for more information.

Press the programmable button or touch the yellow scan button to capture data. The data appears in the
text field below the yellow button.

An RS507 or RS6000 Bluetooth imager is not connected.

Imager is in normal scan mode. Touch to change to picklist mode.

Opens a menu to view the application information or to set the
application DataWedge profile.

65

PTT Express Voice Client

NOTE: Requires a PTT Express License.

PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise
devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers
simple PTT communication without requiring a voice communication server.

• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.

• Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to
make a Private Response.

PTT Express User Interface

Figure 12 PTT Express Default User Interface

Notification Icon

Applications

Settings

Service Indication

Talk Group

Table 14 PTT Express Default User Interface Descriptions

Item Description

Notification Icon Indicates the current state of the PTT Express client.

Service Indication Indicates the status of the PTT Express client. Options: Service Enabled,

Service Disabled or Service Unavailable.

Talk Groups Lists all 32 Talk Groups available for PTT communication.

Settings Opens the PTT Express Settings screen.

Enable/Disable
Switch

Turns the PTT service on and off.

Enable/Disable Switch

66

PTT Audible Indicators

The following tones provide helpful cues when using the voice client.

• Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start
talking.

• Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can
now initiate a Group Broadcast or Private Response.

• Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already
communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60
seconds).

• Network Tone:

• Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the

service is enabled.

• Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service

is disabled.

PTT Notification Icons

Applications

Notification icons indicate the current state of the PTT Express Voice client.

Table 15 PTT Express Icon Descriptions

Status Icon Description

The PTT Express Voice client is disabled.

The PTT Express Voice client is enabled but not connected to a WLAN.

The PTT Express Voice client is enabled, connected to a WLAN, and listening on the
Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and communicating on
the Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and in a private
response.

The PTT Express Voice client is enabled and muted.

The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP
telephony call in progress.

Enabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.

67

Selecting a Talk Group

One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be
enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.

PTT Communication

This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2 User
Guide for detailed information on using the client.

In order to use a PTT Key with PTT Express, remap BUTTON_L2 key to any available physical key, such
as LEFT_TRIGGER_1, RIGHT_TRIGGER_1, SCAN, P1 or DIAMOND. By default, a PTT button is not
assigned. For information on how to remap a key, refer to the Settings chapter.
PTT communication may be established as a Group Call.

Creating a Group Call

1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone.

If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure
that PTT Express and the WLAN are enabled.

Applications

2. Start talking after hearing the talk tone.

NOTE: Holding the button for more than 60 seconds (default) drops the call, allowing others to make
Group calls. Release the button when finished talking to allow others to make calls.

Responding with a Private Response

The Private Response can only be initiated once a Group Call has been established. The initial Private
Response is made to the originator of the Group Call.

1. Wait for an access tone.

2. Within 10 seconds, double-press the PTT button, and listen for the talk tone.

3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure

that PTT Express and the WLAN are enabled.

4. Start talking after the talk tone plays.

5. Release the button when finished talking.

Disabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.

3. Touch the Home button.

68

RxLogger

RxLogger is a comprehensive diagnostic tool that provides application and system metrics, allows for the
creation of custom plug-ins, and diagnoses device and application issues. RxLogger logs the following
information: CPU load, memory load, memory snapshots, battery consumption, power states, wireless
logging, cellular logging, TCP dumps, Bluetooth logging, GPS logging, logcat, FTP push/pull, ANR dumps,
etc. All generated logs and files are saved onto flash storage on the device (internal or external).

RxLogger Configuration

RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins
already built-in. For information on configuring RxLogger, refer to techdocs.zebra.com/rxlogger/

To open the configuration screen, from the RxLogger home screen touch Settings.

Configuration File

RxLogger configuration can be set using an XML file. The config.xml configuration file is located on the
microSD card in the
connection. Edit the configuration file and then replace the XML file on the device. There is no need to stop

and restart the RxLogger service since the file change is automatically detected.

Applications

.

RxLogger\config folder. Copy the file from the device to a host computer using a USB

Enabling Logging

To enable logging:

1. Swipe the screen up and select .

2. Touch Start.

3. Touch the Home button.

Disabling Logging

To disable logging:

1. Swipe the screen up and select .

2. Touch Stop.

3. Touch the Home button.

Extracting Log Files

1. Connect the device to a host computer using an USB connection.

2. Using a file explorer, navigate to the RxLogger folder.

3. Copy the file from the device to the host computer.

4. Disconnect the device from the host computer.

Backing Up

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.

69

• To save the backup data, touch > BackupNow.

RxLogger Utility

RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running.
Logs and RxLogger Utility features are accessed using Main Chat Head.

Initiating the Main Chat Head

To initiate the Main Chat Head:

1. Open RxLogger.

2. Touch > Toggle Chat Head. The Main Chat Head icon appears on the screen.

3. Touch and drag the Main Chat head icon to move it around the screen.

Removing the Main Chat Head

To remove the Main Chat Head icon:

1. Touch and drag the icon. A circle with an X appears.

Applications

2. Move the icon over the circle and then release.

Viewing Logs

To view logs:

1. Touch the Main Chat Head icon. The RxLogger Utility screen appears.

2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.

3. If necessary, scroll left or right to view additional Sub Chat Head icons.

4. Touch a Sub Chat Head to display the log contents.

Removing a Sub Chat Head Icon

To remove a sub chat Head icon, press and hold the icon until it disappears.

Backing Up In Overlay View

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.

The Backup icon is always available in Overlay View.

1. Touch . The Backup dialog box appears.

2. Touch Yes to create the back up.

70

Sound Recorder

Use Sound Recorder to record audio messages.

Recordings are saved on the microSD card (if installed) or the internal storage and are available in the
Music application (AOSP devices) or the Play Music application (GMS devices).

Touch to open options menu.

• File type - Select the file type for the recording file.

• AMR

• 3GPP

• AAC

• WAV

• AMR-WB

• AMR-WB-3GPP.

• Storage location - Select the location for the recording file.

• Phone storage

Applications

• SD card

71

Data Capture

The device supports data capture using:

• Internal Laser Scanner (SE965 1D)

• Imager (SE4720 1D/2D, SE4770 1D/2D, and SE4850-ER 1D/2D)

• RS5100 Bluetooth Ring Scanner

• RS6000 Bluetooth Ring Scanner

• RS507/RS507X Bluetooth Hands-free imager

• DS2278 Digital Barcode Scanner

• DS3678 Digital Barcode Scanner

• LI3678 Linear Scanner.

Laser Scanner

The device with a laser scanner has the following features:

• Reading of a variety of barcode symbologies, including the most popular linear, postal, and 1D code
types.

• Intuitive laser aiming for easy point-and-shoot operation.

Integrated Imager

The device with an integrated 2D imager has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal,
PDF417, Digimarc, and 2D matrix code types.

• Advanced intuitive laser aiming cross-hair and dot aiming for easy point-and-shoot operation.

The imager uses imaging technology to take a picture of a barcode, stores the resulting image in memory,
and executes state-of-the-art software decoding algorithms to extract the barcode data from the image.

Operational Modes

The device with an integrated imager supports two modes of operation, listed below. Activate each mode
by pressing the Scan button.

• Decode mode - The device attempts to locate and decode enabled barcodes within its field of view. The
imager remains in this mode as long as you hold the scan button, or until it decodes a barcode.

72

Data Capture

NOTE: To enable Pick List Mode, configure in DataWedge or set in an application using a API command.

• Pick List mode - Selectively decode a barcode when more than one barcode is in the device’s field of
view by moving the aiming crosshair or dot over the required barcode. Use this feature for pick lists
containing multiple barcodes and manufacturing or transport labels containing more than one barcode
type (either 1D or 2D).

NOTE: To enable Basic MultiBarcode Mode, configure in DataWedge or set in an application using a API
command.

• Basic MultiBarcode Mode: In this mode, the device attempts to locate and decode a specific number of
unique barcodes within its field of view. The device remains in this mode as long as the user holds the
scan button, or until it decodes all the barcodes. Available on integrated SE4720, SE4770, or SE4850
imagers only.

• The device attempts to scan the programmed number of unique barcodes (from 2 through 100).

• If there are duplicate barcodes (same symbology type and data), only one of the duplicate barcodes

is decoded and the remainder are ignored. If the label has two duplicate barcodes plus another two
different barcodes, a maximum of three barcodes will be decoded from that label; one will be
ignored as a duplicate.

• Barcodes can be of multiple symbology types and still be acquired together. For example, if the

specified quantity for a Basic MultiBarcode scan is four, two barcodes can be symbology type Code
128 and the other two can be symbology type Code 39.

• If the specified number of unique barcodes is not initially in view of the device, the device will not

decode any data until the device is moved to capture the additional barcode(s) or time out occurs. If
the device field of view contains a number of barcodes greater than the specified quantity, the
device randomly decodes barcode(s) until the specified number of unique barcodes is reached. For
example, if the count is set to two and eight barcodes are in the field of view, the device decodes the
first two unique barcodes it sees, returning the data in random order.

• Basic MultiBarcode Mode does not support concatenated barcodes.

RS5100 Ring Scanner

The RS5100 Ring Scanner is a wearable barcode scan solution for both 1D and 2D bar code symbologies.
The scanner supports Bluetooth Human Interface Device (HID) connection to the device.

Figure 13 RS5100 Bluetooth Ring scanner

Refer to the RS5100 Ring Scanner Product Reference Guide for more information.

73

Data Capture

RS6000 Bluetooth Ring Scanner

The RS6000 Bluetooth Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode
symbologies.

Figure 14 RS6000 Bluetooth Ring Scanner

Refer to the RS6000 Bluetooth Ring Scanner Product Reference Guide for more information.

RS507/RS507X Hands-Free Imager

The RS507/RS507X Hands-free Imager is a wearable barcode scan solution for both 1D and 2D barcode
symbologies.

Figure 15 RS507/RS507X Hands-Free Imager

Refer to the RS507/RS507X Hands-free Imager Product Reference Guide for more information.

DS3678 Digital Scanner

The cordless DS3678 combines superior 1D and 2D omnidirectional barcode scanning performance and
advanced ergonomics in a lightweight design. See the DS36X8 Product Reference Guide for more
information.

74

Figure 16 DS3678 Digital Scanner

Data Capture

DS2278 Digital Scanner

The DS2278 digital imager scanner scans both 1D and 2D barcodes and does not compromise
performance or features.

Figure 17 DS2278 Digital Scanner

Refer to the DS22788 Digital Scanner Product Reference Guide for more information.

Scanning Considerations

Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it.
However, consider the following to optimize scanning performance:

• Range: Scanners decode best over a particular working range — minimum and maximum distances
from the barcode. This range varies according to barcode density and scanning device optics. Scan
within range for quick and constant decodes; scanning too close or too far away prevents decodes.
Move the scanner closer and further away to find the right working range for the barcodes being
scanned.

75

• Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back
into the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode
so that the beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs
to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what
tolerances to work within.

• Hold the device farther away for larger symbols.

• Move the device closer for symbols with bars that are close together.

NOTE: Scanning procedures depend on the app and device configuration. An app may use different
scanning procedures from the one listed above.

Scanning with Internal Imager

To capture barcode data:

1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).

2. Point the top of the device at a barcode.

Figure 18 Barcode Scanning – MC3300x–G

Data Capture

Figure 19 Barcode Scanning – MC3300x–S

3. Press and hold the Scan button or Trigger.

The red laser aiming pattern turns on to assist in aiming.

4. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is

used for increased visibility in bright lighting conditions.

The Scan LEDs light green and a beep sounds, by default, to indicate the barcode was decoded
successfully. Note that when the device is in Pick List Mode, the device does not decode the barcode
until the center of the crosshair touches the barcode.

76

Data Capture

Figure 20 Aiming Pattern: Standard and Extended Range

Figure 21 Pick List Mode with Multiple Barcodes in Aiming Pattern: Standard and Extended Range

5. Release the scan button or Trigger.

6. The barcode content data appears in the text field.

Scanning with Laser Scanner

To capture barcode data:

1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).

2. Point the top of the device at a barcode.

3. On the MC3300x–R, rotate the Turret for optimal scanning position.

4. Point the scan exit window at a barcode.

Figure 22 Barcode Scanning – MC3300x-G

5. Press and hold the Scan button.

The red scan line turns on to assist in aiming. Ensure that the scan line crosses every bar and space of
the barcode.

The Scan LEDs light green and a beep sounds, by default, to indicate the barcode was decoded
successfully.

77

Data Capture

Figure 23 Linear Scanner Aiming Pattern

6. Release the scan button.

7. The captured data appears in the text field.

78

Data Capture

Scanning with RS5100 Ring Scanner

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows
you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS5100:

1. Pair the RS5100 with the device. See Pairing Using Simple Serial Interface or Pairing Using Bluetooth

Human Interface Device

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS5100 at a barcode.

for more information.

4. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

The RS5100 LEDs light green and a beep sounds to indicate the barcode was decoded successfully.
When the RS5100 is in Pick List mode, the RS5100 does not decode the barcode until the center of the
crosshair touches the barcode.

79

Data Capture

The captured data appears in the text field.

5.

Scanning with RS6000 Bluetooth Ring Scanner

To read a barcode, a scan-enabled app is required. Devices that contain the Zebra DataWedge app allows
you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS6000:

1. Pair the RS6000 with the device. See Pairing Using Bluetooth Human Interface Device for more

information.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS6000 at a barcode.

Figure 24 Barcode Scanning with RS6000

4. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

The RS6000 LEDs light green and a beep sounds to indicate the barcode was decoded successfully.
When the RS6000 is in Pick List mode, the RS6000 does not decode the barcode until the center of the
crosshair touches the barcode.

80

Data Capture

Figure 25 RS6000 Aiming Pattern

Figure 26 RS6000 Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Scanning with RS507/RS507X Hands-Free Imager

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows
you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS507/RS507X:

1. Pair the RS507/RS507X with the device. See Pairing Using Simple Serial InterfacePairing Bluetooth

Scanners or

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS507/RS507X at a barcode.

Pairing Using Bluetooth Human Interface Device for more information.

81

Data Capture

Figure 27 Barcode Scanning with RS507/RS507X

4. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

The RS507/RS507X LEDs light green and a beep sounds to indicate the barcode was decoded
successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the
barcode until the center of the crosshair touches the barcode.

Figure 28 RS507/RS507X Aiming Pattern

Figure 29 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

82

Data Capture

Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner

To scan with the DS3608 or DS3678:

1. Pair the scanner with the device. For more information, see Connecting a USB Scanner for the DS3608

or Pairing Bluetooth Scanners for the DS3678.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the scanner at a barcode.

Figure 30 Barcode Scanning (DS3678 shown)

4. Press and hold the trigger.

Ensure the barcode is within the area formed by the aiming pattern. The aiming dot increases visibility
in bright lighting conditions.

Figure 31 DS3608/DS3678 Aiming Pattern

Figure 32 DS3608/DS3678 Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

83

Data Capture

Scanning with LI3678 Linear Imager

To scan with the LI3678:

1. Pair the LI3678 with the device. See Pairing a Bluetooth Scanner on page 89

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the LI3678 at a barcode.

Figure 33 Barcode Scanning with LI3678

4. Press and hold the trigger.

5. Ensure the aiming pattern covers the barcode.

for more information.

Figure 34 LI3678-SR Aiming Pattern

6. Upon successful decode, the scanner beeps and the LED displays a single green flash.

7. The captured data appears in the text field.

Scanning with DS2278 Digital Scanner

To scan with the DS2278:

1. Pair the DS278 with the device. See Pairing a Bluetooth Scanner on page 89

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the scanner at a barcode.

for more information.

84

Data Capture

Figure 35 Barcode Scanning with DS2278

4. Press and hold the trigger.

5. Ensure the aiming pattern covers the barcode.

Figure 36 DS2278 Aiming Pattern

6. Upon successful decode, the scanner beeps and the LED flashes, and the scan line turns off.

7. The captured data appears in the text field.

Pairing the Bluetooth Ring Scanner

To connect the RS5100/RS6000/RS507/RS507X Bluetooth Ring Scanner to the device, use one of the
following methods:

• Near Field Communication (NFC) (RS5100 or RS6000 only)

• Simple Serial Interface (SSI)

• Bluetooth Human Interface Device (HID) Mode.

Pairing Using Near Field Communication

The device provides the ability to pair the RS5100 or RS6000 using NFC.

1. Ensure that the RS5100 or RS6000 is in SSI mode. Refer to the RS5100 or RS6000 User Guide or

Product Reference Guide for more information.

2. Ensure that NFC is enabled on the device.

85

Data Capture

Align the NFC icon on the RS5100 or RS6000 with the NFC icon on the back of the device.

3.

The Status LED blinks blue indicating that the RS5100 or RS6000 is attempting to establish connection
with the device. When connection is established, the Status LED turns off and the RS5100 or RS6000
emits a single string of low/high beeps.

A notification appears on the MC3300x screen.

Figure 37 Align NFC Antennas

The device pairs with the RS5100 or RS6000 and appears in the Status bar.

Pairing in HID Mode Using Near Field Communication

The device provides the ability to pair the RS5100 or RS6000 in HID Mode using NFC.

1. Ensure that NFC is enabled on the device.

2. Ensure that Bluetooth is enabled on both devices.

3. Place the RS5100 or RS6000 in Human Interface Device (HID) mode. If the RS5100 or RS6000 is

already in HID mode, skip to step 6.

a. Remove the battery from the RS5100 or RS6000.

b. Press and hold the Restore key.

c. Install the battery onto the RS5100 or RS6000.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash

green.

e. Scan the barcode below to place the RS5100 or RS6000 in HID mode.

Figure 38 Bluetooth HID Barcode

4. Remove the battery from the RS5100 or RS6000.

5. Re-install the battery into the RS5100 or RS6000.

86

Data Capture

Align the NFC icon on the RS5100 or RS6000 with the NFC icon on the device.

6.

The Status LED blinks blue indicating that the RS5100 or RS6000 is attempting to establish connection
with the device. When connection is established, the Status LED turns off and the RS5100 or RS6000
emits a single string of low/high beeps.

A notification appears on the MC3300x screen.

The icon appears in the Status bar.

Figure 39 Align NFC Antennas

The device pairs with the RS5100 or RS6000 and appears in the Status bar.

NOTE:

Not all Zebra devices support NFC readers and the Tap-to-Pair feature.

Pairing Using Simple Serial Interface

To pair the RS5100/RS6000/RS507/RS507X with the device using SSI.

1. Swipe up from the bottom of the Home screen and touch .

87

Figure 40 Bluetooth Pairing Utility

Data Capture

2. Using the RS5100/RS6000/RS507/RS507X, scan the barcode on the screen.

The RS5100/RS6000/RS507/RS507X emits a string of high/low/high/low beeps. The Scan LED flashes
green indicating that the RS5100/RS6000/RS507/RS507X is attempting to establish connection with
the device. When connection is established, the Scan LED turns off and the
RS5100/RS6000/RS507/RS507X emits one string of low/high beeps.

A notification appears on the Notification panel and the icon appears in the Status bar.

Pairing Using Bluetooth Human Interface Device

To pair the RS5100/RS6000/RS507/RS507X with the device using Human Interface Device (HID):

1. Ensure that Bluetooth is enabled on both devices.

2. Ensure that the Bluetooth device to discover is in discoverable mode.

3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

4. Place the RS5100/RS6000/RS507/RS507X in HID mode. If the RS5100/RS6000/RS507/RS507X is

already in HID mode, skip to step 5.

a. Remove the battery from the RS5100/RS6000/RS507/RS507X.

b. Press and hold the Restore key.

c. Install the battery onto the RS5100/RS6000/RS507/RS507X.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash

green.

e. Scan the barcode below to place the RS5100/RS6000/RS507/RS507X in HID mode.

88

Data Capture

Figure 41 RS507 Bluetooth HID Barcode

Figure 42 RS6000 Bluetooth HID Barcode

5. Remove the battery from the RS5100/RS6000/RS507/RS507X.

6. Re-install the battery into the RS5100/RS6000/RS507/RS507X.

7. Swipe down from the Status bar to open the Quick Access panel and then touch .

8. Touch Bluetooth.

9. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area

and displays them under Available devices.

10. Scroll through the list and select RS5100/RS6000/RS507/RS507X.

The device connects to the RS5100/RS6000/RS507/RS507X and Connected appears below the
device name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”)
connection is established.

A notification appears on Notification panel and the icon appears in the Status bar.

Pairing a Bluetooth Scanner

Connect the scanner to the device using one of the following methods:

• Simple Serial Interface (SSI) mode

• Bluetooth Human Interface Device (HID) mode.

Pairing Using Bluetooth Human Interface Device

To pair the scanner with the device using HID:

1. Remove the battery from the scanner.

2. Replace the battery.

3. After the scanner reboots, scan the barcode below to place the scanner in HID mode.

Figure 43 Bluetooth HID Classic Barcode

4. On the device, swipe down from the Status bar to open the Quick Access panel and then touch .

5. Touch Bluetooth.

89

6.

7. Scroll through the list and select XXXXX xxxxxx, where XXXXX is the scanner and xxxxxx is the serial

DataWedge

DataWedge is a utility that adds advanced barcode scanning capability to any application without writing
code. It runs in the background and handles the interface to built-in barcode scanners. The captured
barcode data is converted to keystrokes and sent to the target application as if it was typed on the keypad.

DataWedge allows any app on the device to get data from input sources such as a barcode scanner, MSR,
RFID, voice, or serial port and manipulate the data based on options or rules.

Configure DataWedge to

• Provide data capture services from any app.

Data Capture

Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area
and displays them under Available devices.

number.

The device connects to the scanner, the scanner beeps once and Connected appears below the device
name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is
established.

• Use a particular scanner, reader or other peripheral device.

• Properly format and transmit data to a specific app.

To configure DataWedge refer to techdocs.zebra.com/datawedge/

Enabling DataWedge

1. Swipe up from the bottom of the Home screen and touch .

2. Touch > Settings.

3. Touch the DataWedge enabled checkbox. A blue checkmark appears in the checkbox indicating that

DataWedge is enabled.

4. Touch the Home button.

Disabling DataWedge

1. Touch .

2. Touch Settings.

3. Touch DataWedge enabled.

The blue check disappears from the checkbox indicating that DataWedge is disabled.

.

Supported Decoders

NOTE: DataWedge supports the decoders listed below but not all are validated on this device.

90

Table 16 Supported Decoders

Decoders

SE965

Internal Imager

Internal Laser Scanner

Data Capture

SE4720

SE4770

Internal Imager

SE4850-ER

Internal Imager

RS5100

RS6000

RS507/RS507X

DS2278

DS3678

LI3678

Australian
Postal

Aztec -- X X X X X X X X --

Canadian
Postal

Chinese 2 of 5 O O O O O O O O O O

Codabar X X X X X X X X X X

Code 11 O O O O O O O O O O

Code 128 X X X X X X X X X X

Code 39 X X X X X X X X X X

Code 93 O O O O O O O O O O

Composite AB -- O O O O O O O O --

Composite C -- O O O O O O O O --

Discrete 2 of 5 O O O O O O O O O O

Datamatrix -- X X X X X X X X --

Dutch Postal -- O O O O O O O O --

DotCode O O O O O O O O O O

EAN13 X X X X X X X X X X

EAN8 X X X X X X X X X X

Grid Matrix O O O O O O O O O O

GS1 DataBar X X X X X X X X X X

GS1 DataBar
Expanded

GS1 DataBar
Limited

GS1
Datamatrix

GS1 QRCode -- O O O O O -- O O --

-- O O O O O O O O --

-- O O O O O -- -- -- --

X X X X X X X X X X

O O O O O O O O O O

-- O O O O O -- O O --

91

Data Capture

Table 16 Supported Decoders (Continued)

Decoders

SE965

Internal Laser Scanner

HAN XIN -- O O O O O -- -- O O

Interleaved 2
of 5

Japanese
Postal

Korean 3 of 5 O O O O O O O O O O

MAIL MARK -- X X X X X -- X X --

Matrix 2 of 5 O O O O O O O O O O

Maxicode -- X X X X X X X X --

MicroPDF -- O O O O O O O O --

MicroQR -- O O O O O O O O --

MSI O O O O O O O O O O

PDF417 -- X X X X X X X X --

QR Code -- X X X X X X X X --

Decoder
Signature

TLC 39 O O O O O O O O O O

Trioptic 39 O O O O O O O O O O

UK Postal -- O O O O O O O O --

UPCA X X X X X X X X X X

UPCE0 X X X X X X X X X X

UPCE1 O O O O O O O O O O

US4state -- O O O O O O O O --

US4state FICS -- O O O O O O O O --

US Planet -- O O O O O O O O --

US Postnet -- O O O O O O O O --

O O O O O O O O O O

-- O O O O O O O O --

-- O O O O O O O -- --

SE4720

Internal Imager

SE4770

Internal Imager

SE4850-ER

Internal Imager

RS5100

RS6000

RS507/RS507X

DS2278

DS3678

LI3678

92

Data Capture

Key

X = Enabled
O = Disabled

-- = Not Supported

Touch the Back button to return to the previous screen.

93

Wireless

This section provides information on the following wireless features:

• Wireless Local Area Network (WLAN)

• Bluetooth

• Cast

• Near Field Communications (NFC)

Wireless Local Area Networks

Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building.
Before using the device on a WLAN, the facility must be set up with the required hardware to run the
WLAN (sometimes known as infrastructure). The infrastructure and the device must both be properly
configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches,
Radius servers, etc.) for instructions on how to set up the infrastructure.

Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless &
networks settings configure the device to match the security scheme.

The device supports the following WLAN security options:

• Open

• Wireless Equivalent Privacy (WEP)

• Wi-Fi Protected Access (WPA)/WPA2 Personal (PSK)

• WPA/WPA2/WPA3 Enterprise (EAP)

• Lightweight Extensible Authentication Protocol (LEAP) - Only available with mDNA Enterprise

Bundle upgrade.

• Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.

• Transport Layer Security (TLS)

• Tunneled Transport Layer Security (TTLS) - with Password Authentication Protocol (PAP),

MSCHAP and MSCHAPv2 authentication

• Flexible Authentication via Secure Tunneling (EAP-FAST) - with MSCHAPV2 and GTC

authentication

The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status.

94

NOTE: To extend the life of the battery, turn off Wi-Fi when not in use.

Connecting to a Wi-Fi Network

To connect to a Wi-Fi network:

1. Go to Settings.

2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.

3. Scroll through the list and select the desired WLAN network.

4. For open networks, touch profile once or press and hold and then select Connect or for secure

networks enter the required password or other credentials then touch Connect. See the system
administrator for more information.

The device obtains a network address and other required information from the network using the
dynamic host configuration protocol (DHCP) protocol. To configure the device with a fixed internet
protocol (IP) address, see Configuring the Device to Use a Static IP Address.

5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.

Wireless

Removing a Wi-Fi Network

To remove a remembered or connected network:

1. Go to Settings.

2. Touch Network & Internet > W-Fi.

3. Scroll down to the bottom of the list and touch Saved networks.

4. Touch the name of the network.

5. Touch FORGET.

6. Touch the Home button.

WLAN Configuration

This section provides information on configuring Wi-Fi settings.

Configuring a Secure Wi-Fi Network

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the switch to the ON position.

4. The device searches for WLANs in the area and lists them on the screen.

5. Scroll through the list and select the desired WLAN network.

6. Touch the desired network. If the network security is Open, the device automatically connects to the

network. For all other network security a dialog box appears.

7. If the network security is WPA/WPA2-Personal or WEP, enter the required password and then touch

Connect.

8. If the network security is WPA/WPA2/WPA3 Enterprise:

95

Wireless

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

• TTLS

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:

Certificates are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Location & security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for then given identity.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for
a Proxy Server for setting connection to a proxy server and see Configuring the Device to Use a Static IP
Address for setting the device to use a static IP address.

9. Touch Connect.

10. Touch the Home button.

Manually Adding a Wi-Fi Network

Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network
when out of range.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. Scroll to the bottom of the list and select Add network.

5. In the Network name text box, enter the name of the Wi-Fi network.

6. In the Security drop-down list, set the type of security to:

• None

• WEP

• WPA/WPA2-Personal

• WPA/WPA2/WPA3-Enterprise

7. If the network security is None, touch Save.

8. If the network security is WEP or WPA/WPA2-Personal, enter the required password and then touch

Save.

9. If the network security is WPA/WPA2/WPA3-Enterprise:

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

96

Wireless

• TTLS

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:

Certificates are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for the given identity.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring for

a Proxy Server on page 97 for setting connection to a proxy server and see Configuring the Device to Use
a Static IP Address on page 98 for setting the device to use a static IP address.

10. Touch Save. To connect to the saved network, touch and hold on the saved network and select

Connect to network.

11. Touch the Home button.

Configuring for a Proxy Server

A proxy server is a server that acts as an intermediary for requests from clients seeking resources from
other servers. A client connects to the proxy server and requests some service, such as a file, connection,
web page, or other resource, available from a different server. The proxy server evaluates the request
according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is
validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting
the service on behalf of the client.

It is important for enterprise customers to be able to set up secure computing environments within their
companies, making proxy configuration essential. Proxy configuration acts as a security barrier ensuring
that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral
part of security enforcement in corporate firewalls within intranets.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch Proxy and select Manual.

7. In the Proxy hostname text box, enter the address of the proxy server.

8. In the Proxy port text box, enter the port number for the proxy server.

9. In the Bypass proxy for text box, enter addresses for web sites that are not required to go through the

proxy server. Use a comma “,” between addresses. Do not use spaces or carriage returns between
addresses.

10. Touch Connect.

11. Touch the Home button.

97

Wireless

Configuring the Device to Use a Static IP Address

By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an
Internet protocol (IP) address when connecting to a wireless network.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch IP settings and select Static.

7. In the IP address text box, enter an IP address for the device.

8. If required, in the Gateway text box, enter a gateway address for the device.

9. If required, in the Network prefix length text box, enter the prefix length.

10. If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.

11. If required, in the DNS 2 text box, enter a DNS address.

12. Touch Connect.

13. Touch the Home button.

Wi-Fi Preferences

Use the Wi-Fi preferences to configure advanced Wi-Fi settings. From the Wi-Fi screen scroll down to the
bottom of the screen and touch Wi-Fi preferences.

• Turn on W-Fi automatically - When enabled, Wi-Fi automatically turns back on when near high quality
saved networks.

• Open network notification - When enabled, notifies the user when an open network is available.

• Advanced - Touch to expand options.

• Additional settings - See Additional Settings.

• Install Certificates – Touch to install certificates.

• Network rating provider - Disabled (AOSP devices). To help determine what constitutes a good

Wi-Fi network, Android supports external Network rating providers that provide information about
the quality of open Wi-Fi networks. Select one of the providers listed or None. If none are available
or selected, the Connect to open networks feature is disabled.

• Wi-Fi Direct - Displays a list of devices available for a direct Wi-Fi connection.

• MAC address - Displays the Media Access Control (MAC) address of the device when connecting to

Wi-Fi networks.

• IP address - Displays the IP address of the device when connecting to Wi-Fi networks.

Additional Wi-Fi Settings

NOTE: Additional Wi-Fi settings are for the device, not for a specific wireless network.

98

Wireless

Use the Additional Settings to configure additional Wi-Fi settings. To view the additional Wi-Fi settings,
scroll to the bottom of the Wi-Fi screen and touch Wi-Fi Preferences > Advanced > Additional settings.

• Regulatory

• Country Selection - Displays the acquired country code if 802.11d is enabled, else it displays the

currently selected country code.

• Region code - Displays the current region code.

• Band and Channel Selection

• Wi-Fi frequency band - Set the frequency band to: Auto (default), 5 GHz only or 2.4 GHz only.

• Available channels (2.4 GHz) - Touch to display the Available channels menu. Select specific

channels and touch OK.

• Available channels (5 GHz) - Touch to display the Available channels menu. Select specific

channels and touch OK.

• Logging

• Advanced Logging – Touch to enable advanced logging or change the log directory.

• Wireless logs - Use to capture Wi-Fi log files.

• Fusion Logger - Touch to open the Fusion Logger application. This application maintains a
history of high level WLAN events which helps to understand the status of connectivity.

Wi-Fi Direct

Bluetooth

• Fusion Status - Touch to display live status of WLAN state. Also provides information about the
device and connected profile.

• About

• Version - Displays the current Fusion information.

Wi-Fi Direct devices can connect to each other without having to go through an access point. Wi-Fi Direct
devices establish their own ad-hoc network when required, letting you see which devices are available and
choose which one you want to connect to.

1. Go to Settings.

2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for another

Wi-Fi Direct device.

3. Under Peer devices, touch the other device name.

4. On the other device, select Accept.

Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other
device name appears in the list.

Bluetooth devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM)
band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 m (32.8 ft))
communication and low power consumption.

Devices with Bluetooth capabilities can exchange information (for example, files, appointments, and tasks)
with other Bluetooth enabled devices such as printers, access points, and other mobile devices.

99

The device supports Bluetooth Low Energy. Bluetooth Low Energy is targeted at applications in the
healthcare, fitness, security, and home entertainment industries. It provides reduced power consumption
and cost while maintaining standard Bluetooth range.

Adaptive Frequency Hopping

Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used
with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH
to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections
and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:

• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.

• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth
network.

• Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping
channels.

• Channel Maintenance - A method for periodically re-evaluating the channels.

When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate
channels. AFH coexistence allows enterprise devices to operate in any infrastructure.

Wireless

Security

The Bluetooth radio in this device operates as a Class 2 device power class. The maximum output power
is 2.5 mW and the expected range is 10 m (32.8 ft). A definition of ranges based on power class is difficult
to obtain due to power and device differences, and whether in open space or closed office space.

NOTE: It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b
operation is required.

The current Bluetooth specification defines security at the link level. Application-level security is not
specified. This allows application developers to define security mechanisms tailored to their specific need.
Link-level security occurs between devices, not users, while application-level security can be implemented
on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to
authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device
authentication is a mandatory feature of Bluetooth while link encryption is optional.

Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the
devices and create a link key for them. Entering a common personal identification number (PIN) in the
devices being paired generates the initialization key. The PIN is never sent over the air. By default, the
Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key
request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction.
Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption.
The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of
note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance
eavesdropping difficult.

Recommendations are:

• Perform pairing in a secure environment

• Keep PIN codes private and do not store the PIN codes in the device

• Implement application-level security.

100
