Zebra ET80, ET85 Product Reference Guide

Download

ET80/ET85

Rugged 2-in-1 Tablet

Product Reference Guide

for Microsoft

Windows® 10

MN-004138-03EN Rev A

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. © 2021 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements.

For further information regarding legal and proprietary statements, please go to:

SOFTWARE:zebra.com/linkoslegal COPYRIGHTS:zebra.com/copyright WARRANTY:zebra.com/warranty END USER LICENSE AGREEMENT: zebra.com/eula

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Publication Date

January 10, 2022

Contents

About This Document ........................................................................................................................ 7

Introduction ...................................................................................................................... 7

Configurations.................................................................................................................. 7

Energy Star ...................................................................................................................... 9

Notational Conventions.................................................................................................... 9

Icon Conventions ............................................................................................................. 9

Service Information ........................................................................................................ 10

Software Release Information....................................................................................... 11

Getting Started.................................................................................................................................. 12

Unpacking ...................................................................................................................... 12

Features........................................................................................................................ 13

Setting Up the Device .................................................................................................... 15

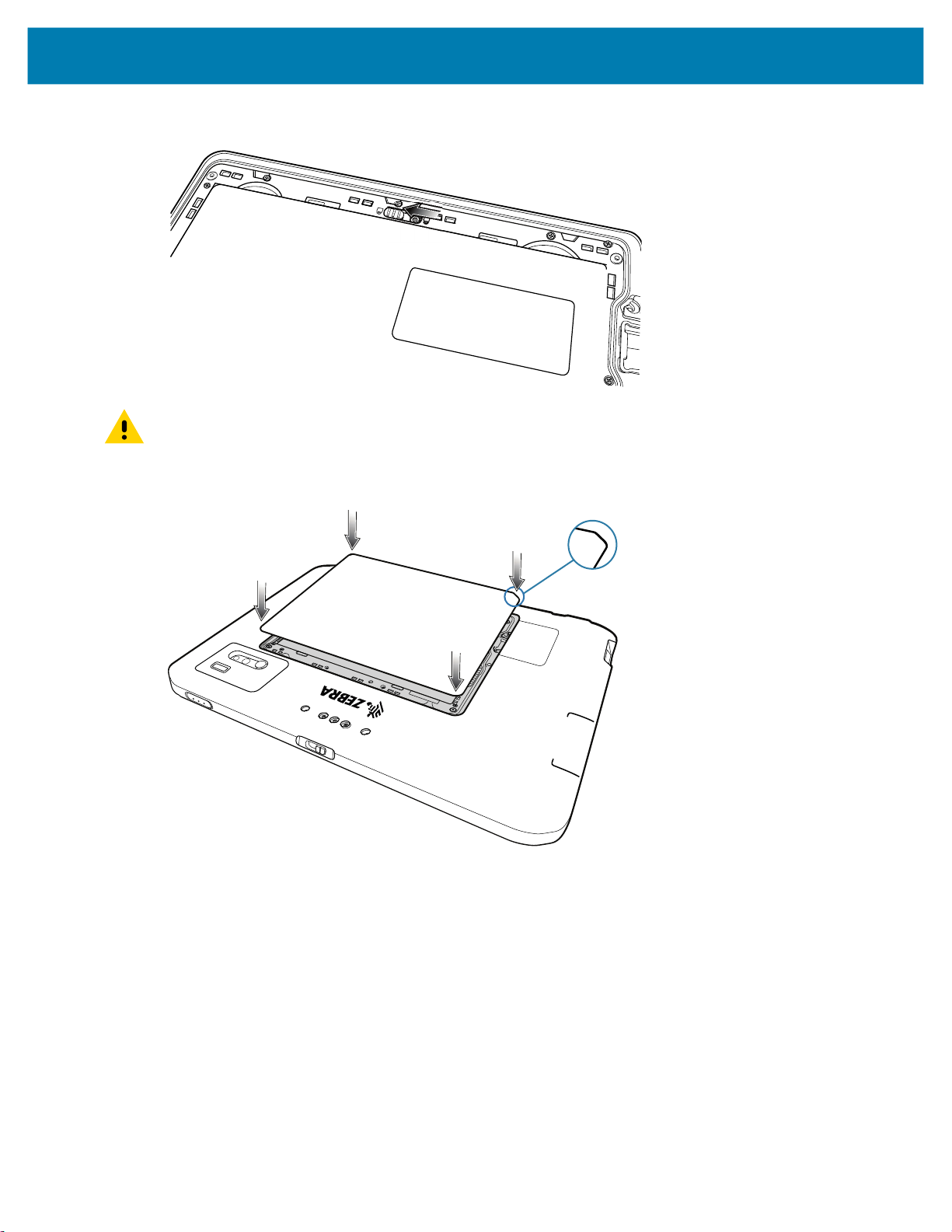

Installing a nano SIM Card ..................................................................................... 15

Using the Tablet................................................................................................................................ 19

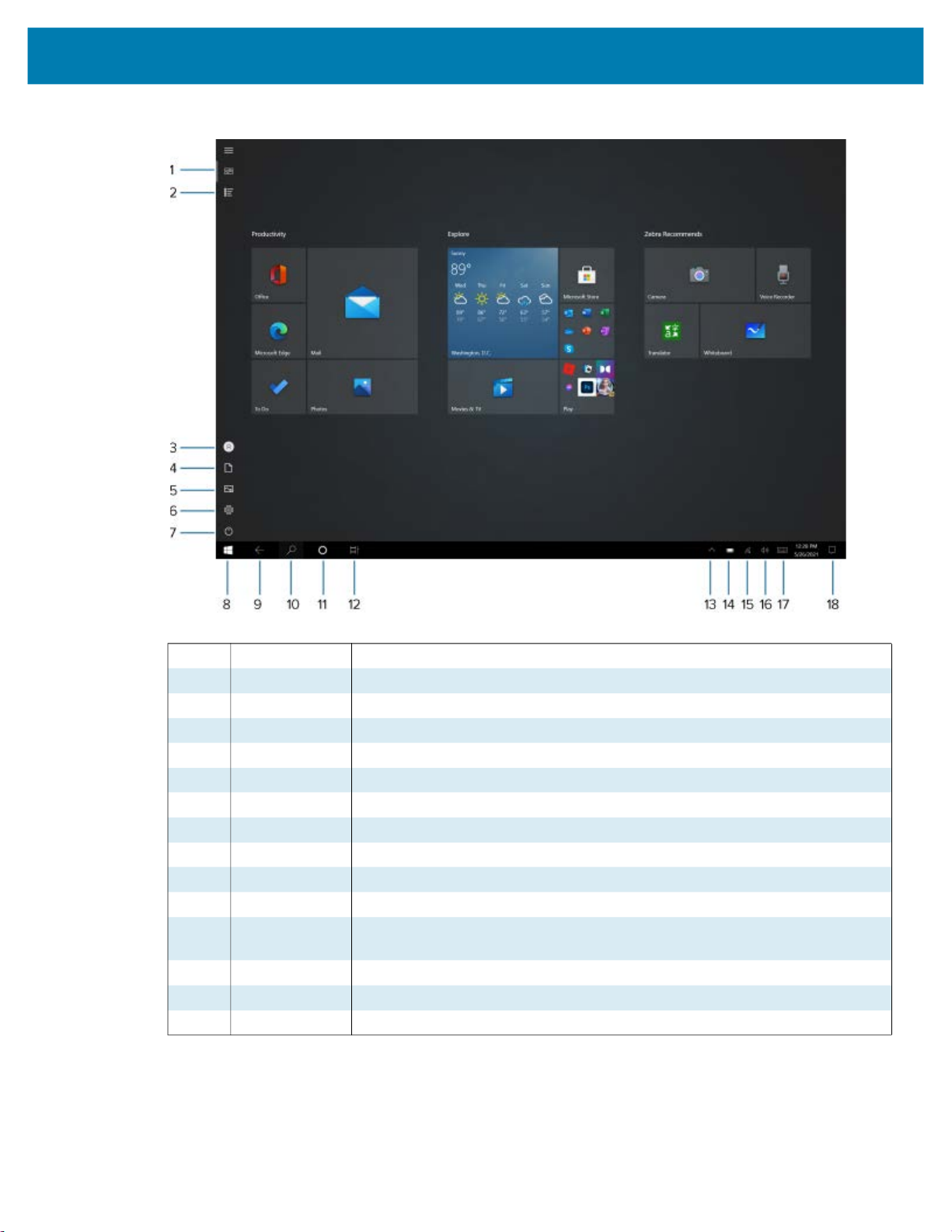

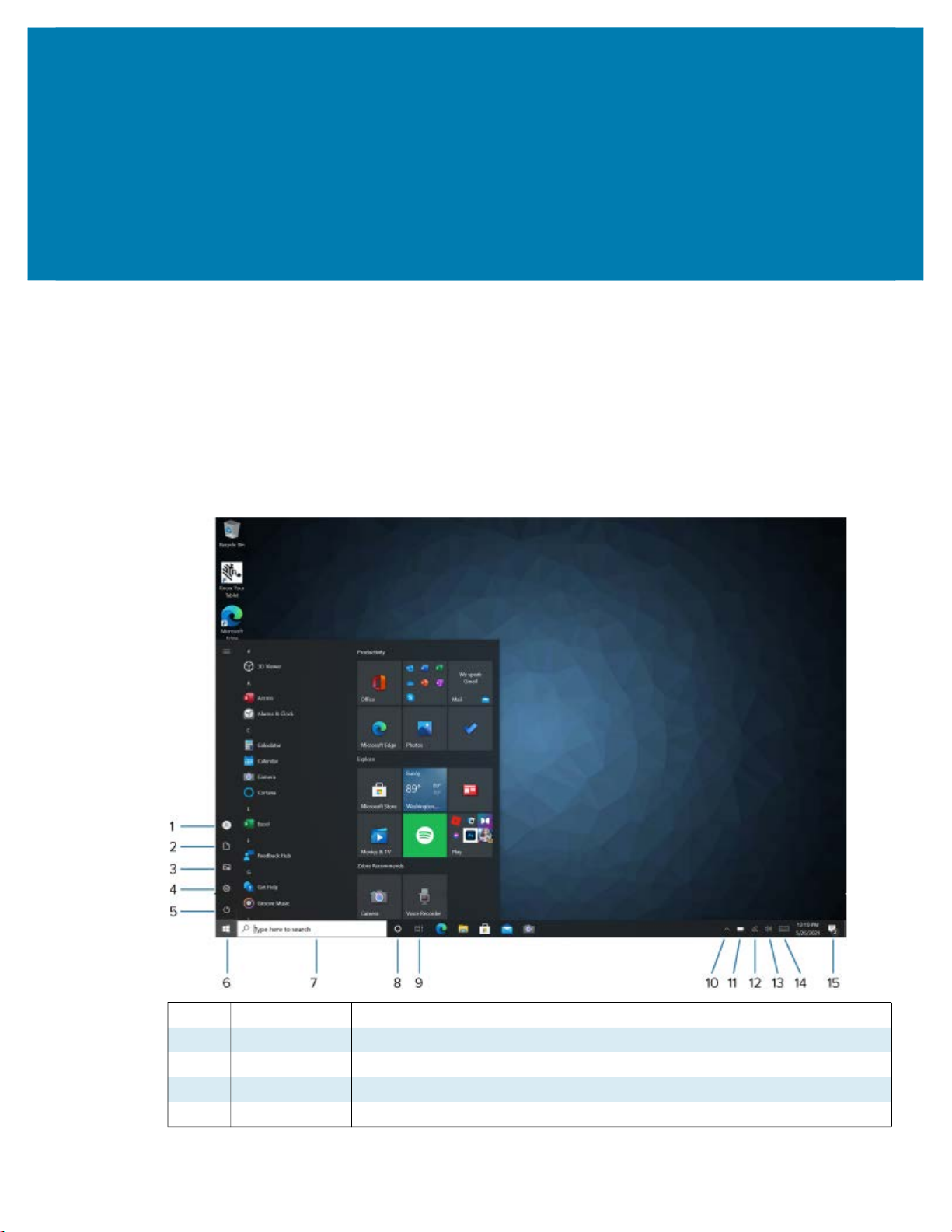

Start Screen ................................................................................................................... 19

Know Your Tablet........................................................................................................... 20

Tablet Information................................................................................................... 20

Support ................................................................................................................... 20

Battery Management...................................................................................................... 20

Optimizing Battery Life or Performance.................................................................. 21

Changing the Power Settings ................................................................................. 21

Manually Changing the Display Brightness ............................................................ 21

Automatically Changing the Display Brightness ..................................................... 21

Manually Activate Sleep Mode .............................................................................. 21

Battery Health Monitor............................................................................................ 22

Viewing Battery Health..................................................................................... 22

Tablet Mode ................................................................................................................... 22

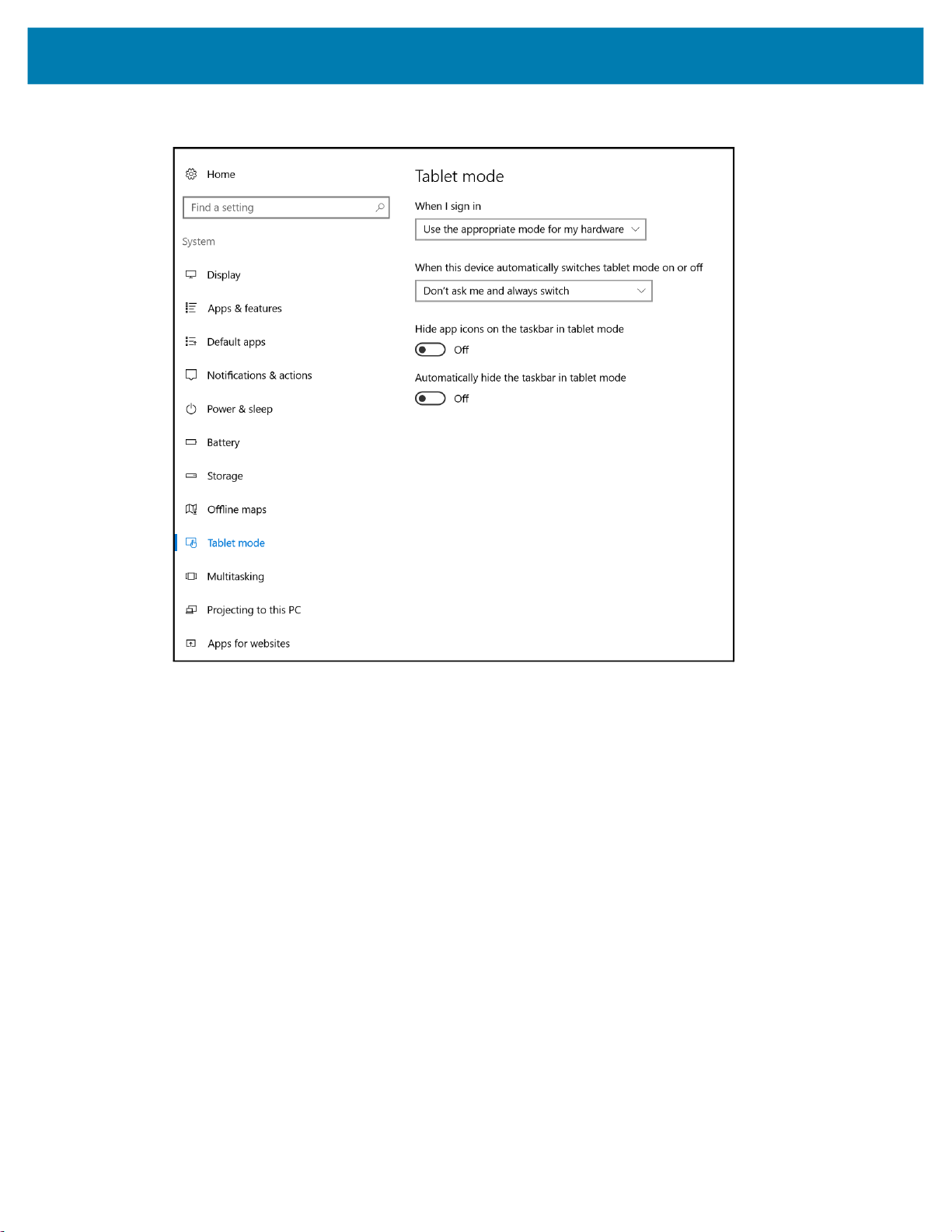

Configuring Tablet Mode ........................................................................................ 22

Contents

Tablet Mode Start Screen....................................................................................... 23

Multi-Touch Gestures ............................................................................................. 25

Configuring Touch Settings.............................................................................. 25

Changing Touch Mode ........................................................................................... 25

On-Screen Keyboard.............................................................................................. 26

Opening the On-Screen Keyboard................................................................... 26

Opening the Keyboard and Handwriting Panel ................................................ 26

Active Stylus ........................................................................................................... 27

Using the Camera .......................................................................................................... 27

Fingerprint Reader ........................................................................................................ 28

Setting Up a PIN..................................................................................................... 28

Setting Up the Fingerprint Reader.......................................................................... 28

Logging In with Your Fingerprint............................................................................. 29

Fingerprint Reader Tips ...................................................................................... 29

Windows Hello Face ..................................................................................................... 30

Setting Up Windows Hello Face ............................................................................. 30

Logging In with Windows Hello Face...................................................................... 30

Software............................................................................................................................................. 31

Initial Windows Setup..................................................................................................... 31

Factory Reset................................................................................................................. 31

Reinstall Windows......................................................................................................... 32

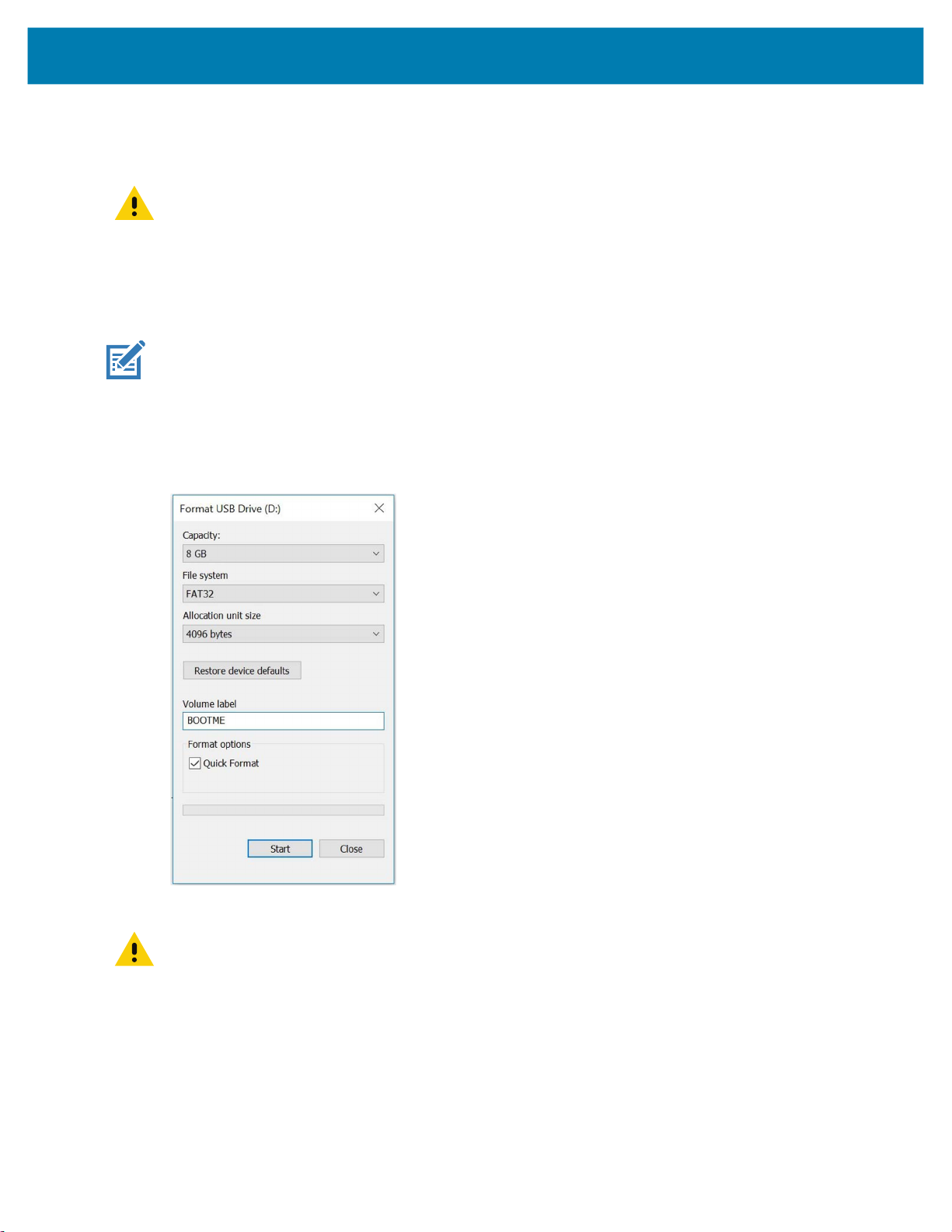

Creating an Installation USB Flash Drive ............................................................... 32

Reinstalling Windows ............................................................................................. 33

Checking BIOS Version.......................................................................................... 34

Checking Operating System Version...................................................................... 34

Enter the BIOS............................................................................................................... 34

Entering the BIOS with a Keyboard........................................................................ 34

Entering the BIOS without a Keyboard................................................................... 34

Entering the BIOS without a Keyboard from Windows ........................................... 34

Zebra Barcode Scanning Resources ............................................................................. 35

Application Installation ................................................................................................... 35

Getting Apps from the Windows Store ................................................................... 35

Data Capture ..................................................................................................................................... 36

Imaging .......................................................................................................................... 36

Digital Camera ............................................................................................................... 36

Scanning Considerations ............................................................................................... 36

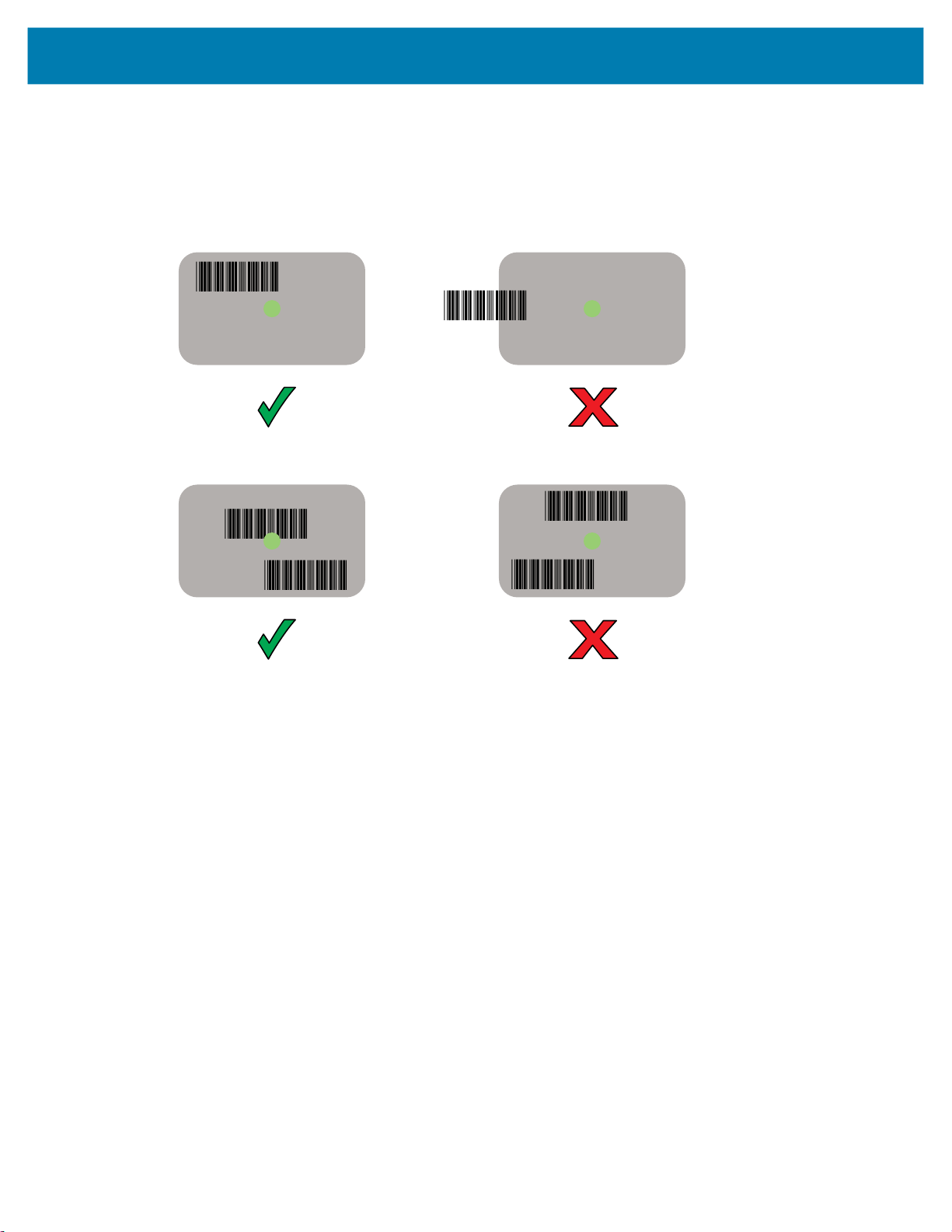

Scanning with Internal Imager........................................................................................ 37

Contents

Wireless............................................................................................................................................. 39

Wireless Local Area Networks ....................................................................................... 39

Connecting to a Wi-Fi Network............................................................................... 40

Viewing Network Information.................................................................................. 41

Configuring Proxy Settings ..................................................................................... 41

Adding a Wi-Fi Network.......................................................................................... 41

Wireless Wide Area Networks....................................................................................... 42

Connecting to a Cellular Data Network .................................................................. 42

Adding an Internet APN.......................................................................................... 42

Setting Up a SIM PIN ............................................................................................. 43

Removing a SIM PIN .............................................................................................. 43

Changing a SIM PIN............................................................................................... 43

Unblocking a SIM PIN ............................................................................................ 43

Bluetooth....................................................................................................................... 45

Adaptive Frequency Hopping ................................................................................. 45

Security................................................................................................................... 45

Bluetooth Profiles ................................................................................................... 46

Pairing with a Bluetooth Device.............................................................................. 47

Unpairing a Bluetooth Device ................................................................................. 47

Turning on Airplane Mode.............................................................................................. 47

Near Field Communications.......................................................................................... 48

Enabling NFC ......................................................................................................... 48

Reading NFC Cards ............................................................................................... 48

Accessories....................................................................................................................................... 49

Device Charging............................................................................................................. 52

Charging Indicators ................................................................................................ 52

Charging Temperatures.......................................................................................... 52

Charging Using the Dock........................................................................................ 52

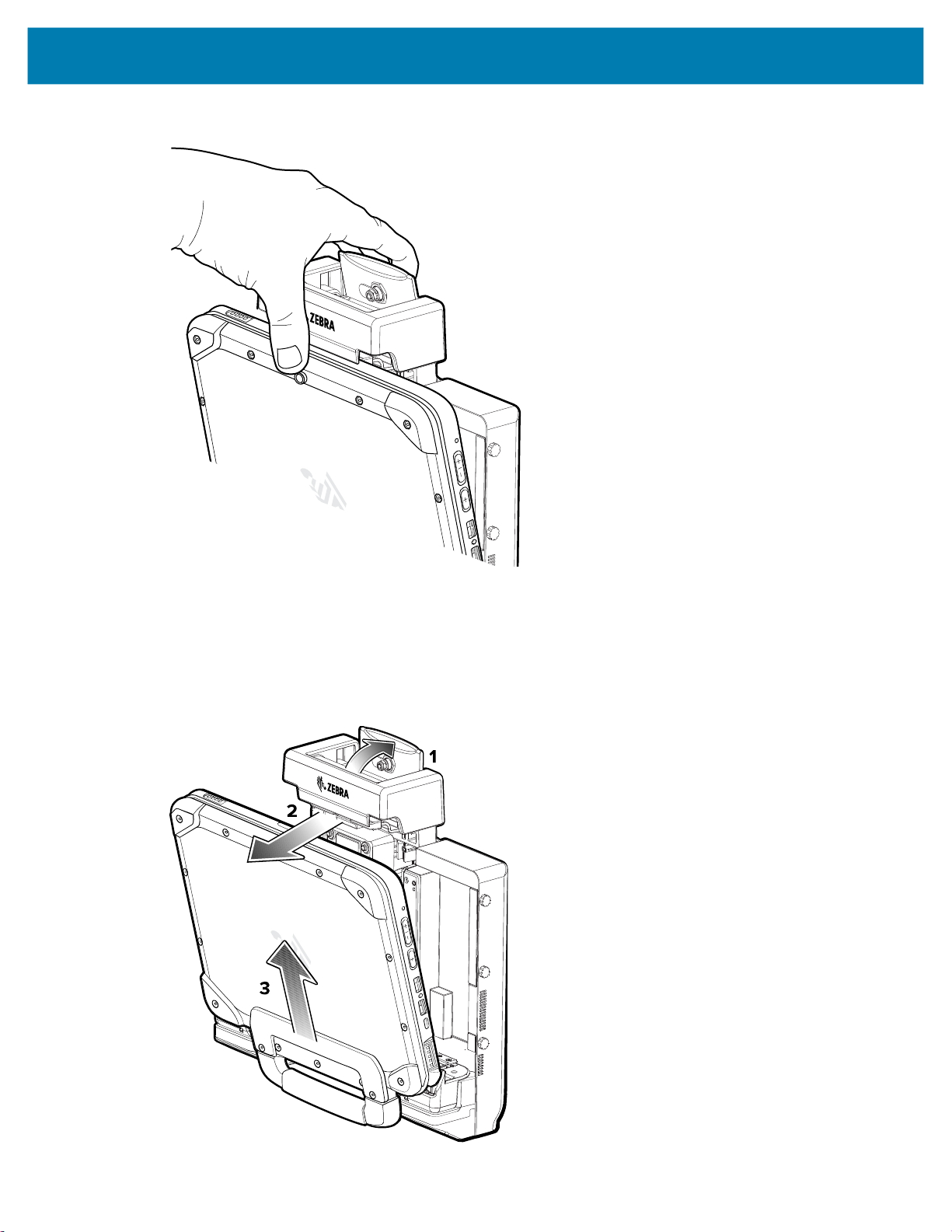

Removing the Tablet ........................................................................................ 54

Charging Using the USB-C to AC Adapter ............................................................. 55

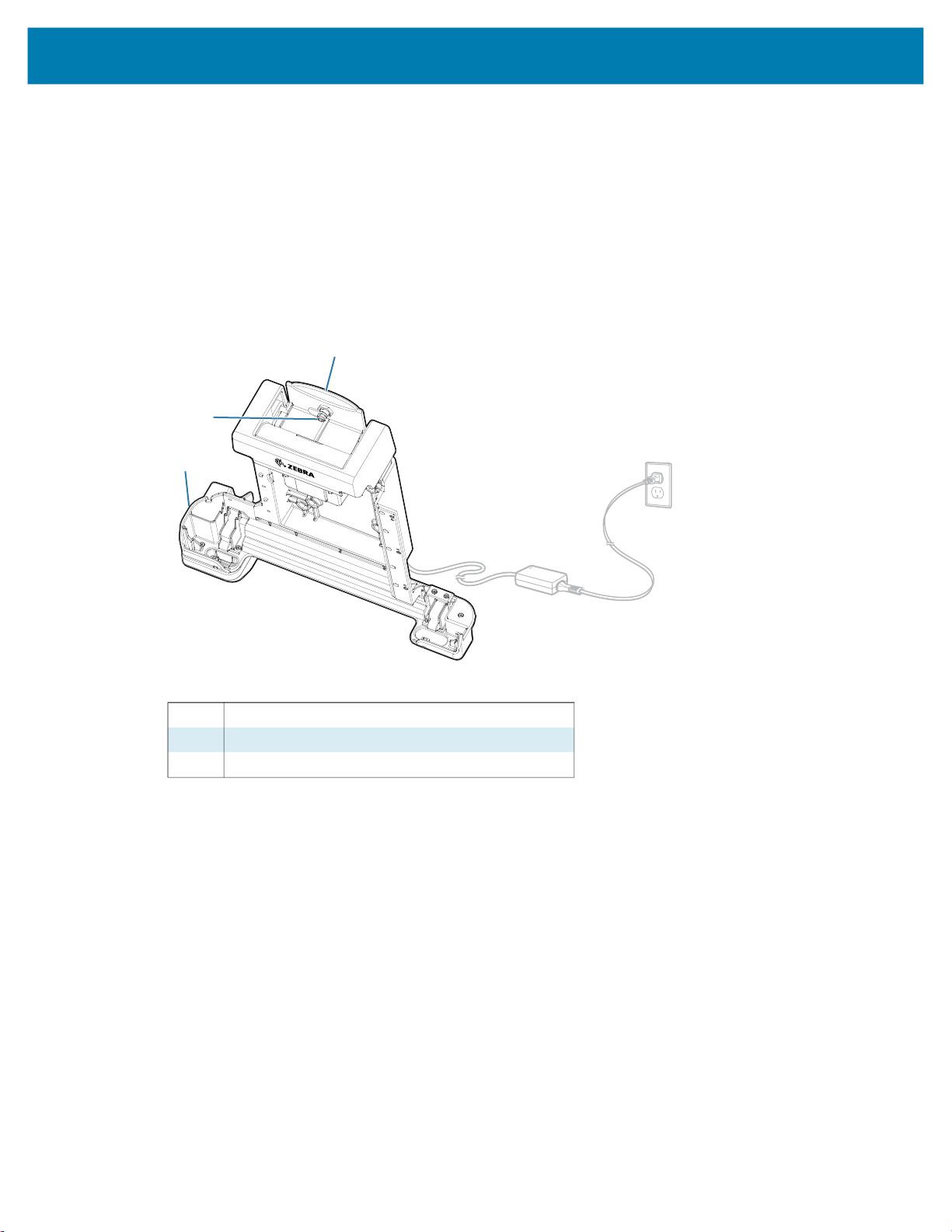

Power Only Dock .......................................................................................................... 56

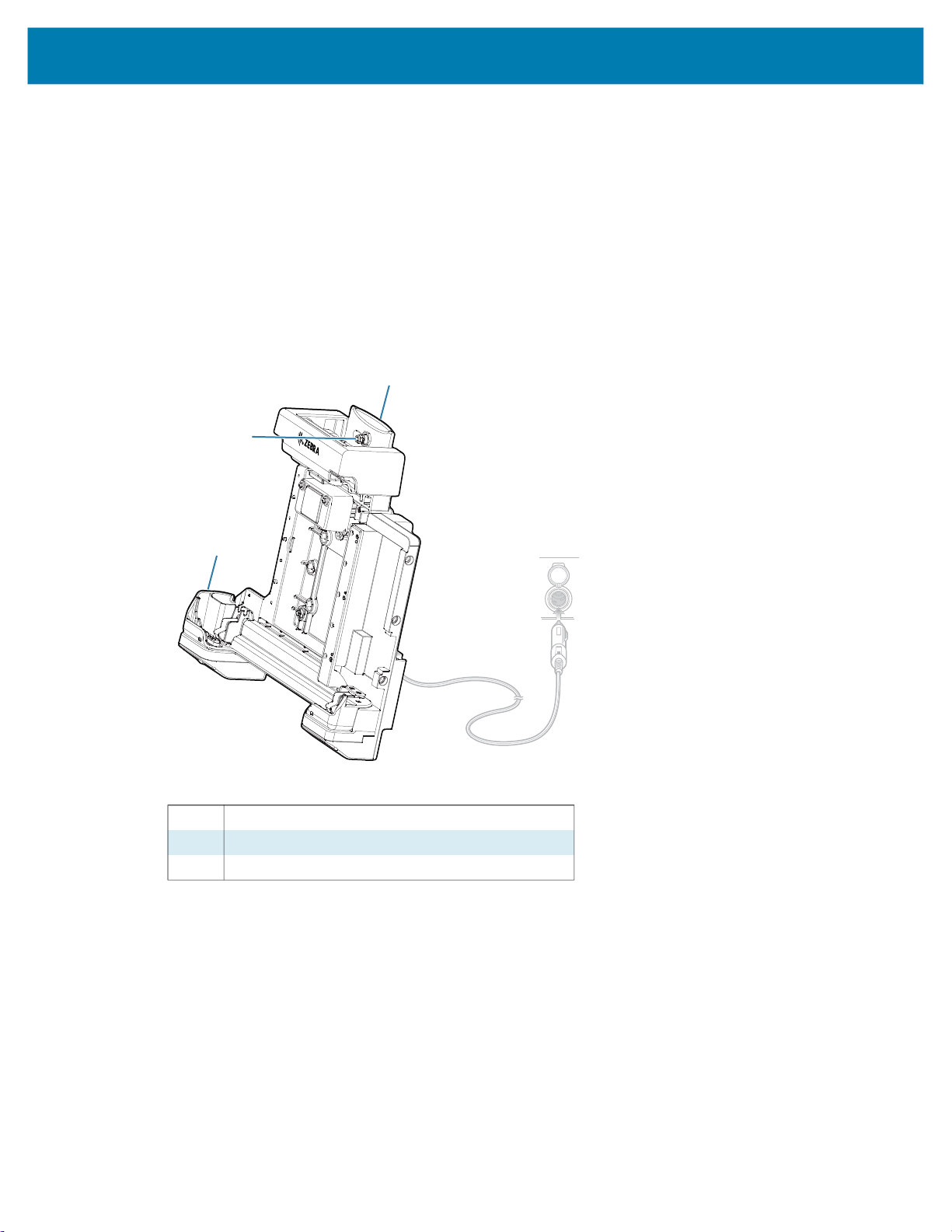

Vehicle Dock ................................................................................................................. 57

Office Dock.................................................................................................................... 58

Expansion Backs........................................................................................................... 59

Installing the Expansion Backs............................................................................... 59

Power Pack................................................................................................................... 61

Installing the Power Pack ....................................................................................... 61

Power Pack Charging............................................................................................. 62

Charging the Power Pack Using a Dock .......................................................... 62

Charging the Power Pack Using the 4-Slot Battery Charger ........................... 62

Contents

Viewing the Power Pack Charge Level .................................................................. 63

Checking Power Pack Status ................................................................................. 64

Keyboard....................................................................................................................... 65

Attaching the Keyboard .......................................................................................... 66

Removing the Keyboard ......................................................................................... 67

Setting the Backlight Color ..................................................................................... 68

Configuring the Programmable Keys...................................................................... 68

Maintenance and Troubleshooting ................................................................................................. 69

Maintaining the Device................................................................................................... 69

Preventing Image Persistence ....................................................................................... 69

Maintaining the Stylus.................................................................................................... 70

Battery Safety Guidelines............................................................................................... 70

Best Practices for Enterprise Mobile Computing Devices Operating in Hot Environments

and Direct Sunlight......................................................................................................... 71

Cleaning Instructions...................................................................................................... 71

Approved Cleanser Active Ingredients ................................................................... 71

Harmful Ingredients ................................................................................................ 71

Device Cleaning Instructions .................................................................................. 72

Special Cleaning Notes .......................................................................................... 72

Cleaning Materials Recommended ........................................................................ 72

Cleaning Frequency ............................................................................................... 72

Cleaning the Fingerprint Reader ............................................................................ 72

Traveling with Your Tablet ............................................................................................. 73

Troubleshooting ............................................................................................................. 73

Restarting the Device ............................................................................................. 73

Performing a Cold Boot .......................................................................................... 73

Troubleshooting the Tablet..................................................................................... 74

Troubleshooting the Dock....................................................................................... 75

Troubleshooting the 4-Slot Battery Charger ........................................................... 75

Specifications ................................................................................................................................... 76

Data Capture Supported Symbologies........................................................................... 76

Decode Distances.......................................................................................................... 76

Dock Specifications........................................................................................................ 77

About This Document

Introduction

This guide provides information about using the device and accessories.

NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.

Configurations

This guide covers the following configurations of the tablet:

Configuration Processor Memory Display Radios

ET80 TGL i5 Core w/Vpro WLAN

ET85 TGL i5 Core w/Vpro WAN

TGL U42 4 +2 Core I5-1140G7 8MB LLC Gen12 GFX

TGL U42 4 +2 Core I5-1140G7 8MB LLC Gen12 GFX

16 GB RAM/ 128 GB or 256 GB or 512 GB PCIe SSD

16GB RAM/ 128 GB or 256 GB or 512 GB PCIe SSD

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

WLAN: Intel Typhoon Peak 2 WIFI6E 802.11ax 2x2 MIMO

WPAN: Bluetooth v5.2 Low Energy

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel RM505Q 4x4 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: 5G

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel EM121 Cat 12 2x2 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: LTE

About This Document

Configuration Processor Memory Display Radios

ET80 TGL i5 Core WLAN

TGL U42 4 +2 Core i5-1130G7 8MB LLC Gen12 GFX

8 GB or 16GB RAM/ 128 GB or 256 GB or 512 GB PCIe SSD

3:2 Aspect Ratio

12.0 inch 800 Nits

WLAN: Intel Typhoon Peak 2 WIFI6E 802.11ax 2X2 MIMO

WPAN: Bluetooth v5.2 Low Energy

ET85 TGL i5 Core WAN

ET80 TGL i7 Core w/Vpro WLAN

ET85 TGL i7 Core w/Vpro WAN

TGL U42 4 +2 Core i5-1130G7 8MB LLC Gen12 GFX

TGL U42 4 +2 Core I7-1180G7 12MB LLC Gen12 GFX

8 GB or 16GB RAM/ 128 GB or 256 GB or 512 GB PCIe SSD

16GB RAM/ 128 GB or 256 GB or 512 GB PCIe SSD

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

3:2 Aspect Ratio

12.0 inch 800 Nits

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel RM505Q 4x4 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: 5G

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel EM121 Cat12 2X2 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: LTE

WLAN: Intel Typhoon Peak 2 WIFI6E 802.11ax 2X2 MIMO

WPAN: Bluetooth v5.2 Low Energy

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel RM505Q 4x4 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: 5G

WLAN: Intel Typhoon Peak 2 802.11 ax - WIFI6E Quectel EM121 Cat12 2X2 MIMO

WPAN: Bluetooth v5.2 Low Energy

WWAN: LTE

Energy Star

decisions. Thousands of industrial and commercial products deliver cost-saving energy solutions that improve air quality and protect the climate. ENERGY STAR and its partners have helped save families and businesses trillions of kilowatt-hours of electricity and reduced greenhouse gases every year.

About This Document

Zebra products that are Energy Star qualified help you save money while improving the quality of the environment. The sleep mode of your tablet is especially adept at saving energy, often up to 80% or more.

ENERGY STAR simple, credible, and unbiased information that you can rely on to make well-informed

is the government-backed symbol for energy efficiency, providing

You can see more information about Energy Star features at: energystar.gov

This PC is ENERGY STAR® compliant. The power management settings enabled by default on this PC have been selected for compliance with the current ENERGY STAR® Requirements. For optimal energy savings, ENERGY STAR® recommends that sleep mode is entered within 30 minutes of user inactivity and the display is turned off within 15 minutes of user inactivity.

The default power management settings on this PC are as follows.

Power Settings On Battery On AC

Turn off the display 5 minutes 20 minutes

Computer to sleep 5 minutes 20 minutes

Notational Conventions

The following conventions are used in this document:

• Tablet refers to the Zebra ET80/ET85 tablet.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen.

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (such as those that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. These icons and their associated meanings are described below.

About This Document

NOTE: The text here indicates information that is supplemental for the user to know and that is not required to complete a task.

IMPORTANT: The text here indicates information that is important for the user to know.

CAUTION—EYE INJURY: Wear protective eyewear when performing certain tasks.

CAUTION—PRODUCT DAMAGE: If the precaution is not taken, the product could be damaged.

CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.

CAUTION—HOT SURFACE: Touching this area could result in burns.

CAUTION—ESD: Observe proper electrostatic safety precautions.

CAUTION—ELECTRIC SHOCK: Disconnect the printer power before performing certain procedures to

avoid the risk of electric shock.

WARNING: If danger is not avoided, the user CAN be seriously injured or killed.

DANGER! If danger is not avoided, the user WILL be seriously injured or killed.

NOTE: This is an icon for wired networking notes.

NOTE: This is an icon for wireless networking notes.

Service Information

If you have a problem with your equipment, contact Zebra Global Customer Support for your region. Contact information is available at zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit

• Model number or product name

• Software type and version number

Zebra responds to calls by email, telephone or fax within the time limits set forth in support agreements.

If your problem cannot be solved by Zebra Customer Support, you may need to return your equipment for servicing and will be given specific directions. Zebra is not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty.

If you purchased your Zebra business product from a Zebra business partner, contact that business partner for support.

About This Document

Software Release Information

To check the software release information:

1. Touch the Start icon .

2. Select Settings > System > About.

• Device Specifications - Displays the device model number followed by the software release date

and serial number.

• Windows Specifications - Displays the OS version.

Getting Started

This section explains how to set up the device for the first time.

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later

storage and shipping.

2. Verify that the following were received:

• Rugged 2-in-1 tablet

• Regulatory guide

• SIM lock plate with screw (may be available on some ET85 models)

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global

Customer Support center immediately.

4. Prior to using the device for the first time, remove the protective shipping film that covers the scan

window and display.

Features

Getting Started

NOTE: Some features may not be available on all configurations.

Figure 1 Front View

1 Light sensor Determines ambient light for controlling display backlight

intensity.

2 Front microphones Use for voice communications or audio recordings.

3 Windows Hello Infrared

Illuminator

Illuminates your face with infrared (IR) light during Windows Hello face authentication.

4 Front camera Use for video conferencing.

5 Camera indicator LED Illuminates when the camera is activated. Momentarily lights

white when the device boots.

6 Touch screen Displays all information needed to operate the device.

7 Stylus tether mount Use to attach a stylus tether mount.

8 Volume up/down

Increases and decreases audio volume.

button

9 Power button Turns the display on and off. Press and release to power on the

10 Charging indicator LED Indicates power state and battery charging status while

11 USB-A port Provides USB host and client communications.

12 Threaded Insert Use to restrict access to the USB ports in hazardous locations

device. Press and hold to reset the device or power off.

charging and application generated notifications.

(requires boot).

Getting Started

13 USB-A port Provides USB host and client communications.

14 USB-C port Provides USB host and client communications, and device

charging via cables and accessories.

15 Scanner window Provides data capture using the imager.

16 Dock interface connector Provides communication to the device from the dock.

17 Speakers Provides audio output.

18 Keyboard latch slot Attaches the keyboard to the tablet.

19 Keyboard alignment slot Assists in aligning the tablet with the keyboard.

20 Keyboard interface connector Provides power and communication with the keyboard

21 Kensington security slot Use with a security cable to lock the tablet to the keyboard.

22 Power interface connector Provides power to the device through the dock.

Figure 2 Back View

1 Rear microphones Use for audio recordings.

2 Dock alignment slot Assists in aligning the tablet with the dock.

4 Front camera privacy cover

Pass-through antenna

Use to connect to an external antenna.

Use to cover the front camera when not in use.

switch

5 Rear camera privacy cover Use to cover the rear camera when not in use.

6 Rear camera LED flash Provides illumination for the camera.

7 Scan button Initiates barcode data capture when a scan-enabled application

8 Fingerprint sensor Provides biometric authentication.

9 Rear camera Autofocus camera that takes photos.

is active (programmable).

Getting Started

10 Communication expansion

port

11 NFC antenna position Use to read NFC cards.

12 Battery cover Provides access to the replaceable battery.

13 Solid State Drive Cover Provides access to the solid state drive.

Setting Up the Device

To start using the device for the first time:

1. Install a nano SIM card (optional for ET85 only).

2. Charge the device.

3. Power on the device.

Installing a nano SIM Card

1. Ensure the tablet is powered off.

2. Lift the notched corner of the battery cover and carefully lift the battery cover off the device.

For Ethernet and serial communication through the expansion adapter.

3. Slide the battery lock switch to the unlock position.

Getting Started

Using index fingers, life the battery up.

5. Insert the nano SIM card with the contacts facing up.

6. Push the SIM card in and ensure that it locks into place.

7. If required, install the SIM lock plate and secure with the M1.4 x 2 mm screw using a Phillips #0

screwdriver. The maximum torque for the screw is 1 kg/m (7 lb/ft).

8. Replace the battery, ensuring it is seated properly.

Getting Started

Slide the battery lock switch to the lock position.

CAUTION: Be aware of the orientation of the battery cover. Failure to replace the battery cover properly

may cause damage.

10. Align the tabs on the underside of the cover with the slot around the battery well.

11. Ensure that the chamfer on the battery cover is at the bottom left corner of the device.

Getting Started

Carefully press down around the edges of the cover. Make sure that the cover is seated properly.

12.

Using the Tablet

This chapter provides instructions on how to use some basic applications and key features.

Start Screen

By default, the Start screen displays in Desktop mode.

Figure 3 Start Screen in Desktop Mode

1 Users Opens user account window, locks screen or logs user off the device.

2 Documents Opens documents folder.

3 Pictures Opens pictures folder.

4 Settings Opens the Settings window.

5 Power Touch to place the device in sleep mode, shutdown or restart.

6 Start Access the Home screen from any window.

7 Search Search apps, settings, and files on your tablet or perform a web search.

8 Cortana Opens voice activated search window.

9 Recent

Applications

10 More Settings Includes Bluetooth, Intel Graphics, and Windows Defender.

11 Battery Displays current battery status.

12 Network Opens network settings.

13 Sound Use to control audio volume level.

14 Keyboard Opens the virtual keyboard.

15 Action Center Provides easy access to some frequently used settings and notifications.

Know Your Tablet

Using the Tablet

Displays all open applications.

Touch the icon to open the Action Center. The first row of setting option boxes display and any notifications. Touch Expand to view all setting option boxes.

You can access information about your tablet by touching Know Your Tablet on the desktop.

This app has icons that provide access to PC information and Support. The Support page includes information about drivers, BIOS, accessories, and documentation.

Tablet Information

The System Information window displays information about the BIOS, the battery, the network adapters, the hard disk. This information is stored on the solid-state drive (SSD) in your tablet.

Support

Select Support to open the Zebra web site, where you can access these sites and pages:

• Product support

• User documentation

• Software, Firmware/BIOS, and driver downloads

• Knowledge base articles

• Repair request and status and RMA status

• Warranty information

• Registration

• TPM notification for security advisory

Battery Management

Follow these tips to optimize battery life.

• Set the device to turn off after a short period of non-use.

• Set the display to turn off or dim backlight.

Using the Tablet

• Turn off all wireless radio activity when not in use.

Optimizing Battery Life or Performance

Optimize the battery life when running the tablet on battery power, or optimize performance when the tablet is connected to a power source.

1. In the taskbar, touch the battery icon and use the slider to adjust for battery life or performance.

2. Touch Battery settings to display battery saver options.

Changing the Power Settings

To set the device or display to turn off after a short period of non-use:

1. In the taskbar, touch the Action Center icon .

2. Touch All Settings > System > Power and sleep.

3. Under Sleep, choose when you want the device/screen to go to sleep (on battery power and when

plugged in).

Manually Changing the Display Brightness

To manually change the display brightness:

1. In the taskbar, touch Action Center icon .

2. Touch All Settings > System > Display.

3. Under Change brightness, move the slider to adjust the brightness.

Automatically Changing the Display Brightness

To toggle automatic brightness:

1. In the taskbar, Action Center icon .

2. Touch All Settings > System > Display.

3. Check the box to enable Change brightness automatically when lighting changes.

Manually Activate Sleep Mode

Manually activate sleep mode to conserve battery power when you are not actively using the tablet.

1. It is recommended to first save your files.

2. Touch the Start icon and then the Power icon just above it.

A small menu pops up.

3. Touch Sleep.

The screen goes dark and the computer enters sleep mode.

4. You can wake up the tablet by pressing the Power button

Battery Health Monitor

Use the Battery Health Monitor app to view battery health and information.

• Battery Health - The health of the battery.

• Manufacture Date - The date of manufacture.

• Serial Number - Serial number of the device.

A warning message appears if the battery is past its useful life and should be replaced.

Viewing Battery Health

1. In the taskbar, select .

2. Select .

Tablet Mode

This section describes how to configure and use tablet mode.

Using the Tablet

Configuring Tablet Mode

You may configure how the tablet Start screen displays depending upon if it is being used as a tablet or docked in a cradle.

Using the Tablet

Touch All Settings > System > Tablet mode.

• When I sign in:

• Use tablet mode - set to tablet mode after signing in.

• Use desktop mode - set to desktop mode after signing in.

• Use the appropriate mode for my hardware - let the tablet determine if it is.

• When this device automatically switches tablet mode on or off

• Don’t ask me and don’t switch

• Always ask me before switching

• Don’t ask me and always switch

• Hide app icons on the taskbar in tablet mode - enable to hide application icons in the taskbar.

• Automatically hide the taskbar in tablet mode - enable to hide the taskbar when in tablet mode.

Tablet Mode Start Screen

The tile-based interface allows direct access to recently used applications, emails, photos, contacts, and frequently viewed websites. You may pin favorite apps as tiles to customize the Start screen. See Know

Your Tablet for information.

Live Tiles, such as news, sports, weather, social-networking sites, etc. update in real time.

Using the Tablet

Figure 4 Start Screen in Tablet Mode

1 Pinned tiles Places the Home screen in Tile view.

2 All apps Lists all applications alphabetically.

3 Users Opens user account window, locks screen or logs user off the device.

4 Documents Opens documents folder.

5 Pictures Opens pictures folder.

6 Settings Opens the Settings window.

7 Power Touch to place the device in sleep mode, shutdown or restart.

8 Start Access the Home screen from any window.

9 Back Displays the previous screen.

10 Search Search apps, settings, and files on your tablet or perform a web search.

11 Cortana Opens voice activated search window.

12 Recent

Applications

13 More Settings Includes Bluetooth, Intel Graphics, and Windows Defender.

14 Battery Displays current battery status.

15 Network Opens network settings.

Displays all open applications.

16 Sound Use to control audio volume level.

17 Keyboard Opens the virtual keyboard.

18 Action Center Provides easy access to some frequently used settings and notifications.

Multi-Touch Gestures

Depending on the application, some gestures might not be available.

• Touch: Open an application or perform an action on an open application, such as copy, save and

delete, depending on the application.

• Touch and hold: Open a menu.

• Slide: Scroll through items, such as lists, pages, and photos.

• Drag: Move an object.

• Move two fingers closer together: Zoom out.

Using the Tablet

Touch the icon to open the Action Center. The first row of setting option boxes display and any notifications. Touch Expand to view all setting option boxes.

• Move two fingers farther apart: Zoom in.

• Put two or more fingers on an item and then rotate your fingers clockwise or counterclockwise: Rotate

an item.

• Swipe in from the right edge: Display the Action Center.

• Swipe in from the left edge: Displays open applications.

• Swipe in from the top edge to the bottom on an open application: Close the current application.

Configuring Touch Settings

1. Touch the Search icon to search for Control Panel.

2. Open Control Panel.

3. Touch Hardware and Sound > Pen and Touch.

4. Select Touch action and then Settings.

5. After making changes touch Apply.

Changing Touch Mode

The device display is able to detect touch using a finger, glove, or stylus; also included is support for using the device in the rain.

NOTE: The glove may be made of medical latex, leather, cotton, or wool. For optimal performance use a Zebra certified stylus.

1. Touch All apps > Zebra Technologies > Touch Mode Switcher.

2. When prompted to allow device changes, touch Yes. The Touch Mode Switcher window displays with

the current mode indicated.

3. Touch the desired option to change the mode, then touch OK.

Using the Tablet

On-Screen Keyboard

Use the On-Screen Keyboard to type text, numbers, symbols, and other characters. The touch keyboard and handwriting panel also can be used to perform handwriting.

When you rotate the device the On-Screen Keyboard or the touch keyboard and handwriting panel automatically rotates to the corresponding portrait or landscape view.

Opening the On-Screen Keyboard

1. Touch the Search icon to search for Keyboard, and then tap On-Screen Keyboard.

2. Touch the Keyboard icon in the Task bar.

Opening the Keyboard and Handwriting Panel

1. Touch the Keyboard icon in the Task bar. The Keyboard displays.

2. In the top left of the keyboard tap the Keyboard icon to display a Keyboard and Handwriting Options

window.

3. Select from desired options.

1 Small keyboard

2 Handwriting panel

3 Alternate keyboard layout

4 All settings

5 Region and language

6 Small keyboard

7 Change keyboard width

Active Stylus

The tablet supports stylus pens with Microsoft pen protocol MPP 2.0 technology, including the ET80/ET85 active stylus.

Using the Camera

1. Ensure the front camera privacy cover (1) or rear camera privacy cover (2) is open.

Using the Tablet

2. Open the camera application. The Camera Indicator LED illuminates.

3. Point the camera at an object.

4. Touch the on-screen shutter button to take a photo or record a video.

Fingerprint Reader

You can use the fingerprint reader to log on to the tablet by reading your fingerprint instead of entering a password. This feature provides an additional level of security for the tablet.

NOTE: The fingerprint reader is available only on some configurations.

These instructions assume that you have a password for logging into your tablet.

Setting Up a PIN

IMPORTANT: To use the fingerprint reader, you need to set up a PIN. If you already have a PIN, then you

can skip these steps and go to Setting Up the Fingerprint Reader on page 28.

1. Touch the Windows Start icon and touch the Settings icon.

The Settings window appears.

2. Touch the Accounts icon.

Using the Tablet

The Accounts window appears.

3. In the left pane, touch Sign-in options.

4. In the right pane of the Sign-in options, under Windows Hello PIN, touch Add.

5. Enter your PIN and touch OK.

Now you can set up the fingerprint reader.

Setting Up the Fingerprint Reader

After you have a PIN, the Windows Hello section of the Sign-in Options is enabled and you can set up your fingerprint.

1. Touch the Windows Start icon and touch the Settings icon above it.

The Windows Settings menu appears.

2. Touch the Accounts icon.

3. Touch Sign-in options in the left pane.

4. Touch Windows Hello Fingerprint > Set up.

A welcome window appears.

5. In this window, touch Get started.

6. Enter your PIN.

7. Decide which finger to use.

8. The setup asks you to place your finger on the fingerprint reader a few times for it to map your finger.

9. It prompts you to touch the sensor multiple times and from different angles. Follow the instructions as

you are registering your fingerprint.

Using the Tablet

When successful, touch Close.

10.

11. Next time you log in, you can use your PIN or you can use your finger on the fingerprint reader.

NOTE: You can register more than one finger to use with this reader. Keep in mind which fingers you have

established with the reader and use only those fingers.

Logging In with Your Fingerprint

When you start the tablet or wake it up from sleep mode, put your finger on the fingerprint scanner and press it for a brief time.

It will either recognize your print and open up Windows or it will ask you to try again.

Fingerprint Reader Tips

• Be consistent. Press the finger to the scanner and hold it there for a moment and scan at the same

angle each time. For example, if you register your finger with your hand open, hold your hand the same way each time you scan.

• Read the prompts carefully and ensure that you wait for the prompt before you swipe.

• When scanning, press hard enough to fully contact the sensor.

• Wipe dirt or debris off your finger before scanning it so nothing interferes with the scan. Rub your

fingers together to stimulate the natural skin oils so your fingerprint is easier to detect.

• If you are having trouble registering a specific finger, try to register a different finger.

• If you are repeatedly having trouble getting a good scan, you might need to clean the sensor.

See Cleaning the Fingerprint Reader on page 72.

NOTE: Be sure to press your finger to the scanner in the same way each time.

Windows Hello Face

You can use the front camera to log on to your tablet using Windows Hello Face Authentication instead of entering a password.

Setting Up Windows Hello Face

To use Windows Hello Face, you need to set up a PIN. For steps on how to set up a PIN, see Setting Up a

PIN on page 28.

1. Touch the Windows Start icon and touch the Settings icon.

The Settings window appears.

2. Touch the Accounts icon.

The Accounts window appears.

3. In the left pane, touch Sign-in options.

Using the Tablet

4. Touch Windows Hello Face > Set up > Get Started.

5. Enter your PIN.

6. Hold your face steady until the image is captured.

Logging In with Windows Hello Face

When you start the tablet or wake it up from sleep mode, make sure your face is in view of the front camera.

If your face is not recognized, the Sign-in screen displays. Log in with your PIN or touch Sign-in options for more options.

Software

This chapter provides instructions on initial setup, how to reset the tablet, and how to reinstall Windows.

Initial Windows Setup

After performing a factory reset or updating the tablet firmware or operating system, the Windows setup process begins.

The welcome screen appears and then a series of windows prompt you for information regarding your preferences including Keyboard Layout, Network Setup, Account Name, Security, and Privacy.

Next, a short configuration process occurs after which the Windows home screen displays.

Any apps that you installed from the Windows Store prior to reset, are automatically reinstalled using your mobile broadband or Wi-Fi internet connection when connected; apps installed from other sources are not. After the process is complete a list of apps removed during reset is created on the desktop.

Factory Reset

Restores Windows to original factory settings. To reset the device:

1. Connect the device to a power source.

2. Touch Settings > Update and security > Recovery.

3. Under Reset this PC, touch Get started.

4. Touch Keep my files to remove all apps and settings but keep all personal files or Remove everything

to remove all personal files, apps, and settings.

CAUTION: Removing everything erases all data, including your account configuration, applications, music, pictures and files. Make sure that you back up all the required data before you proceed.

5. Touch Next until the reset process begins. The process can take an hour or longer.

6. When the reset is complete the Windows setup process begins.

Reinstall Windows

Create an installation USB flash drive to reinstall the operating system on the device.

CAUTION: All data on the tablet is erased upon installation.

Creating an Installation USB Flash Drive

Before you begin, request software for your tablet by visiting Zebra Support and Downloads at zebra.com/support and download the software to a host computer.

NOTE: Make sure the entire file downloads completely. Partial downloads may corrupt the device.

1. Insert a 16 GB or larger USB flash drive into a host computer.

2. From Windows Explorer right click on the USB flash drive and select Format.

Figure 5 Format Dialog Box

Software

3. In the File system drop down, select FAT32.

CAUTION: Only FAT32 format is recognized by the system BIOS.

4. In the Volume label text box, enter BOOTME.

5. Click Start. A warning appears; click OK to proceed.

6. Click OK when the format complete and confirmation dialogs appear.

7. Using Windows Explorer, extract the software file you downloaded into a folder.

8. Copy the entire contents of the folder to the formatted flash drive.

9. Ensure that all the files copied successfully and then safely unmount the USB drive.

Reinstalling Windows

Before you begin, connect either the ET80/ET85 keyboard or any standard USB keyboard to the tablet. A physical keyboard is required to complete the setup.

1. Connect the tablet to a power source.

2. Plug the bootable USB flash drive into the tablet USB port.

3. Reboot the device.

4. Before Windows starts, press F12 on the keyboard.

The Boot menu displays.

5. Select USB. The tablet boots to WinPE and installs the operating system and BIOS updates.

Installation takes approximately 9 minutes.

6. When complete, press Alt + F4 on the keyboard. The device reboots and the Windows setup process

initiates. See Initial Windows Setup.

7. After Windows setup is complete, in the taskbar, touch , then touch , then touch Eject (drive

name).

8. After the message Safe To Remove Hardware message appears, remove the flash drive from the

tablet.

Software

Check Versions

You may check the versions for:

• BIOS Version

• Operating system Version

Checking BIOS Version

Use one of the following methods to check the current version of the BIOS.

• From the desktop, open Know Your Tablet.

• Access system information using the command prompt.

a. In the search field, type cmd, then touch Command Prompt Desktop App to open.

b. In the Command window, type msinfo32.

c. Press Enter key. The System Information window appears. The BIOS version displays in the BIOS

Version/Date field.

Software

Checking Operating System Version

To check the current operating system version, see Software Release Information on page 11.

Enter the BIOS

Enter the BIOS to make system changes such as managing your hardware and changing the boot sequence.

Entering the BIOS with a Keyboard

1. Connect a keyboard to the tablet.

2. Start or restart the tablet.

3. Before the boot screen appears, repeatedly press the F2 key on the keyboard.

Entering the BIOS without a Keyboard

1. Start or restart the tablet.

2. When the boot screen appears, repeatedly tap the screen above the Zebra logo.

3. Select Enter Setup.

Entering the BIOS without a Keyboard from Windows

Enter the BIOS without a keyboard from Windows.

1. From Windows, touch the Start icon .

2. Touch All Settings > Update & Security > Recovery.

3. Under Advanced startup, touch Restart Now. Windows shuts down.

4. Touch Troubleshoot.

Software

Touch Advanced options.

6. Touch UEFI Firmware Settings.

7. Touch Restart.

Zebra Barcode Scanning Resources

To obtain Zebra scanning resources such as applications, SDKs, drivers, and RFID software see the Zebra Barcode Scanning Software web page at:

zebra.com/us/en/products/software/scanning-systems.html

Application Installation

Install programs and apps from the Internet, or a local network. Make sure you trust the publisher of the app and the website.

In your web browser, tap or click the link to the app. To install it now, tap Open or Run, and then follow the instructions on your screen. To install the app later, tap Save or Save as to download it.

Getting Apps from the Windows Store

To obtain apps from the Windows Store, select the Store tile from the Start menu or taskbar.

Data Capture

The device supports data capture using an integrated scanner and Windows compatible Zebra Bluetooth and USB scanners.

For information on pairing and scanning using Zebra scanners, go to the Product Reference Guide for your scanner.

NOTE: When using 123Scan to configure the ET80/85 on-board scan engine, a mouse is required. 123Scan does not support touch screen use. If using 123Scan on a computer other than your tablet, select scanner model SE4107.

Imaging

The device with an integrated 2D imager has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal,

PDF417, Digimarc, and 2D matrix code types.

• Advanced intuitive laser aiming cross-hair and dot aiming for easy point-and-shoot operation.

The imager uses imaging technology to take a picture of a barcode, stores the resulting image in memory, and executes state-of-the-art software decoding algorithms to extract the barcode data from the image.

Digital Camera

The device with an integrated camera based barcode scanning solution has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal,

QR, PDF417, and 2D matrix code types.

• Cross-hair reticle for easy point-and-shoot operation.

The solution uses the advanced camera technology to take a digital picture of a barcode, and executes state-of-the-art software decoding algorithms to extract the data from the image.

Scanning Considerations

Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it. However, consider the following to optimize scanning performance:

• Range: Scanners decode best over a particular working range — minimum and maximum distances

from the barcode. This range varies according to barcode density and scanning device optics. Scan within range for quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner closer and further away to find the right working range for the barcodes being scanned.

• Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back

into the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode so that the beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to work within.

• Hold the device farther away for larger symbols.

• Move the device closer for symbols with bars that are close together.

NOTE: Scanning procedures depend on the app and device configuration. An app may use different

scanning procedures from the one listed above.

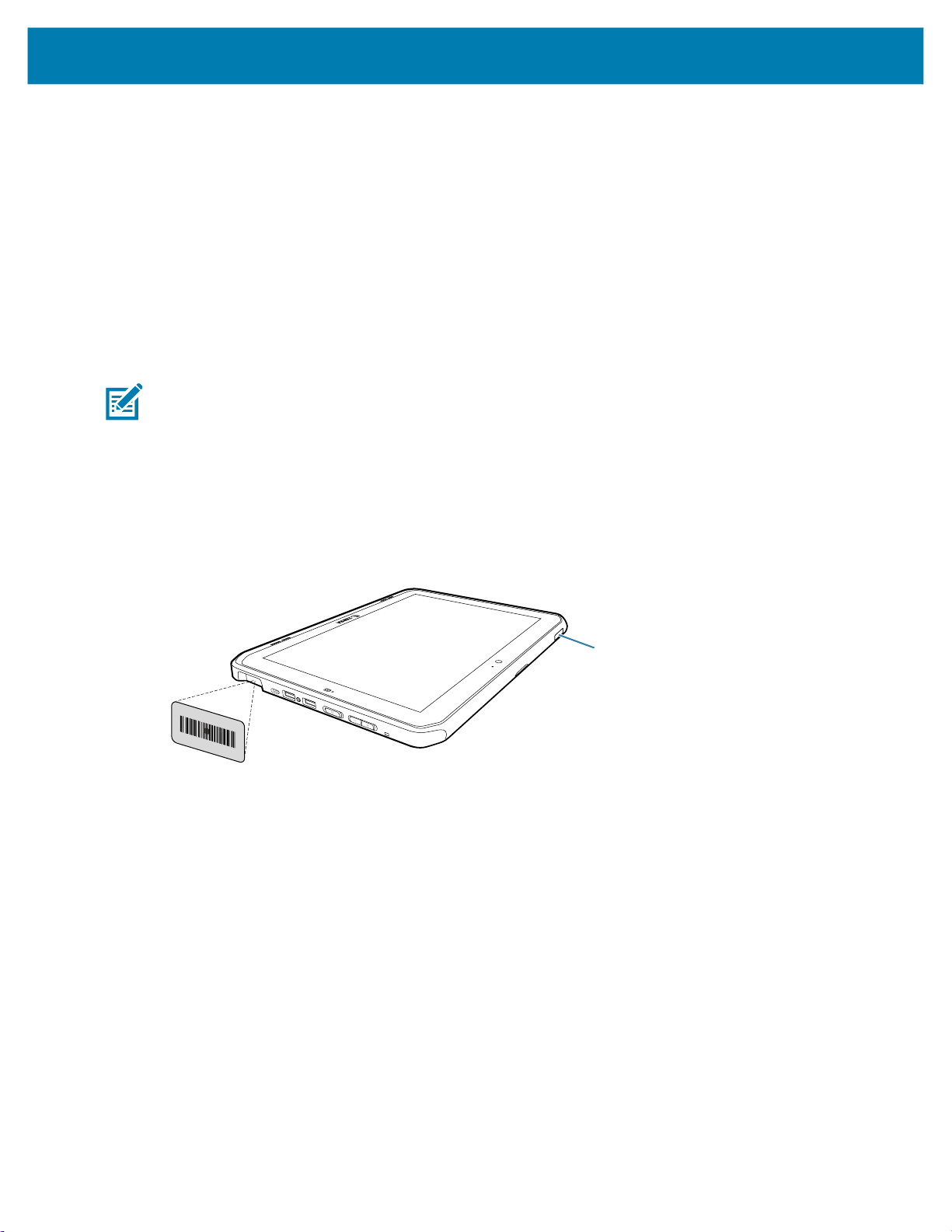

Scanning with Internal Imager

To read a barcode, a scan-enabled app is required.

Data Capture

1. Ensure that an app is open on the tablet and a text field is in focus (text cursor in text field).

2. Point the scanner exit window at a barcode.

3. Press and hold the Scan button (1). The aiming pattern turns on to assist in aiming.

Data Capture

Ensure the barcode is within the area formed by the aiming pattern. The aiming dot increases visibility

in bright lighting conditions.

A beep sounds to indicate the barcode was decoded successfully. When the Internal Scanner is in Pick List mode, the tablet does not decode the barcode until the aiming dot touches the barcode.

Figure 6 Internal Scanner Aiming Pattern

Figure 7 Internal Scanner Pick List Mode with Multiple Barcodes in Aiming Pattern

5. Release the scan button. The captured data appears in the text field.

Wireless

This section provides information on the wireless features:

• Wireless Local Area Network (WLAN)

• Wireless Wide Area Network (WWAN)

• Bluetooth

• Near Field Communications (NFC).

Wireless Local Area Networks

Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building that has the appropriate WLAN infrastructure. Both the infrastructure and the device must both configured properly to enable this communication.

Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings to configure the device to match the security scheme.

The device supports the following WLAN security options:

Table 1 WLAN Security Options

Security Type Encryption EAP Method Authentication Method

Open Network None/WEP N/A N/A

WPA2-Personal WPA3-Personal

AES N/A N/A

Wireless

Table 1 WLAN Security Options (Continued)

Security Type Encryption EAP Method Authentication Method

WPA2-Enterprise

WPA3-Enterprise

802.1x WEP PEAP Secured password (EAP-MSCHAPv2)

AES Protected EAP (PEAP) Secured password (EAP-MSCHAPv2)

Smart card or other certificate

Smart Card or other Certificate

EAP-TTLS Unencrypted password (PAP)

CHAP

Microsoft CHAP (MS-CHAP)

Microsoft CHAP v2 (MS-CHAPv2)

Smart card or other certificate

Secured password (EAP-MSCHAPv2)

EAP-SIM N/A

EAP-AKA N/A

EAP-AKA’ N/A

Smart Card or other Certificate

EAP-TTLS Unencrypted password (PAP)

CHAP

MS-CHAP

MS-CHAPv2

Smart Card or other Certificate

Secured password (EAP-MSCHAPv2)

EAP-SIM N/A

EAP-AKA N/A

EAP-AKA’ N/A

NOTE: To extend the battery, turn off Wi-Fi when not in use.

Connecting to a Wi-Fi Network

To establish a Wi-Fi network connection:

1. In the taskbar, touch the network icon. A list of available Wi-Fi networks displays.

2. Touch the network to connect.

3. Touch the Connect automatically checkbox to allow the tablet to connect automatically to this network

whenever the device is on.

4. Touch Connect.

5. If required, enter security key and then touch Next.

6. Touch Yes to find PCs and devices on the network or No to not find these devices. Once connected,

Connected appears under the network name.

Viewing Network Information

To view security, address, and other information about the connected Wi-Fi network:

1. In the taskbar, touch the network icon. A list of available Wi-Fi networks display.

2. Touch the Wi-Fi network name.

3. Touch Properties.

Configuring Proxy Settings

The device supports the proxy feature for Wi-Fi connections. The proxy feature enables access to more Web-based source and browse the Internet more securely. To configure the proxy settings when connecting to a Wi-Fi network:

1. In the taskbar, touch Action Center.

2. Touch All Settings.

3. Touch Network & internet, then touch Proxy.

4. In the Manual proxy setup section, touch the Use proxy server switch to turn on.

5. In the Address text box, enter the address of the proxy server.

Wireless

6. In the Port text box, enter the port number for the proxy server.

7. In the text box, enter addresses for web sites that do not require to go through the proxy server. Use the

semicolons between addresses but no spaces and do not use the carriage return.

8. Touch Save.

Adding a Wi-Fi Network

To access a Wi-Fi network that does not broadcast its network name (SSID), you must add that Wi-Fi network before you can connect to it. To add a Wi-Fi network:

1. In the taskbar, touch the network icon. A list of available Wi-Fi networks display.

2. Scroll to the bottom of the list and touch Hidden network.

3. Follow the instructions on the screen to add a Wi-Fi network.

Wireless Wide Area Networks

NOTE: ET85 only.

A Wireless wide area network is a mobile cellular network that allows you to browse the Internet, check email, or connect to a virtual private network (VPN) from anywhere within the regional boundaries of the cellular service. A micro SIM card is required to connect to a mobile network.

Connecting to a Cellular Data Network

1. Ensure that an activated SIM card is installed.

2. Touch in the taskbar.

3. Touch the Cellular option to turn on the WAN radio if required.

4. Touch the Cellular network in the list.

5. Touch Connect automatically to automatically connect to the cellular data network when it is

available. Clear the check box to manually connect each time you want to use the cellular data connection.

Wireless

6. Touch Allow roaming to allow the cellular data connection to stay on when outside of the mobile

operator’s network. Leaving the check box cleared can help prevent data roaming charges.

7. Touch Connect.

8. The name of the mobile operator appears next to the Cellular network icon.

9. If prompted, type your user name and password and the access point name (APN).

NOTE:

cannot connect to a cellular network.

If the Cellular quick action is turned off, select it to turn it on. When off, the cellular radio is turned off, and you

Adding an Internet APN

The Internet access point name (APN) is the address the tablet uses to connect to the Internet when using a cellular data connection. Usually, the Internet APN is set automatically. If your cellular data connection is not working, try entering a new Internet APN based on the mobile operator.

To add an Internet APN, type an address in the APN box. The other settings are optional and depend on the mobile operator.

1. Touch Settings > Network & Internet > Cellular.

2. Touch Advanced options.

3. Under the APN settings section, touch Add an APN.

4. Update one or more of the following:

• In the Profile name box, type a name for the APN profile.

• In the APN box, type the address for the APN to use.

• In the User name box, type the user name for your mobile account.

• In the Password box, type the password for your mobile account.

• Select Type of sign-in info drop-down list and then select the authentication method.

• Select IP type drop-down list and then select the type of IP address.

Touch the Apply this profile check box if you want the APN profile to be used right after you save it.

6. Touch Save > OK.

Setting Up a SIM PIN

A SIM PIN helps prevent other people from using your cellular data connection. To set up a SIM PIN:

1. Touch Settings > Network & Internet > Cellular.

2. Touch the cellular connection name.

3. Touch Advanced options.

4. Under the Security section, touch Use SIM PIN.

5. Enter the SIM PIN.

If this is the first time using it, type the default SIM PIN. If you don't know the default SIM PIN, visit your mobile operator's website to see if it is listed. Restart the tablet to lock the cellular data connection with the SIM PIN.

If you already set up a PIN for the SIM, type the SIM PIN when prompted, and then select OK.

Wireless

Removing a SIM PIN

If you are using a SIM PIN and want to remove it:

1. Touch Settings > Network & Internet > Cellular.

2. Touch the cellular connection name.

3. Touch Advanced options.

4. Under the Security section, touch Remove SIM PIN.

5. Enter the current SIM PIN.

6. Touch OK.

Changing a SIM PIN

To change the SIM PIN:

1. Touch Settings > Network & Internet > Cellular.

2. Touch the cellular connection name.

3. Touch Advanced options.

4. Under the Security section, touch Change SIM PIN.

5. In the Current SIM PIN box, enter the current SIM PIN.

6. In the New SIM PIN box, enter a new SIM PIN.

7. In the Confirm new SIM PIN box, enter the same new SIM PIN.

8. Touch OK.

Unblocking a SIM PIN

If you enter an incorrect SIM PIN, the SIM is blocked and cannot be used until you unblock it. Contact your mobile operator for the PIN Unblocking Key (PUK), then select proceed as follows:

Wireless

To find this setting if your SIM is blocked,

1. Touch Settings > Network & Internet > Cellular.

2. Touch the cellular connection name.

3. Touch Advanced options > Unblock SIM PIN under the Security section.

4. Type the PUK code. If an incorrect PUK code is entered too many times, your SIM card will be blocked

permanently, and you will need to obtain a new SIM card from your mobile operator.

Bluetooth

Bluetooth-equipped devices can communicate without wires, using frequency-hopping spread spectrum (FHSS) radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM) band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (100 meters (328 feet)) communication and low power consumption.

Devices with Bluetooth capabilities can exchange information (e.g., files, appointments, and tasks) with other Bluetooth enabled devices such as printers, access points, and other mobile devices.

Adaptive Frequency Hopping

Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used with Bluetooth voice. All devices in the Bluetooth network (piconet) must be AFH-capable in order for AFH to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections and discoveries during critical 802.11b and other 2.4G WLAN

of four main sections:

• Channel Classification - A method of detecting an interference on a channel-by-channel basis, or

pre-defined channel mask.

• Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth

network.

Wireless

communications. AFH for Bluetooth consists

Security

• Hop Sequence Modification - Avoids interference by selectively reducing number of hopping

channels.

• Channel Maintenance - A method for periodically re-evaluating the channels.

When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b and other 2.4G WLAN high-rate channels. AFH coexistence allows Enterprise devices to operate in any infrastructure.

The Bluetooth radio in this device operates as a Class 1 device power class. The maximum output power is 9mW and the expected range is 100 meters (328 feet). A definition of ranges based on power class is difficult to obtain due to power and device differences, and whether one measures open space or closed office space.

NOTE:

nel is required.

The current Bluetooth specification defines security at the link level. Application-level security is not specified. This allows application developers to define security mechanisms tailored to their specific need. Link-level security occurs between devices, not users, while application-level security can be implemented on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device authentication is a mandatory feature of Bluetooth while link encryption is optional.

Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the devices and create a link key for them. Entering a common personal identification number (PIN) in the devices being paired generates the initialization key. The PIN is never sent over the air. By default, the Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction. Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption. The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance eavesdropping difficult.

Use of Bluetooth wireless technology is not recommended when high rate 802.11b operation using 2.4G chan-

Recommendations are:

• Perform pairing in a secure environment

• Keep PIN codes private and do not store the PIN codes in the device

• Implement application-level security.

Bluetooth Profiles

The device supports the following Bluetooth services:

• Advanced Audio Distribution Profile (A2DP) - Allows the device to stream stereo-quality audio to a

wireless headset or wireless stereo speakers.

• Audio/Video Remote Control Profile (AVRCP) - Allows the device to control A/V equipment to which a

user has access. It may be used in concert with A2DP.

• Device ID Profile (DIP) - allows a device to be identified above and beyond the limitations of the Device

Class already available in Bluetooth. It enables identification of the manufacturer, product id, product version, and the version of the Device ID specification being met.

• Generic Access Profile (GAP) - Allows the device to be visible to other Bluetooth devices and

determines their interaction.

Wireless

• Generic Attribute Profile (GATT) - Provides profile discovery and description services for Bluetooth Low

Energy protocol.

• Hands Free Profile (HFP) - Allow car hands-free kits to communicate with the device and lets the

headset control the device.

• Hard Copy Cable Replacement Profile (HCRP) - Provides a simple wireless alternative to a cable

connection between a device and a printer.

• Headset Profile (HSP) - Provides a simple audio connection between the device and the headset.

• HID Over GATT Profile (HOGP) - Connects human interface devices such as keyboards and mice to a

host device.

• Human Interface Device Profile (HID) - Allows Bluetooth keyboards, pointing devices, gaming devices

and remote monitoring devices to connect to the device.

• Object Push Profile (OPP) - Allows the device to push and pull objects to and from a push server.

• Out of Band (OOB) and Near Field Communications (NFC) - Allows for pairing of a Bluetooth device

such as headsets and scanners by touching the devices together (NFC tap to pair).

• Personal Area Network User (PANU) - Allows the use of Bluetooth Network Encapsulation Protocol to

provide L3 networking capabilities over a Bluetooth link. Only PANU role is supported.

• Radio Frequency (RF) Kill - All RF activities are terminated and device goes into low power mode.

• Serial Port Profile (SPP) - Allows use of RFCOMM protocol to emulate serial cable connection between

two Bluetooth peer devices. For example, connecting the device to a printer.

• Service Discovery Profile (SDP) - Allows applications running on different Bluetooth-enabled devices to

discover each other's existence, and exchange information to determine their characteristics.

Pairing with a Bluetooth Device

To connect and exchange data with another Bluetooth device, pair the tablet with another Bluetooth device:

1. In the taskbar, touch the Action Center icon.

2. Touch All Settings, then touch Devices > Bluetooth.

3. Slide the control to the right to turn it on.

4. Touch the plus sign to select Add Bluetooth or other device then in the Add a Device window, touch

Bluetooth.

5. Discoverable Bluetooth devices populate the window.

6. When the scanner you want to pair is found, touch the ID. After a few minutes a notification appears

that the devices are paired.

Unpairing a Bluetooth Device

To unpair a Bluetooth device:

1. In the taskbar, touch Action Center.

Wireless

2. Touch All Settings.

3. Touch Devices > Bluetooth.

4. Touch the ID of the Bluetooth device to unpair.

5. Touch Remove device. A notification prompt displays.

6. Touch Yes.

Turning on Airplane Mode

When Airplane mode is on, the Wi-Fi, Bluetooth, Global Navigation Satellite System (GNSS) and Near-field communication (NFC) radios are turned off. This is useful when traveling on an airplane or when you don’t need Wi-Fi or Bluetooth for a while. Airplane mode extends the amount of time before the battery needs recharging. To place the device in Airplane mode:

1. In the taskbar, touch the network icon .

2. Touch the Airplane mode option. The option box turns blue and the airplane icon appears in the

taskbar.

To turn on radios in Airplane Mode (without turning on WAN):

1. In the taskbar, touch the airplane icon.

2. Touch Wi-Fi option. The option box turns blue indicating that Wi-Fi is on.

Near Field Communications

The device supports reading NFC cards. The NFC antenna is located on the back of the device under the NFC logo.

Enabling NFC

NFC is disabled by default. Before using NFC, you must enable it in the BIOS and then in Windows.

1. Enter the BIOS setup. See Enter the BIOS on page 34.

2. From the BIOS setup screen, select the Advanced tab.

3. Select NFC Controller > Enabled.

4. Select the Save & Exit tab.

5. Select Exit Saving Changes > Yes.

6. After Windows loads, go to Settings > Network & Internet > Airplane mode. Under Wireless

devices, select the NFC slider to turn it on.

Reading NFC Cards

Wireless

The tablet supports reading NFC cards. The NFC antenna is located on the back of the tablet under the NFC logo.

With an NFC enabled application open, bring the NFC card toward the antenna. Depending upon the application, an audio or visual indication indicates successful reading of the card.

Accessories

This section provides information for using the accessories for the device.

This following table lists the accessories available for the device.

Table 2 Accessories

Accessory Part Number Description

Docks

Vehicle Dock CRD-ET8X-VEHDK1-01 Provides tablet charging, USB

Power Dock CRD-ET8X-PWRDK1-01 Provides tablet charging only. Requires power

Office Dock CRD-ET8X-OFFDK1-01 Provides tablet charging, USB

Communication Cables

RS232 Serial Cable CBL-ET8X-SER1-01 Provides Serial communication to the device.

Ethernet RJ45 Cable CBL-ET8X-E1-01 Provides Ethernet communication to the

Audio Accessories

Bluetooth Headset HS3100-OTH Rugged Bluetooth Headset. Includes HS3100

communication, and Ethernet communication. Includes set of 10-32 nuts (4), screws (4), and washers (4). Mount not included. Supports VESA 100 x 100, 100 x 50, and 75 x 75.

supply (PWR-BGA15V45W-UC-WW) with country specific AC line cord. Includes set of 10-32 nuts (4), screws (4), and washers (4). Mount not included. Supports VESA 100 x 100, 100 x 50, and 75 x 75.

communication, Ethernet communication, and HDMI. Includes stand. Requires power supply (PWR-BGA15V45W-UC-WW) with country specific AC line cord.

Includes tool-less and screw attachment options.

device. Includes tool-less and screw attachment options.

Boom Module and HSX100 OTH Headband Module.

Accessories

Table 2 Accessories (Continued)

Accessory Part Number Description

Carrying Solutions

Soft Handle SG-ET8X-HANDLE1-01 Use with the boot to carry the tablet.

Shoulder Strap SG-ET8X-SHLDR1-01 Use with the boot to carry the tablet on your

shoulder.

Miscellaneous

Boot SG-ET8X-BOOT1-01 Adds extra protection for the tablet.

Expansion Module CRD-ET8X-M-7PEM1-01 Provides USB communication and Ethernet

communication.

Expansion Module with HDMI

Pass Through Antenna Module

Keyboard Support Bracket

Expansion Module Cover

Dock Fan Module CRD-ET8X-M-FAN1-01 Provides cooling for the tablet when docked.

Replacement Battery BTRY-ET8X-12IN1-01 Replacement battery for the tablet.

Passive Stylus SG-TC7X-STYLUS-03 Provides easy writing, drawing, and navigation

Active Stylus SG-ET8X-STYLUS1-01 Provides easy writing, drawing, and navigation

Stylus Coil Tether SG-ET5X-SLTETR-01 Secures a stylus to the hand strap.

Stylus Holder SG-ET8X-PENLOOP1-01 Secures a stylus to the tablet.

Expansion Back with Handstrap

Expansion Back with Smart Card CAC Reader

Kickstand for Expansion Back

4-Slot Battery Charger SAC-ET5X-4PPK1-01 Chargers up to four Power Packs. Requires

Power Pack BTRY-ET8X-PRPK1-01 Provides additional power for charging the

Replacement Expansion Back Hand Strap

Forklift Mount 350025 Allows installation of the device on a roll bar or

CRD-ET8X-M-9PEM1-01 Provides USB communication, Ethernet

communication, and HDMI.

CRD-ET8X-M-PTA1-01 Provides access to WWAN, GPS, and WLAN

antenna signals when the tablet is docked.

CRD-ET8X-M-KBBK1-01 Provides support for an attached keyboard.

CRD-ET8X-M-PEMCV1-01 Provides protection for the expansion module

ports.

and accuracy.

and accuracy with the thin tip and hovering capabilities.

ZBK-ET5X-10RH1-01 Provides rotating hand strap and slot for

optional Power Pack.

ZBK-ET8X-SMARTCARD-01 Provides Smart Card CAC reader and slot for

optional Power Pack.

ZBK-ET8X-KICKSTAND-01 Provides a kickstand for Expansion Backs.

power supply PWR-BGA12V50W0WW, DC Line cord CBL-DC-388A1-01, and country-specific AC line cord.

tablet using an Expansion Back.

SG-ET5X-RHTP1-01 Replacement hands strap for Expansion

Backs.

square surface of a forklift.

Accessories

Table 2 Accessories (Continued)

Accessory Part Number Description

Charge Cables and Power Supplies

Cigarette Lighter Adapter (CLA) cable

Direct Wire Power Cable

Direct Wire Power Cable Kit to Vehicle Docks

LXE/Honeywell Power Adapter Cable

Vehicle Power DC Converter (9V to 60V)

Vehicle Power DC Converter (50V to 150V)

USB to AC Adapter PWR-BGA15V45W-UC-WW Provides power to the tablet. Requires country

US AC Line Cord 450040 Provides power to the USB to AC Adapter.

Australia/New Zealand AC Line Cord

EU AC Line Cord 450042 Provides power to the USB to AC Adapter.

UK AC Line Cord 450041 Provides power to the USB to AC Adapter.

India AC Line Cord ACC-L10LINECORD-IN Provides power to the USB to AC Adapter.

Taiwan AC Line Cord ACC-L10LINECORD-TW Provides power to the USB to AC Adapter.

Japan AC Line Cord ACC-L10LINECORD-JP Provides power to the USB to AC Adapter.

China AC Line Cord ACC-L10LINECORD-CN Provides power to the USB to AC Adapter.

Power Supply PWR-BGA12V50W0WW Provides power to the 4-Slot Battery Charger.

450143 Provides power to the vehicle dock for

vehicles providing 12V.

450019 Provides power to the vehicle dock for

vehicles providing 12V to 32V.

450134 Use with CLA cable (450019) to connect

directly to vehicle power.

300039 Provides power to the vehicle dock for

vehicles providing 12V to 14V.

Vehicles providing more than 14V require an additional power converter (450083 or

450084).

ACC-PWRCBL01 Allows ET8X docks to be powered from a

legacy LXE/Honeywell power cable.

Converts forklifts wired for LXE/HON VX8, VX9, VM1, VM2, and VM3 to support ET8X without re-wiring the forklift.

Requires Vehicle Power DC Converter (450083) and Direct Wire Power Cable Kit (300039).

450083 Accepts 9V to 60V (9A maximum) vehicle

power and converts it to 13.2V output.

Requires Direct Wire Power Cable Kit (300039).

450084 Accepts 50V to 150V (2A maximum) vehicle

power and converts it to 13.2V output.

Requires Direct Wire Power Cable Kit (300039).

specific AC adapter. 450020.

450047 Provides power to the USB to AC Adapter.

Device Charging

Before using the tablet for the first time, connect it to an external power source. Keep the tablet connected to the external power source until it is fully charged. The Charging Indicator LED turns green when the tablet is fully charged. You may use the tablet while it is charging.

For the best charging experience, Zebra recommends using the ET80/ET85 dock or the Zebra USB-C to AC adapter.

The tablet main battery charges from fully depleted to 90% in approximately 2 hours and from fully depleted to 100% in approximately 3 hours.

Charging Indicators

The Charging Indicator LED illuminates and changes color to indicate battery status.

State Indication

Off Device is not charging. Device is not inserted correctly in the cradle or connected

Amber Device is charging.

Green Connected to external power and the tablet is fully charged.

Red Charging error. For example:

Accessories

to a power source. Charger/cradle is not powered.

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically 8 hours).

• Battery is not installed.

Charging Temperatures

Charge batteries in ambient temperatures from 0°C to 45°C (32°F to 113°F). The tablet or dock always performs battery charging in a safe and intelligent manner. To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep the battery at acceptable temperatures.

Charging Using the Dock

When the tablet is docked and charging, the charging indicator LED illuminates amber.

1. Connect the dock to the appropriate power source.

Accessories

If installed, ensure the keyboard and handle are closed.

3. Insert the bottom of the tablet into the bottom of the dock (1), aligning the charging contacts on the

tablet with the connector pins on the dock.

4. Rotate the top of the tablet towards the top of the dock (2).

Accessories

Use your thumb to push the tablet into the dock, then push the lever down to secure the tablet.

6. After the tablet is secured in the dock, you can lower the keyboard (optional).

Removing the Tablet

1. If installed, ensure the keyboard is closed.

2. To remove the tablet from the dock, lift the lever on top of the dock (1) to release the tablet, rotate the

top of the tablet down (2), then lift the tablet out of the dock (3).

Accessories

Charging Using the USB-C to AC Adapter

Use the USB-C to AC adapter to charge the tablet.

1. Plug the AC line cord into the USB-C to AC adapter (1).

2. Plug the AC line cord into the AC wall outlet (2).

Power Only Dock

The Power Only Dock provides:

• Power for operating the device.

• Charging for the device’s battery and optional Power Pack installed in an Expansion Back.

• Barrel lock and two keys to secure the tablet to the dock.

• Support for VESA 100 x 100, 100 x 50, and 75 x 75.

Figure 8 Power Only Dock Setup

Accessories

1 Power module

2 Barrel lock (two keys included)

3 Lever

Vehicle Dock

The Vehicle Dock provides:

• Power for operating the device.

• Charging for the device’s battery and optional Power Pack installed in an Expansion Back.

• Ports for connecting USB devices and Ethernet communication.

• Barrel lock and two keys to secure the tablet to the dock.

• Support for VESA 100 x 100, 100 x 50, and 75 x 75.

Figure 9 Vehicle Dock Setup

Accessories

1 Power module

2 Barrel lock (two keys included)

3 Lever

Office Dock

The Office Dock provides:

• Power for operating the device.

• Charging for the device’s battery and optional Power Pack installed in an Expansion Back.

• Ports for connecting USB devices, HDMI video output, and Ethernet communication.

• Barrel lock and two keys to secure the tablet to the dock.

• Desktop mount.

Figure 10 Office Dock Setup

Accessories

1 Power module

2 Barrel lock (two keys included)

3 Lever

4 Desktop mount

Expansion Backs

The Expansion Backs provide a Power Pack slot for the device and either a hand strap or Smart Card CAC reader.

Installing the Expansion Backs

1. Power off the tablet before installing or removing the Expansion Back.

2. Lift the notched corner of the battery cover and carefully lift the battery cover off the device. Store the

cover in a safe place.

Accessories

3. Align the expansion back with the device. Ensure that the power pack slot cover is aligned with the

bottom of the device and the interface connector on expansion back aligns with interface connector (1) on device.

Accessories

Using a T6 Torx screwdriver, secure expansion back to device using four screws. Torque to 14 n-cm.

Power Pack

The optional Power Pack provides additional power to the tablet.

Figure 11 Power Pack

Accessories

1 Power output contacts

2 Charge level indicators

3 Charge indicator button

Installing the Power Pack

1. Install one of the optional Expansion Backs.

2. Press the two release buttons (1) on the side of the Expansion Back. The dummy battery insert ejects

slightly.

3. Remove dummy battery insert.

4. Insert Power Pack into slot until it snaps into place.

Power Pack Charging

Charge Power Packs in ambient temperatures from 0°C to +50°C (32°F to 122°F) as reported by the Power Pack. Charging is intelligently controlled by the charger. To accomplish this, for small periods of time, the charger alternately enables and disables Power Pack charging to keep the battery at acceptable temperatures.

Accessories

The Power Pack charge LED shows the status of the battery charging. The Power Pack charges in less than three hours. When charging, the Charge LEDs indicate the charge level.

Charging the Power Pack Using a Dock

With the Power Pack installed in an Expansion Back, place the device into a dock. The Power Pack charges in less than 3.5 hours.

Charging the Power Pack Using the 4-Slot Battery Charger

CAUTION: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines.

Use the 4-Slot Battery Charger to charge up to four Power Packs.

Figure 12 4-Slot Battery Charger

Accessories

Viewing the Power Pack Charge Level

1. Remove the Power Pack from the Expansion Back.

2. Press the Charge Status button (2). The Charge Status LEDs (1) light to indicate the charge level.

Table 3 Power Pack Charge Status Indicators

Power Pack

Indicators

Charge level is 100%.

Charge level is 80%.

Description

Change level is 60%.

Accessories

Table 3 Power Pack Charge Status Indicators (Continued)

Power Pack

Indicators

Charge level is 40%.

Charge level is 20%.

Charge level is below 20%.

Blinking

Checking Power Pack Status

Power Pack status appears on the desktop taskbar.

NOTE: The Power Pack Status icon appears when it issues a notification. To always display the icon, select > Customize. In the Notification Area Icons window, check the Always show all icons and

notifications on the taskbar and then select OK.

• Tap the Power Pack icon to see the status.

Icon Message Box Description

Description

Power Pack is connected to the device.

Power Pack is removed from to the device.

Power Pack is connected to the device and the device is in the dock changing.

Power Pack is fully discharged.

Power Pack is experiencing charging failure.

Keyboard

Accessories

The ET80/ET85 attachable rugged keyboard is a QWERTY keyboard that provides a multi-color backlight and six programmable keys.

Figure 13 ET80/ET85 Keyboard Features

1 Keyboard latch Attaches the keyboard to the tablet.

2 Keyboard alignment pin Assists in aligning the keyboard with the tablet.

3 Tablet interface connector Provides power and communication from the tablet.

4 Keyboard alignment marking Use to assist in aligning the tablet and keyboard.

5 Locking switch Use to unlock the keyboard from the tablet.

6 Programmable keys Configure to perform custom actions.

7 Touchpad Use to move the cursor, scroll, tap, double-tap, drag and

drop, and make multiple text selections.

8 Right button Use to perform right-clicks.

9 Left button Use to perform left-clicks.

Attaching the Keyboard

1. Place the keyboard on a flat and level surface.

2. Align the keyboard alignment markings on the tablet and keyboard.

Accessories

3. Gently press the tablet down onto the keyboard until you hear a click.

When the keyboard is correctly installed, the keyboard locking switch automatically clicks into the lock position and the orange indicator is hidden under the switch.

Removing the Keyboard

1. Place the tablet on a flat and level surface.

2. Ensure the keyboard and tablet are in the open position.

Accessories

3. Move the keyboard locking switch to the Unlock position.

When in the unlock position, the orange indicator is visible to the left of the switch.

4. Lift the tablet from the keyboard.

Accessories

Setting the Backlight Color

Customize the keyboard backlight color.

1. In the taskbar, select > .

2. Select the desired color.

3. Select OK.

Configuring the Programmable Keys

Customize the programmable keys to start your favorite program or open a web page.

1. In the taskbar, select > .

2. Select the desired key (P1-P5).

3. Select the type of action.

• Open Application - Provide a path to the desired application. For example,

• Open Web page - Provide a URL. For example,

• No Action - Select to have the button not perform any action.

4. Select Apply.

5. Select Save.

https://www.zebra.com.

C:\Windows\notepad.exe.

Maintenance and Troubleshooting

This chapter includes instructions on cleaning and storing the tablet, battery maintenance and provides troubleshooting solutions for potential problems during tablet operations.

Maintaining the Device

For trouble-free service, observe the following tips when using the device:

• In order to avoid scratching the screen, use the supplied stylus or plastic-tipped pens intended for use

with a touch-sensitive screen. Never use an actual pen or pencil or other sharp object on the surface of the device screen.

• The touch-sensitive screen of the device is glass. Do not drop the device or subject it to strong impact.

• Protect the device from temperature extremes. Do not leave it on the dashboard of a car on a hot day,

and keep it away from heat sources.

• Do not store the device in any location that is dusty, damp, or wet.

• Use a soft lens cloth to clean the device. If the surface of the device screen becomes soiled, clean it

with a soft cloth moistened with an approved cleanser. For a list of approved cleansers, see Approved

Cleanser Active Ingredients.

• Periodically replace the rechargeable battery to ensure maximum battery life and product performance.

Battery life depends on individual usage patterns.

• Dock or mount the device vertically to allow air cooling of the front and back surfaces. The tablet does

not contain an internal cooling fan. An optional dock fan module provides cooling for the tablet while docked.

Preventing Image Persistence

When a still image displays on the screen for long time, the image may persist, remaining slightly visible even after another image replaces it.

To prevent image persistence, use one or more of the following methods.

• Set the screen to automatically turn off after a few minutes of idle time.

• Set a screen saver to automatically start after a few minutes of idle time.

• Manually turn off the display when the device is not in use.

• Change the desktop background image every day or every few days.

Maintenance and Troubleshooting

Maintaining the Stylus

If you use an active (digitizer) pen with your tablet:

• Store the active (digitizer) pen in the pen holder when not in use.

• Avoid storing the pen vertically on its tip. It can damage the pen-to-digitizer function.

• Keep the pen away from any liquid, because the pen contains electronic components that can be

damaged when wet.

• In certain environments, particles or debris can stick to the pen tip or the tablet display. Make sure you

wipe off the pen with a soft cloth to avoid scratching the display.

Battery Safety Guidelines

• The area in which the units are charged should be clear of debris and combustible materials or

chemicals. Particular care should be taken where the device is charged in a non commercial environment.

• Follow battery usage, storage, and charging guidelines found in this guide.

• Improper battery use may result in a fire, explosion, or other hazard.

• To charge the mobile device battery, the battery and charger temperatures must be between 0ºC and

+40ºC (+32ºF and +104ºF).

• Do not use incompatible batteries and chargers, including non-Zebra batteries and chargers. Use of an

incompatible battery or charger may present a risk of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a battery or a charger, contact the Global Customer Support Center.

• For devices that utilize a USB port as a charging source, the device shall only be connected to products

that bear the USB-IF logo or have completed the USB-IF compliance program.

• Do not disassemble or open, crush, bend or deform, puncture, or shred battery.

• Severe impact from dropping any battery-operated device on a hard surface could cause the battery to

overheat.

• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to

water or other liquids, or expose to fire, explosion, or other hazard.

• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle

or near a radiator or other heat source. Do not place battery into a microwave oven or dryer.

• Battery usage by children should be supervised.

• Please follow local regulations to properly dispose of used re-chargeable batteries.

• Do not dispose of batteries in fire.

• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact

has been made, wash the affected area with water for 15 minutes and seek medical advice.

• If you suspect damage to your equipment or battery, contact Customer Support to arrange for

inspection.

Maintenance and Troubleshooting

Best Practices for Enterprise Mobile Computing Devices Operating in Hot Environments and Direct Sunlight

Exceeding the operating temperature by external hot environments will cause the device's thermal sensor to notify the user of a shutdown of the WAN modem or shutdown the device until the device's temperature returns to the operational temperature range.

• Avoid direct sunlight to the device - The easiest way to prevent overheating is to keep the device out of

direct sunlight. The device absorbs light and heat from the sun and retains it, getting hotter the longer it remains in sunlight and heat.

• Avoid leaving the device in a vehicle on a hot day or hot surface - Similar to leaving the device out in

direct sunlight, the device will also absorb the thermal energy from a hot surface or when left on the dashboard of a vehicle or seat, getting warmer the longer it remains on the hot surface or inside the hot vehicle.

• Turn off unused apps on the device. Open, unused apps running in the background can cause the

device to work harder, which in turn may cause it to heat up. This will also improve your mobile computer device's battery life performance.

• Avoid turning your screen brightness up - Just the same as running background apps, turning your

brightness up will force your battery to work harder and create more heat. Minimizing your screen brightness may extend operating the mobile computer device in hot environments.

• Follow all recommendations for Preventing Image Persistence.

Cleaning Instructions

CAUTION: Always wear eye protection.

Read warning label on alcohol product before using. If you have to use any other solution for medical reasons please contact the Global Customer Support Center for more information.

WARNING: Avoid exposing this product to contact with hot oil or other flammable liquids. If such exposure occurs,

unplug the device and clean the product immediately in accordance with these guidelines.

Approved Cleanser Active Ingredients

The approved cleaning and disinfecting agent recommended is 70% isopropyl alcohol solution.

Harmful Ingredients

The following chemicals are known to damage the plastics on the device and should not come in contact with the device: acetone; ketones; ethers; aromatic and chlorinated hydrocarbons; acqueous or alcoholic alkaline solutions; ethanolamine; toluene; trichloroethylene; benzene; carbolic acid and TB-lysoform.

Many vinyl gloves contain phthalate additives, which are often not recommended for medical use and are known to be harmful to the housing of the device.

NOTE:

Wipes to clean the device.

If using the tablet in a healthcare environment, do not use PDI Sani-Hands/ PDI Super Sani Cloth Germicidal

Maintenance and Troubleshooting

Device Cleaning Instructions

Do not apply liquid directly to the device. Dampen a soft cloth or use pre-moistened wipes. Do not wrap the device in the cloth or wipe, but gently wipe the unit. Be careful not to let liquid pool around the display window or other places. Allow the unit to air dry before use.

NOTE:

boot, from the tablet and to clean them separately.

For thorough cleaning, it is recommended to first remove all accessory attachments, such as hand straps or

Special Cleaning Notes

The device should not be handled while wearing vinyl gloves containing phthalates, or before hands are washed to remove contaminant residue after gloves are removed.

If products containing any of the harmful ingredients listed above are used prior to handling the device, such as hand sanitizer that contain ethanolamine, hands must be completely dry before handling the device to prevent damage to the device.

IMPORTANT:

as possible and clean with an alcohol wipe. It is also recommended to install the battery in the terminal prior to cleaning and disinfecting the device to help minimize buildup on the connectors.

When using cleaning/disinfectant agents on the device, it is important to follow the directions prescribed by the cleaning/disinfectant agent manufacturer.

If the battery connectors are exposed to cleaning agents, thoroughly wipe off as much of the chemical

Cleaning Materials Recommended

• Lens tissue

• Cotton-tipped applicators

• 70% isopropyl alcohol

• Can of compressed air with a tube.

Cleaning Frequency

The cleaning frequency is at the customer’s discretion due to the varied environments in which the mobile devices are used and may be cleaned as frequently as required. When dirt is visible, it is recommended to clean the mobile device to avoid build up of particles which make the device more difficult to clean later on.

Cleaning the Fingerprint Reader

Under normal circumstances, you should clean the fingerprint reader once a month, or whenever necessary.

To clean the fingerprint reader, gently rub the sensor surface with the cloth that is included with the tablet or any microfiber cloth.

You can use a small amount of alcohol or warm soapy water from time to time to clean the reader surface. Dry it off after cleaning.

CAUTION:

Do not use bleach, solvents, or abrasives to clean the reader.

Maintenance and Troubleshooting

Traveling with Your Tablet

Use the following tips when you travel with your Tablet:

• Put the tablet in a case to protect the display.

• Store the pen in the pen bay located on the tablet.

• Pack the tablet securely in a briefcase or hand-carried luggage and keep it separate from toiletries,

liquids, and food. Don’t pack it in checked luggage.

• Before extended use in the field or long trips away from AC power, adjust the power properties to

maximize battery conservation.

• For international travel, you need either a travel plug adapter or the AC power cord that is appropriate

for the country that you are visiting. The travel plug adapter can be found in most airports and travel stores.

• You don’t need to buy a voltage converter; the AC adapter will automatically adjust to different voltages.

• You might want to carry proof of ownership or a merchandise passport when traveling internationally.

• Consult your insurance and credit card companies to learn about emergency travel assistance in case

your tablet becomes lost or disabled.

• Turn off the tablet or place it in airplane mode for takeoff and landing. Check with the airline for rules on

using your tablet and Wi-Fi while traveling. You can turn off all of your wireless devices temporarily with airplane mode. See Turning on Airplane Mode on page 47.

IMPORTANT:

DANGER! Don’t transport Li-ion batteries in checked baggage. The baggage hold can get very hot, which can cause

the Li-ion battery to overheat and result in a possible explosion.

Troubleshooting

This sections provides information for troubleshooting issues on your tablet.

Restarting the Device

If the device is running slow or some applications are not functioning properly, restart the device:

1. Touch Start .

2. Touch Power > Update and restart.

3. If software updates are pending, these install and then the device restarts.

Don’t carry your tablet through a metal detector.

Performing a Cold Boot

If the device does not respond to any input, perform a cold boot:

1. Press and hold the power button for at least 10 seconds. The device shuts down.

2. Press the Power button again to turn on the device.

Maintenance and Troubleshooting

Troubleshooting the Tablet

This section provides troubleshooting options for the device.

Table 4 Troubleshooting the Tablet

Problem Cause Solution

Tablet does not turn on.

Battery did not charge. Battery failed. Replace battery. If the tablet still does not operate, try

Unable to connect to the wireless network.

The multi-touch screen responds slowly or improperly.

Tablet turns itself off. Tablet is inactive. The tablet turns off after a period of inactivity. If the

After selecting a link in a full-screen app (Tablet mode), a dialog box or app does not display.

Battery not charged. Charge the battery in the tablet.

Battery not installed properly.

System crash. If the tablet does not turn on, perform a cold boot. See

Tablet removed from dock before charging completed.

Ambient temperature of the dock is too warm or too cold.

SIM card is invalid. Ensure that the micro SIM card is valid and workable if

Not within range of network.

Tablet is in airplane mode.

Finger or screen is wet.

Battery is depleted. Place the tablet in the dock to re-charge the battery.

The tablet’s battery is low and it powers down to protect memory content.

The dialog box or app is hidden behind the full-screen app.

Ensure battery is installed properly.

Performing a Cold Boot on page 73.

a cold boot. See Performing a Cold Boot on page 73.

Insert the tablet into the dock and begin charging. The battery fully charges in approximately four hours.

The ambient temperature must be between 0 °C and 45 °C (32 °F and 113 °F).

using a mobile network.

Move within the network’s service range and the signal strength is good.

Ensure that tablet is not in Airplane mode.

Ensure that your hands are clean and dry when touching the screen. Restart the tablet to try again.

Ensure that wet touch mode is enabled.

tablet is running on battery power.

Place the tablet in a dock to re-charge the battery.

Touch in the taskbar to view all running apps and select the dialog box or app.

Maintenance and Troubleshooting

Troubleshooting the Dock

This section provides troubleshooting options for the dock.

Table 5 Troubleshooting the Dock.

Problem Cause Solution

Battery is not charging. Battery failed. Replace battery. If the tablet still does not operate, try

a cold boot. See Performing a Cold Boot on page 73.

Dock was unplugged from power source.

Ambient temperature of the dock is too warm or too cold.

Ensure the dock is receiving power.

The ambient temperature must be between 0 °C and 45 °C (32 °F and 113 °F).

Troubleshooting the 4-Slot Battery Charger

This section provides troubleshooting options for the 4-Slot Battery Charger.

Table 6 Troubleshooting the 4-Slot Battery Charger

Problem Cause Solution

Power Pack Charging LED does not light when inserted.

Power Pack is not charging.

Power Pack is not correctly seated.

Power Pack was removed from charger or charger was unplugged from AC power.

Power Pack is faulty. Verify that other Power Pack charge properly. If so,

The Power Pack is not fully seated in the charger.

Ambient temperature of the charger is too warm or too cold.

Remove and re-insert the spare battery into the charging slot, ensuring it is correctly seated.

Ensure charger is receiving power. Ensure Power Pack is seated correctly. Confirm Power Pack

is charging. The Power Pack fully charges in approximately four hours.

replace the faulty Power Pack.

Remove and re-insert the Power Pack into the charger, ensuring it is firmly seated.

Move the charger to an area where the ambient temperature is between 0°C and 40°C (32°F and 104°F).

Specifications

For device technical specifications, go to zebra.com/support.

Data Capture Supported Symbologies

Table 7 Data Capture Supported Symbologies

Item Description

1D Bar Codes Chinese 2 of 5, Codabar, Code 11, Code 128, Code 39, Code 93,

Discrete 2 of 5, EAN-13, EAN-8, Interleaved 2 of 5, MSI, UPCA, UPCE, UPCE1, ISBN/Bookland, ISSN, Coupon Code, Matrix 2 of 5

2D Bar Codes Australian Post, Aztec Code, Canada Postal, Composite AB,

Composite C, DataMatrix, Dutch Postal, GS1 DataBar, GS1 Expanded, GS1 Limited, GS1 Datamatrix, Han Xin, Japan Postal, Maxicode, Micro PDF, Micro QR Code, PDF-417, QR Code, TLC-39, PDF-417, UK Postal, US4state, US4State FICS, US Planet, US Postnet

Decode Distances

The table below lists the typical distances for selected bar code densities. The minimum element width (or “symbol density”) is the width in mils of the narrowest element (bar or space) in the symbol.

Table 8 SE4107 Decode Distances

Symbol Density/ Bar Code Type

5 mil Code 39 2.4 in.

5.0 mil Code 128 2.8 in.

6.6 mil PDF417 2.4 in.

10 mil Data Matrix 2.9 in.

6.1 cm

7.1 cm

6.1 cm

7.49 cm

Typical Working Ranges

Near Far

9.5 in.

24.1 cm

9.0 in.

22.9 cm

8.0 in.

20.3 cm

9.0 in.

22.9 cm

Specifications

Table 8 SE4107 Decode Distances (Continued)

Symbol Density/ Bar Code Type

100% UPCA 1.8 in.

15 mil QR Code 1.2 in.

20 mil QR Code 1.2 in.

20 mil Code 39 2.0 in.

*Limited by width of bar code in field of view.

Notes: Photographic quality bar code at 15° tilt pitch angle under 30 fcd ambient illumination.

Distances measured from front edge of scan engine chassis.

Dock Specifications

Table 9 Dock Technical Specifications

5.1 cm

4.6 cm

5.1 cm*

Typical Working Ranges

Near Far

19.5 in.

26.2 cm

12 in.

30.5 cm

14 in.

35.6 cm

26.0 in.

66.0 cm

Item Description

Input Voltage 12-14 VDC

Power Consumption 60 watts

Operating Temperature Office Dock, 9 port expansion module (PEM)

Operating Temperature Vehicle Dock, 7 port PEM

Storage Temperature -30 °C to 70 °C (-22 °F to 158 °F)

Humidity 5% to 95% non-condensing

Electrostatic Discharge (ESD)

-20 °C to 40 °C (-4 °F to 104 °F)

-20 °C to 60 °C (-4 °F to 150 °F)

+/- 15 kV air

+/- 8 kV contact

+/- 8 kV indirect discharge
