* Please read before installation.
http://www.zalman.co.kr http://www.zalmanusa.com
Intel Socket LGA775 CPU
Dual Core Pentium
Pentium 4
Celeron D
(English version)
CNPS9500 AT
(English version)
※
The specifications of any product may change without prior notice to improve performance.
1
3. Exploded View
1. Features
1) Compatible with Intel’s Dual Core Pentium, Pentium 4, and Celeron D for Socket 775.
2) Low-noise 92mm PWM Control fan for automatic control of the fan’s RPM according to CPU
temperature.
3) Optimized heatsink layout composed of pure copper for maximum heatsink efficiency.
4) Innovative, patented, and curved heatpipe design for a heat transfer capacity of up to six heatpipes with
just three.
5) 0.2mm ultra-slim fins for minimized weight and reduced airflow resistance.
6) Fan never fails to stop operating because it maintains minimum RPM even when Duty signal supplied
by M/B is below 30%.
7) Operates in silence by preventing extreme RPM during initial booting.
2. Specifications
CNPS9500 AT
Model
Spec.
Materials
Weight (g)
Thermal Resistance (°C/W )
Dimensions
(mm)
Dissipation Area (㎠)
Bearing Type
Rotation Speed
Noise Level
Input Voltage
Main Function
Pure Copper
530
(1)
0.12 ~ 0.16
85(L) X 112(W) X 125(H)
3,698
Dual Ball Bearing
1,300RPM ± 30% ~ 2,650RPM ± 10%
18.0dB ± 10% ~ 27.5dB ± 10%
(2)
12V
PWM Control Function and Auto Restart Function
(Note 1)
Maximum weight specified for a cooler is 450g for Intel socket 775.
Special care and attention must be taken when moving a computer equipped with a cooler
exceeding the specified weight limit. Zalman Tech Co., Ltd. Is not responsible for any damage
that occurs when moving a computer.
(Note 2) Noise level was measured 1m away from the source.
Fan Support Fixing Bolt
Fan
Fan Support
CPU Block Cover
Heat sink
CPU Block Fixing Bolt
※
The specifications of any product may change without prior notice to improve performance.
2
Korean Patent Application No.05-45737
Korean Design Application No.05-15303,15304, 15306, 15307, 17970, 17971
Patent Applications pending over 20 nations around the world including the USA, EU, and Japan
4. Patents
1) If excessive force is exerted on the fan, it may result in malfunction or damage to the product and/or the
computer.
2) Avoid inserting any objects into the fan while operating.
3) Keep the product away from the reach of children and pets.
4) Check the components list and condition of the product before installation. If any problem is found,
contact the place of purchase to obtain a replacement/refund.
5) Zalman Tech Co., Ltd. is not responsible for any damages arising from using the product outside of its
intended purpose.
6) CPU and motherboard are subject to damage if the product is incorrectly installed. Familiarize yourself
with the “installation” steps before installing the product.
5. Precautions
6. Components
❶
CNPS9500 AT
❷
Thermal Grease
❸
Clip
❹
Four Bolts (for installing cooler)
❺
Four Clip Support Fixing Bolts for Socket 775
❻
One Clip Support for Socket 775
❼
One Backplate for Socket 775
❽
One User’s Manual
1) All Intel Dual Core Pentium CPUs (Socket 775)
: Pentium EE, Pentium D
2) All Intel Pentium 4, Celeron D CPUs (Socket 775)
: Pentium 4 EE, Pentium 4, Celeron D
7. Compatible CPUs
❻
❼
❺
❽
❸❹
❷
❶
※
The specifications of any product may change without prior notice to improve performance.
4

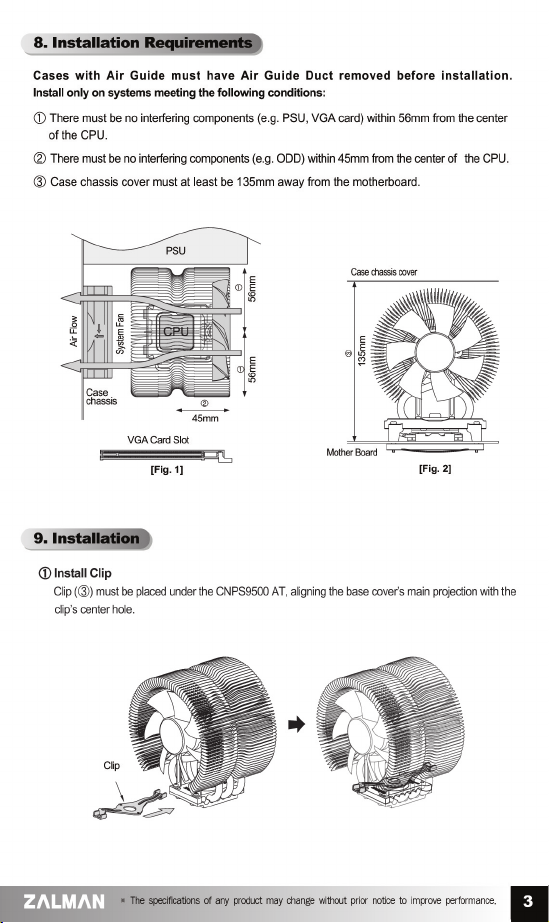

②②

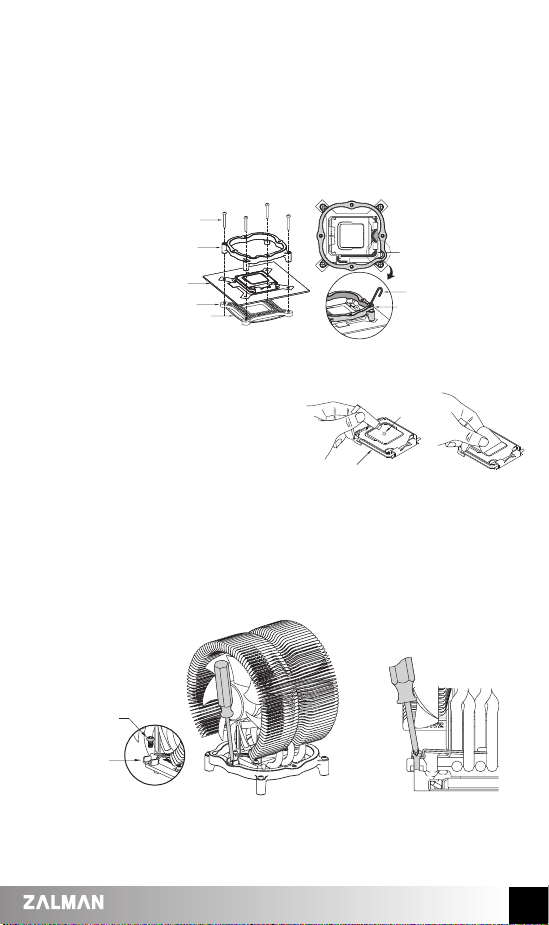

Install Clip Support
Align the Clip Support for Socket 775 (⑥) and the Backplate for Socket 775(⑦) with the mounting
holes of the motherboard and fasten them together by using the Clip Support Fixing Bolts (⑤).
The Lever Slot on the Clip Support (⑥) should be properly oriented on the hinged side of the Socket
Lever when installing.
※※
The Backplate Support on the Backplate for Socket 775 (⑦) can be removed if deemed
unnecessary.
③③
Apply Thermal Grease
Clean off particles and residue from the top of
the CPU. Then spread the included thermal
grease (②) on top of the CPU.
CPUCPU
CPUCPU
CPU
CPU
※
Note
Do not exert excessive force on the fan with the driver while installing.
Exerting excessive force on the fan can cause damage to the product.
Clip Support Fixing Bolt, ⑤
Clip Support for Socket 775, ⑥
Motherboard
Backplate for Socket 775, ⑦
Backplate Support
Socket Lever Hinge
Socket Lever
Socket Slot
CPU
CPU
④④
Install Cooler
Insert two bolts (④) into the holes on the clip (③) and place CNPS9500 AT on the center of the CPU.
CNPS9500 AT must be aligned with the backside system fan in the same flow direction.
Slightly fasten the bolts (④) on the holes of the clip supports for Socket 775 (⑥ ), then fasten the
bolts in an alternating manner until the clip (③) is completely pressed against the clip supports.
Bolt, ④
Clip, ③
CPU (IHS)
Thermal Grease
※
The specifications of any product may change without prior notice to improve performance.
5
⑤

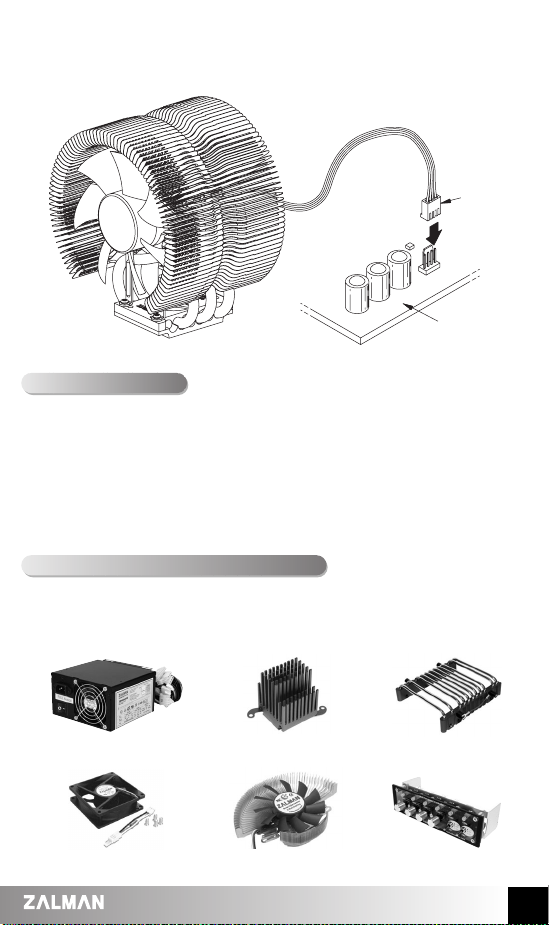

Connect Fan Connector
Connect the CNPS9500 AT’s Fan Connector to the Motherboard as shown in the diagram.
Fan Connector
(CNPS9500 AT)
Motherboard
Stable performance and Noiseless system can both be achieved with the use of Zalman’s
Noiseless Power Supply, Noiseless Case Fan, Fanless Northbridge Cooler, Heatpipe HDD
Cooler, Quiet Video Card Cooler, and Fan Controller.
Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler
Noiseless Case Fan Quiet VGA Cooler Multi Fan Controller
10. Notes on Usage
1) Cautions While Booting
The operation of the PWM fan varies depending on the M/B setting. Please activate the PWM Control
mode from BIOS after installing. Refer to the motherboard manual for detailed information regarding the
PWM Control mode.
2) OVERCLOCKING
Zaman Tech Co., Ltd. is not responsible for any damage caused to the system and CPU resulting from
OVERCLOCKING.
11. Zalman Noise Prevention System
※
The specifications of any product may change without prior notice to improve performance.
6
13.
Home Theater PC Enclosures
