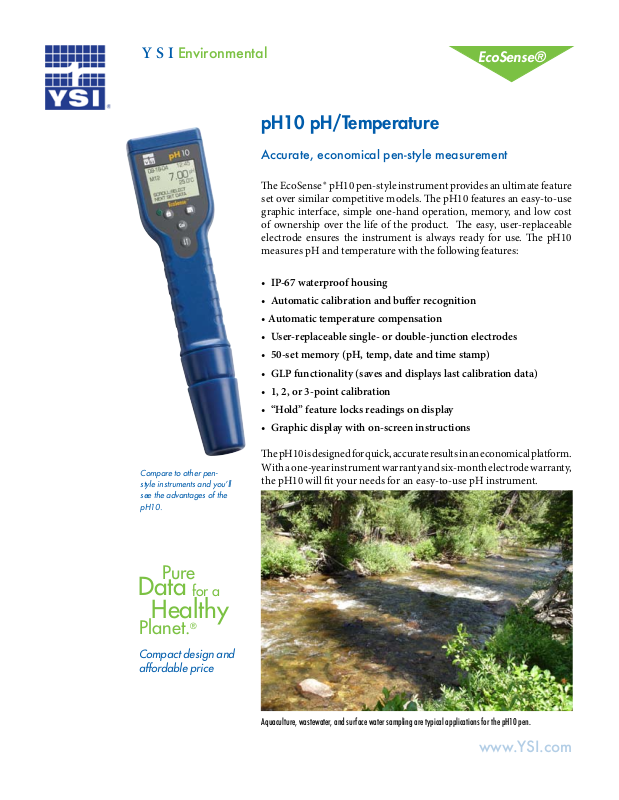

YSI pH10 Data sheet

YSIEnvironmental

EcoSense®

pH10 pH/Temperature

Accurate, economical pen-style measurement

e EcoSense ® pH10 pen-style instrument provides an ultimate feature
set over similar competitive models. e pH10 features an easy-to-use
graphic interface, simple one-hand operation, memory, and low cost
of ownership over the life of the product. e easy, user-replaceable
electrode ensures the instrument is always ready for use. e pH10
measures pH and temperature with the following features:

• IP-67 waterproof housing

• Automatic calibration and buer recognition

• Automatic temperature compensation

• User-replaceable single- or double-junction electrodes

Compare to other pen­style instruments and you’ll
see the advantages of the
pH10.

Pure

Data

for a

Healthy

Planet.

®

• 50-set memory (pH, temp, date and time stamp)

• GLP functionality (saves and displays last calibration data)

• 1, 2, or 3-point calibration

• “Hold” feature locks readings on display

• Graphic display with on-screen instructions

e pH10 is designed for quick, accurate results in an economical platform.
With a one-year instrument warranty and six-month electrode warranty,
the pH10 will t your needs for an easy-to-use pH instrument.

Compact design and
affordable price

Aquaculture, wastewater, and surface water sampling are typical applications for the pH10 pen.

www.YSI.com

YSI Environmental
[phone]
1 800 897 4151 (U.S.)
[e-mail]

YSI Integrated Systems
& Services
[phone]
[e-mail]

SonTek/YSI
[phone]
[e-mail]

YSI Gulf Coast
[phone]
[e-mail]

AMJ Environmental
[phone]
[e-mail]

YSI Hydrodata
[phone]
[e-mail]
[e-mail]

YSI Middle East (Bahrain)
[phone]
[e-mail]

YSI (Hong Kong) Limited
[phone]
[e-mail]

YSI China
[phone]
[e-mail]

YSI/Nanotech (Japan)
[phone]
[e-mail]

YSIEnvironmental

pH10 (System Specifications)

Temperature Range 0.0 to 100.0 °C (32.0 to 212 °F)

Resolution 0.1 °C (0.2 °F)
Accuracy ±0.3 °C (±0.6 °F)

pH Range 0.00 to 14.00 units

Resolution 0.01 units
Accuracy ±0.1 unit within 10 °C of calibration, ±0.2 unit within 20 °C

Additional Technical Specifications

Operating range 0.0 to 50.0 °C (32.0 to 122.0 °F)

Water resistance IP-67 waterproof case

Weight with batteries 105 grams (3.7 ounces)

ATC Probe ermistor, 10kΩ / 25°C

Battery Four LR44 alkalines included with purchase

Battery life 200 hours or greater (low battery indicator)

pH temp compensation Auto 0.0 to 100.0 °C (32.0 to 212 °F)

pH buffer recognition USA (4.01, 7.00, & 10.01) or NIST (4.01, 6.86, & 9.18)

pH calibration temp 0.0 to 60 °C (32.0 to 140.0 °F)

pH offset recognition +90 mV at pH 7.00 or +98.3 mV / -81.7 mV at pH 6.86

pH slope recognition +30% at pH 4.00, 4.01, 9.18, or 10.01

Memory Non-volatile; 50 sets (pH, temperature, date and time stamp); erase all data function

pH10 Ordering Information

pH10 pH10 instrument (includes 605113 pH electrode, batteries, instruction manual)

605113 Single-junction pH electrode (replacement)

605116 Double-junction pH electrode

605129 So, black carrying case with shoulder strap

3824 Assorted pH buers case (6 pints - 2 of each buer 4, 7 10)

605188 Replacement batteries (4 LR44 alkaline batteries)

YSI India
[phone]
[e-mail]

YSI Australia
[phone]
[e-mail]

ISO 9001
ISO 14001

Who’s Minding the Planet?, EcoSense,
and Pure Data for a Healthy Planet are
trademarks of YSI Incorporated.

©2009 YSI Incorporated
Printed in USA 1209 W26-02

YSI incorporated

Whoʼs Minding

the Planet?

®

605116 double-junction
electrode.

605188 replacement batteries.

605129 soft carrying case.

3824 assorted pH buffers
case.

605113 single-junction
replacement electrode.
