Yongnuo YN900 Quick Start Manual

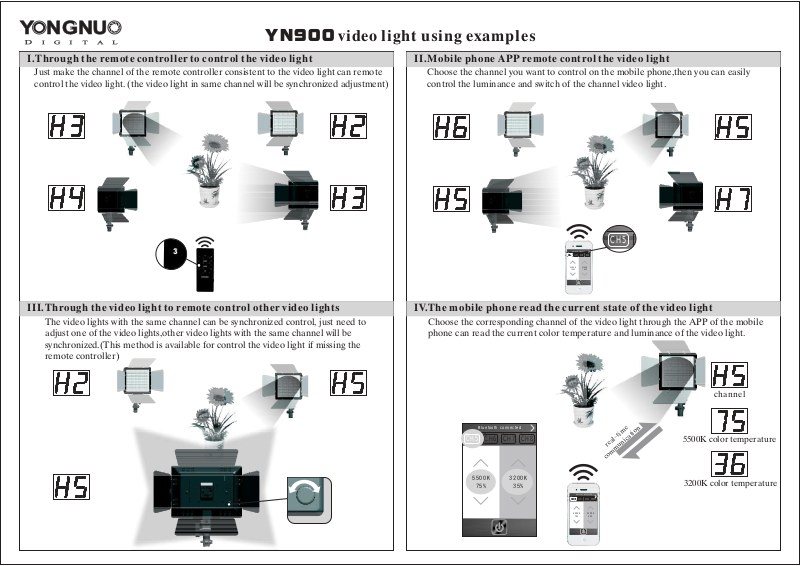

YN 900 video light using examples
I.Through the remote controller to control the video light
Just make the channel of the remote controller consistent to the video light can remote
control the video light. (the video light in same channel will be synchronized adjustment)
3
III.Through the video light to remote control other video lights
The video lights with the same channel can be synchronized control, just need to
adjust one of the video lights,other video lights with the same channel will be
synchronized.(This method is available for control the video light if missing the
remote controller)
II.Mobile phone APP remote control the video light
Choose the channel you want to control on the mobile phone,then you can easily
control the luminance and switch of the channel video light.
CH5
Bluetooth c onnected
CH5 CH6 CH7 CH 8
5500 K
3200 K
100%
100%
IV.The mobile phone read the current state of the video light
Choose the corresponding channel of the video light through the APP of the mobile
phone can read the current color temperature and luminance of the video light.
Bluetooth connected
CH6 CH7 CH8
CH5
55 0 0 K
%75
32 0 0 K
channel
-
real time
communication
%35
Bluetoot h connect ed
CH5 CH6 CH7 CH8
550 0K
320 0K
%75
%35
5500K color temperature
3200K color temperature
YN 90 0 Video Light Quick Guide
supply or two Sony NP-F series lithium batteries.
.I.Through the DC power jack behind the video light can connected the DC 19V/5A MAX direct-current
optional 19V/5A direct-current supply
use two Sony NP-F series lithium batteries
.II Press the switch knob can turn on or off the video light,rotate the switch knob can adjust the luminance.
press to turn on the video light
III.Control Buttons Instructions
enter into the fine
dimming mode
3200 K
enter into the rough
dimming mode
channel switching
button
Fine
Coar se
CH
5500 K
Batt
.
control the luminance of
3200K color temperature
control the luminance of
5500K color temperature
electric quantity testing
button
rough dimming
mode switching button
switching button
Control Buttons Instructions for YN900 double color light Control Buttons Instructions YN900 white light
rotate to adjust the luminance
Coar se
Fine
Batt
channel
CH
fine dimming
mode switching button
electric quantity
testing button
. .IV The attached remote controller can remote control the luminance,switch and grouping control of the video light
Channel indicator
Video light close button
5500K luminance reducing button
3200K luminance reducing button
Channel toggle button
OFF ON
550 0K
320 0K
CH
Video light release button
5500K luminance increasing button
3200K luminance increasing button
Channel toggle button
remote control power switch
.V The product supports mobile phone remote controlling
0version and above IOS7 0 and iPhone4S and above mobile phone
/ .
supports Android4 3 and bluetooth 4
. .
),APP can be downloaded from the
YONGNUO official website or through the dimensional code scanning on the gift box.
Bluetooth connected. Click this window to
connect Bluetooth manually. The Bluetooth
indicator of the video light keeps on after
Bluetooth connected
5500K color temperature controlling range;
Slide it up and down or click it to control
color temperature
On-off control button of YN900 video light;
Click it t control the switch of YN900o
Bluetooth connected
5 5 0 0 K
1 0 0 %
3 2 0 0 K
1 0 0 %
Channel switching window; Select more
channel (8 channels in total) by clicking it
or sliding it leftwards
In the 3200K color temperature adjustment
area,it can be adjusted by rotating or
clicking way.(YN900 white video light
does not support 3200K color temperature
adjustment)
