User’s
Manual
Model VJCE
VJ Mounting Base
IM 77J01C51-01E
Please read through this manual as well as the manual for respective instruments of JUXTA VJ series mounted on the
VJ mounting base for correct handling. Please keep this manual carefully after use.
CAUTIONARY NOTES FOR SAFE USE OF THE PRODUCT
If this symbol is indicated on the product, the operator should refer to the explanation given in the
user's manual in order to avoid injury or death to either themselves or other personnel, and/or damage
to the instrument. The manual describes the special care the operator should exercise to avoid shock or
other dangers that may result in injury or loss of life.
The following symbols are used only in this manual.
IMPORTANT
Indicates that operating the hardware or software in a particular manner may damage it or result in a
system failure.
NOTE
Draws attention to information that is essential for understanding the operations and/or features of the
products.
Network Solutions Business Divisiion
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
IM 77J01C51-01E
1st Edition Dec. 2004 (MC)
2nd Edition July 2004 (YK)
2
INTRODUCTION
The VJCE has been manufactured under strict quality control and thoroughly tested at the factory before shipment.
When you receive it, visually inspect it for damage.
(1) Model and Suffix Codes Check
Check that the model and suffix codes for VJ mounting base and VJ series signal conditioner are as ordered.
Model
VJCE-011
VJCE-012
VJCE-013
VJCE-014
Input Output-1 Output-2
Screw terminal
Connector
Screw terminal Screw terminal Screw terminal
Screw terminal Screw terminal
Connector
Screw terminal Screw terminal
[Mountable Signal Conditioners]
Signal Conditioner
Models
VJA1
VJA4
VJA5
VJA7
VJB1
VJB3
VJC1
VJD1
VJF1
VJG1
VJH1
VJH7
VJHF
VJHR
VJP1
VJP4
VJP8
VJQ0
VJQ2
VJQ7
VJQ8
VJR6
VJS2
VJS7
VJSS
VJT6
VJU7
VJX7
VJXS
Product Name
Distributor
Distributor (Non-isolated)
Distributor (with Square Root Extractor)
Distributor (Multi-function)
CT Converter (RMS)
AC Converter (RMS)
Loop Powered Isolator
Tachometer Converter
Pneumaic to Electrical Converter
PT Converter (RMS)
Isolator
Isolator (Multi-function)
Isolator (Super Speed Response Type)
Isolator (Reverse Output Type)
Pulse Repeater
Pluse Rate Converter
Pluse Rate Converter (Multi-function)
Analog to Pulse Converter
Pulse to Analog Converter
Analog to Pulse Converter (Multi-function)
Pulse to Analog Converter (Multi-function)
RTD Converter
Potentiometer Converter
Potentiometer Converter (Multi-function)
High/Low Signal Selector
Thermocouple Converter
Universal Temperature Converter
Universal Computing Unit (Multi-function)
Universal Computing Unit
Screw terminal
Connector
VJCE
-014
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
VJCE
-013
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
––
●
●
●
●
VJCE
-012
––
––
––
––
––
––
––
––
––
––
●
●
●
●
––
––
––
●
––
●
––
––
––
––
––
––
––
●
●
VJCE
-011
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J01C51-01E 2nd Edition July 23,2004-00
3
(2) Related User's Manual
This manual dose not explain the details (handling, maintenance and the like) for signal conditioners mounted on
VJCE.
The lineup and User's Manual numbers of JUXTA VJ series signal conditioners are shown below.
Model
VJCE
VJA1
VJA4
VJA5
VJA7
VJB1
VJB3
VJC1
VJD1
VJF1
VJG1
VJH1
VJH7
VJHF
VJHR
VJP1
VJP4
VJP8
VJQ0
VJQ2
VJQ7
VJQ8
VJR6
VJS2
VJS7
VJSS
VJT6
VJU7
VJX7
VJXS
VJ77
Product Name [Document title]
VJ Mounting Base: This manual
Distributor
Distributor (Non-isolated)
Distributor (with Square Root Extractor)
Distributor (Multi-function)
CT Converter (RMS)
AC Converter (RMS)
Loop Powered Isolator
Tachometer Converter
Pneumaic to Electrical Converter
PT Converter (RMS)
Isolator
Isolator (Multi-function)
Isolator (Super Speed Response Type)
Isolator (Reverse Output Type)
Pulse Repeater
Pluse Rate Converter
Pluse Rate Converter (Multi-function)
Analog to Pulse Converter
Pulse to Analog Converter (Free Range Type)
Analog to Pulse Converter (Multi-function)
Pulse to Analog Converter (Multi-function)
RTD Converter
Potentiometer Converter
Potentiometer Converter (Multi-function)
High/Low Signal Selector
Thermocouple Converter
Universal Temperature Converter
Universal Computing Unit (Multi-function)
Universal Computing Unit
Parameter Setting Tool
VJ Series Communication Function
User’s Manual No.
IM 77J01C51-01E
IM 77J01A01-01E
IM 77J01A04-01E
IM 77J01A05-01E
IM 77J01A07-01E
IM VJB1-01E
IM VJB3-01E
IM VJC1-01E
IM VJD1-01E
IM VJF1-01E
IM VJG1-01E
IM 77J01H01-01E
IM 77J01H07-01E
IM VJHF-01E
IM 77J01H12-01E
IM VJP1-01E
IM VJP4-01E
IM 77J01P08-01E
IM VJQ0-01E
IM VJQ2-01E
IM 77J01Q17-01E
IM 77J01Q08-01E
IM 77J01R06-01E
IM VJS2-01E
IM 77J01S07-01E
IM VJSS-01E
IM 77J01T06-01E
IM 77J01U07-01E
IM 77J01X07-01E
IM VJXS-01E
IM 77J01J77-01E
IM 77J01J11-01E
1. PRODUCT OVERVIEW
The VJCE is a horizontally installed, side-by-side multiple mounting base that complies with the standard rackmounting dimensions specified by the JIS/EIA standards. A maximum of 16 signal conditioners of JUXTA VJ series
can be mounted on VJCE.
● Different signal conditioners of VJ series can be mixed and housed in the same mounting base.
● Signal condition of input/output is selectable out of 4 types.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J0C51-01E 2nd Edition July 23,2004-00
4
2. EXTERNAL DIMENSIONS
● VJCE-011 and VJCE-014
Input terminals
for slots 1 to 8
Output-2 terminals
for slots 1 to 8
*1: Output-2 connector for VJCE-014
*2: Output-1 terminals for VJCE-014
*2 *2
● VJCE-012
482.6
465
446
Input terminals
for slots 9 to 16
482.6
465
446
Output-2 terminals
for slots 9 to 16
Input connector
CN1
Output-1 connector
CN1
*1
Power supply terminals
Unit : mm
121
46.8
25.8
37.757.1
50 24.5
130
30.5
Unit : mm
121
25.8
37.757.1
● VJCE-013
Output terminals
for slot 1 to 8
Output terminals
for slot 1 to 8
Input terminals
for slot 1 to 8
482.6
465
446
Output terminals
for slot 9 to 16
Output terminals
for slot 9 to 16
Input terminals
for slot 9 to 16
50 24.5
130
Power supply terminals
37.7101.6
100 24.5
177
Power supply terminals
30.5
46.8
Unit : mm
121
58.3
25.8
30.5
46.8
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J01C51-01E 2nd Edition July 23,2004-00
3. INSTALLATION OF VJCE
The VJCE can be installed horizontally on 19 inches rack complies with JIS/EIA standards, or horizontally on the
wall. Under the conditions mentioned in Article 3.2, a maximum of 5 mounting bases can be installed on one side of
the cabinet.
3.1 Environmental Conditions
3.1.1 Ambient temperature and humidity
Ambient temperature and humidity during operation of the instruments would be as follows:
Temperature: 0 to 50°C, Humidity: 5 to 90% RH
3.1.2 Vibration condition
Vibration of installation place would be less than 2m/s
3.1.3 Air purification degree
Air dirty is desirous to be less than 0.2mg/m3. Also, corrosive gas such as hydrogen sulfide, sulfurous acid gas, chlorine and conductive dust such as iron and carbon are desirous to be as little as possible.
(Note) Permissible limit of hydrogen sulfide (H2S) and sulfurous acid gas (SO2) would be as standard of JEIDA-29 (1979) CLASS S1*.
JEIDA: Japan Electronic Industrial Development Association JEIDA-29 (1979) CLASS S1
H
S: 0.01ppm or less, SO2: 0.05ppm or less (Ambient temperature: 25°C ± 5°C, ambient humidity: 40 to 80%RH)
2
3.2 Condition of Installation
2
at 10 to 150Hz
5
NOTE
(1)
Secure space for top and bottom to avoid heating.
●
Apart more than 100 mm from the floor board.
●
Apart more than 100 mm from panel top
and make air exhaust hole or set cooling
fan at panel upper.
●
If wall stands at back in case of rack
mounting, apart more than 60mm from the
wall for ventilation.
(2)
Take enough space for front and side faces so as
not to interfere wiring, piping and maintenance area.
(3) In case storing in cabinet, air cooling is
compulsorily required to prevent from raise of
temperature.
(4) Do not install it on the heating materials.
(5) In case of installing the VJCE one above
another to up and down direction, take
installation space as shown in the figure on the
right. (78 mm for rack mounting, 128 mm for
wall mounting)
● 19 inches Rack Mounting ● Wall Mounting
Cooling fan or exhaust hole Cooling fan or
100 or more
78 or more
3.3 Installation
3.3.1 Installation of VJCE
Use four (4) M5 screws for installation.
3.3.2 Installation of signal conditioners
Connect the pin on the back of the signal conditioner to the VJCE connector
as shown in the figure on the right. Then tighten the fixing screw on the front
of the signal conditioner.
Unit : mm
exhaust hole
100 or more
128 or more
60 or more
VJCE
NOTE
Insert and pull out the signal conditioner vertically to VJCE.
Inserting and pulling it out slantwise may make the pin bent and
cause a failure such as a bad contact.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J0C51-01E 2nd Edition July 23,2004-00
Signal Conditioner
Fixing screw
Blank Plate (Option)
Parts Number : T9093TT
6
4. EXTERNAL WIRING
4.1 Field Side Wiring and Wiring of Power Supply and Ground
Flexible twisted cable and good contact of durable round crimp-on terminals are recommended to use.
⭋D1
⭋D2
Cross sectional
area
2
0.75 mm
2
A
L
0.9 mm
1.25 mm
2.0 mm
2
2
Screw
M3.5 3.7 or more 6.9 or less About 19 3.2 or more
⭋D1
Hole dia.
(mm)
A
Terminal out dia.
(mm)
L
Terminal length
(mm)
øD2
Insulation coating
(mm)
4.1.1 Signal cable
Nominal cross-sectional area of conductor: 0.75 to 2 mm
Example of suitable cable: Vinyl code (VSF) twisted cable (JIS C3306)
2
4.1.2 Power cable
Nominal cross-sectional area of conductor: 1.25 to 2 mm
Example of suitable cable: 600V vinyl code (IV) twisted cable (JIS C3307), Vinyl insulated cable (KIV) (JIS C3316)
2
4.1.3 Ground cable
Nominal cross-sectional area of conductor: 2 mm
Example of suitable cable: 600 V vinyl code (IV) twisted cable (JIS C3307), Vinyl insulated cable (KIV) (JIS C3316)
2
4.2 Field Side Input/Output Terminals, Piping and System Side Wiring
Assignment of Input/Output Terminals on and after page 7 shows relation between VJCE field side input/output terminals and signal conditioner input /output signal at the terminals. (Refer to the assignment for the model code to be
used for wiring.) Field side input/output terminals are M3.5 screws. Exclusive cable is used for connection between
VJCE and VM1, PM1 cards. Connect input air pressure signal of VJF1 to connecting hole of front face of signal conditioner directly. Connect power and ground cables to power terminals of VJCE. Power would internally be distributed
to respective signal conditioners.
WARNING
It is recommended that CT protector (CTG-5) be attached to the current input terminals connected to the
secondary side of the CT when mouning VJB1 (CT transmitter) on VJCE. Since a high potential
develops over the secondary side, the CT may burn and break if you unplug the VJB1 from the VJCE
while the VJB1 is turned on and it has no CT protector.
IMPORTANT
●
Ensure the followings before turning on the power. Use of signal conditioners of VJ series ignoring
the specifications may cause overheating or damage to VJCE-01A and signal conditioners.
· Power supply voltage and input signal value applied to VJCE-01A and signal conditioners should
meet the required specifications.
· The external wiring to the terminals is as specifications.
●
Do not operate the product in the presece of flammable or explosive gases or vapors. To do so is
highly dangerous.
●
Many semi-conductor integrated circuit parts are used for signal conditioners. Take care of static
electricity trouble at the maintenance or change of setting for the signal conditioners.
●
The grounding resistance must be 100 Ω (JIS Class D grounding). The length and thickness of the
grounding cable should be as short and thick as possible. Directly connect the lead from the ground
terminal of the product to the ground. Do not carry out daisy-chained inter-ground terminal wiring.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J01C51-01E 2nd Edition July 23,2004-00
5.
ASSIGNMENT OF INPUT/OUTPUT TERMINALS AND POWER SUPPLY TERMINALS

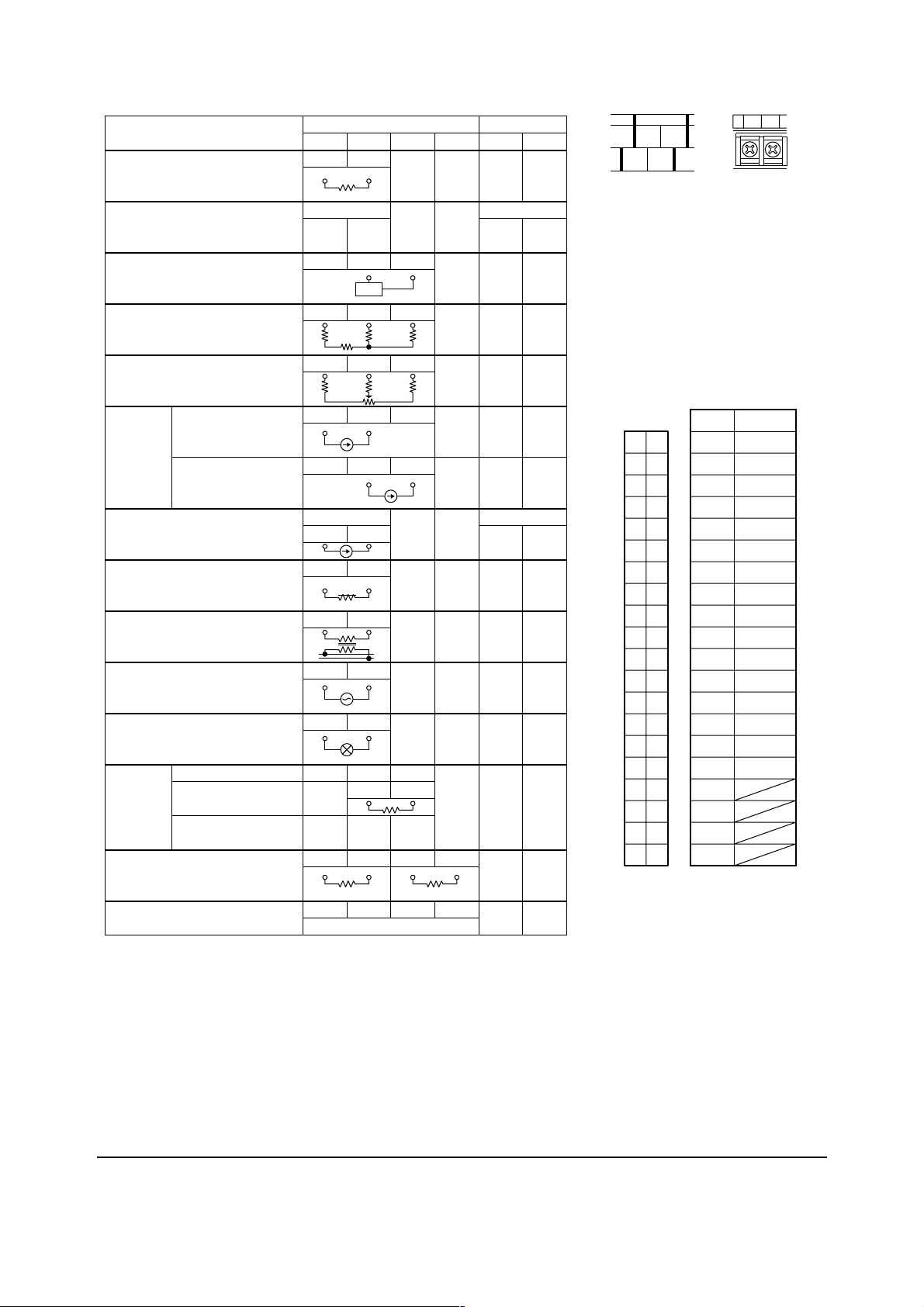

5.1 Assignment of Input/Output Terminals
7
● VJCE-011
Mountable Signal Conditioners
VJH1, VJH7, VJHF, VJHR
VJQ0, VJQ7
VJXS, VJX7
VJC1 (*1)
VJT6
VJU7 (TC or mV input)
VJR6
VJU7 (RTD input)
VJS2, VJS7
“N.C.” in the table denotes unassigned terminals.
Input T erminal
134
6
⫹⫺
N.C. N.C.
(*3)
Channel-1 Channel-2
⫹⫺⫹⫺
⫹⫺
RJC
N.C.
ABB
N.C.
100%
CENTER
0%
N.C.
Output-2 T erminal
5
2
⫹⫺
Channel-2
⫹⫺
⫹⫺
⫹⫺
⫹⫺
Input Terminals
SLOT*
Output-2 Teminals
2*5
36
1
4
“*” in the figure above denotes a slot number.
Slots are numbered from 1 to 16, beginning
with the leftmost slot, when viewed from the
VJCE front.
CN1
Connector's Pin Assignment
VJA1
VJA5
VJA7
VJA4 (*1)
VJB1
VJG1
VJB3
VJD1
VJP1
VJP4
VJP8
VJQ2 (*2)
VJQ8
VJSS
VJF1
When using internal power
supply
When using external power
supply (When used as an
isolator)
Non-voltage contact / Voltage contact
Internally powered current pulse
(two-wire system)
Internally powered voltage pulse
(three-wire system)
PS⫹⫺N.C.
N.C.
N.C. ⫹⫺
N.C.
Channel-1 Channel-2
⫹ – ⫹⫺
A ⫾
N.C. N.C.
V ⫾
N.C. N.C.
L
N
A/V ⫾
N.C. N.C.
V ⫾
N.C. N.C.
N.C. ⫹⫺
PS⫹⫹ ⫺
(*3)
N.C.
PS⫹⫹ ⫺
⫹⫺⫹⫺
(*3) (*3)
N.C. N.C. N.C. N.C.
Input through one-touch fitting ⭋6 of the VJF1.
⫹⫺
⫹⫺
Channel-2
⫹⫺
N.C. N.C.
N.C. N.C.
⫹⫺
⫹⫺
⫹⫺
⫹⫺
N.C. N.C.
CN1
40 39
38 37
36 35
34 33
32 31
30 29
28 27
26 25
24 23
22 21
20 19
18 17
16 15
14 13
12 11
10 09
08 07
06 05
04 03
02 01
Pin No. Slot No.
40 1 +
39 –
38 2 +
37 –
36 3 +
35 –
34 4 +
33 –
32 5 +
31 –
30 6 +
29 –
28 7 +
27 –
26 8 +
25 –
24 9 +
23 –
22 10 +
21 –
20 11 +
19 –
18 12 +
17 –
16 13 +
15 –
14 14 +
13 –
12 15 +
11 –
10 16 +
09 –
08
07
06
05
04
03
02
01
Note:The figure represents the
connector when viewed from
the connector cable.
*1: For 2-channel type of VJC1 and VJA4, only the voltage output can be mounted on VJCE. Output of channel-1 is output to the connector (CN1).
*2: Since VJQ2 is single output type, output-2 terminals are N.C.
*3: When receiving current input (current pulse), external shunt resistor (receiving resistor) is required.
● VJCE-012
Mountable Signal Conditioners
VJH1, VJH7, VJHF, VJHR, VJQ0
VJQ7, VJXS, VJX7, VJHK
Output-2 T erminalOutput-1 T erminal
7925
⫹⫺⫹⫺
Output Terminals
SLOT*
79
25
“*” in the figure on the left denotes a slot number. Slots are numbered from 1 to 16, beginning
with the leftmost slot, when viewed from the
VJCE front.
CN1 connector's pin assignmet is same as VJCE-011.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J0C51-01E 2nd Edition July 23,2004-00
8
● VJCE-013
Mountable Signal Conditioners
VJH1, VJH7, VJHF, VJHR
VJQ0, VJQ7
VJXS, VJX7, VJHK
VJC1 (*1)
VJT6
VJU7 (TC or mV input)
VJTK
VJR6
VJU7 (RTD input)
VJRK
VJS2
VJS7
VJSK
VJA1
VJA5
VJA7
VJAK
VJA4 (*1)
VJB1
When using internal power
supply
When using external power
supply (When used as an
isolator)
“N.C.” in the table denotes unassigned terminals.
Input T erminal
Output-1 T erminal
13479 62
⫹⫺
(*3)
Channel-1
⫹⫺
N.C.
N.C.
⫹⫺
Channel-1
⫹⫺
⫹⫺
RJC
⫹⫺
ABB
⫹⫺
100%
CENTER
0%
⫹⫺
PS⫹⫺N.C.
N.C. ⫹⫺
Channel-1
⫹⫺
N.C.
⫹⫺
Channel-1
⫹ –
A ±
N.C.
⫹ –
Output-2 T erminal
5
⫹⫺N.C.
N.C. N.C. N.C.
⫹⫺N.C.
⫹⫺N.C.
⫹⫺N.C.
⫹⫺N.C.
N.C. N.C. N.C.
N.C. N.C. N.C.
Output Terminals
25
6
79
SLOT*
Input Terminals
SLOT*
4
13
“*” in the figure above
denotes a slot number.
Slots are numbered
from 1 to 16, beginning with the leftmost
slot, when viewed
from the VJCE front.
V ⫾
VJG1
L
N.C.
N
⫹⫺
N.C. N.C. N.C.
A/V ⫾
VJB3
N.C.
⫹⫺
⫹⫺N.C.
V ⫾
VJD1
VJP1
VJP4, VJP8
VJQ2 (*2)
VJQ8, VJQK
Non-voltage contact / Voltage contact
Internally powered current pulse
(two-wire system)
Internally powered voltage pulse
(three-wire system)
N.C.
N.C. ⫹⫺
PS⫹⫹ ⫺
(*3)
PS⫹⫹ ⫺
⫹⫺
⫹⫺
⫹⫺N.C.
⫹⫺N.C.
(*2) (*2)
N.C. N.C. N.C.
VJF1
When output-2 is communication output.
When output-2 is alarm output.
Input through one-touch
fitting ø6 of the VJF1.
Regarding input, refer to the
above model by model.
⫹⫺
⫹⫺
N.C. N.C. N.C.
B (⫹)A (⫺) COM
AL1 COM AL2
*1: Only 1-channel type of VJC1 and VJA4 can be mounted on VJCE.
*2: Since VJQ2 is single output type, output-2 terminals are N.C.
*3: When receiving current input (current pulse), external shunt resistor (receiving resistor) is required.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J01C51-01E 2nd Edition July 23,2004-00
9
● VJCE-014
Mountable Signal Conditioners
VJH1, VJH7, VJHF, VJHR
VJQ0, VJQ7
VJXS, VJX7
VJC1 (*1)
VJT6
VJU7 (TC or mV input)
VJR6
VJU7 (RTD input)
VJS2, VJS7
When using internal power
VJA1
VJA5
VJA7
VJA4 (*1)
supply
When using external power
supply (When used as an isolator)
134
⫹⫺
Channel-1
⫹⫺
⫹⫺
ABB
100%
PS⫹⫺N.C.
N.C. ⫹⫺
Channel-1
⫹⫺
“N.C.” in the table denotes unassigned terminals.
Input T erminal
N.C. N.C.
(*2)
6
Output-1 T erminal
7
⫹⫺
Channel-1
RJC
CENTER
N.C. N.C.
N.C.
N.C.
0%
N.C.
N.C.
N.C.
⫹⫺
⫹⫺
⫹⫺
⫹⫺
⫹⫺
⫹⫺
Channel-1
N.C. N.C.
⫹⫺
9
A ⫾
VJB1
N.C. N.C.
⫹⫺
V ⫾
VJG1
L
N
N.C. N.C.
⫹⫺
A/V ⫾
VJB3
N.C. N.C.
⫹⫺
V ⫾
VJD1
VJP1
VJP4
VJP8
VJQ2
VJQ8
Non-voltage contact / Voltage contact
Internally powered current pulse
(two-wire system)
Internally powered voltage pulse
(three-wire system)
N.C. N.C.
N.C. ⫹⫺
PS⫹⫹ ⫺
(*2)
PS⫹⫹ ⫺
N.C.
⫹⫺
⫹⫺
⫹⫺⫹⫺
VJSS
VJF1
(*2) (*2)
N.C. N.C. N.C. N.C.
Input through one-touch fitting ⭋6 of the VJF1.
⫹⫺
N.C. N.C.
*1: Only 1-channel type of VJC1 and VJA4 can be mounted on VJCE.
*2: When receiving current input (current pulse), external shunt resistor (receiving resistor) is required.
Input Terminals
SLOT*
Output-1 Teminals
7*9
36
1
4
“*” in the figure above denotes a slot number.
Slots are numbered from 1 to 16, beginning with
the leftmost slot, when viewed from the VJCE
front.
CN1
Connector's Pin Assignment
CN1
40 39
38 37
36 35
34 33
32 31
30 29
28 27
26 25
24 23
22 21
20 19
18 17
16 15
14 13
12 11
10 09
08 07
06 05
04 03
02 01
Note:The figure represents the
Pin No. Slot No.
40 1 +
39 –
38 2 +
37 –
36 3 +
35 –
34 4 +
33 –
32 5 +
31 –
30 6 +
29 –
28 7 +
27 –
26 8 +
25 –
24 9 +
23 –
22 10 +
21 –
20 11 +
19 –
18 12 +
17 –
16 13 +
15 –
14 14 +
13 –
12 15 +
11 –
10 16 +
09 –
08
07
06
05
04
03
02
01
connector when viewed from
the connector cable.
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J0C51-01E 2nd Edition July 23,2004-00
10
5.2 Assignment of Power Supply Terminals
Terminal Number Signal Symbol
1
1
2 3
2
3
CAUTION
Ensure that the power supply voltage for VJCE-01A matches that for the signal conditioner to be
mounted on VJCE-01A. Supply of different power supply voltage may damage VJCE-01A and signal
conditioners.
6. CALIBRATION
Refer to the User’s Manual of respective signal conditioner for how to calibrate and for the equipment required for
calibration.
6.1 Items to Check before Power on
● Supply power rating is 12 to 36 V DC or 85 to 264 V AC / DC.
● Wiring of signal cables
● Installation, ambient temperature, humidity, dust, vibration
Please power on after checking the above items.
The VJCE would be in operational status upon power on. However, 10 to 15 minutes are required to satisfy its specifications and performance
SUPPLY L(⫹)
SUPPLY N(⫺)
GND
6.2 Connection of Calibration Equipment
When Output- or Output-2 is connector, prepare KS2 cable and TE-16 terminal block.
KS2 cable
43
t=15
Cable with 16 pairs shield
80
Ground terminal
40 pin connector 40 pin connector
[VJCE side]
TE-16 Terminal Block
1A 2A 3A 4A 5A 6A 7A 8A
1B 2B 3B 4B 5B 6B 7B 8B 9B 10B 11B 12B 13B 14B 15B 16B
9A 10A 11A 12A 13A 14A 15A 16A
SHLD
[Input/output card side]
SHLD
All Rights Reserved. Copyright © 1999, Y okogawa M&C Corporation IM 77J01C51-01E 2nd Edition July 23,2004-00
Loading...
