User’s Manual

Model VJ77 PC-based Parameters Setting Tool

IM 77J01J77-01E

2nd Edition

Blank Page

Introduction

This instruction manual describes the functions and operation of the Model VJ77 PC-based Parameters Setting Tool.

■ Configuation of This Manual

This manual consists of 12 chapters.

● Chapter 1 VJ77 PC-based Parameters Setting T ool

Gives an overview of VJ77 and describes its functions and the operating environment.

● Chapter 2 Setup

Describes how to setup the hardware and software required to use VJ77.

● Chapter 3 Basic Operation

Describes the basic operation and main windows of VJ77.

● Chapter 4 Setting Parameters

Describes how to set parameters of JUXT A instruments.

● Chapter 5 Setting a Program

Describes how to set a program for JUXT A computing units.

● Chapter 6 Uploading and Downloading Data from/to JUXT A

Describes how to upload parameter or program data inside JUXT A instruments from VJ77 and how to download the data to JUXT A instruments.

● Chapter 7 Saving Data

Describes how to save parameter or program data on a disk.

● Chapter 8 Printing Data

Describes how to print parameter or program data.

● Chapter 9 Monitoring Input/Output V alues

Describes how to monitor the I/O values of JUXT A instruments and how to view the result of self-diagnosis.

● Chapter 10 Adjusting JUXTA Instruments

Describes how to adjust JUXT A instruments’ input/output, how to correct the wiring resistance, and others.

● Chapter 1 1 Troubleshooting

Describes how to solve problems when any trouble has occurred while using VJ77.

● Appendix

Describes how to set a password (security function).

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00Media No. IM 77J01J77-01E (FD) 2nd Edition : Jan. 2004 (MC)

■ Intended Readers

This manual is intended for people familiar with the functions of JUXT A signal conditioners and capable of working with Windows, such as instrumentation and control engineers and personnel in charge of maintaining instruments and control equipment.

■ Related Documents

● Instruction manuals for individual JUXT A signal conditioners

These manuals provide information about the procedure of installation and wiring of signal conditioners and parameter lists.

■ T rademark

Windows is a registered trademark of Microsoft Corporation, USA.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Visual Inspection and Cross-check of

Accessories

On receiving the product, visually inspect it for any damage.

■ Checking Model and Suffix Codes

Make sure that the model and suffix codes of the delivered product are as specified in your order.

Model Suffix code Description

VJ77 PC-based parameters setting tool

-E10 For use with IBM PC/AT compatible personal computers (English version)

■ Checking the Package Contents

Make sure that the delivered package contains all of the following items.

iii

• 3.5-inch floppy disks............................................................................ 3 disks

• Communication adapter...................................................................... 1 unit

• Communication cable with 9-pin D-sub female connectors at both ends 1 cable

• JUXT A comm unication cable (3-pin connector type)............................ 1 cable

• JUXT A comm unication cable (5-pin connector type)............................ 1 cable

• Adapter for modular-jack.....................................................................1 unit

• Instruction manual (this manual: IM 77J01J77-01E) ............................ 1 copy

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Documentation Conventions

■ Documentation Conventions

The following conventions are used throughout this manual:

Item Usage

The names of named dialog boxes, windows, and views are written in title cap and refer to the exact titles.

The names of unnamed windows, dialog boxes, and views are written in all lowercase letters.

Commands (including buttons) in a dialog box or window and menu commands are written in boldface.

Dialog box elements, such as text boxes, list boxes, option buttons, and check boxes, are also written in bold face and refer to their exact labels.

Characters to be typed by the user via keyboard are written in monotype font.

WARNING

Parameter Setting Menu dialog box

Gantt view document window

print preview Click OK.

Click Options. From the File menu, choose Exit.

Select the Spaces check box. Click to clear the Bookmarks check box. In the Font box, type or select the font you want to use. In the File Name box, enter a file name.

Type JUXTA in the Model box.

Indicates that operating the hardware or software in a particular manner may damage it or result in a system failure.

CAUTION

Draws attention to information that is essential for understanding the operation and/or features of the product.

TIP

Gives additional information to complement the present topic.

See Also

Gives reference locations for further information on the topic.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

■ Illustrations in This Document

(1) Illustrations and figures presenting this product or its functions in this manual may not

be exactly the same as the actual product or functions so as to simplify understanding.

(2) Figures and illustrations representing the displays may differ from the actual displays

in regard to the position and/or display characters (uppercase or lowercase, for example), but not to an extent that impairs a correct understanding of the functions and the proper setting operation.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Notice

■ Regarding This Instruction Manual

(1) This manual should be passed on to the end user . Keep this manual in a safe place. (2) Read this manual carefully to gain a thorough understanding of how to operate this

product before you start using it.

(3) This manual is intended to describe the functions of this product. Yokogawa M&C

Corporation (hereinafter simply referred to as Y okogawa M&C) does not guarantee that these functions are suited to the particular purpose of the user .

(4) Under absolutely no circumstances may the contents of this manual, in part or in

whole, be transcribed or copied without permission. (5) The contents of this manual are subject to change without prior notice. (6) Every effort has been made to ensure accuracy in the preparation of this manual.

Should any errors or omissions come to your attention however , please contact your

nearest Y okogawa representative or our sales of fice.

■ Regarding Protection, Safety , and Prohibition Against Unauthorized

Modification

(1) In order to protect the product and the system controlled by it against damage and

ensure its safe use, make sure that all of the instructions and precautions relating to

safety contained in this document are strictly adhered to. Y okogawa M&C does not

guarantee safety if the product is not handled according to these instructions. (2) The following safety symbols are used in this manual.

● Symbols used on the product and in this manual

This symbol on the product indicates that the operator must refer to an explanation in the instruction manual to avoid the risk of injury or death of personnel or damage to the instrument. The manual describes how the operator should exercise special care to avoid electri-

CAUTION

cal shock or other dangers that may result in injury or the loss of life.

Protective ground terminal:

This symbol indicates that the terminal must be connected to ground prior to operating

the equipment.

Function ground terminal:

This symbol indicates that the terminal must be connected to ground prior to operating

the equipment.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

■ Exemption from Responsibility

(1) Yokogawa M&C Corporation does not make any warranties regarding the product

except those mentioned in the WARRANTY provided separately. (2) Yokogawa M&C Corporation assumes no liability to any party for any loss or damage,

direct or indirect, caused by the use or any unpredictable defect of the product. (3) Be sure to use the spare parts approved by Yokogawa M&C when replacing parts or

consumables. (4) Modification of the product is strictly prohibited. (5) This software may be used with one specified computer only . Y ou must purchase

another copy of the software for use on each additional computer. (6) Copying the software for purposes other than backup is strictly prohibited. (7) Store the floppy disk(s) (original media) containing this software in a secure place. (8) Reverse engineering such as the disassembly or decompilation of software is strictly

prohibited. (9) No portion of the software supplied by Yokogawa M&C may be transferred, ex-

changed, leased or sublet for use by any third party without the prior permission of

Y okogawa M&C.

vii

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

Model VJ77 PC-based Parameters Setting T ool

IM 77J01J77-01E 2nd Edition

CONTENTS

Introduction........................................................................................................... i

Visual Inspection and Cross-check of Accessories...........................................iii

Documentation Conventions ..............................................................................iv

Notice ...................................................................................................................vi

1. VJ77 PC-based Parameters Setting T ool............................................... 1-1

1.1 An Overview of VJ77 and Its Functions........................................................ 1-1

1.1.1 What is VJ77? .................................................................................. 1-1

1.1.2 Functions.......................................................................................... 1-1

1.2 Conceptual View of VJ77................................................................................ 1-2

1.3 Operating Environment and Wiring Specifications ...................................... 1-3

1.3.1 System Requirements ...................................................................... 1-3

1.3.2 Communication Adapter ................................................................... 1-3

1.4 External View of Communication Adapter..................................................... 1-4

1.5 Precautions When Communicating with JUXT A........................................... 1-5

2. Setup ....................................................................................................... 2-1

2.1 Installing VJ77................................................................................................. 2-1

2.2 Uninstalling VJ77 ............................................................................................ 2-2

2.3 Connecting JUXT A Instrument to Personal Computer................................. 2-3

2.3.1 Items Required for Connection ......................................................... 2-3

2.3.2 How to Connect ................................................................................ 2-3

2.4 Setting the Communication Port.................................................................... 2-4

3. Basic Operation ...................................................................................... 3-1

3.1 Starting VJ77................................................................................................... 3-1

3.2 Quitting VJ77................................................................................................... 3-2

3.3 Dialog Box Elements and Functions ............................................................. 3-3

3.4 Basic Operation .............................................................................................. 3-5

3.4.1 Operation Using a Mouse ................................................................. 3-5

3.4.2 Operation Using Keyboard................................................................ 3-7

3.5 Display Sequence ........................................................................................... 3-8

3.6 Main Dialog Boxes and Their Functions........................................................ 3-9

3.6.1 DISPLA Y Dialog Box......................................................................... 3-9

3.6.2 SET Dialog Box ................................................................................ 3-9

3.6.3 ADJUST Dialog Box ....................................................................... 3-10

3.6.4 Program Editor Dialog Box.............................................................. 3-10

IM 77J01J77-01E

2nd Edition : Jan.30,2004-00

4. Setting Parameters ................................................................................. 4-1

4.1 Displaying the Parameter Setting Dialog Box ............................................... 4-1

4.2 Setting Parameters ......................................................................................... 4-3

4.2.1 Entering a Setting V alue and Writing It to JUXTA............................... 4-3

4.2.2 Notes on Setting Parameters ............................................................ 4-4

4.2.3 Selecting an Item from a List Box and Writing It to JUXT A................. 4-5

5. Setting a Program ........................................................................................ 5-1

5.1 Opening Program Editor Dialog Box ............................................................. 5-1

5.2 Setting a Program ........................................................................................... 5-3

5.2.1 Creating a New Program .................................................................. 5-3

5.2.2 Functions to Facilitate Program Coding ............................................ 5-5

6. Uploading and Downloading Data from/to JUXT A ................................ 6-1

6.1 Uploading Data to Your PC ............................................................................. 6-1

6.1.1 Uploading Parameter Data from JUXT A Instrument .......................... 6-1

6.1.2 Opening a Parameter File................................................................. 6-4

6.1.3 Uploading Program Data from JUXT A Instrument ............................. 6-5

6.1.4 Opening a Program File.................................................................... 6-6

6.2 Downloading Data to JUXT A Instrument ....................................................... 6-7

6.2.1 Downloading Parameter Data to JUXT A Instrument.......................... 6-7

6.2.2 Downloading a Program to JUXT A Instrument .................................. 6-8

7. Saving Data............................................................................................. 7-1

7.1 Saving Parameter Data to Disk ...................................................................... 7-1

7.2 Saving Program Data to Disk ......................................................................... 7-2

8. Printing Data ........................................................................................... 8-1

8.1 Printing Data ................................................................................................... 8-2

8.2 Previewing the Print Image ............................................................................ 8-3

8.3 Saving Print Data As a Comma-separated V alue File ................................... 8-4

9. Monitoring I/O V alues ............................................................................. 9-1

9.1 Opening the Monitor Dialog Box ....................................................... 9-1

10. Adjusting JUXT A Instruments.............................................................. 10-1

10.1 Opening the Adjusting Dialog Box .............................................................. 10-1

10.2 Performing Fine Adjustment of Input .......................................................... 10-3

10.2.1 Adjusting the Zero Point of Input ..................................................... 10-3

10.2.2 Adjusting the Input Span ................................................................. 10-3

10.3 Correcting the Output ................................................................................... 10-4

10.4 Setting Wire Resistance Compensation...................................................... 10-5

10.5 Using the Forced Output Function .............................................................. 10-6

1 1. Troubleshooting ....................................................................................11-1

12. Appendix............................................................................................... 12-1

12.1 Setting the Password.................................................................................... 12-1

12.2 Changing the Password ............................................................................... 12-2

Revision Information ............................................................................................ i

IM 77J01J77-01E

2nd Edition : Jan.30,2004-00

1. VJ77 PC-based Parameters Setting T ool

This chapter gives an overview of the VJ77 tool and describes its operating environment.

1.1 An Overview of VJ77 and Its Functions

1.1.1 What is VJ77?

The VJ77 PC-based Parameters Setting T ool is a software package for setting various parameters and programs of microprocessor-based JUXT A signal conditioners and computing units from a personal computer . This tool simplifies the configuration of high performance functions of JUXT A instruments. In addition, it is also possible to adjust microprocessor-based JUXT A instruments using this tool.

1.1.2 Functions

● Parameter setting

Sets parameters that configure the functions of microprocessor-based JUXT A instruments.

1-1

● Program setting

Sets programs of microprocessor-based JUXT A computing units.

● Download to/upload from the JUXT A instrument

Uploads parameters or program from a microprocessor-based JUXT A instrument to a personal computer , and downloads the parameters and program once loaded or a program you created, to a JUXT A instrument.

● Data saving to disk

Saves parameters or program in a JUXT A instrument to the hard disk of a personal computer or to a floppy disk.

● Data printing

Prints parameters or program uploaded from a JUXT A instrument.

● Input/output value monitor

Views the I/O values and the result of self-diagnosis of a microprocessor-controlled JUXT A instrument.

● Adjusting JUXT A instruments

Adjusts inputs and outputs of a microprocessor-controlled JUXT A instrument.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

1.2 Conceptual View of VJ77

1-2

JUXTA

ALM1

ALM2

Upload from/download to JUXTA

(Pier-to-pier communication)

Reference to parameters

Set parameters Set programs

Adjust JUXTA

Hard disk

Personal computer

Read from/Save to a disk

Figure 1.2.1 Conceptual View of VJ77 PC-based Parameters Setting Tool

Floppy disk

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

1-3

1.3 Operating Environment and Wiring Specifications

1.3.1 System Requirements

Personal computer: IBM PC/AT compatible model that can run Microsoft-W indows 2000 or

Microsoft-Windows XP

Operating system: Microsoft-Windows 2000 (Professional) or Microsoft-Windows XP

(Home Edition / Professional) CPU: 300 MHz Pentium processor or superior is recommended. Main memory: At least 128MB is recommended. Hard disk Space for storing the tool programs: 6 MB or more

Space for storing user files: 2 MB or more CRT display: 800 × 600 pixels or superior

Should be capable of handling at least 256 colors.

Small fonts should be used. RS-232C communication port:

One channel or more (select from COM1 to COM16), with 9-pin D-

Sub connector for IBM PC/A T compatible model

3.5-inch FDC drive: One unit (required)

Printer: A4-size printer compatible with Microsoft-Windows 2000 or Microsoft-

Windows XP (required for printing)

1.3.2 Communication Adapter

Power supply: Supplied from RS-232C port’ s DTR, RST, DCD, DSR, and CTS.

However, power supply may be unavailable depending on the RS-

232C port’ s load characteristic. In such a case, use AC adapter

additionally .

Specifications of external power source :

Should comply with EIAJ RC-5320A Input ratings : 8 V DC/150 mA

Connection to personal computer:

Straight cable with 9-pin D-Sub connectors (female) at both ends is required for connecting via the RS-232C port. Recommended cable length is 1 m.

Insulation resistance: 100 MΩ or more (500 V DC) to connect to an RS-232C port and

JUXTA instrument.

Dielectric strength: 500 V AC for 1 minute to connect to an RS-232C port and JUXT A

instrument. Ambient temperature: 0 to 50⬚C Ambient humidity: 5 to 90%RH (no condensation) Transport and storage conditions: -40 to 70⬚C, 5 to 95%RH (no condensation) Dustproof and waterproof construction: None

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

1.4 External View of Communication Adapter

1-4

Unit : mm

(9.7)

Dedicated cable

(6.5)

54.8

Figure 1.4.1 External View of the Communication Adapter

Mate Plug

1.5

D' DIA

Unit : mm

JUXTA communication cable

56.5

28.4

D' DIA

5.5 DIA

9.5 (EIAJ)

2.1

Figure 1.4.2 External View of the External Power Inlet on the Communication Adapter

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

1-5

1.5 Precautions When Communicating with JUXT A

CAUTION

When carrying out communication with a JUXT A instrument, do not change the cable connection to another JUXT A instrument except when any of the following dialog boxes is displayed. Also, even if any of the following dialog boxes is displayed, do not disconnect the cable while communication is in progress. Otherwise, a communication error will occur .

• Parameter/Program Setting Menu dialog box

• Parameter Setting Menu dialog box

• Program Setting Menu dialog box

• Data Uploaded from JUXT A dialog box

• Data Read from a File dialog box

• Program Editor dialog box

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

2. Setup

This chapter describes how to set up the hardware and software required to run VJ77.

2.1 Installing VJ77

CAUTION

Before installing VJ77, quit all running applications. When using Windows 2000 or XP : Log on using the user name of Administrators group. The program does not start normally if the user name not belonging to the Administrators

group is used for logging on.

Step 1 Insert Disk 1 of VJ77 into the floppy disk drive.

2-1

Step 2 From the Start menu, choose Run. Type the name of the floppy disk drive and

setup file, such as a, then \Setup.exe, and click OK.

Step 3 Follow the instructions appearing in the dialog boxes.

When installation is complete, VJ77 is added to the Programs submenu of the Startmenu.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

CAUTION

When installing VJ77, always select the route directory such as D: \ and the like as the directory to be setup. Otherwise, an inappropriate installation may occur .

CAUTION

This message for volume may appear in the dialog box when reading DISK 3. In this case, click Continue.

2.2 Uninstalling VJ77

Step 1 From the Start menu of W indows, choose Settings, Control Panel, then double-

click the Add/Remove Programs icon.

2-2

Step 2 From the application list, choose VJ77 and click Add/Remove.

Step 3 Follow the instructions appearing in the dialog boxes.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

2.3 Connecting JUXT A Instrument to Personal Computer

This section describes how to connect a JUXT A instrument to a personal computer .

2.3.1 Items Required for Connection

T o connect a JUXT A instrument to a personal computer , the following are required: (1) Personal computer with VJ77 installed (2) Communication cable with 9-pin D-sub female connectors at both ends (comes with

VJ77): E9786WK (3) VJ77-dedicated adapter (comes with VJ77) (4) JUXTA communication cable (3-pin connector type) (comes with VJ77):F9182ED

Used when communicating with models other than JUXT A VJ and D series. (5) JUXTA communication cable (5-pin connector type) (comes with VJ77):F9182EE

Used when communicating with JUXT A D series (DSC or DSC2). (6) Adapter for modular-jack (comes with VJ77):E9786WH

Used when communicating with JUXT A VJ series.

2-3

2.3.2 How to Connect

Step 1 Connect the dedicated cable (IBM PC/A T compatible cable with 9-pin D-sub) to

the personal computer . Then, connect the VJ77-dedicated adapter to the other end of the dedicated cable.

Step 2 When communicating with JUXT A D series (DSC or DSC2), connect the JUXT A

communication cable with 5-pin connector (F9182EE) to the VJ77-dedicated adapter.

Step 3 When communicating with models other than JUXT A VJ and D series, connect

the JUXTA communication cable with 3-pin connector (F9182ED) to the VJ77dedicated adapter .

Step 4 When communicating with JUXT A VJ series, connect the JUXT A communication

cable with 5-pin connector to the VJ77-dedicated adapter , then connect the modular jack adapter (E9786WH) to the connector of the JUXT A communication cable.

(3) Communication adapter

(2) Communication cable

9-pin D-sub female connectors for IBM PC/AT compatible models

(6) Adapter for modular-jack

(4)(5) JUXTA communication cable

JUXTA VJ series

3-pin connector for models other than JUXTA VJ and D series. 5-pin connector for JUXTA D series (DSC or DSC2)

(1) Personal computer with VJ77 installed

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

2.4 Setting the Communication Port

This section describes how to set the communication port to connect a JUXT A instrument to the personal computer (VJ77).

The communication port can be set, choosing from COM1 to COM16, when any one of the following dialog boxes is displayed.

• Parameter Setting Menu dialog box

• Menu dialog box

• Data Uploaded from JUXT A dialog box

• Data Read from a File dialog box

• Program Setting Menu dialog box

• Program Editor dialog box

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Parameter

Setting then click OK.

Step 2 From the menu bar , click Communication Settings then Serial Port. Click the

communication port you wish to set from COM1 to COM16. The port currently selected is checked in the menu.

2-4

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3. Basic Operation

This chapter describes basic operation and identifies the main dialog boxes of VJ77.

3.1 Starting VJ77

Step 1 From the Start menu, choose commands in the following sequence.

Point to Programs, VJ77, then VJ77.

3-1

Step 2 VJ77 starts up and the Parameter/Program Setting Menu dialog box appears.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.2 Quitting VJ77

Y ou can quit VJ77 when any one of the following dialog boxes is displayed.

• Parameter/Program Setting Menu dialog box

• Parameter Setting Menu dialog box

• Program Setting Menu dialog box

• Menu dialog box

• Data Uploaded from JUXT A dialog box

• Data Read from a File dialog box

Step 1 From the menu bar , point to File then Exit.

3-2

Step 2 The Exit dialog box appears. Click Yes to exit.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.3 Dialog Box Elements and Functions

This section identifies the element and their functions of a window and dialog box of VJ77 with reference to the SET dialog box.

(1) Title bar

3-3

(2) Menu bar

(3) Option button

(4) T ab labels

(7) T ext box

(5) Parameter table

(6) Selected cell

(1) Title bar

Shows the name of the window or dialog box displayed as is usual for Windows

applications.

(8) Command button

(9) Scroll button

(2) Menu bar

As is usual for Windows applications, the menu bar is displayed below the title bar of a

window . Each menu name contains the related commands.

(3) Option button

Used to select one item from alternatives as is usual for W indows applications.

(4) Tab labels

As is usual for W indows applications, some dialog boxes have more than one page

with a tab, often referred to as tabbed pages.

(5) Parameter table

Shows a list of the parameter data values of the connected JUXT A instrument.

(6) Selected cell

The cell currently selected by double-clicking is displayed with thicker borders.

(7) Text box

Used to enter a value to be set. In the SET dialog box, double-clicking the parameter

you wish to set makes the text box available for the entry of a parameter value.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

(8) Command buttons

Carry out the corresponding functions when clicked.

OK: Makes the operation take effect and displays the next dialog box.

Cancel: Discards the operation and displays the previous dialog box.

Close: Closes the dialog box.

WRITE: Writes the data entered in the text box to the JUXT A instrument. (9) Scroll buttons

Used to bring hidden part of the parameter table into view .

3-4

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.4 Basic Operation

3.4.1 Operation Using a Mouse

■ Menu bar operation

(1) Click an item on the menu bar to open a menu. (2) From the menu, click the command you wish to execute.

■ Data entry operation

(1) To enter data in the SET dialog box, double-click the data cell of the parameter you

wish to change. The text box in the bottom of the SET dialog box is selected. Then,

enter the data in the text box.

3-5

(2) After entering data in the text box, click WRITE. The data is written to the JUXT A

instrument.

There are two types of data entry with text boxes:

• T ext boxes that require a numeral to be typed as shown below .

• T ext boxes that require a choice from a list as shown below .

CAUTION

If you click Close without clicking WRITE, any data typed in the text box will not be written to the JUXTA instrument. Be sure to click WRITE after you enter data.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

(3) To enter data via the Program Editor dialog box, double-click the cell you wish to enter

data and directly enter data in the cell.

3-6

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.4.2 Operation Using Keyboard

■ Menu bar operation

(1) Press the F10 or ALT key on the keyboard. File in the menu bar is displayed as a

button, indicating that it is selected. Move to the menu item you wish to execute using

the RIGHT ARROW and LEFT ARROW keys, then press the ENTER, UP ARROW, or

DOWN ARROW key. The menu of the selected item is then displayed.

(Pressing the ALT key+F key opens the pull-down menu of File) (2) In the pull-down menu, move to the command you wish to execute using the UP

ARROW and DOWN ARROW keys, then press ENTER. (3) To cancel the operation, press the ESC key .

■

Selecting an item

(1) In a dialog box, each press of the T AB key switches the selected command in turn. T o

select a cell in a table, use the UP ARROW, DOWN ARROW, RIGHT ARROW, and

LEFT ARROW keys. (The selected cell is displayed with thicker borders.)

3-7

■ Data entry

(1) To enter a value in a cell in the SET dialog box, press the CTRL+ENTER keys. The

cell is then displayed with thicker borders, thus allowing an entry to be made.

T o enter a value in a selected cell in the Program Editor dialog box, press the

CTRL+ENTER keys or F2 key . The cell is then displayed with thicker borders, thus

allowing an entry to be made. (2) Type the desired value. (3) In the SET dialog box, after typing a numeral in the text box, press the T AB key so as

to select the WRITE button, and then press the ENTER key . The data is then written to

the JUXTA instrument.

■ Command buttons (WRITE, Close, Cancel, etc.)

(1) Select a command button using the ARROW keys or T AB key. (2) Press ENTER to execute the corresponding command.

■ Function keys

For data entry in the Program Editor dialog box, the following functions are assigned to the function keys. While functions are assigned to Fn keys, the assignment is displayed in the status bar at the bottom of the dialog box.

F2: Edits the active cell. Select the desired program, comment, or constant cell (namely , a cell in the PROGRAM,

Comment, or CONST column), and press the F2 key . The cell then allows a value to be entered.

F3: Inserts a row . Pressing the F3 key when a program cell or comment cell is selected, inserts a row above

the selected cell. F4: Deletf Öi row . Pressing the F4 key when a cell in a program cell or comment cell is selected, deletes the

row of the selected cell.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.5 Display Sequence

Parameter/Program

Setting Menu

MenuParameter Setting Menu

3-8

Parameter setting

Set

Data Uploaded from JUXTA

Password entry

Upload parameter data

from JUXTA

Select file

Read parameter data

from a file

DISPLAY

SET

ADJUST

Check content

Save to file

Download to JUXTA

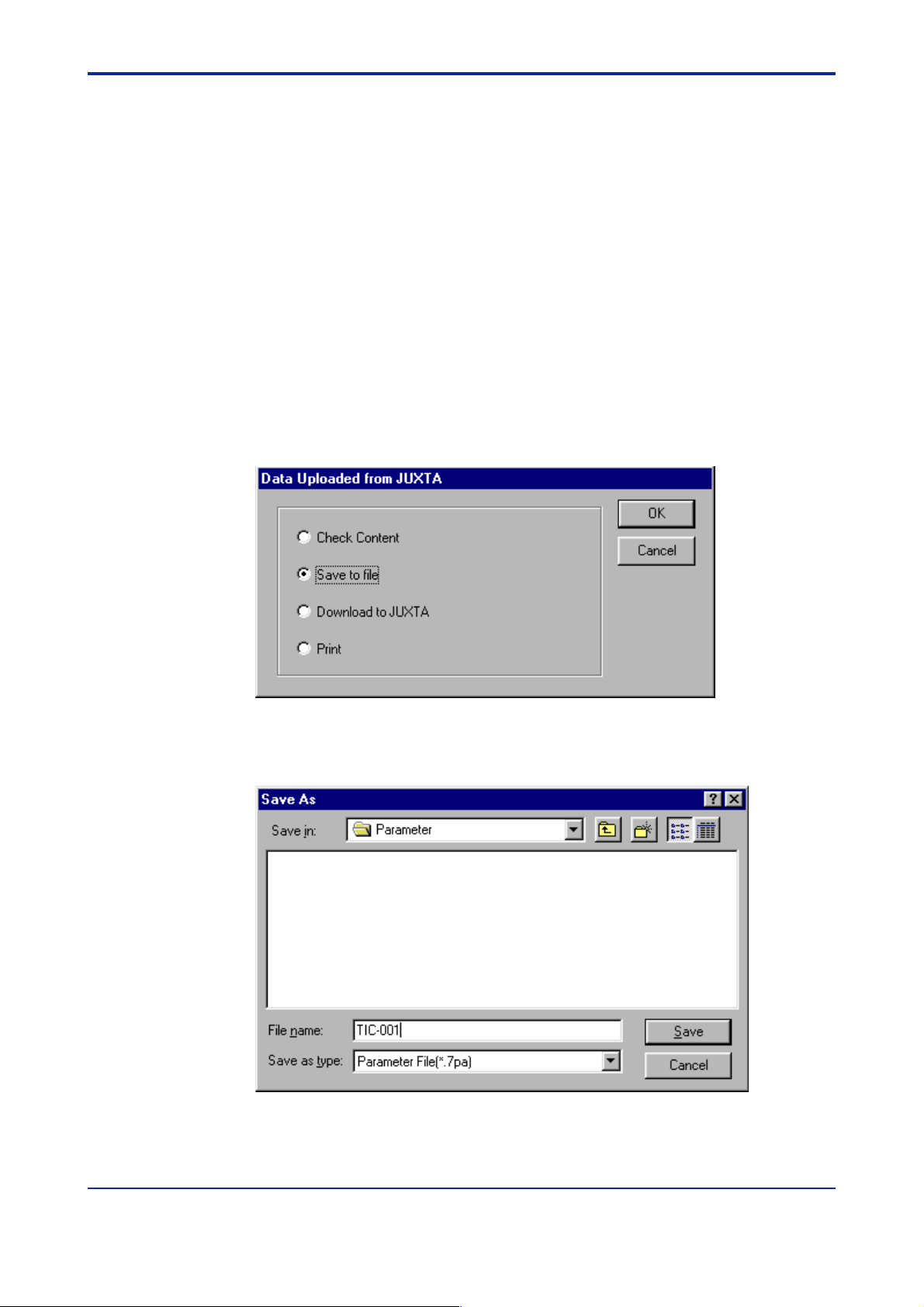

Data Read from a File

Check content

Save to file

Download to JUXTA

Displays I/O values, etc.

Set parameters.

Adjust JUXTA.

Displays parameter data list.

Save the parameters to disk.

Download the parameters to JUXTA.

Print the parameters.

Displays parameter data list.

Save the parameters to disk.

Download the parameters to JUXTA.

Print the parameters.

Program setting

Program Setting Menu

New

Password entry

Upload program data

from JUXTA

Select file

Read program data

from a file

Extends to the next display only in an online state.Dialog box

Extends to the next display regardless of online/offline status.

“Online” refers to a state in which JUXTA instrument and the personal computer (VJ77) are connected via a dedicated adapter.

Program Editor

PROGRAM

CONST

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Create a program. Set constants.

3.6 Main Dialog Boxes and Their Functions

3.6.1 DISPLA Y Dialog Box

This dialog box shows the input/output values of the JUXT A instrument and the results of self-diagnosis.

3-9

See Also

For more information about the DISPLA Y dialog box, see Chapter 9, “Monitoring I/O V alues.”

3.6.2 SET Dialog Box

This dialog box is used to set various parameters of the JUXT A instrument.

See Also

For more information about the SET dialog box, see Chapter 4, “Setting Parameters.”

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

3.6.3 ADJUST Dialog Box

This dialog box is used to adjust the I/O of the JUXT A instrument.

See Also

3-10

For more information about the ADJUST dialog box, see Chapter 10, “Adjusting JUXT A Instruments.”

3.6.4 Program Editor Dialog Box

This dialog box is used to create/edit programs for JUXT A computing units.

(1) Model box (4) Constant Cells

(5) (6) (7)

(8)

(9) (10) (11)

(2) Program cells

(3) Comment cells

(1) MODEL box

A cell to display/select the model name of a JUXT A computing unit.

(2) Program cells*

Cells to input program codes.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

(3) Comment cells

Cells to input a comment for each line of the program.

(4) Constant cells*

Cells to input constants used in the program. *: When Upload Program Data from JUXTA is executed and the Program Editor

dialog box is displayed, these cells show the program and constants uploaded from the JUXTA instrument.

(5) Insert Row button

Clicking Insert Row when a program cell or comment cell is selected inserts a row above the selected cell.

(6) Delete Row button

Clicking Delete Row when a program cell or comment cell is selected deletes the selected row .

3-11

(7) Undo button

Clicking Undo cancels the most recent operation you have performed. Each click of this button restores the display to the state one operation before.

(8) Command Check button

After inputting program codes and constants, clicking this button performs a syntax check of your entry .

(9) Save to File button

Clicking Save to File saves the created/edited program to disk.

(10) Download to JUXTA button

Clicking Download to JUXTA downloads the created/edited program to a JUXT A instrument.

(11) Print button

Clicking Print prints the created/edited program.

See Also

For more information about the Program Editor dialog box, see Chapter 5, “Setting a Program.”

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

4. Setting Parameters

This chapter describes the operation to set parameters of JUXT A instruments using VJ77. Parameters are set in the SET dialog box.

See Also

When you set parameters, refer to the parameter lists given in the respective instruction manuals of JUXT A signal conditioners and computing units.

4.1 Displaying the Parameter Setting Dialog Box

● Preparation

Connect the JUXT A instrument to the personal computer , then turn on the power to the JUXTA instrument.

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Param-

eter Setting then click OK.

4-1

Step 2 If a password is set for VJ77, the Password Entry dialog box appears. Enter the

password (4-digit numeral) in the text box and click OK. This dialog box does not appear if no password is set.

TIP

A password can be set for security to prevent parameter and program settings for JUXT A instruments from being changed by an unauthorized person. If a wrong password is entered, data can be read from the JUXT A instrument but cannot be written to it.

See Aiso

For how to set a password, see Appendix.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 3 The Parameter Setting Menu dialog box appears. Select Set and click OK.

Step 4 The “Starts communication. Press OK button if ready” message appears. Click

OK if ready.

If connected via the DSC or DSC2 port of the JUXT A D series, carry out Step 5.

Step 5 When connected via the DSC or DSC2 port of the JUXT A D series, the SLOT No.

Setting dialog box appears. Enter the slot number you wish to communicate with in the entry box and click OK. (Slots are numbered from 1 to 16, from the left to right of the D series nest.)

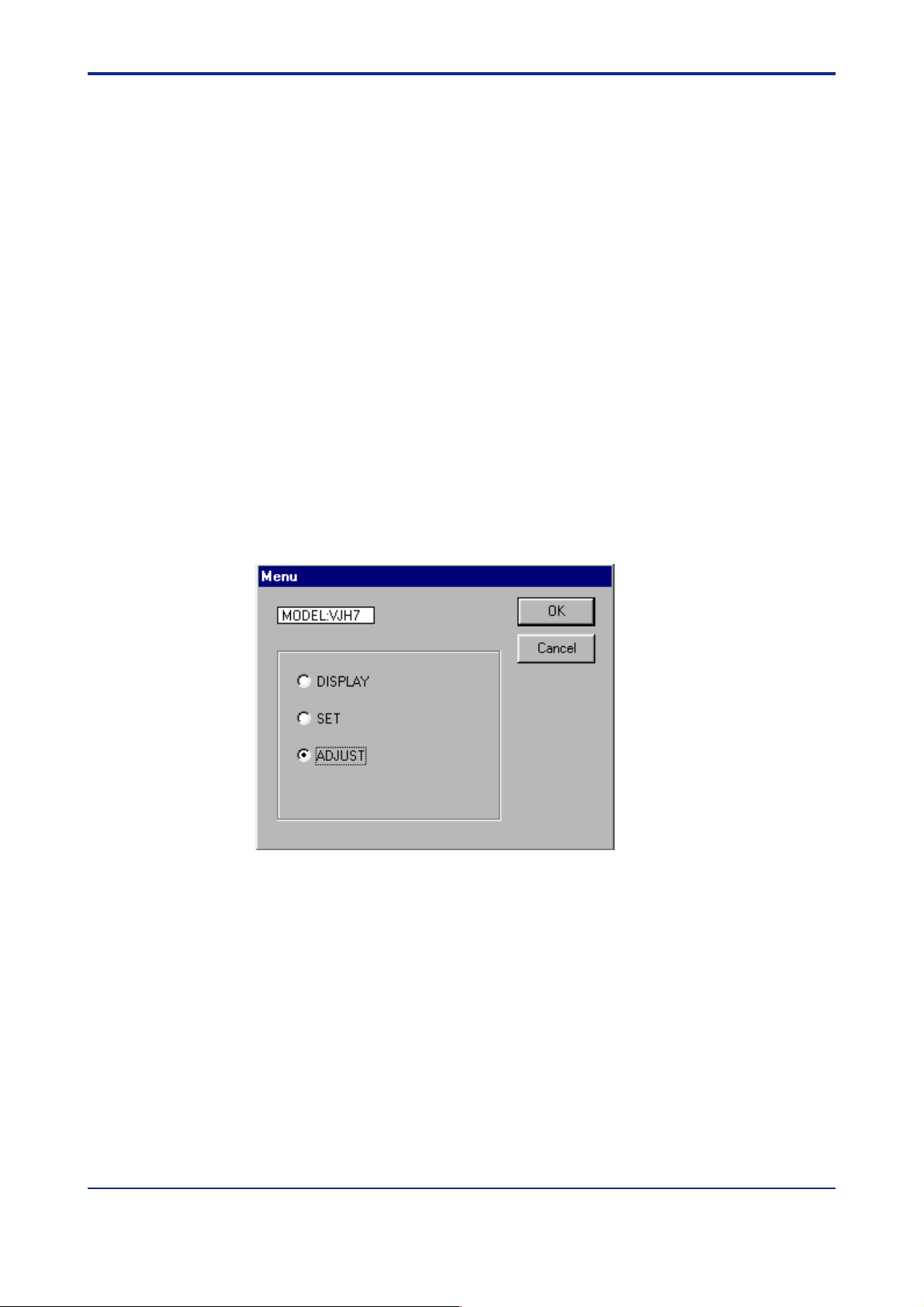

Step 6 The Menu dialog box appears. Select SET and click OK.

4-2

The SET dialog box appears. You can set parameters here.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

4.2 Setting Parameters

This section describes how to input individual parameter data and write the data to the JUXTA instrument from the parameter setting display (the SET dialog box).

4.2.1 Entering a Setting V alue and Writing It to JUXT A

The following describes how to change the input range of JUXT A VJH7 (isolator unit) with reference to the example of changing the input range from 1 to 5 V DC, to –10 to 10 V DC.

Step 1 In the SET dialog box, open the SET (I/O) page. Then double-click the data cell of

parameter D22: INPUT1 L_RNG.

4-3

Step 2 The text box at the bottom becomes available, showing the current setting

Step 3 In the text box, type -10 and click WRITE. The new data is written to the JUXT A

instrument, and the display data in the cell is updated from 1 to –10.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

CAUTION

After you click WRITE, the data value shown in the data cell may be different from the value you entered in the text box. This is because the JUXT A instrument has limits for some of its parameters, and if the entered value is outside the limits, the instrument automatically sets the parameter to the nearest limit value.

Step 4 In the same way as Step 1 to Step 3, set the 100% value of the input range by

double-clicking the data cell of D23: INPUT1 H_RNG.

Step 5 Enter 10 in the text box and click WRITE. The data is written to the JUXT A

instrument, and the display data is updated from 5 to 10.

The input range of the connected JUXT A instrument has now been changed from 1 to 5 V DC, to –10 to +10 V DC.

4.2.2 Notes on Setting Parameters

The input range/output range of a JUXT A instrument can be set in two ways, depending on the model of the instrument.

(1) Models for which 0% and 100% values of the range are set:

4-4

The high range limit and low range limit are represented as L_RNG and H_RNG, as in INPUT L_RNG and INPUT H_RNG.

(2) Models for which the span value and span of the range are set:

The 0% value and span are represented as ZERO and SP AN, respectively , as in INP ZERO and INP SP AN.

For example, to set an input range of –10 to 10 V DC:

• In case (1), set –10 for INPUT L_RNG and 10 for INPUT H_RNG.

• In case (2), set –10 for INP ZERO and 20 for INP SP AN.

WARNING

When you set the range of a JUXT A instrument, confirm the respective parameter codes to determine whether they are L_RNG and H_RNG, or ZERO and SPAN, to make sure that you set 0% and 100% values of the range or set the 0% value and span.

CAUTION

For a numeral parameter , the number of significant digits is 4. For example, if you enter 12345, the data value will be written as 12340 and if you enter 0.12345, the data value will be written as 0.12340.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

4.2.3 Selecting an Item from a List Box and Writing It to JUXTA

As an example of procedures to select an item from a list box and write it to the JUXT A instrument, the following shows how to change the communication protocol for a JUXT A VJH7 (an isolator whose output 2 is a communication port) from MODBUS ASCII to MODBUS RTU.

Step 1 In the SET dialog box, click the SET (COM) tab. The SET (COM) page contains

the communication settings.

4-5

Step 2 Double-click the data cell for parameter PROTOCOL (F01). The text box at the

bottom of the dialog box then becomes available.

Step 3 Click the arrow button ( ▼) next to the text box, select MODBUS RTU from the list

which opens, and then click WRITE. The change you made is written to the JUXTA instrument.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

5. Setting a Program

This chapter describes the procedure to set a program for a JUXT A instrument via the Program Editor dialog box.

See Also

When setting programs, refer to the parameter lists given in the documentation for the respective JUXT A computing units. For details about creating a program, see the T echnical Information documents for the respective programmable computing units (document No. TI 231-01E or TI 1501-01E).

WARNING

DO NOT change the programs for computing units in the JUXT A F and W series except for programmable computing units as the consequent operation cannot be guaranteed.

5-1

5.1 Opening Program Editor Dialog Box

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Program

Setting then click OK.

Step 2 Only if a password is set for VJ77, does the Password Entry dialog box appear . In

the Enter password (4-digit numeral) box, type the 4-digit password and click OK.

TIP

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

See Also

For how to set a password, see Appendix.

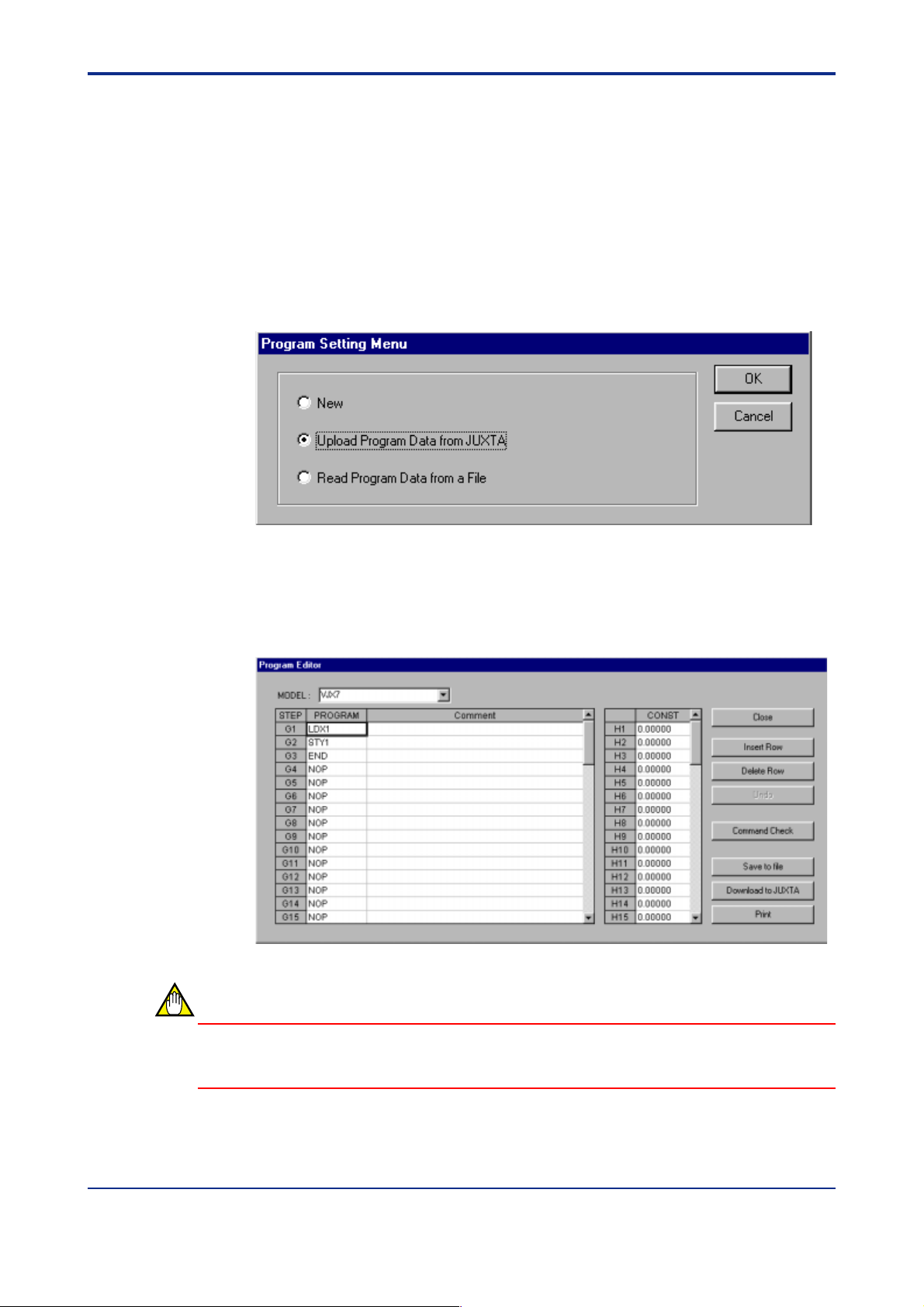

Step 3 The Program Setting Menu dialog box appears. Select New, Upload Program

Data from JUXT A, or Read Program Data from a File depending on what you want to do, then click OK.

See Also

5-2

For operations after selecting Upload Program Data from JUXTA or Read Program Data from a File, see Chapter 6, “Uploading and Downloading Data from/to JUXT A.”

The Program Editor dialog box appears. Y ou can now start setting a program.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

5.2 Setting a Program

This section describes the procedure to enter data via the Program Editor dialog box. T o set a program, do one of the following:

• Create a new program.

• Upload program data from a JUXT A instrument and modify it.

• Read program data from a file and modify it.

Whichever method is chosen, there are no major differences in operations in the Program Editor dialog box. The following is an example of the procedure to create a new program.

5.2.1 Creating a New Program

The following is an example of the procedure to set a moving average computation (of the last 40 seconds) for a MXS free program.

CAUTION

• When you set a program, always select the correct model name of the target JUXT A instrument in the MODEL box first (see Step 2 in the following procedure). Selecting a model name updates the contents of the STEP and CONST columns accordingly .

5-3

• If the model name of your target instrument is not included in the list of models, click

Close to return to the Program Setting Menu dialog box. Then, choose Upload Program Data from JUXT A and open the Program Editor dialog box again.

Step 1 In the Program Setting Menu dialog box, select New, then click OK. The Program

Editor dialog box appears.

Step 2 Click the arrow button next to the MODEL box and select the model name from

the list. (Select MXS in this example.)

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 3 T o input program codes, double-click a Program cell and type a code.

In this example, double-click the Program cell in step B20 and type LDX1.

Step 4 In the same way , input:

- LDC20 in step B21,

- MAV in B22,

- STY1 in B23, and

- END in B24.

Step 5 T o input a comment for each step, input the comment in the Comment cell. A

maximum of 25 characters can be entered for a comment.

Step 6 Set the moving average time span to 40 seconds. This data is to be specified as a

percent value where 0.0–100.0% corresponds to 0–1000 seconds. Double-click

the constant cell for C20 and enter 4. Now the program setting is complete. T o download the program to the connected JUXT A instrument, follow the procedure de-

scribed in Section 6.2.2, “Downloading a Program to JUXT A Instrument.”

5-4

CAUTION

In the Program Editor dialog box, the step numbers of program cells and the constant numbers of constant cells differ depending on the JUXT A model selected. Refer to the parameter lists given in the documentation for the respective JUXT A computing units.

WARNING

DO NOT change a program for a computing unit of the JUXT A F series and JUXT A W series other than programmable computing units. In case the unit is operated on the computing function with program changed after factory-ship, the operation will not be guaranteed.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

5.2.2 Functions to Facilitate Program Coding

■ T o insert a step:

Click the cell immediately below the position where you want to insert a step, then click

Insert Row or press the

■ T o delete a step:

Click the cell of the step you want to delete, then click Delete Row or press the F4 key.

TIP

If the program contains a jump (GO**) or a conditional jump (GIF**) and a step is inserted or deleted before a destination to be jumped, VJ77 automatically changes the destination step number specified with the GO or GIF code. For example, when GO25 (meaning “go to step B25”) is set in step B21, deleting step B22 automatically changes the code in step B21 to GO24. Or, if step B25 (the destination step!) is deleted, GO25 in step B21 is automatically changed to simple GO, namely , the destination step number is cleared.

key.

5-5

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

■ T o check the syntax of the program you created or modified:

Click Command Check.

CAUTION

The Command Check button is unavailable for any model that is not included in the MODEL list.

● A dialog box appears if no error is found:

5-6

● A dialog box appears when an error is found:

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Ctrl

■ T o copy/move program code, comment, or constant to another cell:

● T o copy contents of a cell or characters:

5-7

Select a cell or characters and press the

+ C keys. Then click the position to which

you want to copy the contents of the selected cell or the selected characters, and press the

Ctrl

+ V keys.

● T o move contents of a cell or characters:

Select a cell or characters and press the you want to move the contents of the selected cell or the selected characters, and press the

Ctrl

+ V keys.

+ X keys. Then, click the position to which

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

6. Uploading and Downloading Data from/ to JUXT A

This chapter describes how to upload/download parameter or program data.

6.1 Uploading Data to Y our PC

This section describes how to upload parameter or program data inside a JUXT A instrument or open a parameter file.

6.1.1 Uploading Parameter Data from JUXT A Instrument

● Preparation

Connect the JUXT A instrument to the personal computer , then turn on the power to the instrument.

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Param-

eter Setting and click OK.

6-1

Step 2 If a password is set for VJ77, the Password Entry dialog box appears. Enter the

password (4-digit numeral) in the entry box and click OK. This dialog box does not appear if no password is set.

TIP

See Also

For how to set a password, see Appendix.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 3 The Parameter Setting Menu dialog box appears. Select Upload Parameter

Data from JUXT A and click OK.

Step 4 The “Starts communication. Press OK button if ready .” message appears. Click

OK to upload data from the JUXT A instrument.

6-2

Step 5 The Data Upload from JUXT A dialog box appears.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 6 Select Check Content and click OK. The Content List dialog box appears,

showing all the parameter values of the JUXT A instrument.

6-3

CAUTION

The parameter values in the Content List dialog box cannot be changed.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

6.1.2 Opening a Parameter File

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Param-

eter Setting then click OK. If a password has been set, enter the password in the Password Entry dialog box and click OK.

Step 2 The Parameter Setting Menu dialog box appears. Select Read Parameter Data

from a File and click OK.

Step 3 The Select File dialog box opens. Select a file name from the list box and click

Open. T o continue, follow steps 5 to 6 in Section 6.1.1, “Uploading Parameter

Data from JUXT A Instrument.”

6-4

See Aiso

For how to save the parameter data to disk, see Chapter 7, “Saving Data.”

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

6.1.3 Uploading Program Data from JUXT A Instrument

● Preparation

Connect the JUXT A instrument to the personal computer , then turn on the power to the instrument.

Step 1 In the Parameter/Program Setting Menu dialog box, select Program Setting then

click OK. If a password is set, enter the password in the Password Entry dialog box and click OK.

Step 2 The Program Setting Menu dialog box appears. Select Upload Program Data

from JUXT A and click OK.

6-5

Step 3 The “Starts communication. Press OK button if ready .” message appears. Click

OK to start uploading.

Step 4 The Program Editor dialog box appears, allowing you to modify the uploaded

program.

CAUTION

Only constants (CONST) are displayed for a computing unit other than programmable computing units of the JUXT A VJ series, JUXT A M series, and WXT.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

See Aiso

For the how to create and modify a program in the Program Editor dialog box, see Chapter 5, “Setting a Program.”

6.1.4 Opening a Program File

Step 1 In the Parameter/Program Setting Menu dialog box, select Program Setting then

click OK. If a password has been set, enter the password in the Password Entry dialog box and click OK.

Step 2 The Program Setting Menu dialog box appears. Select Read Program Data

from a File and click OK.

6-6

Step 3 The Select File dialog box opens. Select the file name from the list box and click

Open. The Program Editor dialog box appears, allowing you to modify the up-

loaded program.

See Also

For how to save program data to disk, see Chapter 7, “Saving Data.”

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

6.2 Downloading Data to JUXT A Instrument

This section describes the operation to download the parameter or program data from VJ77 to the JUXTA instrument. Y ou can copy parameter settings or a program to multiple JUXT A instruments.

CAUTION

Before you download parameter data, make sure that the model name of the JUXT A instrument selected in MODEL box matches with that of the product’ s nameplate. For some models, VJ77 cannot determine whether it is a standard product or a customized product, and a communication error may result.

6.2.1 Downloading Parameter Data to JUXT A Instrument

● Preparation

Upload parameter data from a JUXT A instrument or open a parameter file. Then connect the VJ77-dedicated adapter cable to the desired JUXT A instrument and make sure that power is supplied to the instrument.

6-7

Step 1 In the Data Upload from JUXT A or Data Read from a File dialog box, select

Download to JUXT A then click OK.

Step 2 The “Starts communication. Press OK button if ready .” message appears. Click

OK to download data to the JUXT A instrument.

Step 3 The Now Communicating dialog box appears and shows the progress of down-

loading. When the download is complete, the “Downloading to JUXT A completed.” message appears.

CAUTION

VJ77 only downloads the data shown in the SET dialog box. Data shown in the DISPLA Y or ADJUST dialog box is not downloaded.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

6.2.2 Downloading a Program to JUXT A Instrument

● Preparation

Open the Program Editor dialog box. Then connect the VJ77-dedicated adapter cable to the desired JUXT A instrument and make sure that power is supplied to the instrument.

Step 1 In the Program Editor dialog box click Download to JUXT A.

6-8

Step 2 The “Starts communication. Press OK button if ready .” appears. Click OK to start

downloading.

Step 3 The Now Communicating dialog box appears and shows the progress of down-

loading. When the download is complete, the “Downloading to JUXT A completed.” message appears.

CAUTION

Data in the Comment cells are not downloaded. A created program downloaded to the JUXT A computing unit other than programmable

computing units is not downloaded and only constants are downloaded.

TIP

The “Error found during command check. Do you want to see the error content?” appears if the program contains any syntax error or other kind of error . Clicking Yes opens the Command Check Error dialog box shown in Section 5.2.2. Or , clicking No downloads the data containing the program with syntax errors. In this case, each illegal program code will overwrite the corresponding current code or be written as “NOP” and the Check Download- ing to JUXT A dialog box appears.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

7. Saving Data

This chapter describes how to save to disk the parameter/program data that was uploaded or you created.

Parameter data and program data will be saved with the following filename extensions:

• Parameter data files: •.7pa

• Program data files: •.7pr

(File names are 16 or less characters.)

7.1 Saving Parameter Data to Disk

Step 1 Follow the instructions in Section 6.1, “Uploading Data to Your PC” to upload

parameter data.

Step 2 In the Data Uploaded from JUXT A dialog box or Data Read from a File dialog box,

select Save to File and click OK.

7-1

Step 3 The Save As dialog box opens. In the File name box, type the file name within 16

characters and click Save. The Information dialog box appears.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 4 In the Information dialog box, set the title, subtitle, author , date, instrument serial

number , and comments and click OK. The file is saved to disk.

7.2 Saving Program Data to Disk

7-2

Step 1 In the Program Editor dialog box, click Save to file. The Save As dialog box

opens.

Step 2 In the File name box of the Save As dialog box, type the file name within 16

characters and click Save. The Information dialog box appears. In the same way as in Section 7.1, set the file information and click OK. The file is saved to disk.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

8. Printing Data

This chapter describes how to print the parameter or program data.

8-1

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

8.1 Printing Data

Step 1 T o print parameters, in the Data Uploaded from JUXT A dialog box or Data Read

from a File dialog box, select Print and click OK. T o print a program, click Print in the Program Editor dialog box.

● Printing parameters

8-2

● Printing a program

Step 2 The Print dialog box appears. Y ou can select the ranges of items to be printed by

selecting and clearing the check boxes. Then, click Print to start printing.

● Printing parameters ● Printing a program

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

8.2 Previewing the Print Image

This section describes how to view the print image. Step 1 In the Print dialog box, click Print Preview to open the Print Preview dialog box. If

the data spreads over more than one page, you can view other pages by clicking the arrow buttons next to the Page Setting box. Y ou can also change the display magnification by selecting the zoom factor from the Set Magnification list. To return to the Print dialog box, click Close.

8-3

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

8-4

8.3 Saving Print Data As a Comma-separated Value File

Y ou can save the print data in a comma-separated value (CSV) file.

• Filename extension of CSV files: *.csv (File names are 16 or less characters.)

Step 1 In the Print dialog box, click CSV file output. The Save As dialog box appears. Step 2 In the File name box, type the file name within 16 characters and click Save.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

9. Monitoring I/O V alues

This chapter describes how to monitor input/output values of a JUXT A instrument and the self-diagnosis result. You can monitor this information via the DISPLA Y dialog box.

9.1 Opening the Monitor Dialog Box

● Preparation

Connect the JUXT A instrument to the personal computer , then turn on the power to the instrument.

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Param-

eter Setting and click OK. If a password is set, enter the password in the Pass- word Entry dialog box and click OK.

Step 2 The Parameter Setting Menu dialog box appears. Select Set and click OK.

9-1

Step 3 The “Starts communication. Press OK button if ready .” message appears. Click

OK.

Step 4 The Menu dialog box appears. Select DISPLAY and click OK.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 5 The DISPLAY dialog box appears. For some models of JUXT A, this dialog box

has the DISPLAY1 and DISPLAY2 pages.

● DISPLA Y1 page of DISPLAY dialog box

9-2

● DISPLA Y2 page of DISPLAY dialog box

TIP

The DISPLA Y1 page or the DISPLA Y dialog box without a tabbed page shows the conditions at the time of communication. However , the DISPLA Y2 page updates its display contents in approximately 5-second intervals (periodic upload for updating).

T o update the display data on the DISPLAY1 page or in the DISPLA Y dialog box without a tabbed page, double-click the cell of the parameter you wish to update.

T o stop the periodic upload for updating of the DISPLA Y2 page, click READ STOP. The button label changes from READ STOP to READ ST ART. To resume the periodic upload for updating, click READ START.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

10. Adjusting JUXT A Instruments

This chapter describes how to adjust the input/output of JUXT A instruments, and the settings of the wiring resistance compensation. These adjustments are made via the ADJUST dialog box.

10.1 Opening the Adjusting Dialog Box

● Preparation

Connect the JUXT A instrument to the personal computer , then turn on the power to the instrument.

Step 1 Start VJ77. In the Parameter/Program Setting Menu dialog box, select Param-

eter Setting and click OK. If a password has been set, enter the password in the

Password Entry dialog box and click OK. Step 2 The Parameter Setting Menu dialog box appears. Select Set and click OK. Step 3 The “Starts communication. Press OK button if ready .” message appears. Click

OK.

10-1

Step 4 The Menu dialog box appears. Select ADJUST and click OK.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Step 5 The ADJUST dialog box appears.

10-2

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

10.2 Performing Fine Adjustment of Input

This section describes how to perform fine adjustments of inputs. The following shows an example when doing so for a JUXT A VJH7 isolator . For wiring with a calibrator or other apparatuses, see the instruction manuals for respective JUXT A instruments.

10.2.1 Adjusting the Zero Point of Input

Step 1 Apply the 0% level of the input to the JUXT A instrument. If the signal level after A/

D conversion in the JUXT A instrument (the value displayed in the P02: ZERO

ADJ1 data cell) and the value actually input do not match, perform the following

steps to offset the zero-point shift. Step 2 Double-click the P02: ZERO ADJ1 data cell. The text box at the bottom of the

ADJUST dialog box turns becomes available. Step 3 Click the down arrow next to the text box to open a list, which contains the follow-

ing:

10-3

+*.* V INC: Adds the specified voltage after A/D conversion.

+*.* V DEC: Subtracting specified voltage after A/D conversion.

+*.* V RST: Resets the value that has been adjusted by INC or DEC to 0.

HINC or HDEC: Adjusts the value by about 10 times that specified by the +*.*

INC or +*.* DEC command.”

Step 4 Since the value shown in the P02: ZERO ADJ1 cell is larger than the actual input

level in the example above, select +*.* V DEC and click WRITE. Repeat this

procedure to complete the adjustment.

10.2.2 Adjusting the Input Span

Apply the 100% level of the input to the JUXT A instrument. If the signal level after A/D conversion in the JUXT A instrument (the value displayed in the P03: SP AN ADJ1 data cell) and the actual input signal level do not match, you must correct the input span. The procedure is the same as above.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

CAUTION

For some models, +*.* HINC and +*.* HDEC are not included in the list. The unit of signal differs depending on the model.

10.3 Correcting the Output

This section describes how to perform corrections of outputs. The following shows an example when doing so for a JUXT A VJH7 isolator . For wiring with a calibrator or other apparatuses, see the instruction manuals for respective JUXT A instruments.

Step 1 Double-click the P12: OUT1 0% data cell and click WRITE. The 0% level is then

forcedly set to the output regardless of the input level. Calculate the percent value

of the deviation from zero in the reading of the calibrator . If there is a positive

deviation, correct it by setting a negative percent value to offset the deviation.

For example, provided the output signal range of the JUXTA instrument is

4—20 mA DC and the reading of the calibrator when forcibly outputting the

0% value is 3.96 mA DC, the error (%) can be calculated as follows and set

the same value to the opposite polarity.

10-4

Error (%) = [(measured value – reference value)/span] × 100

= [(3.96 – 4.00)/16] × 100 = –0.25

Step 2 In this example, the output level read in step 1 showed the –0.25% deviation.

Hence, you should type 0.25 in the text box and click WRITE. Check that the

reading of the calibrator is within the range of rated accuracy and quit the proce-

dure.

In the same way, correct the 100% output level. Step 3 To correct the 100% output level, double-click the P13: OUT1 100% data cell and

follow steps 1 to 2.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

10.4 Setting Wire Resistance Compensation

If the input wiring resistance is causing a significant error after the wiring to the field device has been completed, you can compensate for the wiring resistance with the following procedure.

Step 1 Change the wiring connections in the field as shown at the bottom of this page. Step 2 When the input is stable, double-click the P01: WIRING R data cell.

10-5

Step 3 Click the arrow next to the text box. Choose EXECUTE from the list and click

WRITE. The wiring resistance is then compensated.

■ Field wiring for thermocouple converter

Thermocouple

converter

Short-circuit here.

■ Field wiring for mV converter

Voltage

generator

Connect both wires to the same output terminal.

mV converter

VJ77

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

■ Field wiring for RTD converter

RTD converter

10-6

Short-circuit all wires at the terminals of the RTD element.

VJ77

10.5 Using the Forced Output Function

Using the forced output function allows you to perform function tests of the equipment connected to the JUXT A instrument’ s output terminals.

Step 1 In the ADJUST dialog box, click the TEST tab. Step 2 Double-click the Q02: OUT1 TEST data cell. In the text box, enter the percent

value of the level you want to output. T o output the 100% value forcedly for ex-

ample, type 100 and click WRITE.

The 100% value is then output. During forced output, the selected cell is yellow .

Step 3 T o cancel forced output, click Cancel Forced Output or double-click another

parameter .

TIP

The ADJUST dialog box for some models of JUXT A does not have the TEST page on which you can forcibly set an output level. Even with such models however , it is possible to output 0% and 100% levels forcedly by the same procedure as that used for output correction. To do so, double-click the OUT 0% or OUT 100% data cell and click WRITE.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

11. Troubleshooting

This chapter explains troubleshoot problems that may occur when running VJ77.

● Symptom: Abnormal display

Possible Cause: There is a problem with the operating conditions of your computer . Remedy: Check whether your system meets the following requirements:

• A display unit having a resolution of 800 × 600 pixels capable of displaying 256 colors or superior is required.

• Use of small fonts is recommended.

● Symptom:The “Communication error . Check the connection.” message

appears.

Possible Cause: The communication cable is disconnected or power is not being sup-

plied to the JUXT A instrument.

Remedy: Check the connection of the communication cable and the power to the

JUXTA instrument.

11-1

● Symptom:The “Communication error . Check the connection and try

again.” message appears.

Possible Cause: The communication cable was accidentally disconnected during com-

munication with the DSC, or somebody reconnected the cable during communication.

Remedy: Check the cable connection and attempt communication again.

● Symptom:The “Parameter address error . Communication will be termi-

nated.” message appears.

Possible Cause: While setting parameters, the communication cable was disconnected

and connected to another JUXT A instrument of a different model.

Remedy: Restart communication from the VJ77 window or restart VJ77 and start

communication from the beginning.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

12. Appendix

12.1 Setting the Password

This section describes how to set a password to VJ77. Password protection is a security function that prevents parameter and program settings in

JUXTA instruments from being modified by an unauthorized person.

Step 1 Start VJ77. Step 2 From the menu bar , click Password, then Set.

12-1

Step 3 The Set/Change Password dialog box appears. T ype a password (4-digit nu-

meral) in the New password box, and type the same numbers in the New password (Confirm) box.

Step 4 Click OK.

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

12.2 Changing the Password

This section describes how to change the password already set to VJ77.

Step 1 Start VJ77. Step 2 From the menu bar , click Password, then Change.

Step 3 The Password Entry dialog box appears. T ype the old password (4-digit numeral)

and click OK.

12-2

Step 4 The Set/Change Password dialog box appears. T ype the new password (4-digit

numeral) in the New password box, and type the same numbers in the New password (Confirm) box.

Step 5 Click OK

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Revision Information

● Title : Model VJ77 PC-based Parameters Setting Tool

● Manual No. : IM 77J01J77-01E

Dec. 1999/1st Edition

Newly published

Jan. 2004/2nd Edition

Supports Windows 2000 and XP.

Written by Yokogawa M&C Corporation

Published by Yokogawa M&C Corporation

2-9-32 Nakacho, Musashino-shi, Tokyo 180-8750, JAPAN

IM 77J01J77-01E 2nd Edition : Jan.30,2004-00

Blank Page

YOKOGAWA M&C CORPORATION Headquaters

2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Phone: +81-422-52-5066 Facsimile: +81-422-51-8421

International Sales Dept.

2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 JAPAN Phone: +81-422-52-5716 Facsimile: +81-422-55-8954

Sales Branch Offices

Tokyo, Nagoya, Osaka, Fukuoka

YOKOGAWA CORPORATION OF AMERICA Headquaters

2 Dart Road, Newnan, GA. 30265-1094 U.S.A. Phone: +1-770-253-7000 Facsimile: +1-770-251-2088 Sales Branch Offices / Texas, Phoenix, Chicago, Detroit, Los Angeles, New Jersey, Ollahoma

YOKOGAWA EUROPE B. V. Headquaters

Databankweg 20, Amersfoort 3821 AL THE NETHERLANDS Phone: +31-334-64-1611 Facsimile: +31-334-64-1610 Sales Branch Offices / Houten (Netherlands), Wien (Austria), Zaventem (Belgium), Ratingen (Germany), Madrid (Spain), Bratislava (Slovakia), Runcorn (United Kingdom), Milano (Italy), Velizy villacoublay(France), Johannesburg(Republic of South Africa)

YOKOGAWA AMERICA DO SUL S.A. Headquarters & Plant

Praca Acapulco, 31-Santo Amaro, Sao Paulo/SP, CEP-04675-190 BRAZIL Phone: +55-11-5681-2400 Facsimile: +55-11-5681-1274/4434

YOKOGAWA ENGINEERING ASIA PTE. LTD. Head office

5 Bedok South Road, 469270 SINGAPORE Phone: +65-241-9933 Facsimile: +65-241-2606

YOKOGAWA ELECTRIC KOREA CO., LTD. Head office

395-70, Shindaebang-dong, Dongjak-gu, Seoul,156-010, KOREA Phone: +82-2-3284-3021 Facsimile: +82-2-3284-3016

YOKOGAWA TAIWAN CORPORATION Head office

17F, No.39, Sec. 1, Chung Hwa Road Taipei, 100 TAIWAN Phone: +886-2-2314-9166 Facsimile: +886-2-2314-9918

YOKOGAWA AUSTRALIA PTY. LTD. Head office

Centre Court D1, 25-27 Paul Street North, North Ryde, N. S. W. 2113, AUSTRALIA Phone: +61-2-9805-0699 Facsimile: +61-2-9888-1844

YOKOGAWA BLUE STAR LTD. Head office

40 / 4 Lavelle Road, Bangalore, 560 001, INDIA Phone: +91-80-227-1513 Facsimile: +91-80-227-4270

LTD. YOKOGAWA ELECTRIC Headquarters

Grokholskiy per. 13, Build. 2, 4th Floor, 129090, Moscow, RUSSIA FEDERATION Phone: +7-095-737-7868 Facsimile: +7-095-737-7869

YOKOGAWA VJ77 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Documentation Conventions

Notice

1. VJ77 PC-based Parameters Setting T ool

1.1 An Overview of VJ77 and Its Functions

1.1.1 What is VJ77?
