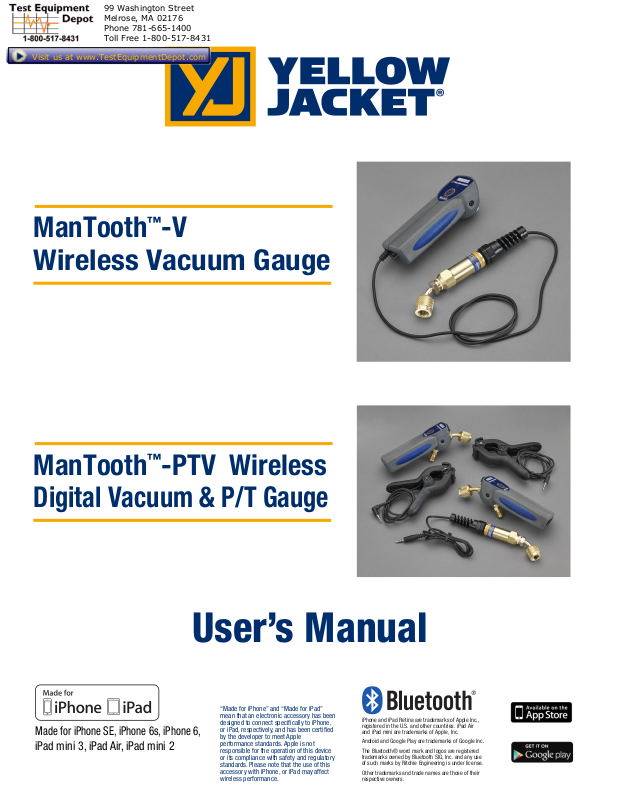

ManTooth
-V
Wireless Vacuum Gauge
™
ManTooth
-PTV Wireless
Digital Vacuum & P/T Gauge
User’s Manual
“Made for iPhone” and “Made for iPad”
mean that an electronic accessory has been
designed to connect specifically to iPhone,
Made for iPhone SE, iPhone 6s, iPhone 6,
iPad mini 3, iPad Air, iPad mini 2
or iPad, respectively, and has been certified
by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPhone, or iPad may affect
wireless performance.
iPhone and iPad Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad Air
and iPad mini are trademarks of Apple, Inc.
Android and Google Play are trademarks of Google Inc.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Ritchie Engineering is under license.
Other trademarks and trade names are those of their
respective owners.
Page 2
Before You Start
Contacng Ritchie
To order accessories, receive assistance, or
locate the nearest YELLOW JACKET distributor.
Safety Informaon
Use the instrument only as specified in this
manual. Otherwise, the protecon provided by
the instrument may be impaired. Refer to the
safety informaon.
Warning idenfies condions and acons
A
that pose hazards to the user. A Cauon
idenfies condions and acons that may
damage the instrument or the equipment
under test.
Warning
To avoid personal injury or death, follow these
guidelines:
Most governments and legal authories
•
require that HVAC technicians be
trained and cerfied in the safe and
proper operaon of HVAC tools, such as
this instrument. Since this tool may be
connected to many types of equipment
through a limitless combinaon of hoses
and fings, proper training is the most
important element of using this tool
safely.
Read the enre Users Manual before
•
using the instrument.
•
Use the instrument o
his Users Manual, otherwise the
t
protecon provided by the equipment
may be impaired.
•
Do not use the instrument if it is
damaged. Before you use the
instrument, inspect the case. Look for
cracks or loose components.
•
The instrument contains no internal
user serviceable parts
•
Do not open the instrument.
•
Have the instrument serviced only by
Ritchie Engineering Co. or authorized
service centers.
•
Do not use the instrument if it operates
abnormally. Protecon may be
impair
in
•
Do not operate the instrument around
explosive gas, vapor, or dust.
•
Various refrigerants have been
intenonally excluded for very
significant safety reasons.
•
Never use refrigerants in this
instrument that are not listed in the Setup menu.
•
The refrigerant database in this unit
may include refrigerants classified as
flammable. If such refrigerants are
selected, the operator may need
addional cerficaons and/or training.
Consult your government and legal
authority and comply fully with all
requ
•
Always wear eye and skin protecon
when working with refrigerants.
Escaping refrigerant vapors will present
a freezing danger. Do not direct
ed. When in doubt, have the
strument serviced.
irements.
nly as described in
2

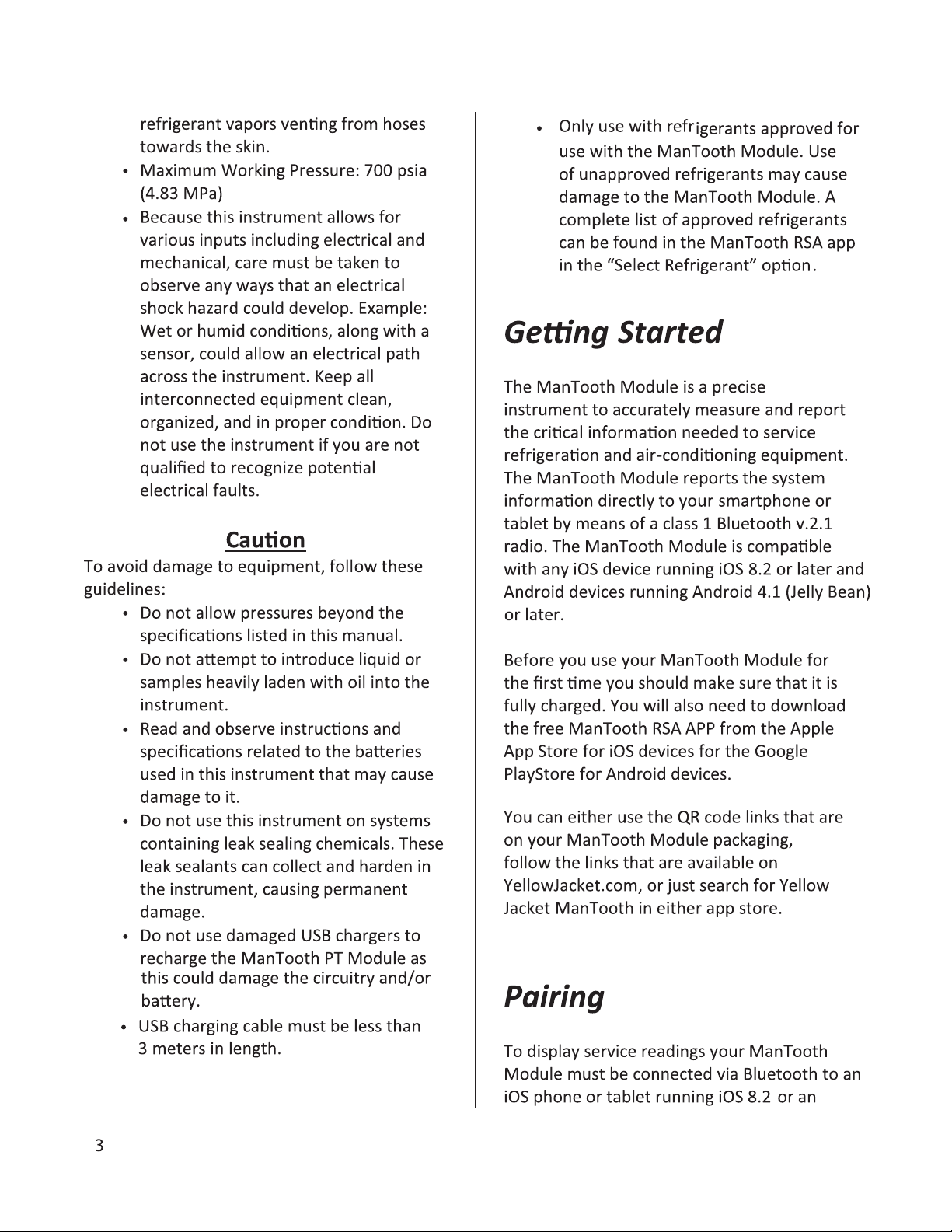

Page 3
Page 4
Android phone running Android 4.1 (Jelly Bean)
Apple iOS Android
Apple iOS Android
or later. To connect your ManTooth Module
to your phone or tablet the two must first be
paired to one another. The pairing of the
module to your device is done in your phone
or tablet’s sengs.
**Note** you only need to pair your ManTooth
Module the first me you connect it to your
phone or tablet, however, if you force your
phone or tablet to “forget” your ManTooth
Module you will need to re-pair.
**Note** Your ManTooth Module can be paired with
mulple devices at the same me. However, it
can only be connected and sending readings to
one phone or tablet at a me.
The module will go through a brief start up
sequence then the light on your ManTooth
Module should start to blink blue. This means
that your ManTooth Module is search for available
Bluetooth devices to connect with. Next, if you
are using an Android phone, tap on “Scan”
at the boom of the screen to scan for
available devices. Apple iOS devices should
automacally scan fo
r available Bluetoo
th
devices.

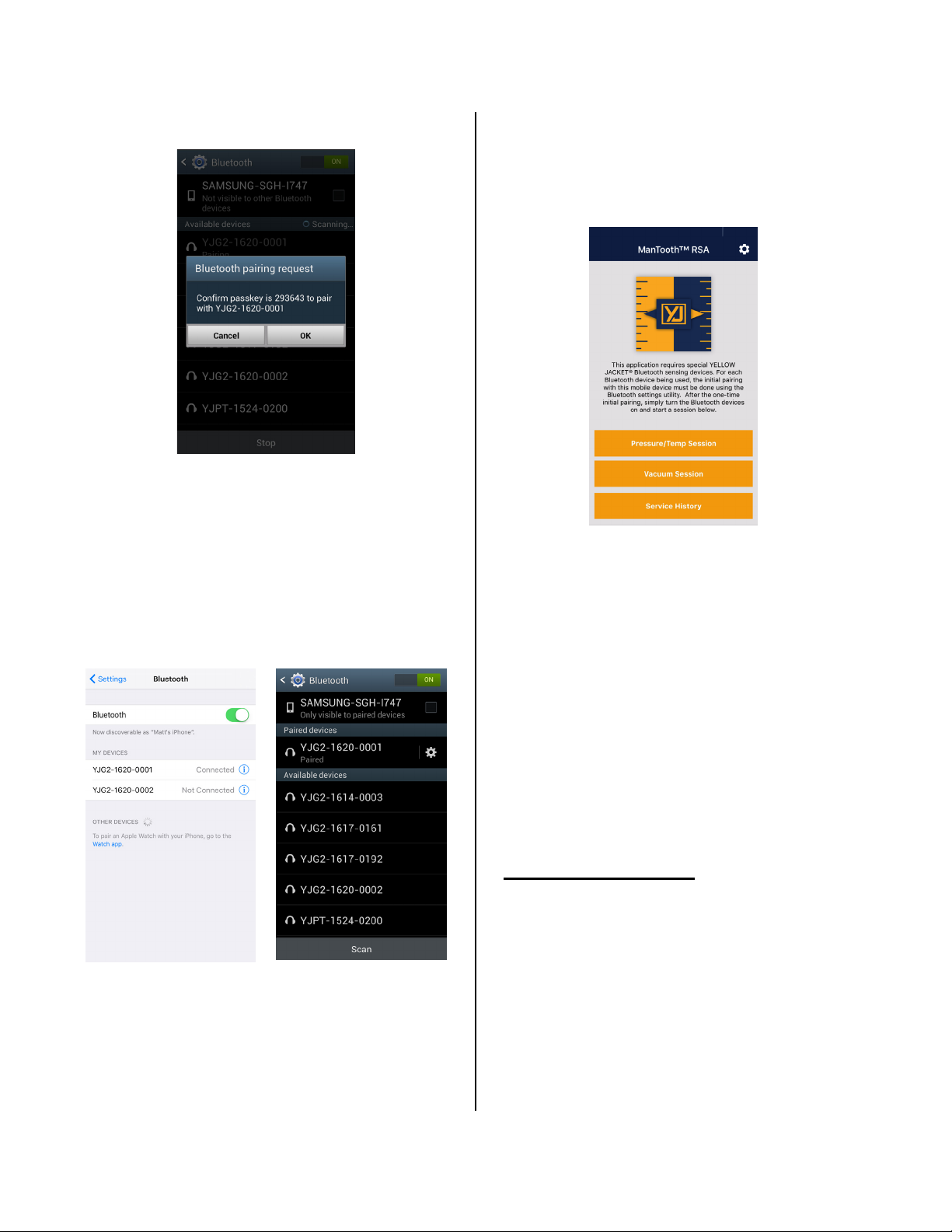

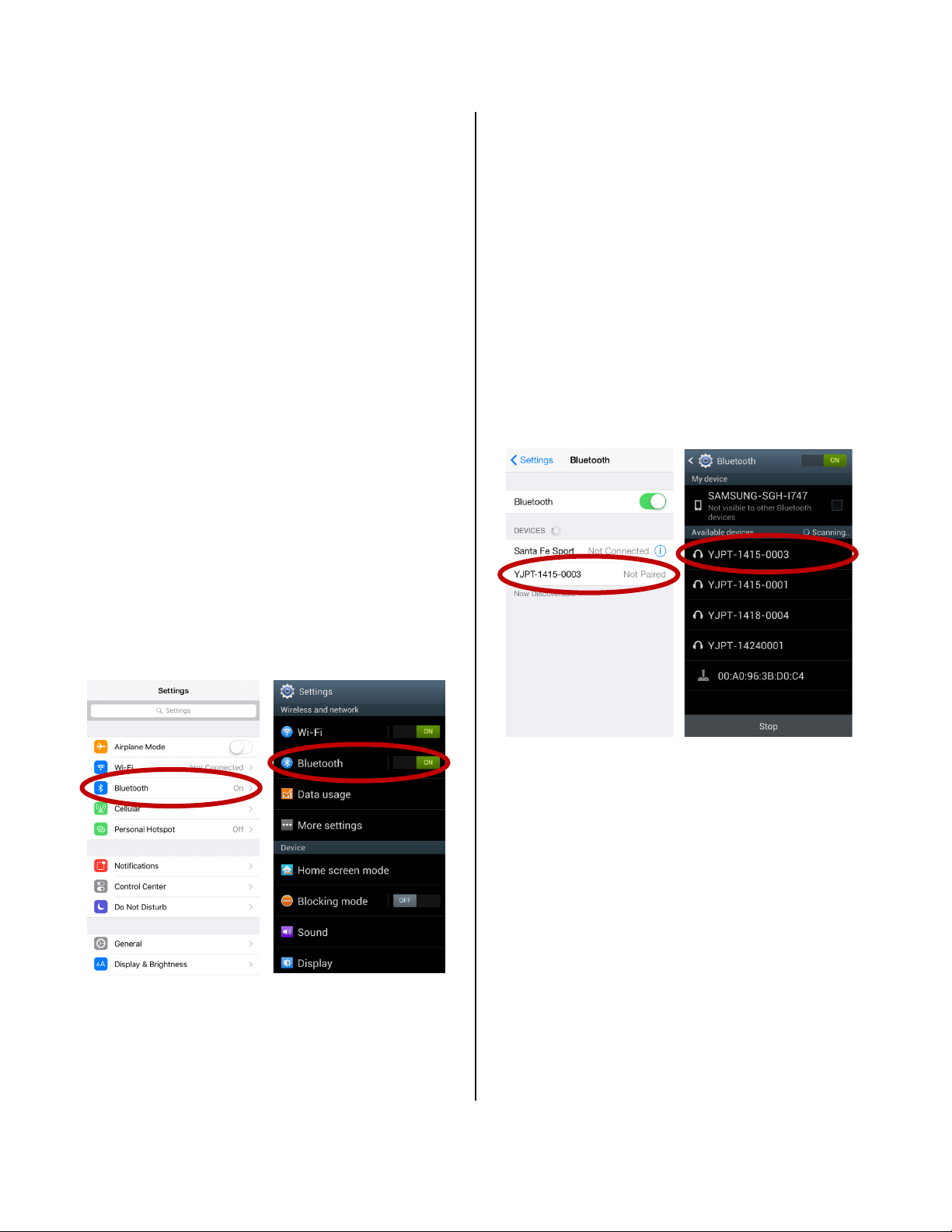

To pair your ManTooth Module you first
need to open the sengs menu on the phone
or tablet you wish to pair to your ManTooth
Module. Next tap on “Bluetooth” to enter the
Bluetooth sengs. Be sure to turn your phone
or tablet’s Bluetooth radio on if it is not already on.
Your ManTooth Module should then show
up as an available device to pair with on your
phone or tablet’s screen. This may take up to
30 seconds.
**Note** Your ManTooth Module’s name is
the same as the serial number and is printed on
the main module’s label.
Next turn your ManTooth Module on by
pressing and releasing the power buon on the
main module.
4
Once your ManTooth Module shows up as
an available device tap on it’s name to pair it
with your phone. On Android systems a
“Bluetooth pairing request” alert may pop up
asking to confirm the passkey tap on
onnue.
c
“OK” to
Page 5
Aer pairing your Apple iOS phone or tablet to
Apple iOS Android
Android
your ManTooth Module it should show up as
“Connected.” On Android devices your
ManTooth Module should show up under the
“Paired Devices” secon on the Bluetooth
sengs screen.
ManTooth RSA App
This secon will go over the various funcons,
sengs, and procedures of the ManTooth RSA.
If you have not already downloaded the Yellow
Jacket ManTooth RSA App go to either the Apple
App Store or the Google Play Store now to
download the free app. You can either use the
QR code links that are on your ManTooth Module
packaging, follow the links that are available on
YellowJacket.com, or just search for Yellow
Jacket ManTooth in either app store.
On Apple iOS devices, once your ManTooth
Module is paired the light on the module will
glow a solid blue. However, on all Android
devices or if your iOS device lists your ManTooth
Module as “Not Connected” the light will connue
to blink blue. This is normal.
5

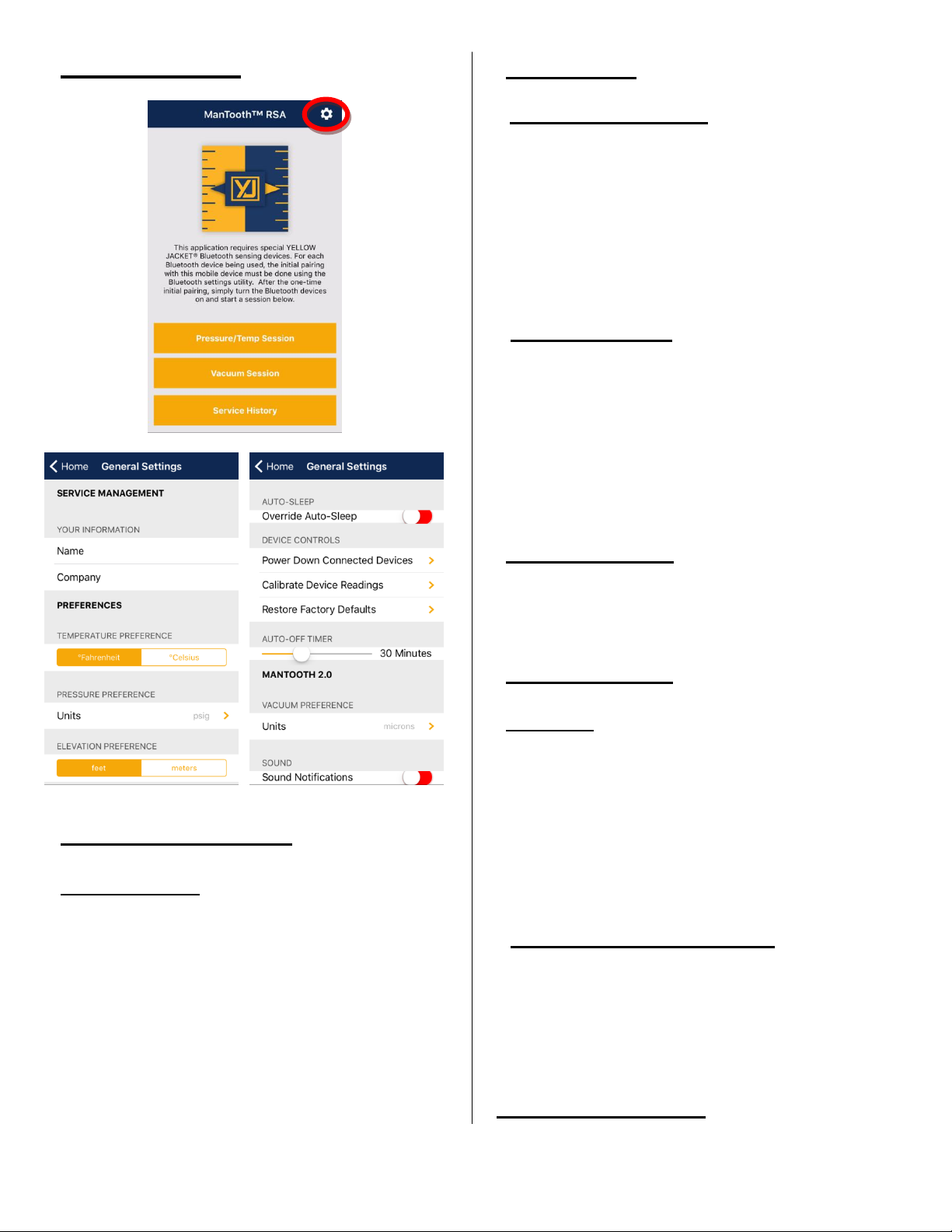

General Sengs
The General Sengs menu is where you can set
up and change various funcons of your
ManTooth RSA app to personalize it for your
specific needs.
To access the general sengs on the first
screen available upon opening the ManTooth
RSA app tap on the gear in the upper right
corner of the screen.
Page 6
General Settings
Preferences
Temperature Preference
Set the units that the temperature readings from
the temperature sensors, Vapor Saturation,
Liquid Saturation, and the values for
Superheating and Subcooling are displayed in.
Options are degrees Fahrenheit (°F) or degrees
Celcius (°C). Default temperature units are
degrees Fahrenheit (°F).
Pressure Preference
Set the units that the pressure readings are
displayed in. Available units are pounds per
square inch absolute (psia), pounds per square
inch gauge (psig), bar, kilopascals (kPa),
Megapascals (MPa), and kilogram per square
centimeter (kg/cm^2). The default pressure
units are pounds per square inch gage (psig)
Service Management
Your Information
Here you can set your own name and your
company name. This information will
automatically appear in the e-mails containing
the system readings screenshots and data logs
which you can send directly from within the
app.
Elevation Preference
Set the units of measure for elevation.
Available units are feet and meters. The default
elevation unit is feet.
Device Management
Auto Sleep
This option will disable your phone or tablet’s
automatic sleep function so that while you are
in a session taking readings your phone or
tablet will not automatically go to sleep which
could disrupt your session and readings. The
default auto sleep setting is Override Auto
Sleep = Off.
Power Down Connected Devices
This is another way of shutting off your
connected ManTooth Module(s) if you are not
near enough to your module(s) to press the
power button(s) and want to turn the power
completely off.
6
Calibrate Device Readings
Page 7
This gives you the option to adjust the calibration
of your ManTooth Module’s pressure,
temperature, or vacuum readings away from the
factory defaults.
displayed in. Available units are microns, milliTorr
(mTorr), Torr, millimeters of mercury (mmHg),
millibar (mbar), kilopascals (kPa), and Pascals (Pa).
The default vacuum units are microns.
Restore Factory Defaults
This will clear any calibration adjustments that
have been done on the ManTooth Module since
it left the factory.
Update ManTooth (Android Only)
This feature allows owners of ManTooth PT
modules to update the BlueTooth radio settings
of their devices for improved connectivity.
**Note**All ManTooth-V and ManTooth-PTV
modules already have these new radio settings.
For owners of ManTooth PT modules that have
their modules paired to an iOS device, these new
radio settings can be installed, but the user will
have to pair the modules to an Android device
with the ManTooth app. Once the radio settings
have been updated through the Android device,
the user can re-pair their ManTooth PT modules
with their iOS device. These radio settings
greatly improve the “Quick Start” function
discussed later this in manual.
Sound
This slider gives you the option to turn sound
notifications on or off. The default sound setting is
“Off”
Getting Back to the Previous Screen
To return to the previous screen from the one
you are currently viewing tap on the icon in the
upper left hand corner. This function is the same
in all of the screens in the ManTooth RSA App.
Pressure/Temp Session
Auto-Off Timer
This slider gives you the option of having your
ManTooth Module automatically turn itself off
after a designated period of time. It can be set
anywhere from 1 to 90 minutes. After the
ManTooth Module has been connected for the
specified auto-off time an alert will pop up asking
if you would like to reset the auto-off timer. If
you wish to reset the timer simply tap anywhere
on the screen. Also included is an auto-off
“Never” setting. Moving the slider all the way to
the left will set the auto off timer to “Never”.
Default is Auto-Off = 5 min.
ManTooth 2.0
Vacuum Preference
Set the units that the vacuum readings are
7

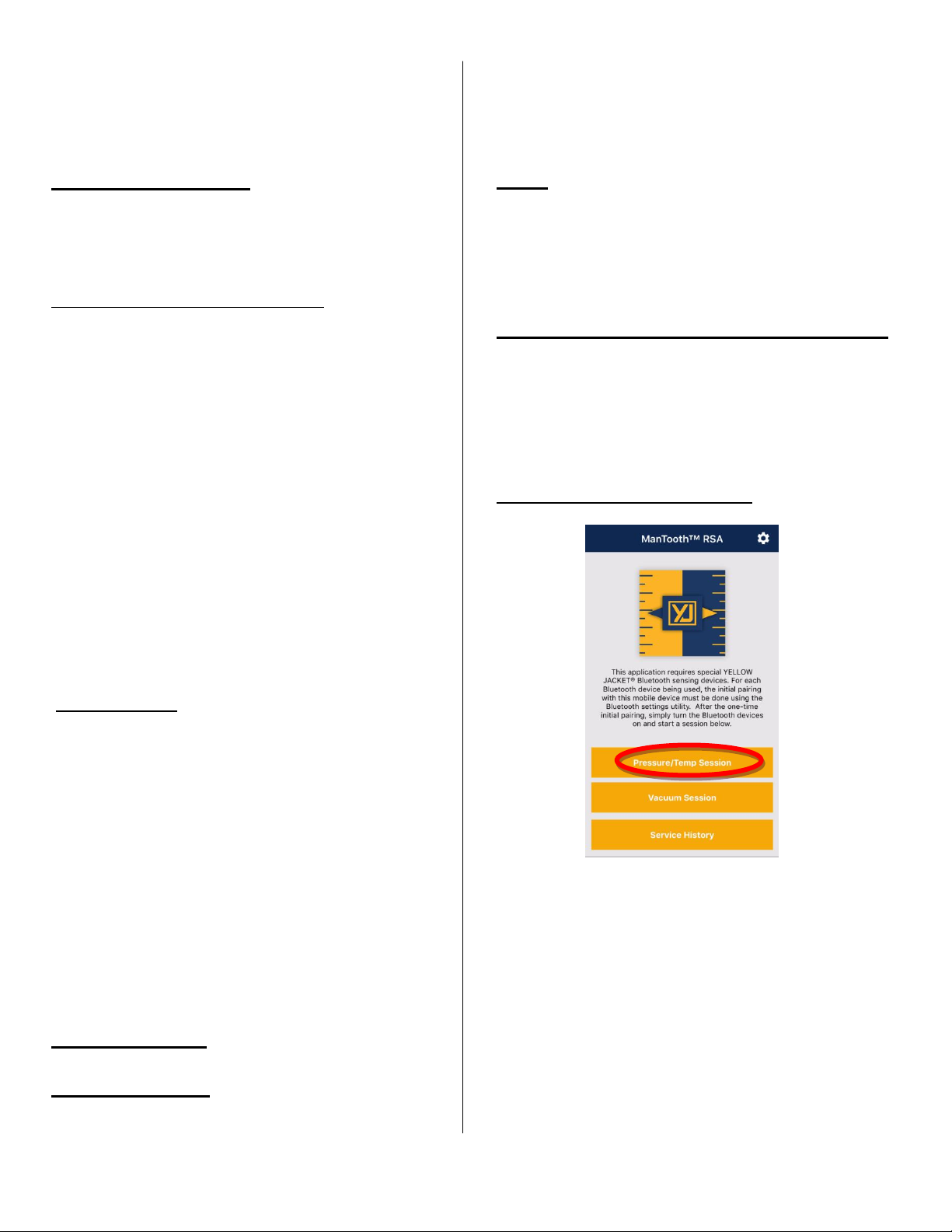

Sessions are where you connect your phone or
tablet with your ManTooth Module to see and
collect system readings. To begin a new
pressure/temperature session tap on
“Pressure/Temp Session” in the App home screen.
Page 8

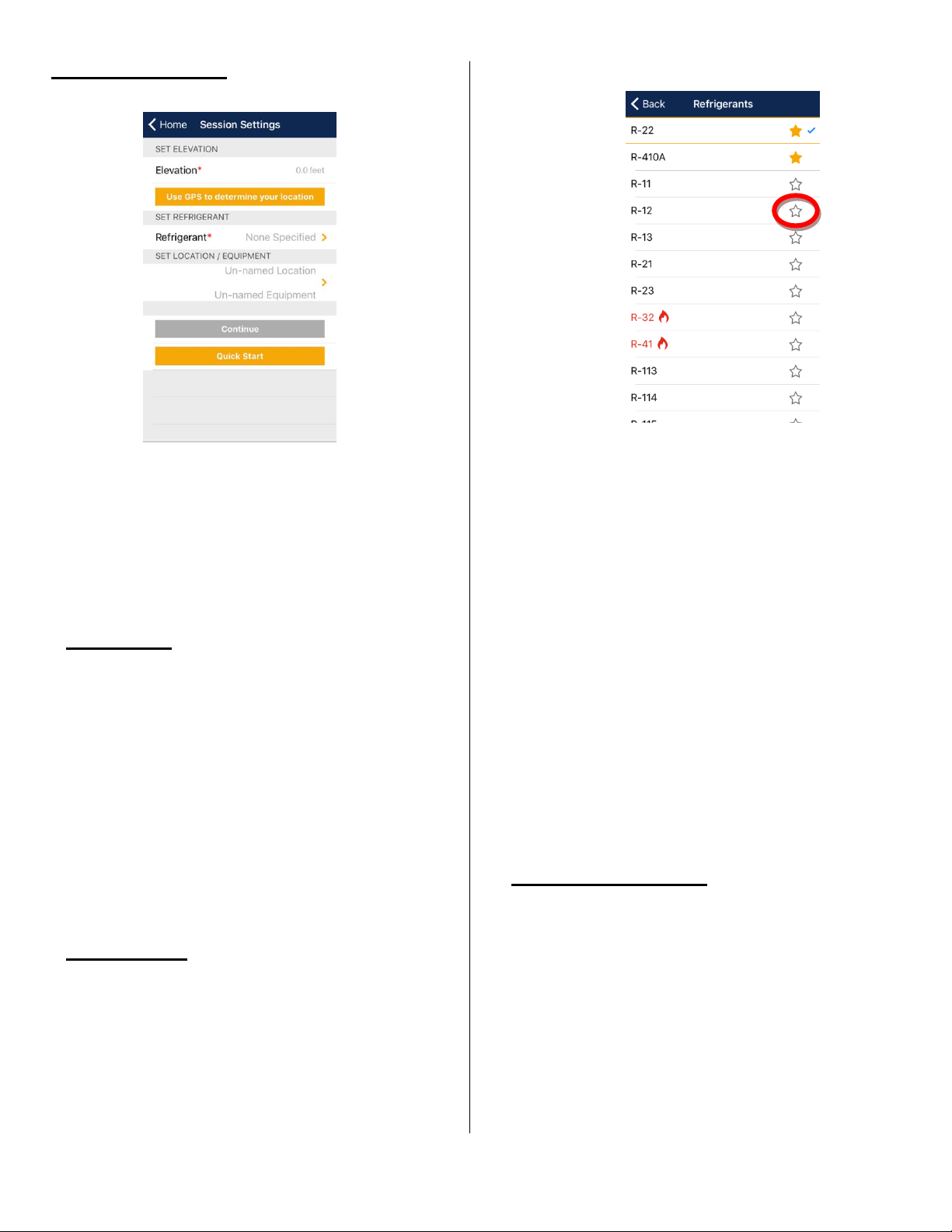

Session Settings
Using the correct settings that are specific for
the current system you are servicing will
ensure the best possible pressure readings as
well as liquid and vapor saturation values.
To save a “favorite” refrigerant, click on the
“star” icon next to the refrigerant. Once a
refrigerant is selected as a favorite, the star will
turn yellow and that refrigerant will move to the
top of the refrigerants list for subsequent
sessions. The “check mark” indicates the
refrigerant that has been selected for this
session.
Set Elevation
Setting the elevation will enable your
ManTooth RSA app to correct for elevation
pressure variations allowing for more accurate
pressure readings. You may either use your
phone or tablet’s built in GPS to determine
your elevation or input the elevation manually
by tapping on the elevation and entering your
elevation above sea level. **Note** “Use GPS
to determine your location” functionality may
not work on all devices especially those
without cellular service.
Set Refrigerant
To set the refrigerant for the current session
tap on “None Specified” then scroll through
the list of over 100 NIST refrigerants and
select the refrigerant corresponding to the
unit you will be servicing. **NOTE** Setting
a refrigerant is mandatory before moving to
the next screen.
8
************WARNING************
Refrigerants classified as flammable are in red
text with a “flame” icon. If such refrigerants are
selected, the operator may need additional
certifications and/or training. Consult your local
government and legal authority and comply
fully with all requirements.
***************************************
Set Location/Equipment
If you want to organize your saved data in
“Service History”, you can enter the location
information for the current service session. This
information will show up in the service reports
you can email and is how the service history
will be organized. Here you have the ability to
either add a new location or select an existing
location. Once you have designated a location
you can also designate what equipment is being
serviced during the session. Locations can have
Page 9
multiple pieces of equipment associated
with them so you can keep track of each
individual unit at locations that may have

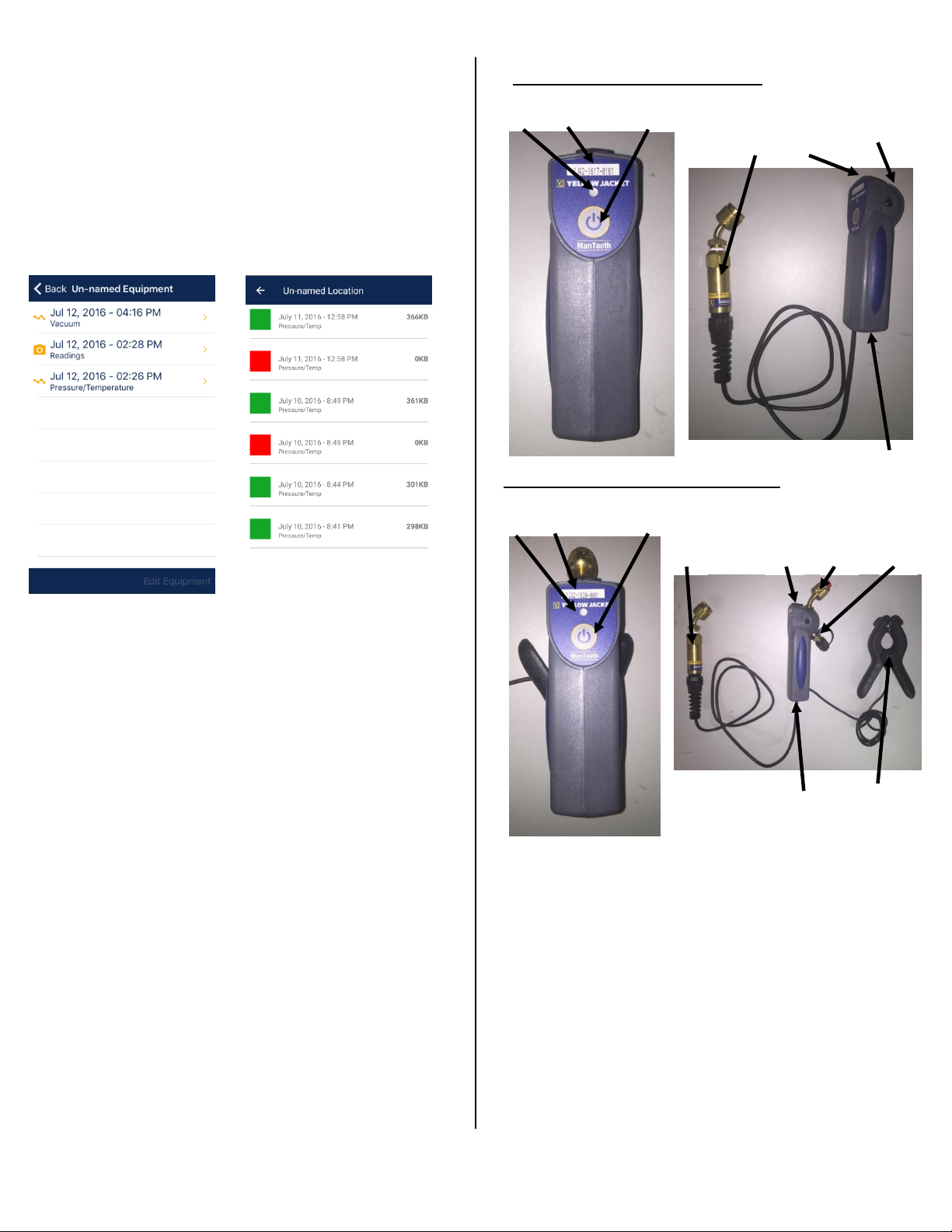

more than one system. Saved session data
will be saved to “Service History” in the
app’s main menu
and sorted first
alphabetically by business name or customer
last name, then alphabetically by assigned
equipment name, and lastly by the date and
time the data was saved. **Note** Location
and equipment details are optional. If you do
not wish to add location and equipment
information, “Un-named Location” and “Unnamed
Equipment” can be selected. This
data is saved to the “Service History” under
“Un-named Location” and is sorted simply
by date and time. You can not assign a
location to data at a later time.

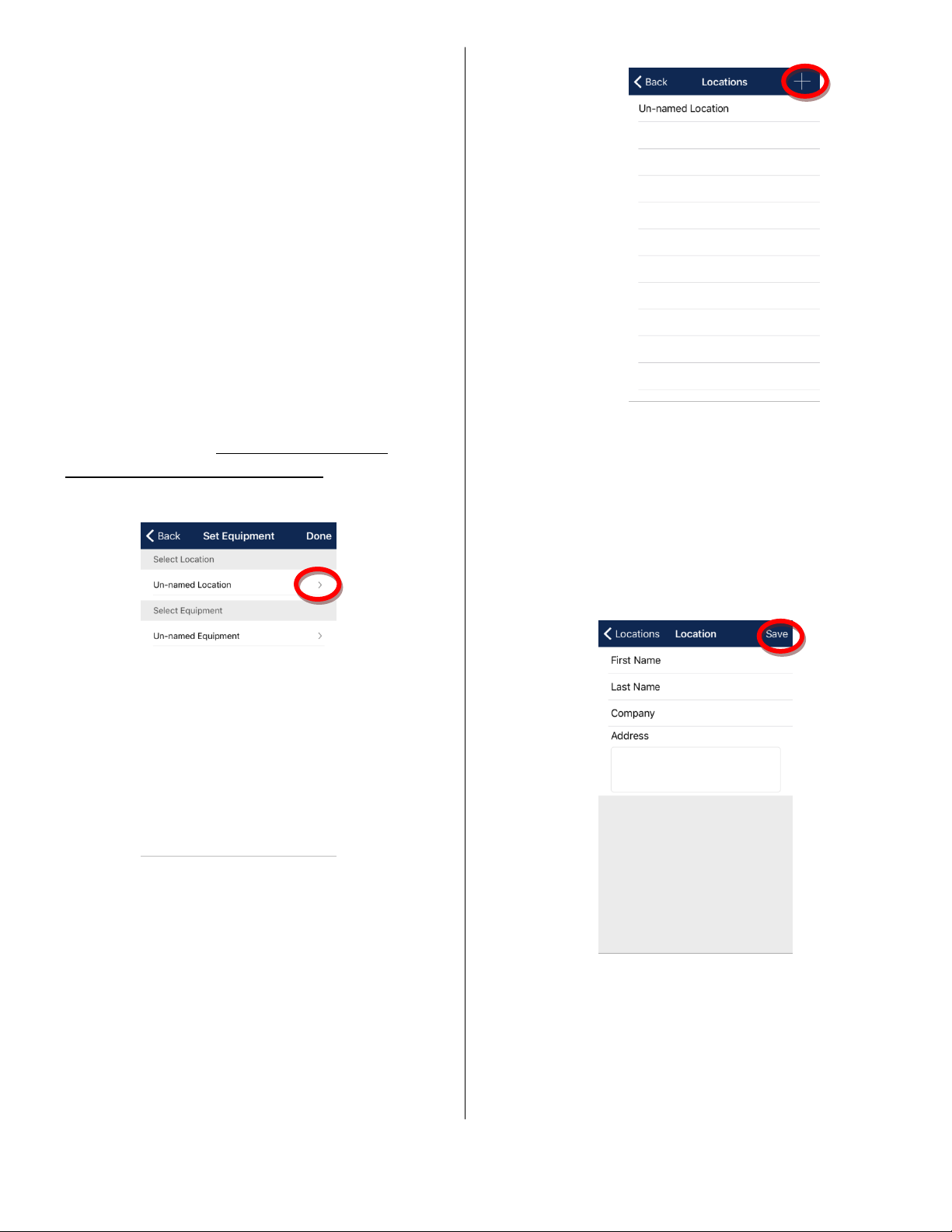

This screen will show a list of all saved
locations. To select a saved location or to use
the “Un-named Location”, click on the desired
location from this list. If a new location is
desired, click on the “+” icon in the upper righthand corner of the screen (lower right-hand
corner for Android users).
To select the location, click on the arrow next
to the default location.
9
A location information entry screen will
appear, allowing the input of a first and last
name, company name, and location address.
**Note** A “last name” or “company” is
required to save a new location. All other
entries are optional. Once the location

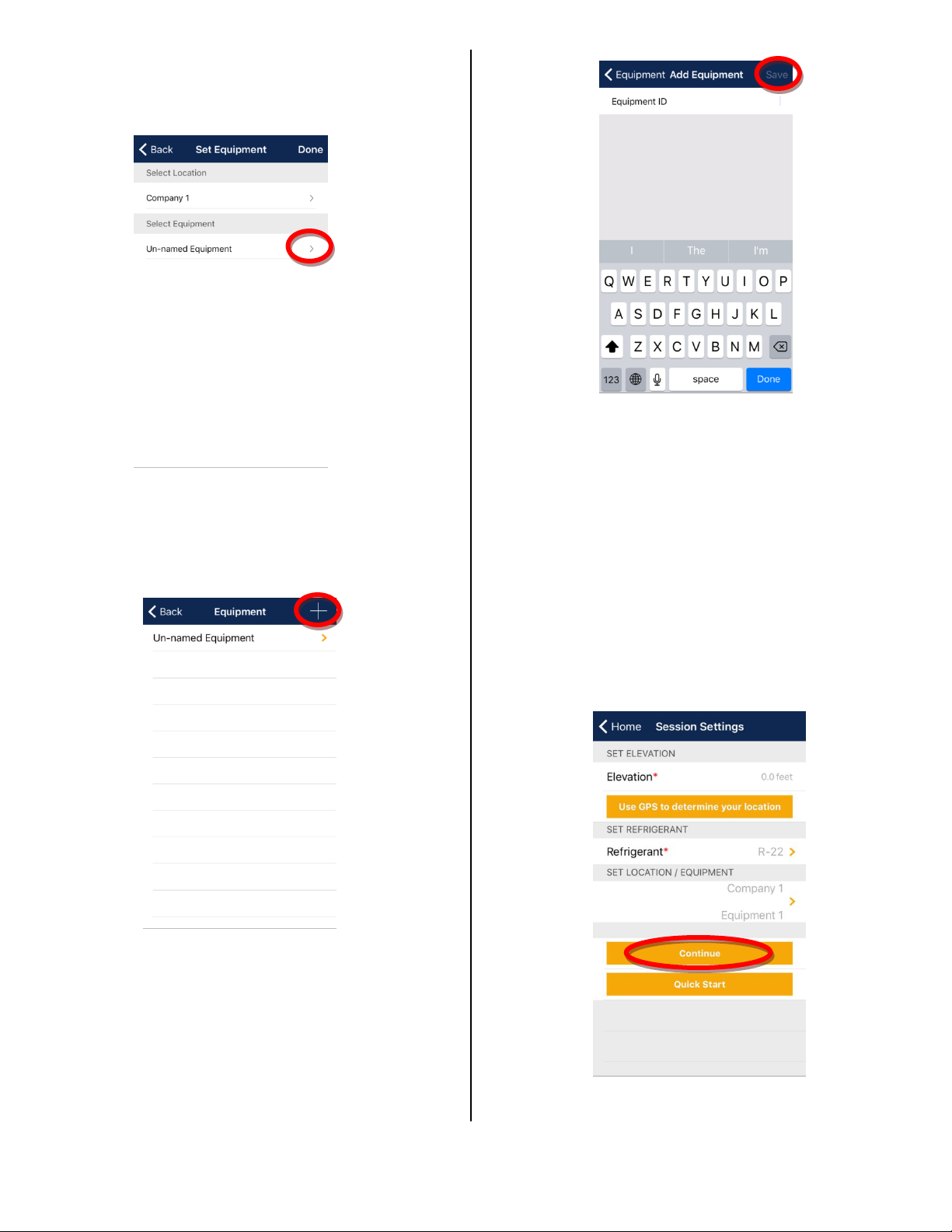

Page 10
information has been entered, click on the
“Save” button to return to the
Location/Equipment selection screen.
With the location selected, the corresponding
equipment can now be selected. Click on the
arrow next to the default equipment.
An equipment ID can now be entered. This
could be a brief description of the equipment
and/or model/serial number. Once the
equipment information has been entered, click
on the “Save” button to return to the
Location/Equipment selection screen. Once
the location and equipment have been
selected, click “Done” for iOS users or “Confirm
Settings” for Android users to return to the
Session Settings screen.
This screen will show a list of all saved
locations. To select a saved location or to use
the “Un-named Location”, click on the
desired location from this list. If a new
location is needed, click on the “+” icon in the
upper right-hand corner of the screen (lower
right-hand corner for Android users).
10
Page 11
Once all of the session settings have been
established, click “Continue”. **Note** The “Quick
Start” feature is not available until after a standard
session has been started and saved. However, for
subsequent sessions, this “Quick Start” feature can
be utilized to bypass the ManTooth Module
assignment process and will navigate directly to the
readings screen when connecting to the same
ManTooth Module(s) used during the previous saved
session. Android users will be prompted to “confirm”
assignment of the ManTooth Module(s) when using
“Quick Start”.

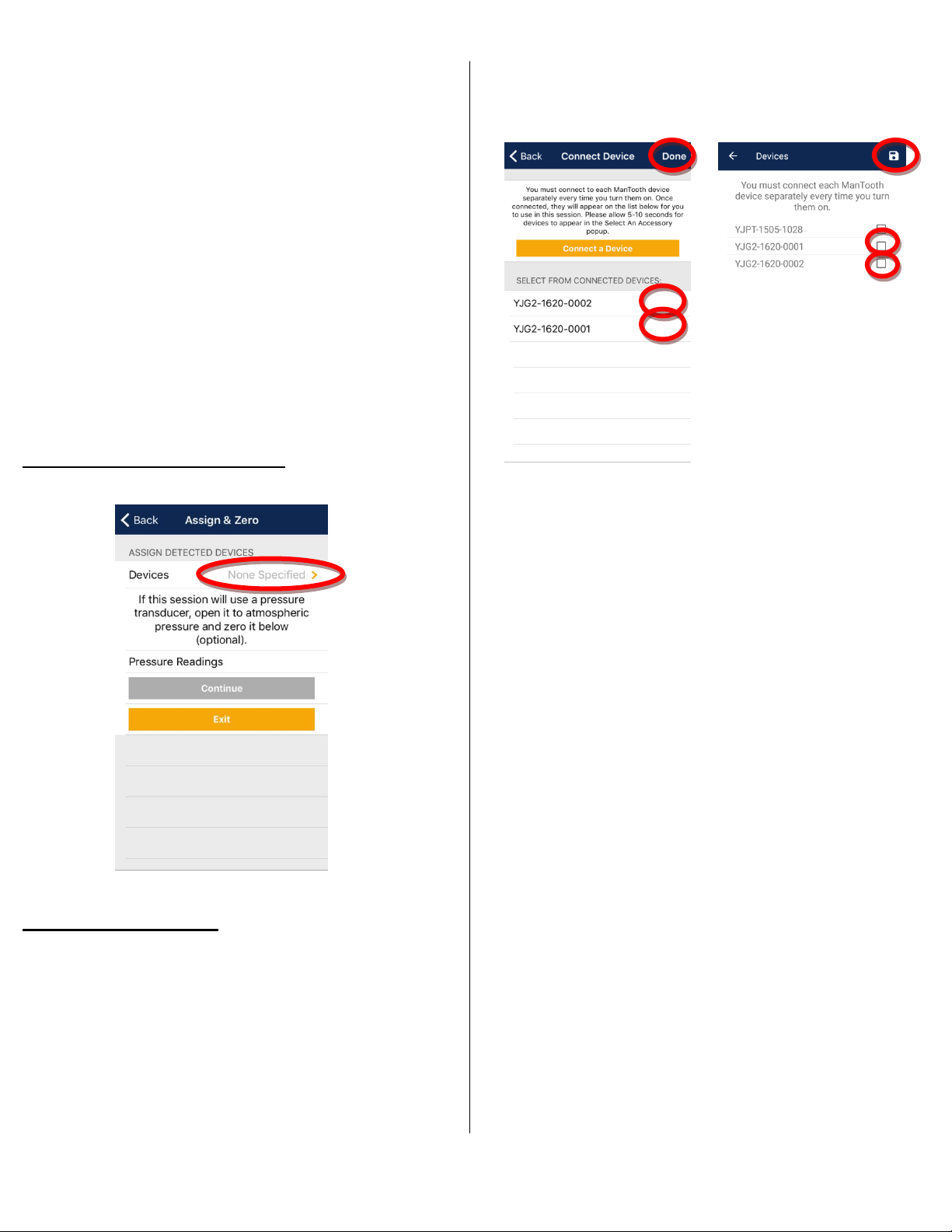

Assign Devices and Zero
iOS Android
Tap on the ManTooth Module(s) that you wish to
Assign Detected Devices
Now you are ready to connect your ManTooth
module to your current session. To connect your
module, first click “None Specified”, this will take you
to the module selection screen.
connect to your session from the list of devices that
are displayed. Remember your Module’s name is
the serial number printed on the main label and
should take the form of YJPT-XXXX-XXXX for PT
modules or YJG2-XXXX-XXXX for ManTooth-V and
ManTooth-PTV modules. Next tap the save icon in
the upper right corner of the screen to save the
module(s) to the session. **Note** On iOS
devices, the ManTooth Module(s) should have
been connected to your smart device as described
in the “Getting Started” section above. If they are
not connected, you must tap on “Connect a Device”
to first connect your device to your phone or tablet
and then select it under the “Select An Accessory”
heading to fully connect it to your session.
**Note** to connect to your ManTooth
Module(s), they must be turned on and searching
for a connection (where the blue light is blinking).
11
Page 12

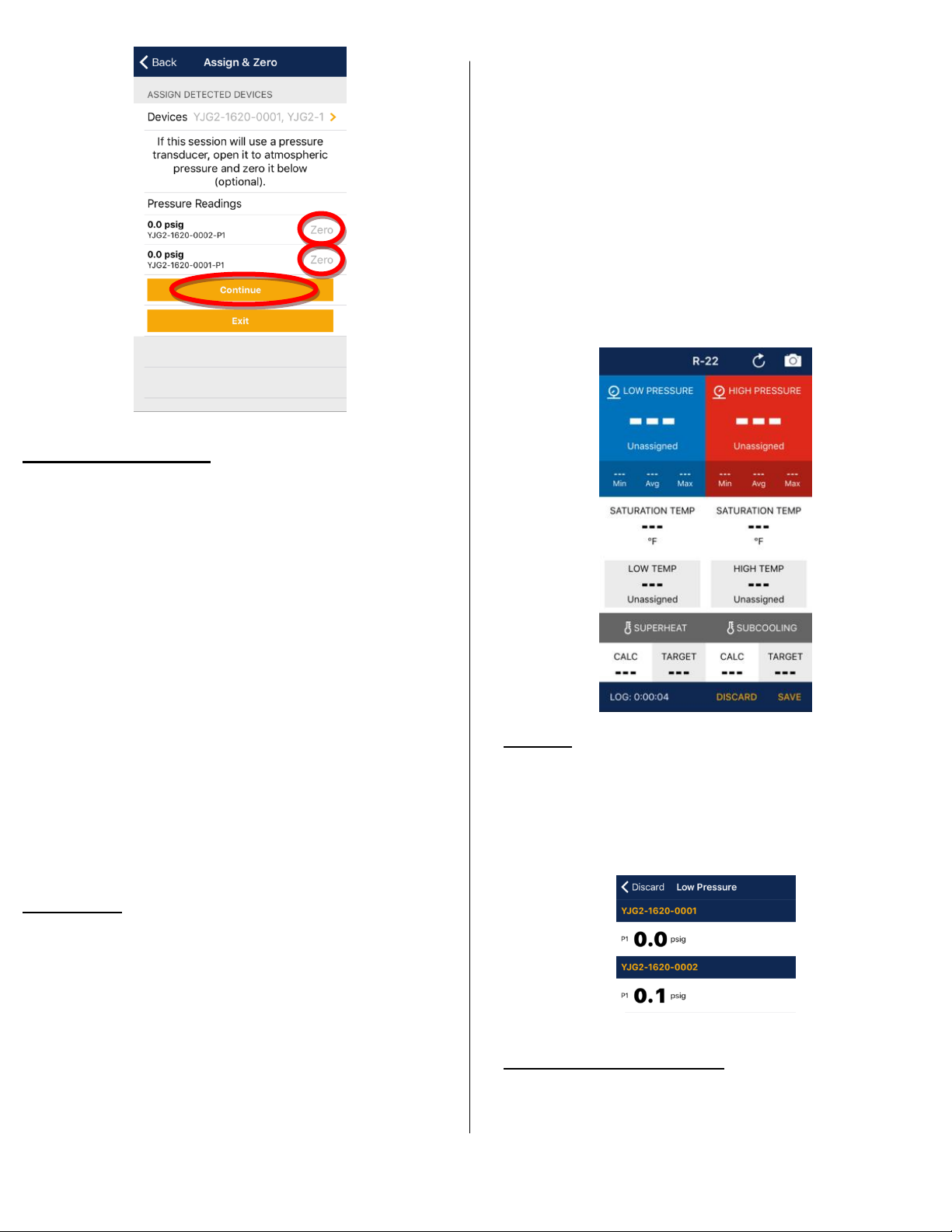

Zero Pressure Readings
After you save your module(s) to the session they will
be displayed at the top of the screen under “Assign
The first time you connect your ManTooth
Module(s) to a new phone or tablet you will have
to assign the pressure transducers and
temperature sensors. These assignments are not
permanent and can be changed at anytime.
**Note** the pressure transducer in every
ManTooth Module is capable of accurately
reading pressures up to 700 psia (48.3 bar) and
therefore can reliably be used on either the high
or low side.
Detected Devices”. The pressures from the
connected module(s) will be displayed at the bottom
of the screen. To zero the pressure transducer
readings tap on “Zero” next to the corresponding
pressure. **Note** It is recommended that you zero
the pressure transducer(s) at the beginning of each
new session before connecting your ManTooth
Module(s) to a system. This will ensure the most
accurate device readings. Once the readings are
zeroed, the ManTooth Module(s) should be attached
to the system, then click “Continue” to proceed to
the readings screen.
Readings
The readings screen will display the pressures and
temperatures as measured by the ManTooth
Module(s), display the liquid and vapor saturation
Pressure
To assign pressure readings to either the high or low
side simply tap on the box that contains the value
you wish to assign and select the sensor that you
want to assign to that spot.
values, as well as calculate and display the superheat
and subcooling values.
12
Liquid and Vapor Saturation
Liquid and Vapor Saturation values are calculated
automatically by the app based on the measured
Page 13
pressure and the refrigerant selected.
Temperature
To assign temperature readings to either the high or
low side simply tap on the box that contains the
value you wish to assign and select the sensor that
you want to assign to that spot.
Subcooling and Superheat
To set the subcooling and superheat values tap on
the “Subcooling” or “Superheat” target box and
enter the data requested. For subcooling just enter
the desired value for subcooling. For superheat
enter the outdoor dry bulb temperature and the
indoor wet bulb temperature. The app will then take
this data and automatically calculate the target
superheat value. Once you have entered the
necessary information save the values by tapping on
the save icon in the top right corner of the screen.
Saving & Sharing Data
There are two ways to save and share data with the
ManTooth RSA app, screenshots and data logs.
A preview of the screenshot is shown, which
includes the system pressure and temperature
readings, saturation temperatures, superheat and
subcooling values, the refrigerant selected, and the
date and time of the screenshot. The white box
below the preview is where notes can be added and
saved with the screenshot. The screenshot can be
saved to the app “Service History” or it can be saved
and emailed. If “Save & Email” is selected, your
phone or tablet will launch the email program
configured to your device. The screenshot will be
attached to the email and the email body includes
the service details, along with any notes that have
been added from the preview screen above.
Data logs can be saved by clicking “Save” in the
lower right corner of the readings screen. The data
log contains all of the assigned system readings
taken every second of the session.

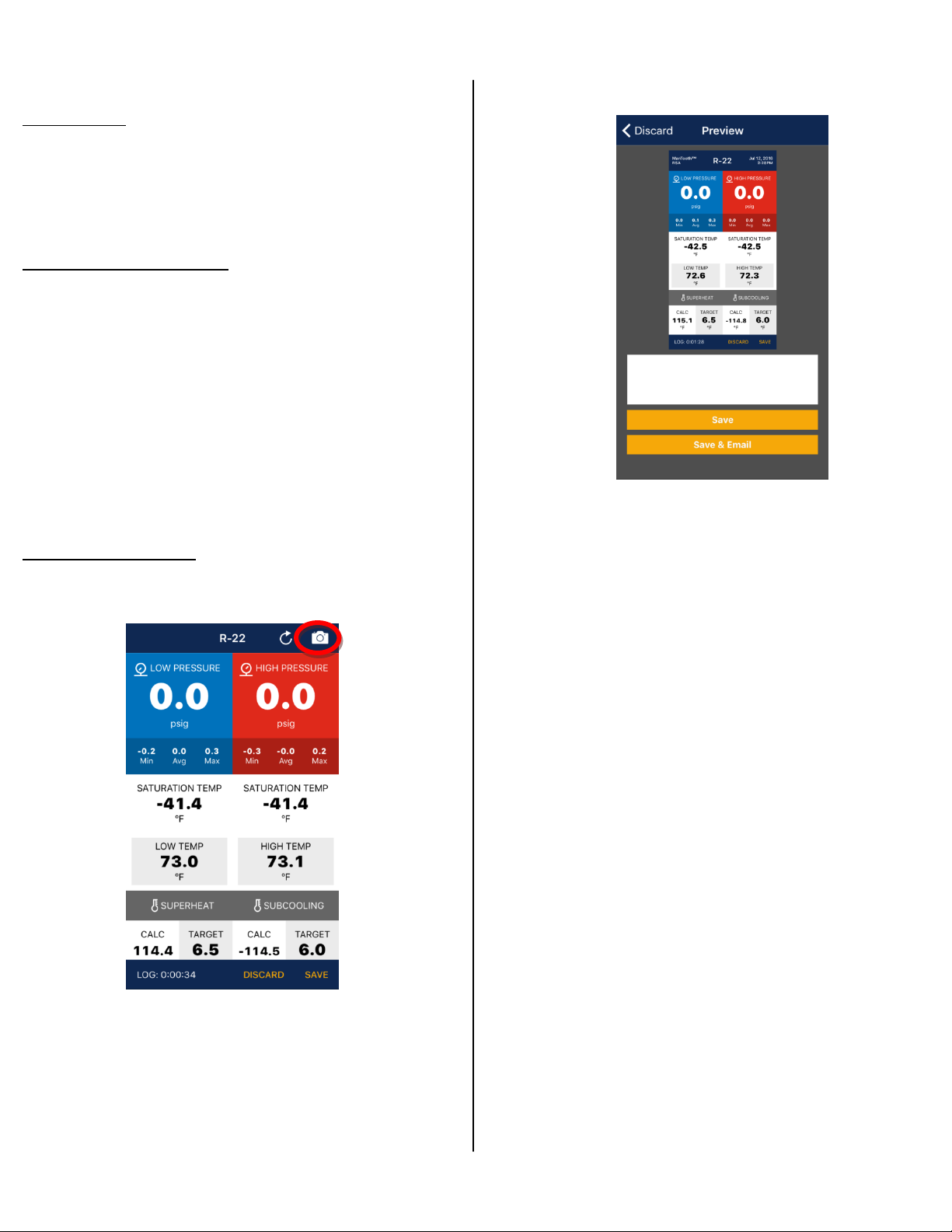

Screenshots can be taken from the readings screen
to show the readings at any given point in the
session. To save the data currently on the screen tap
on the screen shot icon on the top right corner of the
readings screen.
13
Page 14

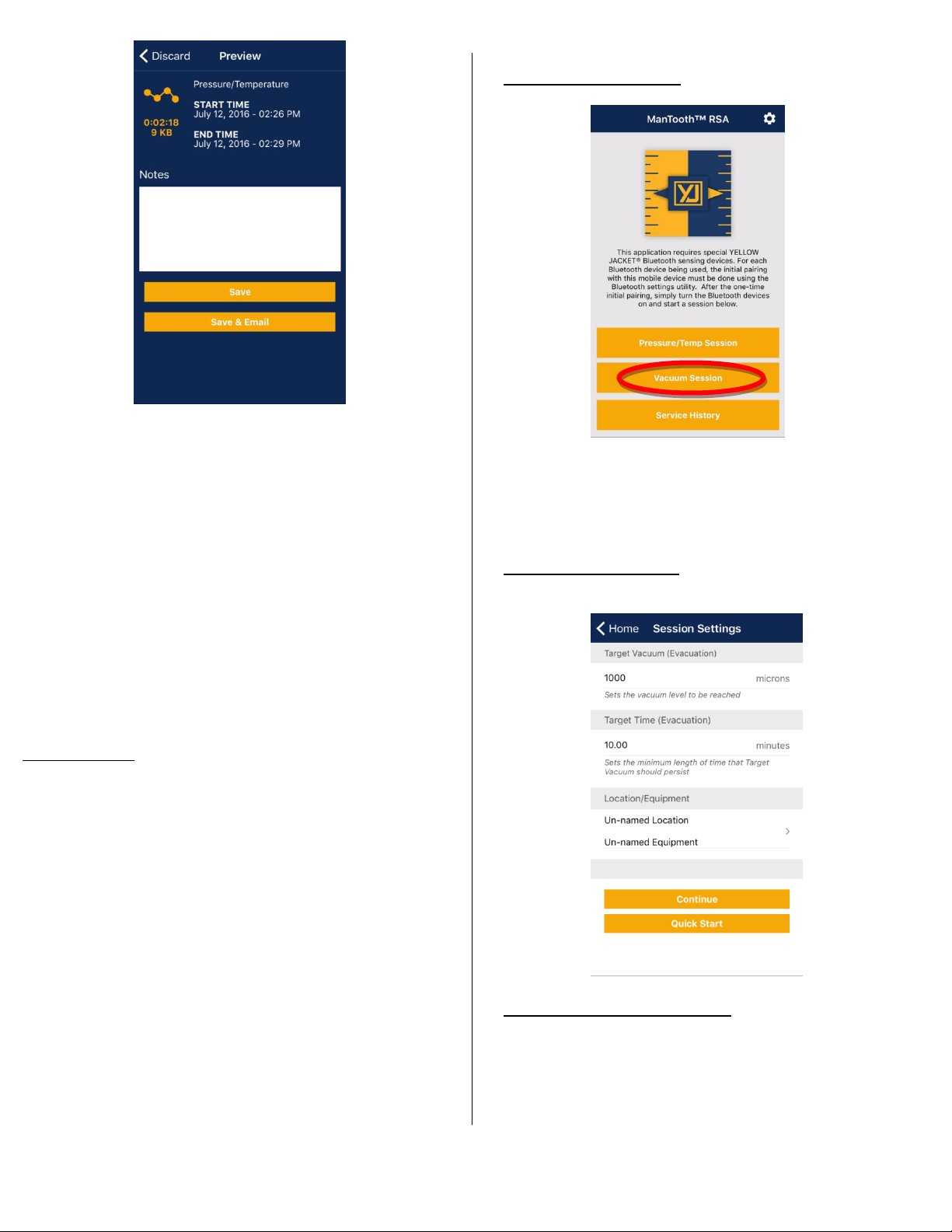

A preview of the data log is shown, displaying the
start and end time of the session. As with
screenshots, notes can be added to the data log files
by clicking on the white box under the preview. The
data log can be saved to the app “Service History” or
it can be saved and emailed. If “Save & Email” is
selected, your phone or tablet will launch the email
program configured to your device. The data log
will be attached to the email in CSV format and the
email body includes the service details, along with
any notes that have been added from the preview
screen above.
Vacuum Session
To begin a new vacuum session tap on “Vacuum
Session” in the App home screen.
Session Settings
Other Buttons
There are two additional buttons on the readings
screen.
The first is a refresh button next to the screenshot
button at the top of the screen. This will reset the
minimum, maximum, and average readings of the
session. This function is especially useful for
determining system stability.
The other option is “Discard” at the bottom of the
readings screen. This will not only exit the readings
screen but will take you all the way back to the home
screen of the ManTooth RSA app. If you choose to
“Discard” a session, the session data is not saved and
CANNOT be retrieved at a later time.
14
Target Vacuum (Evacuation)
Click on the value below “Target Vacuum” to
establish the target vacuum level to be reached
during this vacuum session.

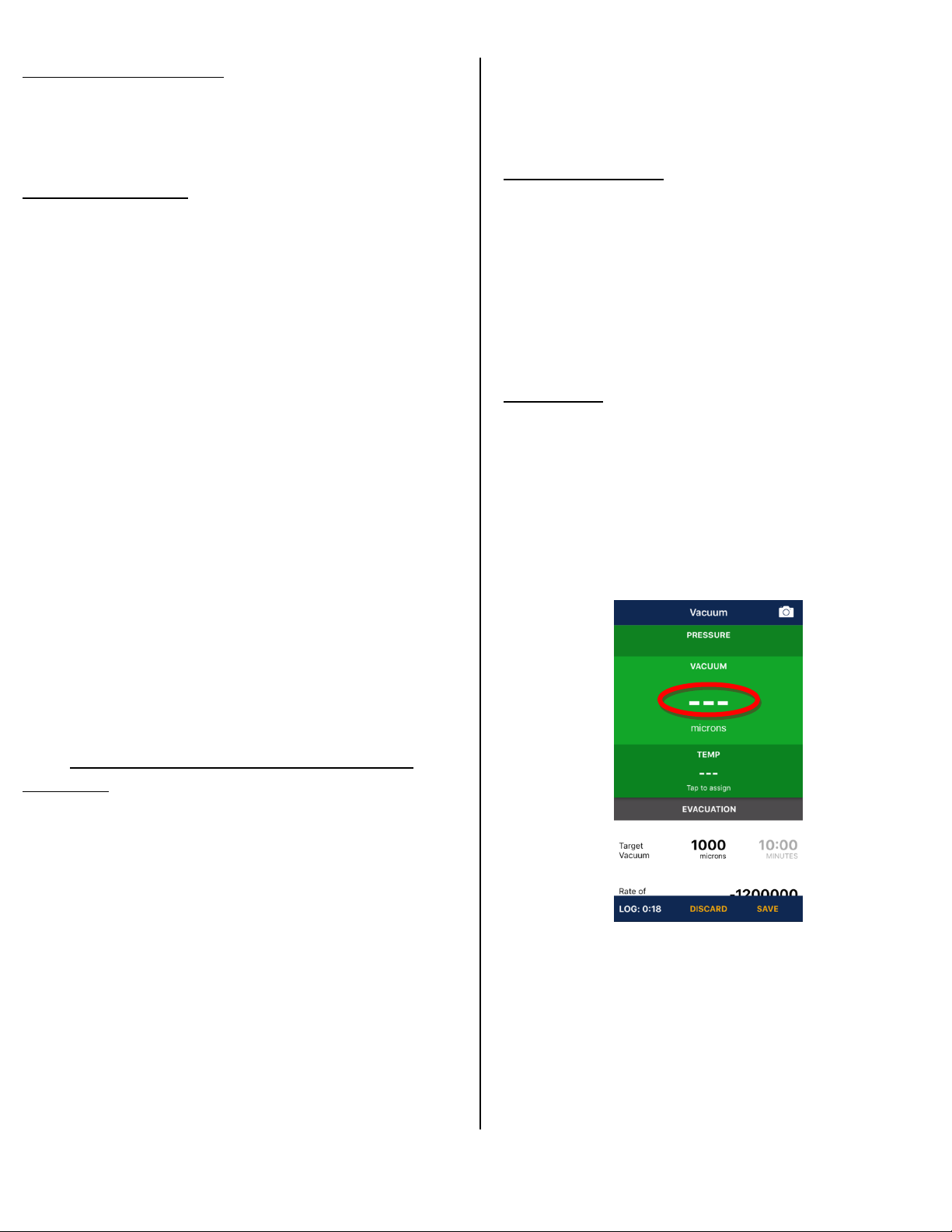

Page 15
Target Time (Evacuation)
Click on the value below “Target Time” to establish
the minimum length of time that the target vacuum
should persist.
Location/Equipment
If you want to organize your saved data in “Service
History”, you can enter the location information for
the current service session. This information will
show up in the service reports you can email and is
how the service history will be organized. Here you
have the ability to either add a new location or select
an existing location. Once you have designated a
location you can also designate what equipment is
being serviced during the session. Locations can have
multiple pieces of equipment associated with them
so you can keep track of each individual unit at
locations that may have more than one system.
Saved session data will be saved to “Service
History” in the app’s main menu and sorted first
alphabetically by business name or customer last
name, then alphabetically by assigned equipment
name, and lastly by the date and time the data was
saved. **Note** Location and equipment details
are optional. If you do not wish to add location
and equipment information, “Un-named Location”
and “Un-named Equipment” can be selected. This
data is saved to the “Service History” under “Unnamed Location” and is sorted simply by date and
time. You can not assign a location to data at a
later time.
session. Android users will be prompted to “confirm”
assignment of the ManTooth Module(s) when using
“Quick Start”.
Assign Devices
The device assignment process is identical between
the pressure/temp session and the vacuum session.
For details, see the “Pressure/Temp Session” above.
**Note** The vacuum gauge must be plugged into
the ManTooth Module that is being assigned to
continue.
Readings
The readings screen will display the vacuum level as
measured by the vacuum gauge plugged into the
connected ManTooth Module. It also displays the
target vacuum values set on the session settings
screen along with the vacuum rate of change.
For more details on setting location and
equipment, see the “Pressure/Temp Session”
section above.
Once all of the session settings have been
established, click “Continue”. **Note** The “Quick
Start” feature is not available until after a standard
session has been started and saved. However, for
subsequent sessions, this “Quick Start” feature can
be utilized to bypass the ManTooth Module
assignment process and will navigate directly to the
readings screen when connecting to the same
ManTooth Module(s) used during the previous saved
15
The first time you connect your ManTooth Module
to a new phone or tablet you will have to assign the
vacuum gauge reading.

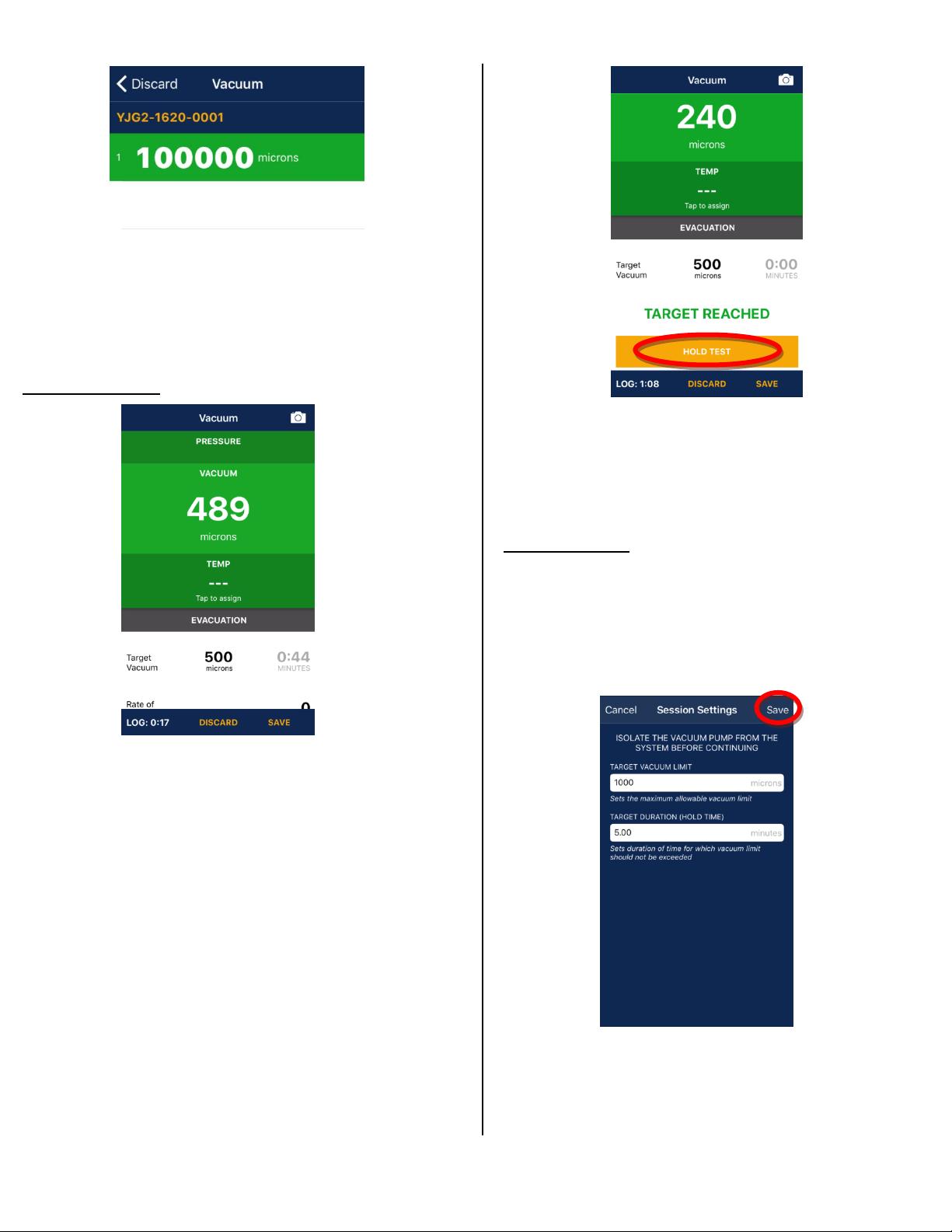

Page 16
To assign the vacuum or temperature readings
simply tap on the box that contains the value you
wish to assign and select the sensor that you want
to assign to that spot.
Evacuation Mode
When the target vacuum level has been maintained
for the target time, a notification appears stating
“TARGET REACHED” and the Hold Test Mode can be
initiated.
Hold Test Mode
The Hold Test Mode is used to confirm that a system
has been completely evacuated and that no leaks or
moisture are present in the system. Before
continuing with the hold test, isolate the vacuum
pump from the system.
Each vacuum session begins in Evacuation Mode.
Once the vacuum reading has reached the target
vacuum level established in the session settings, the
target time will begin to countdown. If the vacuum
level increases to a value greater than the target
vacuum level once the timer has started, the
countdown timer will reset to the originally
established target time and will resume once the
reading returns to the target vacuum level.
16
Similar to the session settings screen at the beginning
of the vacuum session, the hold test settings screen
allows you to input a target vacuum limit and a target
Page 17
duration (hold time). Click on the value below
“Target Vacuum Limit” to establish the maximum
allowable vacuum reading during the hold test. Click
on the value below “Target Duration (Hold Time)” to
establish the duration of time for which the vacuum
limit should not be exceeded. Once these values
have been set, click “Save” in the upper right corner
of the screen.
If the target vacuum limit is not exceeded during the
target duration, a “PASS” notification is displayed.
Saving & Sharing Data
At any point in the vacuum session (Evacuation
Mode or Hold Test Mode) data can be saved and
shared. For more details on the saving of
screenshots and data logs, see “Pressure/Temp
Session” above.
Other Buttons
If you want to leave the vacuum session without
saving any data, click “Discard” at the bottom of the
readings screen. This will not only exit the readings
screen but will take you all the way back to the home
screen of the ManTooth RSA app. If you choose to
“Discard” a session, the session data is not saved and
CANNOT be retrieved at a later time.

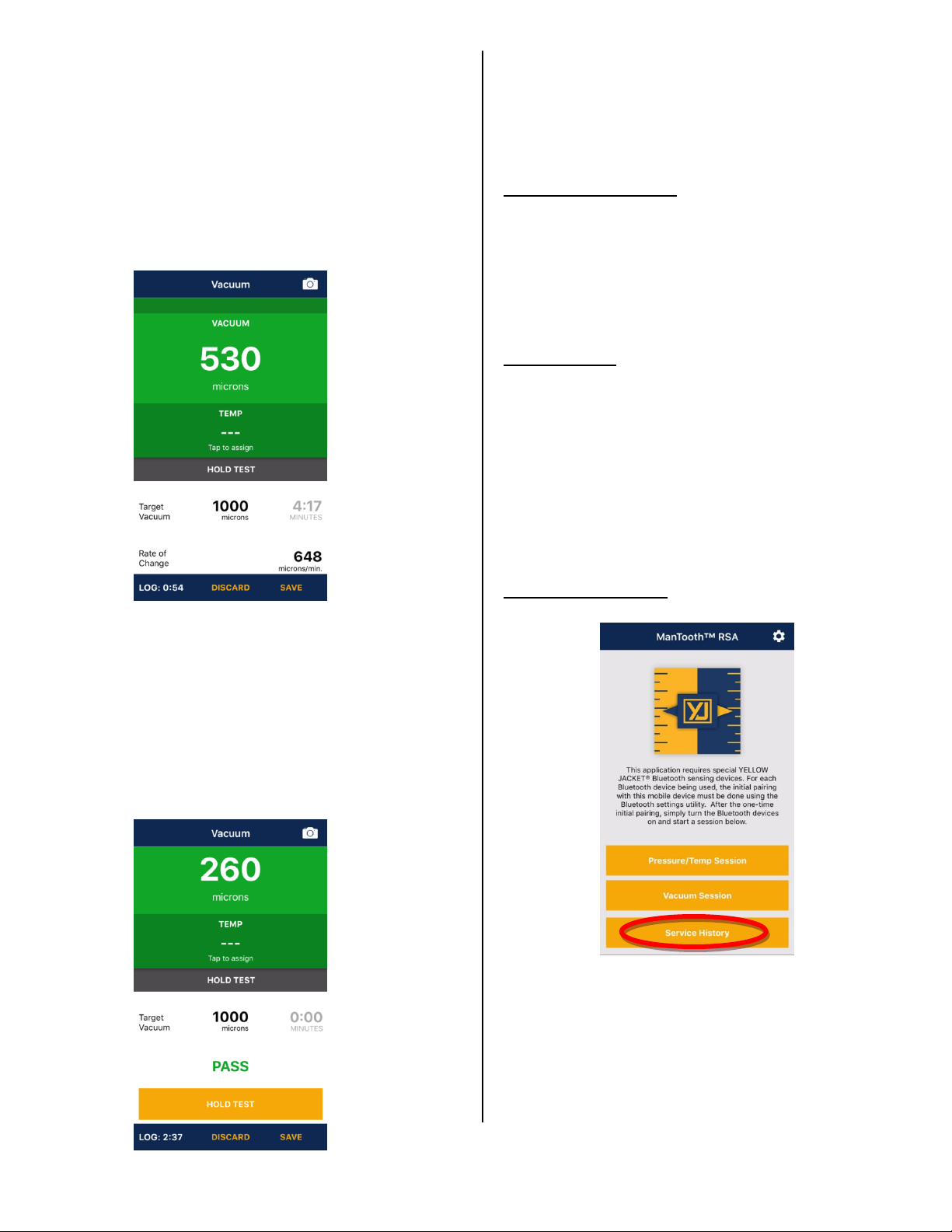

The readings screen is now in Hold Test Mode. As
long as the vacuum reading remains below the target
vacuum limit, the timer will continue to countdown.
If the vacuum reading rises above the target vacuum
limit, the hold test will display a “FAIL” notification
and the hold test can be restarted once the vacuum
reading falls back below the target vacuum limit.
Service History
Service History contains all of the saved screenshots
and data logs from previous Pressure/Temp Sessions
and Vacuum Sessions. Service History is also a place
to enter new locations and/or equipment. You can
also edit or delete existing locations and/or
equipment in this section.
17
Page 18
To view saved screenshots and data logs, navigate to
1
2
3 4 5
6
7
1
2
3 4 5 7 8 9 10
a specific location and equipment. Once the location
and equipment have been selected, a list of all saved
data associated with the selected equipment will
appear with a time stamp in order of session start
date, with the newest session data at the top of the
list.
For iOS For Android
ManTooth-V™ Module
ManTooth-PTV™ Module
On iOS devices, saved screenshots are saved with the
“camera” icon identical to the button used to take
the screenshot from the readings screen. Data logs
show a zig-zag line. On Android devices, saved
screenshots are saved with a green square icon
whereas data logs are saved with a red square icon.
Any of these saved data items can be selected and
shared or deleted. For more information on sharing
data, see the Pressure/Temp Session “Saving and
Sharing Data” section above.
18
1: Status Light
2: Device Name
3: Power Button
4: ¼ inch flare fitting vacuum gauge
5: Micro USB charging port
6: High-strength magnet
7:
Temperature probe and vacuum gauge jacks
8:
¼ inch flare fitting pressure transducer
connection
9: ¼ inch flare fitting with Schrader core pressure
transducer connection
10: ManTooth thermistor temperature clamp
Page 19
Status Light
The multi-colored LED indicates the status of your
ManTooth Module.
Blinking Blue: The module is on and searching for a
Bluetooth connection. This will continue from when
you turn on your ManTooth Module until you
connect to it within the ManTooth RSA
Pressure/Temperature app.
**Note** If your ManTooth Module loses
connection to your phone or tablet it will
automatically revert back to this searching for a
connection mode.
the power button until the red light turns off
(about 2 seconds).
¼ Inch Flare Fitting Vacuum Gauge
The vacuum gauge plugs into the back of both the
ManTooth-V™ and ManTooth-PTV™ Modules.
Micro USB Charging Port
The ManTooth PT Module is designed to be
charged using any standard Micro USB charging
cord and corresponding USB charger. **Note**
the charging cord must be less than 3 meters in
length.
Solid Blue: The module is on and connected to a
phone or tablet via Bluetooth.
Solid Green: The module is connected to a power
source via the Micro USB port and is charging.
**Note** once the unit is fully charged the green
light will turn off.
Blinking Red (Short): The module will blink short
flashes of red to indicate that it is sending data to a
connected device. This will occur while the light is
solid blue.
Blinking Red (Long): The module will flash long
blinks of red when the battery level is below 10% of
total life remaining.
Device Name
Your ManTooth Module’s name is displayed right on
the label for easy reference. The name takes the
form of YJG2-XXXX-XXXX. The device name serves as
your ManTooth Module’s name within the
ManTooth RSA app, its serial number, as well as its
Bluetooth name that will appear on your phone or
tablet when pairing.
Power Button
To turn your ManTooth Module on or off push
and release the power button once. When
turning your ManTooth Module off, hold down
High-Strength Magnet
The high-strength Neodymium magnet on the
ManTooth-V™ Module allows for this module to be
attached to a metallic surface while taking vacuum
readings.
Temperature Probe and Vacuum Gauge Jacks
Each ManTooth Module is equipped with 2 jacks for
use with ManTooth Temperature Clamps and/or the
ManTooth Vacuum Gauge.
¼ Inch Flare Fitting Pressure Transducer Connection
The flare fitting on the front of the ManTooth-PTV™
Module directs to the pressure transducer with a
working pressure range of 0-700 psia. The fitting is
equipped with an “Adjust-a-Valve” opener and
sized to fit most system access ports for easy access
to most AC and refrigeration units. The compact
size of the ManTooth-PTV™ Module and no hose
connection system reduces charge loss that can
occur from hoses used in charging through a
standard test and charge manifold. Adapters to
connect the ManTooth-PTV™ Module to other size
access ports are available from Yellow Jacket.
¼ Inch Flare Fitting With Schrader Core Pressure
Transducer Connection
The Schrader core fitting on the ManTooth-PTV™
Module allows for recovering refrigerant, adding
charge, or removing charge all without
19
Page 20
disconnecting your ManTooth-PTV™ Module from
Instrumentation Specification
Pressure
Sensing
Resolution
0.1 psi, 0.1 psia, 0.01 bar, 1
kPa, 0.001 MPa, 0.01 kg/cm^2
Pressure
sensing
accuracy
0.5% of full scale at 25°C
1% of full scale 55°F to 130°F
2% of full scale -40°F to 248°F
Working
Pressure
0 to 700 psia (48.3 bar)
Proof
Pressure
Tolerable pressure without
internal damage
1000 psia
Burst Pressure
Tolerable pressure without
loss of seal
1500 psia
Temperature
Sensor Range
(instrument)
Sensing element
-40°F to 266°F
(-40°C to 130°C)
Max Cord temp
176°F (80°C)
Max Clamp Temp
203°F (95°C)
Temperature
Display
Resolution
0.1°F or °C
Temperature
Accuracy
(Instrument)
±0.2°C (±0.36°F)
Vacuum
Sensing
Resolution
1 micron, 1 mTorr, 0.001 Torr,
0.001 mmHg, 0.001 mbar,
0.0001 kPa, 0.1 Pa
Vacuum
Sensing
Accuracy
+/- 20% from 25 microns to
10,000 microns
Vacuum
Range
6 microns to 100,000 microns
Working
Temperature
-4°F to 160°F Limited by
battery
Storage
Temperature
-4°F to 160°F
For best battery performance
do not store at over 100°F
Working
humidity
0 to 95% RH (non-condensing)
IP Class
IP 50
Battery Life
10+ hours continuous
Range
Up to 400 feet
Limited by Phone or Tablet
Bluetooth radio strength
*Note – As with any radio technology,
when you start to add obstructions
between the transmitter and the receiver,
the ultimate range may decrease as
different objects interfere with the radio
signal in different ways. The more
obstructions you add between the phone
and the ManTooth, the weaker the signal
may become after it has passed through or
around the obstacles. This could ultimately
lead to a shorter maximum range. The
ManTooth utilizes the highest Bluetooth
radio transmitter signal strength available
to ensure the best possible range of your
ManTooth, however, each situation will be
slightly different depending on the
environment/ surroundings within you are
working.
Bluetooth
Radio
Class 1 Bluetooth 2.1 Radio
Max Size
6.5” long x 1.8” wide x 2.5”
thick (16.5 x 4.6 x 6.4 cm)
Weight
0.5 lbs (225 grams)
Superheat
and Subcool
Automatically calculated by
the ManTooth App
Max. and
Min.
Pressures
Displays and records the
maximum and minimum
pressures
the system.
ManTooth Thermistor Temperature Clamp
The thermistor pipe clamp probe is capable of
clamping to and measuring the temperature of
pipes ranging in size from ¼ inch to 1 ⅜ inches. The
probe is capable of measuring with an accuracy of
0.2°C from 0°C to 70°C with a full range of -40°C to
130°C. For best long term stability of your
thermistor pipe clamp probe avoid storing it at
temperatures exceeding 75°C (167°F).
20
Page 21
Refrigerant
Database
113 NIST refrigerant profiles
included; upgradeable
Share
Screenshots
and data logs
Screenshot and data log
features allow you to save
pressure, temperature , and
vacuum readings from your
sessions which can be
automatically organized by
location and unit being
serviced.
Temperature
Sensors
Capable of measuring two
temperatures using high
accuracy NTC thermistors
System
attachment
Very small internal volume
minimizes refrigerant loss
during system analysis.
Standard manifolds and hoses
can lose over 50 times more
refrigerant with each
connection
Pressure
Zeroing
Simple single button zeroing
at the start of each session
Elevation
Compensation
Enter elevation at the start of
the session for effortless psia
compensation
Battery
Rechargeable Lithium-Ion
battery for long battery life
and excellent recharging
capability for the life of your
ManTooth
Q: What should I do when I lose the connection to
my ManTooth Module during a session?
A: The ManTooth-V™ and ManTooth-PTV™ Modules
have a “Self-Healing” feature. If the Bluetooth
connection is lost during a session, the app will
attempt to re-connect to the ManTooth Module and
maintain the session data log. Once the connection is
lost, a dialog box will appear on your phone or tablet.
If this occurs, move back towards the ManTooth
Module(s) until they have reconnected. Once the
connection has been re-established, the data logging
will resume and the session will continue until it is
saved or discarded.
Q: Why am I losing my Bluetooth connection when I
am within 400’ of the ManTooth Module?
Frequenty Asked Questions (FAQ’s)
Q: How do I utilize the “Vacuum Session” with my
ManTooth PT Module (67001/67002/67003)?
A: The ManTooth PT Modules are NOT compatible
A: With any radio technology, when you start to add
obstructions between the transmitter and the
receiver, the ultimate range may decrease as
different objects interfere with the radio signal in
different ways. The more obstructions you add
between the phone and the ManTooth, the weaker
the signal may become after it has passed through or
around the obstacles. This could ultimately lead to a
shorter maximum range. The ManTooth utilizes the
highest Bluetooth radio transmitter signal strength
available to ensure the best possible range of your
ManTooth, however, each situation will be slightly
different depending on the environment/
surroundings within you are working. Many phones
and tablets utilize Class 2 Bluetooth radios, which
restrict the range of Bluetooth connections to
external devices like the ManTooth.
with the vacuum gauge. To add vacuum capabilities,
you will have to purchase a ManTooth-V™ or
ManTooth-PTV™ Module. **Note** The 67030
replacement vacuum gauge cannot be used with the
67001/67002/67003 ManTooth PT Modules.
21
Q: What happens to my service history if I get a new
phone or tablet?
A: The Service History is saved to your phone or
tablet within the app data. If you want to use the
Page 22
ManTooth RSA App on a new device, the Service
History will start over on the new device. For this
reason, it is recommended to regularly back-up your
service history by emailing the data.
Q: What can I do if my ManTooth Module(s) will not
attach to the system service ports?
A: The ManTooth Module(s) and corresponding
vacuum gauge come with ¼” flare fittings, which are
compatible with most systems. However, if you are
Warranty Policy
The YELLOW JACKET ManTooth-V™ and ManTooth-PTV™
Wireless Digital Gauges from Ritchie Engineering Company, Inc.
are guaranteed to be free from material and workmanship
defects for a period of two years. All other YELLOW JACKET
products included in this package are guaranteed to be free from
material and workmanship defects for a period of one year.
These guarantees do not cover products that have been altered,
abused, misused or improperly maintained.
Not all calalogued products are stocked or eligible for return.
Please check with your YELLOW JACKET representative or the
factory for more information.
servicing a system with any other size/style of service
port, or if the system service ports do not allow for
direct connection of the ManTooth Modules,
adapters can be used in conjunction with the
ManTooth Module. If there is not enough room
around the system service ports to attach the
ManTooth Module(s), the YELLOW JACKET 25002 Flex
Flow Hose can be utilized. For 5/16” systems, the
YELLOW JACKET 19121 (straight) or YELLOW JACKET
19221 (90 Deg) adapters can be used.
Q: Where should I connect the vacuum gauge to the
system?
A: When taking vacuum readings of a system, it is
recommended to connect the vacuum gauge as far
away from the vacuum pump as possible. It is often
convenient to connect the vacuum gauge through the
All Returns must have an RGA number and proof of
purchase/copy of invoice. Please obtain an RGA number from
Ritchie Engineering Customer Service by calling 800-769-8370.
All returns must be pre-paid.
side-port of a core removal tool, such as the YELLOW
JACKET 18975. If the system only has one accessible
service port, the vacuum gauge can also be attached
to the ¼ inch male flare port on the ManTooth-PTV™
Module already attached to the system for
continuous monitoring of pressure and vacuum level
during a system recovery.
22
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
Ritchie Engineering Co., Inc.
©2016 Ritchie Engineering Co., Inc.
Loading...
