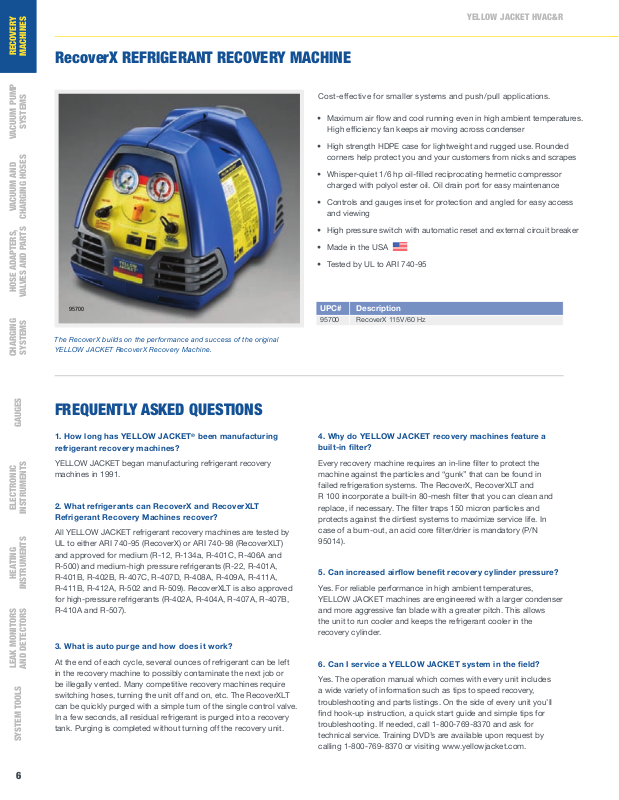

RecoverX REFRIGERANT RECOVERY MACHINE

Cost-effective for smaller systems and push/pull applications.

SYSTEMS

VACUUM PUMP

VACUUM AND

CHARGING HOSES

HOSE ADAPTERS,

VALVES AND PARTS

The RecoverX builds on the performance and success of the original YELLOW JACKET RecoverX Recovery Machine.

SYSTEMS

CHARGING

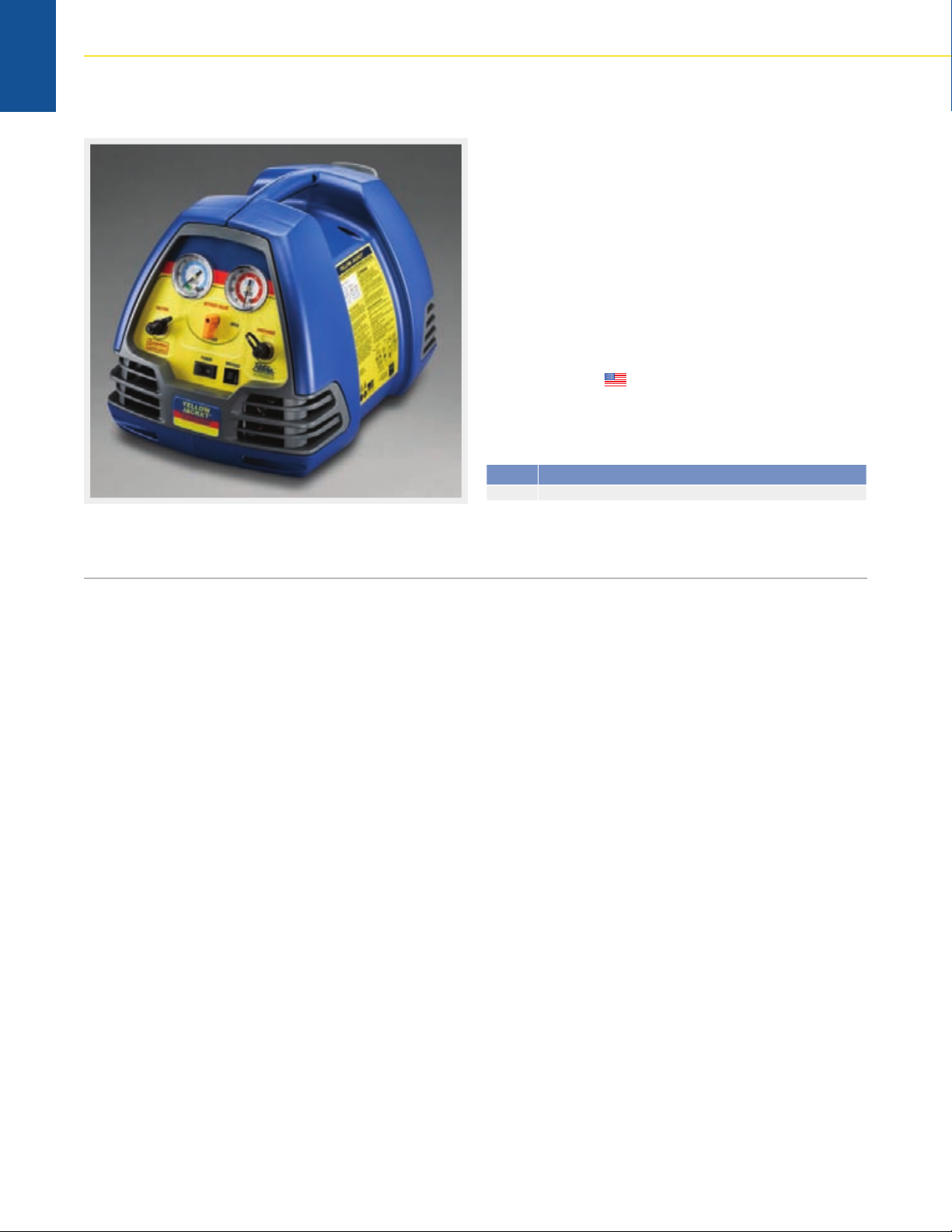

95700

• Maximum air ﬂ ow and cool running even in high ambient temperatures. High efﬁ ciency fan keeps air moving across condenser

• High strength HDPE case for lightweight and rugged use. Rounded corners help protect you and your customers from nicks and scrapes

• Whisper-quiet 1/6 hp oil-ﬁ lled reciprocating hermetic compressor charged with polyol ester oil. Oil drain port for easy maintenance

• Controls and gauges inset for protection and angled for easy access and viewing

• High pressure switch with automatic reset and external circuit breaker

• Made in the USA

• Tested by UL to ARI 740-95

UPC# Description

95700 RecoverX 115V/60 Hz

FREQUENTLY ASKED QUESTIONS

GAUGES

1. How long has YELLOW JACKET® been manufacturing refrigerant recovery machines?

YELLOW JACKET began manufacturing refrigerant recovery machines in 1991.

ELECTRONIC

HEATING

LEAK MONITORS

SYSTEM TOOLS

2. What refrigerants can RecoverX and RecoverXLT

INSTRUMENTS

Refrigerant Recovery Machines recover?

All YELLOW JACKET refrigerant recovery machines are tested by UL to either ARI 740-95 (RecoverX) or ARI 740-98 (RecoverXLT) and approved for medium (R-12, R-134a, R-401C, R-406A and R-500) and medium-high pressure refrigerants (R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A,

INSTRUMENTS

R-411B, R-412A, R-502 and R-509). RecoverXLT is also approved for high-pressure refrigerants (R-402A, R-404A, R-407A, R-407B, R-410A and R-507).

3. What is auto purge and how does it work?

At the end of each cycle, several ounces of refrigerant can be left

AND DETECTORS

in the recovery machine to possibly contaminate the next job or be illegally vented. Many competitive recovery machines require switching hoses, turning the unit off and on, etc. The RecoverXLT can be quickly purged with a simple turn of the single control valve. In a few seconds, all residual refrigerant is purged into a recovery tank. Purging is completed without turning off the recovery unit.

4. Why do YELLOW JACKET recovery machines feature a built-in ﬁ lter?

Every recovery machine requires an in-line ﬁ lter to protect the machine against the particles and “gunk” that can be found in failed refrigeration systems. The RecoverX, RecoverXLT and R 100 incorporate a built-in 80-mesh ﬁ lter that you can clean and replace, if necessary. The ﬁ lter traps 150 micron particles and protects against the dirtiest systems to maximize service life. In case of a burn-out, an acid core ﬁ lter/drier is mandatory (P/N

95014).

5. Can increased airﬂ ow beneﬁ t recovery cylinder pressure?

Yes. For reliable performance in high ambient temperatures, YELLOW JACKET machines are engineered with a larger condenser and more aggressive fan blade with a greater pitch. This allows the unit to run cooler and keeps the refrigerant cooler in the recovery cylinder.

6. Can I service a YELLOW JACKET system in the ﬁ eld?

Yes. The operation manual which comes with every unit includes a wide variety of information such as tips to speed recovery, troubleshooting and parts listings.

hook-up instruction, a quick start guide and simple tips for

ﬁ nd troubleshooting. If needed, call 1-800-769-8370 and ask for technical service. Training DVD’s are available upon request by calling 1-800-769-8370 or visiting www.yellowjacket.com.

On the side of every unit you’ll

Page 2

EDITION 61 CATALOG

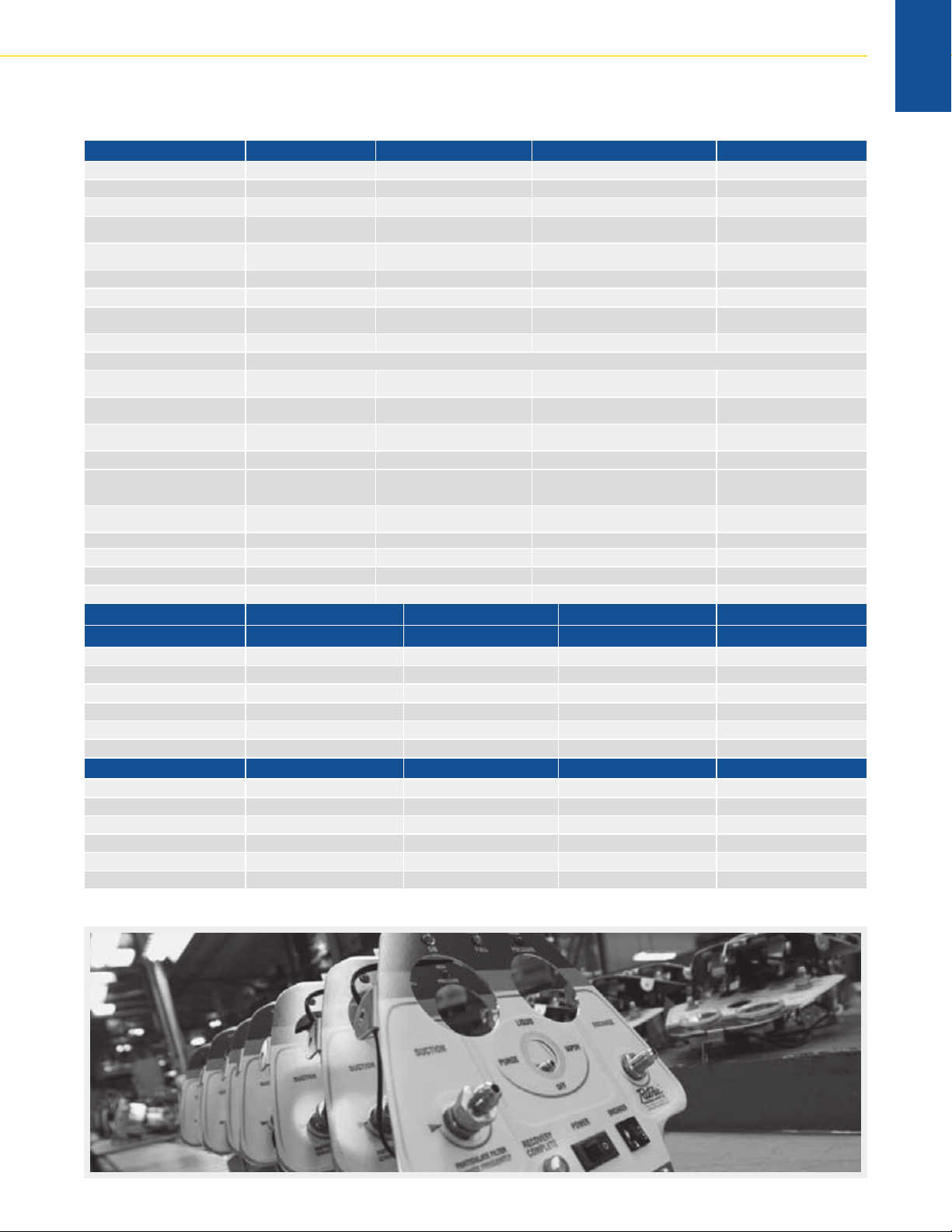

RECOVERY MACHINE COMPARISON CHART

Features RecoverX #95700 RecoverXLT #95763/95766/95768 RecoverXLT #95765

Recovery capabilities

Compressor

Weight

Size L x W x H inches Size L x W x H mm.

Refrigerant compatibility

Volts/Hertz

Tank overﬁ ll sensor

Low pressure shut-off sensor

Inlet mesh ﬁ lter screen

Inlet ﬁ lter dryer

Suction and discharge pressure gauges

Upgraded higher suction and discharge pressure gauges

Upgraded single higher pressure switch

External circuit breaker

Plug

Warranty

Certiﬁ ed to ARI standard

Testing agency

CUL listed

CE marked

Applicable ARI standard

Recovery rating in lbs./min.

Vapor and push/pull

1/6 hp oil-ﬁ lled hermetic

29.0 lbs. (13.15 kg)

19.3 x 12.4 x 12.5 490 x 315 x 317

12, 22, 134a, 407C, 500, 502, MP and blends

115V/60 Hz

Included

Optional ﬁ lter available for use on contaminated and burn-out systems; use a ﬁ lter of adequate size (P/N 95014).

Standard

U.S.

1 year parts and labor

ARI 740-95

Ye s

740-95

Vapor Push/Pull Liquid

0.24 10.43 N/A 0.33 13.49 1.98 0.22 8.99 1.32 0.22 8.99 1.32R-12

0.29 8.77 N/A 0.33 13.49 1.98 0.22 8.99 1.32 0.22 8.99 1.32R-22

0.20 9.33 N/A 0.33 13.49 1.98 0.22 8.99 1.32 0.22 8.99 1.32R-134a

N/A N/A N/A 0.48 12.21 1.68 0.32 8.14 1.12 N/A N/A N/AR-410A

0.24 9.66 N/A 0.33 13.49 1.98 0.22 8.99 1.32 0.22 8.99 1.32R-500

0.24 7.61 N/A 0.59 13.58 2.65 0.39 9.05 1.77 0.39 9.05 1.77R-502

Vapor Push/Pull Liquid Vapor Push/Pull Liquid Vapor Push/Pull Liquid Vapor Push/Pull LiquidRecovery rating in kg./hr.*

6.60 283.80 N/A 9.00 367.20 54.00 6.00 244.80 36.00 6.00 244.80 36.00R-12

7.80 238.80 N/A 9.00 367.20 54.00 6.00 244.80 36.00 6.00 244.80 36.00R-22

5.40 253.80 N/A 9.00 367.20 54.00 6.00 244.80 36.00 6.00 244.80 36.00R-134a

N/A N/A N/A 13.20 332.40 45.60 8.80 221.60 30.40 N/A N/A N/AR-410A

6.60 262.80 N/A 9.00 367.20 54.00 6.00 244.80 36.00 6.00 244.80 36.00R-500

6.60 207.00 N/A 16.20 369.70 72.00 10.80 246.40 48.00 10.80 246.40 48.00R-502

RecoverXLT #95760/95762

Vapor, liquid, push/pull

1/2 hp oil-less

32.6 lbs. (14.78 kg)

19.3 x 12.4 x 12.5 490 x 315 x 317

12, 22, 134a, 407C, 410A, 500, 502, HP, MP and blends

115V/60 Hz

95760 No / 95762 Yes

Standard

Included

Standard

U.S.

1 year parts and labor; 3 years compressor

ARI 740-98

Ye s

740-98

Vapor Push/Pull Liquid

Vapor, liquid, push/pull

1/2 hp oil-less

32.6 lbs. (14.78 kg)

19.3 x 12.4 x 12.5 490 x 315 x 317

12, 22, 134a, 407C, 410A, 500, 502, HP, MP and blends

230V/50 Hz

Standard

Included

Standard

Standard 95763 Euro and UK

95766 Euro 95768 AU and NZ 1 year parts and labor; 3 years compressor

ARI 740-98

Ye s

740-98

Vapor Push/Pull Liquid

Vapor, liquid, push/pull

1/2 hp oil-less

32.6 lbs. (14.78 kg)

19.3 x 12.4 x 12.5 490 x 315 x 317

12, 22, 134a, 407C, 410A, 500, 502, HP, MP and blends

110V/50 Hz

Included

Standard

IEC 60309

1 year parts and labor; 3 years compressor

ARI 740-95

Ye s

740-95

Vapor Push/Pull Liquid
