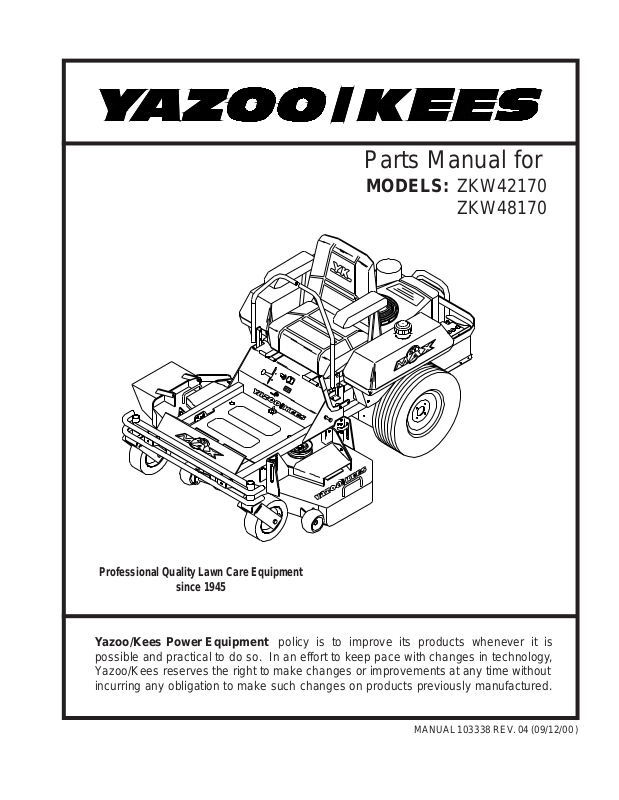

Parts Manual for
MODELS: ZKW42170
ZKW48170
Professional Quality Lawn Care Equipment
since 1945
Yazoo/Kees Power Equipment policy is to improve its products whenever it is possible and practical to do so. In an effort to keep pace with changes in technology,
Yazoo/Kees reserves the right to make changes or improvements at any time without incurring any obligation to make such changes on products previously manufactured.
MANUAL 103338 REV. 04 (09/12/00 )
MODEL NUMBER ____________________________________
SERIAL NUMBER ____________________________________
DATE PURCHASED __________________________________
DEALER ADDRESS __________________________________
NOTES:
2
SECTION |
PAGE |
|
HYDRAULICASSEMBLY ............................................................................................................................................................................................... |
4 & 5 |
|
MAIN FRAME ASSEMBLY ............................................................................................................................................................................................ |
6 & 7 |
|

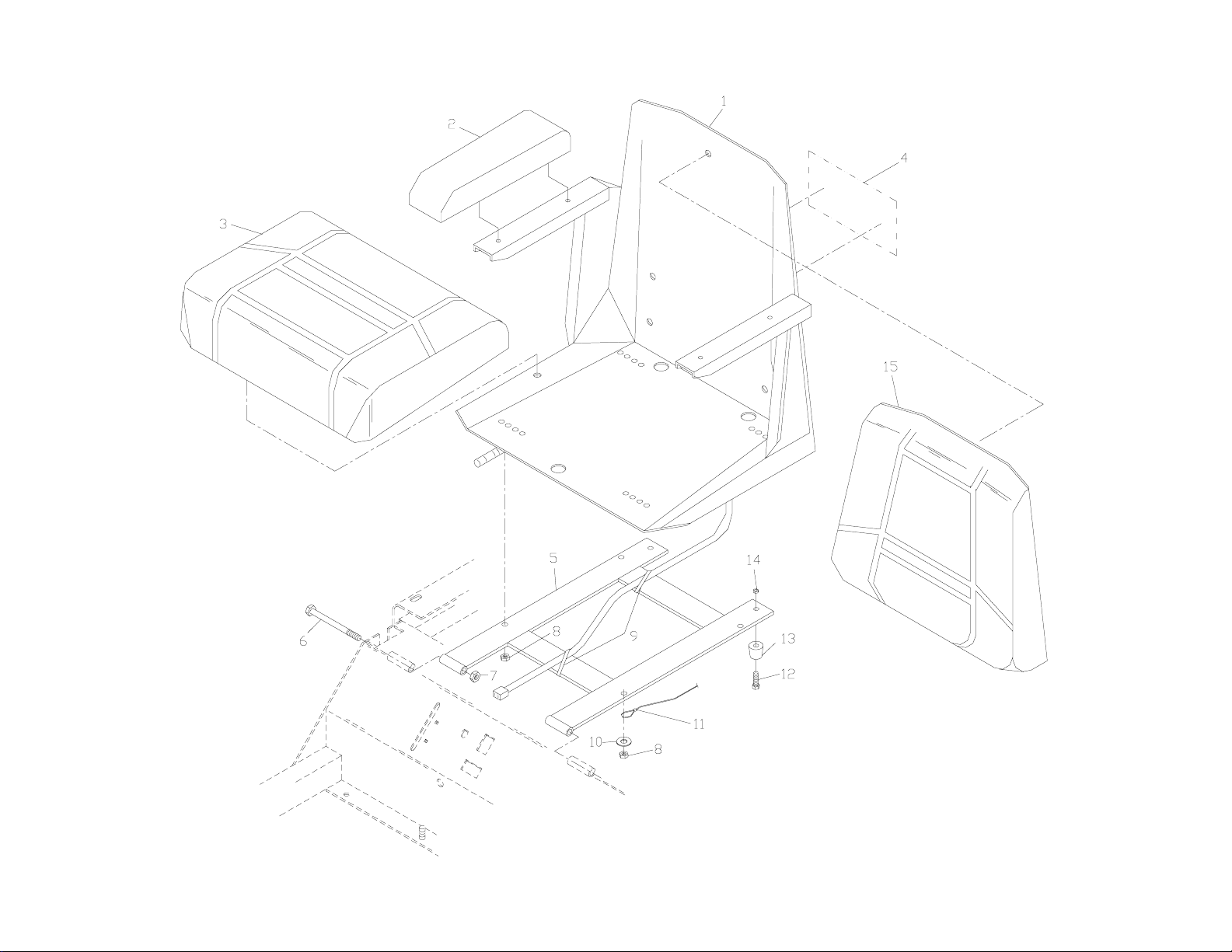

SEAT ASSEMBLY ......................................................................................................................................................................................................... |
8 & 9 |
|

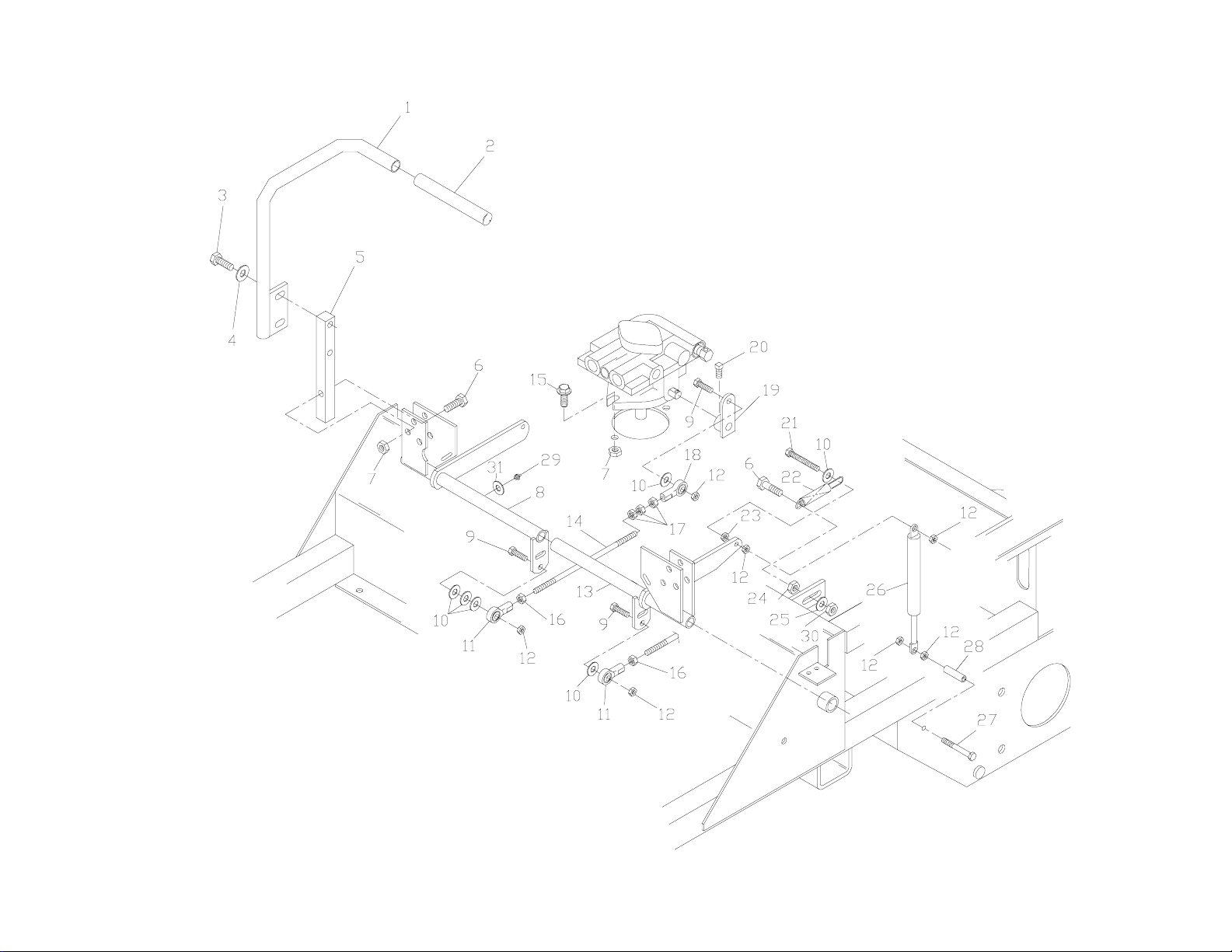

MOTION CONTROLASSEMBLY.................................................................................................................................................................................... |
10 |
& 11 |
PARK BRAKE ASSEMBLY ............................................................................................................................................................................................ |
12 |
& 13 |

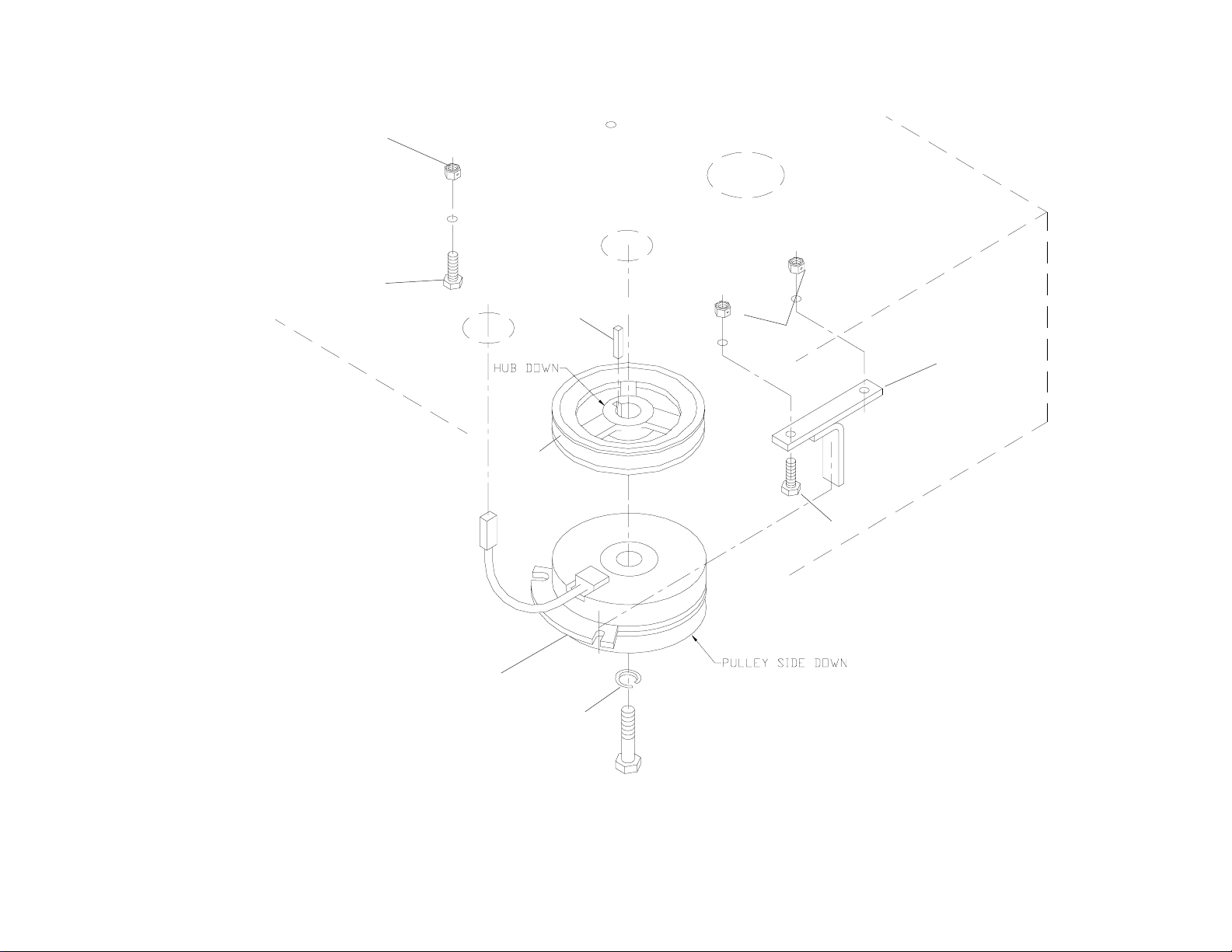

ENGINE DECK ASSEMBLY .......................................................................................................................................................................................... |
14 & 15 |
|

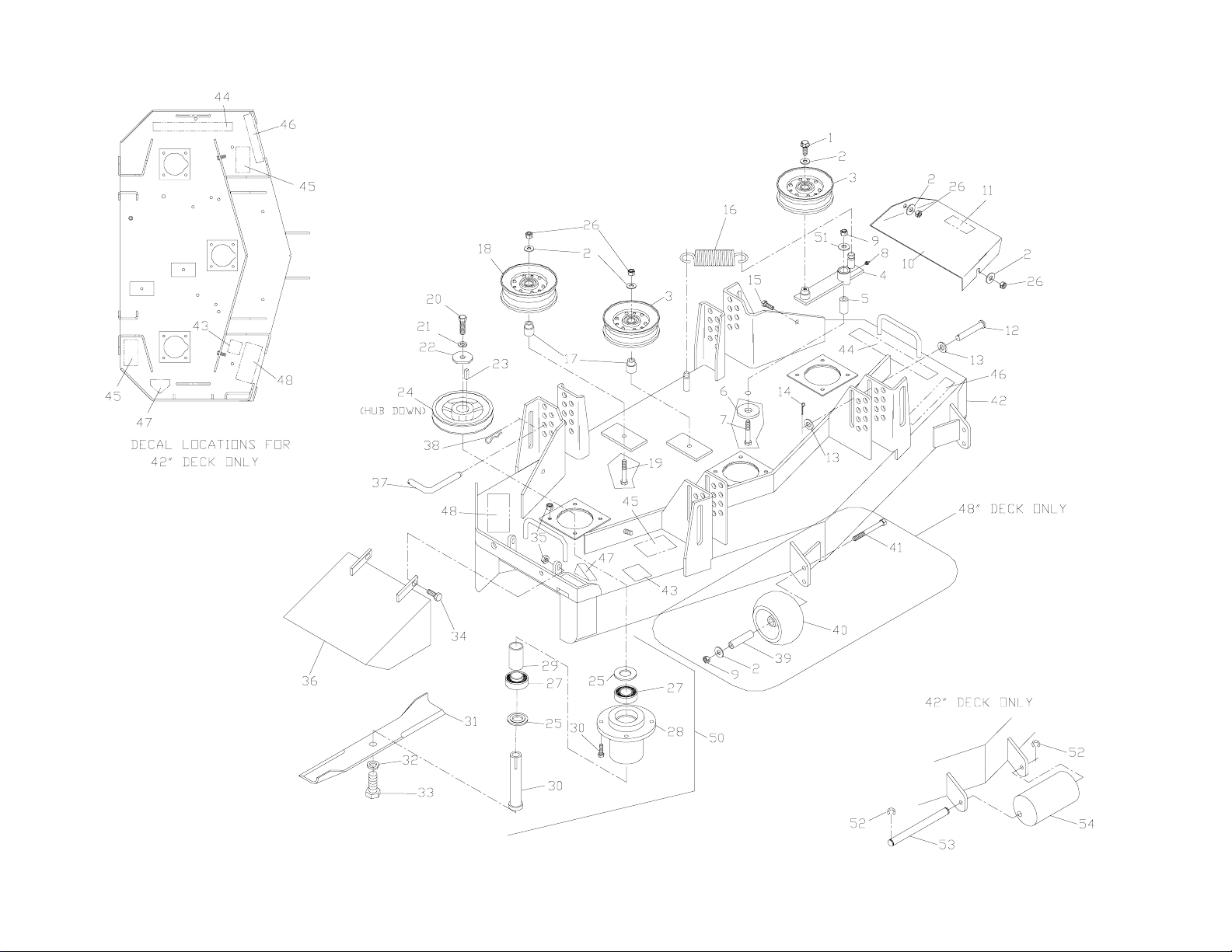

42 & 48 DECK ASSEMBLY............................................................................................................................................................................................ |
16 |
& 17 |

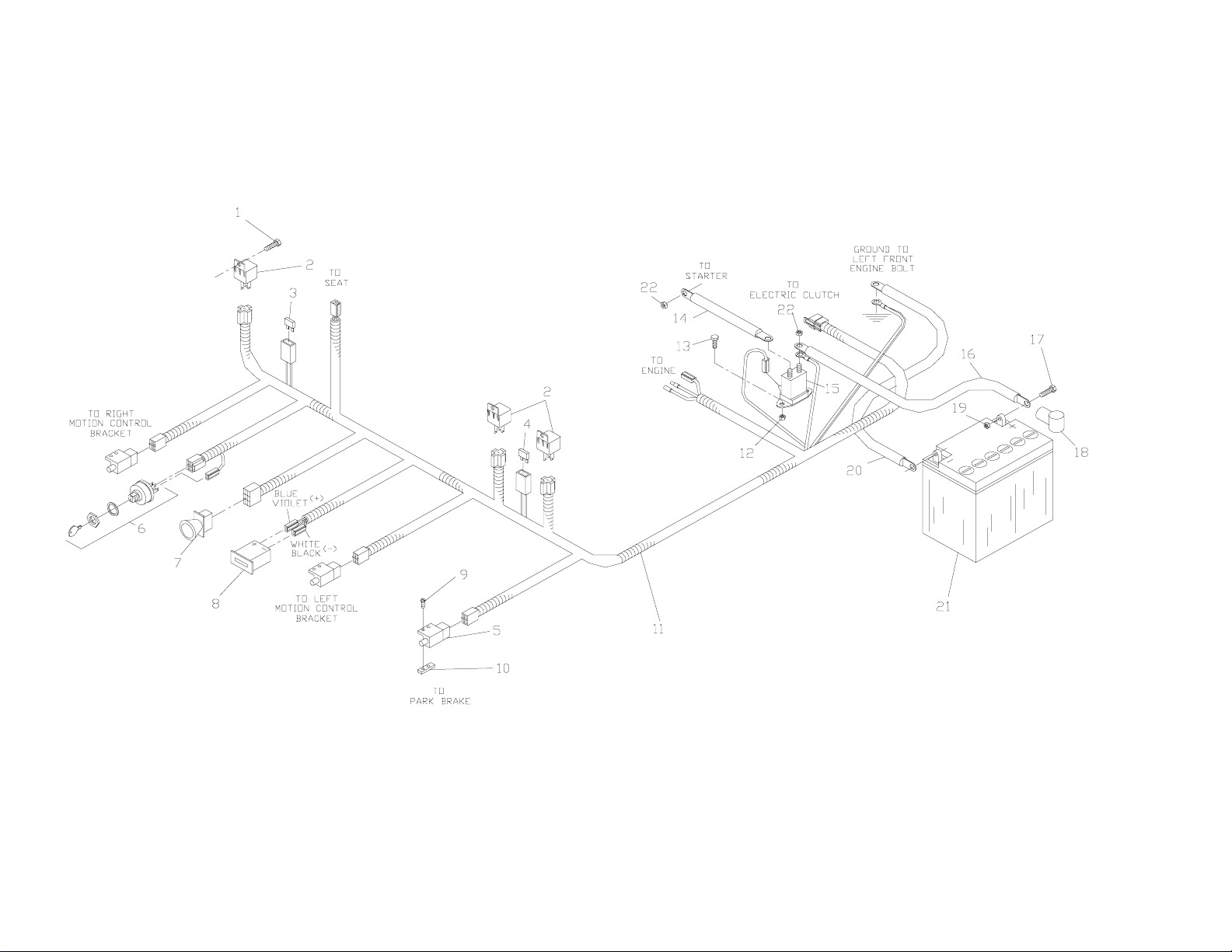

WIRING ASSEMBLY ...................................................................................................................................................................................................... |
18 & 19 |
|
MAIN FRAME DECALS ................................................................................................................................................................................................. |
20 |
& 21 |
NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
CONTENTS
3
HYDRAULIC ASSEMBLY
4
ITEM |
PART NO. |
QTY. |
DESCRIPTION |
1. ........... |
990072 ........... |
2 ............. |
HCS 1/4C X 5/8 |
2. ............ |
990052 ........... |
2 ............ |
1/4” LOCKWASHER |
3. ............ |
101238 ........... |
3 ............ |
F6801-6-6-0 90 DEG. ELBOW |
4. ............ |
103316 ........... |
1 ............ |
F6400-6-6-0 STRAIGHT FITTING |
5. ............ |
101165 ............ |
1 ............ |
FILTERHEAD |
6. ............ |
102606 ........... |
1 ............ |
FILTER |
7. ............ |
103318 ........... |
1 ............ |
RIGHTOUTSIDETUBE |
8. ............ |
103319 ........... |
1 ............ |
RIGHTINSIDETUBE |
9. ............ |
103320 ........... |
1 ............ |
LEFTINSIDETUBE |
10. ............ |
103321 ........... |
1 ............ |
LEFTOUTSIDETUBE |
11. ............ |
103314 ........... |
1 ............ |
SUCTIONTEEASSEMBLY |
12. ............ |
103315 ........... |
1 ............ |
RETURN TEEASSEMBLY |
13. ............ |
101236 ........... |
2 ............ |
F6400-6-4-0 STRAIGHT FITTING |
14. ............ |
101237 ........... |
8 ............ |
F6400-8-8-0 STRAIGHT FITTING |
15. ............ |
103326 ........... |
1 ............ |
TANK HOSE |
16. ............ |
103336 ........... |
1 ............ |
TANK, HYDRAULIC |
17. ............ |
101202 ........... |
1 ............ |
HYDRAULIC CAP |
18. ............ |
103247 ........... |
1 ............ |
SEAT LANYARD |
19. ............ |
990372 ........... |
4 ............ |
NUT 1/4C CENTERLOCK |
20. ............ |
990598 ........... |
8 ............ |
WASHER 1/4 FLAT |
21. ............ |
990548 ........... |
4 ............ |
HCS 1/4C X 1 |
22. ............ |
101111 ............ |
2 ............ |
PUMP |
23. ............ |
102705 ........... |
2 ............ |
WHEELMOTOR |
HYDRAULIC ASSEMBLY
5
MAIN FRAME ASSEMBLY
6
ITEM |
PART NO. |
QTY. |
DESCRIPTION |
1. ........... |
914363 ........... |
2 ............ |
FUEL CAP |
2. ............ |
102741 ........... |
2 ............ |
FUELTANK |
3. ............ |
102502 ........... |
8 ............ |
5/16C STUD |
4. ............ |
990692 ........... |
18 ........... |
5/16 FLAT WASHER |
5. ............ |
102845 ........... |
8 ............ |
SPRING |
6. ............ |
990184 ........... |
10 ........... |
NUT 5/16C CENTERLOCK |
7. ............ |
990187 ........... |
2 ............ |
5/16 LOCKWASHER |
8. ............ |
976934 ........... |
4 ............ |
HCS 5/16C X 3/4 |
9. ............ |
102650 ........... |
2 ............ |
90 DEG. HOSE BARB |
10. ............ |
912222 ........... |
6 ............ |
HOSE CLAMP |
11. ............ |
102680 ........... |
2 ............ |
FUEL LINE, TANK |
12. ............ |
102681 ........... |
1 ............ |
FUELLINE,ENGINE |
13. ............ |
102679 ........... |
1 ............ |
FUEL VALVE |
14. ............ |
102070 ........... |
1 ............ |
KNOB |
15. ............ |
990517 ........... |
9 ............ |
3/8 FLAT WASHER |
16. ............ |
977778 ........... |
3 ............ |
ANTI-SKID PAD |
17. ............ |
103242 ........... |
1 ............ |
FOOTPLATE |
18. ............ |
102587 ........... |
5 ............ |
BUMPER,RUBBER |
19. ............ |
102593 ........... |
2 ............ |
3/8 DISC WASHER |
20. ............ |
103487 ........... |
1 ............ |
FRAME W/DECALS |
.................. |
103577 ........... |
1 ............ |
FRAME W/DECALS(SERIAL #’S AFTER 09003700) |
................. |
105297 ........... |
1 ............ |
FRAME W/DECALS |
21. ............ |
990546 ........... |
11 ........... |
NUT 3/8C CENTERLOCK |
22. ............ |
990563 ........... |
9 ............ |
HCS 3/8C X 1 |
23. ............ |
103322 ........... |
1 ............ |
BUMPER,FRONT |
24. ............ |
103307 ........... |
2 ............ |
CASTERTIRE(COMPLETE) |
................. |
103495 ........... |
1 ............ |
TIRE |
................. |
103494 ........... |
1 ............ |
RIM |
................. |
105307 ........... |
1 ............ |
ROLLER BEARING |
................. |
103300 ........... |
1 ............ |
ZERK |
................. |
102484 ........... |
2 ............ |
FLANGED BEARING |
25. ............ |
101872 ........... |
2 ............ |
SPACER |
ITEM |
PART NO. |
QTY. |
DESCRIPTION |
26. ............ |
101907 ........... |
2 ............ |
HCS 1/2C X 5 1/2 |
27 ............. |
103228 ........... |
2 ............ |
YOKE WELDMENT |
28. ............ |
101331 ........... |
2 ............ |
NUT 1/2C NYLOC |
29. ............ |
101232 ........... |
4 ............ |
FLANGE BUSHING |
30 ............. |
101474 ........... |
2 ............ |
ZERK |
31. ............ |
923787 ........... |
2 ............ |
MACHINERY BUSHING |
32. ............ |
101151 ............ |
2 ............ |
7/8” RETAINING RING |
33. ............ |
103241 ........... |
1 ............ |
PUMPBELT |
34. ............ |
101177 ............ |
2 ............ |
KEY 5 MM SQ. X 25 MM |
35. ............ |
101176 ............ |
2 ............ |
PULLEY |
36. ............ |
102717 ........... |
4 ............ |
5/16C X 5/8 SQ. HEAD |
37. ............ |
976688 ........... |
1 ............ |
IDLER PULLEY |
38. ............ |
990730 ........... |
1 ............ |
HCS 3/8C X 1 3/4 |
39. ............ |
976695 ........... |
1 ............ |
IDLER FLANGE BUSHING |
40. ............ |
103252 ........... |
1 ............ |
IDLERARMWELDMENT |
41. ............ |
103300 ........... |
1 ............ |
45 DEG. ZERK |
42. ............ |
103429 ........... |
1 ............ |
PIVOT BUSHING |
43. ............ |
101341 ........... |
1 ............ |
HCS 3/8C X 3 |
44. ............ |
102337 ........... |
1 ............ |
TENSIONROD |
45. ............ |
990365 ........... |
1 ............ |
COTTERPIN |
46. ............ |
103303 ........... |
1 ............ |
SUPPORTPLATE |
47. ............ |
100057 ........... |
1 ............ |
TENSION BRACKET |
48. ............ |
102817 ........... |
1 ............ |
COMPRESSIONSPRING |
49. ............ |
102512 ........... |
1 ............ |
BATTERY GUARD W/DECALS |
50. ............ |
102501 ........... |
1 ............ |
BATTERY STRAP |
51. ............ |
103488 ........... |
1 ............ |
ENGINE GUARD W/DECALS |
................. |
103582 ........... |
1 ............ |
ENGINE GUARD W/DECALS |
|
|
|
(SERIAL #’S AFTER 09003700) |
................. |
105119 ............ |
1 ............ |
ENGINE GUARD W/DECALS |
52. ............ |
103275 ........... |
1 ............ |
THROTTLE CABLE |
53. ............ |
990411 ............ |
2 ............ |
#10-24 X 1/2 HCS |
54. ............ |
976977 ........... |
2 ............ |
#10-24 NYLOC NUT |
55. ............ |
102506 ........... |
2 ............ |
DECAL,ZT-MAX |
Item 20 Frame W/Decals use p/n 105297 after serial number ZKW42170 003000050
Item 51 Engine Guard W/Decals use p/n 105119 after serial number ZKW42170 003000050
MAIN FRAME ASSEMBLY
7
