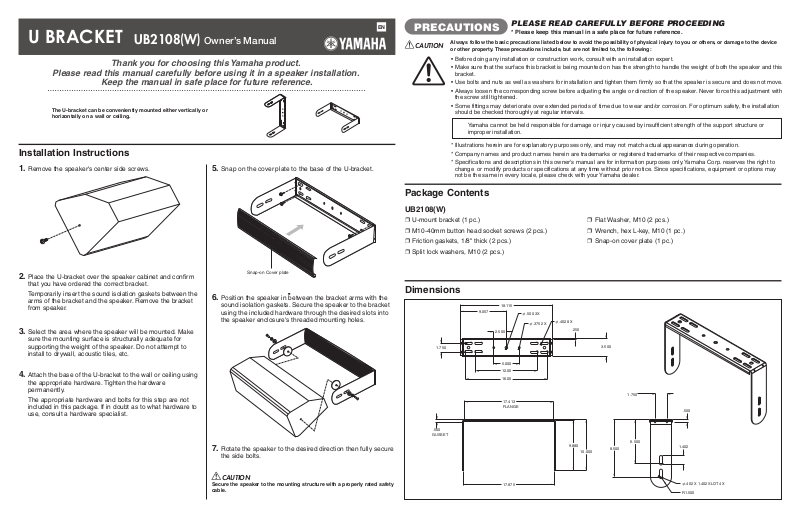

Snap-on Cover plate

18.115

9.057

2.500

1.750

5.000

φ.500 3X

φ.375 2X

φ.402 8X

.250

3.500

12.00

16.00

17.413
FLANGE

.500

GUSSET

17.875

10.000

8.500

6.500

1.750

1.402

.500

φ.402 X 1.402 SLOT 4X

R1.500

9.880

Thank you for choosing this Yamaha product.

Please read this manual carefully before using it in a speaker installation.

Keep the manual in safe place for future reference.

CAUTION

UB2108(W)

U BRACKET

Package Contents

UB2108(W)

❒ U-mount bracket (1 pc.)

❒ M10-40mm button head socket screws (2 pcs.)

❒ Friction gaskets, 1/8" thick (2 pcs.)

❒ Split lock washers, M10 (2 pcs.)

❒ Flat Washer, M10 (2 pcs.)

❒ Wrench, hex L-key, M10 (1 pc.)

❒ Snap-on cover plate (1 pc.)

Installation Instructions

1. Remove the speaker's center side screws.

2. Place the U-bracket over the speaker cabinet and confirm

that you have ordered the correct bracket.

Temporarily insert the sound isolation gaskets between the

arms of the bracket and the speaker. Remove the bracket
from speaker.

3. Select the area where the speaker will be mounted. Make

sure the mounting surface is structurally adequate for
supporting the weight of the speaker. Do not attempt to
install to drywall, acoustic tiles, etc.

4. Attach the base of the U-bracket to the wall or ceiling using

the appropriate hardware. Tighten the hardware
permanently.

The appropriate hardware and bolts for this step are not

included in this package. If in doubt as to what hardware to
use, consult a hardware specialist.

5. Snap on the cover plate to the base of the U-bracket.

6. Position the speaker in between the bracket arms with the

sound isolation gaskets. Secure the speaker to the bracket
using the included hardware through the desired slots into
the speaker enclosure's threaded mounting holes.

7. Rotate the speaker to the desired direction then fully secure

the side bolts.

Secure the speaker to the mounting structure with a properly rated safety
cable.

Owner’s Manual

EN

PRECAUTIONS

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device
or other property. These precautions include, but are not limited to, the following:

• Before doing any installation or construction work, consult with an installation expert.

• Make sure that the surface this bracket is being mounted on has the strength to handle the weight of both the speaker and this
bracket.

• Use bolts and nuts as well as washers for installation and tighten them firmly so that the speaker is secure and does not move.

• Always loosen the corresponding screw before adjusting the angle or direction of the speaker. Never force this adjustment with
the screw still tightened.

• Some fittings may deteriorate over extended periods of time due to wear and/or corrosion. For optimum safety, the installation
should be checked thoroughly at regular intervals.

Yamaha cannot be held responsible for damage or injury caused by insufficient strength of the support structure or
improper installation.

* Illustrations herein are for explanatory purposes only, and may not match actual appearance during operation.
* Company names and product names herein are trademarks or registered trademarks of their respective companies.
* Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to

change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may
not be the same in every locale, please check with your Yamaha dealer.

CAUTION

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

The U-bracket can be conveniently mounted either vertically or
horizontally on a wall or ceiling.

Dimensions
