Yamaha Ro8-D, Ri8-D User Manual

EnglishDeutschFrançaisEspañolPortuguêsItalianoРусскийЁ᭛日本語

Owner’s Manual
Bedienungsanleitung
Mode d’emploi
Manual de instrucciones
Manual do Proprietário
Manuale di istruzioni

Руководство пользователя

Փ⫼䇈ᯢкՓ⫼䇈ᯢк

取扱説明書

JA

ZH

RU

IT

PT

ES

FR

DE

EN

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The above warning is located on the top of the unit.

IMPORTANT SAFETY INSTRUCTIONS

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand,

tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is
used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.

13 Unplug this apparatus during

lightning storms or when unused for long periods of
time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.

(UL60065_03)

2

(class b korea)

Owner’s Manual

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions con­tained in this manual, meets FCC requirements. Modifications not
expressly approved by Yamaha may void your authority, granted by
the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/

or another product use only high quality shielded cables. Cable/s
supplied with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class “B” digital
devices. Compliance with these requirements provides a reason­able level of assurance that your use of this product in a residential
environment will not result in harmful interference with other elec­tronic devices. This equipment generates/uses radio frequencies
and, if not installed and used according to the instructions found in
the users manual, may cause interference harmful to the operation
of other electronic devices. Compliance with FCC regulations does

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620

Telephone : [phone]

Type of Equipment : I/O RACK

Model Name : Ri8-D/Ro8-D

not guarantee that interference will not occur in all installations. If
this product is found to be the source of interference, which can be
determined by turning the unit “OFF” and “ON”, please try to elimi­nate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by
the interference.

Utilize power outlets that are on different branch (circuit breaker or
fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change the
lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type of
product. If you can not locate the appropriate retailer, please contact
Yamaha Corporation of America, Electronic Service Division, 6600
Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by
Yamaha Corporation of America or its subsidiaries.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference
that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT.
The wires in this mains lead are coloured in accordance with the fol­lowing code:

GREEN-AND-YELLOW : EARTH
BLUE : NEUTRAL

As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in
your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected
to the terminal in the plug which is marked by the letter E or by the
safety earth symbol or colored GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured RED.

BROWN : LIVE

(FCC DoC)

(3 wires)

Owner’s Manual

3

4

Owner’s Manual

English

Contents

PRECAUTIONS................................... 6

Introduction .................................... 8

Features .............................................................8

Firmware Updates..............................................8

Precautions for Rack Mounting ..........................8

About Dante .................................... 9

Controls and Functions.................. 10

Front Panel ......................................................10

Rear Panel........................................................13

Accessories

(Please check the package contents.)

• Owner’s Manual

• AC power cable

About Connections ........................ 14

Daisy Chain Network .......................................14

Star Network....................................................14

About Dante Controller....................................15

Head Amp Control ......................... 16

Control from an Ri8-D-native Device................ 16

Control from a Device That Does Not

Feature Ri8-D-Native Support ...................16

Head Amplifier Parameters That Can be

Monitored and Controlled ........................ 16

Troubleshooting ............................ 17

Troubleshooting .............................................. 17

Messages .........................................................18

Specifications............................... 153

General Specifications....................................153

Analog Input Characteristics (Ri8-D only)....... 154

Analog Output Characteristics (Ro8-D only)... 154

Digital I/O Characteristics .............................. 154

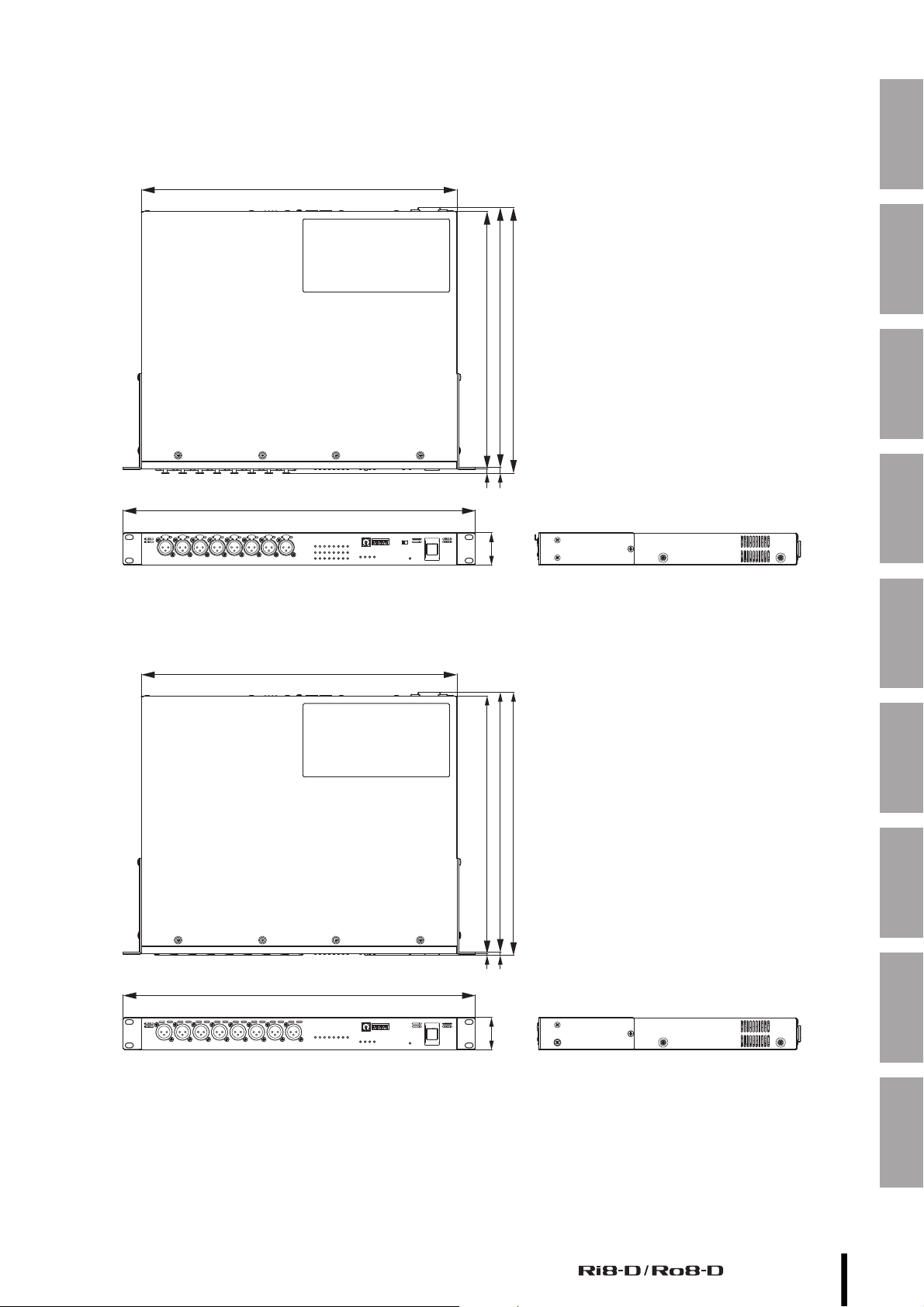

Dimensions....................................................155

Owner’s Manual

5

PRECAUTIONS

Power supply/Power cord

Do not open

Water warning

Fire warning

If you notice any abnormality

Power supply/Power cord

Location

Connections

Maintenance

Handling caution

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid
the possibility of serious injury or even death from
electrical shock, short-circuiting, damages, fire or other
hazards. These precautions include, but are not limited
to, the following:

• Do not place the power cord near heat sources such as heaters or radiators, and
do not excessively bend or otherwise damage the cord, place heavy objects on
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.

• Only use the voltage specified as correct for the device. The required voltage is
printed on the name plate of the device.

• Use only the supplied power cord/plug.
If you intend to use the device in an area other than in the one you purchased,
the included power cord may not be compatible. Please check with your Yamaha
dealer.

• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.

• Be sure to connect to an appropriate outlet with a protective grounding
connection. Improper grounding can result in electrical shock.

• This device contains no user-serviceable parts. Do not open the device or
attempt to disassemble the internal parts or modify them in any way. If it should
appear to be malfunctioning, discontinue use immediately and have it inspected
by qualified Yamaha service personnel.

• Do not expose the device to rain, use it near water or in damp or wet conditions,
or place on it any containers (such as vases, bottles or glasses) containing
liquids which might spill into any openings. If any liquid such as water seeps
into the device, turn off the power immediately and unplug the power cord from
the AC outlet. Then have the device inspected by qualified Yamaha service
personnel.

• Never insert or remove an electric plug with wet hands.

CAUTION

Always follow the basic precautions listed below to avoid
the possibility of physical injury to you or others, or
damage to the device or other property. These
precautions include, but are not limited to, the following:

• When removing the electric plug from the device or an outlet, always hold the
plug itself and not the cord. Pulling by the cord can damage it.

• Remove the electric plug from the outlet when the device is not to be used for
extended periods of time, or during electrical storms.

• Do not place the device in an unstable position where it might accidentally fall
over.

• Do not block the vents. This device has ventilation holes at the front and side to
prevent the internal temperature from becoming too high. In particular, do not
place the device on its side or upside down. Inadequate ventilation can result in
overheating, possibly causing damage to the device(s), or even fire.

• To avoid damage, do not install or store the device in a place subject to salty air
or corrosive gas or chemicals.

• Before moving the device, remove all connected cables.

• When setting up the device, make sure that the AC outlet you are using is easily
accessible. If some trouble or malfunction occurs, immediately turn off the
power switch and disconnect the plug from the outlet. Even when the power
switch is turned off, electricity is still flowing to the product at the minimum
level. When you are not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.

• If the device is mounted in an EIA standard rack, carefully read the section
“Precautions for Rack Mounting” on page 8. Inadequate ventilation can result in
overheating, possibly causing damage to the device(s), malfunction, or even fire.

• Keep device away from the reach of children.

• Before connecting the device to other devices, turn off the power for all devices.
Before turning the power on or off for all devices, set all volume levels to
minimum.

• Do not put burning items, such as candles, on the unit. A burning item may fall
over and cause a fire.

• When one of the following problems occur, immediately turn off the power
switch and disconnect the electric plug from the outlet. Then have the device
inspected by Yamaha service personnel.

- The power cord or plug becomes frayed or damaged.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the device.

• If this device should be dropped or damaged, immediately turn off the power
switch, disconnect the electric plug from the outlet, and have the device
inspected by qualified Yamaha service personnel.

6

• Remove the power plug from the AC outlet when cleaning the device.

• Do not insert your fingers or hands in any gaps or openings on the device
(vents, etc.).

• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any
gaps or openings on the device (vents, etc.) If this happens, turn off the power
immediately and unplug the power cord from the AC outlet. Then have the
device inspected by qualified Yamaha service personnel.

• Do not rest your weight on the device or place heavy objects on it, and avoid use
excessive force on the buttons, switches or connectors.

• Do not use speakers for a long period of time at a high or uncomfortable volume
level, since this can cause permanent hearing loss. If you experience any
hearing loss or ringing in the ears, consult a physician.

PA_en_1 1/2

Owner’s Manual

English

Yamaha cannot be held responsible for damage caused by improper use or

Handling and Maintenance

Connectors

modifications to the device, or data that is lost or destroyed.

NOTICE

To avoid the possibility of malfunction/ damage to the
product, damage to data, or damage to other property,
follow the notices below.

• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile
phone, or other electric devices. Otherwise, the device, TV, or radio may
generate noise.

• Do not expose the device to excessive dust or vibrations, or extreme cold or heat
(such as in direct sunlight, near a heater, or in a car during the day) to prevent
the possibility of panel disfiguration, damage to the internal components or
unstable operation.

• Do not place vinyl, plastic or rubber objects on the device, since this might
discolor the panel or keyboard.

• When cleaning the device, use a dry and soft cloth. Do not use paint thinners,
solvents, cleaning fluids, or chemical-impregnated wiping cloths.

• Condensation can occur in the device due to rapid, drastic changes in ambient
temperature—when the device is moved from one location to another, or air
conditioning is turned on or off, for example. Using the device while
condensation is present can cause damage. If there is reason to believe that
condensation might have occurred, leave the device for several hours without
turning on the power until the condensation has completely dried out.

• Always turn the power off when the device is not in use.

Information for Users on Collection and Disposal of Old
Equipment

This symbol on the products, packaging, and/or
accompanying documents means that used electrical
and electronic products should not be mixed with
general household waste.

For proper treatment, recovery and recycling of old
products, please take them to applicable collection
points, in accordance with your national legislation and
the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please
contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.

[Information on Disposal in other Countries outside the European
Union]

This symbol is only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct
method of disposal.

(weee_eu)

• XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground,
pin 2: hot (+), and pin 3: cold (-).

Information

About copyrights

* Copying of the commercially available musical data including but not limited to

MIDI data and/or audio data is strictly prohibited except for your personal use.

About this manual

* The illustrations and LCD screens as shown in this manual are for instructional

purposes only, and may appear somewhat different from those on your device.

* The company names and product names in this manual are the trademarks or

registered trademarks of their respective companies.

* Specifications and exterior appearance may be subject to change without prior

notice as a result of improvements.

European Models
Inrush Current based on EN 55103-1:2009
2A (on initial switch-on)
2A (after a supply interruption of 5s)
Conforms to Environments: E1, E2, E3 and E4

PA_en_1 2/2

Owner’s Manual

7

Introduction

Introduction

Thank you for choosing the Yamaha Input Rack Ri8-D/
Output Rack Ro8-D.

The Ri8-D is a Dante-compatible input rack equipped with
8 channels analog input. The Ro8-D is a Dante-compatible
output rack equipped with 8 channels analog output.

To take full advantage of the superior functions and
performance offered by the Ri8-D/Ro8-D, and to extend
the useful life of the product, be sure to read this owner’s
manual carefully before operation.

Features

Long-distance Dante Network
Capability

Low-latency, low-jitter audio can be transferred over
distances up to 100 meters* between devices via standard
Ethernet cables using the Dante network protocol. The
Ri8-D/Ro8-D can be used as a general-purpose I/O box for
the Dante network. Supported sampling rates are 44.1 kHz,
48 kHz, 88.2 kHz, and 96 kHz.

* Maximum practical distance may vary according to the cable used.

Vast variety of layout is available with
compact 1U chassis

The Ri8-D is dedicated for input rack and the Ro8-D is for
output. This enables an installation of rack for an occasion
requires input only or output only.

Of course, combination with the Rio3224-D/Rio1608-D
(input/output rack) is enabled to realize system
configuration with higher flexibility.

Remotely Controllable Internal Head
Amplifiers (Ri8-D only)

Internal head amplifier parameters can be remotely
controlled from a compatible device.

Gain Compensation Function
(Ri8-D only)

Enabling Gain Compensation feature of the Ri8-D for
supporting equipment with gain compensation capability
such as CL Series products may compensate change of
analog gain in downstream by the compensation gain
integrated in the Ri8-D, and it will send the audio signal to
Dante network with gain level fixed to a value immediately
before it was enabled.

Firmware Updates

This product enables you to update the unit firmware to
improve operations, add functions, and correct possible
malfunctions. The following two types of firmware are
available for the unit.

• Unit’s firmware

• Dante module firmware

You must update each type of firmware separately.
Details on updating the firmware are available on the

following website:

http://www.yamahaproaudio.com/

For information on updating and setting up the unit, please
refer to the firmware update guide available on the website.

NOTE

When you update Dante firmware on the unit, be sure to
update Dante firmware on other Dante-compatible devices
connected to the Ri8-D/Ro8-D.

Precautions for Rack Mounting

This unit is rated for operation at ambient temperatures
ranging from 0 to 40 degrees Celsius. When mounting
the unit with other Ri8-D/Ro8-D unit(s) or other
device(s) in an EIA standard equipment rack, internal
temperatures can exceed the specified upper limit,
resulting in impaired performance or failure. When rack
mounting the unit, always observe the following
requirements to avoid heat buildup:

• When mounting the unit in a rack with devices such
as power amplifiers that generate a significant
amount of heat, leave more than 1U of space
between the Ri8-D/Ro8-D and other equipment.
Also either leave the open spaces uncovered or
install appropriate ventilating panels to minimize
the possibility of heat buildup.

• To ensure sufficient airflow, leave the rear of the rack
open and position it at least 10 centimeters from
walls or other surfaces. If the rear of the rack can’t be
left open, install a commercially available fan or
similar ventilating option to secure sufficient
airflow. If you’ve installed a fan kit, there may be
cases in which closing the rear of the rack will
produce a greater cooling effect. Refer to the rack
and/or fan unit manual for details.

Direct Audio In/Out With a Connected
Computer

Connecting the Ri8-D/Ro8-D with a standard Ethernet
cable to a computer that has a Dante Virtual Soundcard
installed enables you to directly input or output audio
signals without using an audio interface device (the Ri8-D
is for input and the Ro8-D is for output only).

8

Owner’s Manual

English

About Dante

About Dante

This product features Dante technology as a protocol to
transmit audio signals. Dante is a network protocol
developed by Audinate. It is designed to deliver
multi-channel audio signals at various sampling and bit
rates, as well as device control signals over a Giga-bit
Ethernet (GbE) network. Dante also offers the following
benefits:

• It transmits up to 512 in/512 out, for a total 1024
channels (in theory) of audio over a GbE network.
(The Ri8-D features 8 in with a 24/32-bit resolution.
The Ro8-D features 8 out with a 24/32-bit resolution.)

• Dante-enabled devices will automatically configure their
network interfaces and find each other on the network.
You can label Dante devices and their audio channels
with names that make sense to you.

• Dante uses high accuracy network synchronization
standards to achieve sample-accurate playback with
extremely low latency and jitter. Five types of latency are
available on the Ri8-D/Ro8-D: 0.25 msec, 0.5 msec,

1.0 msec, 2.0 msec, and 5.0 msec.

• Dante supports redundant connections via primary and
secondary networks to defend against unforeseen
difficulties.

• Connecting a computer to Dante network over Ethernet
enables you to directly input or output audio signals
without using any audio interface devices.

By taking advantages of these benefits, you can skip any
complicated procedures to automate connections and
setups of Dante-enabled devices, remotely control I/O
racks or amplifiers from a mixing console, or make
multi-track recordings to a DAW, such as Nuendo, installed
on a computer in the network.

Visit Audinate website for more details on Dante.

http://www.audinate.com/

More information on Dante is also posted on the Yamaha
Pro Audio website:

http://www.yamahaproaudio.com/

NOTE

Please do not use the EEE function (*) of network switches in a
Dante network.
Although power management should be negotiated automatically
in switches that support EEE, some switches do not perform the
negotiation properly. This may cause EEE to be enabled in Dante
networks when it is not appropriate, resulting in poor
synchronization performance and occasional dropouts.
Therefore we strongly recommend that:

• If you use managed switches, ensure that they allow EEE to be
disabled. Make sure that EEE is disabled on all ports used for
real-time Dante traffic.

• If you use unmanaged switches, make sure to not use network
switches that support the EEE function, since EEE operation
cannot be disabled in these switches.

* EEE (Energy Efficient Ethernet) is a technology that reduces switch

power consumption during periods of low network traffic. It is also known
as Green Ethernet and IEEE802.3az.

Owner’s Manual

9

Controls and Functions

1

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

ON

1

12 B3

4

5A

0

78

78

69

Controls and Functions

Front Panel

1 [INPUT] Connectors 1–8 (Ri8-D only)

These are the XLR-3-31 type analog balanced
connectors for the input channels. The input level
range is from –62 dBu to +10 dBu. +48V phantom
power can be supplied to devices that require it via the
input connectors.

NOTE

The PAD will be switched on or off internally when the gain
of the internal head amp is adjusted between +17 dB and
+18 dB. Keep in mind that noise may be generated if there
is a difference between the Hot and Cold impedance of the
external device connected to the INPUT connector when
using phantom power.

2 OUTPUT +4 dBu Connectors 1–8 (Ro8-D only)

These XLR-3-32 type balanced connectors deliver
analog output from the unit’s corresponding output
channels. Nominal output level is +4 dBu.

3 [+48V] Indicators (Ri8-D only)

These indicators light when +48V phantom power is
turned ON for the corresponding input channels.
Phantom power supply switching can be carried out
from a compatible digital mixing console or computer
application. No phantom power will be supplied,
however, if the [+48V MASTER] switch is OFF, even
if phantom power to individual channels is turned ON
(the +48V indicators will still light). The +48V
indicators also function as error indicators: the
indicators for all channels will flash if an error occurs.

CAUTION:

• Make sure that phantom power is turned OFF unless it is
needed.

• When turning phantom power ON, make sure that no
equipment other than phantom-powered devices such as
condenser microphones are connected to the
corresponding [INPUT] connectors. Applying phantom
power to a device that does not require phantom power can
damage the connected device.

• Do not connect or disconnect a device to an INPUT while
phantom power is applied. Doing so can damage the
connected device and/or the unit itself.

• To prevent possible damage to speakers, make sure that
power amplifiers and/or powered speakers are turned OFF
when switching phantom power ON or OFF. We also
recommend setting all digital mixing console output

controls to minimum when turning phantom power ON or
OFF. Sudden high level peaks caused by the switching
operation can damage equipment as well as the hearing of
those present.

4 [PEAK] Indicators (Ri8-D only)

These indicators light red when the signal level of the
corresponding channel reaches or exceeds –3 dBFS.

The PEAK indicators also function as error
indicators: the indicators for all channels will flash if
an error occurs.

5 [SIG] (Signal) Indicators

These indicators light green when the signal applied
to the corresponding channel reaches or exceeds
–34 dBFS.

The SIG indicators also function as error indicators:
the indicators for all channels will flash if an error
occurs.

6 [UNIT ID] Rotary Switch

This rotary switch enables you to set an ID number so
that connected devices will recognize the
Ri8-D/Ro8-D. The UNIT ID must be a unique
number in the network so that the Ri8-D/Ro8-D will
be able to transmit and receive audio signals over a
Dante network, or be controlled from a connected
digital mixing console.

Use the rotary switch while the power to the unit is
turned OFF. Otherwise, the ID setting will not be
effective.

7 [SYSTEM] Indicators

These indicators show the Ri8-D/Ro8-D’s operating
status. If the green indicator lights steadily and the red
indicator turns off, the unit is operating normally.

When power to the unit is turned ON, if the green
indicator turns off, or if the red indicator lights or
flashes, the unit is not functioning properly. In this
case, refer to the “Messages” section (see page 18).

10

Owner’s Manual

English

Front Panel

1

1

2

3

2 3

2

3

4

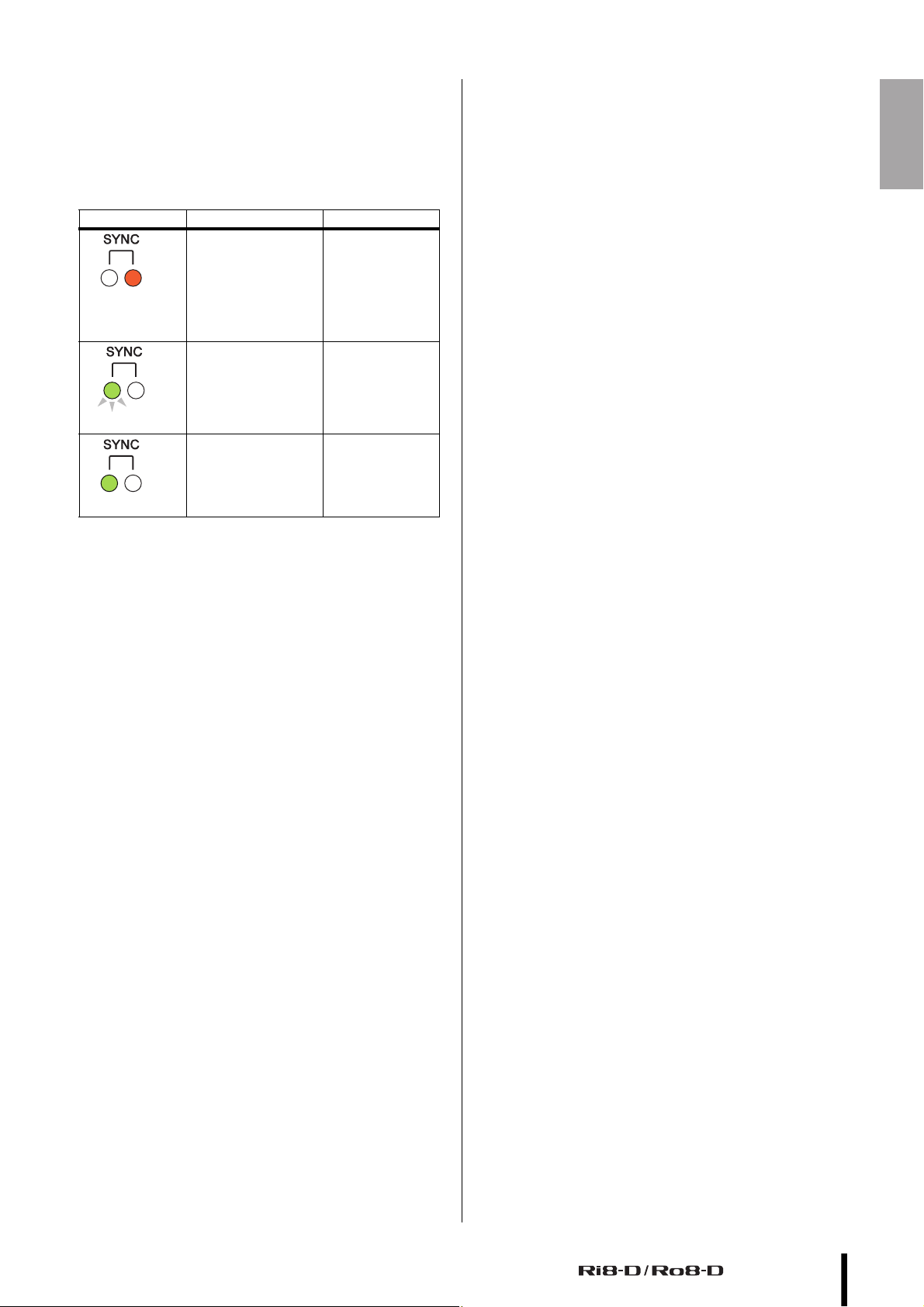

8 [SYNC] Indicators

These indicators show the operating status of the
Ri8-D/Ro8-D’s internal Dante network capability.

If the green indicator lights, the unit is operating as a
word clock slave and synching to the word clock.

If the green indicator flashes, the unit is operating as
the word clock master.

If the power to the unit is turned on but the green
indicator is turned off, the unit is not functioning
properly. In this case, refer to the “Messages” section
(see page 18).

If the orange indicator lights or flashes, refer to the
“Messages” section.

9 DIP Switches

These switches enable you to specify the settings
related to the startup operation of the unit.

Set the DIP switches while the power to the unit is
turned OFF. Otherwise, the setting will not be
effective.

Refer to the following for details.

Switch Status

Represent a status with switch toggled up.

Represent a status with switch toggled down.

• Switch 1 (UNIT ID)

This switch setting determines whether the
hexadecimal setting of the [UNIT ID] rotary switch
will range from 0 to F (0 to 15) or from 10 to 1F (16 to

31).

Switch Setting Description

UNIT ID
ranging from
0 to F

The setting range of the
[UNIT ID] rotary switch is
from 0 to F.

• Switch 4 (SECONDARY PORT)

This switch setting determines whether the rear-panel
[SECONDARY] connector will be used for a daisy
chain or redundant network.

With the [DAISY CHAIN] setting, you can connect
multiple Dante-enabled network devices in a daisy
chain without using a network switch. Refer to “Daisy
Chain Network” in the “About Connections” section
(see page 14) for more information about daisy chain
connections.

With the [REDUNDANT] setting, the [PRIMARY]
connector will be used for primary connections, and
the [SECONDARY] connector will be used for
secondary (backup) connections. If the unit is unable
to transmit signals through the [PRIMARY]
connector for some reason (e.g., due to damage or
accidental removal of the cable, or a failed network
switch), the [SECONDARY] connector will
automatically take over communications and
functions on the redundant network. Refer to “About
Redundant Networks” in the “About Connections”
section (see page 14) for more information on
redundant networks.

Switch Setting Description

DAISY CHAIN The [SECONDARY]

connector is used for a

4

REDUNDANT The [SECONDARY]

daisy chain connection.
It can be connected in a
daisy chain by connecting
to [PRIMARY] connector of
the next device.

connector is used for a
redundant network. It will
function as backup
connection, independent of
the network to which the
[PRIMARY] connector is
connected.

UNIT ID
ranging from
10 to 1 F

The setting range of the
[UNIT ID] rotary switch is
from 10 to 1F.

• Switches 2 and 3 (IP SELECT MODE)

These switches determine how the IP address is
specified during communication with the connected
computer or other devices.

Switch Setting Description

AUTO IP Dante networks will

automatically assign the IP
address.

DHCP The IP address assigned

by the DHCP server will be
used.

STATIC IP
(AUTO)

The IP address will be set
to 192.168.0.xx (xx=UNIT
ID).

Owner’s Manual

11

Controls and Functions

5 6

5 6

7

8

HA GAIN –6 dB

+48V OFF

HPF OFF

HPF FREQ 80Hz

Gain Compensation OFF

Dante Patch OFF

7 8

• Switches 5 and 6 (REMOTE) (Ri8-D only)

When you plan to monitor or control the Ri8-D from
a digital mixing console, these switches determine
whether to use an Ri8-D-native compatible device
such as CL Series or a non-Ri8-D-native device such
as M7CL Series. Information on which devices feature
Ri8-D-native support is available at the Yamaha pro
audio website product page:

http://www.yamahaproaudio.com/products/

Switch Setting Description

NATIVE An Ri8-D-native device will

control the Ri8-D.

AD8HR A non-Ri8-D-native device will

control the Ri8-D as AD8HRs.
Set the UNIT ID number
between 1 and F. The unit with
any other UNIT ID numbers will
not be controllable.

• Switches 7 and 8 (START UP MODE)

These switches determine whether part of the internal
memory is initialized when the unit starts up, or uses
the previous settings (i.e., settings used prior to the
most recent power-off).

If you plan to connect an Ri8-D/Ro8-D-native device,
such as a CL series product, set the switches to
[REFRESH]. The Ri8-D/Ro8-D will not input or
output audio until the connected
Ri8-D/Ro8-D-native device transmits its settings to
the Ri8-D/Ro8-D, so that the Ri8-D/Ro8-D will not
output audio accidentally.

0 [+48V MASTER] Switch (Ri8-D only)

This is the master switch for the unit’s +48V phantom
power supply.

If the [+48V MASTER] switch is off, no phantom
power will be supplied to the unit’s input connectors
even if the individual input phantom power settings
are ON. However, the [+48V] indicators will light on
channels for which phantom power is turned ON even
if the [+48V MASTER] switch is OFF.

A Power Indicator

Lights when AC power to the unit is ON.

B Power Switch ( )

Turns power to the unit ON or OFF.

CAUTIONS:

• Rapidly turning the unit on and off in succession can cause
it to malfunction. After turning the unit off, wait for about 6
seconds before turning it on again.

• Even when the power switch is turned off, electricity is still
flowing to the product at the minimum level. When you are
not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.

Switch Setting Description

REFRESH The Ri8-D/Ro8-D starts up with

part of the internal memory
initialized.
The following settings are
initialized.

RESUME The unit starts up using the

settings assigned prior to the
most recent power-off.

12

Owner’s Manual

English

Rear Panel

C

EF

D

G

* Illustration shows Ri8-D.

Rear Panel

C AC IN Connector

Connect the supplied AC power cord here. First,
connect the power cord to the device, then insert the
power cord plug into the AC outlet.

The supplied power cord features a special latching
mechanism (V-LOCK) to prevent the power cord
from being accidentally disconnected. Connect the
power cord by inserting the power cord fully until it is
locked.

CAUTION:

Be sure to turn the power off
before connecting or
disconnecting the power cord.
Press the latch button on the
plug to disconnect the power
cord.

D [PRIMARY]/[SECONDARY] Connectors

The Ri8-D/Ro8-D can be connected to other
Dante-compatible devices (such as a CL-series
product) via these RJ45 connectors using standard
Ethernet cables (CAT5e or better recommended).

If DIP switch 4 on the front panel is set upward (to
DAISY CHAIN), audio signals coming into one of
these connectors will be output from the other. Refer
to “Daisy Chain Network” in the “About Connections”
section (see page 14) for more information on daisy
chain connections.

If DIP switch 4 on the front panel is set downward (to
REDUNDANT), the [PRIMARY] connector will be
used for primary connection, and the [SECONDARY]
connector will be used for secondary (backup)
connection. If the unit is unable to transmit signals
through the [PRIMARY] connector for some reason
(e.g., due to damage or accidental removal of the
cable, or a failed network switch), the [SECONDARY]
connector will automatically take over the
connection. Refer to “About Redundant Networks” in
the “About Connections” section (see page 14) for
more information on redundant networks.

NOTE

• Use STP (shielded twisted pair) cable to prevent
electromagnetic interference. Make sure that the metal
parts of the plugs are electrically connected to the STP
cable shield by conductive tape or comparable means.

• Connect only Dante-compatible devices or
GbE-compatible devices (including a computer).

E [LINK/ACT] Indicators

These indicators show the communication status of
the [PRIMARY] and [SECONDARY] connectors.

They flash fast if the Ethernet cables are connected
properly.

F [1G] Indicators

These indicators light when the Dante network is
functioning as Giga-bit Ethernet.

G Grounding screw

Grounding of chassis shall be sufficiently connected
via a power supply cord as long as AC socket is
grounded since the attached power supply cord is a
triplex cable.In addition, connecting this screw to
ground may prevent hum noise or interference noise.

Owner’s Manual

13

About Connections

E

E

E

E

Computer

Network switch A

Network switch B

Primary Dante

Secondary Dante

About Connections

There are two ways to connect the Ri8-D/Ro8-D to a Dante
network.

Daisy Chain Network

A daisy chain is a wiring scheme in which multiple devices
are connected together in sequence. In this way,
networking is simple and requires no network switches.
This connection method is suitable for a simple system
with a small number of devices.

However, if a large number of devices are connected, the
latency value must be increased. Also, if a connection is
broken in a daisy chain network, the signal flow is
interrupted at that point and no signal will be transferred
beyond that point.

CL5

Star Network

In a star network, each device is connected to a central
network switch. Using a GbE-compatible network switch
enables you to configure a wide-band, large-scale network.
We recommend a network switch that features various
functions to control and monitor the network (such as Qos,
the ability to assign priority to data flows - e.g., clock
synchronization or audio transmission on certain data
circuits.)

With this topology, it is common to configure a redundant
network so that an unexpected network problem will not
affect any audio or otherwise stable communications.

About Redundant Networks

A redundant network consists of two circuits, a primary
circuit and a secondary circuit. Normally, the network
operates on the primary circuit. However, if the primary
connection is broken, the secondary circuit will
automatically take over communications. Therefore, using
a redundant network with a star topology would increase
communication stability relative to a daisy chain network.

Ri8-D (ID#1)

4

3

2

F

1

0

Ro8-D (ID#2)

4

3

2

F

1

0

ON

1 2 3 4 5 6 7 8

1

ON

1 2 3 4 5 6 7 8

ON

1 2 3 4 5 6 7 8

1

ON

1 2 3 4 5 6 7 8

PRIMARY

SECONDARY

PRIMARY

CL5

Ri8-D (ID#1)

Ro8-D (ID#2)

ON

1 2 3 4 5 6 7 8

1

4

3

2

F

1

0

ON

1 2 3 4 5 6 7 8

1

4

3

2

F

1

0

14

Owner’s Manual

ON

1 2 3 4 5 6 7 8

English

About Dante Controller

Dante Controller is a software application that allows
configuration and audio routing of Dante networks. Use
this application if you plan to connect or set up
Dante-enabled devices that do not feature
Ri8-D/Ro8-D-native support. Please download the latest
Dante Controller from the following website.

Please note that Dante Controller Version 3.2.1 or later
supports Ri8-D/Ro8-D.

http://www.yamahaproaudio.com/

To run Dante Controller, a computer must feature a
GbE-compatible Ethernet connector.

Refer to the Dante Controller owner’s manual for details on
Dante Controller.

In Dante Controller, make the following basic settings:

• [Network View] → [Routing] → I/O patching

• [Network View] → [Clock Status] → Wor d cl o ck mas t er

setting

• [Device View] → [Config] → Sampling rate setting

About Dante Controller

Owner’s Manual

15

Head Amp Control

Head Amp Control

The Ri8-D head amplifiers can be remotely controlled
from a host device, such as a compatible Yamaha digital
mixing console.

Control from an Ri8-D-native Device

The Ri8-D head amplifiers can be controlled remotely
from an Ri8-D-native digital mixing console, such as a CL
series product.

The connected Ri8-D-native device displays the model
name and UNIT ID number of the corresponding Ri8-D
unit to be controlled.

If you plan to connect a device that features Ri8-D-native
support to monitor and control the head amplifiers, refer to
the owner’s manual for the corresponding device.

Control from a Device That Does Not Feature Ri8-D-Native Support

This section explains how to configure the Ri8-D settings
that are required to control the Ri8-D as AD8HR units
from a device that does not feature Ri8-D-native support.

For more information, please refer to the “Dante-MY
16-AUD & R Series HA Remote Control Guide” that is
downloadable from the website listed below.

http://www.yamahaproaudio.com/

NOTE

The following Yamaha non-Ri8-D-native devices enable
you to control the Ri8-D as AD8HRs. Insert the
Dante-MY16-AUD card which is a firmware controllable as
AD8HR into the Mini-YGDAI slot for connection.

Setting the UNIT ID

Setting the Ri8-D in [AD8HR] will set UNIT ID as virtual
ID (as AD8HR Device ID).

If you combine Rio3224-D or Rio1608-D or add an
AD8HR or SB168-ES in the network, make sure that the
IDs are all unique.

Set the Ri8-D correctly so that you can control it as
AD8HRs. In addition, scene recall can be used to recall all
head amplifier settings at once. Refer to the digital mixing
console owner’s manual for details on head amplifier
control.

Head Amplifier Parameters That Can be Monitored and Controlled

Parameter Description

+48V

HA GAIN

HPF

HPF FREQ

METER
(Ri8-D-native device only)

Device ID

+48V Master SW

Gain Compensation
(Ri8-D-native device only)

Turns +48V phantom power ON or
OFF for each channel.

Adjusts gain from –6 dB to 66 dB in
1-dB increments.

Turns the high-pass filter ON or
OFF.

Adjusts the cutoff frequency of the
high-pass filter (12 dB/Oct.) from
20 Hz to 600 Hz in 60 steps.

Displays a level meter for each
input channel.

It displays Device ID 1–F (Device
ID as AD8HR) assigned based on
the UNIT ID.

Displays the [+48V MASTER]
switch ON/OFF status of the +48V
phantom power supply.

Turns the Gain Compensation ON
or OFF.

M7CL, LS9, DM1000, DM2000, PM5D/DSP5D,
DME64N/24N

Setting the DIP Switches

While the power to the unit is off, flip DIP switch 5 down
and DIP switch 6 up.

5 6

NOTE

If REMOTE has been set to [AD8HR], START UP MODE
will be set to [RESUME] regardless of the DIP switch
setting.

16

Owner’s Manual

English

Troubleshooting

Troubleshooting

Symptom Cause Possible Solution

The power won’t turn on.
The power indicator doesn’t light.

The unit is not receiving an input sig­nal.

The input level is too low. A condenser microphone is connected. Turn the [+48V MASTER] switch ON.

No sound is heard. The cables are not connected properly. Connect the cables properly.

The head amp cannot be controlled. The Ri8-D has not been mounted on the RACK

Adjusting the internal head amp gain
does not change the audio level.

Adjustment of the [UNIT ID] rotary
switch or DIP switch settings seems to
be ineffective.

The power cable is connected improperly. Connect the power cable properly (see

page 13).

The [POWER] switch is not turned ON. Turn the [POWER] switch ON. If the power still

will not come on, refer the problem to your
Yamaha dealer.

The input cables are not connected properly. Connect the cables properly.

No signal is output from external devices. Output a signal from the source device and

make sure that the SIG indicators on the appro­priate channels will light.

The internal head amplifier gain is not set to an
appropriate level.

The DIP switches are set to REFRESH, but the
Ri8-D-native device has not started up.

The internal head amplifier gain is not set to an
appropriate level.

The DIP switches are set to REFRESH, but the
Ro8-D-native device has not started up.

Output is muted. Unmute the output on the Ro8-D-native device.

of the Ri8-D-native device.

The Gain Compensation function is turned on. If you are not using the Gain Compensation

You may have adjusted the setting while the
power is ON.

Set the internal head amplifier gain to an appro­priate level.

Start the Ri8-D-native device to send the setting
to the Ri8-D.

Turn phantom power for the corresponding
channel(s) ON from the Ri8-D-native device.

Set the internal head amplifier gain to an appro­priate level.

Start the Ro8-D-native device to send the set­ting to the Ro8-D.

Mount the Ri8-D on the RACK of the
Ri8-D-native device.

function, turn it off.

Turn the power OFF, then change the setting.

Troubleshooting

Owner’s Manual

17

Troubleshooting

Flash x2

Flash x3

Flash x3Light

Light

Flash

Flash

Flash x2

Flash x3

LightLight
or
flash

FlashLight
or
flash

Flash x2Light
or
flash

Messages

Errors, warnings, and certain other types of information
are displayed via the Ri8-D/Ro8-D front panel indicators.
Messages are also displayed in the Dante Controller Error
Status field.

Each indicator lights or flashes as described below:

No call-out The indicator is off.

Light The indicator remains lit steadily.

Flash The indicator continues to flash.

Flash x2 The indicator flashes twice cyclically.

Flash x3 The indicator flashes three times cyclically.

Error Messages

When an error occurs, the indicators for all channels will
flash until the error is resolved, and the SYSTEM indicators
will light and/or flash cyclically as shown in the chart below.
In that cas e, repai r is requi red . Co ntact y our Yama ha d eal er.

SYSTEM

Indicators

Description Possible Solution

An internal error has
occurred.

The MAC address
setting has been cor­rupted and no com­munication can
occur via Dante.

The internal mem­ory has been cor­rupted.

UNIT ID is not
unique.

The DIP switches are
not set correctly.

The device has
failed. Contact your
Yamaha dealer for
repair.

Use the front-panel
DIP switches to set
START UP MODE to
REFRESH, then
restart the unit. If the
problem persists
after setting START
UP MODE back to
RESUME, consult
your Yamaha dealer.

Set a unique UNIT
ID number for the
Dante network.

Check the DIP switch
settings, and set
them correctly.

Warning Messages

The indicators will light and/or flash as shown until the
cause is resolved.

If the green [SYNC] indicator is unlit, the unit’s clock is
unconfirmed.

SYNC Indicators Description Possible Solution

The word clock is not
set correctly.

Dante Network circuit
is broken.

Other Dante-compati­ble devices cannot be
found due to an incor­rectly-wired Dante Net­work.

If the green indicator is flashing, the unit is the clock
master.

If the green indicator is lit, the unit is the clock slave and the
clock is synchronized.

SYNC Indicators Description Possible Solution

A non-GbE-compati­ble device is con­nected.

The SECONDARY
connector has taken
over communications
during redundant net­work operation.

An abnormality has
occurred on the circuit
connected to the SEC­ONDARY connector
during redundant net­work operation.

Set the clock mas­ter and sampling
frequency correctly
on the Ri8-D/
Ro8-D-native
device or in Dante
Controller.

Make sure that the
Ethernet cables are
not removed or
short-circuited.

Make sure that the
Ethernet cables are
connected cor­rectly.

When transferring
audio via Dante,
use device that
supports GbE.

Check the circuit
connected to the
PRIMARY connec­tor.

Check the circuit
connected to the
SECONDARY con­nector.

18

Owner’s Manual

English

Information Messages

Light

Flash

Light

The status is shown by the lit/flashing state of the indicator.
If th e o rang e [ SYNC] indicat or is unlit, the unit is op erating

normally.
If the green [SYNC] indicator is unlit, the unit’s clock is

unconfirmed.

SYNC Indicators Description Explanation

Synchronization is
occurring.

The unit is functioning
correctly as the word
clock master.

Please wait until
the unit synchro­nizes completely. It
may take up to
45 seconds to syn­chronize com­pletely.

The unit is operat­ing as the word
clock master.

Messages

The unit is functioning
correctly as the word
clock slave.

The unit is operat­ing as the clock
slave and the clock
is synchronized.

Owner’s Manual

19

MEMO

20

Owner’s Manual

EnglishDeutschFrançaisEspañolPortuguêsItalianoРусскийЁ᭛日本語

Specifications

Specifications

General Specifications

44.1kHz
+4.1667%, +0.1%, –0.1%, –4.0%

48kHz

Sampling Frequency External

Less than 3ms

Signal Delay

Frequency Response

Total Harmonic Distortion

Hum&Noise

Dynamic Range

Crosstalk@1kHz

Dimensions (WxHxD)
and Net Weight

Power Requirements
(wattage)

Power Requirements
(voltage and hertz)

Tem pera ture Rang e

Included Accessories Owner’s Manual, Power Cord

*1. INPUT to OUTPUT means Ri8-D INPUT to Ro8-D OUTPUT
*2. Total Harmonic Distortion is measured with 18dB/octave filter @80kHz
*3. Hum & Noise are measured with A-Weight filter.
*4. Crosstalk is measured with a 30dB/octave filter @22kHz

*3

INPUT to OUTPUT
Fs= 48kHz

+0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT

+0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT

Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs= 44.1kHz, 48kHz

*2

Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs= 88.2kHz, 96kHz

INPUT to OUTPUT

–128dBu typ., Equivalent Input Noise, Input Gain= Max.
–88dBu Residual output noise, ST master off.

112dB typ., DA Converter,

108dB typ., INPUT to OUTPUT

*4

–100dB

Ri8-D: 480mm x 44mm x 362mm, 4.5kg
Ro8-D: 480mm x 44mm x 359mm, 4.4kg

Ri8-D: 35W
Ro8-D: 35W

US/Canada: 120V 60Hz
Japan: 100V 50/60Hz
China: 110-240V 50/60Hz
Korea: 220V 60Hz
Other: 110-240V 50/60Hz

Operating temperature range: 0 - 40°C
Storage temperature range: –20 - 60°C

, adjacent INPUT/OUTPUT channels, Input Gain= Min.

+4.1667%, +0.1%, –0.1%, –4.0%

88.2kHz
+4.1667%, +0.1%, –0.1%, –4.0%

96kHz
+4.1667%, +0.1%, –0.1%, –4.0%

*1

, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way),

*1

, Input Gain= Min.

*1

, Input Gain= Min.

±200ppm

±200ppm

±200ppm

±200ppm

*1

, Fs= 44.1kHz, 48kHz

*1

, Fs= 88.2kHz, 96kHz

Owner’s Manual

153

Specifications

Analog Input Characteristics (Ri8-D only)

Input

Ter mina ls

INPUT 1-8

*1. XLR-3-31 type connectors are balanced.(1=GND, 2=HOT, 3=COLD)
* In these specifications, 0dBu = 0.775 Vrms.
* All input AD converters are 24bit linear, 128times oversampling.
* +48V DC ( phantom power ) is supplied to INPUT XLR type connectors via each individual software controlled switch.

GAIN

+66dB

–6dB +10dBu (2.45V) +30dBu (24.5V)

Actual Load

Impedance

7.5kΩ

For Use With

Nominal

50-600Ω Mics &

600Ω Lines

Nominal Max. before clip

–62dBu (0.616mV) –42dBu (6.16mV)

Input Level

Analog Output Characteristics (Ro8-D only)

Output

Ter mina ls

OUTPUT 1-8 75Ω 600Ω Lines

*1. There are switches inside the body to preset the maximum output level.
*2. XLR-3-32 type connectors are balanced. ( 1=GND, 2=HOT, 3=COLD )
* All output DA converters are 24bit, 128times oversampling.

Actual Source

Impedance

For Use With

Nominal

Max.Output Level

Select SW

+24dB (default) +4dBu (1.23 V) +24dBu (12.3V)

+18dB –2dBu (616mV) +18dBu (6.16V)

*1

Output Level

Nominal Max. before clip

Digital I/O Characteristics

Terminals Format Data length Level Audio Connector

Primary/Secondary Dante 24bit or 32bit 1000Base-T

8ch (Ri8-D to other device)

8ch (Other device to Ro8-D)

Connector

XLR-3-31 type

(Balanced)

XLR-3-32 type

(Balanced)

*1

Connector

*2

RJ45

154

Owner’s Manual

EnglishDeutschFrançaisEspañolPortuguêsItalianoРусскийЁ᭛日本語

Dimensions

480

44

430

351

354.2

362

7. 8

5.8

480

430

351

354.2

359

2.3

4.3

44

Ri8-D

Dimensions

Ro8-D

Unit: mm

Owner’s Manual

155

For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más
cercana o el distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,
M1S 3R1, Canada
Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA 90620,
U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México, S.A. de C.V.

Av. Insurgentes Sur 1647 Piso 9, Col. San José
Insurgentes, Delegación Benito Juárez, México,
D.F., C.P. 03900
Tel: [phone]

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Joaquim Floriano, 913 - 4º andar, Itaim Bibi,
CEP 04534-013 São Paulo, SP. BRAZIL
Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A.,
Sucursal Argentina

Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK
Buenos Aires, Argentina
Tel: [phone]

VENEZUELA

Yamaha Music Latin America, S.A.,
Sucursal Venezuela

C.C. Manzanares Plaza P4
Ofic. 0401- Manzanares-Baruta
Caracas Venezuela
Tel: [phone]

PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso No.7, Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, República de Panamá
Tel: [phone]

EUROPE

THE UNITED KINGDOM/IRELAND

Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, U.K.
Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH
Branch Switzerland in Zürich

Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: [phone]

AUSTRIA/BULGARIA

Yamaha Music Europe GmbH Branch Austria

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

CZECH REPUBLIC/HUNGARY/
ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH
Branch Austria (Central Eastern Europe Office)

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

POLAND/LITHUANIA/LATVIA/ESTONIA

Yamaha Music Europe GmbH
Branch Poland Office

ul. Wrotkowa 14 02-553 Warsaw, Poland
Tel: [phone]

MALTA

Olimpus Music Ltd.

The Emporium, Level 3, St. Louis Street Msida
MSD06
Tel: [phone]

NETHERLANDS/BELGIUM/
LUXEMBOURG

Yamaha Music Europe Branch Benelux

Clarissenhof 5-b, 4133 AB Vianen, Netherlands
Tel: [phone]

FRANCE

Ya m a h a M u si c Eu r o pe

7 rue Ambroise Croizat, Zone d'activites Pariest,
77183 Croissy-Beaubourg, France
Tel: [phone]

ITALY

Yamaha Music Europe GmbH, Branch Italy

Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: [phone]

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal
en España

Ctra. de la Coruna km. 17,200, 28231
Las Rozas (Madrid), Spain
Tel: [phone]

GREECE

Philippos Nakas S.A. The Music House

147 Skiathou Street, 112-55 Athens, Greece
Tel: [phone]

SWEDEN/FINLAND/ICELAND

Yamaha Music Europe GmbH Germany filial
Scandinavia

J. A. Wettergrensgata 1, Box 30053
S-400 43 Göteborg, Sweden
Tel: [phone]

DENMARK

Yamaha Music Europe GmbH, Tyskland – filial
Denmark

Generatorvej 6A, DK-2730 Herlev, Denmark
Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany ­Norwegian Branch

Grini Næringspark 1, N-1361 Østerås, Norway
Tel: [phone]

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, bld. 7, Kievskaya street, Moscow,
121059, Russia
Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

AFRICA

Ya m a h a M u si c Gu l f F Z E

Office JAFZA 16-512, P.O.Box 17328,
Jebel Ali - Dubai, UAE
Tel: [phone]

MIDDLE EAST

TURKEY

Yamaha Music Europe GmbH
Merkezi Almanya Türkiye İstanbul Şubesi

Maslak Meydan Sokak No:5 Spring Giz Plaza
Bağımsız Böl. No:3, 34398 Şişli İstanbul
Tel: [phone]

CYPRUS

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

OTHER COUNTRIES

Ya m a h a M u si c Gu l f F Z E
