Yamaha HTR-5440, HTR-5450 User Manual

Download

HTR-5450 HTR-5440

Natural Sound AV Receiver Ampli-tuner audio-vidéo

U C A

OWNER’S MANUAL

MODE D’EMPLOI

SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

1 Read Instructions – All the safety and operating instructions

should be read before the unit is operated.

2 Retain Instructions – The safety and operating instructions

should be retained for future reference.

3 Heed Warnings – All warnings on the unit and in the operating

instructions should be adhered to.

4 Follow Instructions – All operating and other instructions

should be followed.

5 Water and Moisture – The unit should not be used near water

– for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

6 Carts and Stands – The unit should be used only with a cart or

stand that is recommended by the manufacturer.

6A A unit and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

7 Wall or Ceiling Mounting – The unit should

be mounted to a wall or ceiling only as recommended by the manufacturer.

8 Ventilation – The unit should be situated so that its location or

position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9 Heat – The unit should be situated away from heat sources

such as radiators, stoves, or other appliances that produce heat.

10 Power Sources – The unit should be connected to a power supply

only of the type described in the operating instructions or as marked on the unit.

11 Power-Cord Protection – Power-supply cords should be routed

so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12 Cleaning – The unit should be cleaned only as recommended

by the manufacturer.

13 Nonuse Periods – The power cord of the unit should be

unplugged from the outlet when left unused for a long period of time.

14 Object and Liquid Entry – Care should be taken so that objects

do not fall into and liquids are not spilled into the inside of the unit.

15 Damage Requiring Service – The unit should be serviced by

qualified service personnel when:

A. The power-supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

unit; or

C. The unit has been exposed to rain; or D. The unit does not appear to operate normally or exhibits

a marked change in performance; or

E. The unit has been dropped, or the cabinet damaged.

16 Servicing – The user should not attempt to service the unit

beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.

17 Power Lines – An outdoor antenna should be located away

from power lines.

18 Grounding or Polarization – Precautions should be taken so

that the grounding or polarization is not defeated.

CAUTION

I CAUTION

19 For US customers only:

Outdoor Antenna Grounding – If an outside antenna is connected to this unit, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for

the grounding electrode.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC INFORMATION (for US customers only)

1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT : When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE : This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

SAFETY INSTRUCTIONS

EXAMPLE OF ANTENNA GROUNDING

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810–20)

GROUNDING CONDUCTORS (NEC SECTION 810–21)

GROUND CLAMPS

ELECTRIC SERVICE EQUIPMENT

NEC

– NATIONAL ELECTRICAL CODE

MAST

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing.

Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

CAUTION

CAUTION II

English

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this

manual carefully. Keep it in a safe place for future reference.

2 Install this unit in a well ventilated, cool, dry, clean

place with at least 30 cm on the top, 20 cm on the right and left, and 10 cm at the back of this unit for ventilation space — away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold.

3 Locate this unit away from other electrical

appliances, motors, or transformers to avoid humming sounds. To prevent fire or electrical shock, do not place this unit where it may get exposed to rain, water, and/or any type of liquid.

4 Do not expose this unit to sudden temperature

changes from cold to hot, and do not locate this unit in a environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 On the top of this unit, do not place:

– Other components, as they may cause damage

and/or discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause

fire, damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may cause

electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth,

curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all

connections are complete.

8 Do not operate this unit upside-down. It may

overheat, possibly causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cord from the wall

outlet, grasp the plug; do not pull the cord.

11 Do not clean this unit with chemical solvents; this

might damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used.

Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, disconnect the

power cord from the wall outlet during an electrical storm.

14 Take care of this unit so that no foreign objects and/

or liquid drops inside this unit.

15 Do not attempt to modify or fix this unit. Contact

qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

16 When not planning to use this unit for long periods of

time (i.e. vacation), disconnect the AC power plug from the wall outlet.

17 Be sure to read the “TROUBLESHOOTING” section

on common operating errors before concluding that this unit is faulty.

18 Before moving this unit, press STANDBY/ON to set

this unit in the standby mode, and disconnect the AC power plug from the wall outlet.

19 VOLTAGE SELECTOR (China and General models

only) The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are 110/120/220/240 V AC, 50/60 Hz.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

FREQUENCY STEP switch (China and General models only)

Because the interstation frequency spacing differs in different areas, set the FREQUENCY STEP switch (locating at the rear) according to the frequency spacing in your area. North, Central and South America: 100 kHz/10 kHz Other area: 50 kHz/9 kHz Before setting this switch, disconnect the AC power plug of this unit from the AC outlet.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-003.

CAUTION

III CAUTION

INTRODUCTION

FEATURES .......................................................... 2

GETTING STARTED ......................................... 3

Checking the Package Contents ............................. 3

Battery Installation in the Remote Control ............ 3

Battery Replacement .............................................. 3

CONTROLS AND FUNCTIONS ....................... 4

Front Panel ............................................................. 4

Remote Control ...................................................... 6

Using the Remote Control ...................................... 7

Display ................................................................... 8

Rear Panel .............................................................. 9

PREPARATION

SPEAKER SETUP ............................................ 10

Speakers to Be Used ............................................ 10

Speaker Placement ............................................... 10

CONNECTIONS ............................................... 11

Before Connecting Components ........................... 11

Connecting Audio Components ........................... 12

Connecting an External Decoder ......................... 12

Connecting Video Components............................ 14

Connecting Speakers ............................................ 16

IMPEDANCE SELECTOR Switch ..................... 18

Connecting the Power Supply Cords ................... 18

ADJUSTING THE SPEAKER BALANCE .... 19

Before You Start Adjusting .................................. 19

Using the Test Tone .............................................. 19

BASIC OPERATION

PLAYING A SOURCE ...................................... 21

Input Modes and Indications ................................ 23

Selecting a DSP Program ..................................... 24

Canceling the Sound Effect

(turning off the effect speakers) ....................... 25

TUNING ............................................................. 26

Connecting the Antennas ..................................... 26

Automatic Tuning ................................................ 27

Manual Tuning ..................................................... 27

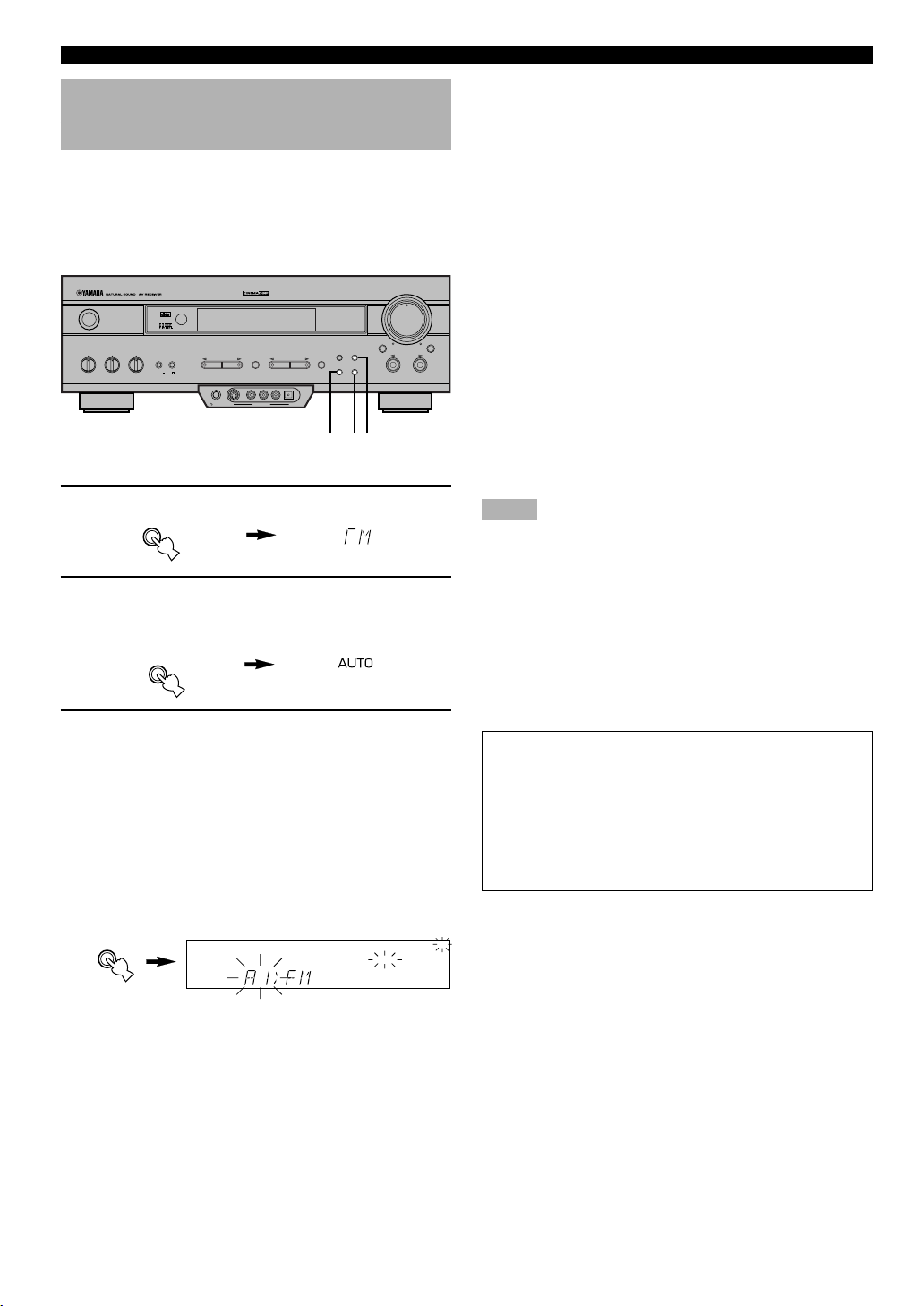

Automatic Preset Tuning

(for FM stations only) ...................................... 28

Manual Preset Tuning .......................................... 29

To Recall a Preset Station .................................... 29

Exchanging Preset Stations .................................. 30

RECORDING A SOURCE ............................... 31

ADVANCED OPERATION

SET MENU ......................................................... 32

Adjusting the Items on the SET MENU .............. 32

1 SPEAKER SET (speaker mode settings) .......... 33

2 HP TONE CTRL (headphone tone control) ...... 34

3 I/O ASSIGN ...................................................... 34

4 INPUT MODE (initial input mode) .................. 35

5 DOLBY D. SET (Dolby Digital set) ................. 35

6 DTS SET (DTS LFE level) ............................... 36

7 SP DLY TIME (center delay) ............................ 36

8 DISPLAY SET .................................................. 36

9 MEM. GUARD (memory guard) ...................... 36

DELAY TIME AND SPEAKER OUTPUT

LEVELS .......................................................... 37

Delay Time ........................................................... 37

Sound Output Level of the Center, Right Rear

and Left Rear Speakers, and Subwoofer .......... 37

Adjusting Method ................................................ 38

SLEEP TIMER .................................................. 39

Setting the SLEEP Timer ..................................... 39

Canceling the SLEEP Timer ................................ 39

PRESET REMOTE CONTROL ...................... 40

Component Selector Buttons ............................... 40

Controlling the Components Connected to

This Unit .......................................................... 40

Description of Each Mode ................................... 41

Setting the Manufacturer Code ............................ 45

Returning to the Factory Setting .......................... 46

SOUND FIELD PROGRAM ............................ 47

Hi-Fi DSP Programs ............................................ 47

CINEMA DSP Programs ...................................... 47

APPENDIX

TROUBLESHOOTING .................................... 50

SPECIFICATIONS (HTR-5450) ...................... 54

SPECIFICATIONS (HTR-5440) ...................... 55

GLOSSARY ....................................................... 56

INDEX ................................................................ 58

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

FEATURES

5-Channel Power Amplification

◆ Minimum RMS Output

(0.06% THD, 20 Hz – 20 kHz)

HTR-5450

[U.S.A. and Canada models] Main: 80 W + 80 W (8 Ω) Center: 80 W (8 Ω) Rear: 80 W + 80 W (8 Ω) [Australia, Singapore, China and General models] Main: 70 W + 70 W (8 Ω) Center: 70 W (8 Ω) Rear: 70 W + 70 W (8 Ω)

HTR-5440

Main: 65 W + 65 W (8 Ω) Center: 65 W (8 Ω) Rear: 65 W + 65 W (8 Ω)

◆ Maximum Power (EIAJ)

(10% THD, 1 kHz)

HTR-5450

[China and General models] Main: 100 W + 100 W (8 Ω) Center: 100 W (8 Ω) Rear: 100 W + 100 W (8 Ω)

HTR-5440

[China and General models] Main: 95 W + 95 W (8 Ω) Center: 95 W (8 Ω) Rear: 95 W + 95 W (8 Ω)

Multi-mode Digital Sound Field Processing

◆ DTS Decoder

◆ Dolby Pro Logic Decoder

◆ Dolby Digital Decoder

◆ Hi-Fi DSP

◆ CINEMA DSP: Combination of YAMAHA DSP

Technology and Dolby Digital, Dolby Pro Logic or DTS

◆ Virtual CINEMA DSP

◆ SILENT CINEMA

Sophisticated FM/AM Tuner

◆ 40-Station Random Access Preset Tuning

◆ Automatic Preset Tuning

◆ Preset Station Shifting Capability (Preset Editing)

Other Features

◆ 96-kHz/24-bit D/A Converter

◆ “SET MENU” which Provides You with 9 Items

for Optimizing This Unit for Your Audio/Video System

◆ Test Tone Generator for Easier Speaker Balance

Adjustment

◆ 6-Channel External Decoder Input for Other Future

Formats

◆ Video Signal Input and Output Capability

(Including S Video Connections

HTR-5450 only

)

◆ Optical and Coaxial Digital Signal Input Jacks

◆ SLEEP Timer

◆ Remote Control with Preset Manufacturer Codes

HTR-5450 only

• This document is the Owner’s Manual for both the HTR-5450 and HTR-5440. For details on various functions unique to each model, see the descriptions given for each model name. Illustrations for the HTR-5450 are used for common functions.

•

y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the main unit or on the remote control. In cases when the button names differ between the main unit and the remote control, the button name on the remote control is given in parentheses in this manual.

Manufactured under license from Dolby Laboratories.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

GETTING STARTED

Checking the Package Contents

Check that the following items are included in your package.

Remote control Batteries (AAA, R03, UM-4 type) AM loop antenna

Indoor FM antenna (U.S.A., Canada, China and General models)

(Australia and Singapore models)

Quick reference card

Connection guide

INTRODUCTION

PREPARATION

BASIC OPERATION

Battery Installation in the Remote Control

1 Turn the remote control over and slide the

battery compartment cover in the direction of the arrow.

2 Insert the batteries (AAA, R03 or UM-4 type)

according to the polarity markings on the inside of the battery compartment.

3 Close the battery compartment cover.

Battery Replacement

If the remote control operates only when it is close to the unit, the batteries are weak. Replace all the batteries with new ones.

Be sure to replace the batteries within about two minutes. If it takes longer than two minutes, the codes preset for the remote control will return to the factory settings.

Notes

• Use only AAA, R03 or UM-4 batteries for replacement.

• Be sure the battery polarity is correct. (See the illustration inside

the battery compartment.)

• Remove the batteries if the remote control will not be used for an extended period of time.

• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

ADVANCED OPERA

TION

APPENDIX

English

Front Panel

HTR-5450

CONTROLS AND FUNCTIONS

STANDBY

/ON

BASS BALANCE SPEAKERS

TREBLE

–

7 8

HTR-5440

STANDBY

/ON

DIGITAL

SURROUND

OFF

DIGITAL

SURROUND

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

DIGITAL

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET /TUNING

FM/AM

EDIT

TUNING

MODE

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

pu a

VOLUME

INPUT

VOLUME

6CH INPUTINPUT MODE

BASS BALANCE SPEAKERS

TREBLE

– +

7 8

OFF

PROGRAM

PHONES VIDEO L AUDIO R

SILENT VIDEO AUX

1 STANDBY/ON

Press this switch to turn on the power of this unit or to set this unit in the standby mode. Before turning the power on, set the volume at the minimum level.

Standby mode

In this mode, this unit consumes a very small quantity of power to receive infrared-signals from the remote control.

PRESET /TUNING

PRESET/TUNINGEFFECT A/B/C/D/E

FM/AM

EDIT

TUNING

MODE

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

pu a

INPUT

2 Remote control sensor

This receives signals from the remote control.

3 Display

This shows various information.

4 INPUT MODE

Press this button to select the input mode among AUTO, DTS and ANALOG for the sources that send two or more types of signals to this unit.

6CH INPUTINPUT MODE

CONTROLS AND FUNCTIONS

5 VOLUME

Turn this control to turn up or down the volume.

6 6CH INPUT

Press this button to select the source connected to the 6CH INPUT jacks. The source selected by pressing 6CH INPUT takes priority over the source selected with INPUT l / h (or the input selector buttons on the remote control).

7 BASS

Turn this control clockwise to increase or counterclockwise to decrease the low-frequency response.

8 TREBLE

Turn this control clockwise to increase or counterclockwise to decrease the high-frequency response.

Note

• If you increase or decrease the high-frequency or the lowfrequency sound to an extreme level, the tonal quality from the center and rear speakers may not match that of the left and right main speakers.

9 BALANCE

This control is only effective for the sound from the main speakers. Turn the control to adjust the balance of the output volume from the right and left main speakers to compensate for sound imbalance caused by the speaker location or listening room conditions.

0 SPEAKERS A/B

Set A or B (or both A and B) to the ON position for the main speaker system (connected to this unit) that you want to use. Set the button(s) to the OFF position for the main speaker system that you don’t want to use.

q PROGRAM l / h

Press l or h to select a DSP program when the effect speakers (center and rear) are turned on. The name of the selected program appears on the display.

w EFFECT

Press this button to turn on or off the effect speakers (center and rear). If you turn them off, all Dolby Digital and DTS audio signals except for the LFE channel are directed to the right and left main speakers. In that case, the output levels of the right and left speakers may not match.

r VIDEO AUX jacks

Connect an auxiliary audio or video input source such as a game console or camcorder to these jacks. To reproduce source signals from these jacks, select V-AUX as the input source.

t PRESET/TUNING l / h

When “ z ” appears on the display: This button is used to select a preset station number (1 to 8). Press l to select a lower and h to select a higher preset station number. When “ z ” goes off from the display: This button is used for tuning. Press l to tune in to lower frequencies, and h to tune in to higher frequencies.

y A/B/C/D/E

Press this button to select one of 5 preset station groups (A to E).

u PRESET/TUNING (EDIT)

Press this button to turn on or off “ z ” on the display and switch the function between for storing a broadcasting station (preset tuning) and for tuning. This button is also used to exchange the assignment of two preset stations with each other.

i MEMORY (MAN’L/AUTO FM)

Press this button to store the broadcasting stations. Hold down this button for more than 3 seconds to begin automatic preset tuning (for FM stations only).

o TUNING MODE (AUTO/MAN’L MONO)

Press this button to switch the tuning mode between automatic and manual. To use the automatic tuning method, press this button so that the “AUTO” indicator lights up on the display. To use the manual tuning method, press this button so that the “AUTO” indicator goes off.

p FM/AM

Press this button to switch the reception band between FM and AM.

a INPUT l / h

Press these buttons to select the input source (DVD, AUX, MD/CD-R, TUNER, CD, V-AUX, VCR, D-TV/CBL) that you want to listen to or watch. The name of the selected input source appears on the display.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

e PHONES jack

Connect the headphones to the PHONES jack so that this unit outputs audio signals for private listening. When listening with headphones privately, set both SPEAKERS A/B to the OFF position.

English

CONTROLS AND FUNCTIONS

Remote Control

This section describes basic operation of this unit with the remote control. First, press AMP(TUNER) on the component selector. Refer to “PRESET REMOTE CONTROL” for full details.

Press AMP(TUNER).

TV VOLUME

7 8

TV INPUT

1 Indicator

This flashes in red when pressing a button on the remote control. If it flashes rapidly several times, press the selected button again.

2 Component selector buttons

Press one of these buttons which corresponds to the component you want to control with the remote control. (The proper code must be set for your component. Refer to “Setting the Manufacturer Code”.) When the component selector button has been pressed, the remote control is set to that component operation mode.

3 POWER

Each time you press this button, the unit switches between the power on and standby mode.

4 TEST

Press this button to output the test tone for each speaker.

5 A/B/C/D/E, PRESET –/+

These buttons are used to select a preset station. A/B/C/D/E: To select one of a group (A to E) of preset

stations

PRESET –/+: To select a preset station number (1 to 8)

6 MUTE

Press this button to mute the sound. To cancel mute, press this button again.

7 VOLUME

These buttons are used to adjust the volume level.

u: To turn up the volume d: To turn down the volume

8 SLEEP

Press this button to set the SLEEP timer.

9 –/+

These buttons adjust the settings of the SET MENU and TIME/LEVEL mode.

0 TIME/LEVEL

Press this button to select the items in the TIME/LEVEL mode.

q Input selector buttons

These buttons select the input source. CD: To play a CD TUNER: To listen to an FM or AM broadcast MD/CD-R: To play an MD or CD recorder (or tape

deck) DVD: To play a DVD D-TV/CBL: To watch a TV/digital TV or cable TV VCR: To play a video cassette AUX: To use another audio component V-AUX: To use another audio/video component

w 6CH INPUT

Press this button to play a source connected to the 6CH INPUT jacks.

CONTROLS AND FUNCTIONS

e EFFECT

Press this button to turn on or off the effect speakers (center and rear).

r PRG+, PRG–

Press these buttons to select a DSP program. Once you press SET MENU, these buttons are used for selecting the SET MENU item.

t SET MENU

Press this button to select the items in the SET MENU.

Using the Remote Control

Remote control sensor

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared sensor during operation. When the sensor is covered or there is a large object between the remote control and the sensor, the sensor cannot receive signals. The sensor may not be able to receive signals properly when it is exposed to direct sunlight or a strong artificial light (such as a fluorescent or strobe light). In this case, change the direction of the light or reposition the unit to avoid direct lighting.

Notes

• Handle the remote control with care.

• Do not spill water, tea or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following

conditions:

– high humidity or temperature such as near a heater, stove or

bath;

– dusty places; or – extremely low temperature.

(HTR-5450)

Within approximately 6 m (20 feet)

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

CONTROLS AND FUNCTIONS

Display

VIRTUAL

DIGITAL

PRO LOGIC

DSP

ASPB

DOLBY DTS DIGITAL PRO LOGIC ENHANCED

MONO TV SPORTS MOVIE THEATER 1 2 ENTERTAINMENT DISCO 5CH STEREO

PCM

1 t indicator

The “t” indicator lights up when the built-in DTS decoder is turned on.

2 VIRTUAL indicator

This lights up when using Virtual CINEMA DSP.

3 g and o indicators

“ g ” lights up when the built-in Dolby Digital decoder is on and the signals of the selected source are encoded with Dolby Digital. “ o ” lights up when the built-in Dolby Pro Logic decoder is on.

4 DSP program indicators

This indicates the name of the selected DSP program.

5 AUTO indicator

This lights up when the unit is in the automatic tuning mode.

6 STEREO indicator

This lights up when an FM stereo broadcast with sufficient signal strength is being received.

7 x indicator

“ x ” lights up when the built-in digital sound field processor is on.

CONCERT HALL JAZZ CLUB ROCK CONCERT GAME

BASS EXT.

MEMORY SLEEP

TUNED

AUTO

STEREO

dB ms

8 v indicator

This lights up when this unit is reproducing PCM (pulse code modulation) digital audio signals.

9 Headphones indicator

This lights up when headphones are connected.

0 Multi-information display

This display shows various information: for example the name of the selected input source and the various settings during adjustment with the SET MENU. The current station frequency and band (FM or AM) also appear when the tuner is selected as the input source.

q MEMORY indicator

This flashes for about 5 seconds after pressing MEMORY. During this period, the displayed station can be stored in the memory.

w TUNED indicator

This lights up when this unit tunes in to a station.

e SLEEP indicator

This lights up while the built-in SLEEP timer is on.

Rear Panel

HTR-5450

HTR-5440

3 4

DIGITAL

INPUT

COAXIAL

OPTICAL

D-TV/CBL

MAIN

DVD

MD/CD-R

OPTICAL

MD/CD-R

AUX

DIGITAL

OUTPUT

3 4

6CH INPUT

RLR

SURROUND

AM ANT GND

CENTER

SUB WOOFER

IN(PLAY)

MD/CD-R

OUT(REC)

FM ANT

UNBAL.

DVD

D-TV/CBL

DVD

D-TV/CBL

AUDIO SIGNAL

As this terminal is used for an examination in the factory, do not connect any equipment to this terminal.

TUNER

VIDEO SIGNAL

VCR 1

OUT

MONITOR OUT

VIDEO

S VIDEO

SUB

WOOFER

OUTPUT

SPEAKERS

–

R L

–

MAIN

CENTER REAR

–

(SURROUND)

CONTROLS AND FUNCTIONS

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 8

MIN. /SPEAKER

A + B:16

MIN. /SPEAKER

MAIN A OR B: 4

A + B: 8 CENTER REAR

CENTER REAR

MIN. /SPEAKER MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 8

MIN. /SPEAKER

: 8

MIN. /SPEAKER

AC OUTLETS

SWITCHED 100W MAX.

TOTAL

(U.S.A. model)

INTRODUCTION

PREPARATION

BASIC OPERATION

DIGITAL

INPUT CD

COAXIAL

OPTICAL

D-TV/CBL

DVD

MAIN

AUX

6CH INPUT

SURROUND

RLR

AM ANT GND

CENTER

SUB WOOFER

IN(PLAY)

MD/CD-R

OUT(REC)

FM ANT

UNBAL.

DVD

D-TV/CBL

DVD

D-TV/CBL

AUDIO SIGNAL

TUNER

VIDEO SIGNAL

VCR 1

OUT

MONITOR OUT

VIDEO

SUB

WOOFER

OUTPUT

As this terminal is used for an examination in the factory, do

1 DIGITAL OUTPUT jacks

not connect any equipment to this terminal.

HTR-5450 only

0 q

2 DIGITAL INPUT jacks 3 6CH INPUT jacks

See pages 12 and 13 for connection information.

4 Antenna input terminals

See page 26 for connection information.

5 Video component jacks

See pages 14 and 15 for connection information.

6 Speaker terminals

See pages 16 and 17 for connection information.

7 AC power cord

Connect to a power outlet.

8 AC OUTLET(S)

Use these outlets to supply power to your other audio/video components (see page 18).

SPEAKERS

–

R L

MAIN

AC OUTLETS

SWITCHED 100W MAX.

CENTER REAR

–

(SURROUND)

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 8

A + B: 8

CENTER REAR

MIN. /SPEAKER MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 6

MIN. /SPEAKER

A + B:16

MIN. /SPEAKER MIN. /SPEAKER

: 8

MIN. /SPEAKER

: 8

MIN. /SPEAKER

MAIN A OR B: 4

CENTER REAR

(U.S.A. model)

9 Audio component jacks

See pages 12 and 13 for connection information.

0 SUBWOOFER jack

See page 17 for connection information.

q IMPEDANCE SELECTOR switch

Use this switch to match the amplifier output to your speaker impedance. Set this unit in the standby mode before you change the setting of this switch (see page 18).

China and General models only

FREQUENCY STEP switch

See page 26.

VOLTAGE SELECTOR

See page 18.

TOTAL

ADVANCED OPERA

TION

APPENDIX

English

PREPARATION

SPEAKER SETUP

Speakers to Be Used

This unit is designed to provide the best sound-field quality with a 5-speaker system, using main speakers, rear speakers and a center speaker. If you use different brands of speakers (with different tonal qualities) in your system, the tone of a moving human voice and other types of sound may not shift smoothly. We recommend that you use speakers from the same manufacture to ensure even tonal quality.

The main speakers are used for the main source sound plus the effect sounds. They will probably be the speakers from your present stereo system. The rear speakers are used for the effect and surround sounds, and the center speaker is for the center sounds (dialog, vocals, etc.). If for some reason it is not practical to use a center speaker, you can do without it. Best results, however, are obtained with the full system.

The main speakers should be high-performance models and have enough power-handling capacity to accept the maximum output of your audio system. The other speakers do not have to be equal to the main speakers. For precise sound localization, however, it is ideal to use highperformance models that can reproduce sounds over the full range for the center speaker and the rear speakers.

■ Use of a subwoofer expands your sound field

It is also possible to further expand your system with the addition of a subwoofer. The use of a subwoofer is effective not only for reinforcing bass frequencies from any or all channels, but also for reproducing the LFE (low frequency effect) channel with high fidelity when playing back a source encoded with Dolby Digital or DTS. The YAMAHA Active Servo Processing Subwoofer System is ideal for natural and lively bass reproduction.

Speaker Placement

Refer to the following diagram when you place the speakers.

Main speaker (R)

Rear speaker (R)

Subwoofer

Main speaker (L)

Center speaker

■ Main speakers

Place the right and left main speakers an equal distance from the ideal listening position. The distance of each speaker from each side of the TV monitor should be the same.

■ Rear speakers

Place these speakers behind your listening position, facing slightly inwards, nearly 1.8 m (approx. 6 feet) above the floor.

■ Center speaker

Align the front face of the center speaker with the front face of your TV monitor. Place the speaker as close to the monitor as possible, such as directly over or under the monitor and centrally between the main speakers.

Note

• If the center speaker is not used, the sound will be heard from the right and left main speakers. In that case, “CENTER SP” in the SET MENU is set to the NON position.

1.8 m

Rear speaker (L)

■ Subwoofer

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the main speakers. Turn it slightly toward the center of the room to reduce the wall reflections.

CAUTION

Please use magnetically shielded speakers. Sometimes a video monitor may be adversely affected even when magnetically shielded speakers are used. Separate the speakers from the monitor if this happens.

CONNECTIONS

V V

C C

Before Connecting Components

CAUTION

Never connect this unit and other components to mains power until all connections between components have been completed.

Be sure all connections are made correctly, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Some components require different connection methods and have different terminal names. Refer to the instructions for each component to be connected to this unit.

When you connect other YAMAHA audio components (such as a tape deck, MD recorder and CD player or changer), connect it to the jacks with the same number labels as !, #, $ etc.

Use RCA-type pin plug cables for connecting audio/video components with the exception described later.

The input and output jacks for pin plugs can be distinguished as follows:

Yellow video signals (composite)

White analog audio signals for the left channel

Red analog audio signals for the right channel

coaxial digital signals

After completing all connections, check them again to make sure they are correct.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

CONNECTIONS

Connecting Audio Components

■ Connecting to digital jacks

This unit has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, Dolby Digital and DTS bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks, priority is given to the input signals from the COAXIAL jack. All digital input jacks are acceptable for 96-kHz sampling digital signals.

• You can designate the input for each digital jack according to your component by using “3 I/O ASSIGN” in the SET MENU.

HTR-5450 only

•

All digital input jacks are acceptable for 96-kHz sampling digital signals.

HTR-5440 only

•

When making connections between the digital signal jacks, you should connect the components to the same-named analog audio signal jacks of this unit, because a digital signal cannot be recorded by a recording component connected to this unit.

• All digital signal input jacks are applicable to sampling frequencies of 32 kHz, 44.1 kHz and 48 kHz.

About the dust protection cap

Pull out the cap from the optical jack before you connect the fiber optic cable. Do not discard the cap. When you are not using the optical jack, be sure to put the cap back in place. This cap protects the jack from dust.

Note

• The OPTICAL jacks on this unit conform to the EIA standard. If you use a fiber optic cable that does not conform to this standard, this unit may not function properly.

■ Connecting a CD player

• The COAXIAL jack is available for a CD player which has coaxial digital output jack.

• When you connect a CD player to both the analog and digital jacks, priority is given to the input signals from the digital jack.

■ Connecting an MD recorder, CD recorder or tape deck

HTR-5450 only

•

When you connect your recording component to both the analog and digital input and output jacks, the priority is given to the digital signal.

HTR-5440 only

•

Connect the analog input/output jack of your recording component to the AUDIO jacks.

Notes

• When you connect a recording component to this unit, keep its

power on while using this unit. If the power is off, this unit may distort the sound from other components.

HTR-5450 only

•

Since digital output and analog output (REC OUT) are independent of each other, the analog signal is output only to the analog jack, while the digital signal is output only to the digital jack.

Connecting an External Decoder

This unit is equipped with 6 additional input jacks (left and right MAIN, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from an external decoder, sound processor or pre-amplifier.

Connect the output jacks on your external decoder to the 6CH INPUT jacks. Be sure to match the left and right outputs to the left and right input jacks for the main and surround channels.

Notes

• When you select 6CH INPUT as the input source, this unit

automatically turns off the digital sound field processor, and you cannot listen to DSP programs.

• When you select 6CH INPUT as the input source, changing items

of “1 SPEAKER SET” in the SET MENU is not affected (except “MAIN LVL”).

CONNECTIONS

OUTPUT

(HTR-5450/U.S.A. model)

CD player

DIGITAL

INPUT

COAXIAL

OPTICAL

D-TV/CBL

DVD

MD/CD-R

OPTICAL

MD/CD-R

DIGITAL

OUTPUT

COAXIAL OUTPUT

MAIN

RLR

AUX

6CH INPUT

SURROUND

AM ANT GND

CENTER

SUB WOOFER

IN(PLAY)

MD/CD-R

OUT(REC)

FM ANT

UNBAL.

DVD

D-TV/CBL

DVD

D-TV/CBL

AUDIO SIGNAL

TUNER

OUTPUT

VIDEO SIGNAL

VCR 1

OUT

MAIN

MONITOR OUT

VIDEO

S VIDEO

External decoder

SURROUND OUTPUT

SUB

WOOFER

OUTPUT

SUBWOOFER OUTPUT

CENTER OUTPUT

INTRODUCTION

PREPARATION

BASIC OPERATION

L R

Audio component

indicates signal direction

indicates left analog cables

indicates right analog cables

indicates optical cables

indicates coaxial cables

INPUT OUTPUTOUTPUT

OPTICAL

INPUT

L R

MD recorder or

CD recorder

L R

OPTICAL OUTPUT

ADVANCED OPERA

TION

APPENDIX

English

CONNECTIONS

Connecting Video Components

■ Audio signal jacks

Be sure to connect the right channel (R), left channel (L), input (IN) and output (OUT) properly.

■ Video signal jacks

Be sure to connect the input (IN) and output (OUT) properly.

■ S VIDEO jacks

DVD player

HTR-5450 only

Video monitor

If your video component has “S” (high-resolution) video jacks, they can be connected to this unit’s S VIDEO jacks.

S VIDEO OUT

Otherwise, connect the composite video jacks of your video component to this unit’s composite video jacks.

Notes

• Use a special S VIDEO cable (commercially available) for the S

VIDEO connection.

• If video signals are input from both the S VIDEO input and

composite input jacks, the signals will be directed to their respective output jacks.

S VIDEO OUT

TV/digital TV,

cable TV or

satellite tuner

DVD D-TV/CBLINVCR 1

S VIDEO OUT

VIDEO SIGNAL

VCR

MONITOR OUT

OUT

S VIDEO IN

VIDEO

S VIDEO

S VIDEO IN

S Video signal

Signal flow

■ VIDEO AUX jacks (on the front panel)

These jacks are used to connect any video input source such as a game console or camcorder to this unit.

HTR-5450 HTR-5440

S VIDEO VIDEO L AUDIO R OPTICAL

VIDEO L AUDIO R

VIDEO AUX

OPTICAL OUT

AUDIO OUT R

AUDIO OUT L

VIDEO OUT

S VIDEO OUT

Game console

or camcorder

VIDEO AUX

AUDIO OUT R

AUDIO OUT L

VIDEO OUT

Game console

or camcorder

OPTICAL

OUTPUT

CONNECTIONS

Video monitor

DVD player

INTRODUCTION

OPTICAL OUTPUT

AUDIO

OUTPUT

S VIDEO

OUTPUT

DIGITAL

INPUT

COAXIAL

OPTICAL

D-TV/CBL

MAIN

DVD

MD/CD-R

OPTICAL

MD/CD-R

AUX

DIGITAL

OUTPUT

S VIDEO OUTPUT

OUTPUT

TV/digital TV

or cable

TV/satellite tuner

6CH INPUT

SURROUND

RLR

VIDEO

VIDEO OUTPUT

AM ANT GND

CENTER

SUB WOOFER

IN(PLAY)

MD/CD-R

OUT(REC)

FM ANT

UNBAL.

DVD

D-TV/CBL

DVD

D-TV/CBL

AUDIO SIGNAL

S VIDEO

INPUT

TUNER

VIDEO SIGNAL

VCR 1

MONITOR OUT

OUT

VCR 1

AUDIO INPUT

VIDEO

S VIDEO

SUB

WOOFER

OUTPUT

S VIDEO OUTPUT

VIDEO INPUT

S VIDEO INPUT

VCR

AUDIO OUTPUTAUDIO OUTPUT VIDEO INPUT

(HTR-5450/U.S.A. model)

VIDEO OUTPUT

PREPARATION

BASIC OPERATION

ADVANCED OPERA

indicates signal direction

indicates left analog cables

indicates right analog cables

indicates optical cables

indicates video cables

indicates S-video cables

HTR-5450 only

When using an LD player

Connect the LD player output to the DVD jack. If the LD player has an OPTICAL digital output jack, connect it to this unit’s OPTICAL DVD jack. If it has analog jacks, connect it to the analog DVD jacks. If it has an “RF OUTPUT jack” to output a Dolby Digital RF signal (AC-3), use a commercially available RF demoduclator and connect it to the OPTICAL DVD jack. If connecting a DVD player and an LD player, connect the LD player to the digital input jack (ex. D-TV/CBL) or the analog input jack (D-TV/CBL or VCR 1). For details on connections and operations, refer to the operation instructions for the LD player. Note that this unit’s remote control can be used to operate the LD player by setting the corresponding manufacturer code for the DVD/LD mode.

TION

APPENDIX

English

CONNECTIONS

Connecting Speakers

Be sure to connect the right channel (R), left channel (L), “+” (red) and “–” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

CAUTION

• Use speakers with the specified impedance shown on the rear panel of this unit.

• Do not let the bare speaker wires touch each other and do not let them touch any metal part of this unit. This could

damage the unit and/or speakers.

■ Speaker cables

1 Remove approx. 10 mm (3/8”) of insulation

10 mm (3/8”)

from each of the speaker cables.

2 Twist the exposed wires of the cable together

■ Connecting to the MAIN SPEAKERS terminals

to prevent short circuits.

Red: positive (+) Black: negative (–)

1 Unscrew the knob. 2 Insert one bare wire into the hole in the side of

each terminal.

3 Tighten the knob to secure the wire.

(U.S.A., Canada, Australia, China and General models only)

• Banana plug connections are also possible. First, tighten the knob

Banana plug

and then insert the banana plug connector into the end of the corresponding terminal.

■ Connecting to the REAR and CENTER SPEAKERS terminals

Red: positive (+) Black: negative (–)

1 Open the tab. 2 Insert one bare wire into the hole of each

terminal.

3 Return the tab to secure the wire.

(U.S.A., Canada, Australia, China and General models only)

• Banana plug connections are also possible. First, open the tab and

then insert the banana plug connector into the end of the corresponding terminal.

■ Main speaker terminals

One or two speaker systems can be connected to these terminals. If you use only one speaker system, connect it to either of the SPEAKERS A or B terminals.

■ Rear speaker terminals

A rear speaker system can be connected to these terminals.

■ Center speaker terminals

A center speaker can be connected to these terminals.

CONNECTIONS

Right

Main speakers A

SUB

WOOFER

OUTPUT

SPEAKERS

–

R L

–

MAIN

CENTER REAR

–

(SURROUND)

Main speakers B

INTRODUCTION

Left

Right Left

(HTR-5450/U.S.A. model)

PREPARATION

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 8

MIN. /SPEAKER

A + B:16

A + B: 8

CENTER REAR

MIN. /SPEAKER MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 8

MIN. /SPEAKER

: 8

MIN. /SPEAKER

MAIN A OR B: 4

CENTER REAR

AC OUTLETS

SWITCHED 100W MAX.

TOTAL

BASIC OPERATION

Right Left

Subwoofer

Center speaker Rear speakers

system

■ Subwoofer connection

When using a subwoofer with built-in amplifier, including the YAMAHA Active Servo Processing Subwoofer System, connect the input jack of the subwoofer system to this jack. Low bass signals distributed from the main, center and/or rear channels are directed to this jack. (The cut-off frequency of this jack is 90 Hz.) The LFE (low-frequency effect) signals generated when Dolby Digital or DTS is decoded are also directed if they are assigned to this jack.

Notes

• Adjust the subwoofer volume according to the operation instructions for the subwoofer. (Fine adjustment is possible using this unit’s output level control of the effect speakers.)

• Depending on the settings of “1 SPEAKER SET”, “LFE LEVEL (5 DOLBY D. SET)” and “6 DTS SET” in the SET MENU, some signals may not be output from the SUBWOOFER jack.

ADVANCED OPERA

TION

APPENDIX

English

CONNECTIONS

IMPEDANCE SELECTOR Switch

WARNING

Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise the unit may be damaged. If this unit fails to turn on when STANDBY/ON (or POWER) is pressed, the IMPEDANCE SELECTOR switch may not be fully slid either position. If so, slide the switch to either position fully when this unit is in the standby mode.

Select the right or left position according to the impedance of speakers in your system. Be sure to move this switch only when this unit is in the standby mode.

(HTR-5450/General model)

Switch

Speaker

Impedance level

position

IMPEDANCE

SELECTOR

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 8

MIN. /SPEAKER

A + B:16

MIN. /SPEAKER

CENTER

: 8

MIN. /SPEAKER

REAR

: 8

A + B: 8

MIN. /SPEAKER MIN. /SPEAKER

: 6

MIN. /SPEAKER

: 6

MIN. /SPEAKER

MAIN A OR B: 4

CENTER REAR

AC OUTLETS

SWITCHED

Main

Left

Center The impedance must be 6 Ω or higher.

Rear The impedance of each speaker must be 6 Ω or higher.

If you use one set of main speakers, the impedance of

each speaker must be 4 Ω or higher. If you use two sets of main speakers, the impedance of

each speaker must be 8 Ω or higher.

If you use one set of main speakers, the impedance of

each speaker must be 8 Ω or higher. If you use two sets of main speakers, the impedance of

each speaker must be 16 Ω or higher.

Right

Main

[Canada model only] The impedance of each speaker must be 8 Ω or higher.

Center The impedance must be 8 Ω or higher.

Rear The impedance of each speaker must be 8 Ω or higher.

■ VOLTAGE SELECTOR (China and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are 110/120/220/240 V AC, 50/60 Hz.

Connecting the Power Supply Cords

After completing all connections, connect the AC power cord to an AC power outlet. Disconnect the AC power cord if you will not use this unit for a long period of time.

■ AC OUTLETS (SWITCHED)

(HTR-5450/U.S.A. model)

MAINS

IMPEDANCE SELECTOR

SET BEFORE POWER ON

MAIN A OR B: 4

A + B: 8

CENTER

: 6

REAR

: 6

MAIN A OR B: 8

A + B:16 CENTER REAR

MIN. /SPEAKER MIN. /SPEAKER MIN. /SPEAKER MIN. /SPEAKER

MIN. /SPEAKER MIN. /SPEAKER

: 8

MIN. /SPEAKER

: 8

MIN. /SPEAKER

AC OUTLETS

SWITCHED 100W MAX.

TOTAL

SWITCHED

To AC outlet

U.S.A., Canada, Singapore, China and

General models ................................................. 2 OUTLETS

Australia model ................................................... 1 OUTLET

Use these outlets to connect the power cords only from your audio/video components to this unit. The power to the AC OUTLET(S) is controlled by this unit’s STANDBY/ON (or POWER). These outlets will supply power to any connected component whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to the AC OUTLET(S) is 100 W (50 W for China and General models).

ADJUSTING THE SPEAKER BALANCE

2,6

TEST LEFT

TEST

RIGHT

TEST L SUR. TEST R SUR.

TEST CENTER

This procedure lets you adjust the sound output level balance between the main, center and rear speakers by using the built-in test tone generator. When this adjustment is performed, the sound output level heard at the listening position will be the same from each speaker. This is important for the best performance of the digital sound field processor, the Dolby Pro Logic decoder, Dolby Digital decoder and DTS decoder.

Note

• Since this unit cannot enter the test mode while headphones are connected to this unit, be sure to unplug the headphones from the PHONES jack when using the test tone.

Before You Start Adjusting

DIGITAL

STANDBY

/ON

BASS BALANCE SPEAKERS

–

SURROUND

TREBLE

–

OFF

1 Set the volume at the

minimum level.

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

FM/AM

TUNING MODE

VOLUME

2 Turn the power on.

STANDBY

/ON

3 Press SPEAKERS A or B

to select the main speakers to be used.

If you use two main speaker

SPEAKERS

systems, press both A and B.

4 Set BASS, TREBLE and BALANCE to the

center position.

BASS BALANCE

– +

TREBLE

– +

VOLUME

6CH INPUTINPUT MODE

INPUT

(HTR-5450)

OFF

Using the Test Tone

The adjustment of each speaker sound output level should be performed at your listening position with the remote control.

1 Press AMP(TUNER) on the

component selector.

2 Press TEST.

“TEST LEFT” appears on the display.

3 Turn up the volume.

You will hear a test tone (like pink noise) from each speaker for about two seconds in following order: left main speaker, center speaker, right main speaker, right rear speaker and left rear speaker. The display changes as shown below.

Notes

• If the test tone cannot be heard, turn down the volume, set the unit in the standby mode and check the speaker connections.

• If the test tone cannot be heard from the center speaker, check the setting of “CENTER SP” in the SET MENU.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

ADJUSTING THE SPEAKER BALANCE

4 Adjust BALANCE on the

BALANCE

front panel so that the sound output level of the right main speaker and the left main speaker is the

Front panel

same.

5 Press –/+ repeatedly to

adjust the output level of the speaker currently outputting the test tone so that it becomes almost the same as that of the main speakers.

While adjusting, the test tone is heard from the selected speaker.

6 When the adjustment is complete, press TEST.

The test tone stops.

Notes

• If “CENTER SP” in the SET MENU is set to the NON position, the sound output level of the center speaker cannot be adjusted in step 5. The center channel sound is automatically output from the right and left main speakers.

• For details on adjusting the subwoofer speaker, refer to “DELAY TIME AND SPEAKER OUTPUT LEVELS” on page 37.

• After adjusting with the test tone, it is possible to adjust the speaker level to taste while listening to the playback of an actual source. Refer to “DELAY TIME AND SPEAKER OUTPUT LEVELS” on page 37.

• Once you have completed the adjustments, you can only adjust the overall volume level of your audio system by using VOLUME (or VOLUME (u/d)).

• If there is insufficient sound output from the center and rear speakers, you may decrease the main speaker output level by setting “MAIN LVL” in the SET MENU to “–10 dB”.

BASIC OPERATION

PLAYING A SOURCE

When using the remote control, press AMP(TUNER) on the component selector.

VOLUME

FM/AM

INPUT

TUNING

MODE

STANDBY

/ON

BASS BALANCE SPEAKERS

TREBLE

– +

DIGITAL

SURROUND

OFFON

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

(HTR-5450)

1,6

6CH INPUTINPUT MODE

4 Select the desired input source with INPUT

l / h (or the input selector buttons). (Turn on

the video monitor for video sources.)

The name of the selected input source appears on the display.

INPUT

Front panel

Input source

To select a source connected to the 6CH INPUT jacks

Press 6CH INPUT so that “6CH INPUT” appears on the display.

6CH INPUT

Front panel

Remote control

INTRODUCTION

PREPARATION

BASIC OPERATION

1 Set the volume at the

minimum level.

2 Turn the power on.

STANDBY

/ON

Front panel Remote control

3 Press SPEAKERS A or B

to select the main speakers to be used.

If you use two main speaker systems, press both A and B.

VOLUME

Front panel

SPEAKERS

OFF

Front panel

Notes

• An audio source can not be played if “6CH INPUT” appears. Press 6CH INPUT to turn off “6CH INPUT”.

• If you select and play a video source when “6CH INPUT” appears, the playback result will be a video image from the video source and the sound from the audio source selected by using “6CH INPUT”.

• The current input mode is also shown. Refer to “Input Modes and Indications” on page 23 for details.

ADVANCED OPERA

TION

APPENDIX

English

PLAYING A SOURCE

5 Play the source.

Refer to the instructions for the source component (and “TUNING” for details).

Note

• When controlling an audio/video component (MD recorder, CD player, DVD player, tape deck, etc.) with the remote control, press one of the component selector buttons, (TAPE/MD, CD, DVD/ LD, etc.), which corresponds to the component you want to control. Refer to “PRESET REMOTE CONTROL”.

6 Adjust the volume to the desired output level.

VOLUME

Front panel Remote control

If desired, adjust BASS, TREBLE, BALANCE, etc. These controls are only effective for the sound from the main speakers.

• BASS controls the low-frequency response.

• TREBLE controls the high-frequency response.

• BALANCE adjusts the balance of the output volume

from the right and left main speakers.

BASS BALANCE

–

Front panel

TREBLE

–

7 Use the digital sound field processor.

Refer to “Selecting a DSP Program”.

■ Notes on the digital signal

HTR-5450 only

The digital input jacks of this unit can also handle 96-kHz sampling digital signals. (To utilize this, use a source that supports 96-kHz sampling digital signals and set the player for digital output. Refer to the operation instructions for the player.) Note the following when a 96-kHz sampling digital signal is input to this unit:

1. The following indication will appear on the display.

PCM

2. DSP programs cannot be selected. Sound will be output as normal 2-channel stereo sound from only the left and right main speakers.

Note

• If “MAIN SP” in the SET MENU is set to SMALL and “BASS OUT” is set to SWFR or “BASS OUT” is set to

BOTH, the sound is also output from the subwoofer.

3. Adjustment of the speaker output level described on page 37 cannot be made (except the level of the subwoofer)

■ BGV (background video) function

The BGV function allows you to combine a video image from a video source with a sound from an audio source. (For example, you can listen to classical music while you are watching a video.) This function can only be controlled with the remote control.

PROGRAM

Front panel

Remote control

■ To mute the sound

Use this when you want to temporarily mute audio output.

Press MUTE on the remote control.

To restore the audio output to the previous volume level, press MUTE again.

Note

• During muting, “MUTE ON” appears on the display.

■ When you have finished using this unit

Press STANDBY/ON (or POWER) to set this unit in the standby mode.

Play a video source, and then select an audio source with the input selector buttons on the remote control. The BGV function does not work if you select the audio source with INPUT l / h on the front panel.

PLAYING A SOURCE

Input Modes and Indications

When using the remote control, press AMP(TUNER) on the component selector.

This unit comes with various input jacks. If your component is connected to more than one type of input jack, you can set the priority of the input signal.

Press INPUT MODE (or the input selector button that you have pressed to select the input source on the remote control) repeatedly until the desired input mode is shown on the display.

INPUT MODE

Front panel

AUTO: In this mode, the input signal is

automatically selected in the following order:

1) Dolby Digital or DTS signal

2) Digital (PCM) signal

3) Analog signal

DTS: In this mode, only the digital input

signal encoded with DTS is selected even if another signal is input at the same time.

ANALOG (ANLG): In this mode, only the analog input

signal is selected even if a digital signal is input at the same time.

Notes

• If digital signals are input from both the COAXIAL and OPTICAL jacks, the digital signal from the COAXIAL jack is selected.

• When AUTO is selected, this unit automatically determines the type of signal. If this unit detects a Dolby Digital or DTS signal, the decoder automatically switches to the appropriate setting and reproduces 5.1 channel source.

• The sound output may be interrupted for some LD players and DVD players in the following situation: When the input mode has been set to AUTO and a search is performed while playing the source encoded with a Dolby Digital or DTS signal, the sound may delay for a moment when playback is resumed.

• Depending on the LD player, playback may not be made when playing an LD that is not digitally recorded with the input mode set to AUTO. If this happens, set the input mode to ANALOG.

Remote control

Input mode

■ Notes on playing a source encoded with a DTS signal

• If the digital output data of the player has been processed

in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.

• If you play a source encoded with a DTS signal and set

the input mode to ANALOG, this unit reproduces the noise of an unprocessed DTS signal. When you want to play a DTS source, be sure to connect the source to a digital input jack and set the input mode to AUTO or DTS.

• If you switch the input mode to ANALOG while playing

a source encoded with a DTS signal, this unit reproduces no sound.

• The following phenomena may occur if the input mode

is set to AUTO when playing back a source encoded with DTS:

– If you continue to play a source encoded with a DTS

signal, this unit automatically switches to the “DTS- decoding” mode to prevent noise from being generated during subsequent operation. (The “t” indicator lights up on the display.) The “t” indicator may flash immediately after playback of a source encoded with a DTS signal has finished. Only a source encoded with a DTS signal can be played back while this indicator is flashing. (The indicator will flash for less than a minute.) If you want to play a normal PCM source soon, set the input mode back to AUTO.

– The “t” indicator may flash when a search or skip

operation is performed. If this status continues for a certain length of time, the unit will automatically switch from the “DTS-decoding” mode to PCM digital signal input mode and the “t” indicator will go out.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

PLAYING A SOURCE

DSP

DIGITAL

MOVIE THEATER 1

BASS EXT.

Selecting a DSP Program

You can enhance your listening experience by selecting a DSP program. Refer to “SOUND FIELD PROGRAM” for details about each program.

• Make sure that the sound effect is turned on (see page 25).

■ On the remote control

1 Press AMP(TUNER) on the

component selector.

2 Press PRG+ or PRG–

repeatedly to select the desired program.

The name of the selected program appears for a moment and the selected DSP program indicator lights up on the display.

DIGITAL

DSP

MOVIE THEATER 1

DSP program name

BASS EXT.

■ On the front panel

FM/AM

TUNING

MODE

PROGRAM

VOLUME

6CH INPUTINPUT MODE

INPUT

DIGITAL

STANDBY

/ON

BASS BALANCE SPEAKERS

– +

SURROUND

TREBLE

OFF

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

– +

(HTR-5450)

PROGRAM /

Press PROGRAM l or h repeatedly to select the desired program.

The name of the selected program appears for a moment and the selected DSP program indicator lights up on the display.

DIGITAL

PROGRAM

PRESET/TUNINGEFFECT A/B/C/D/E

DSP program name

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

• If desired, adjust the delay time and the sound output level of each speaker. (Refer to “DELAY TIME AND SPEAKER OUTPUT LEVELS” on page 37 for details.)

Notes

• Choose a DSP program based on your listening preference, and not on the name of the program. The acoustics of your listening room affect the DSP program. Minimize the sound reflections in your room to maximize the effect created by the program.

• When you select an input source, this unit automatically selects the last DSP program used with that source.

• When you set this unit in the standby mode, the current source and DSP program are memorized and are automatically selected when you turn on the power again.

• If a Dolby Digital or DTS signal is input when the input mode is set to AUTO, the DSP program automatically switches to the appropriate decoding program.

• When a monaural source is being played with PRO LOGIC/ NORMAL or PRO LOGIC/ENHANCED, no sound will be heard from the main speakers and the rear speakers. Sound can only be heard from the center speaker. However, if “CENTER SP” in the SET MENU is set to NON, the center channel sound is output from the main speakers.

• When a source connected to the 6CH INPUT jack of this unit is selected, the digital sound field processor cannot be used.

HTR-5450 only

•

When 96-kHz sampling digital signals are input to this unit, the DSP program cannot be selected. In this case, the sound is reproduced as normal 2-channel stereo.

PLAYING A SOURCE

■ Virtual CINEMA DSP and SILENT CINEMA

Virtual CINEMA DSP

Virtual CINEMA DSP allows you to enjoy the sound field effects of the DSP program without rear speakers. Using YAMAHA original technology, natural surround reproduction is possible through the generation of a virtual speaker.

The sound field processing is changed to the Virtual CINEMA DSP mode by setting “REAR LR SP” on the SET MENU to NON. Virtual CINEMA DSP is performed by using the main speakers.

Note

• This unit is not set in the Virtual CINEMA DSP mode even if

“REAR LR SP” is set to NON in the following cases:

– when the 5CH STEREO, PRO LOGIC/NORMAL, DOLBY

DIGITAL/NORMAL or DTS/NORMAL program is selected;

– when the sound effect is turned off; – when 6CH INPUT is selected as the input source; – when the Dolby Digital KARAOKE source is played; – when using the test tone; – when connecting the headphones (you will hear SILENT

CINEMA); or

–

HTR-5450 only

when 96-kHz sampling digital signals are input to this unit.

Canceling the Sound Effect (turning off the effect speakers)

Press EFFECT to cancel the sound effect and monitor only the main sound.

Press EFFECT again to turn the sound effect back on.

EFFECT

Front panel

Notes

• If the sound effect is canceled when Dolby Digital or DTS is decoding, the sounds of the center and rear channels are mixed and output from the main speakers.

• If you turn off the sound effect when Dolby Digital or DTS is decoding, it may happen that the sound is output faintly or not output normally, depending on the source. In that case, turn back on the sound effect.

Remote control

INTRODUCTION

PREPARATION

BASIC OPERATION

SILENT CINEMA

SILENT CINEMA allows you to enjoy the realistic feel of the DSP program while using headphones. This feature delivers powerful surround reproduction just as if listening through the speakers.

You can listen to SILENT CINEMA by connecting your headphones to the PHONES jack while the effect speakers are on.

ADVANCED OPERA

TION

APPENDIX

English

TUNING

Connecting the Antennas

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength.

Connect each antenna correctly to the designated terminals.

FREQUENCY STEP switch (China and General models only)

FREQUENCY

100KH /10KH

FM/AM

Because the interstation frequency spacing

STEP

differs in different areas, set the

50KH

/9KH

FREQUENCY STEP switch (locating at the

rear) according to the frequency spacing in your area. North, Central and South America: 100 kHz/ 10 kHz Other area: 50 kHz/9 kHz Before setting this switch, disconnect the AC power plug of this unit from the AC outlet.

AM loop antenna (included)

AM ANT GND

TUNER

FM ANT

UNBAL.

(U.S.A. model)

Ground (GND terminal)

For maximum safety and minimum interference, connect the antenna GND terminal to a good earth ground. A good earth ground is a metal stake driven into moist earth.

Indoor FM antenna (included)

■ Connecting the indoor FM antenna

Connect the included indoor FM antenna to the FM ANT 75Ω UNBAL. terminal.

Note

• Do not connect an outdoor FM antenna and the indoor FM antenna at the same time.

■ Connecting the AM loop antenna

Antenna stand

1 Press and hold the tab to unlock the terminal

hole.

2 Insert the AM loop antenna lead wires into the

AM ANT and GND terminals.

3 Release the tab to lock the lead wires.

Lightly pull the lead wires to confirm a good connection.

4 Attach the loop antenna to the antenna stand. 5 Orient the AM loop antenna so that the best

reception is obtained.

• The AM loop antenna can be removed from the stand and attached to a wall, etc.

Notes

• The AM loop antenna should be placed away from this unit.

• The AM loop antenna should always be connected, even if an

outdoor AM antenna is connected to this unit.

A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about the outdoor antennas.

TUNING

Automatic Tuning

Automatic tuning is effective when station signals are strong and there is no interference.

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

STANDBY

/ON

BASS BALANCE SPEAKERS

TREBLE

– +

DIGITAL

SURROUND

OFF

(HTR-5450)

1 Use INPUT l / h to select

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

VOLUME

FM/AM

TUNING

MODE

INPUT

6CH INPUTINPUT MODE

INPUT

TUNER as the input source.

2 Press FM/AM to select the reception band (FM

or AM).

“FM” or “AM” appears on the display.

FM/AM

3 Press TUNING MODE (AUTO/MAN’L MONO) so

that the “AUTO” indicator lights up on the display.

TUNING

MODE

AUTO/MAN'L MONO

If “ z ” appears on the display next to the band indication, press PRESET/TUNING (EDIT) to turn it off.

PRESET /TUNING

EDIT

Lights up

Turn “ z ” off

Manual Tuning

If the signal from the station you want to select is weak, you must tune in to it manually.

1 Use INPUT l / h to select

INPUT

TUNER as input source.

2 Press FM/AM to select the reception band (FM

or AM).

“FM” or “AM” appears on the display.

FM/AM

3 Press TUNING MODE (AUTO/MAN’L MONO) so

that the “AUTO” indicator goes off.

TUNING

MODE

AUTO/MAN'L MONO

Goes off

If “ z ” appears on the display next to the band indication, press PRESET/TUNING (EDIT) to turn it off.

PRESET /TUNING

EDIT

Turn “ z ” off

4 Press PRESET/TUNING l or h to tune in to

the desired station.

To continue the tuning search, hold down the button.

Note

• If you tune in manually to an FM station, it will be automatically received in monaural mode to increase the signal quality.

PRESET/TUNING

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

4 Press PRESET/TUNING l once to tune in to a

lower frequency and h once to tune in to a higher frequency.

Press the button again if the tuning search does not stop at the desired station.

PRESET/TUNING

• Use the manual tuning method if the tuning search does not stop at the desired station (because the signal from the station is weak).

• When tuned in to a station, the “TUNED” indicator lights up and the frequency of the received station is shown on the display.

APPENDIX

English

TUNING

Automatic Preset Tuning (for FM stations only)

You can make use of the automatic preset tuning function for FM stations only. This function enables the unit to automatically tune in with strong signals and to sequentially store up to 40 FM stations (5 groups x 8 stations).

VOLUME

FM/AM

TUNING

MODE

6CH INPUTINPUT MODE

INPUT

STANDBY

/ON

BASS BALANCE SPEAKERS

TREBLE

– +

(HTR-5450)

DIGITAL

SURROUND

OFF

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

213

1 Press FM/AM to select the FM band.

FM/AM

2 Press TUNING MODE (AUTO/MAN’L MONO) so

that the “AUTO” indicator lights up on the display.

TUNING

MODE

AUTO/MAN'L MONO

Lights up

3 Hold down MEMORY (MAN’L/AUTO FM) for

about 3 seconds.

The preset number, the “MEMORY” and “AUTO” indicators flash. After about 5 seconds, automatic preset tuning begins from the frequency currently displayed toward the higher frequencies. Received stations are sequentially stored as A1, A2 ... A8. If more than 8 stations have been tuned, they are stored as preset station numbers in other groups (B, C, D and E) in that order.

MEMORY

MAN'L/AUTO FM

BASS EXT.

MEMORY

■ Automatic preset tuning options

You can select the preset number from which the unit will store FM stations and/or begin tuning toward lower frequencies. Before automatic preset tuning begins (after pressing MEMORY in step 3),

1. Press A/B/C/D/E and PRESET/TUNING l or h to

select the preset number with which the first station will be stored. The automatic preset tuning will stop when stations have all been stored up to E8.

2. Press PRESET/TUNING (EDIT) to turn “ z ” off and then press PRESET/TUNING l to begin tuning toward lower frequencies.

■ When automatic preset tuning is

completed

The display shows the frequency of the last preset station. Check the contents and the number of preset stations by following the procedure in the section “To Recall a Preset Station” on page 29.

Notes

• A new setting can be stored in place of the former one.

• The reception mode is stored along with the station frequency.

• You can manually replace a preset station with another FM or AM

station by simply using the manual preset tuning method.

• Even if the number of received stations is not enough to be stored

up to E8, automatic preset tuning is automatically ended after searching for all stations.

• Only FM stations with sufficient signal strength are stored by

automatic preset tuning. If the station you want to store is weak in signal strength, tune in to it manually in monaural mode and store it by using the manual preset tuning method.

Memory back-up

The memory back-up circuit prevents the stored data from being lost when this unit is set in the standby mode. If, however, the power cord is disconnected from the AC power outlet or the power is cut for more than one week, the memory will be erased. If so, store the stations again by using preset tuning methods.

AUTO

Flashes

TUNING

1 2

PRESET/TUNING

Manual Preset Tuning

You can also store up to 40 stations (5 groups x 8 stations) manually.

VOLUME

FM/AM

TUNING

MODE

6CH INPUTINPUT MODE

INPUT

STANDBY

/ON

TREBLE

BASS BALANCE SPEAKERS

– +

(HTR-5450)

DIGITAL

SURROUND

OFF

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET

/TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

2,5

1 Tune in to the desired station.

Refer to “Automatic/Manual Tuning” for the tuning procedure.

2 Press MEMORY (MAN’L/AUTO FM).

The “MEMORY” indicator flashes for about 5 seconds.

MEMORY

MAN'L/AUTO FM

Flashes

3 Press A/B/C/D/E repeatedly to select the

desired group (A to E) of preset stations before the “MEMORY” indicator goes off.

Make sure that “ z ” appears on the display. The selected group appears on the display.

A/B/C/D/E

4 Press PRESET/TUNING l or h to select a

preset station number (1 to 8) with which you want to store the station before the “MEMORY” indicator goes off.

Press l to select a lower preset

PRESET/TUNING

station number and h to select a higher preset station number.

5 Press MEMORY (MAN’L/AUTO FM) before the

“MEMORY” indicator goes off.

The displayed station has been stored as the preset group and number you have selected, and the reception band and frequency appear and the “TUNED” indicator lights up on the display.

MEMORY

MAN'L/AUTO FM

TUNED

To Recall a Preset Station

You can recall any desired station simply by selecting the preset station number with which it was stored.

You can also recall a preset station with the remote control. Press AMP(TUNER) on the component selector and press TUNER on the input selector.

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

STANDBY

/ON

TREBLE

BASS BALANCE SPEAKERS

– +

(HTR-5450)

DIGITAL

SURROUND

OFF

1 Press A/B/C/D/E to select the required group

of preset stations.

Make sure that “ z ” appears on the display.

A/B/C/D/E

Front panelorRemote control

2 Press PRESET/TUNING l or h (or PRESET

–/+) to select a preset station number (1 to 8).

The preset group and number appear on the display along with the reception band, frequency, and the “TUNED” indicator lights up.

STEREO

Front panel

AUTO

Remote control

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

TUNED

INTRODUCTION

VOLUME

FM/AM

TUNING MODE

6CH INPUTINPUT MODE

INPUT

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

AUTO

STEREO

6 Repeat steps 1 to 5 to store other stations.

Notes

• A new setting can be stored in place of the former one.

• The reception mode is stored along with the station frequency.

English

TUNING

Exchanging Preset Stations

You can exchange the assignment of two preset stations with each other.

Example: Exchange preset station “E1” with “A5”

VOLUME

FM/AM

TUNING

MODE

6CH INPUTINPUT MODE

INPUT

STANDBY

/ON

BASS BALANCE SPEAKERS

TREBLE

– +

DIGITAL

SURROUND

OFF

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET

/TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

(HTR-5450)

2,4

1 Recall preset station “E1”.

Refer to the procedure in the section “To Recall a Preset Station” on page 29.

2 Hold down (PRESET/

TUNING) EDIT for about 3 second.

PRESET

/TUNING

EDIT

“E1” and the “MEMORY” indicator flash.

BASS EXT.

MEMORY

Flashes

3 Recall preset station “A5” by using the buttons

on the front panel.

“A5” and the “MEMORY” indicator flash.

Flashes

4 Press (PRESET/TUNING)

EDIT again.

The display shows the exchange of stations has been completed.

BASS EXT.

MEMORY

PRESET /TUNING

EDIT

RECORDING A SOURCE

Recording adjustments and other operations are performed from the recording component. Refer to the instructions for these components.

DIGITAL

STANDBY

/ON

TREBLE

BASS BALANCE SPEAKERS

–

(HTR-5450)

SURROUND

OFF

DIGITAL

PROGRAM

PHONES S VIDEO VIDEO L AUDIO R OPTICAL

SILENT VIDEO AUX

PRESET/TUNINGEFFECT A/B/C/D/E

PRESET /TUNING

EDIT

MEMORY

MAN'L/AUTO FM AUTO/MAN'L MONO

FM/AM

TUNING

MODE

1,4

VOLUME

6CH INPUTINPUT MODE

INPUT

1 Set the volume at the

minimum level.

VOLUME

Front panel

2 Select the source you want to record.

INPUT

Front panel

Remote control

3 Begin recording by the recording component

connected to this unit.

4 Play the source and then turn up the volume to

confirm the input source.

VOLUME

Notes

• Do a test recording before you start an actual recording.

• When this unit is set in the standby mode, you cannot record

between other components connected to this unit.

• The DSP program and the setting of VOLUME, BASS, TREBLE and BALANCE have no effect on the material being recorded.

• A source connected to the 6CH INPUT jacks of this unit cannot be recorded.

• A given input source is not output on the same REC OUT channel. (For example, the signal input from VCR 1 IN is not output on VCR 1 OUT.)

• Check the copyright laws in your country to record from records, CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.

HTR-5450 only

•

Composite video and S video signals pass independently through this unit’s video circuits. Therefore, when recording or dubbing video signals, if your video source component is connected to provide only an S video (or only a composite video) signal, you can record only and an S video (or only a composite video) signal by your VCR.

If you play back a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture itself may be disturbed due to those signals.

■ Special considerations when

recording DTS software

HTR-5450 only

The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources that have DTS signals recorded on them, the following considerations and adjustments need to be made.

For DVDs and CDs encoded with DTS

Only 2-channel analog audio signals may be recorded. Set the DVD player (or CD player) as described in the player’s operation instructions so that the audio signals are output from the player’s analog outputs.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

Front panel

Remote control

English

ADVANCED OPERATION

SET MENU

The SET MENU consists of 9 items including the speaker mode setting. Use the SET MENU to enjoy the optimum audio/video playback for your system.

• You can adjust the items on the SET MENU while playing a source.

1 SPEAKER SET

CENTER SP

MAIN SP

REAR LR SP

BASS OUT

MAIN LVL

2 HP TONE CTRL

3 I/O ASSIGN

4 INPUT MODE

5 DOLBY D. SET

LFE LEVEL

D-RANGE

6 DTS SET

7 SP DLY TIME

8 DISPLAY SET

9 MEM. GUARD

1 Press AMP(TUNER) on the

component selector.

2 Press SET MENU to enter the SET MENU.

3 Press PRG– (or PRG+) repeatedly to select the

item (1 to 9) you want to adjust.

• By pressing SET MENU repeatedly, you can select items in the same order as when pressing PRG–.

4 Press – or + once to enter the setup mode of

the selected item.

The last setting you adjusted appears on the display.

Adjusting the Items on the SET MENU

Adjustment should be made with the remote control.

3,6

4,5 2

Note

• Some items require extra steps to change to the desired setting.

Depending on the item, press PRG– (or PRG+) to select a sub item.

5 Press – or + repeatedly to change the setting

of the item.

6 Press PRG– (or PRG+)

repeatedly until the input source name appears to exit from the SET MENU.

SET MENU

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cord is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the settings of the SET MENU you adjusted will return to the factory settings. If so, adjust the items again.

1 SPEAKER SET (speaker mode

settings)

Use this feature to select suitable output modes for your speaker configuration.

Notes

• When 6CH INPUT is selected as the input source, level adjustments in items of “1 SPEAKER SET” are not affected (except “MAIN LVL”).

HTR-5450 only

•

When 96-kHz sampling digital signals are input to this unit, level adjustments in items “MAIN SP”, “BASS OUT” and “MAIN LV L” are possible, but those in items “CENTER SP” and “REAR LR SP” are not affected.

■ MAIN SP (main speaker mode)

Choices: LARGE, SMALL Initial setting: LARGE

LARGE

Select this if you have large main speakers. The entire range of the left and right main channel signal is directed to the left and right main speakers.

SMALL

Select this if you have small main speakers. The lowfrequency signals (90 Hz and below) of the main channel are directed to the speakers selected with “BASS OUT”.

Note

• When you select MAIN for “BASS OUT”, the low-frequency signals (90 Hz and below) of the main channel are directed to the main speakers even if you select SMALL for the main speaker mode.

■ REAR LR SP (rear speaker mode)

Choices: LRG (large), SML (small), NON (none) Initial setting: LRG

INTRODUCTION

PREPARATION

BASIC OPERATION

■ CENTER SP (center speaker mode)

By adding a center speaker to your speaker configuration, the unit can provide good dialog localization for many listeners and superior synchronization of sound and images.

Choices: LRG (large), SML (small), NON (none) Initial setting: LRG

LRG

Select this if you have a large center speaker. The entire range of the center channel signal is directed to the center speaker.

SML

Select this if you have a small center speaker. The lowfrequency signals (90 Hz and below) of the center channel are directed to the speakers selected with “BASS OUT”.

NON

Select this if you do not have a center speaker. All of the center channel signals are directed to the left and right main speakers.

LRG

Select this if you have large left and right rear speakers or if a rear subwoofer is connected to the rear speakers. The entire range of the rear channel signal is directed to the left and right rear speakers.

SML

Select this if you have small left and right rear speakers. The low-frequency signals (90 Hz and below) of the rear channel are directed to the speakers selected with “BASS OUT”.

NON

Select this if you do not have rear speakers.

• This unit is set in the Virtual CINEMA DSP mode by selecting NON for “REAR LR SP”.

ADVANCED OPERA

TION

APPENDIX

English

SET MENU

■ BASS OUT (bass out mode)

LFE signals carry low-frequency effects when this unit decodes a Dolby Digital or DTS signal. Low-frequency signals are defined as 90 Hz and below.

Choices: SWFR (subwoofer), MAIN, BOTH Initial setting: BOTH

SWFR

Select this if you use a subwoofer. The LFE signals are directed to the subwoofer.

MAIN

Select this if you do not use a subwoofer. The LFE signals are directed to the main speakers.

BOTH

Select this if you use a subwoofer and you want to mix the main channel low-frequency signals with the LFE signals.

Notes

• When playing a 2-channel source (CD, MD, tape, video cassette etc.), select BOTH position to direct low bass signals (below 90 Hz) to the SUBWOOFER jack.

• When you select SMALL (SML) for items “CENTER SP”, “MAIN SP” and “REAR LR SP”, the low-frequency signals

(90 Hz and below) from those channels are added to the LFE and output to the subwoofer.

■ MAIN LVL (main level mode)

Change this setting if you cannot match the output level of the center and rear speakers with the main speakers because of the unusually high-efficiency performance of the main speakers.

Choices: NORM (normal), –10 dB Initial setting: NORM

2 HP TONE CTRL (headphone tone

control)

Use this feature to adjust the level of the bass and treble when you use your headphones.

Control range (dB): –6 to +3 Initial setting: 0 dB for both BASS and TRBL (treble)

3 I/O ASSIGN

It is possible to assign jacks according to the component to be used if this unit’s DIGITAL jack settings (component names for terminals) differ from that component. This makes it possible to change the jack assignment and effectively connect more component. Once you assign, you can select that component with INPUT l / h (or the input selector buttons).

HTR-5450

■ 3A (1) (for the OPTICAL OUTPUT jack)

Initial setting: (1) MD/CD-R

■ 3B (2) to (4) (for the OPTICAL INPUT jacks)

Initial settings: (2) MD/CD-R

(3) DVD (4) D-TV/CBL

NORM (normal)

Normally select this setting.

–10 dB

Select this if you cannot match the output level of your effect speakers with that of your main speakers when using the test tone. This setting decreases the main speaker output level to about one-third of the normal level.

SET MENU

■ 3C (5) (for the COAXIAL INPUT jack)

Initial setting: (5) CD

Note

• You cannot select an item more than once for the same type of

jack.

HTR-5440

■ 3A (1) and (2) (for the OPTICAL INPUT jacks)

Initial settings: (1) DVD

(2) D-TV/CBL

■ 3B (3) (for the COAXIAL INPUT jack)

Initial setting: (3) CD

5 DOLBY D. SET (Dolby Digital set)

This setting is effective only when this unit decodes Dolby Digital signals.

■ LFE LEVEL

Use this feature to adjust the output level of the LFE (lowfrequency effect) channel when playing back a Dolby Digital signal. The LFE signal carries the low-frequency special effect sound which is only added to certain scenes.

Control value (dB): –20 to 0 Initial setting: 0 dB

Notes

• Adjust the LFE level according to the capacity of your subwoofer.

• Normally, around –6 dB to –8 dB is most suitable for listening at

home.

HTR-5440

■ D-RANGE (dynamic range)

Use this feature to adjust the dynamic range (the difference between the maximum level and the minimum level of sounds).

INTRODUCTION

PREPARATION

BASIC OPERATION

Note

• You cannot select an item more than once for the same type of

jack.

4 INPUT MODE (initial input mode)

Use this feature to designate the input mode when turning on the power of this unit with the source component connected to more than one type of input jacks.

Choices: AUTO, LAST Initial setting: AUTO

AUTO

Select this to allow this unit to automatically detect the type of input signal and select the appropriate input mode.

LAST

Select this to set this unit to automatically select the last input mode used for that source.

Choices: MAX, STD (standard), MIN Initial setting: MAX

• Select MAX for feature films.

• Select STD for general use.

• Select MIN for listening to sources at an extremely low

volume level.

Dialog level

1.0

Output level

0.0

L-LEVEL BST

Input level

Output level

STD

H-LEVEL CUT

Dialog level

Input level

0.0

1.0

MAX

MIN

Dialog level

Output level

Input level

Note

• When you select MIN, the sound output may be faint because some Dolby Digital signals are not compatible with the minimum-level dynamic range. In this case, select MAX or STD.

ADVANCED OPERA

TION

APPENDIX

English

SET MENU

6 DTS SET (DTS LFE level)

This setting is effective only when this unit decodes DTS signals.

Use this feature to adjust the output level of the LFE (lowfrequency effect) channel when playing back a DTS signal. The LFE signal carries the low-frequency special effect sound which is only added to certain scenes.

Control range (dB): –10 to +10 Initial setting: 0 dB

Note

• Adjust the LFE level according to the capacity of your subwoofer.

7 SP DLY TIME (center delay)

Use this feature to adjust the delay of the center channel sound. This feature works when this unit decodes a Dolby Digital or DTS signal. Ideally, the center speaker should be the same distance from the listening position as the left and right main speakers. However, in most home situations, the center speaker is placed in line with the main speakers. By delaying the sound from the center speaker, the apparent distance from the center speaker to the listening position can be adjusted to make it seem the same as the distance between the left and right main speakers to the listening position. Adjusting the delay time for the center speaker is especially important for giving depth to the dialog.

Control range (ms): 0 to 5 Initial setting: 0 ms

8 DISPLAY SET

■ DIMMER

You can adjust the brightness of the display.

Control range : –4 to 0 Initial setting: 0

9 MEM. GUARD (memory guard)

Use this feature to prevent accidental changes to the setting of the SET MENU and other settings on this unit.

Choices: ON, OFF Initial setting: OFF

Select ON to protect the following features:

• All SET MENU items

• Center, rear speakers and subwoofer levels

• Delay time adjusted by using TIME/LEVEL

Notes

• When “9 MEM. GUARD” is set to ON, you cannot use the test

tone.

• When “9 MEM. GUARD” is set to ON, you cannot select any

other SET MENU items.

Center speaker image

• Increasing the delay by 1 ms simulates moving the speaker about 30 cm (one foot) farther away from the actual position of the center speaker.

DELAY TIME AND SPEAKER OUTPUT LEVELS

When using the digital sound field processor with the Dolby Pro Logic decoder, Dolby Digital decoder or DTS decoder, you can adjust the delay time between the main sound and sound effect, and each speaker’s output level as you wish.

Delay Time

You can adjust the time difference between the beginning of the sound from the main speakers and the beginning of the sound effect from the rear speakers. The larger the value, the later the sound effect is generated. The delay time can be individually adjusted to all DSP programs.

Notes

• Adding too much delay will cause an unnatural effect with some sources.

• The sound is momentarily interrupted while adjusting the delay time.

Program Preset value (ms)

1. CONCERT HALL 45

2. JAZZ CLUB 30

3. ROCK CONCERT 15

4. DISCO 26

5CH STEREO 2

GAME 36

5. TV SPORTS 10

6. MONO MOVIE 69

7. 70 mm SPECTACLE 23

DGTL SPECTACLE 13

DTS SPECTACLE 13 70 mm SCI-FI 20

DGTL SCI-FI 16

DTS SCI-FI 16

8. 70 mm ADVENTURE 20

DGTL ADVENTURE 15

DTS ADVENTURE 15 70 mm GENERAL 20

DGTL GENERAL 15

DTS GENERAL 15

9. PRO LOGIC/NORMAL 20

DOLBY DIGITAL/NORMAL 5

DTS DIGITAL SUR./NORMAL 5 PRO LOGIC/ENHANCED 20

DOLBY DIGITAL/ENHANCED 5

DTS DIGITAL SUR./ENHANCED 5

Sound Output Level of the Center, Right Rear and Left Rear Speakers, and Subwoofer

If desired, you can adjust the sound output level of each speaker even if it has already been adjusted in “ADJUSTING THE SPEAKER BALANCE” procedure.

Notes

• If “CENTER SP” in the SET MENU is set to the NON position, the sound output level of the center speaker cannot be adjusted. This is because the center channel sound is automatically output from the right and left main speakers.

• Once the sound output level has been adjusted, the level will be the same for all DSP programs.

Speaker Preset value (dB)

Center 0 Right rear 0

Left rear 0

Subwoofer 0

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

DELAY

CENTER

R SUR.

L SUR.

SWFR

DELAY TIME AND SPEAKER OUTPUT LEVELS

Adjusting Method

Adjustments should be performed with the remote control while watching the information on the display.

3 2

1 Press AMP(TUNER) on the

component selector.

2 Press TIME/LEVEL repeatedly to select the

item you want to adjust.

Each time you press TIME/LEVEL, the selected item changes and appears on the display as below.

3 Press – or + to adjust the

delay time or speaker output levels.

4 Repeat steps 2 and 3 to adjust the settings of

any other item.

Notes

• If “CENTER SP” or “REAR LR SP” is set to NON, or “BASS

OUT” is set to MAIN, the output level of that speaker cannot be adjusted.

• When you adjust the output level with TIME/LEVEL, the settings

you made with the test tone will be changed.

• To adjust speakers other than the subwoofer, the adjusting

procedure using test tones on page 19 is recommended.

Memory back-up

The memory back-up circuit prevents the stored data from being lost when this unit is set in the standby mode. If, however, the power cord is disconnected from the AC power outlet or the power is cut for more than one week, the latest values for the delay time and the center/rear/ subwoofer output levels that were set will automatically return to the preset values. If so, adjust the delay time and output levels again.

Delay time

Center speaker output level

Right rear speaker output level

Left rear speaker output level

Subwoofer output level

Note

• Depending on the setting of the SET MENU, you may not be able to select all these items.

SLEEP TIMER

The SLEEP timer can be used to automatically set this unit in the standby mode. This timer is useful when you are going to sleep while enjoying a broadcast or other desired input source. The SLEEP timer can only be set with the remote control.

Notes

• First press AMP(TUNER), TAPE/MD, CD or DVD/LD on the component selector to set the SLEEP timer for this unit.

• The SLEEP timer is effective for the components connected to the AC OUTLET(S) on the rear panel of this unit.

Setting the SLEEP Timer

1 Play a source you want to enjoy when you are

going to sleep.

2 Press SLEEP repeatedly to

select the desired SLEEP time.

Each time you press SLEEP, the SLEEP time will change as below:

120 90 60 30

The SLEEP timer is off

(SLEEP OFF).

(This is the state before

SLEEP is pressed.)

Canceling the SLEEP Timer

Press SLEEP repeatedly until “SLEEP OFF” appears on the display.

It will soon disappear and the “SLEEP” indicator will go off.

Note

• The SLEEP timer can also be canceled by setting the unit in the standby mode by using POWER on the remote control (or STANDBY/ON), or by disconnecting the AC power cord from the AC power outlet.

INTRODUCTION

PREPARATION

BASIC OPERATION

BASS EXT.

SLEEP

Flashes

3 The “SLEEP” indicator soon lights up on the

display after the SLEEP timer has been set.

The display returns to the previous indication.

STEREO

TUNED

SLEEP

Lights up

ADVANCED OPERA

TION

APPENDIX

English

PRESET REMOTE CONTROL

It is possible to control this unit and other YAMAHA A/V components using the remote control supplied with this unit. It is also possible to control components from other manufacturers (or some YAMAHA components) by setting the proper manufacturer code (a signal assigned to each manufacturer and component).

Note

• For the notes on batteries, operating distance and names and functions of the remote control, refer to each description in this manual.

Component Selector Buttons

There are eight component selector buttons. Press one of these buttons which corresponds to the component you want to control with the remote control. For example, if you press CD on the component selector, the remote control is set to the CD operation mode, allowing the CD player to be controlled.

AMP(TUNER)

You can perform the basic operations of this unit.

The code for a YAMAHA CD player is factory set.

DVD/LD & DVD MENU

An LD player can be controlled in the DVD/LD mode. A DVD player can be controlled in the DVD/LD and DVD MENU modes. The code for a YAMAHA DVD player is factory set.

TAPE/MD

The code for a YAMAHA MD deck is factory set. (The code for the YAMAHA CD recorder and tape deck can also be set.)

VCR

A VCR can be controlled.

A TV can be controlled.

CBL/SAT

A cable TV or satellite tuner can be controlled.

Notes

• The button functions on the remote control differ depending on the operation mode. Refer to the following pages for details.

• When shipped from the factory, the YAMAHA manufacturer codes listed on page 49 are set for each dial position. If unable to operate your

YAMAHA A/V component, please try using another YAMAHA code.

Controlling the Components

3 Turn on the power.

Connected to This Unit

4 Press CD on the input selector.

■ Example: To control YAMAHA CD player

5 Press CD on the

2 3

component selector.

6 Press p.

Refer to “Description of Each Mode” for the CD player operation buttons.

7 Adjust the volume.

1 Make sure that the volume is set at the

minimum level.

2 Press AMP(TUNER) on the

component selector.

If you set the remote control with the manufacturer codes listed from page i at the end of this manual, you can control other brands of components. Refer to “Setting the Manufacturer Code” for details.

Description of Each Mode

PRESET REMOTE CONTROL

■ TAPE/MD MODE

Note

• TV VOLUME functions if you have set the code for your TV.

POWER

This button turns this unit on if you have set the code for a YAMAHA tape deck, MD recorder or CD recorder. This button turns on the tape deck, MD recorder or CD recorder that has a remote control with a power button if you have set the code.

Press TAPE/MD.

Input selector buttons

6CH INPUT

EFFECT

INTRODUCTION

PREPARATION

BASIC OPERATION

VOLUME

MUTE

SLEEP

r REC/PAUSE

This button gives a pause in recording on a tape deck or MD recorder.

p PLAY

This button plays a tape, an MD or CD-R.

b DIR A (TAPE)

This button selects the playing direction of deck A.

SKIP– (MD/CD-R)

This button skips to the previous track.

w REWIND (TAPE)

This button rewinds a tape.

SEARCH (MD/CD-R)

This button initiates a backward search on the track that is playing to find the point from which you want to listen.

TV VOLUME

DISPLAY (MD/CD-R)

DECK A/B (TAPE)

This button selects deck A or B on a double-cassette tape deck.

e PAUSE (MD/CD-R)

This button gives a pause in operation.

a DIR B (TAPE)

This button selects the playing direction of deck B.

SKIP+ (MD/CD-R)

This button skips to the next track.

s STOP

This button stops operation on a tape deck, MD recorder or CD recorder.

f FAST FORWARD (TAPE)

This button winds a tape fast forward.

SEARCH (MD/CD-R)

This button initiates a fast-forward search on the track that is playing to find the point from which you want to listen.

• The dark-shaded buttons do not function even if you have set up the manufacturer code.

• Some of them may not function depending on the component you have. In this case, use the original remote control

supplied with your component.

ADVANCED OPERA

TION

APPENDIX

English

PRESET REMOTE CONTROL

■ CD MODE

Note

• TV VOLUME and TV INPUT function if you have set the code for your TV.

Press CD.

POWER

This button turns this unit on if you have set the code for a YAMAHA CD player. This button turns on the CD player that has a remote control with a power button if you have set the code.

VOLUME

Input selector buttons

6CH INPUT

EFFECT

DISC SKIP –/+ (for a CD player with CD changer)

These buttons skip to the next or previous CD.

PAUSE/STOP function

Press the button once to give a pause in operation and press once more to

MUTE

SLEEP

stop operation.

p PLAY

This button plays a CD.

b SKIP–

This button skips to the beginning of the previous track.

w SEARCH

This button initiates a backward search on the track that is playing to find the point from which you want to listen.

TV VOLUME

DISPLAY

TV INPUT

e PAUSE

This button gives a pause in operation. The button functions as PAUSE/STOP* for operating a YAMAHA CD player under factory setting.

a SKIP+

This button skips to the beginning of the next track.

s STOP

This button stops operation. The button functions as PAUSE/STOP* for operating YAMAHA CD players.

f SEARCH

This button initiates a fast-forward search on the track that is playing to find the point from which you want to listen.

• The dark-shaded buttons do not function even if you have set up the manufacturer code.

• Some of them may not function depending on the component you have. In this case, use the original remote control

supplied with your component.

■ DVD/LD MODE

Note

• TV VOLUME and TV INPUT function if you have set the code for your TV.

Press DVD/LD.

POWER

This button turns this unit on if you have set the code for a YAMAHA DVD or LD player. This button turns on the DVD or LD player that has a remote control with a power button if you have set the code.

VOLUME

MUTE

SLEEP

PAUSE

SKIP –

STOP

Input selector buttons

6CH INPUT

EFFECT

DISC SKIP –/+

TV VOLUME

DISPLAY

TV INPUT

SKIP + PLAY

PRESET REMOTE CONTROL

INTRODUCTION

PREPARATION

BASIC OPERATION

■ DVD MENU MODE

Notes

• TV VOLUME and TV INPUT function if you have set the code for your TV.

• DVD MENU operations cannot be performed for some DVD players.

Press DVD MENU.

POWER

DISC SKIP –/+

VOLUME

MUTE

RETURN

MENU UP

MENU LEFT

MENU DOWN

TITLE

Numeric buttons

CLEAR +10

TV VOLUME

INDEX

TV INPUT

MENU RIGHT MENU SELECT

ADVANCED OPERA

TION

APPENDIX

• The dark-shaded buttons do not function even if you have set up the manufacturer code.

• Some of them may not function depending on the component you have. In this case, use the original remote control

supplied with your component.

English

PRESET REMOTE CONTROL

■ VCR MODE

Note

• TV VOLUME, TV INPUT and TV SLEEP function if you have

set the code for your TV.

VCR POWER

VCR CHANNEL –/+

VOLUME

MUTE

TV SLEEP

VCR REC

Press this button twice to start recording.

VCR STOP

VCR REWIND

Press VCR.

CHANNEL

EFFECT

CHANNEL ENTER

TV VOLUME

DISPLAY

TV INPUT

VCR PAUSE

VCR PLAY VCR

FAST FORWARD

■ CBL/SAT MODE

Note

• TV VOLUME, TV INPUT and TV SLEEP function if you have set the code for your TV.

CBL/SAT POWER

Press CBL/SAT.

CHANNEL

+100

CBL/SAT

CHANNEL –/+

VOLUME

MUTE

TV SLEEP

MENU UP

MENU LEFT

MENU DOWN

RECALL

CHANNEL ENTER

TV VOLUME

DISPLAY

TV INPUT

MENU RIGHT MENU SELECT

■ TV MODE

Note

• You can control your VCR if you have set the code for it.

TV POWER

TV CHANNEL –/+

VOLUME

TV MUTE

TV SLEEP

VCR REC

Press this button twice.

VCR STOP

VCR REWIND

• The dark-shaded buttons do not function even if you have set up the manufacturer code.

• Some of them may not function depending on the component you have. In this case, use the original remote control

supplied with your component.

Press TV.

CHANNEL

EFFECT

CHANNEL ENTER

TV VOLUME

DISPLAY TV INPUT

VCR PAUSE

VCR PLAY VCR FAST FORWARD

PRESET REMOTE CONTROL

Setting the Manufacturer Code

You can set the code for the manufacturer of your component after pressing the component selector buttons other than AMP(TUNER).

1 Turn on your component to be used. 2 Press one of the

component selector buttons which corresponds to the component to be controlled.

3 Press both VOLUME

buttons (u/d) at the same time for about four seconds.

The indicator flashes twice.

4 Use the numeric buttons to

enter the four-digit manufacturer code for the component to be used. Make sure that the indicator flashes twice.

If the indicator does not flash, repeat step 3 and re-enter the code.

5 Press POWER (or any other button) on the

remote control to check if you have set the code correctly.

If your component cannot be controlled with the remote control, try setting another code for the same manufacturer.

Notes

• You can set only one code for one mode.

• In the DVD/LD and DVD MENU modes:

Be sure to press DVD/LD on the component selector before entering the code for the DVD/LD player. You cannot set the code for a DVD player after pressing DVD MENU on the component selector. The code set in the DVD/LD mode is also simultaneously set in the DVD MENU mode.

• If your component does not respond to any of the codes listed for the manufacturer, use the original remote control supplied with your component.

■ To use a second (and third) VCR

You can control a second (and third) VCR in the CBL/SAT and DVD MENU modes if a cable TV or satellite tuner, or DVD player is not being used.

Note

• In order to set a second (and third) VCR in the DVD MENU mode, it is necessary to first set up the code for an LD player in the DVD/LD mode.

1 Turn on the VCR to be used. 2 Press CBL/SAT or DVD

MENU on the component selector.

3 Press both VOLUME

buttons (u/d) at the same time for about four seconds.

The indicator flashes twice.

4 Use the numeric buttons to

enter the four-digit code for the second (and third) VCR. Make sure that the indicator flashes twice.

If the indicator does not flash, repeat step 3 and re-enter the code.

5 Press POWER (or any other button) on the

remote control to check if you have set the code correctly.

If the VCR cannot be controlled with the remote control, try setting another code for the same manufacturer.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

PRESET REMOTE CONTROL

Returning to the Factory Setting

■ To return to the factory-set codes in all modes

1 Press one of the

component selector buttons other than AMP(TUNER).

2 Press both VOLUME

buttons (u/d) at the same time for about four seconds.

The indicator flashes twice.

3 Enter the code number

“9990”.

Make sure that the indicator flashes twice.

■ To return to the factory-set codes in each mode

1 Press one of the

component selector buttons which corresponds to the component to be returned to the factory-set code.

2 Press both VOLUME

buttons (u/d) at the same time for about four seconds.

The indicator flashes twice.

3 Enter the code number

“0000”.

Make sure that the indicator flashes twice.

The following codes are factory set.

Component selector button Component Code Set component Set code

TV TV 0101

CBL/SAT Cable TV 0006 VCR VCR 0002

DVD/LD DVD player 0008 (YAMAHA DVD player)

CD CD player 0005 (YAMAHA CD player) TAPE/MD MD recorder 0024 (YAMAHA MD recorder)

We recommend that you write all the code numbers you have set on the table above.

SOUND FIELD PROGRAM

A digital sound field processor (DSP) based on the latest YAMAHA technology is built into this unit. It is possible to play back various sound fields for the source you are listening to.

Note

• Regardless of the program name and characteristics listed in the table below, select the sound field program that sounds best to you.

Hi-Fi DSP Programs

■ For audio sources: Nos. 1 to 4

No. Program (group) Sub-program Features

1 CONCERT HALL —

2 JAZZ CLUB —

3 ROCK CONCERT —

4 ENTERTAINMENT DISCO

5CH STEREO

A large round concert hall with a rich surround effect. Pronounced reflections from all directions emphasize the extension of sounds. The sound field has a great deal of presence, and your virtual seat is near the center, close to the stage.

This is the sound field at stage front in “The Bottom Line”, a famous New York jazz club. The floor can seat 300 people to the left and right in a sound field offering a real and vibrant sound.

The ideal program for lively, dynamic rock music. The data for this program was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-left of the hall.

This program recreates the acoustic environment of a lively disco in the heart of a big city. The sound is dense and highly concentrated. It is also characterized by a highenergy, “immediate” sound.

Using this program increases the listening position range. This is a sound field suitable for background music at parties.

INTRODUCTION PREPARATION

BASIC OPERATION

Note

• Reverberations (sound effects) for realizing the sound field and unprocessed stereo from the left and right main speakers is output. The sound is not output from the center speaker. (The sound is output when one of these programs is selected while playing a source encoded with a Dolby Digital or DTS signal. If 5CH STEREO is selected, the sound is output from all speakers regardless of the input source.)

CINEMA DSP Programs

■ For audio-video sources: Nos. 4 to 6

No. Program (group) Sub-program Features

4 ENTERTAINMENT GAME

5 TV SPORTS — Although the presence sound field is relatively narrow, the surround sound field

6 MONO MOVIE —

This program adds a deep and spatial feeling to video game sounds.

employs the sound environment of a large concert hall. With this program, you can enjoy watching various TV programs such as news, variety shows, music programs or sports programs. In a stereo broadcast of a sports game, the commentator is oriented at the center position, and the shouts and the atmosphere in the stadium spread on the surround side, while their spread to the rear is properly restrained.

This program is provided for reproducing monaural video sources (such as old movies). The program produces the optimum reverberation to create sound depth by using only the presence sound field.

ADVANCED OPERA

TION

APPENDIX

English

SOUND FIELD PROGRAM

■ For movie programs: Nos. 7 to 9

No. Program (group) Sub-program Input source Features

7 MOVIE THEATER 1 SPECTACLE 70 mm

SPECTACLE

DGTL SPECTACLE

DTS SPECTACLE DTS

Analog, PCM, Dolby Digital in 2-channel

Dolby Digital (5.1-channel)

This program creates the extremely wide sound field of a 70-mm movie theater. It precisely reproduces the source sound in detail, making both the video and the sound field incredibly real. This is ideal for any kind of video source encoded with Dolby Surround, Dolby Digital or DTS (especially large-scale movie productions).

SCI-FI 70 mm SCI-FI Analog, PCM,

DGTL SCI-FI Dolby Digital

DTS SCI-FI DTS

8 MOVIE THEATER 2 ADVENTURE 70 mm

ADVENTURE

DGTL ADVENTURE

DTS ADVENTURE DTS

GENERAL 70 mm GENERAL This program is for reproducing sounds from

DGTL GENERAL Dolby Digital

DTS GENERAL DTS

9 q/DTS

SURROUND

NORMAL PRO LOGIC/

NORMAL

DOLBY DIGITAL/ NORMAL

DTS DIGITAL SUR./NORMAL

ENHANCED PRO LOGIC/

ENHANCED

DOLBY DIGITAL/ ENHANCED

DTS DIGITAL SUR./ ENHANCED

Dolby Digital in 2-channel

(5.1-channel)

Analog, PCM, Dolby Digital in 2-channel

Dolby Digital (5.1-channel)

Analog, PCM, Dolby Digital in 2-channel

(5.1-channel)

Analog, PCM, Dolby Digital in 2-channel

Dolby Digital (5.1-channel)

DTS

Analog, PCM, Dolby Digital in 2-channel

Dolby Digital (5.1-channel)

DTS

This program clearly reproduces dialog and sound effects in the latest sound form of science fiction films, thus creating a broad and expansive cinematic space amid the silence. You can enjoy science fiction films in a virtual-space sound field that includes Dolby Surround, Dolby Digital and DTS-encoded software employing the most advanced techniques.

This program is ideal for precisely reproducing the sound design of the newest 70-mm and multichannel soundtrack films. The sound field is made to be similar to that of the newest movie theaters, so the reverberations of the sound field itself are restrained as much as possible.

70-mm and multichannel soundtrack films, and is characterized by a soft and extensive sound field. The presence sound field is relatively narrow. It spatially spreads all around and toward the screen, restraining the echo effect of conversations without losing clarity. For the surround sound field, the harmony of music or chorus sounds beautifully in a wide space at the rear of the sound field.

The built-in decoder precisely reproduces sounds and sound effects from sources. The highly efficient decoding process improves crosstalk and channel separation, and makes sound positioning smoother and more precise. In this program, the digital sound field processor is not turned on.

This program ideally simulates the multi-surround speaker systems of the 35-mm film theaters. Dolby Pro Logic decoding, Dolby Digital decoding or DTS decoding and digital sound field processing create precise effects without altering the original sound orientation. The surround effects produced by this sound field wrap around the viewer naturally from the back to the left and right, and toward the screen.

Notes

• The “ x ” indicator does not light up when selecting the sub-program “NORMAL” of the q/DTS SURROUND program.

• If “CENTER SP” in the SET MENU is set to NON, no sound is output from the center speaker.

• The effect sound is output from the main speakers when a monaural source is played with CINEMA DSP program groups 4 (GAME) and 5

to 8.

SOUND FIELD PROGRAM

■ MOVIE THEATER 1 and 2

Most commercially available movie software has 4-channel (left, center, right and surround) sound information encoded by Dolby Surround matrix processing and stored on the left and right tracks. These signals are processed by the Dolby Pro Logic decoder. The MOVIE THEATER programs are designed to recreate the spaciousness and delicate nuances of sound that tend to be lost in the encoding and decoding processes.

The 6-channel soundtracks found on 70-mm film produce precise sound field localization and rich, deep sound without using matrix processing. This unit’s MOVIE THEATER 70 mm programs provide the same quality of sound and sound localization that 6-channel soundtracks do.

When the input source is analog, PCM or encoded with Dolby Digital in 2-channel

These programs express an immense sound field and a large

Presence DSP sound field

Surround DSP sound field

The built-in Dolby Digital or DTS decoder brings the professional-quality sound designed for movie theaters into your home. With the unit’s MOVIE THEATER programs, you can recreate a dynamic sound that gives you the feeling of being at a public theater in your listening room by using Dolby Digital or DTS technology.

surround effect. They also give depth to the sound from the main speakers to recreate the realistic sound of a Dolby Stereo theater.

70 mm SPECTACLE 70 mm SCI-FI 70 mm ADVENTURE 70 mm GENERAL

INTRODUCTION PREPARATION

BASIC OPERATION

When the input source is encoded with Dolby Digital (5.1-channel) or DTS (Tri-Field CINEMA DSP)

These programs use YAMAHA’s tri-field DSP processing on each of the Dolby Digital or DTS signals for the front, left surround and right surround channels. This processing enables this unit to reproduce the immense sound field and surround

Presence DSP sound field

expression of a Dolby Digital- or DTS-equipped movie theater without sacrificing the clear separation of all channels.

DGTL SPECTACLE DTS SPECTACLE DGTL SCI-FI DTS SCI-FI

Left surround DSP sound field

Right surround DSP sound field

DGTL ADVENTURE DTS ADVENTURE DGTL GENERAL DTS GENERAL

• If a Dolby Digital signal or DTS signal is input when the input mode is set to AUTO, the DSP program will be automatically switched to the Dolby Digital playback sound field or DTS playback sound field.

ADVANCED OPERA

TION

APPENDIX

English

APPENDIX

TROUBLESHOOTING

Refer to the chart below when the unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, set this unit in the standby mode, disconnect the power cord and contact the nearest authorized YAMAHA dealer or service center.

■ General

Problem Cause Remedy

The unit fails to turn on when STANDBY/ON (or POWER) is pressed, or enters in the standby mode soon after the power has been turned on.

No sound and/or no picture.

The picture does not appear.

The sound suddenly goes off.

Only the speaker on one side can be heard.

The power cord is not connected or the plug is not completely inserted.

The IMPEDANCE SELECTOR switch on the rear panel is not fully set to the left or right position.

The protection circuit has been activated.

Incorrect input or output cable connections. Connect the cables properly. If the problem

An appropriate input source has not been selected.

The speaker connections are not secure. Secure the connections.

The main speakers to be used have not been selected properly.

The volume is turned down. Turn up the volume.

The sound is muted.

Digital signals other than PCM audio, Dolby Digital or DTS signal which this unit cannot reproduce are being input to this unit by playing a CD-ROM, etc.

The output and input for the video are connected to different types of video jacks.

HTR-5450 only

The protection circuit has been activated because of a short circuit, etc.

The sleep timer has functioned.

The sound is muted.

Incorrect cable connections. Connect the cables properly. If the problem

Firmly connect the power cord.

Set the switch fully to the left or right position when the unit is in the standby mode.

Make sure all speaker wire connections on this unit and on all speakers are secure and that the wire for each connection does not touch anything other than its respective connection.

persists, the cables may be defective.

Select an appropriate input source with INPUT l / h or 6CH INPUT (or the input selector buttons).

Select the main speakers with SPEAKERS A and/or B.

Press MUTE or any operation buttons to cancel a mute and adjust the volume.

Play a source whose signals this unit can reproduce.

Make connections using the same type of jack (between composites, S-VIDEOs, or components) for both the input and output.

HTR-5450 only

Check the IMPEDANCE SELECTOR switch is set to the appropriate position and then turn the unit back on.

Check the speaker wires are not touching each other and then turn the unit back on.

Turn on the power, and play the source again.

Press MUTE or any operation buttons to cancel a mute and adjust the volume.

persists, the cables may be defective.

Refer to page

16, 17

12 – 15

16, 17

—

14, 15

16, 17

12 – 17

TROUBLESHOOTING

Problem Cause Remedy

No sound from the effect speakers.

No sound from the center speaker.

No sound from the rear speakers.

No sound from the subwoofer.

Poor bass reproduction.

A “humming” sound can be heard.

The sound effect is off.

A Dolby Surround, Dolby Digital or DTS decoding DSP program is being used with material not encoded with Dolby Surround, Dolby Digital or DTS.

A 96-kHz sampling digital signal is being input to this unit.

The output level of the center speaker is set to minimum.

“CENTER SP” in the SET MENU is set to NON.

One of the Hi-Fi DSP programs (1 to 4) has been selected.

The source encoded with a Dolby Digital or DTS signal does not have a center channel signal.

The output level of the rear speakers is set to minimum.

A monaural source is being played with the program 9.

“BASS OUT” in the SET MENU is set to MAIN when a Dolby Digital or DTS signal is being played.

“BASS OUT” in the SET MENU is set to SWFR or MAIN when a 2-channel source is being played.

The source does not contain low bass signals (90 Hz and below).

“BASS OUT” in the SET MENU is set to SWFR or BOTH and your system does not include a subwoofer.

The output mode for each speaker (main, center or rear) in the SET MENU does not match your speaker configuration.

Incorrect cable connections.

HTR-5450 only

Press EFFECT to turn it on.

Select another DSP program.

Raise the level of the center speaker.

Select the appropriate mode for your center speaker.

Select another DSP program.

Raise the output level of the rear speakers.

Select another DSP program.

Select SWFR or BOTH.

Select BOTH.

Select MAIN.

Select the appropriate output mode for each speaker based on the size of the speakers in your configuration.

Firmly connect the audio plugs. If the problem persists, the cables may be defective.

Refer to page

47, 48

—

47, 48

—

33, 34

12 – 15

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

TROUBLESHOOTING

Problem Cause Remedy

The volume level cannot be increased, or the sound is distorted.

The effect and surround sounds cannot be recorded.

A source cannot be recorded.

The settings of the SET MENU and some other settings on this unit cannot be changed.

This unit does not operate properly.

The sound is degraded when listening with headphones connected to a tape deck or CD player that is connected to this unit.

There is noise interference from digital or high-frequency equipment, or the unit.

The component connected to the REC OUT jacks of this unit is turned off.

It is not possible to record the effect and surround sounds by a recording component.

An analog source is being input during digital recording.

A source component and recording component are not digitally connected to the unit.

A digital source is being input during analog recording.

A source component and recording component are not analog connected to the unit.

“9 MEM. GUARD” in the SET MENU is set to ON.

The internal microcomputer has been frozen by an external electric shock (such as lightning or excessive static electricity) or by a power supply with low voltage.

This unit is in the standby mode.

The unit is too close to the digital or highfrequency equipment.

HTR-5450 only

Turn on the power to the component.

Input a digital source.

Make digital connections.

Input an analog source.

Make analog connections.

Select OFF.

Disconnect the AC power cord from the outlet and then plug it in again after about 30 seconds.

Turn on the power of the unit.

Move the unit further away from such equipment.

HTR-5450 only

Refer to page

—

12 – 15

—

■ Tuner

Problem

FM stereo reception is noisy.

There is distortion, and clear reception cannot be obtained even with a good FM

antenna.

The desired station cannot be tuned in with the automatic tuning method.

Previously preset stations can no longer be tuned in.

The desired station cannot be tuned in with the automatic tuning method.

There are continuous crackling and hissing noises.

There are buzzing and whining noises (especially in the evening).

Cause

The characteristics of FM stereo broadcasts may cause this problem when the transmitter is too far away or the antenna input is poor.

There is multipath interference. Adjust the antenna position to eliminate

The station is too weak.

The unit has been disconnected for a long period.

The signal is weak or the antenna connections are loose.

Noises result from lightning, fluorescent lamps, motors, thermostats and other electrical equipment.

A TV set is being used nearby.

Check the antenna connections. Try using a high-quality directional FM antenna.

Use the manual tuning method.

multipath interference.

Use the manual tuning method.

Use a high-quality directional FM antenna.

Re-store the stations.

Tighten the AM loop antenna connections and orient it for best reception.

Use the manual tuning method.

Use an outdoor antenna and a ground wire. This will help somewhat, but it is difficult to eliminate all noise.

Move this unit away from the TV.

Remedy

TROUBLESHOOTING

Refer to page

—

INTRODUCTION

PREPARATION

BASIC OPERATION

■ Remote control

Problem Cause Remedy

The remote control does not work nor function properly.

The unit or other component cannot be controlled.

Wrong distance or angle. The remote control will function within a

Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is striking the remote control sensor of this unit.

The batteries are weak.

The component to be controlled has not been selected.

The remote control cannot control system components.

The manufacturer code has not been set up properly.

Depending on the manufacturer or the model, some components cannot be controlled with this unit’s remote control even though the code has been set up properly.

maximum range of 6 m (20 feet) and no more than 30 degrees off-axis from the front panel.

Reposition the unit.

Replace all batteries with new ones.

Press one of the component selector buttons, corresponding to the component to be controlled.

Enter the code again.

Try setting another code for the same manufacturer.

Use the original remote control supplied with your component.

After this unit has been exposed to a strong external electric shock (such as lightning and strong static electricity) or if you mishandle the operation of this unit, it may not function properly. In these cases, set this unit in the standby mode, disconnect the power cord, plug it back in after 30 seconds, and start operating.

Refer to page

—

ADVANCED OPERA

TION

APPENDIX

English

SPECIFICATIONS (HTR-5450)

AUDIO SECTION

• Minimum RMS Output Power for Main, Center, Rear

20 Hz to 20 kHz, 0.06% THD, 8 ohms

[U.S.A. and Canada models] ................................................... 80 W

[Singapore, China and General models] ................................. 70 W

• Maximum power

1 kHz, 0.7% THD, 8 ohms ....................................................... 100 W

• Maximum Power (EIAJ)

[China and General models]

1 kHz, 10% THD, 8 ohms ........................................................ 100 W

• Dynamic Power (IHF)

8/6/4/2 ohms

[U.S.A. and Canada models] ........................... 105/125/145/165 W

[China and General models] .............................. 95/115/135/155 W

• Damping Factor

20 Hz to 20 kHz, 8 ohms ................................................... 60 or more

• Frequency Response

CD, etc. to Main L/R (1 kHz, 150 mV, 8 ohms)

................................................................ 20 Hz to 20 kHz, ±0.5 dB

• Total Harmonic Distortion

CD, etc. to Main L/R (Effect Off, 20 Hz to 20 kHz, 30 W, 8 ohms)

.................................................................................. 0.025% or less

• Signal to Noise Ratio (IHF-A Network)

CD, etc. to Main L/R (Effect Off, 250 mV, shorted)

................................................................................ 100 dB or more

• Residual Noise (IHF-A Network)

Main L/R ..................................................................... 150 µV or less

• Channel Separation

CD, etc. to MAIN L/R (1 kHz).................................................. 60 dB

(10 kHz) ................................................ 45 dB

• Tone Control (Main L/R)

BASS Boost/Cut ........................................................... ±10 dB/50 Hz

TREBLE Boost/Cut .................................................... ±10 dB/20 kHz

• Phones Output .......................................................... 490 mV/390 ohms

• Input Sensitivity

CD, etc ...................................................................150 mV/47 kohms

6CH INPUT ........................................................... 150 mV/47 kohms

• Maximum Input Signal

CD, etc. (1 kHz, 0.5% THD) ........................................ 2.2 V or more

• Output Level

REC OUT ............................................................. 150 mV/1.2 kohms

SUBWOOFER ......................................................... 4.0 V/1.2 kohms

VIDEO SECTION

• Video Signal Type

[U.S.A., Canada, China and General models] .......................... NTSC

[Australia and Singapore models] ............................................... PAL

• Composite Video Signal Level .................................... 1 Vp-p/75 ohms

• S-Video Signal Level

Y ............................................................................... 1 Vp-p/75 ohms

C ........................................................................ 0.286 Vp-p/75 ohms

• Signal to Noise Ratio ...................................................... 50 dB or more

• Frequency Response (MONITOR OUT)

Composite, S-Video ...................................... 5 Hz to 10 MHz, –3 dB

FM SECTION

• Tuning Range

[U.S.A. and Canada models] ................................ 87.5 to 107.9 MHz

[Australia, Singapore, China and General models]

....................................................................... 87.50 to 108.00 MHz

• 50 dB Quieting Sensitivity (IHF, 100% mod.)

Mono/Stereo ............................. 2.0 µV (17.3 dBf) /25 µV (39.2 dBf)

• Alternate Channel Selectivity (400 kHz) ..................................... 70 dB

• Signal to Noise Ratio (IHF)

Mono/Stereo ................................................................... 76 dB/70 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ...................................................................... 0.2%/0.3%

• Stereo Separation (1 kHz) ............................................................ 48 dB

• Frequency Response ............................ 20 Hz to 15 kHz, +0.5, –2.0 dB

AM SECTION

• Tuning Range

[U.S.A. and Canada models] .................................... 530 to 1710 kHz

[Australia and Singapore models] ............................ 531 to 1611 kHz

[China and General models]

10 kHz step ............................................................530 to 1710 kHz

9 kHz step .............................................................. 531 to 1611 kHz

• Usable Sensitivity .................................................................. 300 µV/m

GENERAL

• Power Supply

[U.S.A. and Canada models] ................................... AC 120 V/60 Hz

[Australia model] ..................................................... AC 240 V/50 Hz

[Singapore model] ................................................... AC 230 V/50 Hz

[China model] .......................................................... AC 220 V/50 Hz

[General model] ............................. AC 110/120/220/240 V, 50/60 Hz

• Power Consumption

[U.S.A. model] ......................................................................... 240 W

[Australia, Singapore, China and General models]

............................................................................................... 250 W

[Canada model] ........................................................... 250 W/320 VA

Standby Mode

[U.S.A. and Canada models] ................................................ 0.90 W

[Australia and Singapore models] ........................................ 0.96 W

• Maximum Power Consumption [General model only]

5CH, 10% THD ........................................................................ 500 W

• AC Outlets 2 (SWITCHED)

[U.S.A., Canada and Singapore models] .... Total 100 W maximum

[China and General models] ......................... Total 50 W maximum

1 (SWITCHED)

[Australia model] ........................................ Total 100 W maximum

• Dimension (W x H x D) ....................................... 435 x 151 x 390 mm

• Weight ....................................................................................... 10.0 kg

• Accessories ................................................................... Remote Control

........................................................................................... Batteries

............................................................................. AM loop antenna

.......................................................................... Indoor FM antenna

...................................................................... Quick Reference Card

............................................................................ Connection Guide

* Specifications are subject to change without notice.

SPECIFICATIONS (HTR-5440)

AUDIO SECTION

• Minimum RMS Output Power for Main, Center, Rear

20 Hz to 20 kHz, 0.06% THD, 8 ohms ...................................... 65 W

• Maximum power 1 kHz, 0.7% THD, 8 ohms

[U.S.A. and Canada models] ................................................... 80 W

[Europe, U.K., Australia, Singapore, China and

General models] ...................................................................... 75 W

• DIN Standard Output Power [Europe model only]

1 kHz, 0.7% THD, 4 ohms ......................................................... 95 W

• IEC Output Power [Europe model only]

1 kHz, 0.06% THD, 8 ohms ....................................................... 67 W

• Maximum Power (EIAJ) [China and General models]

1 kHz, 10% THD, 8 ohms .......................................................... 95 W

• Dynamic Power (IHF) 8/6/4/2 ohms

[U.S.A. and Canada models] ............................. 95/115/135/155 W

[China and General models] .............................. 90/110/130/150 W

• Damping Factor

20 Hz to 20 kHz, 8 ohms ................................................... 60 or more

• Frequency Response

CD, etc. to MAIN L/R .................................. 20 Hz to 20 kHz, ±5 dB

• Total Harmonic Distortion CD, etc. to MAIN L/R (Effect Off, 20 Hz to 20 kHz, 30 W, 8 ohms)

.................................................................................. 0.025% or less

• Signal to Noise Ratio (IHF-A Network) CD, etc. to MAIN L/R (Effect Off, 250 mV, shorted)

................................................................................ 100 dB or more

• Residual Noise (IHF-A Network)

Main L/R ..................................................................... 150 µV or less

• Channel Separation

CD, etc. to MAIN L/R (1 kHz).................................................. 60 dB

(10 kHz) ................................................ 45 dB

• Tone Control (Main L/R)

BASS Boost/Cut ........................................................... ±10 dB/50 Hz

TREBLE Boost/Cut .................................................... ±10 dB/20 kHz

• Phones Output .......................................................... 470 mV/390 ohms

• Input Sensitivity

CD, etc ...................................................................150 mV/47 kohms

6CH INPUT ........................................................... 150 mV/47 kohms

• Maximum Input Signal

CD, etc. (1 kHz, 0.5% THD) ........................................ 2.2 V or more

• Output Level

REC OUT ............................................................. 150 mV/1.2 kohms

SUBWOOFER ......................................................... 4.0 V/1.2 kohms

VIDEO SECTION

• Video Signal Type

[U.S.A., Canada, China and General models] .......................... NTSC

[Europe, U.K., Australia and Singapore models] ........................ PAL

• Composite Video Signal Level .................................... 1 Vp-p/75 ohms

• Signal to Noise Ratio ...................................................... 50 dB or more

• Frequency Response (MONITOR OUT)

Composite ...................................................... 5 Hz to 10 MHz, –3 dB

FM SECTION

• Tuning Range

[U.S.A. and Canada models] ................................ 87.5 to 107.9 MHz

[Europe, U.K., Australia, Singapore, China and

General models] ............................................ 87.50 to 108.00 MHz

• 50 dB Quieting Sensitivity (IHF, 100% mod.)

Mono/Stereo ............................. 2.0 µV (17.3 dBf) /25 µV (39.2 dBf)

• Alternate Channel Selectivity (400 kHz) ..................................... 70 dB

• Signal to Noise Ratio (IHF)

Mono/Stereo ................................................................... 76 dB/70 dB

• Harmonic Distortion (1 kHz)

Mono/Stereo ...................................................................... 0.2%/0.3%

• Stereo Separation (1 kHz) ............................................................48 dB

• Frequency Response ............................ 20 Hz to 15 kHz, +0.5, –2.0 dB

AM SECTION

• Tuning Range

[U.S.A. and Canada models] .................................... 530 to 1710 kHz

[Europe, U.K., Australia and Singapore models] .....531 to 1611 kHz

[China and General models]

10 kHz step ............................................................530 to 1710 kHz

9 kHz step .............................................................. 531 to 1611 kHz

• Usable Sensitivity .................................................................. 300 µV/m

GENERAL

• Power Supply

[U.S.A. and Canada models] ................................... AC 120 V/60 Hz

[Australia model] ..................................................... AC 240 V/50 Hz

[Europe, U.K., and Singapore models] ................... AC 230 V/50 Hz

[China model] .......................................................... AC 220 V/50 Hz

[General model] ............................. AC 110/120/220/240 V, 50/60 Hz

• Power Consumption

[U.S.A. model] ......................................................................... 200 W

[Canada model] .......................................................... 210 W/280 VA

[Europe, U.K., Australia, Singapore China and General models]

............................................................................................... 210 W

Standby Mode

[U.S.A. and Canada models] ................................................ 0.90 W

[Europe, U.K., Australia, Singapore and China models] ..... 0.96 W

• Maximum Power Consumption [General model only]

5-ch, 10% THD ........................................................................ 480 W

• AC Outlets 2 (SWITCHED)

[U.S.A., Canada and Singapore models] .... Total 100 W maximum

[China and General models] ......................... Total 50 W maximum

1 (SWITCHED)

[Australia model] ........................................ Total 100 W maximum

• Dimension (W x H x D) ....................................... 435 x 151 x 390 mm

• Weight ......................................................................................... 9.5 kg

• Accessories ................................................................... Remote Control

........................................................................................... Batteries

............................................................................. AM loop antenna

.......................................................................... Indoor FM antenna

...................................................................... Quick Reference Card

............................................................................ Connection Guide

* Specifications are subject to change without notice.

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

TION

APPENDIX

English

GLOSSARY

■ Dolby Surround

Dolby Surround uses a four analog channel recording system to reproduce realistic and dynamic sound effects: two left and right main channels (stereo), a center channel for dialog (monaural), and a rear channel for special sound effects (monaural). The rear channel reproduces sound within a narrow frequency range. Dolby Surround is widely used with nearly all video tapes and laser discs, and in many TV and cable broadcasts as well. The Dolby Pro Logic decoder built into this unit employs a digital signal processing system that automatically stabilizes the volume on each channel to enhance moving sound effects and directionality.

■ Dolby Digital

Dolby Digital is a digital surround sound system that gives you completely independent multi-channel audio. With three front channels (left, center and right), and two rear stereo channels, Dolby Digital provides five full-range audio channels. With an additional channel especially for bass effects, called LFE (low frequency effect), the system has a total of 5.1 channels (LFE is counted as 0.1 channel). Using two-channel stereo for the rear speakers, more accurate moving sound effects and surround sound environment are possible than with Dolby Surround. The wide dynamic range (from maximum to minimum volume) reproduced by the five full-range channels and the precise sound orientation generated using digital sound processing provide listeners with previously unheard of excitement and realism. With this unit, any sound environment from monaural up to a 5.1-channel configuration can be freely selected for your enjoyment.

■ DTS (Digital Theater Systems) Digital Surround

DTS digital surround was developed to replace the analog soundtracks of movies with a six-channel digital sound track, and is now rapidly gaining popularity in movie theaters around the world. Digital Theater Systems Inc. has developed a home theater system so that you can enjoy the depth of sound and natural spatial representation of DTS digital surround in your home. This system is practically distortion-free, clear 6-channel sound (technically, a left, right and center channels, two rear channels, plus an LFE

0.1 channel as a subwoofer, for a total of 5.1 channels).

■ LFE 0.1 channel

This channel is for the reproduction of low bass signals. The frequency range for this channel is 20 Hz to 120 Hz. This channel is counted as 0.1 because it only enforces a low frequency range compared to the full-range reproduced by the other 5 channels in a Dolby Digital or DTS 5.1 channel systems.

■ CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed for use in movie theaters, their effect is best felt in a theater having many speakers and designed for acoustic effects. Since home conditions, such as room size, wall material, number of speakers, and so on, can differ so widely, it’s inevitable that there are differences in the sound heard as well. Based on a wealth of actually measured data, YAMAHA CINEMA DSP uses YAMAHA original sound field technology to combine Dolby Pro Logic, Dolby Digital and DTS systems to provide the visual and audio experience of movie theater in the listening room of your own home.

DIGITAL

■ SILENT CINEMA

YAMAHA has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound field so that accurate representations of all the sound field programs can be enjoyed on headphones.

■ Virtual CINEMA DSP

YAMAHA has developed a virtual CINEMA DSP algorithm that allows you to enjoy DSP sound field surround effects even without any rear speakers by using virtual rear speakers. It is even possible to enjoy virtual CINEMA DSP in a minimum two-speaker system that does not include a center speaker.

GLOSSARY

■ S VIDEO signal

With S VIDEO signal system, the video signal normally transmitted using a pin cable is separated and transmitted as the Y signal for the luminance and the C signal for the chrominance through the S VIDEO cable. Using the S VIDEO jack eliminates video signal transmission loss and allows recording and playback of even more beautiful images.

HTR-5450 only

■ PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is digitized, recorded and transmitted without using any compression. This is used as a method of recording CDs and DVD audio. The PCM system uses a technique for sampling the size of the analog signal per very small unit of time. Standing for “pulse code modulation”, the analog signal is encoded as pulses and then modulated for recording.

■ Sampling frequency and number of quantized bits

When digitizing an analog audio signal, the number of times the signal is sampled per second is called the sampling frequency, while the degree of fineness when converting the sound level into a numeric value is called the number of quantized bits. The range of rates that can be played back is determined based on the sampling rate, while the dynamic range representing the sound level difference is determined by the number of quantized bits. In principle, the higher the sampling frequency, the wider the range of frequencies that can be played back, and the higher the number of quantized bits, the more finely the sound level can be reproduced.

HTR-5450 only

INTRODUCTION

PREPARATION

BASIC OPERATION

ADVANCED OPERA

■ I/O ASSIGN (SET MENU)

Although component is normally connected according to jack names shown on the rear panel, this unit includes a function that assigns jacks according to the component being connected. If the component being used differs from the component name shown for this unit’s digital jacks, it is possible to assign jacks according to the component being connected. This makes it possible to change the jack assignment and effectively connect more component.

TION

APPENDIX

English

INDEX

AC outlets ...................................................................................... 18

Antennas ........................................................................................ 26

BALANCE .................................................................................... 22

BGV function ................................................................................ 22

CBL/SAT mode ............................................................................. 44

CD mode ........................................................................................ 42

CINEMA DSP ......................................................................... 47, 56

Connections

Antennas ................................................................................. 26

Audio components (MD recorder, CD recorder and

CD player) .............................................................................. 12

External decoder ..................................................................... 12

Power supply cords ................................................................ 18

Speakers ................................................................................. 16

Video components (DVD player, VCR and

TV/digital TV or cable TV/satellite tuner) ............................. 14

Delay time ..................................................................................... 37

Display ............................................................................................. 8

DISPLAY SET (SET MENU) ....................................................... 36

DOLBY D. SET (SET MENU)

D-RANGE .............................................................................. 35

LFE LEVEL ........................................................................... 35

Dolby Digital ................................................................................. 56

Dolby Surround (Dolby Pro Logic) ............................................... 56

DSP program

CINEMA DSP program .......................................................... 47

Hi-Fi DSP program ................................................................. 47

DTS ............................................................................................... 56

DTS SET (SET MENU) ................................................................ 36

Dust protection cap ........................................................................ 12

DVD/LD mode .............................................................................. 43

DVD MENU mode ........................................................................ 43

External decoder ............................................................................ 12

Front panel ....................................................................................... 4

HP TONE CTRL (SET MENU) .................................................... 34

IMPEDANCE SELECTOR switch ............................................... 18

INPUT MODE (SET MENU) ....................................................... 35

Input modes ................................................................................... 23

I/O ASSIGN (SET MENU) ..................................................... 34, 57

LFE .................................................................................... 35, 36, 56

Manufacturer codes .................................................................... 45, i

Memory back-up ............................................................... 28, 33, 38

MEM. GUARD (SET MENU) ...................................................... 36

Muting ........................................................................................... 22

Package contents ............................................................................. 3

PCM ............................................................................................... 57

Playing ........................................................................................... 21

Power supply cords ....................................................................... 18

Preset stations

Exchanging preset station ....................................................... 30

To recall a preset station ......................................................... 29

Presetting tuning

Automatic preset tuning ......................................................... 28

Manual preset tuning .............................................................. 29

Rear panel ........................................................................................ 9

Recording ...................................................................................... 31

Remote control

Basic operation ......................................................................... 6

Batteries .................................................................................... 3

Operation range ........................................................................ 7

Setup codes ............................................................................. 45

Sampling frequency (HTR-5450 only) .................................... 22, 57

SET MENU ................................................................................... 32

SILENT CINEMA ................................................................... 25, 56

Sleep timer ..................................................................................... 39

SP DLY TIME (SET MENU) ........................................................ 36

Speaker

Output levels (TIME/LEVEL mode) ...................................... 37

Placement ............................................................................... 10

Output balance (test tone) ...................................................... 19

SPEAKER SET (SET MENU)

BASS OUT ............................................................................. 34

CENTER SP ........................................................................... 33

MAIN LVL ............................................................................. 34

MAIN SP ................................................................................ 33

REAR LR SP .......................................................................... 33

Subwoofer ..................................................................................... 17

S VIDEO (HTR-5450 only) .......................................................... 57

TAPE/MD mode ............................................................................ 41

Test tone ........................................................................................ 19

Tuning

Automatic tuning .................................................................... 27

Manual tuning ........................................................................ 27

TV mode ........................................................................................ 44

VCR mode ..................................................................................... 44

Virtual CINEMA DSP ............................................................. 25, 56

LIST OF MANUFACTURER’S CODES LISTES DES CODES FABRICANT

A-Mark 1161 A Tandy 0941 Abex 1151 Admira 1141 Adventura 1131 Aiko 1121 Akai 0331, 1101, 1111 Alba 0431 Alleron 1091 Ambassador 1081 Amstrad 0481, 1081 Anam 0251, 1041, 1051,

1061, 1071 Anam National 1041 AOC 0361, 1021, 1031,

1111, 1161 Archer 1161 Audiosonic 1001 Audiovox 1051, 1161 Aiwa 1481 Bauer 0441 Baur 1001 Beijing 1511, 1551, 1561 Belcor 1031 Bell & Howell 0981, 0991 Beon 1001 Bradford 1051 Brockwood 1031 Broksonic 1161 Bush 1001 Candle 0351, 0361, 0961,

0971, 1111, 1131 Capehart 1021 Carver 0101 Cathay 1001 Celebrity 0951 Centurion 0411 Changhong 1541, 1551, 1561,

1621 Citizen 0351, 0361, 0921,

0931, 0941, 0961,

0971, 1111, 1121,

1131 Clairtone 1011 Clarivox 1001 Concerto 0351, 0971 Conrowa 1751 Contec 0901, 0911, 1011,

1051 Corando 0941 Craig 0251, 1051 Crown 0941, 1051 Curtis Mathes 0161, 0361, 0931,

0941, 0981, 1111 CXC 1051 Daewoo 0291, 0301, 0331,

0721, 0941, 1001,

1031, 1121, 1191,

1531, 1581, 1591,

1601 Dansai 1001 Daytron 0941, 1031 Decca 0271, 1001 Dixi 0331, 1001, 1071 Dumont 0891, 1031 Dynatech 0881 Electroband 0951, 1011 Electrohome 0941 Electron 0941

Elin 1001 Elta 0331 Emerson 0001, 0021, 0061,

0071, 0081, 0091, 0111, 0811, 0821, 0831, 0841, 0851, 0861, 0871, 0901, 0921, 0941, 0981, 1011, 1031, 1051,

1081, 1091 Envision 0361, 1111 Erres 1001 Etron 0331 Ferguson 1001 Finlux 1001 Fisher 0171, 0801, 0981 Formenti 0441 Formonti 1001 Fortress 1141 Fujitsu 1091 Funai 1051, 1091, 1501,

1521 Futuretech 1051 GE 0131, 0161, 0201,

0751, 0761, 0771,

0781, 0791, 0811,

0861, 1041 GEC 0271, 1001 Gemini 0391 Genexxa 0431 Gibralter 0891, 1031, 1111 GoldStar 0031, 0121, 0351,

0411, 0731, 0741,

0861, 0941, 0971,

1001, 1031, 1111,

1151 Goodmans/Tashiko 0271, 0661,

1001 Granada 1001 Grundig 1781, 1791, 1801,

1811, 1821, 1831, 1841, 1851, 1861,

1871, 1881 Gunpy 1051, 1091 H/K 0721 Hallmark 0861 Hanseatic 1001 Harvard 1051, 1061 Hinari 1001, 1091 Hitachi 0181, 0351, 0671,

0681, 0691, 0701,

0711, 0871, 0941,

0971, 1351 Hypson 1001 Ima 1051 Indiana 1001 Infinity Reference 0101 Interfunk 1001 ITT 0611 Janeil 1131 JBL 0101 JCB 0951 Jensen 0311 Jinxing 1531, 1541, 1551,

1561, 1571, 1621,

1631, 1641, 1651,

1691, 1731 JVC (Victor) 0261, 0281, 0641,

0651, 0661, 0841 Kawasho 0901

Kaypani 1021 Kenwood 0361, 1031, 1111 Kloss 0631, 0721, 1131 KTV 0921, 0941, 1011,

1051, 1111 Leyco 1001 Liesenk & Tter 1001 Lloytron 0941 Loewe 1001 Logik 0991, 1771 Luxman 0351, 0971 Lxi 0101, 0621, 0761,

0861, 0981 Magnavox 0101, 0341, 0391,

0401, 0411, 0421,

0581, 0591, 0601,

0611, 0631, 0661,

0961, 1111 Majestic 0991 Marantz 0101, 0221, 0361,

1001, 1111 Mark 1001 Matsui 0271, 0331, 1001 Mediator 1001 Megatron 0691, 0861, 1161 MEI 1011 M Electronic 1001 Memorex 0331, 0571, 0861,

0971, 0981, 0991,

1771 Metz 1791, 1831, 1891,

1901, 1911, 1921,

1931, 1941 MGA 0361, 0561, 0571,

0861, 1031, 1111 Midland 0751, 0761, 0891,

0941, 1151 Mitsubishi 0221, 0321, 0561,

0571, 0661, 0861,

1031, 1101, 1381 Montgomery 1091 Motorola 1041, 1141 MTC 0351, 0361, 0881,

0931, 0971, 1011,

1031, 1111 Multitech 0881, 1051 NAD 0551, 0621, 0861 NEC 0241, 0351, 0361,

0661, 0971, 1031,

1111, 1321, 1711 Neckermann 1001 Nei 1001 Nikkai 0271, 0431, 1001,

1151 Nikko 0861, 1111, 1121 Novabeam 0721 NTC 1121 Onwa 1051 Optimus 0551 Optonica 0541, 1(“1 Orion 0831, 1001 Osaki 0271, 1151 Otto Versand 1001 Panasonic 0101, 0191, 0251,

0751, 1041, 1311,

1371, 1431 Panda 1541, 1721

Penny 0161, 0361, 0521,

0531, 0621, 0731, 0751, 0761, 0781, 0791, 0861, 0931, 0941, 1031, 1041,

1111, 1151, 1161 Peony 1561, 1621 Philco 0361, 0581, 0591,

0601, 0611, 0631,

0961, 1031, 1111 Philips 0101, 0401, 1001 Phonola 1001 Pilot 0941, 1031, 1111 Pioneer 0511, 0551, 0871 Portland 0941, 1031, 1121 Priceclub 0931 Prism 0751 Proscan 0761 Protech 1001 Proton 0501, 0861, 0941,

1021, 1161 Pulsar 0891 Pulser 1031 Quasar 0251, 0751, 1041 Quelle 1001 Radio Shack 0541, 0941, 1031,

1051, 1151 Radiola 1001 RCA 0051, 0141, 0151,

0181, 0411, 0491,

0531, 0761, 0771,

0871, 1031 Realistic 0541, 0861, 0941,

0971, 0981, 1031,

1051, 1111, 1151 Rhapsody 1011 R-line 1001 Runco 0891, 1111 Saisho 0331, 1081 Sampo 0361, 0941, 1021,

1111, 1151 Samsung 0331, 0341, 0351,

0361, 0861, 0931,

0941, 0971, 1001,

1031, 1111, 1151 Samsux 0941 Sanyo 0171, 0231, 0271,

0661, 0801, 0911,

0981, 1231, 1251,

1261 SBR 1001 Schneider 1001 Scimitsu 1031 Scotch 0861 Scott 0831, 0861, 0941,

1031, 1051, 1091 Sears 0101, 0161, 0171,

0351, 0481, 0521,

0621, 0761, 0801,

0861, 0971, 0981,

1091 Shanghai 1561, 1681 Sharp 0461, 0471, 0541,

0661, 0911, 0941,

1141 Shogun 1031 Signature 0991, 1771

Simpson 0581, 0961 Solavox 1151 Sonoko 1001 Sontec 1001 Sony 0371, 0451, 0661,

0841, 0951, 1281, 1441

Soundesign 0861, 0961, 1051,

1091 Soundwave 1001 Spectricon 1161 Squareview 0481 SSS 1031, 1051 Star-lite 1051 Suprem 0951 Supre-macy 1131 Surpa 0351, 0971 Sylvania 0101, 0361, 0441,

0581, 0591, 0601,

0611, 0631, 0961,

1111 Symphonic 0481 Sysline 1001 Tandy 0271, 0431, 1141 Tatung 0271, 0881, 1001,

1041, 1161 Tcl 1561, 1631, 1701 Technics 0751 Techwood 0351, 0751, 0971 Teknika 0101, 0351, 0571,

0931, 0941, 0961,

0971, 0991, 1031,

1051, 1091, 1121,

1131, 1771 Teletech 0331 Tera 0501 Thakral 1671 Thorm 1001 TMK 0351, 0861, 0971,

1081 Toshiba 0381, 0521, 0621,

0661, 0931, 0981,

1301 Tosonic 1011 Totevision 0941 Trical 0911 Universal 0781, 0791 Universum 1001 Vector Research 0361, 1111 Vestel 1001 Video Concept 1101 Vidikron 0101, 0211 Vidtech 0861, 1031 Viking 1131 Wards 0101, 0361, 0451,

0541, 0581, 0591,

0601, 0611, 0771,

0781, 0791, 0861,

0971, 0991, 1031,

1091, 1111, 1771 Watson 1001 Xogego 1611, 1621, 1661,

1741, 1761 Yamaha 0361, 1031, 1111 Yoko 1001 Zenith 0011, 0041, 0891,

0991, 1771 Zonda 1161

CABLE

ABC 0256, 0376 Antronix 0136 Archer 0136, 0286 BBT 0076 Cabletime 0166 Cablevision 0196 Colour Voice 0306, 0346 Comtronics 0216, 0276 Eagle Comronics 0276 Eastern 0066 Electricord 0206 Electus 0266 GE 0116, 0126 GEC Cable System 0196 Hamlin H5 0676 Hamlin H6 0666 Hamlin H6S 0656 Hamlin H8 0646 Hamlin H9 0636 Jerrold 0256 Jerrold 400L 0626 Jerrold 450L 0616 Jerrold 550 0606 Jerrold Osd Catv 0596 Jerrold Sprucer 0436 Magnavox/Philips 0416, 0426 Mamm 0296 Memorex 0386 Movie Time 0146, 0206 Northcoast 0016 NSC 0146 Oak 0106 Oak Sigma 450 0546 Oak Sigma 550 0536 Panasonic TZ 120/130 0476 Panasonic TZ 170/180 0446 Panasonic TZ140 0466 Panasonic TZ150/160 0456 Paragon 0386 Philips 0036, 0216, 0306,

0316, 0326, 0336,

0346 Pioneer 0006, 0086 Pioneer BR50 0846 Pioneer BR60/70/80/81/82

0696 Pioneer BR90 0556 Pulsar 0386 RCA Digital Satellite System

0396, 0406 Realistic 0136 Regency/Eastern0686 Runco 0386 Samsung 0276 Scientific Atlanta 175/475 0576 Scientific Atlanta 75 0366, 0586 Scientific Atlanta 8650 0566 Signal 0276 SL Marx 0276 Spectavision 0236 Standard Components 0186 Starcom V 0256 Stargate 0276 Sylvania/Texscan 0376, 0496 Teknika 0176 Teleservice 0056 Teleview 0276 Texscan 0186, 0376 TFC 0026 Tocom 0226, 0356 Tocom 5503A 0526 Tocom 5503VIP/5507 0516 Tocom TC56 0506 Toshiba 0386 Tudi 0046

Unika 0136 Universal 0136, 0156, 0206,

0286 Videoway 0096 Viewstar 0216 Zenith 0246, 0386, 0486

SATELLITE TUNER

Alpha Star 0826 Chaparral 0756 Echostar 0836 General Instrument 0776 HTS 0836 Hughes Network Systems 0816 Jerrold 0776, 0786 Panasonic 0806 Primestar 0776, 0786 RCA 0766 Sony 0796

VCR

A Tandy 0902 Adventura 0992 Aiko 0982 Aiwa 0992 Akai 0262, 0942, 0952,

0962, 0972 American High 0932 Amstrad 0992 ASA 0002, 0912 Asha 0922 Audio Dynamics 0202 Audiovox 0912 Beaumark 0922 Bell & Howell 0902 Blaupunkt 0412 Broksonic 0872, 0882, 0892 Bush 0852 Calix 0912 Canon 0862, 0932 CCE 0852, 0982 Citizen 0912, 0982 Colt 0852 Craig 0832, 0842, 0852,

0912, 0922 Curtis Mathes 0662, 0822, 0932 Cybernex 0922 Daewoo 0802, 0812, 0982 DBX 0202 Dynatech 0472, 0992 Electrohome 0912 Electrophonic 0912 Emerex 0792 Emerson 0072, 0132, 0142,

0152, 0162, 0172,

0182, 0192, 0212,

0702, 0712, 0722,

0732, 0742, 0752,

0762, 0772, 0782,

0872, 0882, 0892,

0912, 0952, 0992,

1072 Finlux 0002, 0992 Fisher 0682, 0692, 0842,

0902 Fuji 0672, 0932 Funai 0992 Garrard 0992 GE 0662, 0822, 0932 Go Video 0642, 0652 GoldStar 0082, 0632, 0912 Goodmans 0402 Gradiente 0992 Granda 0612, 0902 Grundig 0002 H/K 1082

Harley Davidson 0992 Harmon/Kardon 0632, 1082 Harwood 0752, 0852 Headquarter 0612 HI-Q 0842 Hinari 0852 Hitachi 0102, 0562, 0572,

0582, 0592, 0602,

0992 ITT 0942 JVC (Victor) 0202, 0522, 0532,

0542, 0552 Kenwood 0202, 0542, 0612,

0632, 0902 KLH 0852 Kodak 0912, 0932 Lloyd 0992 Logik 0852 Luxor 0942 LXI 0022, 0912 Magnavox 0002, 0482, 0492,

0502, 0512, 0932 Magnin 0922 Marantz 0002, 0202, 0402,

0632, 0932 Marta 0912 Matsui 0722 Matsushita 0932 MEI 0222, 0932 Memorex 0232, 0242, 0472,

0512, 0612, 0842,

0902, 0912, 0922,

0932, 0992 MGA 0762, 0952 MGA Technology 0922 Minolta 0592, 0602 Mitsubishi 0452, 0462, 0542,

0762, 0952, 1082 Motorola 0472, 0932 MTC 0922, 0992 Multitech 0852, 0992 NAD 0442 NEC 0122, 0202, 0292,

0422, 0432, 0542,

0632 Nikko 0912 Noblex 0922 Olympus 0412, 0932 Optimus 0442, 0472, 0912 Optonica 0402 Orion 0212, 0722, 0742,

0772 Osaki 0912 Panasonic 0012, 0052, 0092,

0222, 0372, 0382,

0392, 0412, 0932 Penny 0202, 0432, 0602,

0632, 0692, 0912,

0922, 0932 Pentax 0592, 0602 Perdio 0992 Philco 0002, 0932 Philips 0002, 0282, 0402,

0492, 0932 Pilot 0912 Pioneer 0442, 0542 Proscan 1002, 1012, 1022,

1032, 1042, 1052,

1062 Pulsar 0512 Quarter 0612 Quartz 0272, 0612 Quasar 0382, 0392, 0932 Radio Shack 0912, 0992 Radix 0912 Randex 0912

RCA 0112, 0382, 0392,

0482, 0592, 0602, 0662, 0822, 0942

Realistic 0402, 0472, 0612,

0682, 0842, 0902, 0912, 0922, 0932,

0992 Ricoh 0352, 0362 Saisho 0212, 0582, 0722,

0732, 0742, 0772 Salora 0612, 0762 Samsung 0212, 0312, 0922,

0962 Sanky 0472, 0512 Sansui 0292, 0542, 0832 Sanyo 0242, 0612, 0842,

0902, 0922 SBR 0002, 0282 Schneider 0852 Scott 0342, 0712, 0762,

0872, 0882, 0892 Sears 0302, 0592, 0602,

0612, 0682, 0692,

0842, 0902, 0912,

0932 Sharp 0402, 0472 Shintom 0852 Shogun 0922 Singer 0852 Sony 0032, 0332, 0352,

0362, 0672, 0792,

0932 STS 0602 Sunpak 0352 Sylvania 0002, 0492, 0502,

0762, 0932, 0992 Symphonic 0992 Tandy 0992 Tashiko 0712, 0992 Teac 0992 Technics 0932 Teknika 0322, 0912, 0932,

0992 Telefunken 0252 TMK 0212, 0732, 0772,

0922 Toshiba 0062, 0302, 0342,

0622, 0682, 0712,

0762 Totevision 0912, 0922 Unitech 0922 Vector Research 0202, 0432, 0632 Video Concepts 0202, 0432, 0632,

0952 Wards 0322, 0402, 0472,

0482, 0602, 0712,

0842, 0852, 0922,

0932, 0992 Yamaha 0202, 0632 Zenith 0042, 0362, 0512,

0672

DVD PLAYER

Akai 0108 Denon 0368 Hitachi 0388 JVC (Victor) 0168, 0348 Kenwood 0288 Magnavox 0248 Mitsubishi 0268 Onkyo 0128, 0248 Panasonic 0048 Philips 0188, 0248 Pioneer 0208, 0228 Proscan 0308

RCA 0308 Samsung 0148 Sharp 0068 Sony 0028 Technics 0048 Thomson 0328 Toshiba 0088, 0248 Yamaha 0008, 0048, 0188,

0248

Zenith 0248

LD PLAYER

Aiwa 0157 Denon 0147 Disco Vision 0017 Funai 0157 Hitachi (E) 0017 Kenwood 0087, 0107 Magnavox 0027 Marantz 0027 Mitsubishi 0137 NAD 0137 Panasonic 0077, 0177 Philips 0027 Pioneer 0037, 0017, 0137 RCA 0167 Realistic 0157 Sharp 0127 Sony 0047, 0057, 0117 Victor 0097 Yamaha 0007, 0067

CD PLAYER

Acoustic Research 1295 ADC 0025, 0065 Adcom 0205, 0255, 1015 ADS 0265 Aiwa 0295, 0945, 1035,

1055 Akai 0175, 0485, 0535 Alpine 1215, 1305 Audio-Technica 0545 BSR 0245, 0655, 0775 California Audio Lab 0055 Capetronic 1205 Carrera 0245 Carver 0285, 1135 Casio 0345 Crown 0185 Curtis Mathes 0345 Denon 0275, 0875, 0885 Deual (E) 0505 Dynamic Bass (H) 0555 Emerson 0205, 0325, 1105 Eroica 1275 Fisher 0095, 0555, 0925,

1005 Garrard 0365 Genexxa 0305, 0325, 1105 GoldStar 1225, 1265, 1135,

1335 H/K 0105, 0175, 0465,

0995 Hitachi 0195, 0505, 0205,

0815 Inkel 0115, 0395 JVC (Victor) 0315 Kenwood 0045, 0095, 0405,

0585, 0725, 0735,

0745, 0755, 0895 Kyocera 0025 Luxman 0075, 0425, 0675,

0705, 0715, 0985 Magnavox 0165, 0215, 0645,

0955

Marantz 0215, 0235, 0375,

0785, 1345 McIntosh 0355, 1085 MCS 0905, 1315 Memorex 0205, 0225, 0235,

0305, 0325, 1105 MGA 0135 Mission 0215 Mitsubishi 0135, 0445 MTC 1255 NAD 0035, 0615, 0685,

0695 Nakamichi 0125, 0435, 0515 NEC 0255, 0905, 0965 Nikko 0545, 1005 Onkyo 0155, 0455, 0495,

0805, 1155 Optimus 0225, 0245, 0555,

0595, 0845, 0855,

0865, 0895, 0935 Panasonic 0055, 0825, 1095,

1125 Penny 0905 Philips 0165, 0215 Pioneer 0305, 0935, 1045 Proton 0215, 1185 Quasar 0055 RCA 0205, 0915, 1115 Realistic 0205, 0225, 0235,

0325, 0555, 0845 Revox 1175 Rotel 0215 Saba Telecommander (E) 0505 SAE 0215 Samsung 1285 Sansui 0215, 0625, 0975,

1025, 1105 Sanyo 0145, 0555, 0635,

0765 Scott 0325, 1105 Sears 0345 Sharp 0235, 0665, 0895,

1065, 1075 Sherwood 0115, 0235, 0395,

0475 Siements Garrard 1245 Signature 0175 Sontec 1165 Sony 0065, 0565, 0865,

1145 Staron 1235 STS 0025 Sylvania 0215 Symphnoic 0335 Tandy 0305 Tangberg 1195 Teac 0235, 0335, 0385,

0525, 0795, 0835,

1355 Technics 0055, 0605, 1095 Techwood 1325 Telefunken (E) 0505 Thomson (E) 0505 Toshiba 0035, 0685 Vector Research 0065, 1135 Wards 0175 Yamaha 0005, 0015, 0085,

0415, 0545, 0575,

1065

CD-RECORDER/CD-RW

Hitachi 0474 JVC (Victor) 0504 Marantz 0484, 0494 Philips 0444 Pioneer 0454, 0464 Yamaha 0414

MD RECORDER

Pioneer 0424 Sharp 0434 Yamaha 0024, 0394, 0404

TAPE DECK

Aiwa 0094, 0214, 0224 Akai 0184 Carver 0094 Denon 0304 Fisher 0144 Garrard 0194, 0204 JVC (Victor) 0274, 0284, 0294 Kenwood 0124, 0134, 0154,

0234, 0244, 0264 Magnavox 0094 Marantz 0094, 0344 Mitsubishi 0184 Onkyo 0364, 0374 Optimus 0034, 0064, 0204,

0334 Philips 0094 Pioneer 0034, 0044, 0064 Revox 0354 Sansui 0094, 0344 Sharp 0264 Sherwood 0334 Sony 0054, 0084, 0324 Teac 0194, 0254 Technics 0074, 0314 Wards 0034 Yamaha 0004, 0014, 0104,

0114, 0164, 0174,

0264

iii

YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A. YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

Printed in Malaysia ID V723100-2

Connection Guide (when listening to a digital 5.1-channel source)

DVD player

OPTICAL

OPTICAL OUT

AUDIO OUT S VIDEO

AUDIO OUT

L R

OUT

S VIDEO OUT

Main speakers A Main speakers B

VIDEO

OUT

RLRL

VIDEO OUT

DIGITAL

INPUT

COAXIAL OPTICAL

D-TV/CBL

DVD

MD/CD-R

OPTICAL

MD/CD-R

DIGITAL OUTPUT

MAIN

AUX

6CH INPUT

SURROUND

AM ANT GND

CENTER

SUB WOOFER

IN(PLAY)

MD/CD-R

OUT(REC)

FM ANT

UNBAL.

DVD

D-TV/CBL

DVD

D-TV/CBL

AUDIO SIGNAL

TUNER

VIDEO SIGNAL

VCR 1

OUT

VCR 1

MONITOR OUT

S VIDEO

VIDEO

SUB

WOOFER

OUTPUT

R L

SPEAKERS

—

MAIN

CENTER REAR

—

(SURROUND)

RX-V520/RX-V520RDS

HTR-5450/HTR-5450RDS only

Video Monitor

VIDEO IN S VIDEO IN

(U.S.A. model)

Subwoofer

system

Center speaker

Rear speakers

Analog signal

Optical signal

S Video signal

Video signal

Signal flow

V728210 RX-V520/RX-V420 (ML)

Quick Reference Card

POWER

A/B/C/D/E

TEST

VOLUME

MUTE

SLEEP

–/+

TIME/LEVEL

AMP(TUNER)

Input selector buttons

6CH INPUT

EFFECT PRESET–/+

TV VOLUME

TV INPUT

PRG+, PRG–

SET MENU

POWER

VOLUME

MUTE

SLEEP

REC/PAUSE

PLAY

DIR A (TAPE) SKIP– (MD)

REWIND (TAPE) SEARCH (MD)

TAPE/MD

Input selector buttons

6CH INPUT

EFFECT

TV VOLUME

DISPLAY (MD) DECK A/B (TAPE)

PAUSE (MD)

DIR B (TAPE) SKIP+ (MD)

FAST FORWARD (TAPE) SEARCH (MD)

STOP

POWER

VOLUME

MUTE

SLEEP

PLAY

SKIP–

Input selector buttons

6CH INPUT

EFFECT

DISC SKIP–/+

TV VOLUME

DISPLAY

TV INPUT

PAUSE

SKIP+

STOP

POWER

VOLUME

MUTE

SLEEP

PLAY

SKIP–

DVD/LD

Input selector buttons

6CH INPUT

EFFECT

DISC SKIP–/+

TV VOLUME

DISPLAY

TV INPUT

PAUSE

SKIP+

STOP

V728130

Quick Reference Card

POWER

DISC SKIP–/+

VOLUME

MUTE

RETURN

MENU SELECT

MENU LEFT

TITLE

DVD MENU

Numeric buttons

CLEAR +10

TV VOLUME

INDEX

TV INPUT

MENU UP

MENU RIGHT

MENU DOWN

VCR

POWER

VCR

CHANNEL–/+

VOLUME

MUTE

TV SLEEP

VCR REC

VCR PLAY

VCR

REWIND

VCR

CBL/SAT

POWER

CHANNEL

EFFECT

CHANNEL ENTER

TV VOLUME

DISPLAY

TV INPUT

VCR PAUSE

VCR FAST FORWARD

VCR STOP

CBL/SAT

CHANNEL–/+

VOLUME

MUTE

TV SLEEP

MENU SELECT

MENU LEFT

RECALL

CBL/SAT

CHANNEL

+100 CHANNEL

ENTER

TV VOLUME

DISPLAY

TV INPUT

MENU UP

MENU RIGHT

MENU DOWN

POWER

VOLUME

TV MUTE

TV SLEEP

VCR REC

VCR PLAY

VCR

REWIND

CHANNEL–/+

CHANNEL

EFFECT

CHANNEL ENTER

TV VOLUME

DISPLAY TV INPUT

VCR PAUSE

VCR FAST FORWARD

VCR STOP

*1 Premere due volte questo tasto per iniziare la registrazione.

Press this button twice to start recording. Appuyer deux fois sur cette touche pour commencer l’enregistrement. Drücken Sie diese Taste zweimal, um die Aufnahme zu starten. Tryck två gånger på den här knappen för att börja spela in.

Presione dos veces este botón para empezar a grabar. Druk tweemaal op deze toets om met opnemen te beginnen.

V728130

Yamaha HTR-5440, HTR-5450 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CAUTION

CONTENTS

FEATURES

GETTING STARTED

Checking the Package Contents

Battery Installation in the Remote Control

Battery Replacement

Front Panel

CONTROLS AND FUNCTIONS

Remote Control

Using the Remote Control

Display

Rear Panel

SPEAKER SETUP

Speakers to Be Used

Speaker Placement

CONNECTIONS

Before Connecting Components

Connecting Audio Components

Connecting an External Decoder

Connecting Video Components

Connecting Speakers

IMPEDANCE SELECTOR Switch

Connecting the Power Supply Cords

ADJUSTING THE SPEAKER BALANCE

Before You Start Adjusting

Using the Test Tone

PLAYING A SOURCE

Input Modes and Indications

Selecting a DSP Program

Canceling the Sound Effect (turning off the effect speakers)

TUNING

Connecting the Antennas

Automatic Tuning

Manual Tuning

Automatic Preset Tuning (for FM stations only)

Manual Preset Tuning

To Recall a Preset Station

Exchanging Preset Stations

RECORDING A SOURCE

SET MENU

Adjusting the Items on the SET MENU

3 I/O ASSIGN

5 DOLBY D. SET (Dolby Digital set)

4 INPUT MODE (initial input mode)

6 DTS SET (DTS LFE level)

7 SP DLY TIME (center delay)

8 DISPLAY SET

9 MEM. GUARD (memory guard)

DELAY TIME AND SPEAKER OUTPUT LEVELS

Delay Time

Sound Output Level of the Center, Right Rear and Left Rear Speakers, and Subwoofer

Adjusting Method

SLEEP TIMER

Setting the SLEEP Timer

Canceling the SLEEP Timer

PRESET REMOTE CONTROL

Component Selector Buttons

Description of Each Mode

Setting the Manufacturer Code

Returning to the Factory Setting

SOUND FIELD PROGRAM

Hi-Fi DSP Programs

CINEMA DSP Programs

TROUBLESHOOTING

SPECIFICATIONS (HTR-5450)

SPECIFICATIONS (HTR-5440)

GLOSSARY

INDEX

Quick Reference Card
