YAMAHA F200A ’03, F225A ’03, FL200A ’03, FL225A ’03 PARTS CATALOGUE 03

Download

F200A ’03

(60L2)

F225A ’03 FL200A ’03 FL225A ’03

(69J2)

(60M2)

(69K2)

2B60L−300F1

FOREWORD

This Parts Catalogue is related to the parts for the model(s) in the below frame. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

F200A’03(60L2), F225A’03(69J2),

FL200A’03(60M2), FL225A’03(69K2)

1. Modifications or additions which have been made after issue of the Parts Catalogue will be announced in the Yamaha Parts News. It is advisable that you make necessary corrections to the Parts Catalogue according to the Yamaha Parts News.

2. Abbreviations The Following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number.

“UN” Use as many as needed.

“AP” Alternate Parts

“LM” Local Made

(Parts need to be ordered locally)

“O/S” Over Size

3. Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the part name as shown below.

EXAMPLE

CARBURETOR ASSY

.JET, PILOT

.NOZZLE, MAIN

4. Number of component for assembly The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.

EXAMPLE

PART NO. DESCRIPTION REMARKS

6E0−85500−70 C.D.I. MAGNETO ASSY 1

6E0−85550−70 .ROTOR ASSY 1

6E0−15723−00−94..PULLY, STARTER 1

EHT

5. Quantity Column Information

NAME for Q’TY COLUMN

69J2 F225AET

60L2 F200AET

69K2 FL225AET

60M2 FL200AET

6. Applicable Starting Serial No. and Color Code

1) Engine Starting Sserial No.

F200AET X 60L : 1000001 F225AET X/U 69J : 1000001

2) Color Code

Color Code

004D DARK BLUISH GRAY METALLIC 2 DBNM2

7. Note that the illustrations for reference in finding parts numbers, not to be used for assembling. When assembling, please use the applicable service manual.

8. The asterisk (*) before a reference number indicates modification items after the first edition.

Color Name Abbreviation

APPLICABLE MODEL

FL200AET X 60M : 1000001 FL225AET X 69K : 1000001

SHEET 1/2

TOP COWLING A4.....................................

CYLINDER. CRANKCASE 1 A6..........................

CRANKSHAFT. PISTON B2..............................

CYLINDER. CRANKCASE 2 B3..........................

CYLINDER. CRANKCASE 3 B5..........................

VALVE B6.............................................

INTAKE C2............................................

THROTTLE BODY ASSY 1 C4...........................

THROTTLE BODY ASSY 2 C6...........................

THROTTLE BODY ASSY 3 D1...........................

FUEL INJECTION PUMP 1 D2...........................

FUEL INJECTION PUMP 2 D4...........................

FUEL 1 D5............................................

FUEL 2 D7............................................

GENERATOR E1.......................................

ELECTRICAL 1 E3.....................................

ELECTRICAL 2 E5.....................................

ELECTRICAL 3 E7.....................................

STARTING MOTOR F1..................................

BOTTOM COWLING 1 F3...............................

BOTTOM COWLING 2 F5...............................

CONTROL 1 F6........................................

INDEX

NUMERICAL INDEX G1.................................

SHEET

CONTROL 2 A4*........................................

CONTROL 3 A5*........................................

BRACKET 1 A6*........................................

BRACKET 2 B1*........................................

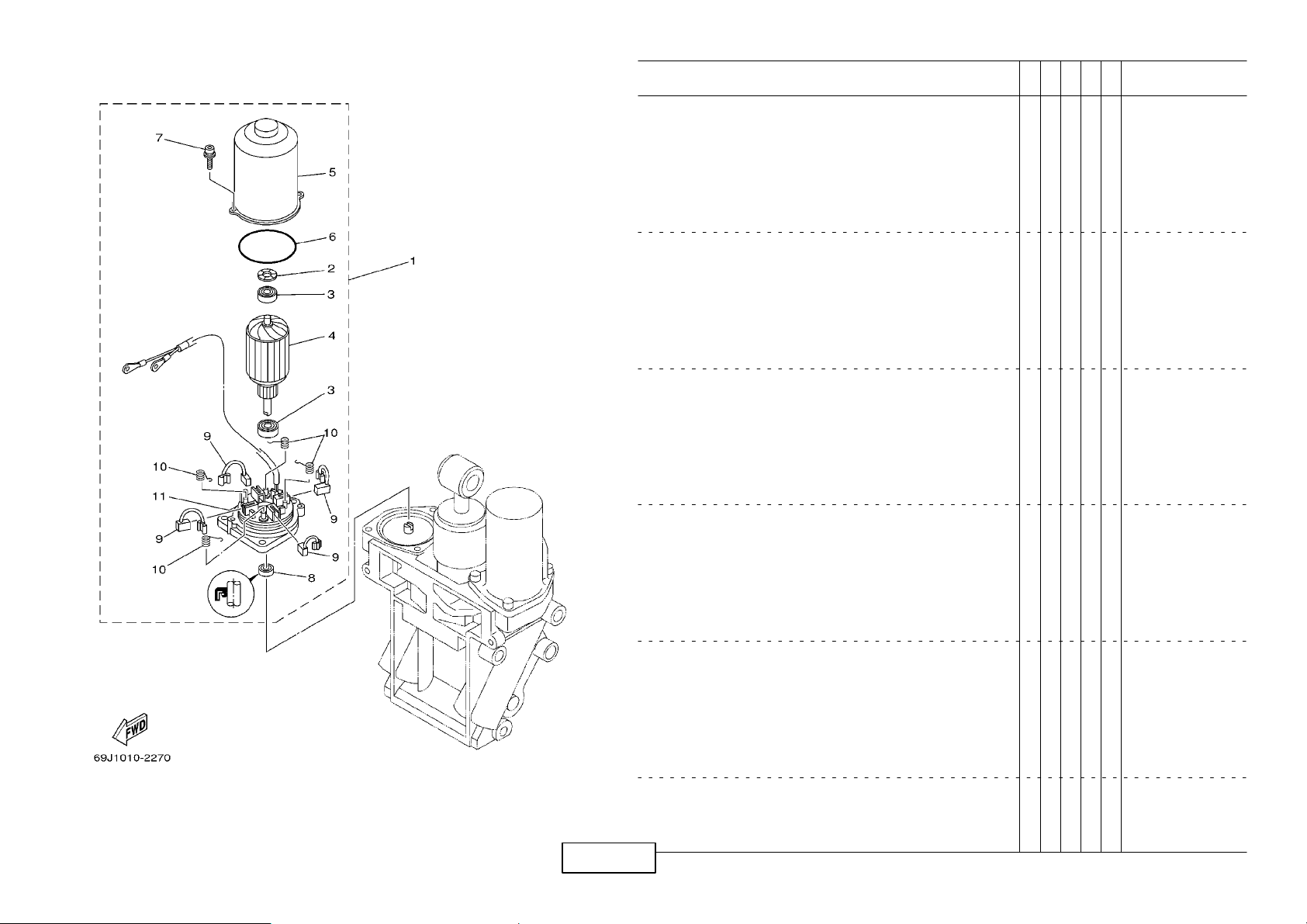

POWER TRIM & TILT ASSY 1 B3*.........................

POWER TRIM & TILT ASSY 2 B7*.........................

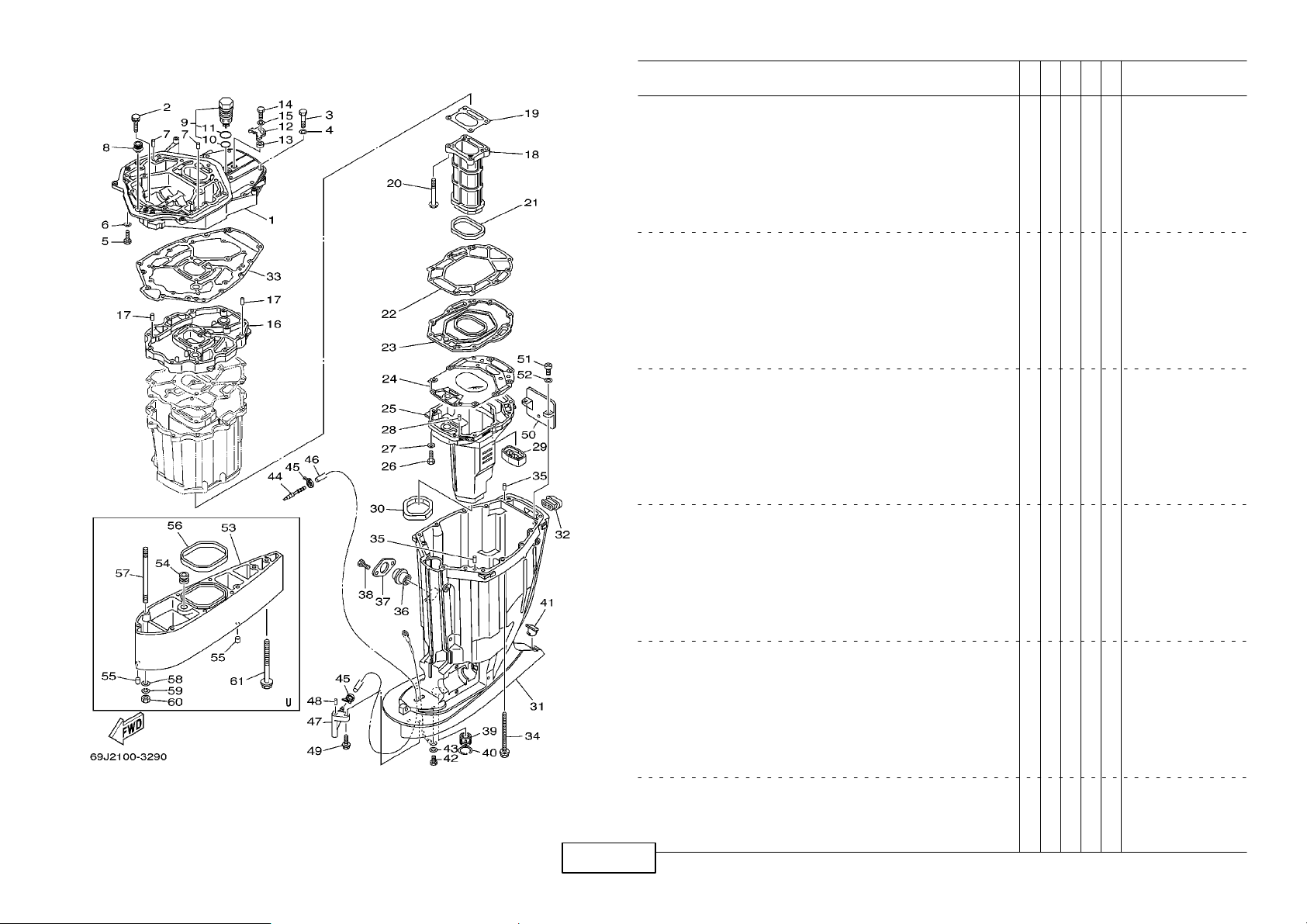

UPPER CASING C1*....................................

OIL PAN C4*............................................

LOWER CASING. DRIVE 1 C5*...........................

LOWER CASING. DRIVE 2 D2*...........................

LOWER CASING. DRIVE 3 D4*...........................

LOWER CASING. DRIVE 4 E1*...........................

STEERING GUIDE ATTACHMENT 1 E3*...................

STEERING GUIDE ATTACHMENT 2 E4*...................

REMOTE CONTROL BOX E5*............................

METER E6*............................................

SWITCH. PANEL F1*....................................

REPAIR KIT 1 F2*.......................................

REPAIR KIT 2 F3*.......................................

2/2

INDEX

NUMERICAL INDEX G1*.................................

FIG. 1 TOP COWLING CAPOT SUPERIEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−42610−00−8D TOP COWLING ASSY 1 1

CAPOT (ENS.)

60L−42610−00−8D TOP COWLING ASSY 1 1

CAPOT (ENS.)

2 69J−42613−00 .MOLDING, AIR DUCT 1 1 1 1

.MANCHON A AIR

3 69J−42629−00 .SEAL 1 1 1 1

.JOINT

4 90179−06M28 .NUT 9 9 9 9

.ECROU

5 68F−42647−01−94 .HOLDER, CLAMP BAND 1 1 1 1

.SUPPORT, SANDOW DE SERRAGE

6 69J−42647−00−94 .HOLDER, CLAMP BAND 1 1 1 1

.SUPPORT, SANDOW DE SERRAGE

7 69J−42663−00 .DAMPER 1 1 1 1

.AMORTISSEUR

8 92990−06100 .WASHER, SPRING 6 6 6 6

.RONDELLE, GROWER

9 95380−06600 .NUT, HEXAGON 6 6 6 6

.ECROU

10 68F−42651−00 .HOOK 2 2 2 2

.CROCHET

11 97095−06016 .BOLT 6 6 6 6

.BOULON

12 92995−06600 .WASHER 6 6 6 6

.RONDELLE

13 68F−42663−00 .DAMPER 2 2 2 2

.AMORTISSEUR

14 68F−42648−01−94 .HOLDER, CLAMP BAND 1 1 1 1

.SUPPORT, SANDOW DE SERRAGE

15 67F−42652−00 .HOOK 1 1 1 1

.CROCHET

16 67F−13448−00 .CAP 3 3 3 3

.CAPUCHON

17 69J−42678−00 .GRAPHIC, REAR 1 1

.ADHESIF, ARRIERE

60L−42678−00 .GRAPHIC, REAR 1 1

.ADHESIF, ARRIERE

18 69J−W0070−00 .GRAPHIC SET 1 1 1 1

.JEU DIEMBLEMES

19 69J−42677−00 .GRAPHIC, FRONT 1 1

.ADHESIF, AVANT

60L−42677−00 .GRAPHIC, FRONT 1 1

.ADHESIF, AVANT

20 69J−42681−00 .MARK, COWLING 1 1 1 1

.ADHESIF, CAPOT

21 69J−42682−00 .MARK, COWLING 1 1 1 1

.ADHESIF, CAPOT

22 69J−24378−00 .PIPE, JOINT 4 1 1 1 1

.DURITE RACCORDEMENT 4

23 90445−11020 .HOSE 2 2 2 2

.DURITE

24 90445−11021 .HOSE 1 1 1 1

.DURITE

69J2

60L2

69K2

60M2

FIG. 1 TOP COWLING CAPOT SUPERIEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

25 69J−42617−00 .DAMPER, FORM 1 1 1 1

.BOURRELET, CAOUTCHOUC

26 67F−13434−02 LABEL, CAUTION 1 1 1 1

ETIQUETTE, ATTENTION

69J2

60L2

69K2

60M2

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−W009B−01−1S CYLINDER BLOCK ASSY 1 1 1 1

CYLINDRE GROUPE (ENS.)

2 69J−15100−00−1S CRANKCASE ASSY 1 1 1 1

CARTER DE MOTEUR COMPLET

3 93606−12019 .PIN, DOWEL 1 1 1 1

.GOUPILLE

4 91814−18001 .PIN, DOWEL 8 8 8 8

.GOUJON, D’ASSEMBLAGE

5 90340−14M06 .PLUG, STRAIGHT SCREW 1 1 1 1

.PLOT, FILETE DROIT

6 90430−14115 .GASKET 1 1 1 1

.JOINT

7 69J−15123−00 PLATE, BUFFLE 1 1 1 1 1

PLAQUE DE BUTOIR

8 69J−15187−00 BOLT 8 8 8 8

BOULON

9 69J−15481−00 BOLT 1 2 2 2 2

BOULON 1

10 69J−15482−00 BOLT 2 6 6 6 6

BOULON 2

11 95707−06500 NUT, FLANGE 6 6 6 6

ECROU, A COLLERETTE

12 90119−08M66 BOLT, WITH WASHER 13 13 13 13

BOULON, AVEC RONDELLE

13 69J−15411−00−94 COVER, CRANKCASE 1 1 1 1 1

COUVERCLE1, CARTER MOTEUR

14 69J−15451−00 GASKET, CRANKCASE COVER 1 1 1 1 1

JOINT, COUVERCLE DE CARTER

15 93606−12019 PIN, DOWEL 2 2 2 2

GOUPILLE

16 90119−08009 BOLT, WITH WASHER 17 17 17 17

BOULON, AVEC RONDELLE

17 69J−11168−00 COVER, BREATHER 1 1 1 1

COUVERCLE, RENIFLARD

18 98507−04008 SCREW, PAN HEAD 14 14 14 14

VIS, TETE TRONCONIQUE

19 92907−04600 WASHER 14 14 14 14

RONDELLE

20 69J−11119−00 HANGER, ENGINE 1 1 1 1

ANNEAU, LEVAGE

21 90119−06MA2 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

22 69J−1131C−00−1S COVER, JOINT 1 1 1 1

COUVERCLE, RACCORDEMENT

23 69J−1131B−00 GASKET, COVER 1 1 1 1

JOINT, COUVERCLE

24 90119−06MA4 BOLT, WITH WASHER 13 13 13 13

BOULON, AVEC RONDELLE

25 67F−12411−00 THERMOSTAT 2 2 2 2

THERMOSTAT

26 69J−1240H−00−1S COVER AS SEMBLY 2 2 2 2

BOITIER DISTRIBUTEUR COMPLET

27 90109−06M86 .BOLT 1 1 1 1

.BOULON

69J2

60L2

69K2

60M2

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 97095−06025 BOLT 4 4 4 4

BOULON

29 92995−06600 WASHER 4 4 4 4

RONDELLE

30 69J−1243A−00 HOSE 1 1 1 1 1

DURITE 1

31 69J−1243E−00 HOSE 2 1 1 1 1

DURITE 2

32 90465−11M10 CLAMP 4 4 4 4

BRIDE

33 69J−11351−00 GASKET, CYLINDER 1 1 1 1

JOINT, D’EMBASE

34 67F−42761−00−94 STOPPER 2 2 2 2

PLAQUETTE

35 68F−44533−00 DAMPER, UPPER MOUNT RUBBER 2 2 2 2

COUVERCLE, SUSPENSION INFERIEU

36 97095−06025 BOLT 4 4 4 4

BOULON

37 92995−06600 WASHER 4 4 4 4

RONDELLE

38 93210−25552 O−RING 1 1 1 1

JOINT TORIQUE

39 93210−19MJ1 O−RING 2 2 2 2

JOINT TORIQUE

40 69J−11313−00−94 PLUG, BLIND 1 1 1 1

PLOT, BORGNE

41 93210−25647 O−RING 1 1 1 1

JOINT TORIQUE

42 97095−06020 BOLT 2 2 2 2

BOULON

43 92995−06600 WASHER 2 2 2 2

RONDELLE

44 69J−14664−00 GROMMET, WATER SHUT 2 2 2 2

PASSE−FIL

45 69J−13440−00 ELEMENT ASSY, OIL CLEANER 1 1 1 1

ELEMENT, FILTRE A HUILE

46 69J−12858−00 BOLT, UNION 1 1 1 1

BOULON, RACCORD

47 69J−13446−00−94 CONNECTOR 1 1 1 1

CONNECTEUR

48 69J−13477−00 GASKET 1 1 1 1

JOINT

49 97095−06045 BOLT 3 3 3 3

BOULON

50 92995−06600 WASHER 3 3 3 3

RONDELLE

51 69J−13447−00 COVER, OIL ELEMENT 1 1 1 1

COUVERCLE, ELEMENT A HUILE

52 97095−06040 BOLT 1 1 1 1

BOULON

53 92995−06600 WASHER 1 1 1 1

RONDELLE

54 6G8−15363−00 PLUG, OIL 1 1 1 1

PLOT, HUILE

69J2

60L2

69K2

60M2

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

55 93210−24M79 O−RING 1 1 1 1

JOINT TORIQUE

56 69J−15319−00−1S JOINT 1 1 1 1

JOINT

57 69J−15364−A0 GASKET, OIL PLUG 1 1 1 1

JOINT, PLOT D’HUILE

58 97095−06045 BOLT 2 2 2 2

BOULON

59 92995−06600 WASHER 2 2 2 2

RONDELLE

60 69J−82560−00 THERMO SWITCH ASSY 2 2 2 2

THERMO−CONTACT COMPLET

61 90465−11M10 CLAMP 2 2 2 2

BRIDE

62 6E9−82588−00 PLATE 2 2 2 2

PLAQUE

63 69J−83651−00 SENDER, OIL PRESSURE 1 1 1 1

RACCORD, PRESSION D’HUILE

69J2

60L2

69K2

60M2

FIG. 3 CRANKSHAFT. PISTON VILEBREQUIN. PISTON

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−11411−00 CRANKSHAFT 1 1 1 1

VILEBREQUIN COMPLET

2 93102−63004 OIL SEAL 1 1 1 1

JOINT SPY

3 69J−11416−00 PLANE BEARING, CRANKSHAFT 1 4 4 4 4 UR #1

COUSSINET DE VILEBREQUIN 1

69J−11416−10 PLANE BEARING, CRANKSHAFT 1 4 4 4 4 UR #2

COUSSINET DE VILEBREQUIN 1

69J−11416−20 PLANE BEARING, CRANKSHAFT 1 4 4 4 4 UR #3

COUSSINET DE VILEBREQUIN 1

4 69J−11417−00 PLANE BEARING, CRANKSHAFT 2 3 3 3 3 UR #1

COUSSINET DE VILEBREQUIN 2

69J−11417−10 PLANE BEARING, CRANKSHAFT 2 3 3 3 3 UR #2

COUSSINET DE VILEBREQUIN 2

69J−11417−20 PLANE BEARING, CRANKSHAFT 2 3 3 3 3 UR #3

COUSSINET DE VILEBREQUIN 2

5 69J−11426−00 PLANE BEARING, CRANKSHAFT 1 1 1 1 1 UR #1

COUSSINET, VILEBREQUIN 1

69J−11426−10 PLANE BEARING, CRANKSHAFT 1 1 1 1 1 UR #2

COUSSINET, VILEBREQUIN 1

69J−11426−20 PLANE BEARING, CRANKSHAFT 1 1 1 1 1 UR #3

COUSSINET, VILEBREQUIN 1

6 69J−11427−00 PLANE BEARING, CRANKSHAFT 2 2 2 2 2

COUSSINET, VILEBREQUIN 2

7 69J−W1165−00 CONNECTING ROD ASSY 6 6 6 6

BIELLE COMPLETTE

8 69J−11654−00 .BOLT, CONNECTING ROD 2 2 2 2

.BOULON, BIELLE

9 69J−11656−00 PLANE BEARING, CONNECTING ROD 12 12 12 12 UR YELLOW

ROULEMENT DE BIELLE

69J−11656−10 PLANE BEARING, CONNECTING ROD 12 12 12 12 UR GREEN

ROULEMENT DE BIELLE

69J−11656−20 PLANE BEARING, CONNECTING ROD 12 12 12 12 UR BLUE

ROULEMENT DE BIELLE

10 69J−11631−00−B0 PISTON (STD) 6 6 6 6

PISTON (STD)

11 69J−11603−00 PISTON RING SET (STD) 6 6 6 6

JEU DE SEGMENTS (STD)

12 69J−11633−00 PIN, PISTON 6 6 6 6

AXE, PISTON

13 69J−11634−00 CLIP, PISTON PIN 12 12 12 12

AGRAFE, AXE DE PISTON

69J2

60L2

69K2

60M2

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE. CARTER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−W009A−01−1S CYLINDER HEAD ASSY 1 1 1 1

CULASSE (ENS.)

2 69J−11110−00−94 CYLINDER HEAD ASSY 1 1 1 1

JEU DE CULASSE

3 69J−11133−10 .GUIDE, INTAKE VALVE 12 12 12 12

.GUIDE, SOUP D’ADM

4 90344−51019 .PLUG, TAPER SCREW 5 5 5 5

.PLOT, FILETE CONIQUE

5 91809−08006 .PIN, DOWEL 2 2 2 2

.GOUJON, D’ASSEMBLAGE

6 90119−07235 .BOLT, WITH WASHER 2 2 2 2

.BOULON, AVEC RONDELLE

7 90119−07234 .BOLT, WITH WASHER 18 18 18 18

.BOULON, AVEC RONDELLE

8 69J−W009C−01−1S CYLINDER HEAD ASSY 2 1 1 1 1

CULASSE 2

9 69J−11120−00−94 CYLINDER HEAD ASSY 2 1 1 1 1

CULASSE 2

10 69J−11133−10 .GUIDE, INTAKE VALVE 12 12 12 12

.GUIDE, SOUP D’ADM

11 90344−51019 .PLUG, TAPER SCREW 5 5 5 5

.PLOT, FILETE CONIQUE

12 91809−08006 .PIN, DOWEL 2 2 2 2

.GOUJON, D’ASSEMBLAGE

13 90119−07235 .BOLT, WITH WASHER 2 2 2 2

.BOULON, AVEC RONDELLE

14 90119−07234 .BOLT, WITH WASHER 14 14 14 14

.BOULON, AVEC RONDELLE

15 67F−11325−00 ANODE 4 4 4 4

ANODE

16 69J−11327−00−94 COVER, ANODE 4 4 4 4

COUVERCLE

17 97075−06020 BOLT 4 4 4 4

BOULON

18 92995−06600 WASHER 4 4 4 4

RONDELLE

19 67F−11328−00 GROMMET, ANODE 4 4 4 4

PASSE−FIL

20 97575−08540 BOLT, WITH WASHER 4 4 4 4

VIS HEXAGONAL AVC RONDELLE

21 69J−11181−01 GASKET, CYLINDER HEAD 1 1 1 1 1

JOINT, DE CULASSE 1

22 90387−10M08 COLLAR 2 2 2 2

COLLERETTE

23 90155−10001 SCREW, FLAT FILLISTER 8 8 8 8

VIS, TETE OVALE PLATE

24 90119−08M91 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

25 90119−08021 BOLT, WITH WASHER 1 1 1 1

BOULON, AVEC RONDELLE

26 69J−11182−01 GASKET, CYLINDER HEAD 2 1 1 1 1

JOINT, CULASSE 2

27 90387−10M08 COLLAR 2 2 2 2

COLLERETTE

69J2

60L2

69K2

60M2

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE. CARTER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 90155−10001 SCREW, FLAT FILLISTER 8 8 8 8

VIS, TETE OVALE PLATE

29 90119−08M91 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

30 90119−08021 BOLT, WITH WASHER 1 1 1 1

BOULON, AVEC RONDELLE

31 69J−11191−00−1S COVER, CYLINDER HEAD 1 1 1 1 1

COUVERCLE, CULASSE 1

32 69J−11135−00 PLATE, BREATHER 3 1 1 1 1

PLAQUE, RENIFLARD 3

33 98507−04008 SCREW, PAN HEAD 8 8 8 8

VIS, TETE TRONCONIQUE

34 92907−04600 WASHER 8 8 8 8

RONDELLE

35 69J−11193−00 GASKET, HEAD COVER 1 1 1 1 1

JOINT, COUVERCLE DE CULASSE 1

36 97095−06030 BOLT 14 14 14 14

BOULON

37 92995−06600 WASHER 14 14 14 14

RONDELLE

38 69J−11192−00−1S COVER, CYLINDER HEAD 2 1 1 1 1

COUVERCLE, CULASSE 2

39 69J−11194−00 GASKET, HEAD COVER 2 1 1 1 1

JOINT, COUVERCLE DE CULASSE 2

40 97095−06030 BOLT 14 14 14 14

BOULON

41 92995−06600 WASHER 14 14 14 14

RONDELLE

42 94702−00391 PLUG, SPARK (NGK LFR5A−11) 6 6 6 6

BOUGIE D’ALLUMAGE (NGK LFR5A−11)

69J2

60L2

69K2

60M2

FIG. 5 CYLINDER. CRANKCASE 3 CYLINDRE. CARTER 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−41111−00−1S INNER COVER, EXHAUST 1 1 1 1

PLAQUE, ECHAPPEMENT

2 69J−41121−00−1S INNER COVER,EXHAUST 1 1 1 1

PLAQUE, ECHAPPEMENT

3 69J−41113−00−1S OUTER COVER, EXHAUST 1 1 1 1

COUVERCLE, ECHAPPEMENT

4 69J−41123−00−1S OUTER COVER, EXHAUST 1 1 1 1

COUVERCLE, ECHAPPEMENT

5 69J−41112−00 GASKET, EXHAUST INNER COVER 2 2 2 2

JOINT, PLAQUE D’ECHAPPEMENT

6 69J−41114−00 GASKET, EXHAUST OUTER COVER 2 2 2 2

JOINT, COUVERCLE D’ECHAPPEMENT

7 90119−06027 BOLT, WITH WASHER 28 28 28 28

BOULON, AVEC RONDELLE

8 97095−08014 BOLT 4 4 4 4

BOULON

9 90430−08143 GASKET 4 4 4 4

JOINT

10 90340−18M09 PLUG, STRAIGHT SCREW 2 2 2 2

PLOT, FILETE DROIT

11 90430−18130 GASKET 2 2 2 2

JOINT

12 69J−1111E−00 HANGER, ENGINE 2 2 2 2 2

ANNEAU, LEVAGE 2

13 90119−06MA2 BOLT, WITH WASHER 4 4 4 4

BOULON, AVEC RONDELLE

14 90340−14M06 PLUG, STRAIGHT SCREW 1 1 1 1

PLOT, FILETE DROIT

15 90430−14115 GASKET 1 1 1 1

JOINT

69J2

60L2

69K2

60M2

FIG. 6 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−12111−00 VALVE, INTAKE 12 12 12 12

SOUPAPE, ADMISSION

2 69J−12121−00 VALVE, EXHAUST 12 12 12 12

SOUPAPE, ECHAPPEMENT

3 69J−12113−00 SPRING, VALVE INNER 24 24 24 24

RESSORT DE SOUPAPE, INTERNE

4 69J−12117−00 RETAINER, VALVE SPRING 24 24 24 24

BUTEE DE RESSORT DE SOUPAPA

5 69J−12118−00 COTTER, VALVE 48 48 48 48

FRAISE, SOUPAPE

6 69J−12119−00 SEAL, VALVE STEM 24 24 24 24

JOINT, QUEUE DE SOUPAPE

7 69J−12153−00 LIFTER, VALVE 24 24 24 24

LEVE−SOUPAPE

8 69J−12168−00 PAD, ADJUSTING (2.320) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.320)

69J−12168−10 PAD, ADJUSTING (2.340) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.340)

69J−12168−20 PAD, ADJUSTING (2.360) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.360)

69J−12168−30 PAD, ADJUSTING (2.380) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.380)

69J−12168−40 PAD, ADJUSTING (2.400) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.400)

69J−12168−50 PAD, ADJUSTING (2.420) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.420)

69J−12168−60 PAD, ADJUSTING (2.440) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.440)

69J−12168−70 PAD, ADJUSTING (2.460) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.460)

69J−12168−80 PAD, ADJUSTING (2.480) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.480)

69J−12168−90 PAD, ADJUSTING (2.500) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.500)

69J−12168−A0 PAD, ADJUSTING (2.520) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.520)

69J−12168−B0 PAD, ADJUSTING (2.540) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.540)

69J−12168−C0 PAD, ADJUSTING (2.560) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.560)

69J−12168−D0 PAD, ADJUSTING (2.580) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.580)

69J−12168−E0 PAD, ADJUSTING (2.600) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.600)

69J−12168−F0 PAD, ADJUSTING (2.620) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.620)

69J−12168−G0 PAD, ADJUSTING (2.640) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.640)

69J−12168−H0 PAD, ADJUSTING (2.660) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.660)

69J−12168−J0 PAD, ADJUSTING (2.680) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.680)

69J−12168−K0 PAD, ADJUSTING (2.700) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.700)

69J2

60L2

69K2

60M2

FIG. 6 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

8 69J−12168−L0 PAD, ADJUSTING (2.720) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.720)

69J−12168−M0 PAD, ADJUSTING (2.740) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.740)

69J−12168−N0 PAD, ADJUSTING (2.760) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.760)

69J−12168−P0 PAD, ADJUSTING (2.780) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.780)

69J−12168−R0 PAD, ADJUSTING (2.800) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.800)

69J−12168−S0 PAD, ADJUSTING (2.820) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.820)

69J−12168−T0 PAD, ADJUSTING (2.840) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.840)

69J−12168−U0 PAD, ADJUSTING (2.860) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.860)

69J−12168−V0 PAD, ADJUSTING (2.880) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.880)

69J−12168−W0 PAD, ADJUSTING (2.900) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.900)

69J−12168−X0 PAD, ADJUSTING (2.920) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.920)

69J−12168−Y0 PAD, ADJUSTING (2.940) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.940)

69J−12169−00 PAD, ADJUSTING (2.960) 24 24 24 24 UR

PASTILLE, DE REGLAGE (2.960)

9 69J−12171−00 CAMSHAFT 1 1 1 1 1

ARBRE A CAMES 1

10 69J−12181−00 CAMSHAFT 2 1 1 1 1

ARBRE A CAMES 2

11 69J−12172−00 CAMSHAFT 3 1 1 1 1

ARBRE A CAMES 3

12 69J−12182−00 CAMSHAFT 4 1 1 1 1

ARBRE A CAMES 4

13 94581−99044 CHAIN 2 2 2 2

CHAINE

14 69J−12210−00 TENSIONER ASSY, CAM CHAIN 1 1 1 1

TENDEUR DE CHAINE DISTRIBUTION

15 69J−12230−00 TENSIONER ASSY, CAM CHAIN 2 1 1 1 1

TENDEUR DE CHAINE DISTRIBUTION

16 97013−06025 BOLT 4 4 4 4

BOULON

17 93605−10108 PIN, DOWEL 2 2 2 2

AXE

18 69J−11537−00 GEAR, DRIVEN 2 2 2 2

PIGNON SECONDAIRE

19 90119−10M06 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

20 93102−38M59 OIL SEAL 2 2 2 2

JOINT SPY

21 69J−46241−00 V−BELT 1 1 1 1

COURROIE TRAPEZOIDALE

22 69J−11590−00 TENSIONER ASSY 1 1 1 1

TENDEUR (ENS.)

69J2

60L2

69K2

60M2

FIG. 6 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

23 69J−11536−00 GEAR, DRIVE 1 1 1 1

ENGRENAGE, MENANT

24 90110−05010 BOLT, HEXAGON SOCKET HEAD 4 4 4 4

BOULON, TETE HEXAGONALE CREUSE

25 90280−04008 KEY, WOODRUFF 1 1 1 1

CLAVETTE, DEMI−LUNE

69J2

60L2

69K2

60M2

FIG. 7 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−14146−10 PLATE 1 1 1 1

PLAQUE

2 69J−14162−00 BOLT, HOLDING 1 1 1 1

BOULON, FIXATION

3 68V−24519−00 CLIP 1 1 1 1

JONC

4 90116−06032 BOLT, STUD 4 4 4 4

GOUJON

5 69J−1442A−00 COVER, CLEANER CASE 3 1 1 1 1

COUVERCLE, BOITIER FILTRE 3

6 69J−14409−00 DAMPER 1 1 1 1

AMORTISSEUR

7 97780−60620 SCREW, TAPPING 3 3 3 3

VIS, TETE BOMBEE

8 69J−12483−00 PIPE 3 1 1 1 1

DURITE 3

9 90467−09M03 CLIP 2 2 2 2

JONC

10 69J−13645−00 GASKET, MANIFOLD 1 2 2 2 2

JOINT, TUBULURE 1

11 90119−08022 BOLT, WITH WASHER 18 18 18 18

BOULON, AVEC RONDELLE

12 91690−50014 PIN, SPRING 4 4 4 4

AGRAFFE

13 90119−06M24 BOLT, WITH WASHER 4 4 4 4

BOULON, AVEC RONDELLE

14 69J−14440−00 SILENCER ASSY, INTAKE 1 1 1 1

SIENCIEUX D’ADMISSION

15 69J−1444F−00 SILENCER ASSY, INTAKE 2 1 1 1 1

SIENCIEUX D’ADMISSION 2

16 69J−14419−00 PIPE 2 2 2 2

DURITE

17 90465−11M52 CLAMP 4 4 4 4

BRIDE

18 69J−14457−00 SEAL 6 6 6 6

JOINT

19 90386−08001 BUSH 8 8 8 8

DOUILLE

20 90119−06036 BOLT, WITH WASHER 4 4 4 4

BOULON, AVEC RONDELLE

21 90387−06038 COLLAR 4 4 4 4

COLLERETTE

22 90179−06M28 NUT 4 4 4 4

ECROU

23 69J−15373−00 PIPE, BREATHER 1 1 1 1

DURITE DE RENIFLARD

24 69J−15394−00 PIPE, OIL VENT 1 1 1 1

DURITE

25 69J−15393−00 PIPE, BREATHER 2 1 1 1 1

DURITE, RENIFLARD 2

26 69J−15397−00 PIPE 1 1 1 1

DURITE

27 5EL−14467−00 SEAL 1 1 1 1

JOINT SPY

69J2

60L2

69K2

60M2

FIG. 7 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 69J−14348−00 PIPE 1 1 1 1 1

DURITE

29 65L−85886−00 THERMOSENSOR 1 1 1 1

SENSITOMETRE

69J2

60L2

69K2

60M2

FIG. 8 THROTTLE BODY ASSY 1 CARTER D’ACCELERATEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−13750−00 THROTTLE BODY ASSY 1 1

CARTER D’ACCELERATEUR COMPLET

60L−13750−00 THROTTLE BODY ASSY 1 1

CARTER D’ACCELERATEUR COMPLET

2 69J−13751−00 .BODY, THROTTLE 1 1 1

.CARTER 1

60L−13751−00 .BODY, THROTTLE 1 1 1

.CARTER 1

3 3CF−14594−00 ..NUT 1 1 1 1

..ECROU

4 92990−08100 ..WASHER, SPRING 1 1 1 1

..RONDELLE, GROWER

5 69J−13753−00 .BODY, THROTTLE 3 1 1

.CARTER 3

60L−13753−00 .BODY, THROTTLE 3 1 1

.CARTER 3

6 3CF−14594−00 ..NUT 1 1 1 1

..ECROU

7 92990−08100 ..WASHER, SPRING 1 1 1 1

..RONDELLE, GROWER

8 69J−13755−00 .BODY, THROTTLE 5 1 1

.CARTER 5

60L−13755−00 .BODY, THROTTLE 5 1 1

.CARTER 5

9 3CF−14594−00 ..NUT 1 1 1 1

..ECROU

10 92990−08100 ..WASHER, SPRING 1 1 1 1

..RONDELLE, GROWER

11 69J−13576−00 .SPACER 1 1 1 1

.ENTRETOISE

12 68V−81145−01 .SCREW 1 2 2 2 2

.VIS 1

13 68V−14565−00 .SCREW 2 2 2 2

.VIS

14 68V−14323−00 .SCREW, AIR ADJUSTING 1 1 1 1

.VIS DE DOSEUR D’AIR

15 68V−14331−00 .SPRING, THROTTLE VALVE 5 5 5 5

.RESSORT, BOISSEAU

16 69J−14261−00 .HOLDER 1 1 1 1

.SUPPORT

17 69J−85885−00 .THROTTLE SENSOR ASSY 1 1 1 1

.SENSITOMETRE (ENS.)

18 69J−13160−00 .DELIVERY PIPE ASSY 1 1 1 1 1

.ENS. TUBE DE REFOULEMENT 1

19 69J−14261−00 ..HOLDER 1 1 1 1

..SUPPORT

20 69J−14295−00 ..PIPE, FUEL 1 1 1 1

..DURITE A ESSENCE

21 69J−14251−00 ..NIPPLE 1 1 1 1

..RACCORD

22 68V−14397−00 ..O−RING 2 2 2 2

..JOINT TORIQUE

23 68V−81147−00 ..SCREW 3 4 4 4 4

..VIS 3

69J2

60L2

69K2

60M2

FIG. 8 THROTTLE BODY ASSY 1 CARTER D’ACCELERATEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

24 69J−13641−00 .MANIFOLD 1 1 1 1 1

.TUBULURE 1

25 97095−06010 .BOLT 3 3 3 3

.BOULON

26 90430−06014 .GASKET 3 3 3 3

.JOINT

27 69J−13557−00 .GASKET 3 3 3 3

.JOINT

28 99530−10114 .PIN, DOWEL 6 6 6 6

.GOUJON, D’ASSEMBLAGE

29 69J−14496−00 .BOLT 6 6 6 6

.BOULON

30 68V−14475−00 .WASHER 9 9 9 9

.RONDELLE

31 69J−13761−00 .INJECTOR ASSY 3 3 3 3

.INJECTEUR

32 68V−1410B−00 .PACKING KIT 1 1 1 1

.POCHETTE DE JOINTS

33 68V−13766−00 .RUBBER, INJECTOR 3 3 3 3

.RONDELLE CAOUTCHOUC

34 68V−14264−00 .COLLAR 3 3 3 3

.COLLERETTE

35 68V−14428−00 .BOLT 3 3 3 3

.BOULON

36 69J−14321−00 .SCREW, THROTTLE 2 2 2 2

.VIS, ACCELERATEUR

37 69J−13973−00 .PIPE, FUEL 3 1 1 1 1

.TUBE 3, CARBURANT

38 68F−24300−00 .FUEL PIPE JOINT 1 1 1 1

.DURITE RACCORDEMT. A ESSENCE

39 69J−13972−00 .PIPE, FUEL 2 1 1 1 1

.TUBE 2, CARBURANT

40 69J−24381−00 .SET BAR, FUEL JOINT 1 1 1 1

.BARRE DE BLOCAGE

41 68V−24387−00 .CLIP 4 4 4 4

.SANDOW

42 69J−14286−00 .SPRING 1 1

.RESSORT

60L−14286−00 .SPRING 1 1

.RESSORT

43 68V−8182L−00 .O−RING 1 1 1 1 1

.JOINT TORIQUE 1

44 69J−14149−00 .PIPE 1 1 1 1

.DURITE

69J2

60L2

69K2

60M2

FIG. 9 THROTTLE BODY ASSY 2 CARTER D’ACCELERATEUR 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−1375A−00 THROTTLE BODY ASSY 2 1 1

CARTER D’ACCELERATEUR COMPLET2

60L−1375A−00 THROTTLE BODY ASSY 2 1 1

CARTER D’ACCELERATEUR COMPLET2

2 69J−13752−00 BODY, THROTTLE 2 1 1

CARTER 2

60L−13752−00 BODY, THROTTLE 2 1 1

CARTER 2

3 3CF−14594−00 .NUT 2 2 2 2

.ECROU

4 92990−08100 .WASHER, SPRING 2 2 2 2

.RONDELLE, GROWER

5 68V−14323−00 .SCREW, AIR ADJUSTING 1 1 1 1

.VIS DE DOSEUR D’AIR

6 68V−14331−00 .SPRING, THROTTLE VALVE 1 1 1 1

.RESSORT, BOISSEAU

7 69J−13754−00 BODY, THROTTLE 4 1 1

CARTER 4

60L−13754−00 BODY, THROTTLE 4 1 1

CARTER 4

8 3CF−14594−00 .NUT 1 1 1 1

.ECROU

9 92990−08100 .WASHER, SPRING 1 1 1 1

.RONDELLE, GROWER

10 69J−13756−00 BODY, THROTTLE 6 1 1

CARTER 6

60L−13756−00 BODY, THROTTLE 6 1 1

CARTER 6

11 3CF−14594−00 .NUT 1 1 1 1

.ECROU

12 92990−08100 .WASHER, SPRING 1 1 1 1

.RONDELLE, GROWER

13 68V−14331−00 SPRING, THROTTLE VALVE 4 4 4 4

RESSORT, BOISSEAU

14 68V−81147−00 SCREW 3 2 2 2 2

VIS 3

15 69J−14960−00 BODY ASSY 1 1 1 1

CARTER (ENS.)

16 68V−13473−00 O−RING 1 1 1 1

JOINT TORIQUE

17 68V−1312A−00 VALVE, CONTROL 1 1 1 1

EMBLEME, YAMAHA

18 68V−81146−01 SCREW 2 3 3 3 3

VIS 2

19 68V−82380−00 SENSOR, PRESSURE 1 1 1 1

SONDE DE PRESSION

20 69J−13642−00 MANIFOLD 2 1 1 1 1

TUBULURE 2

21 97095−06010 BOLT 3 3 3 3

BOULON

22 90430−06014 GASKET 3 3 3 3

JOINT

23 69J−13557−00 GASKET 3 3 3 3

JOINT

69J2

60L2

69K2

60M2

FIG. 9 THROTTLE BODY ASSY 2 CARTER D’ACCELERATEUR 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

24 99530−10114 PIN, DOWEL 6 6 6 6

GOUJON, D’ASSEMBLAGE

25 69J−14496−00 BOLT 6 6 6 6

BOULON

26 68V−14475−00 WASHER 6 6 6 6

RONDELLE

27 69J−13761−00 INJECTOR ASSY 3 3 3 3

INJECTEUR

28 68V−1410B−00 .PACKING KIT 1 1 1 1

.POCHETTE DE JOINTS

29 68V−13766−00 RUBBER, INJECTOR 3 3 3 3

RONDELLE CAOUTCHOUC

30 69J−14321−00 SCREW, THROTTLE 2 2 2 2

VIS, ACCELERATEUR

31 69J−13573−00 BOLT 1 2 2 2 2

BOULON 1

32 69J−13574−00 BOLT 2 1 1 1 1

BOULON 2

33 69J−13547−00 HOSE 3 1 1 1 1

DURITE 3

34 69J−14159−00 CLIP 1 1 1 1

JONC

35 69J−14255−00 PLATE 1 1 1 1

PLAQUE

69J2

60L2

69K2

60M2

FIG. 10 THROTTLE BODY ASSY 3 CARTER D’ACCELERATEUR 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−13170−00 DELIVERY PIPE ASSY 2 1 1 1 1

ENS. TUBE DE REFOULEMENT 2

2 69J−13435−00 .NIPPLE 1 1 1 1

.RACCORD

3 68V−14397−00 .O−RING 1 1 1 1

.JOINT TORIQUE

4 68V−81147−00 .SCREW 3 2 2 2 2

.VIS 3

5 68V−14225−00 .CAP 1 1 1 1

.COUVERCLE

6 69J−13906−00 .REGULATOR, PRESSURE 1 1 1 1

.REGULATEUR DE PRESSION

7 68V−14565−00 .SCREW 2 2 2 2

.VIS

8 68V−14356−00 .WASHER, SPRING 2 2 2 2

.RONDELLE

9 68V−14475−00 WASHER 3 3 3 3

RONDELLE

10 68V−14264−00 COLLAR 3 3 3 3

COLLERETTE

11 68V−14428−00 BOLT 3 3 3 3

BOULON

12 68F−24300−00 FUEL PIPE JOINT 1 1 1 1

DURITE RACCORDEMT. A ESSENCE

13 68V−24387−00 CLIP 2 2 2 2

SANDOW

14 69J−13546−00 HOSE 2 1 1 1 1

DURITE 2

15 69J−13545−00 HOSE 1 1 1 1 1

DURITE 1

16 69J−13974−00 PIPE, FUEL 4 1 1 1 1

TUBE 4, CARBURANT

17 68V−13544−00 HOSE, VACUUM SENSING 2 1 1 1 1

DURITE 2

18 5JW−14349−00 PIPE 2 2 2 2

DURITE

19 69J−13542−00 HOSE, VACUUM SENSING 1 1 1 1 1

DURITE 1

20 69J−13532−00 HOSE, VACUUM SENSING 3 1 1 1 1

DURITE 3

21 69J−13533−00 HOSE, VACUUM SENSING 4 1 1 1 1

DURITE 4

22 68V−24377−00 PIPE, JOINT 3 1 1 1 1

DURITE RACCORDEMENT 3

23 69J−13595−00 JOINT 1 1 1 1

RACCORD

24 69J−14139−00 CLIP, PIPE 1 1 1 1

JONC DE DURITE

25 69J−13975−00 PIPE, FUEL 5 1 1 1 1

TUBE 5, CARBURANT

26 68V−24519−00 CLIP 1 1 1 1

JONC

27 69J−8259L−00 WIRE HARNESS ASSY 1 1 1 1 1

FAISCEAU DE FILS COMPLET 1

69J2

60L2

69K2

60M2

FIG. 11 FUEL INJECTION PUMP 1 POMPE A INJECTEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−14180−11 FLOAT CHAMBER ASSY 1 1 1 1

CUVE DE FLOTTEUR

2 69J−14182−00 COVER, FLOAT CHAMBER 1 1 1 1

COUVERCLE, CUVE DE FLOTTEUR

3 69J−2411R−00 .PLATE 1 1 1 1 1

.PLAQUE 1

4 69J−2411T−00 .PLATE 2 1 1 1 1

.PLAQUE 2

5 4SV−24453−00 .SCREW 2 2 2 2

.VIS

6 69J−14181−00 BODY, FLOAT CHAMBER 1 1 1 1 1

CORPS, CUVE DE FLOTTEUR 1

7 266−14191−00 .PLUG, DRAIN 1 1 1 1

.PLOT, VIDANGE

8 59V−14962−00 .WASHER 1 1 1 1

.RONDELLE

9 69J−14985−00 FLOAT 1 1 1 1

FLOTTEUR

10 68V−14386−00 PIN, FLOAT 1 1 1 1

AXE, FLOTTEUR

11 69J−14546−00 VALVE, NEEDLE 1 1 1 1

POINTEAU

12 68V−13769−00 O−RING 1 1 1 1

JOINT TORIQUE

13 68V−14255−00 PLATE 1 1 1 1

PLAQUE

14 98507−04008 SCREW, PAN HEAD 1 1 1 1

VIS, TETE TRONCONIQUE

15 68V−14357−00 WASHER, PLAIN 2 2 2 2

RONDELLE PLATE

16 68V−13781−00 DAMPER, PUMP 1 1 1 1

AMORTISSEUR, POMPE

17 69J−13907−01 FUEL PUMP COMP. 1 1 1 1

POMPE A CARBURANT COMP.

18 68V−13915−00 FILTER 1 1 1 1

FILTRE

19 68V−13784−00 COVER, PUMP 1 1 1 1

COUVERCLE, POMPE

20 68V−14567−00 SCREW 7 7 7 7

VIS

21 68V−14984−00 GASKET, FLOAT CHAMBER 1 1 1 1

JOINT, CUVE DE FLOTTEUR

22 69J−24379−00 PIPE, JOINT 4 1 1 1 1

DURITE RACCORDEMENT 4

23 69J−14148−00 PIPE 2 2 2 2

DURITE

24 69J−14197−00 PIPE 1 1 1 1

DURITE

25 69J−14989−00 ORIFICE, AIR VENT 1 1 1 1

OR1F1CE

26 69J−24410−00 FUEL PUMP ASSY 1 1 1 1

POMPE A ESSENCE

27 69J−24491−00 BRACKET, FUEL PUMP 1 1 1 1

SUPPORT, POMPE A ESSENCE

69J2

60L2

69K2

60M2

FIG. 11 FUEL INJECTION PUMP 1 POMPE A INJECTEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 69J−24492−00 BUSH, FULEL PUMP 2 2 2 2

BAGUE

29 69J−24592−00 BOLT 2 2 2 2

BOLTE

30 69J−24422−10 PLATE 1 1 1 1

PLAQUETTE

31 69J−14164−00 NUT, HOLDING 2 2 2 2

ECROU, FIXATION

32 69J−21841−00 COOLER 1 1 1 1

RADIATEUR

33 68V−14265−00 COLLAR 2 2 2 2

COLLERETTE

34 69J−14446−00 BOLT 3 3 3 3

BOULON

35 69J−13593−00 DAMPER 4 4 4 4

AMORTISSEUR

36 69J−13716−00 COLLAR 8 8 8 8

COLLERETTE

37 69J−14225−00 CAP 1 1 1 1

COUVERCLE

69J2

60L2

69K2

60M2

FIG. 12 FUEL INJECTION PUMP 2 POMPE A INJECTEUR 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−24460−00 RELIEF VALVE ASSY 1 1 1 1

SOUPAPE DE SECURITE COMPLET

2 69J−24324−00 PIPE 13 1 1 1 1

DURITE

3 69J−24321−00 PIPE 10 1 1 1 1

DURITE

4 69J−24322−00 PIPE 11 1 1 1 1

DURITE

5 69J−24323−00 PIPE 12 1 1 1 1

DURITE

6 69J−24317−00 PIPE 7 1 1 1 1

DURITE 7

7 69J−24316−00 PIPE 6 1 1 1 1

DURITE 6

8 69J−24537−00 NIPPLE 1 1 1 1

RACCORD

9 68V−13577−00 CLIP 6 6 6 6

AGRAFE

10 68V−24519−00 CLIP 7 7 7 7

JONC

11 69J−14137−00 CLIP 4 4 4 4

JONC

12 68V−2481H−00 CLAMP 4 4 4 4

BRIDE

13 6E5−24378−00 PIPE, JOINT 3 1 1 1 1

DURITE, RACCORDEMENT 3

14 69J−24461−00 PIPE, JOINT 1 1 1 1

DURITE, RACCORDEMENT

15 69J−24315−00 PIPE 5 1 1 1 1

DURITE 5

16 69J−13976−00 PIPE, FUEL 6 1 1 1 1

TUBE 6, CARBURANT

17 68V−24387−00 CLIP 3 3 3 3

SANDOW

18 69J−24501−00 FILTER, FUEL 1 1 1 1

FILTRE

19 69J−24599−00 CAP 1 1 1 1

CAPUCHON

20 69J−24325−00 PIPE 14 1 1 1 1

DURITE

21 69J−1410F−00 NIPPLE 1 1 1 1 1

RACCORD 1

22 69J−24366−00 CLAMP, FUEL PIPE 1 1 1 1 1

COLLIER DE DURITE A ESSENCE

23 69J−24367−00 CLAMP, FUEL PIPE 2 1 1 1 1

COLLIER DE DURITE A ESSENCE

24 98582−05008 ELECTRONIC SIREN ASS’Y 2 2 2 2

VIS, TETE TRONCONIQUE

25 69J−13974−00 PIPE, FUEL 4 1 1 1 1

TUBE 4, CARBURANT

26 69J−24381−00 SET BAR, FUEL JOINT 1 1 1 1

BARRE DE BLOCAGE

69J2

60L2

69K2

60M2

FIG. 13 FUEL 1 CARBURANT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 689−85547−00 DAMPER 1 1 1 1

AMORTISSEUR

2 90445−13004 HOSE 1 1 1 1

DURITE

3 6R3−24377−00 PIPE, JOINT 3 1 1 1 1

DURITE RACCORDEMENT 3

4 90465−11M10 CLAMP 4 4 4 4

BRIDE

5 61A−24311−00 PIPE, FUEL 1 1 1 1 1

DURITE A ESSENCE

6 65L−24560−00 FILTER ASSY 1 1 1 1

ENS FILTRE

7 61A−24521−00 .CUP, FILTER 1 1 1 1

.CUVETTE, FILTRE

8 65L−24531−01 .NUT 1 1 1 1

.ECROU

9 61A−24564−00 .O−RING 1 1 1 1

.JOINT TORIQUE

10 65L−24577−00 .SPRING 1 1 1 1

.RESSORT

11 65L−24563−00 .ELEMENT, FILTER 1 1 1 1

.ELEMENT, FILTRE

12 61A−24469−00 .FLOAT, WATER LEVEL 1 1 1 1

.FLOTTEUR

13 65L−24564−00 .O−RING 1 1 1 1

.JOINT TORIQUE

14 97095−06014 BOLT 1 1 1 1

BOULON

15 92995−06600 WASHER 1 1 1 1

RONDELLE

16 97095−06016 BOLT 1 1 1 1

BOULON

17 92995−06100 WASHER, SPRING 1 1 1 1

RONDELLE, GROWER

18 90201−06068 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

19 65L−24558−00 HOLDER, FILTER 1 1 1 1

SUPPORT, FILTRE

20 69J−24566−00 BRACKET, FILTER 1 1 1 1

SUPPORT, FILTRE

21 90119−06037 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

22 69J−24313−00 PIPE 3 1 1 1 1

DURITE 3

23 90465−11M10 CLAMP 1 1 1 1

BRIDE

24 69J−28100−00 TOOL KIT 1 1 1 1 AP

TROUSSE A OUTILS

25 69J−28199−72−A0 MANUAL,OWNER’S 1 1 1 1 UR (E,F,S)

MANUEL D’UTILISATION

69J−28199−72−B0 MANUAL,OWNER’S 1 1 1 1 UR (D,NL,I)

MANUEL D’UTILISATION

26 69J−28199−82−A0 MANUAL,OWNER’S 1 1 1 1 UR (DK,P,GR)

MANUEL D’UTILISATION

69J2

60L2

69K2

60M2

FIG. 13 FUEL 1 CARBURANT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

26 69J−28199−82−B0 MANUAL,OWNER’S 1 1 1 1 UR (N,S,SS)

MANUEL D’UTILISATION

69J2

60L2

69K2

60M2

FIG. 14 FUEL 2 CARBURANT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6YK−24307−42 FUEL PIPE COMP. 2 1 1 1 1 AP

DURITE A ESSENCE 2

69J2

60L2

69K2

60M2

FIG. 15 GENERATOR GENERATRICE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−81450−10 ROTOR ASSY 1 1 1 1

ROTOR COMPLET

2 69J−81460−01 BASE ASSY 1 1 1 1

ENS. FLASQUE

3 69J−85580−00 .COIL, PULSER 1 1 1 1

.BOBINE, PULSEUR

4 69J−81410−01 .STATOR ASSY 1 1 1 1

.STATOR COMPLET

5 63D−81345−20 .SCREW, WITH WASHER (M6X30) 4 4 4 4

.VIS, AVEC RONDELLE (M6X30)

6 99530−08012 PIN, DOWEL 2 2 2 2

GOUJON, D’ASSEMBLAGE

7 97095−06035 BOLT 4 4 4 4

BOULON

8 92995−06100 WASHER, SPRING 4 4 4 4

RONDELLE, GROWER

9 92995−06600 WASHER 4 4 4 4

RONDELLE

10 90280−05015 KEY, WOODRUFF 1 1 1 1

CLAVETTE, DEMI−LUNE

11 90201−24014 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

12 90179−24002 NUT 1 1 1 1

ECROU

13 69J−81673−00 ROTOR 1 1 1 1

ROTOR

14 67F−81332−00 PLATE, TIMING 1 1 1 1

PLATEAU, ALLUMAGE

15 97885−06010 SCREW, PAN HEAD 1 1 1 1

VIS, A ENCOCHE

16 92995−06600 WASHER 1 1 1 1

RONDELLE

17 69J−8132G−00 PLATE 1 1 1 1

PLAQUE

18 97095−06016 BOLT 1 1 1 1

BOULON

19 92995−06600 WASHER 1 1 1 1

RONDELLE

20 90465−13M18 CLAMP 1 1 1 1

BRIDE

21 90465−14M66 CLAMP 2 2 2 2

BRIDE

22 69J−81337−00 COVER, FLYWHEEL 1 1 1 1

COUVERCLE, VOLANT

23 663−82317−01 DAMPER, IGNITION COIL 2 2 2 2

AMORTISSEUR, BOBINE D’ALLUM

24 6A0−82317−00 DAMPER, IGNITION COIL 3 3 3 3

AMORTISSEUR, BOBINE D’ALLUM

25 624−42542−00 PIPE 3 3 3 3

TUYAU

26 90119−06M59 BOLT, WITH WASHER 3 3 3 3

BOULON, AVEC RONDELLE

27 67F−2812A−00 PULLER, FUSE 1 1 1 1

TENDEUR, FUSIBLE

69J2

60L2

69K2

60M2

FIG. 15 GENERATOR GENERATRICE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 69J−81919−20 GRAPHIC, REGULATOR 1 1 1 1

ADHESIF, REGULATEUR

29 69J−13437−61 MARK, CAUTION 1 1 1 1

MAKER

30 6A1−83625−41 MARK 5 1 1 1 1

ETIQUETTE 5

31 6A1−83625−51 MARK 5 1 1 1 1

ETIQUETTE 5

69J2

60L2

69K2

60M2

FIG. 16 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−82316−00 BRACKET, IGNITION COIL 1 1 1 1

SUPPORT, BOBINE D’ALLUMAGE

2 90480−09M21 GROMMET 1 1 1 1

PASSE−FIL

3 90119−06041 BOLT, WITH WASHER 6 6 6 6

BOULON, AVEC RONDELLE

4 69J−82310−00 IGNITION COIL ASSY 3 3 3 3

BOBINE D’ALLUMAGE

5 97095−06020 BOLT 6 6 6 6

BOULON

6 92995−06600 WASHER 6 6 6 6

RONDELLE

7 90464−12002 CLAMP 3 3 3 3

BRIDE

8 90464−07M56 CLAMP 3 3 3 3

BRIDE

9 69J−82314−00 COVER, IGNITION COIL 1 1 1 1

COUVERCLE, BOBINE D’ALLUMAGE

10 90110−06038 BOLT, HEXAGON SOCKET HEAD 4 4 4 4

BOULON, TETE HEXAGONALE CREUSE

11 663−82317−01 DAMPER, IGNITION COIL 2 2 2 2

AMORTISSEUR, BOBINE D’ALLUM

12 69J−81960−10 RECTIFIER & REGULATOR ASSY 1 1 1 1

REDRESSEUR REGULATEUR CPLT

13 69J−81975−A0 PLATE, RECTIFIER FITTING 1 1 1 1

PLAQUE, FIXATION DU REDRESSEUR

14 69J−81972−01−1S COVER, RECTIFIER 1 1 1 1

COUVERCLE, REDRESSEUR

15 90119−06MA3 BOLT, WITH WASHER 4 4 4 4

BOULON, AVEC RONDELLE

16 90119−06MA5 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

17 97095−06020 BOLT 1 1 1 1

BOULON

18 92995−06100 WASHER, SPRING 1 1 1 1

RONDELLE, GROWER

19 92995−06600 WASHER 1 1 1 1

RONDELLE

20 69J−12482−00 PIPE 2 1 1 1 1

DURITE 2

21 69J−12481−00 PIPE 1 1 1 1 1

DURITE 1

22 90467−09M03 CLIP 2 2 2 2

JONC

23 90467−08M18 CLIP 2 2 2 2

JONC

24 69J−82519−00 WIRE, EARTH LEAD 1 1 1 1

FIL, MASSE

25 97095−06012 BOLT 2 2 2 2

BOULON

26 92995−06600 WASHER 2 2 2 2

RONDELLE

27 61A−85790−00 THERMOSENSOR ASSY 1 1 1 1

SENSITOMETRE

69J2

60L2

69K2

60M2

FIG. 16 ELECTRICAL 1 PARTIE ELECTRIQUE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92990−10600 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

29 69J−83626−00 MARK 6 1 1 1 1

MARK 6

30 67F−12138−60 MARK, CAUTION 1 1 1 1

MAKER

69J2

60L2

69K2

60M2

FIG. 17 ELECTRICAL 2 PARTIE ELECTRIQUE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−8591A−02 ENGINE CONTROL UNIT ASSY 1 1

BLOC DE CONTROL

60L−8591A−01 ENGINE CONTROL UNIT ASSY 1 1

BLOC DE CONTROL

2 97095−06016 BOLT 4 4 4 4

BOULON

3 92995−06600 WASHER 4 4 4 4

RONDELLE

4 69J−81925−00 TERMINAL 1 1 1 1

BORNE

5 97095−08020 BOLT 2 2 2 2

BOULON

6 92995−08600 WASHER 2 2 2 2

RONDELLE

7 97095−06014 BOLT 2 2 2 2

BOULON

8 92995−06600 WASHER 2 2 2 2

RONDELLE

9 69J−82105−00 WIRE HARNESS 1 1 1 1

FAISCEAU DE FILS

10 69J−81948−00 BRACKET 1 1 1 1

JOINT TORIQUE

11 6A0−82317−00 DAMPER, IGNITION COIL 6 6 6 6

AMORTISSEUR, BOBINE D’ALLUM

12 624−42542−00 PIPE 6 6 6 6

TUYAU

13 90119−06M59 BOLT, WITH WASHER 6 6 6 6

BOULON, AVEC RONDELLE

14 68V−8194A−00 RELAY 1 1 1 1

RELAIS

15 97095−06010 BOLT 2 2 2 2

BOULON

16 92995−06100 WASHER, SPRING 2 2 2 2

RONDELLE, GROWER

17 92995−06600 WASHER 2 2 2 2

RONDELLE

18 68V−81953−00 STAY, RELAY 1 1 1 1

SUPPORT, RELAIS

19 97780−60620 SCREW, TAPPING 1 1 1 1

VIS, TETE BOMBEE

20 6G5−82119−00 COVER, LEAD WIRE 1 1 1 1

GARNITURE, FIL

21 69J−81950−10 RELAY ASSY 1 1 1 1

RELAIS COMPLET

22 97095−06010 BOLT 2 2 2 2

BOULON

23 92995−06100 WASHER, SPRING 2 2 2 2

RONDELLE, GROWER

24 92995−06600 WASHER 2 2 2 2

RONDELLE

25 97013−06025 BOLT 2 2 2 2

BOULON

26 92903−06600 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

69J2

60L2

69K2

60M2

FIG. 17 ELECTRICAL 2 PARTIE ELECTRIQUE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

27 69J−81942−00 COVER 1 1 1 1

COUVERCLE

28 90169−05M00 SCREW, TRUSS HEAD TAPPING 4 4 4 4

VIS, TETE FRAISEE

29 90464−07M56 CLAMP 2 2 2 2

BRIDE

30 68V−81950−00 RELAY ASSY 1 1 1 1

RELAIS COMPLET

31 97780−60625 SCREW, TAPPING 1 1 1 1

VIS, TETE BOMBEE

32 69J−81919−00 GRAPHIC, REGULATOR 1 1 1 1

ADHESIF, REGULATEUR

69J2

60L2

69K2

60M2

FIG. 18 ELECTRICAL 3 PARTIE ELECTRIQUE 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−82590−20 WIRE HARNESS ASSY 1 1 1 1

FAISCEAU DE FILS COMPLET

2 67F−82151−20 .FUSE 2 2 2 2

.FUSIBLE

3 97095−06020 BOLT 2 2 2 2

BOULON

4 92995−06100 WASHER, SPRING 2 2 2 2

RONDELLE, GROWER

5 92995−06600 WASHER 2 2 2 2

RONDELLE

6 97095−06035 BOLT 3 3 3 3

BOULON

7 92995−06600 WASHER 3 3 3 3

RONDELLE

8 69J−82563−00 TRIM & TILT SWITCH ASSY 1 1 1 1

INCLINER ET PARER COMMUTATEUR

9 69J−42723−00−8D COVER, BOTTOM 1 1 1 1

COUVERCLE

10 69J−82587−00 GASKET 2 2 2 2

JOINT

11 69J−83614−00 BRACKET 2 2 2 2

SUPPORT

12 90109−06M86 BOLT 4 4 4 4

BOULON

13 69J−8259N−10 WIRE HARNESS ASSY 3 1 1 1 1

FAISCEAU DE FILS

14 69J−83306−00 DRIVE UNIT ASSY 1 1 1 1

UNITE DE PROMENADE

15 90109−06M82 BOLT 2 2 2 2

BOULON

16 90465−13M18 CLAMP 6 6 6 6

BRIDE

17 69J−81949−00 WIRE, LEAD (ISOLATOR CABLE) 1 1 1 1 AP

FIL

69J2

60L2

69K2

60M2

FIG. 19 STARTING MOTOR DEMARREUR ELECTRIQUE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−81800−00 STARTING MOTOR ASSY 1 1 1 1

DEMARREUR ELECTRIQUE COMPLET

2 67F−81850−00 .ARMATURE ASSY 1 1 1 1

.INDUIT

3 67F−81810−00 .STATOR ASSY 1 1 1 1

.STATOR COMPLET

4 69J−81840−00 .BRUSH HOLDER ASSY 1 1 1 1

.SUPPORT DE CHARBON

5 69J−81801−00 ..BRUSH SET 1 1 1 1

..CHARBON

6 67F−81813−00 ..SPRING, BRUSH 4 4 4 4

..RESSORT, DE CHARBON

7 68F−81820−00 .REAR BRACKET ASSY 1 1 1 1

.SUPPORT ARRIERE COMPLET

8 67F−81808−00 .PINION ASSY 1 1 1 1

.PIGNON

9 67F−81857−00 .PINION STOPPER SET 1 1 1 1

.BUTEE PIGNON

10 67F−81807−00 .GEAR ASSY, STARTING MOTOR 1 1 1 1

.PIGNON, DEMARREUR ELECTRIQUE

11 67F−81832−00 ..CLUTCH, OVER RUN 1 1 1 1

..EMBRAYAGE, ROUE LIBRE

12 67F−81836−00 ..SHAFT, PINION 1 1 1 1

..AXE, PIGNON

13 67F−81821−00 ..BRACKET, CENTER 1 1 1 1 1

..SUPPORT, CENTRE 1

14 67F−81841−00 ..BEARING 1 1 1 1

..ROULEMENT

15 67F−81891−00 ..GEAR, RING 1 1 1 1

..ROUE DENTEE

16 67F−8183R−00 ...GASKET 1 1 1 1

...JOINT

17 67F−81830−00 ..BRACKET, CENTER 2 1 1 1 1

..SUPPORT, CENTRE 2

18 67F−8183T−00 ..GEAR, IDLER 3 3 3 3

..PIGNON, INTERMEDIAIRE

19 67F−81809−00 ..WASHER KIT 1 1 1 1

..JEU DE RONDELLES

20 69J−81842−00 .COVER 1 1 1 1

.COUVERCLE

21 69J−81839−00 .LEVER ASSY 1 1 1 1

.LEVIER COMPLET

22 69J−81941−00 .STARTER RELAY ASSY 1 1 1 1

.LANCEUR RELAIS (ENS.)

23 69J−81869−00 .COVER, DUST 1 1 1 1

.COUVERCLE, POUSSIERE

24 6K7−81826−10 .BOLT 2 2 2 2

.BOULON

25 69J−81828−00 .BOLT 2 2 2 2 2

.RONDELLE, BUTEE 2

26 67F−81846−00 .SCREW 2 2 2 2

.VIS

27 97013−08045 BOLT 3 3 3 3

BOULON

69J2

60L2

69K2

60M2

FIG. 19 STARTING MOTOR DEMARREUR ELECTRIQUE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92903−08600 WASHER, PLATE 3 3 3 3

RONDELLE, PLATE

29 95333−08600 NUT 1 1 1 1

ECROU

30 92903−08100 WASHER, SPRING 1 1 1 1

RONDELLE, GROWER

69J2

60L2

69K2

60M2

FIG. 20 BOTTOM COWLING 1 CAPOT INFERIEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−42710−01−8D BOTTOM COWLING ASSY 1 1 1 1

ENS. EMBASE

2 69J−42738−01−5B PLATE, FITTING 1 1 1 1

ETRIER

3 69J−42744−10 STAY 1 1 1 1

SUPPORT

4 97885−06010 SCREW, PAN HEAD 1 1 1 1

VIS, A ENCOCHE

5 90109−06M82 BOLT 2 2 2 2

BOULON

6 69J−42725−01 GROMMET 1 1 1 1

PASSE−FIL

7 64D−42738−10−5B PLATE, FITTING 1 1 1 1

ETRIER

8 90109−06M82 BOLT 1 1 1 1

BOULON

9 69J−42615−00 SEAL 1 1 1 1

JOINT

10 69J−42716−00 RUBBER, SEAL 1 1 1 1 1

JOINT EN CAOUTCHOUC 1

11 90119−08M22 BOLT, WITH WASHER 4 4 4 4

BOULON, AVEC RONDELLE

12 90480−22M81 GROMMET 8 8 8 8

PASSE−FIL

13 90387−08M37 COLLAR 4 4 4 4

COLLERETTE

14 6H1−42726−20 GROMMET 1 1 1 1

PASSE−FIL

15 90465−11M10 CLAMP 2 2 2 2

BRIDE

16 61A−42727−00 GROMMET 1 1 1 1

PASSE−FIL

17 69J−44391−00 NIPPLE, HOSE 1 1 1 1

RACCORD D’ESSENCE

18 69J−42717−00 RUBBER, SEAL 2 2 2 2 2

JOINT EN CAOUTCHOUC 2

19 61A−42717−00 RUBBER, SEAL 2 2 2 2 2

JOINT EN CAOUTCHOUC 2

20 6E5−82588−00 PLATE 3 3 3 3

PLAQUE

21 90109−06M81 BOLT 3 3 3 3

BOULON

22 90462−20001 CLAMP 1 1 1 1

BRIDE

23 90109−06M86 BOLT 1 1 1 1

BOULON

24 69J−82554−00 STAY, NEUTRAL SWITCH 1 1 1 1

SUPPORT, CONT DE POINT−MORT

25 90109−06M86 BOLT 1 1 1 1

BOULON

26 90464−09M47 CLAMP 1 1 1 1

BRIDE

27 68F−42828−00−5B PLATE, CLAMP 1 1 1 1

PLAQUE, PRESSE

69J2

60L2

69K2

60M2

FIG. 20 BOTTOM COWLING 1 CAPOT INFERIEUR 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 69J−42828−00−5B PLATE, CLAMP 1 1 1 1

PLAQUE, PRESSE

29 90109−06M82 BOLT 4 4 4 4

BOULON

30 69J−42815−00−8D LEVER, CLAMP 1 1 1 1

LEVIER, PRESSE

31 69J−42817−00−8D LEVER, CLAMP 1 1 1 1

LEVIER, PRESSE

32 90386−15M73 BUSH 4 4 4 4

DOUILLE

33 90206−15M18 WASHER, WAVE 2 2 2 2

RONDELLE, ONDULEE

34 68F−42818−00 LEVER, CLAMP 2 2 2 2

LEVIER, PRESSE

35 97095−06020 BOLT 2 2 2 2

BOULON

36 90201−06068 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

37 68F−42828−10−5B PLATE, CLAMP 1 1 1 1

PLAQUE, PRESSE

38 90109−06M82 BOLT 2 2 2 2

BOULON

39 69J−42816−00−8D LEVER, CLAMP 1 1 1 1

LEVIER, PRESSE

40 90386−15M73 BUSH 2 2 2 2

DOUILLE

41 90206−15M18 WASHER, WAVE 1 1 1 1

RONDELLE, ONDULEE

42 67F−42818−00 LEVER, CLAMP 1 1 1 1

LEVIER, PRESSE

43 97095−06020 BOLT 1 1 1 1

BOULON

44 90201−06068 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

45 64D−43144−00 HOOK, SPRING 3 3 3 3

CROCHET

46 90109−06M86 BOLT 3 3 3 3

BOULON

47 90506−16M34 SPRING, TENSION 3 3 3 3

RESSORT, TENSION

48 68F−42753−00 FASTNER 1 1 1 1 AP

ATTACHE

49 90464−20258 CLAMP 1 1 1 1 AP

BRIDE

50 68V−82594−00 CLAMP 1 1 1 1

BRIDE

51 67F−82377−00 LABEL 1 1 1 1

ETIQUETTE

52 6A1−28176−00 LABEL, CAUTION 1 1 1 1

ETIQUETTE, RECOMMANDATION

53 6E3−8257H−00 PLATE, MARK 1 1 1 1

PLAQUE, ADHESIF

69J2

60L2

69K2

60M2

FIG. 21 BOTTOM COWLING 2 CAPOT INFERIEUR 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−42741−00−8D APRON 1 1 1 1

CAPOT LATERAL

2 90173−06001 NUT, SQUARE 2 2 2 2

ECROU, CARRE

3 69J−42771−00−8D APRON 1 1 1 1

CAPOT LATERAL

4 90111−06025 BOLT 5 5 5 5

BOULON

5 90111−06026 BOLT 1 1 1 1

BOULON

6 90480−14M17 GROMMET 6 6 6 6

PASSE−FIL

7 69J−42774−00 STAY, APRON 1 6 6 6 6

COUSSINET

8 69J−45151−00−8D COVER, UPPER CASING 1 1 1 1

CAPUCHON, FOURREAU

9 90111−06025 BOLT 2 2 2 2

BOULON

10 6E5−24379−00 PIPE, JOINT 4 1 1 1 1

DURITE RACCORDEMENT 4

11 90445−11012 HOSE (L600) 1 1 1 1

DURITE (L600)

12 68T−12572−00 ADAPTER 1 1 1 1

ADAPTATEUR

13 6R3−12581−00 JOINT, HOSE 1 1 1 1 1

JOINT DE TUYAU

14 6R3−12582−00 JOINT, HOSE 2 1 1 1 1

RACCORD DE TUYAU 1

15 6R3−12583−00 GASKET, HOSE JOINT 1 1 1 1

JOINT

16 90445−11028 HOSE 1 1 1 1

DURITE

17 90465−11M10 CLAMP 4 4 4 4

BRIDE

18 97780−60520 SCREW, TAPPING 2 2 2 2

VIS, TETE BOMBEE

69J2

60L2

69K2

60M2

FIG. 22 CONTROL 1 COMMANDE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−48531−00 BRACKET, REMOTE CONTROL 1 1 1 1 1

ETRIER 1, COMMANDE A DISTANCE

2 90109−06M86 BOLT 1 1 1 1

BOULON

3 6E5−48344−00 CABLE END, REMOTE CONTROL 1 1 1 1

CHAPE CABLE

4 90468−18008 CLIP 1 1 1 1

JONC

5 69J−44117−00−1S BRACKET 1 1 1 1

SUPPORT

6 97095−06035 BOLT 2 2 2 2

BOULON

7 92995−06600 WASHER 2 2 2 2

RONDELLE

8 69J−44176−01−1S BRACKET 1 1 1 1

SUPPORT

9 93700−06M01 NIPPLE, GREASE 1 1 1 1

PION

10 90386−12069 BUSH 2 2 2 2

DOUILLE

11 90109−08019 BOLT 1 1 1 1

BOULON

12 90508−20020 SPRING, TORSION 1 1 1 1

RESSORT, TORSION

13 68F−8259F−00 SWITCH ASSY 1 1 1 1

COMMUTATEUR

14 69J−8259F−00 SWITCH ASSY 1 1 1 1

COMMUTATEUR

15 61A−82588−01 PLATE 2 2 2 2

PLAQUE

16 97885−04016 SCREW, PAN HEAD 4 4 4 4

VIS, A ENCOCHE

17 92995−04100 WASHER 4 4 4 4

RONDELLE

18 90465−11M10 CLAMP 1 1 1 1

BRIDE

19 90465−06M86 CLAMP 1 1 1 1

BRIDE

20 90464−09010 CLAMP 1 1 1 1

BRIDE

21 69J−44121−00 LEVER, SHIFT ROD 1 1 1 1

LEVIER, TIGE D’INVERSION

22 69J−44122−00 BUSHING, SHIFT ROD LEVER 1 1 1 1

DOUILLE, LEVIER D’EMBRAYAGE

23 90202−08M20 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

24 90468−18008 CLIP 2 2 2 2

JONC

25 90386−06M12 BUSH 1 1 1 1

DOUILLE

26 69J−44118−00 BRACKET 1 1 1 1

SUPPORT

27 648−42715−00 BUSHING 1 1 1 1

COUSSINET

69J2

60L2

69K2

60M2

FIG. 22 CONTROL 1 COMMANDE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 93501−04M02 BALL 1 1 1 1

BILLE

29 90501−12082 SPRING, COMPRESSION 1 1 1 1

RESSORT, COMPRESSION

30 97075−06030 BOLT 1 1 1 1

BOULON

31 92995−06600 WASHER 1 1 1 1

RONDELLE

32 91690−30010 PIN, SPRING 1 1 1 1

AGRAFFE

33 69J−44120−00 HANDLE GEAR SHIFT ASSY 1 1 1 1 X

LEVIER D’EMBRAYAGE

69J−44120−10 HANDLE GEAR SHIFT ASSY 1 U

LEVIER D’EMBRAYAGE

34 93210−09165 O−RING 1 1 1 1

JOINT TORIQUE

35 90386−90M90 BUSH 2 2 2 2

DOUILLE

36 90201−09M02 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

37 91490−20015 PIN, COTTER 1 1 1 1

GOUPILLE

38 6E5−42724−00 GROMMET 1 1 1 1

PASSE−FIL

69J2

60L2

69K2

60M2

FIG. 23 CONTROL 2 COMMANDE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−42154−00 LEVER, THROTTLE CONTROL 1 1 1 1

LEVIER DE COMMANDE D’AVANCE

2 68V−42171−00 BUSHING 1 1 1 1

COUSSINET

3 90386−10025 BUSH 5 5 5 5

DOUILLE

4 93410−10082 CIRCLIP 1 1 1 1

CLIPS

5 69J−42152−00−94 GEAR 2 2 2 2

PIGNON

6 91690−30025 PIN, SPRING 2 2 2 2

AGRAFFE

7 91690−30018 PIN, SPRING 2 2 2 2

AGRAFFE

8 69J−42153−00 SHAFT, THROTTLE CONTROL 1 1 1 1

AXE, COMMANDE D’ACCELERATION

9 69J−41632−00−94 LEVER, MAGNETO CONTROL 1 1 1 1

LEVIER, COMMANDE D’AVANCE

10 663−85518−00 JOINT, BALL 1 1 1 1

JOINT SPHERIQUE

11 90201−10M02 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

12 6E5−48344−00 CABLE END, REMOTE CONTROL 1 1 1 1

CHAPE CABLE

13 90468−18008 CLIP 1 1 1 1

JONC

14 69J−41661−00−94 BRACKET 1 1 1 1

SUPPORT

15 97095−06045 BOLT 5 5 5 5

BOULON

16 92995−06600 WASHER 5 5 5 5

RONDELLE

17 90465−06M67 CLAMP 2 2 2 2

BRIDE

18 97095−06014 BOLT 2 2 2 2

BOULON

19 92995−06600 WASHER 2 2 2 2

RONDELLE

20 676−41662−00 BRACKET 1 1 1 1

SUPPORT

21 97095−06020 BOLT 2 2 2 2

BOULON

22 92995−06600 WASHER 2 2 2 2

RONDELLE

23 69J−41213−00 CAM, ACCEL. 1 1 1 1

CAME, ACCELERATION

24 69J−44135−00 SPRING 1 1 1 1

RESSORT

25 90109−06040 BOLT 1 1 1 1

BOULON

26 90206−10M04 WASHER, WAVE 1 1 1 1

RONDELLE, ONDULEE

27 90201−10M02 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

69J2

60L2

69K2

60M2

FIG. 24 CONTROL 3 COMMANDE 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−41241−00 ROD, LINK 1 1 1 1

BIELLETTE

2 682−41237−00 JOINT, LINK 1 1 1 1

RACCORD

3 95380−05600 NUT 1 1 1 1

ECROU

4 69J−41210−00 ACCEL. ARM ASSY 1 1 1 1

LEVIER D’ACCELERATION

5 69J−41635−00 SHAFT, LINK CONNECTING 1 1 1 1

AXE, RACCORD

6 91690−30008 PIN, SPRING 1 1 1 1

AGRAFFE

7 95895−06030 BOLT, FLANGE 1 1 1 1

BOULON

8 90201−06M31 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

9 69J−41211−00 LINK, ACCEL. 1 1 1 1

BIELLETTE, ACCELERATION

10 69J−41636−00 ROD, MAGNETO CONTROL 1 1 1 1

BIELLETTE, COMMANDE D’AVANCE

11 95680−05100 NUT , U 5 5 5 5

ECROU, U

69J2

60L2

69K2

60M2

FIG. 25 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−43111−01−8D BRACKET, CLAMP 1 1 1 1

PRESSE

2 6G5−45251−02 ANODE 1 1 1 1

ANODE

3 6G5−44526−00 PLATE 2 2 2 2

PLAQUE

4 97095−06025 BOLT 4 4 4 4

BOULON

5 92995−06600 WASHER 4 4 4 4

RONDELLE

6 6H1−82148−00 WIRE, LEAD 4 1 1 1 1

FIL 4

7 97095−06010 BOLT 1 1 1 1

BOULON

8 92995−06600 WASHER 1 1 1 1

RONDELLE

9 6E5−82148−00 WIRE, LEAD 4 1 1 1 1

FIL 4

10 97885−06012 SCREW, PAN HEAD 1 1 1 1

VIS, A ENCOCHE

11 92995−06600 WASHER 1 1 1 1

RONDELLE

12 61A−43132−00 WASHER, FRICTION 1 1 1 1

RONDELLE, FRICTION

13 97885−06010 SCREW, PAN HEAD 2 2 2 2

VIS, A ENCOCHE

14 69J−43112−01−8D BRACKET, CLAMP 1 1 1 1

PRESSE

15 61A−43133−00 WASHER,FRICTION 1 1 1 1

RONDELLE

16 97885−06010 SCREW, PAN HEAD 2 2 2 2

VIS, A ENCOCHE

17 93700−06M03 NIPPLE, GREASE 1 1 1 1

PION

18 90465−08M83 CLAMP 1 1 1 1

BRIDE

19 97885−06012 SCREW, PAN HEAD 1 1 1 1

VIS, A ENCOCHE

20 92995−06600 WASHER 1 1 1 1

RONDELLE

21 6R3−43131−00 BOLT, CLAMP BRACKET 1 1 1 1

BOULON, PRESSE

22 90386−25M31 BUSH 2 2 2 2

DOUILLE

23 90201−26M59 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

24 90185−22M11 NUT, SELF−LOCKING 1 1 1 1

ECROU, AUTO−BLOCANT

25 90465−11M10 CLAMP 4 4 4 4

BRIDE

26 90465−08M83 CLAMP 1 1 1 1

BRIDE

27 97095−06014 BOLT 1 1 1 1

BOULON

69J2

60L2

69K2

60M2

FIG. 25 BRACKET 1 SUPPORT 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 92995−06600 WASHER 1 1 1 1

RONDELLE

29 97095−10045 BOLT 8 8 8 8

BOULON

30 92995−10100 WASHER 8 8 8 8

RONDELLE

31 92995−10600 WASHER 8 8 8 8

RONDELLE

32 61A−43311−21−8D BRACKET, SWIVEL 1 1 1 1 1

SUPPORT, PIVOT 1

33 93700−06M03 NIPPLE, GREASE 5 5 5 5

PION

34 69J−82147−00 WIRE, LEAD 4 1 1 1 1

FIL 4

35 6G5−43144−00 HOOK, SPRING 1 1 1 1

CROCHET

36 97095−06010 BOLT 1 1 1 1

BOULON

37 61A−43181−01 LEVER, TILT STOP 1 1 1 1

LEVIER, VERROUILLAGE RELEVAGE

38 6G5−43185−02 LEVER, TILT STOP 1 1 1 1

LEVIER, VERROUILLAGE RELEVAGE

39 90386−10M16 BUSH 4 4 4 4

DOUILLE

40 6G5−43148−00 COLLAR, DISTANCE 2 2 2 2

ENTRETOISE

41 90249−06M19 PIN 1 1 1 1

GOUPILLE

42 90387−10M02 COLLAR 1 1 1 1

COLLERETTE

43 91690−30020 PIN, SPRING 2 2 2 2

AGRAFFE

44 90506−16003 SPRING, TENSION 1 1 1 1

RESSORT, TENSION

45 6E5−43126−02 PIN, UPPER SHOCK MOUNT 1 1 1 1

AXE, SUPERIEUR AMORTISSEUR

46 90386−18M63 BUSH 2 2 2 2

DOUILLE

47 90386−18M14 BUSH 2 2 2 2

DOUILLE

48 93410−18M02 CIRCLIP 1 1 1 1

CLIPS

49 90101−12M05 BOLT (L:130MM) 4 4 4 4

BOULON (L:130MM)

50 90201−13M01 WASHER, PLATE 8 8 8 8

RONDELLE, PLATE

51 90201−12M05 WASHER, PLATE 4 4 4 4

RONDELLE, PLATE

52 95380−12600 NUT 8 8 8 8

ECROU

69J2

60L2

69K2

60M2

FIG. 26 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−83672−00 TRIM SENDER 1 1 1 1

INCLINER RACCORD

2 97885−06016 SCREW, PAN HEAD 2 2 2 2

VIS, A ENCOCHE

3 61A−43376−00 BOLT, THRUST RECEIVER 2 2 2 2

BOULON

4 95780−10300 NUT, FLANGE 2 2 2 2

ECROU

5 69J−42510−00−8D STEERING BRACKET ASSY 1 1 1 1

DIRECTION SUPPORT (ENS.)

6 90201−40M00 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

7 90386−39M89 BUSH 2 2 2 2

DOUILLE

8 93210−35321 O−RING 1 1 1 1

JOINT TORIQUE

9 90202−40M47 WASHER, PLATE 1 1 1 1

RONDELLE, PLATE

10 69J−44551−00−8D HOUSING, LOWER MOUNT RUBBER 1 1 1 1

BOITIER, SILENT−BLOC INFERIEUR

11 93410−37M04 CIRCLIP 1 1 1 1

CLIPS

12 61A−44575−00 DAMPER, LOWER MOUNT RUBBER 1 1 1 1

SILENT−BLOC, INFERIEUR

13 66K−44555−00−94 MOUNT DAMPER, LOWER SIDE 2 2 2 2

SILENT−BLOC, INFERIEUR LATERAL

14 90202−32M19 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

15 90201−16M55 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

16 6E5−82149−00 WIRE, LEAD 3 1 1 1 1

FIL 3

17 90109−14M48 BOLT 2 2 2 2

BOULON

18 90201−15M58 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

19 90185−14M00 NUT, SELF−LOCKING 2 2 2 2

ECROU, AUTO−BLOCANT

20 92995−14600 WASHER 2 2 2 2

RONDELLE

21 61A−44552−01−94 HOUSING, LOWER MOUNT RUBBER 2 2 2 2

BOITIER, SILENT−BLOC INFERIEUR

22 97095−10045 BOLT 4 4 4 4

BOULON

23 92995−10600 WASHER 4 4 4 4

RONDELLE

24 66K−44514−00−94 MOUNT DAMPER, UPPER SIDE 2 2 2 2

SILENT−BLOC, SUPERIEUR LATERAL

25 90201−16M01 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

26 90202−28M46 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

27 90201−28M01 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

69J2

60L2

69K2

60M2

FIG. 26 BRACKET 2 SUPPORT 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 90109−14M10 BOLT 2 2 2 2

BOULON

29 90185−14M00 NUT, SELF−LOCKING 2 2 2 2

ECROU, AUTO−BLOCANT

30 92995−14600 WASHER 2 2 2 2

RONDELLE

31 69J−44533−00 DAMPER, UPPER MOUNT RUBBER 2 2 2 2

COUVERCLE, SUSPENSION INFERIEU

32 61A−44511−00−94 COVER, UPPER MOUNT 1 1 1 1

COUVERCLE, SUSPENSION SUPERIEU

33 97095−10045 BOLT 3 3 3 3

BOULON

34 92995−10600 WASHER 3 3 3 3

RONDELLE

69J2

60L2

69K2

60M2

FIG. 27 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−43800−00−4D POWER TRIM & TILT ASSY 1 1 1 1

PUISSANCE PARER ET INCLINER (E

2 69J−43840−00 POWER TILT ASSY 1 1 1 1

PUISSANCE INCLINER (ENS.)

3 69J−43810−00 .TILT PISTON SUB ASSY 1 1 1 1

.INCLINER PISTON AUXILIAIRE(EN

4 69J−43801−00 ..ROD 1 1 1 1

..TIGE

5 93106−19N50 ..OIL SEAL 1 1 1 1

..JOINT SPY

6 6H1−43861−00 ..O−RING 1 1 1 1

..JOINT TORIQUE

7 6H1−43872−00 ..RING, BACK UP 1 1 1 1

..RESSORT

8 61A−4389H−00 ..O−RING 1 1 1 1

..JOINT TORIQUE

9 61A−43811−00 ..SCREW, CYLINDER END 1 1 1 1

..VIS, CYLINDRE RACCORD

10 69J−4384H−00 ..SPRING 1 1 1 1

..RESSORT

11 69J−4382E−00 ..ADAPTOR 2 1 1 1 1

..ADAPTEUR 2

12 69J−4380P−00 ..PISTON SUB ASSY 1 1 1 1

..PISTON AUXILIAIRE (ENS.)

13 93505−32038 ...BALL 5 5 5 5

...BILLE ROULEMENT

14 61A−43861−00 ...O−RING 1 1 1 1

...JOINT TORIQUE

15 61A−43871−00 ...RING, BACK UP 1 1 1 1

...SEGMENT

16 61A−43861−00 .O−RING 1 1 1 1

.JOINT TORIQUE

17 6H1−43814−00 .PISTON, FREE 1 1 1 1

.PISTON

18 61A−43813−01 .CYLINDER, TILT 1 1 1 1

.CYLINDRE

19 61A−43835−01 PIPE 1 1 1 1

TUYAU

20 69J−4388J−00 PLUG 2 1 1 1 1

BOUCHON 2

21 69J−43833−00 PIPE 1 1 1 1

TUYAU

22 93210−17239 O−RING 1 1 1 1

JOINT TORIQUE

23 69J−4388E−00 BOLT ,SCREW 1 1 1 1

VIS

24 90386−18M14 BUSH 2 2 2 2

DOUILLE

25 61A−43818−00 PIN, LOWER SHOCK MOUNT 1 1 1 1

AXE, INFERIEUR AMORTISSEUR

26 61A−43876−00 RING, SNAP 1 1 1 1

RESSORT

27 93210−18397 O−RING 1 1 1 1

JOINT TORIQUE

69J2

60L2

69K2

60M2

FIG. 27 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 69J−43845−00 SCREW, MANUAL RELEASE 1 1 1 1

VIS

29 6H1−43875−00 RING, SNAP 1 1 1 1

RESSORT

30 69J−4381C−00 FILTER 3 2 2 2 2

FILTRE 3

31 69J−43899−00 PLATE STOPPER 2 2 2 2

PLAQUETTE

32 69J−4389J−00 O−RING 2 2 2 2

JOINT TORIQUE

33 69J−43830−00 GEAR PUMP ASSY 1 1 1 1

POMPE A PIGNON (ENS.)

34 93505−32038 .BALL 4 4 4 4

.BILLE ROULEMENT

35 69J−4381C−00 .FILTER 3 1 1 1 1

.FILTRE 3

36 69J−4389J−00 .O−RING 2 2 2 2

.JOINT TORIQUE

37 93503−16003 .BALL 2 2 2 2

.BILLES

38 69J−4384M−00 .PISTON, SHUTTLE 2 1 1 1 1

.PISTON 2

39 69A−4384F−00 .SEAL, MAIN VALVE 2 2 2 2

.JOINT

40 99001−03600 .CIRCLIP 2 2 2 2

.CIRCLIP

41 69J−43894−00 .SPRING, SHUTTLE RETURN 2 2 2 2

.RESSORT

42 69J−43841−00 .PISTON, SHUTTLE 1 1 1 1

.PISTON

43 6H1−43883−00 .O−RING 1 1 1 1

.JOINT TORIQUE

44 65W−4386A−00 .PIN, ABSORBER VALVE 2 2 2 2

.GOUPILLE, SOUPAPE

45 69J−43853−00 .SPRING, MAIN VALVE 2 2 2 2

.RESSORT

46 69J−43893−00 .WASHER 2 2 2 2

.RONDELLE

47 93501−08001 .BALL 2 2 2 2

.BILLE

48 93210−08391 .O−RING 1 1 1 1

.JOINT TORIQUE

49 69J−43851−00 .SEAT, RELIEF VALVE 1 1 1 1

.SIEGE

50 69J−43844−00 .PIN, VALVE SUPPORT 1 1 1 1

.GOUPILLE

51 93210−064A5 .O−RING 1 1 1 1

.JOINT TORIQUE

52 69J−43855−00 .SPRING, UP RELIEF 1 1 1 1

.RESSORT

53 69J−43843−00 .SCREW, VALVE LOCK 2 2 2 2

.VIS

54 6H1−4384G−11 .SEAL, RELIEF VALVE 1 1 1 1

.JOINT

69J2

60L2

69K2

60M2

FIG. 27 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

55 6H1−43844−10 .PIN, VALVE SUPPORT 1 1 1 1

.GOUPILLE

56 6H1−43856−10 .SPRING, DOWN RELIEF 1 1 1 1

.RESSORT

57 69J−43854−00 .SPRING, MANUAL RELEASE 1 1 1 1

.RESSORT

58 69J−4384G−00 .SEAL, RELIEF VALVE 1 1 1 1

.JOINT

59 CS3−4387G−00 .WASHER 2 2 2 2

.RONDELLE

60 91318−05025 .BOLT 2 2 2 2

.BOULON

61 93604−35236 .PIN, DOWEL 2 2 2 2

.CLAVETTE

62 69J−43871−00 RING, BACK UP 1 1 1 1

SEGMENT

63 69J−43816−00 FILTER 1 1 1 1 1

FILTRE 1

64 69J−4381J−00 PLATE 1 1 1 1

PLAQUE

65 91318−05040 BOLT 3 3 3 3

BOULON

66 69J−43831−00 CONNECTOR, SHAFT 1 1 1 1

RACCORD

67 69J−4388H−00 PLUG 1 1 1 1

BOUCHON

68 69J−43817−00 FILTER 2 1 1 1 1

FILTRE 2

69 69J−4388F−00 SPACER 1 1 1 1

ENTRETOISE

70 6H1−43869−00 O−RING 2 2 2 2

JOINT TORIQUE

71 69J−43828−00 BODY, RESERVOIR 1 1 1 1

CORPS

72 69J−43888−00 BOLT, SOCKET 6 6 6 6

BOULON

73 93210−09165 O−RING 1 1 1 1

JOINT TORIQUE

74 6H1−43829−00 PLUG, RESERVOIR 1 1 1 1

BOUCHON

75 61A−43861−00 O−RING 2 2 2 2

JOINT TORIQUE

76 6T4−43875−00 RING, SNAP 2 2 2 2

RESSORT

77 61A−43822−00 SEAL, TRIM DUST 2 2 2 2

JOINT

78 61A−43821−00 SCREW, TRIM CYLINDER END 2 2 2 2

VIS

79 69J−43820−00 TRIM PISTON SUB ASSY 2 2 2 2

PARER PISTON AUXILIAIRE (ENS.)

80 61A−43874−00 .RING, BACK UP 1 1 1 1

.RESSORT

81 61A−43864−00 .O−RING 1 1 1 1

.JOINT TORIQUE

69J2

60L2

69K2

60M2

FIG. 27 POWER TRIM & TILT ASSY 1 PUISSANCE PARER ET INCLINER 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

82 61A−4384H−10 .SPRING 1 1 1 1

.RESSORT

83 61A−43875−10 .RING, SNAP 1 1 1 1

.RESSORT

84 69J−43880−00 MOTOR ASSY 1 1 1 1 REFER TO FIG.28

MOTEUR (ENS.)

69J2

60L2

69K2

60M2

FIG. 28 POWER TRIM & TILT ASSY 2 PUISSANCE PARER ET INCLINER 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−43880−00 MOTOR ASSY 1 1 1 1

MOTEUR (ENS.)

2 90206−14N50 .WASHER, WAVE 1 1 1 1

.RONDELLE, ONDULEE

3 93399−999T6 .BEARING 2 2 2 2

.ROULEMENT

4 69J−43805−00 .ARMATURE ASSY 1 1 1 1

.INDUIT (ENS.)

5 69J−43804−00 .STATOR ASSY 1 1 1 1

.STATOR (ENS.)

6 69J−43861−00 .O−RING 1 1 1 1

.JOINT TORIQUE

7 69J−43886−00 .BOLT 2 2 2 2

.BOULON

8 69J−43882−00 .OIL SEAL 1 1 1 1

.JOINT SPI

9 69J−43891−00 .BRUSH 1 4 4 4 4

.BALAI 1

10 69J−4386K−00 .SPRING, BRUSH 4 4 4 4

.RESSORT, BALAI

11 69J−43881−00 .FRAME, END 1 1 1 1

.BATI

69J2

60L2

69K2

60M2

FIG. 29 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−41137−00−94 GUIDE, EXHAUST 1 1 1 1

COLLECTEUR D’ECHAPPEMENT

2 90119−08M79 BOLT, WITH WASHER 2 2 2 2

BOULON, AVEC RONDELLE

3 97075−10045 BOLT 7 7 7 7

BOULON

4 92995−10600 WASHER 7 7 7 7

RONDELLE

5 97075−10035 BOLT 7 7 7 7

BOULON

6 92995−10600 WASHER 7 7 7 7

RONDELLE

7 93608−16M16 PIN, DOWEL 2 2 2 2

AXE

8 6E5−42724−00 GROMMET 1 1 1 1

PASSE−FIL

9 69J−11371−00 COVER 1 1 1 1

COUVERCLE

10 93210−28543 .O−RING 1 1 1 1

.JOINT TORIQUE

11 93210−33MG4 .O−RING 1 1 1 1

.JOINT TORIQUE

12 69J−12233−00 PLATE, GUIDE STOPPER 1 1 1 1 1

PLAQUE, GUIDE BUTEE 1

13 90387−06037 COLLAR 1 1 1 1

COLLERETTE

14 97095−06020 BOLT 1 1 1 1

BOULON

15 92995−06600 WASHER 1 1 1 1

RONDELLE

16 69J−41131−00−94 MANIFOLD, EXT. 1 1 1 1 1

PIPE D’ECHAPPEMENT

17 93608−16M16 PIN, DOWEL 2 2 2 2

AXE

18 69J−41132−00−5B MANIFOLD, EXHAUST 1 1 1 1

PIPE D’ECHAPPEMENT

19 69J−41134−A0 GASKET, EXHAUST MANIFOLD 1 1 1 1

JOINT, PIPE D’ECHAPPEMENT

20 97575−08590 BOLT, WITH WASHER 4 4 4 4

VIS HEXAGONAL AVC RONDELLE

21 69J−41138−00 SEAL, EXT. 1 1 1 1 1

JOINT DE GROUPE 1

22 69J−41135−A0 GASKET, EXHAUST MANIFOLD 1 1 1 1

JOINT, PIPE D’ECHAPPEMENT

23 69J−45181−00−5B PLATE 1 1 1 1

PLAQUETTE

24 69J−41136−A0 GASKET, EXHAUST MANIFOLD 4 1 1 1 1

JOINT, PIPE D’ECHAPPEMENT 4

25 69J−14711−00−5B MUFFLER 1 1 1 1 1

POT D’ECHAPPEMENT 1

26 97075−08035 BOLT 10 10 10 10

BOULON

27 92995−08600 WASHER 10 10 10 10

RONDELLE

69J2

60L2

69K2

60M2

FIG. 29 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 93606−19M23 PIN, DOWEL 2 2 2 2

GOUPILLE

29 69J−45127−00 SEAL 1 1 1 1

JOINT

30 69J−45123−00 GASKET, MUFFLER 1 1 1 1

JOINT, POT DE DETENTE

31 69J−45111−01−8D CASING, UPPER 1 1 1 1

FOURREAU

32 69J−42769−00 SEAL, RUBBER 1 1 1 1

BOURRELET, CAOUTCHOUC

33 69J−45113−00 GASKET, UPPER CASING 1 1 1 1

JOINT, TUBE D’ARBRE

34 90119−10007 BOLT, WITH WASHER 6 6 6 6

BOULON, AVEC RONDELLE

35 93608−16M16 PIN, DOWEL 2 2 2 2

AXE

36 69J−15316−00 DAMPER, ENGINE MOUNT 1 1 1 1 1

AMORTISSEUR DE SUPPORT

37 69J−45152−00−8D COVER, UPPER CASING 2 1 1 1 1

CAPUCHON FOURREAU

38 97095−06014 BOLT 2 2 2 2

BOULON

39 69J−45318−00 BUSHING, DRIVE SHAFT 1 1 1 1

DOUILLE, ARBRE MOTEUR

40 93420−36M01 CIRCLIP 1 1 1 1

CIRCLIP, TYPE S

41 61A−45155−00 CAP 1 1 1 1

CAPUCHON

42 97095−06010 BOLT 1 1 1 1

BOULON

43 92995−06600 WASHER 1 1 1 1

RONDELLE

44 6E5−83558−00 END, NIPPLE 1 1 1 1

RACCORD DE NIPPLE

45 90465−11M10 CLAMP 2 2 2 2

BRIDE

46 90445−07010 HOSE 1 1 1 1 X

DURITE

90445−07012 HOSE 1 U

DURITE

47 61A−45378−00 NIPPLE, HOSE 1 1 1 1

RACCORD, TUYAU

48 93606−12019 PIN, DOWEL 1 1 1 1

GOUPILLE

49 90119−06M17 BOLT, WITH WASHER 1 1 1 1

BOULON, AVEC RONDELLE

50 69J−14624−01 COVER, EXHAUST 1 1 1 1

CACHE D’ECHAPPEMENT

51 97880−06016 SCREW, PAN HEAD 2 2 2 2

VIS, TETE TRONCONIQUE

52 92990−06600 WASHER, PLATE 2 2 2 2

RONDELLE, PLATE

53 69J−45211−01−8D EXTENSION 1 U

EXTENSION

69J2

60L2

69K2

60M2

FIG. 29 UPPER CASING FOURREAU

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

54 6E5−44366−00 DAMPER, WATER SEAL 1 U

JOINT, TUBE D’EAU

55 93608−12M05 PIN, DOWEL 2 U

AXE

56 69J−45159−00 DAMPER 1 U

CAOUTCHOUC, JOINT

57 90116−10012 BOLT, STUD 6 U

GOUJON

58 92990−10600 WASHER, PLATE 6 U

RONDELLE, PLATE

59 92990−10100 WASHER, SPRING 6 U

RONDELLE, GROWER

60 95380−10600 NUT 6 U

ECROU

61 90119−10008 BOLT, WITH WASHER 1 U

BOULON, AVEC RONDELLE

69J2

60L2

69K2

60M2

FIG. 30 OIL PAN VENTILATEUR D’HUILE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−15312−00 GASKET, OIL PAN 1 1 1 1

JOINT DE VENTILATEUR D’HUILE

2 69J−15311−00−5B OIL PAN 1 1 1 1

VENTILATEUR D’HUILE

3 97575−08560 BOLT, WITH WASHER 10 10 10 10

VIS HEXAGONAL AVC RONDELLE

4 97095−08035 BOLT 2 2 2 2

BOULON

5 92995−08600 WASHER 2 2 2 2

RONDELLE

6 93608−16M16 PIN, DOWEL 2 2 2 2

AXE

7 90340−14M06 PLUG, STRAIGHT SCREW 1 1 1 1

PLOT, FILETE DROIT

8 90430−14M09 GASKET 1 1 1 1

JOINT

9 69J−13411−00 STRAINER, OIL 1 1 1 1

FILTRE, HUILE

10 90387−06M64 .COLLAR 3 3 3 3

.COLLERETTE

11 69J−13415−00 .SEAL, OIL STRAINER 1 1 1 1

.JOINT, FILTRE A HUILE

12 97027−06025 BOLT 3 3 3 3

BOULON

13 92907−06600 WASHER, PLATE 3 3 3 3

RONDELLE

14 69J−13300−00 OIL PUMP ASSY 1 1 1 1

POMPE A HUILE COMPLET

15 69J−13329−00 .GASKET, PUMP COVER 1 1 1 1

.JOINT, COUVERCLE DE POMPE

16 69J−13338−00 .OIL SEAL 1 1 1 1

.JOINT SPY

17 69J−13119−00 .OIL SEAL 1 1 1 1

.JOINT SPY

18 69J−13631−00 .OIL SEAL 2 2 2 2

.JOINT SPY

19 69J−11355−00 SEAL, CYLINDER 1 1 1 1 1

JOINT, SPY CYLINDRE

20 97095−06040 BOLT 4 4 4 4

BOULON

21 92995−06600 WASHER 4 4 4 4

RONDELLE

22 93210−25552 O−RING 2 2 2 2

JOINT TORIQUE

23 69J−15362−00 PLUG, OIL LEVEL 1 1 1 1

PLOT, NIVEAU D’HUILE

24 69J−15377−00 GUIDE, INLET 1 1 1 1

GUIDE D’ADMISSION

25 93210−19MJ3 O−RING 1 1 1 1

JOINT TORIQUE

26 97095−06020 BOLT 1 1 1 1

BOULON

27 92995−06600 WASHER 1 1 1 1

RONDELLE

69J2

60L2

69K2

60M2

FIG. 31 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−45300−21−8D LOWER UNIT ASSY 1 1 X

UNITE INFERIEURE (ENS.)

69J−45300−31−8D LOWER UNIT ASSY 1 U

UNITE INFERIEURE (ENS.)

2 61A−45301−10−8D CASING, LOWER 1 1

BEQUILLE

3 93311−832V2 BEARING 1 1

ROULEMENT

4 93332−000W1 BEARING 1 1

ROULEMENT

5 61A−45567−00−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

61A−45567−00−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

61A−45567−00−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

61A−45567−00−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

61A−45567−00−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

61A−45567−00−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

61A−45567−00−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

6 663−44366−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

7 90340−08002 PLUG, STRAIGHT SCREW 1 1

PLOT, FILETE DROIT

8 688−45341−10 PLUG, DRAIN 1 1

BOUCHON DE VIDANGE

9 90430−08020 GASKET 2 2

JOINT

10 61A−45376−00−94 GUIDE, SEAL DAMPER 1 1

BUTEE, JOINT CAOUTCHOUC

11 61A−45321−01 PLATE 1 1

PLAQUETTE

12 93210−64488 O−RING 1 1

JOINT TORIQUE

13 93106−09014 OIL SEAL 1 1

JOINT SPY

14 90119−06M10 BOLT, WITH WASHER 3 3

BOULON, AVEC RONDELLE

15 69J−44150−00 SHIFT CAM ASSY 1 1

CAME D’INVERSION

16 99001−08600 CIRCLIP 1 1

CIRCLIP

17 90501−11M10 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

18 61A−44311−01 HOUSING, WATER PUMP 1 1

CORPS, POMPE A EAU

19 61A−44322−02 INSERT, CARTRIDGE 1 1

CUVETTE

20 93210−86M38 O−RING 1 1

JOINT TORIQUE

69J2

60L2

69K2

60M2

FIG. 31 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

21 93210−37160 O−RING 1 1

JOINT TORIQUE

22 6E5−44365−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

23 6E5−44312−00 COVER, WATER PUMP HOUSING 1 1

COUVERCLE

24 6E5−44352−01 IMPELLER 1 1

TURBINE

25 90280−04M05 KEY, WOODRUFF 1 1

CLAVETTE, DEMI−LUNE

26 61A−45538−00 SPACER 1 1 1

ENTRETOISE

27 61A−45527−00 COLLAR, DRIVE SHAFT 1 1

ENTRETOISE

28 90201−22M01 WASHER, PLATE 2 2

RONDELLE, PLATE

29 90206−22M19 WASHER, WAVE 1 1

RONDELLE, ONDULEE

30 6G5−44323−00 OUTER PLATE, CARTRIDGE 1 1

PLAQUE EXTERIEURE

31 6E5−44315−A0 GASKET, WATER PUMP 1 1

JOINT, POMPE A EAU

32 93606−12019 PIN, DOWEL 2 2

GOUPILLE

33 90119−08M14 BOLT, WITH WASHER 4 4

BOULON, AVEC RONDELLE

34 61A−45331−00−94 HOUSING, BEARING 1 1

FLASQUE, ROULEMENT

35 93101−28M16 OIL SEAL 2 2

JOINT SPY

36 93317−330U2 BEARING 1 1

PIECE

37 61A−45587−00−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

61A−45587−00−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

61A−45587−00−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

61A−45587−00−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

61A−45587−00−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

61A−45587−00−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

61A−45587−00−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

38 93341−930U9 BEARING 1 1

CERVEAUX DE DIRECTION

39 93210−55M14 O−RING 1 1

JOINT TORIQUE

40 6E5−45344−00 COVER, OIL SEAL 1 1

FLASQE, JOINT D’HUILE

41 97095−08025 BOLT 4 4

BOULON

69J2

60L2

69K2

60M2

FIG. 31 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

42 92995−08600 WASHER 4 4

RONDELLE

43 69J−45501−00 DRIVE SHAFT COMP. 1 1 X

ARBRE MOTEUR COMP.

61A−45501−30 DRIVE SHAFT COMP. 1 U

ARBRE MOTEUR COMP.

44 69J−45551−00 PINION 1 1

PIGNON D’ATTAQUE

45 90201−16M00 WASHER, PLATE 1 1

RONDELLE, PLATE

46 90170−16M19 NUT 1 1

ECROU

47 69J−45560−00 GEAR 1 1

PIGNON

48 69J−45611−00 SHAFT, PROPELLER 1 1

ARBRE, HELICE

49 61A−45641−02 SHIFTER 1 1

EMBRAYAGE

50 61A−45634−01 SLIDE, SHIFT 1 1

CONTRE−POUSSOIR

51 61A−45632−00 PIN, CROSS 1 1

GOUPILLE DE CRABOT

52 69J−45631−00 CLUTCH, DOG 1 1

CRABOT

53 61A−45633−00 RING, CROSS PIN 1 1

JONC, GOUPILLE CRABOT

54 6H1−45668−00 SHAFT, FREE 1 1

AXE

55 61A−45635−00 PLUNGER, SHIFT 2 2

POUSSOIR D’EMBRAYAGE

56 90201−02M00 WASHER, PLATE 1 1

RONDELLE, PLATE

57 90183−02M03 NUT, SPRING 2 2

ECROU, RESSORT

58 90501−10M77 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

59 93501−04011 BALL 2 2

BILLE

60 69J−45332−00−94 HOUSING, BEARING 1 1

FLASQUE, ROULEMENT

61 93306−210U0 BEARING 1 1

ROULEMENT

62 69J−45571−00 GEAR 1 1

PIGNON

63 90201−31M00 WASHER, PLATE 1 1

RONDELLE, PLATE

64 61A−45577−00−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

61A−45577−00−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

61A−45577−00−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

61A−45577−00−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

69J2

60L2

69K2

60M2

FIG. 31 LOWER CASING. DRIVE 1 BOITIER D’HELICE, TRANSMISSION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

64 61A−45577−00−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

61A−45577−00−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

61A−45577−00−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

65 93315−43061 BEARING 1 1

ROULEMENT

66 93101−30M17 OIL SEAL 2 2

JOINT SPY

67 93211−04384 O−RING 2 2

JOINT TORIQUE

68 90105−08036 BOLT, FLANGE 2 2

BOULON

69 90201−08023 WASHER, PLATE 2 2

RONDELLE, PLATE

70 93700−09M00 NIPPLE, GREASE 1 1

PION

71 69J−45361−00−8D CAP, LOWER CASING 1 1

COUVERCLE, BOITIER D’HELICE

72 97095−08020 BOLT 2 2

BOULON

73 92995−08600 WASHER 2 2

RONDELLE

69J2

60L2

69K2

60M2

FIG. 32 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6E5−44365−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

2 6E5−44366−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

3 69J−44361−00 TUBE, WATER 1 1 X

TUBE D’EAU

69J−44361−10 TUBE, WATER 1 U

TUBE D’EAU

4 93608−12M05 PIN, DOWEL 2 2

AXE

5 97095−10045 BOLT 7 7 X

BOULON

6 92995−10100 WASHER 7 7 X

RONDELLE

7 92995−10600 WASHER 7 7 X

RONDELLE

8 90119−10MA2 BOLT, WITH WASHER 1 1 X

BOULON, AVEC RONDELLE

90119−10009 BOLT, WITH WASHER 1 U

BOULON, AVEC RONDELLE

9 69J−45375−00 DAMPER, SEAL 1 1

BOURRELET, CAOUTCHOUC

10 61A−45214−10 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

11 61A−45215−10 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

12 90152−05003 SCREW, COUNTERSUNK 1 1

VIS, TETE NOYEE

13 90185−05002 NUT, SELF−LOCKING 1 1

ECROU, AUTO−BLOCANT

14 61A−45371−00 TAB−TRIM 1 1

ANODE DERIVE

15 90105−10M00 BOLT, FLANGE 1 1

BOULON

16 69J−45987−00 SPACER 1 1

ENTRETOISE

17 688−45997−01 SPACER 1 1

ENTRETOISE

18 92990−18200 WASHER 1 1

RONDELLE, PLATE

19 90171−18M04 NUT, CASTLE 1 1

ECROU, CRENELE

20 91490−40030 PIN, COTTER 1 1

GOUPILLE

21 6G5−45970−02−98 PROPELLER (3X15−1/4”X15”−M) 1 1 UR

HELICE (3X15−1/4”X15”−M)

6G5−45972−02−98 PROPELLER (3X13−3/4”X21”−M) 1 1 UR

HELICE (3X13−3/4”X21”−M)

6G5−45974−03−98 PROPELLER (3X13−3/4”X19”−M2) 1 1 UR

HELICE (3X13−3/4”X19”−M2)

6G5−45978−03−98 PROPELLER (3X13−3/4”X17”−M2) 1 1 UR

HELICE (3X13−3/4”X17”−M2)

61A−45972−00−98 PROPELLER (3X14−1/2”X21”−T) 1 1 UR

HELICE (3X14−1/2”X21”−T)

69J2

60L2

69K2

60M2

FIG. 32 LOWER CASING. DRIVE 2 BOITIER D’HELICE, TRANSMISSION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

21 61A−45974−00−98 PROPELLER (3X14−1/2”X19”−T) 1 1 UR

HELICE (3X14−1/2”X19”−T)

61A−45978−00−98 PROPELLER (3X15”X17”−T) 1 1 UR

HELICE (3X15”X17”−T)

6R4−45970−A0 PROPELLER (3X15−1/4”X19”−M) 1 1 UR

HELICE (3X15−1/4”X19”−M)

6R4−45972−A0 PROPELLER (3X14−7/8”X21”−M) 1 1 UR

HELICE (3X14−7/8”X21”−M)

6R4−45974−A0 PROPELLER (3X14−1/2”X23”−M) 1 1 UR

HELICE (3X14−1/2”X23”−M)

6R4−45976−A0 PROPELLER (3X14−1/2”X15”−M) 1 1 UR

HELICE (3X14−1/2”X15”−M)

6R4−45978−A0 PROPELLER (3X15−1/4”X17”−M) 1 1 UR

HELICE (3X15−1/4”X17”−M)

66K−45972−B0 PROPELLER (3X14−1/2”X25”−M2) 1 1 UR

HELICE (3X14−1/2”X25”−M2)

69J2

60L2

69K2

60M2

FIG. 33 LOWER CASING. DRIVE 3 BOITIER D’HELICE, TRANSMISSION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69K−45300−21−8D LOWER UNIT ASSY 1 1 X

UNITE INFERIEURE (ENS.)

2 61A−45301−10−8D CASING, LOWER 1 1

BEQUILLE

3 93311−832V2 BEARING 1 1

ROULEMENT

4 61B−45538−01 SPACER 1 1 1

ENTRETOISE

5 93315−660W3 BEARING 1 1

ROULEMENT

6 93341−670V0 BEARING 1 1

CERVEAUX DE DIRECTION

7 61A−45567−00−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

61A−45567−00−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

61A−45567−00−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

61A−45567−00−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

61A−45567−00−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

61A−45567−00−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

61A−45567−00−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

8 663−44366−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

9 90340−08002 PLUG, STRAIGHT SCREW 1 1

PLOT, FILETE DROIT

10 688−45341−10 PLUG, DRAIN 1 1

BOUCHON DE VIDANGE

11 90430−08020 GASKET 2 2

JOINT

12 61A−45376−00−94 GUIDE, SEAL DAMPER 1 1

BUTEE, JOINT CAOUTCHOUC

13 61A−45321−01 PLATE 1 1

PLAQUETTE

14 93210−64488 O−RING 1 1

JOINT TORIQUE

15 93106−09014 OIL SEAL 1 1

JOINT SPY

16 90119−06M10 BOLT, WITH WASHER 3 3

BOULON, AVEC RONDELLE

17 69K−44150−00 SHIFT CAM ASSY 1 1

CAME D’INVERSION

18 99001−08600 CIRCLIP 1 1

CIRCLIP

19 90501−11M10 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

20 61A−44311−01 HOUSING, WATER PUMP 1 1

CORPS, POMPE A EAU

21 61A−44322−02 INSERT, CARTRIDGE 1 1

CUVETTE

69J2

60L2

69K2

60M2

FIG. 33 LOWER CASING. DRIVE 3 BOITIER D’HELICE, TRANSMISSION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

22 93210−86M38 O−RING 1 1

JOINT TORIQUE

23 93210−37160 O−RING 1 1

JOINT TORIQUE

24 6E5−44365−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

25 6E5−44312−00 COVER, WATER PUMP HOUSING 1 1

COUVERCLE

26 6E5−44352−01 IMPELLER 1 1

TURBINE

27 90280−04M05 KEY, WOODRUFF 1 1

CLAVETTE, DEMI−LUNE

28 61A−45538−00 SPACER 1 1 1

ENTRETOISE

29 61A−45527−00 COLLAR, DRIVE SHAFT 1 1

ENTRETOISE

30 90201−22M01 WASHER, PLATE 2 2

RONDELLE, PLATE

31 90206−22M19 WASHER, WAVE 1 1

RONDELLE, ONDULEE

32 6G5−44323−00 OUTER PLATE, CARTRIDGE 1 1

PLAQUE EXTERIEURE

33 6E5−44315−A0 GASKET, WATER PUMP 1 1

JOINT, POMPE A EAU

34 93606−12019 PIN, DOWEL 2 2

GOUPILLE

35 90119−08M14 BOLT, WITH WASHER 4 4

BOULON, AVEC RONDELLE

36 61A−45331−00−94 HOUSING, BEARING 1 1

FLASQUE, ROULEMENT

37 93101−28M16 OIL SEAL 2 2

JOINT SPY

38 93317−330U2 BEARING 1 1

PIECE

39 61A−45587−00−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

61A−45587−00−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

61A−45587−00−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

61A−45587−00−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

61A−45587−00−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

61A−45587−00−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

61A−45587−00−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

40 93341−930U9 BEARING 1 1

CERVEAUX DE DIRECTION

41 93210−55M14 O−RING 1 1

JOINT TORIQUE

42 6E5−45344−00 COVER, OIL SEAL 1 1

FLASQE, JOINT D’HUILE

69J2

60L2

69K2

60M2

FIG. 33 LOWER CASING. DRIVE 3 BOITIER D’HELICE, TRANSMISSION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

43 97095−08025 BOLT 4 4

BOULON

44 92995−08600 WASHER 4 4

RONDELLE

45 69J−45501−00 DRIVE SHAFT COMP. 1 1 X

ARBRE MOTEUR COMP.

46 69J−45551−00 PINION 1 1

PIGNON D’ATTAQUE

47 90201−16M00 WASHER, PLATE 1 1

RONDELLE, PLATE

48 90170−16M19 NUT 1 1

ECROU

49 69K−45560−00 GEAR 1 1

PIGNON

50 93317−428U7 .BEARING 2 2

.PIECE

51 69K−45611−00 SHAFT, PROPELLER 1 1

ARBRE, HELICE

52 69K−45641−00 SHIFTER 1 1

EMBRAYAGE

53 61A−45634−01 SLIDE, SHIFT 1 1

CONTRE−POUSSOIR

54 61A−45632−00 PIN, CROSS 1 1

GOUPILLE DE CRABOT

55 69J−45631−00 CLUTCH, DOG 1 1

CRABOT

56 61A−45633−00 RING, CROSS PIN 1 1

JONC, GOUPILLE CRABOT

57 6H1−45668−00 SHAFT, FREE 1 1

AXE

58 61A−45635−00 PLUNGER, SHIFT 2 2

POUSSOIR D’EMBRAYAGE

59 90201−02M00 WASHER, PLATE 1 1

RONDELLE, PLATE

60 90183−02M03 NUT, SPRING 2 2

ECROU, RESSORT

61 90501−10M77 SPRING, COMPRESSION 1 1

RESSORT, COMPRESSION

62 93501−04011 BALL 2 2

BILLE

63 69K−45332−00−94 HOUSING, BEARING 1 1

FLASQUE, ROULEMENT

64 93332−00048 BEARING 1 1

ROULEMENT

65 69K−45571−00 GEAR 1 1

PIGNON

66 93341−440U5 BEARING 1 1

CERVEAUX DE DIRECTION

67 6K1−45578−01−10 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

6K1−45578−01−12 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

6K1−45578−01−15 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

69J2

60L2

69K2

60M2

FIG. 33 LOWER CASING. DRIVE 3 BOITIER D’HELICE, TRANSMISSION 3

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

67 6K1−45578−01−18 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

6K1−45578−01−30 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

6K1−45578−01−40 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

6K1−45578−01−50 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

68 61B−45383−00 WASHER, CLAW 1 1

FREIN D’ECROU

69 69K−45384−00 NUT 1 1

ECROU

70 69K−45577−00 SHIM (T:0.10MM) 1 1 UR

CALE (T:0.10MM)

69K−45577−10 SHIM (T:0.12MM) 1 1 UR

CALE (T:0.12MM)

69K−45577−20 SHIM (T:0.15MM) 1 1 UR

CALE (T:0.15MM)

69K−45577−30 SHIM (T:0.18MM) 1 1 UR

CALE (T:0.18MM)

69K−45577−40 SHIM (T:0.30MM) 1 1 UR

CALE (T:0.30MM)

69K−45577−50 SHIM (T:0.40MM) 1 1 UR

CALE (T:0.40MM)

69K−45577−60 SHIM (T:0.50MM) 1 1 UR

CALE (T:0.50MM)

71 93315−43061 BEARING 1 1

ROULEMENT

72 93101−30M17 OIL SEAL 2 2

JOINT SPY

73 93211−04384 O−RING 2 2

JOINT TORIQUE

74 90105−08036 BOLT, FLANGE 2 2

BOULON

75 90201−08023 WASHER, PLATE 2 2

RONDELLE, PLATE

76 93700−09M00 NIPPLE, GREASE 1 1

PION

77 69J−45361−00−8D CAP, LOWER CASING 1 1

COUVERCLE, BOITIER D’HELICE

78 97095−08020 BOLT 2 2

BOULON

79 92995−08600 WASHER 2 2

RONDELLE

69J2

60L2

69K2

60M2

FIG. 34 LOWER CASING. DRIVE 4 BOITIER D’HELICE, TRANSMISSION 4

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6E5−44365−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

2 6E5−44366−00 DAMPER, WATER SEAL 1 1

JOINT, TUBE D’EAU

3 69J−44361−00 TUBE, WATER 1 1 X

TUBE D’EAU

4 93608−12M05 PIN, DOWEL 2 2

AXE

5 97095−10045 BOLT 7 7 X

BOULON

6 92995−10100 WASHER 7 7 X

RONDELLE

7 92995−10600 WASHER 7 7 X

RONDELLE

8 90119−10MA2 BOLT, WITH WASHER 1 1 X

BOULON, AVEC RONDELLE

9 69J−45375−00 DAMPER, SEAL 1 1

BOURRELET, CAOUTCHOUC

10 61A−45214−10 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

11 61A−45215−10 COVER, WATER INLET 1 1

GRILLE, ENTREE D’EAU

12 90152−05003 SCREW, COUNTERSUNK 1 1

VIS, TETE NOYEE

13 90185−05002 NUT, SELF−LOCKING 1 1

ECROU, AUTO−BLOCANT

14 61A−45371−00 TAB−TRIM 1 1

ANODE DERIVE

15 90105−10M00 BOLT, FLANGE 1 1

BOULON

16 69J−45987−00 SPACER 1 1

ENTRETOISE

17 688−45997−01 SPACER 1 1

ENTRETOISE

18 92990−18200 WASHER 1 1

RONDELLE, PLATE

19 90171−18M04 NUT, CASTLE 1 1

ECROU, CRENELE

20 91490−40030 PIN, COTTER 1 1

GOUPILLE

21 6K1−45970−01−98 PROPELLER (3X15−1/4”X15”−ML) 1 1 UR

HELICE (3X15−1/4”X15”−ML)

6K1−45972−01−98 PROPELLER (3X13−3/4”X21”−ML) 1 1 UR

HELICE (3X13−3/4”X21”−ML)

6K1−45974−02−98 PROPELLER (3X13−3/4”X19”−ML1) 1 1 UR

HELICE (3X13−3/4”X19”−ML1)

6K1−45978−02−98 PROPELLER (3X13−3/4”X17”−ML1) 1 1 UR

HELICE (3X13−3/4”X17”−ML1)

61B−45972−00−98 PROPELLER (3X14−1/2”X21”−TL) 1 1 UR

HELICE (3X14−1/2”X21”−TL)

61B−45974−00−98 PROPELLER (3X14−1/2”X19”−TL) 1 1 UR

HELICE (3X14−1/2”X19”−TL)

61B−45978−00−98 PROPELLER (3X15”X17”−TL) 1 1 UR

HELICE (3X15”X17”−TL)

69J2

60L2

69K2

60M2

FIG. 34 LOWER CASING. DRIVE 4 BOITIER D’HELICE, TRANSMISSION 4

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

21 6R1−45970−A0 PROPELLER (3X15−1/4”X19”−ML) 1 1 UR

HELICE (3X15−1/4”X19”−ML)

6R1−45972−A0 PROPELLER (3X14−7/8”X21”−ML) 1 1 UR

HELICE (3X14−7/8”X21”−ML)

6R1−45974−A0 PROPELLER (3X14−1/2”X23”−ML) 1 1 UR

HELICE (3X14−1/2”X23”−ML)

6R1−45976−A0 PROPELLER (3X15−1/4”X15”−ML) 1 1 UR

HELICE (3X15−1/4”X15”−ML)

6R1−45978−A0 PROPELLER (3X15−1/4”X17”−ML) 1 1 UR

HELICE (3X15−1/4”X17”−ML)

69J2

60L2

69K2

60M2

FIG. 35 STEERING GUIDE ATTACHMENT 1 DIRECTION GUIDE ACCESSOIRE 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6E5−61350−02 STEERING GUIDE ATTACHMENT KIT 1 1 AP

FIXATIONS DE DIRECTION

2 6E5−61351−01 .ROD, STEERING LINK 1 1

.RENVOI DE DIRECTION

3 90387−10M61 .COLLAR 1 1

.COLLERETTE

4 90560−12M01 .SPACER 1 1

.ENTRETOISE

5 6E5−61355−00 .BOLT 1 1

.BOULON

6 90185−09M01 .NUT, SELF−LOCKING 2 2

.ECROU, AUTO−BLOCANT

7 90201−10M20 .WASHER, PLATE 2 2

.RONDELLE, PLATE

8 6E5−43145−01 .CAP, CLAMP BRACKET 1 1

.CAPUCHON, PRESSE

9 93210−16275 .O−RING 1 1

.JOINT TORIQUE

69J2

60L2

69K2

60M2

FIG. 36 STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6E5−61301−01 TWIN KIT (L:600−800MM) 1 1 AP

JUMELE KIT (L:600−800MM)

2 6E5−61313−00 .ADJUSTER 1 1

.TENDEUR

3 6E5−61311−11 .TIE BAR 1 1

.BARRE D’ACCOUPLEMENT

4 6E5−61315−00 .TIE BAR 1 1

.BARRE D’ACCOUPLEMENT

5 6E5−61303−00 .STEERING EYE COMP. 2 2

.AXE COMP.

6 90170−14M06 .NUT 1 1

.ECROU

7 95380−14700 .NUT 2 2

.ECROU

8 90201−10M76 .WASHER, PLATE 2 2

.RONDELLE, PLATE

9 90101−09M70 .BOLT 2 2

.BOULON

10 90170−09M05 .NUT 2 2

.ECROU

11 90185−09M01 .NUT, SELF−LOCKING 2 2

.ECROU, AUTO−BLOCANT

69J2

60L2

69K2

60M2

FIG. 37 REMOTE CONTROL BOX BOITIER DE COMMANDE A DISTANCE

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 703−48205−17 REMOTE CONTROL ASSY 1 1 AP WITH PT/T SW.

BOITIER DE COMMANDE A DISTANCE

2 704−48207−23 REMOTE CONTROL ASSY 1 1 AP WITH PT/T SW.

BOITIER DE COMMANDE A DISTANCE

3 701−48320−50 CABLE, REMOTE CONTROL L=15F 2 2 2 2 UR

CABLE, COMMANDE A DISTANCE:15F

701−48320−60 CABLE, REMOTE CONTROL L=16F 2 2 2 2 UR

CABLE, COMMANDE A DISTANCE:16F

701−48320−80 CABLE, REMOTE CONTROL L=17F 2 2 2 2 UR

CABLE, COMMANDE A DISTANCE:17F

701−48320−40 CABLE, REMOTE CONTROL L=19F 2 2 2 2 UR

CABLE, COMMANDE A DISTANCE:19F

701−48350−00 CABLE, REMOTE CONTROL L=21F 2 2 2 2 UR

CABLE, COMMANDE A DISTANCE:21F

69J2

60L2

69K2

60M2

FIG. 38 METER COMPTEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6Y5−8350T−02 TACHOMETER ASSY 1 1 1 1 AP

COMPTE−TOURS CPLT

2 9E450−04433 .CONNECTOR 1 1 1 1 M−4−W

.CONNECTEUR

3 9E450−04533 .CONNECTOR 1 1 1 1 F−4−W

.CONNECTEUR

4 92990−04100 .WASHER, SPRING 2 2 2 2

.RONDELLE, GROWER

5 95380−04600 .NUT 2 2 2 2

.ECROU

6 6Y5−83500−S5 DIGITAL SPEEDOMETER ASSY 1 1 AP

TACHYMETRE NUMERIQUE CPLT.

7 6Y5−83570−S5 .SPEEDOMETER ASSY 1 1

.COMPTEUR DE VITESSE CPLT

8 92990−04100 ..WASHER, SPRING 2 2

..RONDELLE, GROWER

9 95380−04600 ..NUT 2 2

..ECROU

10 6Y5−83533−T2 ..GROMMET 1 1

..RONDELLE CAOUTCHOUC

11 6Y5−83557−31 .TUBE 1 1

.TUBE

12 6Y5−83728−00 .CONNECTOR ASSY 1 1

.CONNEXION COMPLET

13 90465−11M10 .CLAMP 2 2

.BRIDE

14 6Y5−87122−S0 CORD ASSY 1 1 1 AP

COPDON COMPLET

15 6Y5−83553−M0 WIRE, LEAD 1 1 AP

FIL

6Y5−83553−00 WIRE, LEAD 1 1 AP

FIL

16 1E6−82151−00 .FUSE (10A) 2 2 FOR 6Y5−83553−M0

.FUSIBLE (10A)

1E6−82151−00 .FUSE (10A) 1 1 FOR 6Y5−83553−00

.FUSIBLE (10A)

17 6Y5−82117−00 WIRE, LEAD (BLACK) 1 1 AP

FIL (NOIR)

18 68F−82553−80 EXTENSION, WIRE LEAD 1 1 AP

EXTENSION, FAISCEAU

68F−82553−90 EXTENSION, WIRE LEAD 1 1 AP

EXTENSION, FAISCEAU

19 6Y5−83557−10 TUBE (8M) 1 1 AP

TUBE (8M)

20 90465−11M10 CLAMP 2 2 AP

BRIDE

21 6Y5−8350F−00 FUEL MANAGEMENT METER 1 1 AP

COMPT. DE GESTION DU CARBURANT

22 6Y5−87122−S0 .CORD ASSY 1 1 1

.COPDON COMPLET

23 6Y5−83553−F1 WIRE, LEAD 1 1 AP

FIL

24 6Y5−85752−01 SENDER UNIT ASSY, FUEL METER 2 2 AP

PERCEPTION DE JAUGE A ESSENCE

69J2

60L2

69K2

60M2

FIG. 38 METER COMPTEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

25 90158−06002 SCREW, WOOD 4 4 AP

VIS, A BOIS

26 6Y5−82117−00 WIRE, LEAD (BLACK) 1 1 AP

FIL (NOIR)

27 703−82531−00 WIRE, LEAD 1 1 AP

FIL

69J2

60L2

69K2

60M2

FIG. 39 SWITCH. PANEL TABLEAU DE CONTACTEUR

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 6K1−82570−07 PANEL SWITCH ASSY 1 1 AP

PLATINE D’INTERRUPEUR CPLT

2 6K1−82571−01 .PANEL, SWITCH 1 1

.TABLEAU, CONTACTEUR

3 6K1−82510−06 .MAIN SWITCH ASSY 2 2

.CONTACTEUR A CLEF COMPLET

4 703−82577−00 ..CAP, KEY 1 1

..CABOCHON

5 6K1−82575−00 .ENGINE STOP SWITCH ASSY 1 1

.COUPE CIRCUIT CPLT

6 682−82556−00 ..STOPPER 1 1

..PLAQUETTE

7 6K1−83614−01 .BRACKET 1 1

.SUPPORT

8 98980−05010 .SCREW, BIND 2 2

.VIS

9 92990−05100 .WASHER, SPRING 2 2

.RONDELLE, GROWER

10 95380−05600 .NUT 2 2

.ECROU

11 688−83383−11 .BUZZER 2 2

.RONFLEUR

12 6K1−85830−01 .CONTROL UNIT ASSY 1 1

.BLOC DE CONTROLE

13 98980−06020 .SCREW, BIND 2 2

.VIS

14 95380−06600 .NUT, HEXAGON 2 2

.ECROU

15 92990−06100 .WASHER, SPRING 2 2

.RONDELLE, GROWER

16 92990−06600 .WASHER, PLATE 2 2

.RONDELLE, PLATE

17 6K1−81980−00 .DIODE ASSY 2 2

.REDRESSEUR 2

18 90149−05M05 SCREW 4 4 AP

VIS

19 95380−05600 NUT 4 4 AP

ECROU

20 92990−05100 WASHER, SPRING 4 4 AP

RONDELLE, GROWER

21 92990−05600 WASHER, PLATE 4 4 AP

RONDELLE, PLATE

22 6K1−8258A−40 EXTENSION, WIRE HARNESS 1 1 AP

EXTENSION, FAISCEAU DE FILS

23 61B−8258A−01 EXTENSION, WIRE HARNESS 1 1 AP

EXTENSION, FAISCEAU DE FILS

69J2

60L2

69K2

60M2

FIG. 40 REPAIR KIT 1 KITS DE REPARATION 1

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−W0001−01 POWER HEAD GASKET KIT 1 1 1 1

POCHETTE DE JINTS TETE MOTRICE

2 90430−14115 .GASKET 2 2 2 2

.JOINT

3 69J−15451−00 .GASKET, CRANKCASE COVER 1 1 1 1 1

.JOINT, COUVERCLE DE CARTER

4 69J−1131B−00 .GASKET, COVER 1 1 1 1

.JOINT, COUVERCLE

5 69J−11351−00 .GASKET, CYLINDER 1 1 1 1

.JOINT, D’EMBASE

6 93210−25552 .O−RING 3 3 3 3

.JOINT TORIQUE

7 93210−19MJ1 .O−RING 2 2 2 2

.JOINT TORIQUE

8 93210−25647 .O−RING 1 1 1 1

.JOINT TORIQUE

9 69J−13477−00 .GASKET 1 1 1 1

.JOINT

10 93210−24M79 .O−RING 1 1 1 1

.JOINT TORIQUE

11 69J−15364−A0 .GASKET, OIL PLUG 1 1 1 1

.JOINT, PLOT D’HUILE

12 93102−63004 .OIL SEAL 1 1 1 1

.JOINT SPY

13 69J−11181−01 .GASKET, CYLINDER HEAD 1 1 1 1 1

.JOINT, DE CULASSE 1

14 69J−11182−01 .GASKET, CYLINDER HEAD 2 1 1 1 1

.JOINT, CULASSE 2

15 69J−11193−00 .GASKET, HEAD COVER 1 1 1 1 1

.JOINT, COUVERCLE DE CULASSE 1

16 69J−11194−00 .GASKET, HEAD COVER 2 1 1 1 1

.JOINT, COUVERCLE DE CULASSE 2

17 69J−41112−00 .GASKET, EXHAUST INNER COVER 2 2 2 2

.JOINT, PLAQUE D’ECHAPPEMENT

18 69J−41114−00 .GASKET, EXHAUST OUTER COVER 2 2 2 2

.JOINT, COUVERCLE D’ECHAPPEMEN

19 90430−08143 .GASKET 4 4 4 4

.JOINT

20 90430−18130 .GASKET 2 2 2 2

.JOINT

21 93102−38M59 .OIL SEAL 2 2 2 2

.JOINT SPY

22 69J−13557−00 .GASKET 6 6 6 6

.JOINT

23 69J−13645−00 .GASKET, MANIFOLD 1 2 2 2 2

.JOINT, TUBULURE 1

24 69J−13338−00 .OIL SEAL 1 1 1 1

.JOINT SPY

25 69J−11355−00 .SEAL, CYLINDER 1 1 1 1 1

.JOINT, SPY CYLINDRE

26 93210−19MJ3 .O−RING 1 1 1 1

.JOINT TORIQUE

27 69J−14664−00 .GROMMET, WATER SHUT 2 2 2 2

.PASSE−FIL

69J2

60L2

69K2

60M2

FIG. 41 REPAIR KIT 2 KITS DE REPARATION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

1 69J−W0001−20 LOWER UNIT GASKET KIT 1 1 1 1

POCHETTE DE JOINTS EMBASE

2 93210−28543 .O−RING 1 1 1 1

.JOINT TORIQUE

3 93210−33MG4 .O−RING 1 1 1 1

.JOINT TORIQUE

4 69J−41134−A0 .GASKET, EXHAUST MANIFOLD 1 1 1 1

.JOINT, PIPE D’ECHAPPEMENT

5 69J−41138−00 .SEAL, EXT. 1 1 1 1 1

.JOINT DE GROUPE 1

6 69J−41135−A0 .GASKET, EXHAUST MANIFOLD 1 1 1 1

.JOINT, PIPE D’ECHAPPEMENT

7 69J−41136−A0 .GASKET, EXHAUST MANIFOLD 4 1 1 1 1

.JOINT, PIPE D’ECHAPPEMENT 4

8 69J−45127−00 .SEAL 1 1 1 1

.JOINT

9 69J−45123−00 .GASKET, MUFFLER 1 1 1 1

.JOINT, POT DE DETENTE

10 69J−45113−00 .GASKET, UPPER CASING 1 1 1 1

.JOINT, TUBE D’ARBRE

11 69J−15312−00 .GASKET, OIL PAN 1 1 1 1

.JOINT DE VENTILATEUR D’HUILE

12 90430−14M09 .GASKET 1 1 1 1

.JOINT

13 69J−13415−00 .SEAL, OIL STRAINER 1 1 1 1

.JOINT, FILTRE A HUILE

14 90430−08020 .GASKET 2 2 2 2

.JOINT

15 93210−64488 .O−RING 1 1 1 1

.JOINT TORIQUE

16 93106−09014 .OIL SEAL 1 1 1 1

.JOINT SPY

17 93210−86M38 .O−RING 1 1 1 1

.JOINT TORIQUE

18 93210−37160 .O−RING 1 1 1 1

.JOINT TORIQUE

19 6E5−44365−00 .DAMPER, WATER SEAL 1 1 1 1

.JOINT, TUBE D’EAU

20 6E5−44315−A0 .GASKET, WATER PUMP 1 1 1 1

.JOINT, POMPE A EAU

21 93101−28M16 .OIL SEAL 2 2 2 2

.JOINT SPY

22 93210−55M14 .O−RING 1 1 1 1

.JOINT TORIQUE

23 93101−30M17 .OIL SEAL 2 2 2 2

.JOINT SPY

24 93211−04384 .O−RING 2 2 2 2

.JOINT TORIQUE

25 6E5−44366−00 .DAMPER, WATER SEAL 1 1 1 1

.JOINT, TUBE D’EAU

26 61A−W0078−A3 WATER PUMP REPAIR KIT 1 1 1 1

KIT DE REPARATION DE LA POMPE

27 61A−44322−02 .INSERT, CARTRIDGE 1 1 1 1

.CUVETTE

69J2

60L2

69K2

60M2

FIG. 41 REPAIR KIT 2 KITS DE REPARATION 2

REF. PART NO. DESCRIPTION REMARKS NO. NO. PIECES DESCRIPTION REMARQUES

28 93210−86M38 .O−RING 1 1 1 1

.JOINT TORIQUE

29 93210−37160 .O−RING 1 1 1 1

.JOINT TORIQUE

30 6E5−44352−01 .IMPELLER 1 1 1 1

.TURBINE

31 6G5−44323−00 .OUTER PLATE, CARTRIDGE 1 1 1 1

.PLAQUE EXTERIEURE

32 6E5−44315−A0 .GASKET, WATER PUMP 1 1 1 1

.JOINT, POMPE A EAU

33 93606−12019 .PIN, DOWEL 2 2 2 2

.GOUPILLE

34 90119−08M14 .BOLT, WITH WASHER 4 4 4 4

.BOULON, AVEC RONDELLE

35 90280−04M05 .KEY, WOODRUFF 1 1 1 1

.CLAVETTE, DEMI−LUNE

69J2

60L2

69K2

60M2

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

69J−W0001−01 40 −1 69J−W0001−20 41− 1 69J−W0070−00 1− 18 61A−W0078−A3 41− 26 69J−W009A−01−1S4−1 69J−W009B−01−1S2−1 69J−W009C−01−1S4− 8 69J−W1165−00 3 − 7 69J−1111E−00 5 −12 69J−11110−00−94 4 − 2 69J−11119−00 2 − 20 69J−11120−00−94 4 − 9 69J−11133−104− 3

69J−11135−00 4 − 32 69J−11168−00 2 −17 69J−11181−01 4 − 21

69J−11182−01 4 − 26

69J−11191−00−1S4− 31 69J−11192−00−1S4− 38 69J−11193−00 4 − 35

69J−11194−00 4 − 39

69J−1131B−00 2 − 23

69J−1131C−00−1S2− 22 69J−11313−00−94 2 − 40 67F−11325−00 4 −15 69J−11327−00−94 4 −16 67F−11328−00 4 −19 69J−11351−00 2 − 33

69J−11355−00 30 −19

69J−11371−00 29 − 9 69J−11411−00 3 −1 69J−11416−00 3 − 3 69J−11416−103− 3 69J−11416−20 3 − 3 69J−11417−00 3 − 4 69J−11417−103− 4 69J−11417−20 3 − 4 69J−11426−00 3 − 5 69J−11426−103− 5 69J−11426−20 3 − 5

REF.

NO.

4 −10

40 −13

40 −14

40 −15

40 −16

40 − 4

40 − 5

40 − 25

PART NO. NO. PIECES

69J−11427−00 3 − 6 69J−11536−00 6 − 23 69J−11537−00 6 −18 69J−11590−00 6 − 22 69J−11603−00 3 −11 69J−11631−00−B0 3 −10 69J−11633−00 3 −12 69J−11634−00 3 −13 69J−11654−00 3 − 8 69J−11656−00 3 − 9 69J−11656−103− 9 69J−11656−20 3 − 9 69J−12111−00 6 −1 69J−12113−00 6 − 3 69J−12117−00 6 − 4 69J−12118−00 6 − 5 69J−12119−00 6 − 6 69J−12121−00 6 − 2 67F−12138−60 16 − 30 69J−12153−00 6 − 7 69J−12168−A0 6 − 8 69J−12168−B0 6 − 8 69J−12168−C0 6 − 8 69J−12168−D0 6 − 8 69J−12168−E0 6 − 8 69J−12168−F0 6 − 8 69J−12168−G0 6 − 8 69J−12168−H0 6 − 8 69J−12168−J0 6 − 8 69J−12168−K0 6 − 8 69J−12168−L0 6 − 8 69J−12168−M0 6 − 8 69J−12168−N0 6 − 8 69J−12168−P0 6 − 8 69J−12168−R0 6 − 8 69J−12168−S0 6 − 8 69J−12168−T0 6 − 8 69J−12168−U0 6 − 8 69J−12168−V0 6 − 8 69J−12168−W0 6 − 8 69J−12168−X0 6 − 8 69J−12168−Y0 6 − 8 69J−12168−00 6 − 8 69J−12168−106− 8 69J−12168−20 6 − 8 69J−12168−30 6 − 8 69J−12168−40 6 − 8 69J−12168−50 6 − 8

REF.

NO.

PART NO. NO. PIECES

69J−12168−60 6 − 8 69J−12168−70 6 − 8 69J−12168−80 6 − 8 69J−12168−90 6 − 8 69J−12169−00 6 − 8 69J−12171−00 6 − 9 69J−12172−00 6 −11 69J−12181−00 6 −10 69J−12182−00 6 −12 69J−12210−00 6 −14 69J−12230−00 6 −15 69J−12233−00 29 −12 69J−1240H−00−1S2− 26 67F−12411−00 2 − 25 69J−1243A−00 2 − 30 69J−1243E−00 2 − 31 69J−12481−00 16 − 21 69J−12482−00 16 − 20 69J−12483−00 7 − 8 68T−12572−00 21− 12 6R3−12581−00 21− 13 6R3−12582−00 21− 14 6R3−12583−00 21− 15 69J−12858−00 2 − 46 69J−13119−00 30 −17 68V−1312A−00 9 −17 69J−13160−00 8 −18 69J−13170−00 10 −1 69J−13300−00 30 −14 69J−13329−00 30 −15 69J−13338−00 30 −16

69J−13411−00 30 − 9 69J−13415−00 30 −11

67F−13434−02 1− 26 69J−13435−00 10 − 2 69J−13437−6115 − 29 69J−13440−00 2 − 45 69J−13446−00−94 2 − 47 69J−13447−00 2 − 51 67F−13448−00 1− 16 68V−13473−00 9 −16 69J−13477−00 2 − 48

69J−13532−00 10 − 20 69J−13533−00 10 − 21 69J−13542−00 10 −19

REF.

NO.

40 − 24

41− 13

40 − 9

PART NO. NO. PIECES

68V−13544−00 10 −17 69J−13545−00 10 −15 69J−13546−00 10 −14 69J−13547−00 9 − 33 69J−13557−00 8 − 27

69J−13573−00 9 − 31 69J−13574−00 9 − 32 69J−13576−00 8 −11 68V−13577−00 12 − 9 69J−13593−00 11 − 35 69J−13595−00 10 − 23 69J−13631−00 30 −18 69J−13641−00 8 − 24 69J−13642−00 9 − 20 69J−13645−00 7 −10

69J−13716−00 11 − 36 60L−1375A−00 9 −1 69J−1375A−00 9 −1 60L−13750−00 8 −1 69J−13750−00 8 −1 60L−13751−00 8 − 2 69J−13751−00 8 − 2 60L−13752−00 9 − 2 69J−13752−00 9 − 2 60L−13753−00 8 − 5 69J−13753−00 8 − 5 60L−13754−00 9 − 7 69J−13754−00 9 − 7 60L−13755−00 8 − 8 69J−13755−00 8 − 8 60L−13756−00 9 −10 69J−13756−00 9 −10 69J−13761−00 8 − 31

68V−13766−00 8 − 33

68V−13769−00 11 − 12 68V−13781−00 11 − 16 68V−13784−00 11 − 19 69J−13906−00 10 − 6 69J−13907−0111−17 68V−13915−00 11 − 18 69J−13972−00 8 − 39 69J−13973−00 8 − 37 69J−13974−00 10 −16

REF.

NO.

9 − 23

40 − 22

40 − 23

9 − 27

9 − 29

PART NO. NO. PIECES

69J−13974−00 12 − 25 69J−13975−00 10 − 25 69J−13976−00 12 −16 68V−1410B−00 8 − 32

69J−1410F−00 12 − 21 69J−14137−00 12 −11 69J−14139−00 10 − 24 69J−14146−107−1 69J−14148−00 11 − 23 69J−14149−00 8 − 44 69J−14159−00 9 − 34 69J−14162−00 7 − 2 69J−14164−00 11 − 31 69J−14180−11 11 − 1 69J−14181−00 11 − 6 69J−14182−00 11 − 2 266−14191−00 11 − 7 69J−14197−00 11 − 24 68V−14225−00 10 − 5 69J−14225−00 11 − 37 69J−14251−00 8 − 21 68V−14255−00 11 − 13 69J−14255−00 9 − 35 69J−14261−00 8 −16

68V−14264−00 8 − 34

68V−14265−00 11 − 33 60L−14286−00 8 − 42 69J−14286−00 8 − 42 69J−14295−00 8 − 20 69J−14321−00 8 − 36

68V−14323−00 8 −14

68V−14331−00 8 −15

69J−14348−00 7 − 28 5JW−14349−00 10 −18 68V−14356−00 10 − 8 68V−14357−00 11 − 15 68V−14386−00 11 − 10 68V−14397−00 8 − 22

69J−14409−00 7 − 6 69J−14419−00 7 −16

REF.

NO.

9 − 28

8 −19

10 −10

9 − 30

9 − 5

9 − 6 9 −13

10 − 3

PART NO. NO. PIECES

69J−1442A−00 7 − 5 68V−14428−00 8 − 35

69J−1444F−00 7 −15 69J−14440−00 7 −14 69J−14446−00 11 − 34 69J−14457−00 7 −18 5EL−14467−00 7 − 27 68V−14475−00 8 − 30

69J−14496−00 8 − 29

69J−14546−00 11 − 11 68V−14565−00 8 −13

68V−14567−00 11 − 20 3CF−14594−00 8 − 3

69J−14624−01 29 − 50 69J−14664−00 2 − 44

69J−14711−00−5B 29 − 25 69J−14960−00 9 −15 59V−14962−00 11 − 8 68V−14984−00 11 − 21 69J−14985−00 11 − 9 69J−14989−00 11 − 25 69J−15100−00−1S2− 2 69J−15123−00 2 − 7 69J−15187−00 2 − 8 69J−15311−00−5B 30 − 2 69J−15312−00 30 −1

69J−15316−00 29 − 36 69J−15319−00−1S2− 56 69J−15362−00 30 − 23 6G8−15363−00 2 − 54 69J−15364−A0 2 − 57

69J−15373−00 7 − 23 69J−15377−00 30 − 24 69J−15393−00 7 − 25 69J−15394−00 7 − 24

REF.

NO.

10 −11

9 − 26

10 − 9

9 − 25

10 − 7

8 − 6 8 − 9 9 − 3 9 − 8 9 −11

40 − 27

41− 11

40 −11

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

69J−15397−00 7 − 26 69J−15411−00−94 2 −13 69J−15451−00 2 −14

69J−15481−00 2 − 9 69J−15482−00 2 −10 69J−21841−00 11 − 32 69J−2411R−00 11 − 3 69J−2411T−00 11 − 4 68F−24300−00 8 − 38

6YK−24307−42 14 −1 61A−24311−00 13 − 5 69J−24313−00 13 − 22 69J−24315−00 12 −15 69J−24316−00 12 − 7 69J−24317−00 12 − 6 69J−24321−00 12 − 3 69J−24322−00 12 − 4 69J−24323−00 12 − 5 69J−24324−00 12 − 2 69J−24325−00 12 − 20 69J−24366−00 12 − 22 69J−24367−00 12 − 23 6R3−24377−00 13 − 3 68V−24377−00 10 − 22 6E5−24378−00 12 −13 69J−24378−00 1− 22 6E5−24379−00 21− 10 69J−24379−00 11 − 22 69J−24381−00 8 − 40

68V−24387−00 8 − 41

69J−24410−00 11 − 26 69J−24422−10 11 − 30 4SV−24453−00 11 − 5 69J−24460−00 12 −1 69J−24461−00 12 −14 61A−24469−00 13 −12 69J−24491−00 11 − 27 69J−24492−00 11 − 28 69J−24501−00 12 −18 68V−24519−00 7 − 3

61A−24521−00 13 − 7

REF.

NO.

40 − 3

10 −12

12 − 26

10 −13 12 −17

10 − 26 12 −10

PART NO. NO. PIECES

65L−24531−0113 − 8 69J−24537−00 12 − 8 65L−24558−00 13 −19 65L−24560−00 13 − 6 65L−24563−00 13 −11 61A−24564−00 13 − 9 65L−24564−00 13 −13 69J−24566−00 13 − 20 65L−24577−00 13 −10 69J−24592−00 11 − 29 69J−24599−00 12 −19 68V−2481H−00 12 −12 69J−28100−00 13 − 24 67F−2812A−00 15 − 27 6A1−28176−00 20 − 52 69J−28199−72−A0 13 − 25 69J−28199−72−B0 13 − 25 69J−28199−82−A0 13 − 26 69J−28199−82−B0 13 − 26 69J−41111−00−1S5−1 69J−41112−00 5 − 5

69J−41113−00−1S5− 3 69J−41114−00 5 − 6

69J−41121−00−1S5− 2 69J−41123−00−1S5− 4 69J−41131−00−94 29 −16 69J−41132−00−5B 29 −18 69J−41134−A0 29 −19

69J−41135−A0 29 − 22

69J−41136−A0 29 − 24

69J−41137−00−94 29 −1 69J−41138−00 29 − 21

69J−41210−00 24 − 4 69J−41211−00 24 − 9 69J−41213−00 23 − 23 682−41237−00 24 − 2 69J−41241−00 24 −1 69J−41632−00−94 23 − 9 69J−41635−00 24 − 5 69J−41636−00 24 −10 69J−41661−00−94 23 −14 676−41662−00 23 − 20

REF.

NO.

40 −17

40 −18

41− 4

41− 6

41− 7

41− 5

PART NO. NO. PIECES

69J−42152−00−94 23 − 5 69J−42153−00 23 − 8 69J−42154−00 23 −1 68V−42171−00 23 − 2 69J−42510−00−8D 26 − 5 624−42542−00 15 − 25

60L−42610−00−8D 1− 1 69J−42610−00−8D 1− 1 69J−42613−00 1− 2 69J−42615−00 20 − 9 69J−42617−00 1− 25 69J−42629−00 1− 3 68F−42647−01−94 1− 5 69J−42647−00−94 1− 6 68F−42648−01−94 1− 14 68F−42651−00 1− 10 67F−42652−00 1− 15 68F−42663−00 1− 13 69J−42663−00 1− 7 60L−42677−00 1− 19 69J−42677−00 1− 19 60L−42678−00 1− 17 69J−42678−00 1− 17 69J−42681−00 1− 20 69J−42682−00 1− 21 69J−42710−01−8D 20 −1 648−42715−00 22 − 27 69J−42716−00 20 −10 61A−42717−00 20 −19 69J−42717−00 20 −18 69J−42723−00−8D 18 − 9 6E5−42724−00 22 − 38

69J−42725−01 20 − 6 6H1−42726−20 20 −14 61A−42727−00 20 −16 64D−42738−10−5B 20 − 7 69J−42738−01−5B 20 − 2 69J−42741−00−8D 21− 1 69J−42744−1020− 3 68F−42753−00 20 − 48 67F−42761−00−94 2 − 34 69J−42769−00 29 − 32 69J−42771−00−8D 21− 3 69J−42774−00 21− 7 69J−42815−00−8D 20 − 30 69J−42816−00−8D 20 − 39

REF.

NO.

17 −12

29 − 8

PART NO. NO. PIECES

69J−42817−00−8D 20 − 31 67F−42818−00 20 − 42 68F−42818−00 20 − 34 68F−42828−00−5B 20 − 27 68F−42828−10−5B 20 − 37 69J−42828−00−5B 20 − 28 69J−43111−01−8D 25 −1 69J−43112−01−8D 25 −14 6E5−43126−02 25 − 45 6R3−43131−00 25 − 21 61A−43132−00 25 −12 61A−43133−00 25 −15 6G5−43144−00 25− 35 64D−43144−00 20 − 45 6E5−43145−01 35 − 8 6G5−43148−00 25− 40 61A−43181−01 25 − 37 6G5−43185−02 25− 38 61A−43311−21−8D 25 − 32 61A−43376−00 26 − 3 69J−4380P−00 27 −12 69J−43800−00−4D 27 −1 69J−43801−00 27 − 4 69J−43804−00 28 − 5 69J−43805−00 28 − 4 69J−4381C−00 27 − 30

69J−4381J−00 27 − 64 69J−43810−00 27 − 3 61A−43811−00 27 − 9 61A−43813−01 27 −18 6H1−43814−00 27 −17 69J−43816−00 27 − 63 69J−43817−00 27 − 68 61A−43818−00 27 − 25 69J−4382E−00 27 −11 69J−43820−00 27 − 79 61A−43821−00 27 − 78 61A−43822−00 27 − 77 69J−43828−00 27 − 71 6H1−43829−00 27 − 74 69J−43830−00 27 − 33 69J−43831−00 27 − 66 69J−43833−00 27 − 21 61A−43835−01 27 −19 69A−4384F−00 27 − 39 6H1−4384G−11 27 − 54 69J−4384G−00 27 − 58

REF.

NO.

27 − 35

PART NO. NO. PIECES

61A−4384H−1027− 82 69J−4384H−00 27 −10 69J−4384M−00 27 − 38 69J−43840−00 27 − 2 69J−43841−00 27 − 42 69J−43843−00 27 − 53 6H1−43844−1027− 55 69J−43844−00 27 − 50 69J−43845−00 27 − 28 69J−43851−00 27 − 49 69J−43853−00 27 − 45 69J−43854−00 27 − 57 69J−43855−00 27 − 52 6H1−43856−1027− 56 65W−4386A−00 27 − 44 69J−4386K−00 28 −10 6H1−43861−00 27 − 6 61A−43861−00 27 −14

69J−43861−00 28 − 6 61A−43864−00 27 − 81 6H1−43869−00 27 − 70 CS3−4387G−00 27 − 59 61A−43871−00 27 −15 69J−43871−00 27 − 62 6H1−43872−00 27 − 7 61A−43874−00 27 − 80 6H1−43875−00 27 − 29 6T4−43875−00 27 − 76 61A−43875−1027− 83 61A−43876−00 27 − 26 69J−4388E−00 27 − 23 69J−4388F−00 27 − 69 69J−4388H−00 27 − 67 69J−4388J−00 27 − 20 69J−43880−00 27 − 84

69J−43881−00 28 −11 69J−43882−00 28 − 8 6H1−43883−00 27 − 43 69J−43886−00 28 − 7 69J−43888−00 27 − 72 61A−4389H−00 27 − 8 69J−4389J−00 27 − 32

69J−43891−00 28 − 9 69J−43893−00 27 − 46

REF.

NO.

27 −16 27 − 75

28 −1

27 − 36

PART NO. NO. PIECES

69J−43894−00 27 − 41 69J−43899−00 27 − 31 69J−44117−00−1S22− 5 69J−44118−00 22 − 26 69J−44120−00 22 − 33 69J−44120−1022− 33 69J−44121−00 22 − 21 69J−44122−00 22 − 22 69J−44135−00 23 − 24 69J−44150−00 31− 15 69K−44150−00 33 −17 69J−44176−01−1S22− 8 61A−44311−01 31− 18

6E5−44312−00 31− 23

6E5−44315−A0 31− 31

61A−44322−02 31− 19

6G5−44323−00 31− 30

6E5−44352−01 31− 24

69J−44361−00 32 − 3

69J−44361−1032− 3 6E5−44365−00 31− 22

6E5−44366−00 29 − 54

663−44366−00 31− 6

69J−44391−00 20 −17 61A−44511−00−94 26 − 32 66K−44514−00−94 26 − 24 6G5−44526−00 25− 3 68F−44533−00 2 − 35

REF.

NO.

33 − 20

33 − 25

33 − 33 41− 20 41− 32

33 − 21 41− 27

33 − 32 41− 31

33 − 26 41− 30

34 − 3

32 −1 33 − 24 34 −1 41− 19

32 − 2 34 − 2 41− 25

33 − 8

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

69J−44533−00 26 − 31 69J−44551−00−8D 26 −10 61A−44552−01−94 26 − 21 66K−44555−00−94 26 −13 61A−44575−00 26 −12 69J−45111−01−8D 29 − 31 69J−45113−00 29 − 33

69J−45123−00 29 − 30

69J−45127−00 29 − 29

69J−45151−00−8D 21− 8 69J−45152−00−8D 29 − 37 61A−45155−00 29 − 41 69J−45159−00 29 − 56 69J−45181−00−5B 29 − 23 69J−45211−01−8D 29 − 53 61A−45214−1032−10

61A−45215−1032−11

6G5−45251−02 25− 2 69J−45300−21−8D 31− 1 69J−45300−31−8D 31− 1 69K−45300−21−8D 33 −1 61A−45301−10−8D 31− 2

69J−45318−00 29 − 39 61A−45321−01 31− 11

61A−45331−00−94 31− 34

69J−45332−00−94 31− 60 69K−45332−00−94 33 − 63 688−45341−1031− 8

6E5−45344−00 31− 40

69J−45361−00−8D 31− 71

61A−45371−00 32 −14

69J−45375−00 32 − 9

61A−45376−00−94 31− 10

61A−45378−00 29 − 47

REF.

NO.

41− 10

41− 9

41− 8

34 −10

34 −11

33 − 2

33 −13

33 − 36

33 −10

33 − 42

33 − 77

34 −14

34 − 9

33 −12

PART NO. NO. PIECES

61B−45383−00 33 − 68 69K−45384−00 33 − 69 61A−45501−30 31− 43 69J−45501−00 31− 43

61A−45527−00 31− 27

61A−45538−00 31− 26

61B−45538−01 33 − 4 69J−45551−00 31− 44

69J−45560−00 31− 47 69K−45560−00 33 − 49 61A−45567−00−1031− 5

61A−45567−00−1231− 5

61A−45567−00−1531− 5

61A−45567−00−1831− 5

61A−45567−00−30 31− 5

61A−45567−00−40 31− 5

61A−45567−00−50 31− 5

69J−45571−00 31− 62 69K−45571−00 33 − 65 61A−45577−00−1031− 64 61A−45577−00−1231− 64 61A−45577−00−1531− 64 61A−45577−00−1831− 64 61A−45577−00−30 31− 64 61A−45577−00−40 31− 64 61A−45577−00−50 31− 64 69K−45577−00 33 − 70 69K−45577−1033− 70 69K−45577−20 33 − 70 69K−45577−30 33 − 70 69K−45577−40 33 − 70 69K−45577−50 33 − 70 69K−45577−60 33 − 70 6K1−45578−01−1033− 67 6K1−45578−01−1233− 67 6K1−45578−01−1533− 67 6K1−45578−01−1833− 67

REF.

NO.

33 − 45

33 − 29

33 − 28

33 − 46

33 − 7

PART NO. NO. PIECES

6K1−45578−01−30 33 − 67 6K1−45578−01−40 33 − 67 6K1−45578−01−50 33 − 67 61A−45587−00−1031− 37

61A−45587−00−1231− 37

61A−45587−00−1531− 37

61A−45587−00−1831− 37

61A−45587−00−30 31− 37

61A−45587−00−40 31− 37

61A−45587−00−50 31− 37

69J−45611−00 31− 48 69K−45611−00 33 − 51 69J−45631−00 31− 52

61A−45632−00 31− 51

61A−45633−00 31− 53

61A−45634−01 31− 50

61A−45635−00 31− 55

61A−45641−02 31− 49 69K−45641−00 33 − 52 6H1−45668−00 31− 54

6G5−45970−02−98 32 − 21 6K1−45970−01−98 34 − 21 6R1−45970−A0 34 − 21 6R4−45970−A0 32 − 21 6G5−45972−02−98 32 − 21 6K1−45972−01−98 34 − 21 6R1−45972−A0 34 − 21 6R4−45972−A0 32 − 21 61A−45972−00−98 32 − 21 61B−45972−00−98 34 − 21 66K−45972−B0 32 − 21 6G5−45974−03−98 32 − 21 6K1−45974−02−98 34 − 21 6R1−45974−A0 34 − 21 6R4−45974−A0 32 − 21

REF.

NO.

33 − 39

33 − 55

33 − 54

33 − 56

33 − 53

33 − 58

33 − 57

PART NO. NO. PIECES

61A−45974−00−98 32 − 21 61B−45974−00−98 34 − 21 6R1−45976−A0 34 − 21 6R4−45976−A0 32 − 21 6G5−45978−03−98 32 − 21 6K1−45978−02−98 34 − 21 6R1−45978−A0 34 − 21 6R4−45978−A0 32 − 21 61A−45978−00−98 32 − 21 61B−45978−00−98 34 − 21 69J−45987−00 32 −16

688−45997−01 32 −17

69J−46241−00 6 − 21 703−48205−1737−1 704−48207−23 37 − 2 701−48320−40 37 − 3 701−48320−50 37 − 3 701−48320−60 37 − 3 701−48320−80 37 − 3 6E5−48344−00 22 − 3

701−48350−00 37 − 3 69J−48531−00 22 −1 6E5−61301−01 36 −1 6E5−61303−00 36 − 5 6E5−61311−11 36 − 3 6E5−61313−00 36 − 2 6E5−61315−00 36 − 4 6E5−61350−02 35 −1 6E5−61351−01 35 − 2 6E5−61355−00 35 − 5 68V−81145−01 8 −12 68V−81146−01 9 −18 68V−81147−00 8 − 23

69J−8132G−00 15 −17 67F−81332−00 15 −14 69J−81337−00 15 − 22 63D−81345−20 15 − 5 69J−81410−0115 − 4 69J−81450−10 15 −1 69J−81460−0115 − 2 69J−81673−00 15 −13 69J−81800−00 19 −1 69J−81801−00 19 − 5

REF.

NO.

34 −16

34 −17

23 −12

9 −14

10 − 4

PART NO. NO. PIECES

67F−81807−00 19 −10 67F−81808−00 19 − 8 67F−81809−00 19 −19 67F−81810−00 19 − 3 67F−81813−00 19 − 6 68V−8182L−00 8 − 43 68F−81820−00 19 − 7 67F−81821−00 19 −13 6K7−81826−10 19 − 24 69J−81828−00 19 − 25 67F−8183R−00 19 −16 67F−8183T−00 19 −18 67F−81830−00 19 −17 67F−81832−00 19 −11 67F−81836−00 19 −12 69J−81839−00 19 − 21 69J−81840−00 19 − 4 67F−81841−00 19 −14 69J−81842−00 19 − 20 67F−81846−00 19 − 26 67F−81850−00 19 − 2 67F−81857−00 19 − 9 69J−81869−00 19 − 23 67F−81891−00 19 −15 69J−81919−00 17 − 32 69J−81919−20 15 − 28 69J−81925−00 17 − 4 68V−8194A−00 17 −14 69J−81941−00 19 − 22 69J−81942−00 17 − 27 69J−81948−00 17 −10 69J−81949−00 18 −17 68V−81950−00 17 − 30 69J−81950−10 17 − 21 68V−81953−00 17 −18 69J−81960−10 16 −12 69J−81972−01−1S 16 −14 69J−81975−A0 16 −13 6K1−81980−00 39 −17 69J−82105−00 17 − 9 6Y5−82117−00 38 −17

6G5−82119−00 17− 20 69J−82147−00 25 − 34 6E5−82148−00 25 − 9 6H1−82148−00 25 − 6 6E5−82149−00 26 −16 1E6−82151−00 38 −16

REF.

NO.

38 − 26

PART NO. NO. PIECES

67F−82151−20 18 − 2 69J−82310−00 16 − 4 69J−82314−00 16 − 9 69J−82316−00 16 −1 6A0−82317−00 15 − 24

663−82317−0115 − 23

67F−82377−00 20 − 51 68V−82380−00 9 −19 6K1−82510−06 39 − 3 69J−82519−00 16 − 24 703−82531−00 38 − 27 68F−82553−80 38 −18 68F−82553−90 38 −18 69J−82554−00 20 − 24 682−82556−00 39 − 6 69J−82560−00 2 − 60 69J−82563−00 18 − 8 6E3−8257H−00 20 − 53 6K1−82570−07 39 −1 6K1−82571−01 39 − 2 6K1−82575−00 39 − 5 703−82577−00 39 − 4 6K1−8258A−40 39 − 22 61B−8258A−01 39 − 23 69J−82587−00 18 −10 6E5−82588−00 20 − 20 6E9−82588−00 2 − 62 61A−82588−01 22 −15 68F−8259F−00 22 −13 69J−8259F−00 22 −14 69J−8259L−00 10 − 27 69J−8259N−10 18 −13 69J−82590−20 18 −1 68V−82594−00 20 − 50 69J−83306−00 18 −14 688−83383−11 39 −11 6Y5−8350F−00 38 − 21 6Y5−8350T−02 38 −1 6Y5−83500−S5 38 − 6 6Y5−83533−T2 38 −10 6Y5−83553−F1 38 − 23 6Y5−83553−M0 38 −15 6Y5−83553−00 38 −15 6Y5−83557−1038−19 6Y5−83557−31 38 −11 6E5−83558−00 29 − 44

REF.

NO.

17 −11

16 −11

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

6Y5−83570−S5 38 − 7 6K1−83614−01 39 − 7 69J−83614−00 18 −11 6A1−83625−4115− 30 6A1−83625−5115− 31 69J−83626−00 16 − 29 69J−83651−00 2 − 63 69J−83672−00 26 −1 6Y5−83728−00 38 −12 663−85518−00 23 −10 689−85547−00 13 −1 69J−85580−00 15 − 3 6Y5−85752−01 38 − 24 61A−85790−00 16 − 27 6K1−85830−01 39 −12 69J−85885−00 8 −17 65L−85886−00 7 − 29 60L−8591A−0117−1 69J−8591A−02 17 −1 6Y5−87122−S0 38 −14

9E450−04433 38 − 2 9E450−04533 38 − 3 90101−09M70 36 − 9 90101−12M05 25 − 49 90105−08036 31− 68

90105−10M00 32 −15

90109−06M81 20 − 21 90109−06M82 18 −15

90109−06M86 2 − 27

90109−06040 23 − 25 90109−0801922−11 90109−14M1026− 28 90109−14M48 26 −17 90110−050106− 24 90110−06038 16 −10 90111−06025 21− 4

REF.

NO.

38 − 22

33 − 74

34 −15

20 − 5 20 − 8 20 − 29 20 − 38

18 −12 20 − 23 20 − 25 20 − 46 22 − 2

PART NO. NO. PIECES

90111−06025 21− 9 90111−06026 21− 5 90116−06032 7 − 4 90116−1001229− 57 90119−06MA2 2− 21

90119−06MA3 16 −15 90119−06MA4 2− 24 90119−06MA5 16 −16 90119−06M1031− 14

90119−06M1729− 49 90119−06M24 7 −13 90119−06M59 15 − 26

90119−06027 5 − 7 90119−06036 7 − 20 90119−06037 13 − 21 90119−0604116 − 3 90119−07234 4 − 7

90119−07235 4 − 6

90119−08M1431− 33

90119−08M22 20 −11 90119−08M66 2 −12 90119−08M79 29 − 2 90119−08M91 4 − 24

90119−08009 2 −16 90119−08021 4 − 25

90119−08022 7 −11 90119−10MA2 32 − 8

90119−10M06 6 −19 90119−10007 29 − 34 90119−10008 29 − 61 90119−10009 32 − 8 90149−05M05 39 −18 90152−05003 32 −12

90155−10001 4 − 23

90158−06002 38 − 25 90169−05M00 17 − 28

REF.

NO.

5 −13

33 −16

17 −13

4 −14

4 −13

33 − 35 41− 34

4 − 29

4 − 30

34 − 8

34 −12

4 − 28

PART NO. NO. PIECES

90170−09M05 36 −10 90170−14M06 36 − 6 90170−16M1931− 46

90171−18M04 32 −19

90173−06001 21− 2 90179−06M28 1− 4

90179−24002 15 −12 90183−02M03 31− 57

90185−05002 32 −13

90185−09M01 35 − 6

90185−14M00 26 −19

90185−22M11 25 − 24 90201−02M00 31− 56

90201−06M31 24 − 8 90201−06068 13 −18

90201−08023 31− 69

90201−09M02 22 − 36 90201−10M02 23 −11

90201−10M20 35 − 7 90201−10M76 36 − 8 90201−12M05 25 − 51 90201−13M01 25 − 50 90201−15M58 26 −18 90201−16M00 31− 45

90201−16M01 26 − 25 90201−16M55 26 −15 90201−22M01 31− 28

90201−24014 15 −11 90201−26M59 25 − 23 90201−28M01 26 − 27 90201−31M00 31− 63 90201−40M00 26 − 6 90202−08M20 22 − 23 90202−28M46 26 − 26

REF.

NO.

33 − 48

34 −19

7 − 22

33 − 60

34 −13

36 −11

26 − 29

33 − 59

20 − 36 20 − 44

33 − 75

23 − 27

33 − 47

33 − 30

PART NO. NO. PIECES

90202−32M1926−14 90202−40M47 26 − 9 90206−10M04 23 − 26 90206−14N50 28 − 2 90206−15M1820− 33

90206−22M1931− 29

90249−06M1925− 41 90280−04M05 31− 25

90280−04008 6 − 25 90280−05015 15 −10 90340−08002 31− 7

90340−14M06 2 − 5

90340−18M09 5 −10 90344−510194− 4

90386−06M1222− 25 90386−08001 7 −19 90386−10M1625− 39 90386−10025 23 − 3 90386−12069 22 −10 90386−15M73 20 − 32

90386−18M1425− 47

90386−18M63 25 − 46 90386−25M31 25 − 22 90386−39M89 26 − 7 90386−90M90 22 − 35 90387−06M64 30 −10 90387−06037 29 −13 90387−06038 7 − 21 90387−08M37 20 −13 90387−10M02 25 − 42 90387−10M08 4 − 22

90387−10M61 35 − 3 90430−060148− 26

90430−08020 31− 9

REF.

NO.

20 − 41

33 − 31

33 − 27 41− 35

33 − 9

5 −14

30 − 7

4 −11

20 − 40

27 − 24

4 − 27

9 − 22

33 −11 41− 14

PART NO. NO. PIECES

90430−08143 5 − 9

90430−14M09 30 − 8

90430−141152− 6

90430−18130 5 −11

90445−0701029− 46 90445−0701229− 46 90445−1101221− 11 90445−11020 1− 23 90445−110211−24 90445−11028 21− 16 90445−13004 13 − 2 90462−20001 20 − 22 90464−07M56 16 − 8

90464−09M47 20 − 26 90464−0901022− 20 90464−12002 16 − 7 90464−20258 20 − 49 90465−06M67 23 −17 90465−06M86 22 −19 90465−08M83 25 −18

90465−11M102− 32

90465−11M52 7 −17 90465−13M18 15 − 20

90465−14M66 15 − 21 90467−08M18 16 − 23 90467−09M03 7 − 9

90468−18008 22 − 4

REF.

NO.

40 −19

41− 12

5 −15

40 − 2

40 − 20

17 − 29

25 − 26

2 − 61

13 − 4 13 − 23

20 −15 21− 17 22 −18 25 − 25 29 − 45 38 −13 38 − 20

18 −16

16 − 22

22 − 24 23 −13

PART NO. NO. PIECES

90480−09M2116 − 2 90480−14M1721− 6 90480−22M81 20 −12 90501−10M77 31− 58

90501−11M1031− 17

90501−12082 22 − 29 90506−16M34 20 − 47 90506−16003 25 − 44 90508−20020 22 −12 90560−12M01 35 − 4 91318−05025 27 − 60 91318−05040 27 − 65 91490−2001522− 37 91490−40030 32 − 20

91690−30008 24 − 6 91690−3001022− 32 91690−3001823− 7 91690−30020 25 − 43 91690−30025 23 − 6 91690−500147−12 91809−08006 4 − 5

91814−18001 2 − 4 92903−06600 17 − 26 92903−08100 19 − 30 92903−08600 19 − 28 92907−04600 2 −19

92907−06600 30 −13 92990−04100 38 − 4

92990−05100 39 − 9

92990−05600 39 − 21 92990−06100 1− 8

92990−06600 29 − 52

92990−08100 8 − 4

92990−10100 29 − 59

REF.

NO.

33 − 61

33 −19

34 − 20

4 −12

4 − 34

38 − 8

39 − 20

39 −15

39 −16

8 − 7 8 −10 9 − 4 9 − 9 9 −12

NUMERICAL INDEX INDEX NUMERIQUE

PART NO. NO. PIECES

92990−10600 16 − 28

92990−18200 32 −18

92995−04100 22 −17 92995−06100 13 −17

92995−06600 1− 12

REF.

NO.

29 − 58

34 −18

15 − 8 16 −18 17 −16 17 − 23 18 − 4

2 − 29 2 − 37 2 − 43 2 − 50 2 − 53 2 − 59 4 −18 4 − 37 4 − 41

13 −15 15 − 9 15 −16 15 −19 16 − 6 16 −19 16 − 26 17 − 3 17 − 8 17 −17 17 − 24 18 − 5 18 − 7

22 − 7 22 − 31 23 −16 23 −19 23 − 22 25 − 5 25 − 8 25 −11 25 − 20 25 − 28 29 −15 29 − 43 30 − 21 30 − 27

PART NO. NO. PIECES

92995−08600 17 − 6

92995−10100 25 − 30

92995−10600 25 − 31

92995−14600 26 − 20

93101−28M1631− 35

93101−30M1731− 66

93102−38M59 6 − 20

93102−63004 3 − 2

93106−0901431− 13

93106−19N50 27 − 5 93210−064A5 27 − 51 93210−08391 27 − 48 93210−09165 22 − 34

93210−16275 35 − 9 93210−17239 27 − 22 93210−18397 27 − 27 93210−19MJ1 2 − 39

93210−19MJ3 30 − 25

93210−24M79 2 − 55

93210−25552 2 − 38

REF.

NO.

29 − 27 30 − 5 31− 42 31− 73 33 − 44 33 − 79

32 − 6 34 − 6

26 − 23 26 − 34 29 − 4 29 − 6 32 − 7 34 − 7

26 − 30

33 − 37 41− 21

33 − 72 41− 23

40 − 21

40 −12

33 −15 41− 16

27 − 73

40 − 7

40 − 26

40 −10

30 − 22

PART NO. NO. PIECES

93210−25552 40 − 6 93210−25647 2 − 41

93210−28543 29 −10

93210−33MG4 29 −11

93210−35321 26 − 8 93210−37160 31− 21

93210−55M1431− 39

93210−64488 31− 12

93210−86M38 31− 20

93211−04384 31− 67

93306−210U0 31− 61 93311−832V2 31− 3

93315−43061 31− 65

93315−660W3 33 − 5 93317−330U2 31− 36

93317−428U7 33 − 50 93332−000W1 31− 4 93332−00048 33 − 64 93341−440U5 33 − 66 93341−670V0 33 − 6 93341−930U9 31− 38

93399−999T6 28 − 3 93410−10082 23 − 4 93410−18M02 25 − 48 93410−37M04 26 −11 93420−36M01 29 − 40 93501−04M02 22 − 28 93501−04011 31− 59

REF.

NO.

40 − 8

41− 2

41− 3

33 − 23 41− 18 41− 29

33 − 41 41− 22

33 −14 41− 15

33 − 22 41− 17 41− 28

33 − 73 41− 24

33 − 3

33 − 71

33 − 38

33 − 40

33 − 62

PART NO. NO. PIECES

93501−08001 27 − 47 93503−16003 27 − 37 93505−32038 27 −13

93604−35236 27 − 61 93605−10108 6 −17 93606−120192− 3

93606−19M23 29 − 28 93608−12M05 29 − 55

93608−16M1629− 7

93700−06M01 22 − 9 93700−06M03 25 −17

93700−09M00 31− 70

94581−99044 6 −13 94702−00391 4 − 42 95333−08600 19 − 29 95380−04600 38 − 5

95380−05600 24 − 3

95380−06600 1− 9

95380−10600 29 − 60 95380−12600 25 − 52 95380−14700 36 − 7 95680−05100 24 −11 95707−06500 2 −11 95780−10300 26 − 4 95895−06030 24 − 7 97013−06025 6 −16

97013−08045 19 − 27 97027−06025 30 −12 97075−06020 4 −17 97075−06030 22 − 30

REF.

NO.

27 − 34

2 −15 29 − 48 31− 32 33 − 34 41− 33

32 − 4 34 − 4

29 −17 29 − 35 30 − 6

25 − 33

33 − 76

38 − 9

39 −10 39 −19

39 −14

17 − 25

PART NO. NO. PIECES

97075−08035 29 − 26 97075−10035 29 − 5 97075−10045 29 − 3 97095−060108− 25

97095−06012 16 − 25 97095−06014 13 −14

97095−06016 1− 11

97095−06020 2 − 42

97095−06025 2 − 28

97095−06030 4 − 36

97095−06035 15 − 7

97095−06040 2 − 52

97095−06045 2 − 49

97095−080145− 8 97095−08020 17 − 5

97095−08025 31− 41

REF.

NO.

9 − 21 17 −15 17 − 22

25 − 7 25 − 36 29 − 42

17 − 7 23 −18 25 − 27 29 − 38

13 −16 15 −18 17 − 2

16 − 5 16 −17 18 − 3

20 − 35 20 − 43 23 − 21 29 −14 30 − 26

2 − 36 25 − 4

4 − 40

18 − 6 22 − 6

30 − 20

2 − 58 23 −15

31− 72 33 − 78

33 − 43

PART NO. NO. PIECES

97095−08035 30 − 4 97095−10045 25 − 29

97575−08540 4 − 20 97575−08560 30 − 3 97575−08590 29 − 20 97780−60520 21− 18 97780−60620 7 − 7

97780−60625 17 − 31 97880−0601629− 51 97885−0401622−16 97885−06010 15 −15

97885−0601225−10

97885−0601626− 2 98507−04008 2 −18

98582−05008 12 − 24 98980−0501039− 8 98980−06020 39 −13 99001−03600 27 − 40 99001−08600 31− 16

99530−08012 15 − 6 99530−101148− 28

REF.

NO.

26 − 22 26 − 33 32 − 5 34 − 5

17 −19

20 − 4 25 −13 25 −16

25 −19

4 − 33

11 − 14

33 −18

9 − 24

F200A/F225A/FL200A/FL225A

PARTS CATALOGUE

E2002 by Yamaha Motor Co., Ltd.

1st Edition, Jul. 2002

Any reprinting or unauthorized u se

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

F200A/F225A/FL200A/FL225A

CATALOGUE DE PIECES DETACHEES

E2002 Yamaha Motor Co., Ltd.

1ère Edition, Juil. 2002

Toute réimpression ou utilisation

sans la permission écrite de la

Yamaha Motor Co., Ltd.

est formellement interdite.

YAMAHA F200A ’03, F225A ’03, FL200A ’03, FL225A ’03 PARTS CATALOGUE 03

Specifications and Main Features

Frequently Asked Questions

User Manual

FOREWORD

CONTENTS

1 69J−1375A−00 THROTTLE BODY ASSY 2 1 1

2 69J−15311−00−5B OIL PAN 1 1 1 1
