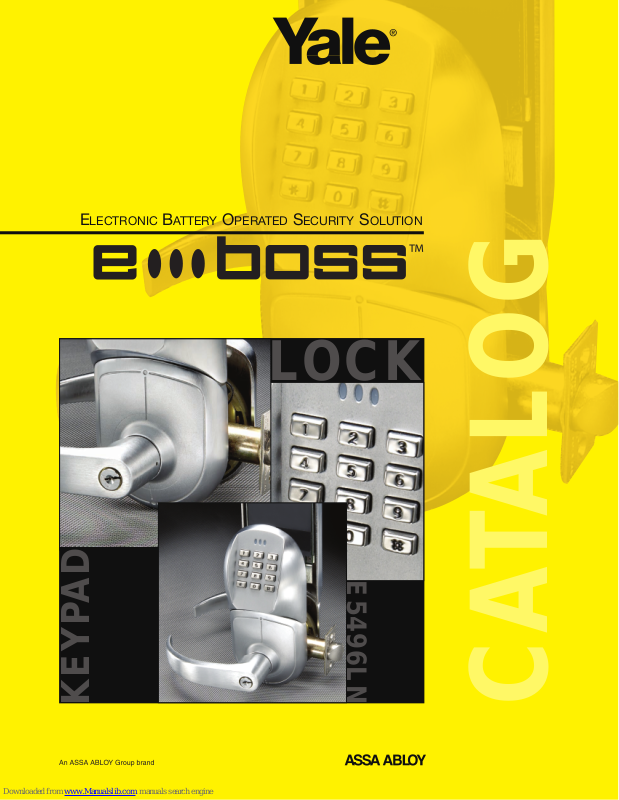

E

LECTRONIC BATTERY OPERATED SECURITY SOLUTION

KEYPAD

E5496LN

CATALOG

LOCK

™

TITLE

Page 2

eBOSS Electronic Lockset

GENERAL INFORMATION

Basic Operation & Functions . . .3

Features & Benefits . . . . . . . . .4-5

Specifications . . . . . . . . . . . . . . . .6

Lever Designs . . . . . . . . . . . . . . .6

Cylinders . . . . . . . . . . . . . . . . .7-8

Options & Accessories . . . . . . . .8

Strikes and Latchbolts . . . . . . . . .9

Ordering Information . . . . . . . . .10

Architectural Specification . . . . . .11

CONTENTS

CERTIFICATIONS

eBOSS™ INTRODUCTION

The eBOSS E5400LN series electronic locksets are designed to provide the
industrial, commercial, residential and hospitality marketplace with
reliable, competitively priced, keyless entry with or without mechanical
key override in interior or exterior environments.

PVD Lifetime Finish

Physical Vapor Deposition (PVD)
is a technologically advanced
finish coating that provides the
ultimate surface protection against
environmental elements and
everyday wear and tear. PVD
matches clear coated finishes in
appearance, yet surpasses them
in durability. Yale

®

warrants all
its PVD finishes against corrosion,
tarnish, wear, discoloration and
peeling for the lifetime of the
part to which it has been applied.
Ask your sales representative for
specific warranty information.

WARRANTY

The eBOSS E5400LN Series Cylindrical Lock keypad, printed circuit board and components are warranted to
be free from defects in workmanship and materials under normal use and service for 3 years from date of
delivery. In addition, the lockset carries a lifetime warranty against lever sag and lever spring breakage. PVD
Finish also comes with a lifetime warranty. Ask your sales representative for complete warranty information.

FINISHES

A.D.A.

The eBOSS meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the
Uniform Federal Accessibility Standards and ANSI 117.1, all requiring ease of accessibility for the handicapped.
The eBOSS keypad also meets ADA 12-button telephone requirements.

ANSI

Grade 1 ANSI 156.2

Fire Listings

UL - cUL Fire Label for all door functions up to 3 hours.

*PVD finish is standard for customers
desiring a non-wearing finish.

ANSI
Code

Finish Description

605e* Bright Brass, PVD
606e* Satin Brass, PVD

609

Satin Brass, Blackened, Satin
Relieved, Clear Coated

612 Satin Bronze, Clear Coated
613e* Satin Bronze, Oxidized, PVD

616

Satin Bronze, Blackened,
Satin Relieved, Clear Coated

619

Satin Nickel Plated, Clear

Coated
625 Bright Chrome Plated
626 Satin Chrome Plated

693 Black Powder Coat

OPERATION

Page 3

eBoss™ Electronic Lockset

BASIC OPERATION

The outside lever is always locked except when the lock is in passage mode. The eBOSS™ allows up to 94
individual user codes to be valid. Codes may be from two to seven digits in length, and digits may be repeated.
All programming is accomplished easily from the keypad utilizing LED and audible guidance. Changing codes
takes only a matter of seconds for an authorized user.

• User enters a valid code (2-7 digits) followed by the [*] key.

• Lock will unlock (green LED) for a user definable duration of 1-255 seconds (default 4 seconds), then re-lock.

• If lock is in lockout mode, the yellow LED will light, indicating denied entry.

If enabled, the green LED will light upon each depression of a key and for the duration that the lock is unlocked.
If the audible sounder is enabled, it will beep concurrently with the LED as keys are depressed. If an invalid code
is entered, the red LED will light and an audible sound sequence of one long beep, followed by four short beeps,
will indicate denied entry.

PROGRAMMABLE FEATURES

All standard programming of the eBOSS is easily performed through the keypad.

• Master Code – Assigns Supervisor Code and Emergency Code.

• Supervisor Code – Allows all programming of the controller except for changing Master Code.

• User Codes – Used for standard entry. 94 User Codes may be programmed into the eBOSS.

• Emergency Code – Allows emergency entry of the lock system when the controller low battery voltage is in the
“black out” condition or if the lock is in the Lockout mode.

• Lockout Code – Restricts User Codes from the ability to gain access. Only the Supervisor Code and Emergency
code can override.

• Passage Code – Enables the passage feature, maintaining the lock unlocked.

• Key Press Feedback - Enables or disables the LED indicators or audible sound features of the lockset.

• Factory Code Reset – Resets all user definable functions to factory default settings. Will not reset Specialty
Codes or User Codes.

• Re-Lock Duration – Adjusts the duration the lock remains unlocked from 1-255 seconds. Default is 4 seconds.

• Keypad Lockout – Deters tampering by disabling the keypad after three successive failed attempts or after 25
successive key presses without a valid code. Default is 10 seconds but user programmable from 1 to 255
seconds.

• Secure – Normal locked state. Any assigned user code can gain access.

• Lockout – Lockset will not accept any assigned user codes except for the Supervisor and Emergency Codes.

• Passage – Unlocked state

OPERATIONAL MODES

BATTERY REPLACEMENT

The inside battery cover is easily removed for battery replacement. Each lock contains six alkaline “AA” batteries,
which typically last for 100,000 cycles.

FUNCTIONS

E5496LN - Mechanical key can be used to retract latchbolt for entry
E5486LN - Non-key override

FEATURES AND BENEFITS

Page 4

eBoss™ Electronic Lockset

Features Benefits

Grade 1 Cylindrical
Motorized Lock

Based upon the field proven Yale®5400LN lockset

Utilizes 5400LN Components

Allows maintenance/changing the mechanical portion of the lockset without touching of the
electronic portion

Battery Operated

Standalone technology is convenient and less expensive than hard wiring. Six AA alkaline
batteries typically allow a 100,000 cycles before replacement is necessary.

Two-Tier Low Battery Indicator Visual and Audible – allows time to change batteries before unit fails to operate

Audible Pushbutton Feedback Gives audible acknowledgement of operation (can be disabled)

Weather Resistant Keypad

Allows exterior application without gasketing. Conformal coated PCB and silicone sealed
circuitry ensures protection in the harshest environments.

Request to Enter Input Allows remote access capability (2 wire)
Hard Wire Input Option 9 Volt DC input allows continuous power (see page 8 for power supplies)
Passage Code Function Allows maintained entry for high volume non-restricted traffic

Emergency Code Function

Allows emergency entry when the controller low battery voltage is in the “black out”condition
or when the lock is in lockout mode.

Lockout Code Function

Restricts user access. Only the Supervisor code and the Emergency code will override the

lockout.
Non-Volatile Memory Maintains all codes when power is lost or batteries are being changed
Modular Design No need to replace the entire lock if keypad portion is damaged, or vice-versa
Variety of Finishes Matches all available Yal e architectural finishes

User Friendly Programming Saves time and can be accomplished at the keypad without the use of a computer or PDA

94 User Capacity Provides diversity and flexibility of use

Easily to retrofit and install

eBOSS™ easily retrofits most cylindrical and electromechanical locks that utilize the standard

ANSI A115.2 series prep.

Secure Design

eBOSS provides the maximum in tamper resistance with the controller board located on the

secure side of the door.Interfering with or even destro ying the k eypad will not release the door.

Code Security

Factory master and emergency preset codes must be changed before any other codes can be

programmed.
