Xpelair DX100R, DX100S, DX100TR, DX100TS, DX100PR Installation And Maintenance Instructions Manual

Xpelair Simply Silent

TM

DX100 Fan

Installation and Maintenance Instructions

DX100R (93005AW) / DX100S (93025AW) Standard
DX100TR (93006AW) / DX100TS (93026AW) Timer
DX100PR (93007AW) / DX100PS (93027AW) Pull Cord
DX100HTR (93008AW) / DX100HTS (93028AW) Humidistat, Timer
DX100HPTR (93009AW) / DX100HPTS (93029AW) Humidistat, Pull Cord, Timer
DX100PIRR (93010AW) / DX100PIRS (93030AW) Integral Body Movement Sensor

 Do read the entire instruction leaflet before commencing installation.
 Do install each fan with a means for disconnection in all poles in the fixed wiring.
 Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any

maintenance or cleaning.

Please leave this leaflet with the fan for the benefit of the user.

UK customers:
If you have any queries before or after installing this product call the Xpelair Technical Hotline [phone]. Our

engineers are there to help you during normal office hours. Or you can fax at all other times on [phone].

Customers outside the UK should contact your local Xpelair distributor.

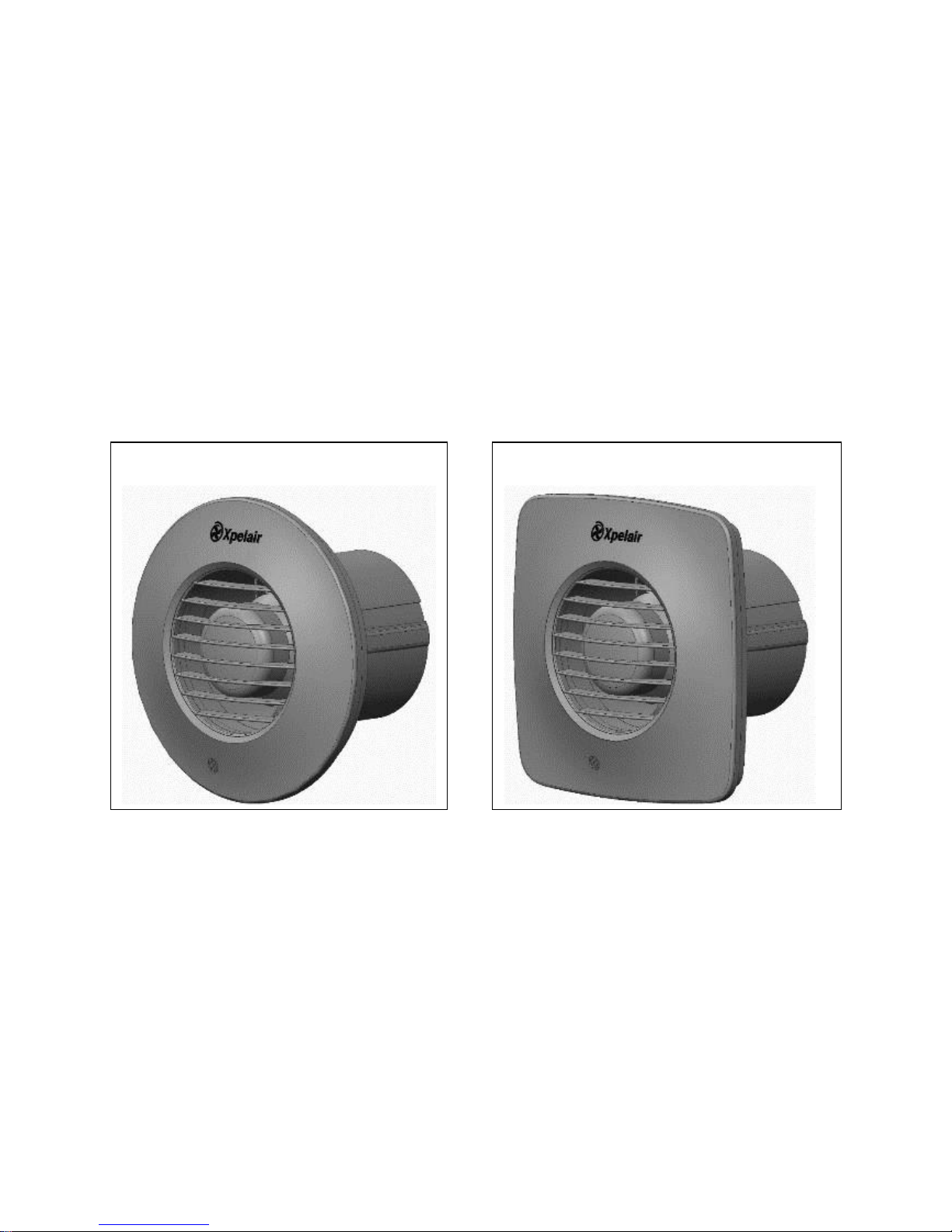

DX100 Range Round Fan

DX100 Range Square Fan

This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and maintenance of the appliance shall not be
made by children.

DX100R/DX100S - Operate the fan using an on/off switch (not supplied).
DX100TR/DX100TS* - Built-in timer operates fan for a pre-set delay from 30 seconds to 30 minutes.
DX100PR/DX100PS - Operate the fan using the integral pull-cord.
DX100HTR/DX100HTS* - Operates when triggered automatically by the integral humidity sensor, or by using an external

on/off switch (not supplied).
In automatic mode: the built-in timer automatically operates the fan for a pre-set delay time
from 30 seconds to 30 minutes once humidity drops below the pre-set Relative Humidity (RH)
value.
External operation: When switched off using the external on/off switch the fan continues to run
for the pre-set delay from 30 seconds to 30 minutes.

DX100HPTR/DX100HPTS* - Operates when triggered automatically by the integral humidity sensor, by using an external

on/off switch (not supplied), or by using the integral pull cord switch.

In automatic mode: The built in timer automatically operates the fan for the pre-set delay time

from 30 seconds to 30 minutes once humidity drops below the pre-set Relative Humidity (RH)
value.

External operation: When switched off using either the external on/off switch or the integral

pull cord switch the fan continues to run for the pre-set delay from 30 seconds to 30 minutes.

DX100PIRR/DX100PIRS* - An integral body movement sensor operates the fan as long as movement is detected. The built-

in timer automatically operates the fan for a pre-set delay of up to 20 minutes.

* Factory settings: Timer 15 minutes, RH 75%

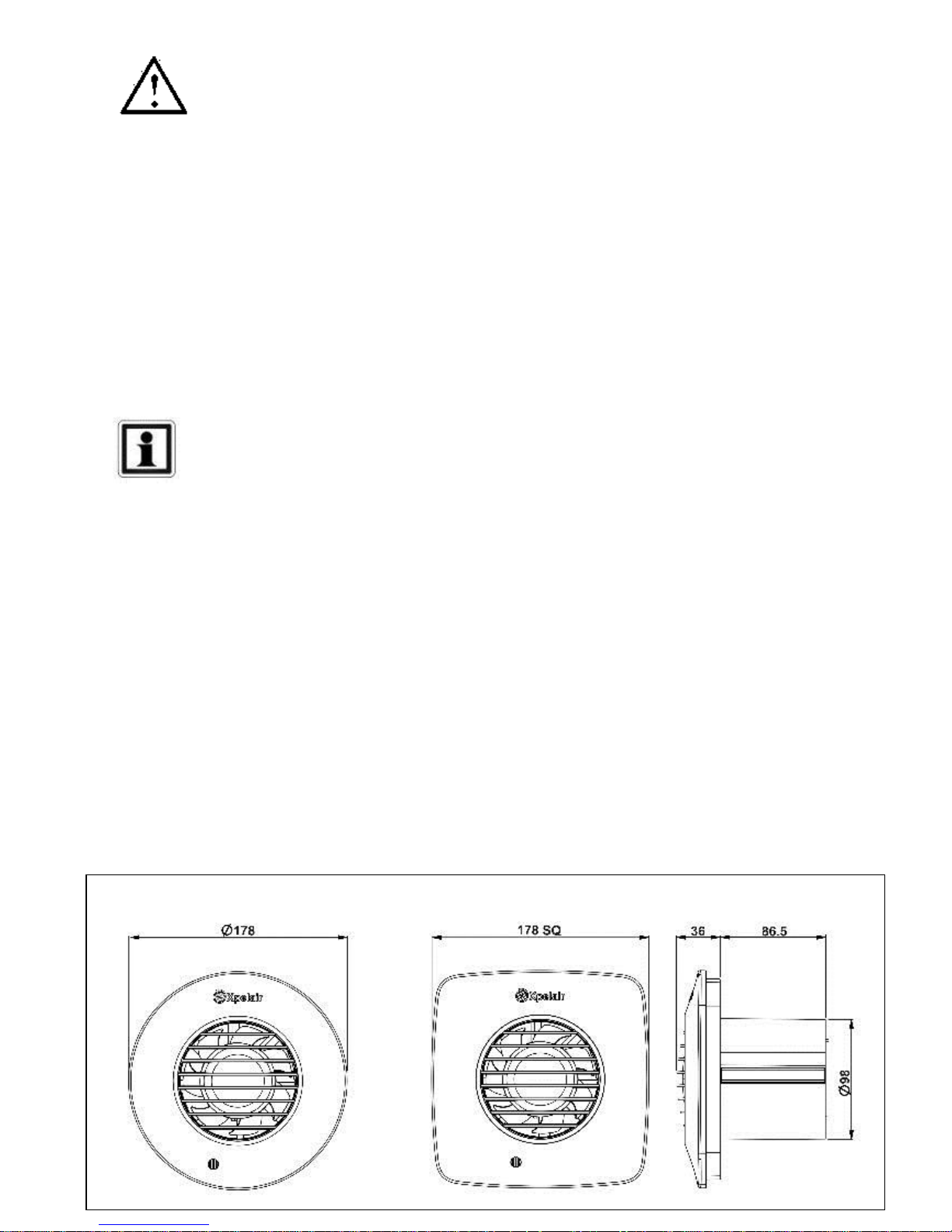

Overall Dimensions (mm)

This appliance is intended for connection to fixed wiring.
Check that the electrical rating shown on each fan matches the mains supply.

THE APPLIANCE IS DOUBLE INSULATED AND DOES NOT REQUIRE AN EARTH CONNECTION.

All installations must be supervised by a qualified electrician. Installations and wiring must conform
to current IEE Regulations (UK), local or appropriate regulations (other countries).

All Xpelair Simply SilentTM DX100 AC fans have the following features:

 Two speed extraction (Selectable at installation)

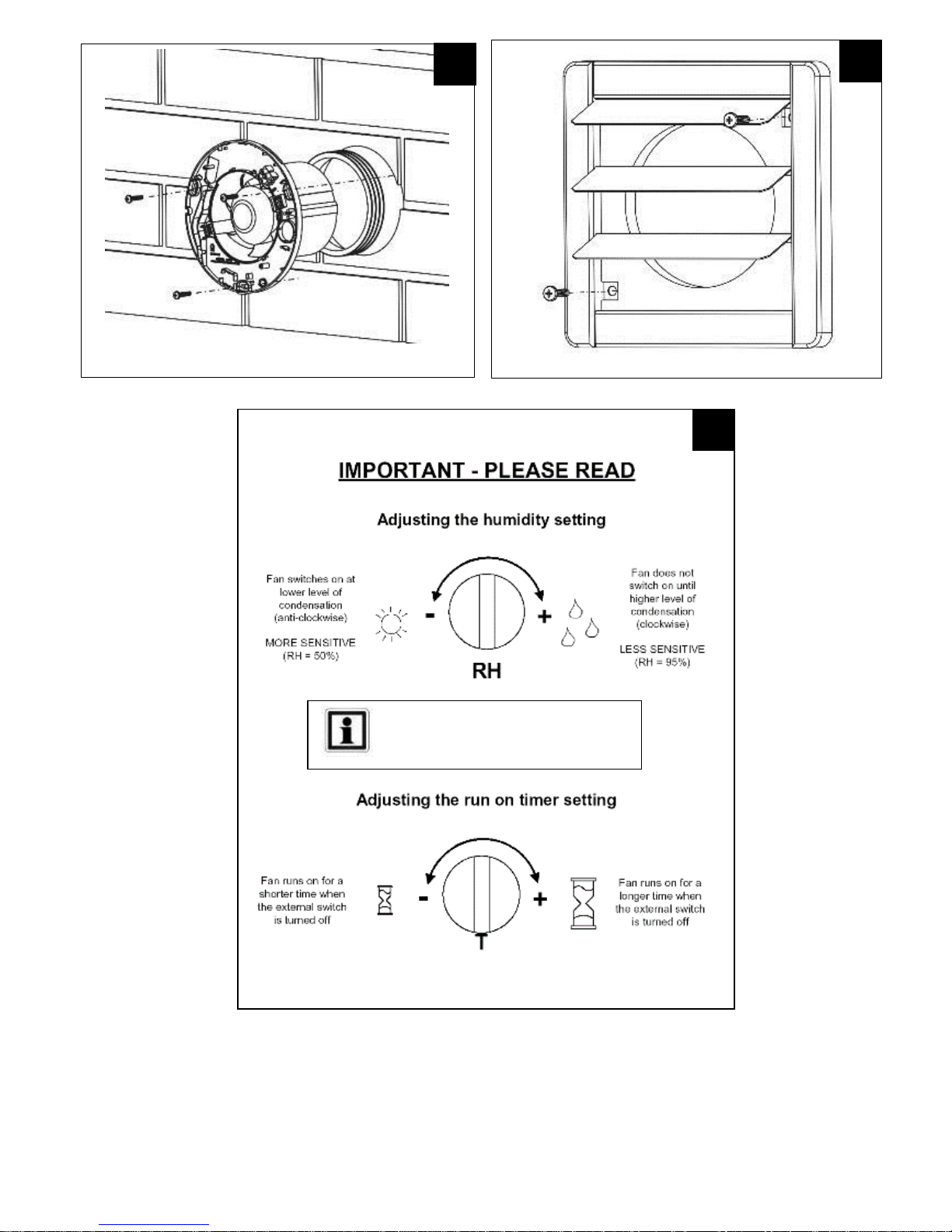

Back plate fixing positions

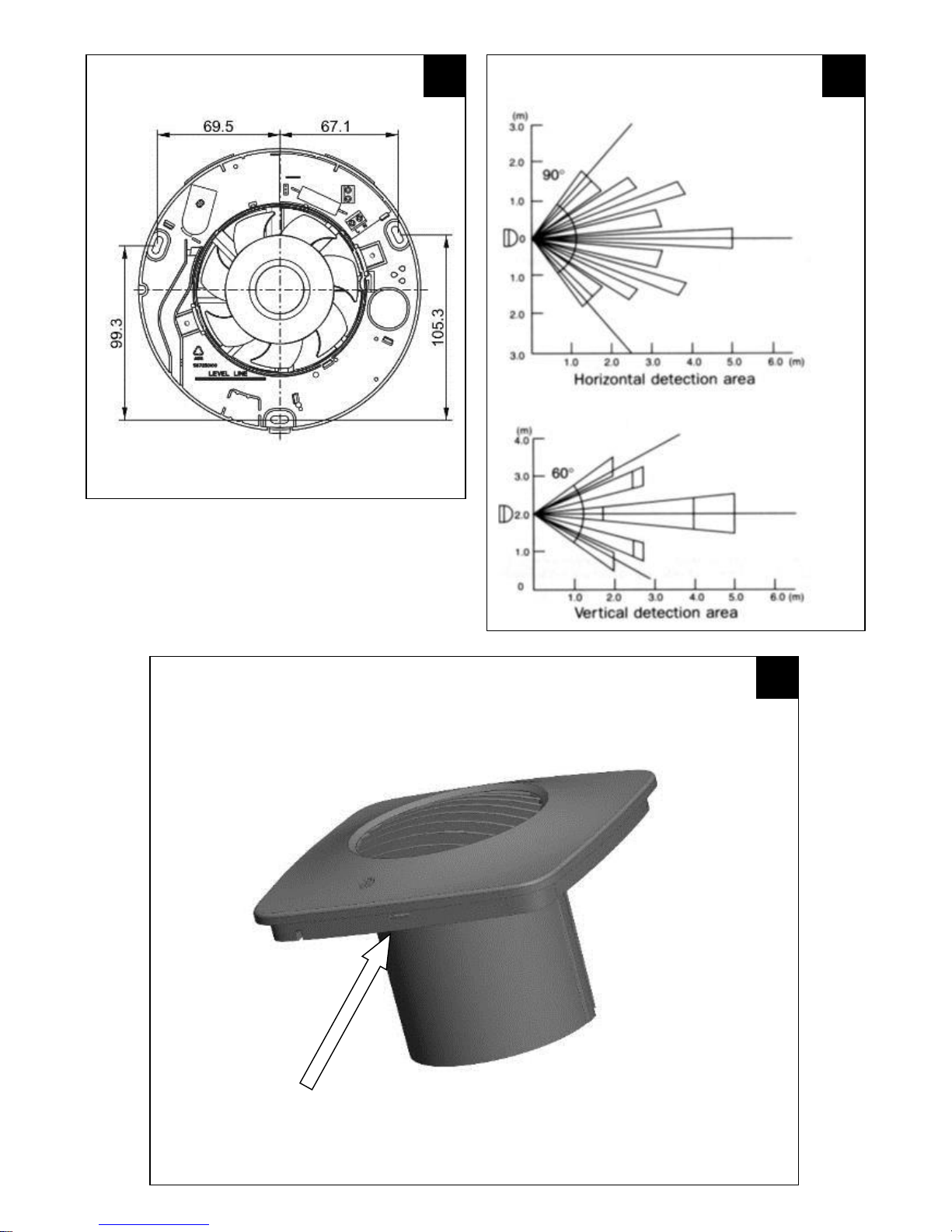

Front Cover Removal

Depress Cover Latch with tool &
remove Cover

A

C

B

Minimum 30 seconds

Maximum 30 minutes

Factory settings: Timer 15 minutes, RH 75%

D E F
