Xerox DocuMate 520 User Guide

Download

DocuMate 520

scanner

user's guide

DocuMate 520

scanner

user’s guide

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

XEROX ® is a trademark of Xerox Corporation in the United States and/or other countries and is used under license. DocuMate ® is a registered trademark of Xerox Corporation used under license. All other Xerox product names and product numbers mentioned in this publication are trademarks of Xerox Corporation.

The Visioneer brand name and logo are registered trademarks of Visioneer, Inc. The PaperPort and OmniPage Pro brand names and logos are registered trademarks of Nuance Communications, Inc. Adobe®, Adobe® Reader®, Acrobat® Reader®, Adobe® Acrobat®, and the Adobe® PDF® logo are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. The Adobe PDF logo will appear in this product’s software, and full access to Adobe software features is only available if any Adobe product is installed on your computer.

Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. ZyINDEX is a registered trademark of ZyLAB International, Inc. ZyINDEX toolkit portions, Copyright © 1990-1998, ZyLAB International, Inc. All Rights Reserved. All other products mentioned herein may be trademarks of their respective companies.

Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.

Part Number: 05-0595-200

Restricted Rights Legend

Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.

Welcome

What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

The Xerox DocuMate 520 Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Step 1: Assemble the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Step 2: Install the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 3: Connect the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 4: Connect the USB Cable and Turn on the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Additional Applications Available with Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Register Your Scanner and Check for Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Scanning

Scanning Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Load a Stack of Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Load a Single Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Scan with the Buttons on the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

About the Buttons on the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Scan from the One Touch Button Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Check the Scan Settings Before Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the One Touch Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

About the One Touch Button Panel’s Names and Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Configuring the One Touch Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

About the One Touch Properties Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Selecting New Settings for a Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Setting Destination Application Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Selecting Format Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Selecting Options for a Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Creating a New Scan Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Editing or Deleting Scan Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Configuring Before Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Scanning with Optical Character Recognition (OCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Scanning with sPDF or nPDF and Searching for Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Scan and Burn to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Scanning with Event Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Creating an HTML Web Page from Your Scanned Documents . . . . . . . . . . . . . . . . . . . . . . . . . 79

Transferring Scanned Documents to Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Checking the Hardware and Setting the Lamp Power Saving . . . . . . . . . . . . . . . . . . . . . . . . . . 87

DocuMate 520 Scanner Installation Guide iii

Scanning with the TWAIN Interface from PaperPort

Accessing the TWAIN Interface from PaperPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

The Two TWAIN Interface Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Scanning from the TWAIN Basic Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Scanning from the TWAIN Advanced Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Adjusting the Image with the Advanced Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Adjusting the Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Adjusting the Brightness and Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Adjusting Gamma, Saturation, and Color Hue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Adjusting Input Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Creating a New Advanced Interface Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Display the Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Setting Up Your Scanner to Work With PaperPort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Scanning with the WIA Interface

Fine Tuning Your Scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Scanning with the ISIS Interface

Adjusting the ISIS Scan Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Scanning from ISIS in Other Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Maintenance

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Cleaning the Scanner Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Cleaning the Automatic Document Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Replacing the ADF Pad Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Replacing the Roller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Error Light Troubleshooting Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Uninstalling Your Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Step 1: Uninstalling the Scanner and One Touch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Step 2: Uninstalling the PaperPort Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

To Install Another Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

DocuMate 520 Scanner Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Xerox DocuMate 520 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

It’s Illegal in the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

It’s Illegal in Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Federal Communications Commission (FCC) for USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Energy Star for the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

RoHS and WEEE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Product Recycling and Disposal for USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

DocuMate 520 Scanner Installation Guide iv

What’s in the Box

Welcome

Your new Xerox DocuMate 520 scanner can quickly scan stacks of documents with the Automatic Document Feeder (ADF), or single pages on the Flatbed Glass.

Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the scanner.

DocuMate 520 Scanner

Paper Guide Paper Guide Extension

Disc 1 and Disc 2

Replacement ADF PadTwo CD’s

Power CordUSB Cable

Paper Stop

Quick Install Guide Technical

Power Supply

Support Card

DocuMate 520 Scanner User’s Guide 1

Welcome

The Xerox DocuMate 520 Scanner

Scanner Cover

Document Pad

Glass

Reference Frame

Paper Stop

Paper Guide Extension

Paper Guide

Automatic Document Feeder

Scanner Lock

DocuMate Buttons and Status Light

USB Port

ADF port

Power jack

Power On/Off Switch

ADF Cable

2 DocuMate 520 Scanner User’s Guide

Welcome

Scanner Cover—Protects the document from light and contamination during scanning. Close the cover to put a stack of documents in the Automatic Document Feeder (ADF).

Document Pad—Holds documents in place on the scanner glass.

Glass—Documents are placed face down, aligned at the arrow

symbol in the upper-left corner.

Reference Frame—Marks on the border of the glass show where to align various paper sizes.

Paper Stop—Holds items in place as they are ejected from the Automatic Document Feeder. Adjust for letter-sized or legal-sized pages.

Paper Guide Extension—Unfolds to support multiple document lengths.

Paper guides—Holds documents in place. Adjusts to fit the paper size.

Automatic Document Feeder (ADF)—Feeds a stack of documents onto the glass for scanning. The ADF can hold up to 50 pages at a time.

Scanner lock—Locks or unlocks the scanning head. The lock must be unlocked for the scanner to scan. The lock should always be locked when transporting the scanner.

DocuMate Buttons—Press to start scanning.

Status Light—Shows the scanner’s status. A steady green light

indicates the scanner is available to scan. A rapidly flashing green light indicates the scanner is preparing to scan. Refer to “Error Light Troubleshooting Codes” on page 132 for additional details.

Universal Serial Bus (USB) port—Connects the scanner to the computer.

ADF port—Connects the ADF cable from the Automatic Document Feeder to the scanner body.

Power Jack—Connects the power cord to the scanner.

Power switch—On/Off power switch.

ADF cable—Supplies power from the scanner body to the

Automatic Document Feeder. The cable must be securely plugged into the ADF port for the Automatic Document Feeder to work.

DocuMate 520 Scanner User’s Guide 3

Welcome

What You Need

An IBM-compatible Pentium PC, or AMD equivalent with:

• A CD-ROM drive

• An available Universal Serial Bus (USB) port

•Microsoft or XP (Service Pack 1 and 2)

• A minimum of 256 megabytes (MB) of internal memory (RAM); 512 MB is recommended

• 200 MB minimum of free hard disk space

A VGA or SVGA Monitor

The recommended settings for your monitor are:

• High Color (16-bit) or True Color (24-bit or 32-bit)

• Resolution set to at least 800 x 600 pixels

Windows® operating system: 2000 (Service Pack 4)

Documentation

To set your monitor’s colors and resolution:

• Open the Windows Control Panel

• Double-click on Display then select the Settings tab

Your scanner is delivered with the following documentation:

• Quick Install Guide—Abbreviated installation instructions.

• Xerox DocuMate 520 Scanner User’s Guide—On the Installation CD; contains detailed installation, scanning, configuration, and maintenance information.

• PaperPort User’s Guide—On the Installation CD; contains detailed feature and configuration information for the PaperPort software.

• Online Help—For the scanner configuration, TWAIN and WIA interfaces, and PaperPort software application.

4 DocuMate 520 Scanner User’s Guide

Before You Begin

Installation

Installation is a quick, four-step process:

1. Assemble the scanner

2. Install the software

3. Connect the power supply

4. Connect the USB cable and turn on the power

Please make sure of the following before you begin installation:

• The information in this guide may cover software not provided with the scanner you purchased. Disregard any information about the software not applicable to your chosen product. Please visit our web site at www.xeroxscanners.com for the latest software updates for your Xerox DocuMate 520 scanner.

• If your computer has AntiVirus or AntiSpyware software running, you may see messages during installation asking you to allow the installation to proceed. Although the messages will differ based on the software your computer is running, in each case you should allow the installation to proceed. Alternatively, you can turn off the AntiVirus or AntiSpyware software before installing your scanner. But if you do, make sure to turn it back on again when installation is finished.

• If you already have a scanner connected to your computer, it is recommended that you remove that scanner’s driver program prior to installing your Xerox DocuMate 520 scanner. While in some cases you can configure your computer to have another manufacturer’s scanner operational on your computer in conjunction with the Xerox DocuMate 520 scanner, we do not recommend this configuration as you may lose some of the driver functionality on one, or both of the units. You can remove these programs from the Windows Add/Remove programs list. Please refer to the user manual provided with your other scanner hardware for instructions about removing the driver and software for that unit.

DocuMate 520 Scanner User’s Guide 5

Installation

Step 1: Assemble the Scanner

All the components to assemble the scanner are included in the box.

To assemble the scanner:

1. Remove all shipping tape from the top and bottom of the scanner.

2. Open the ADF cover and carefully remove any foam particles that may have gotten inside the Automatic Document Feeder. Close the cover so it snaps shut.

6 DocuMate 520 Scanner User’s Guide

Installation

3. Slide the locking tab on the bottom of the scanner to its unlocked position.

Unlocked position

NOTE: The locking tab protects the scanner’s scan head by

holding it securely in position. Lock the scanner when transporting it from one location to another, but always remember to unlock it before scanning. The scanner will not scan when locked.

4. Insert the slots (A) on the Paper Guide onto their tabs (B) on the scanner and slide the Guide down into place. The catch tabs (C) snap into place. Refer to the picture on page 2 to see the location of the assembled parts.

DocuMate 520 Scanner User’s Guide 7

Installation

5. Insert the Paper Guide Extension into the Paper Guide and snap its tabs into place.

6. Insert the Paper Stop onto the back of the scanner and slide it downward to snap its tabs into place.

7. Plug the ADF cable into the ADF port. Tighten the two locking screws on either side of the plug to make sure the ADF cable is securely plugged into the port. The ADF will not function properly if the ADF cable is loose or unplugged.

8. Proceed to “Step 2: Install the Software”.

8 DocuMate 520 Scanner User’s Guide

Step 2: Install the Software

NOTE: The software is on the two CD’s you received with your

scanner. Please be sure to install from Disc 1 first.

To install the software:

1. Start Microsoft Windows and make sure no other applications are running.

2. Insert Disc 1 into your computer’s CD-ROM drive.

Installation

The CD automatically starts.

NOTE: If the CD does not start, check the following:

• Make sure you have inserted Disc 1.

• Make sure the CD drive’s door is completely shut.

• Make sure the CD was inserted in the drive in the proper direction (label side up).

To launch the CD manually:

• Open the Windows option for My Computer. You can do this by double-clicking on the My Computer icon on your desktop.

• Double-click the icon for your CD-ROM drive.

• The Installation menu for the CD should now open.

If the menu does not open:

• From the list of files on the CD, double-click the file named START32.EXE.

DocuMate 520 Scanner User’s Guide 9

Installation

3. On the Installation menu, select Install Products.

4. Make sure the boxes for Nuance PaperPort

and OmniPage Pro

are checked.

, Scanner Driver,

NOTE: The OmniPage Pro software is required for installation

and provides extensive Optical Character Recognition (OCR) capabilities for your scanner software. It also adds special formats to the scanner’s One Touch 4.0 software for creating searchable PDF files (known as sPDF and nPDF). Please note: if you do not install the OmniPage Pro software now, but install it later, you may need to restart your computer before the sPDF and nPDF formats are available in the One Touch 4.0 software.

5. Click Install Now.

6. The Select Language window opens. Click the drop-down menu arrow and select the language to use. Click OK.

10 DocuMate 520 Scanner User’s Guide

Installation

The first PaperPort Installation window opens.

7. On the PaperPort Welcome window, click Next.

Installing PaperPort will uninstall any existing version of PaperPort and will install the newer version. Your existing PaperPort files will not be affected.

8. Read the PaperPort license agreement and select I accept the terms in this agreement, then click on Next. If you choose not to accept the license agreement, the installation will terminate and the PaperPort software will not be installed.

9. On the Customer Information window, accept the current values or enter new information, then click Next.

10. On the Setup Type window, keep the default Setup Type and click Next.

11. Click Install to begin the installation.

Reminder: If your computer is running an AntiVirus or AntiSpyware application, you may see messages asking you to allow installation. Select the option to allow installation to proceed.

12. On the Product Registration window, do one of the following:

•Select Register online, click OK, then follow the

registration instructions.

•Select Print registration form, click OK, then follow the

instructions to complete and print the registration form.

•Select Remind me in 7 days and click OK.

13. At the Installshield Wizard Completed window, click Finish.

If a message window opens instructing you to restart your computer, click Restart.

14. The Welcome to the One Touch 4.0 Setup Wizard opens.

DocuMate 520 Scanner User’s Guide 11

Installation

Note: Some of the options listed in this window may not be available when you purchase your scanner.

Please visit our web site at: www.xeroxscanners.com for the latest updates.

15. Click Next.

16. On the Xerox License Agreement window, read the license agreement. If you accept the terms, select I Agree then click Next.

If you choose not to accept the license agreement, the installation will terminate and the scanner driver will not be installed.

The next window lists the choices of the drivers that you can install for your scanner.

17. Select the option you want.

NOTE: If your computer is running Windows XP, Microsoft’s

Windows Image Acquisition (WIA) interface for scanning is always available, regardless of your selection on this window.

• Full Install (OneTouch, TWAIN, and ISIS)—This is the

recommended installation. It installs the One Touch 4.0 software which provides the necessary driver software for the scanner. It also installs scanning interfaces for the TWAIN and ISIS drivers. Installing this option means that you can use several different methods to scan, as explained in this User Guide.

• TWAIN and ISIS—The TWAIN and ISIS drivers are

installed. The One Touch 4.0 Monitor will not run and you cannot use the One Touch features. You can use the Xerox DocuMate 520 TWAIN driver to scan from applications with a TWAIN interface. You can also scan from applications that use the ISIS driver. You will not be able to scan with the buttons on the scanner.

12 DocuMate 520 Scanner User’s Guide

Installation

• TWAIN only—The TWAIN driver is installed without the

One Touch 4.0 software or the ISIS driver. You can use the Xerox DocuMate 520 TWAIN driver to scan from TWAIN applications. You will not be able to scan with the buttons on the scanner.

• ISIS only—The ISIS driver is installed. You can use

applications that use the ISIS driver such as Kofax and QuickScan. The One Touch 4.0 Monitor will not run and you cannot use the One Touch features. You will not be able to use the Xerox DocuMate 520 TWAIN driver. You also will not be able to scan with the buttons on the scanner.

NOTE: If you decide to change the scanner’s installed drivers

later on, you must first uninstall the drivers the scanner is currently using. See the section “To Install Another Driver” on page 134.

18. Click Next.

During installation you will see this window asking you to select one of the images for your Color Space setting.

The Color Space setting sets the gamma value for the scanner so scanned items look good on your monitor. Gamma controls the brightness of the midtones of colors. That setting can be changed later as you’re scanning.

19. Select the option that looks best to you and click Next.

The driver installation will now begin.

DocuMate 520 Scanner User’s Guide 13

Installation

20. STOP when you see the “Complete the installation by connecting your hardware” window. Do NOT click OK yet. Leave the window open and proceed to the next section, “Step 3: Connect the Power Supply” on page 15.

Reminder: If your computer is running AntiVirus or AntiSpyware software, you may see messages asking you to allow installation. Select the option to allow installation to proceed.

NOTE: If you want to see more information about your scanner

and a quick explanation of how to use the One Touch features, click the More button on the window. When you’re finished, return to the window above to continue with the installation process.

14 DocuMate 520 Scanner User’s Guide

Step 3: Connect the Power Supply

Connect the power supply and power cord, and plug the power supply into an electrical outlet.

To connect your DocuMate 520 scanner:

1. Plug the power supply into its power port on the scanner.

Installation

NOTE: Only use the power supply (HEG42-240200-7L made by

HiTron) included with your scanner. Connecting any other type of power supply may damage your scanner, and will void its warranty.

2. Plug the power cord into the power supply and then into a wall outlet.

Now proceed to the next section, “Step 4: Connect the USB Cable and Turn on the Power.”

DocuMate 520 Scanner User’s Guide 15

Installation

Step 4: Connect the USB Cable and Turn on the Power

The DocuMate 520 scanner connects to any available USB port. Check your computer’s manual for USB port locations.

NOTE: You can connect the scanner to your computer while the

computer is running.

1. Remove any protective tape from the USB cable.

2. Plug the USB cable into the USB port on the scanner then into a USB port on the computer. Connection to a USB 2.0 High Speed port provides optimum performance, however your scanner will also connect to a USB 1.1 port.

USB

The USB symbol, as seen in the above diagram, identifies the location of the USB port on your computer. If the plug does not attach easily, make sure that you are plugging it in correctly. Do not force the plug into the connection.

You can also connect the scanner to a USB port on the computer’s keyboard if it has one, or to a USB hub. If you use a USB hub, it must have its own power supply already plugged into an electrical outlet.

16 DocuMate 520 Scanner User’s Guide

Installation

3. Turn on the power switch, located on the back of the scanner to the left of the power port.

The status light comes on and flashes indicating that the scanner is receiving power.

If you are using Windows XP Service Pack 2, and have plugged the USB cable into a USB 1.1 port, an information bubble may open explaining that “A HI-SPEED USB device is plugged into a non-HI-SPEED USB hub”. Plug the USB cable into a USB 2.0 port (if available) or just disregard the message. If you leave it plugged into the USB 1.1 port, your scanner may scan a bit slower.

Your computer then recognizes that a scanner has been plugged into the USB port and automatically loads the appropriate software to run the scanner.

Do not proceed until you receive a message that your computer has found the new hardware, or updated the driver database. If your computer is running Windows XP, you will see the following message.

DocuMate 520 Scanner User’s Guide 17

Installation

4. When you’re certain that the software has completely loaded, return to the “Complete the installation by connecting your hardware” window.

5. Click OK.

You can also click More to see a quick overview about accessing and navigating the One Touch Button Panel. When you’re finished reading the additional information, return to the screen above and click OK.

The scanner’s status light is green when the scanner and computer are communicating properly.

6. Click Close on the Installation Complete window to close and exit the software installer.

18 DocuMate 520 Scanner User’s Guide

Installation

If you selected OmniPage Pro for installation, a window tells you to insert the second CD to install it.

NOTE: OmniPage Pro is required for your scanner to have its

full range of features. Please make sure to install OmniPage Pro before scanning.

To install OmniPage Pro:

1. Click Exit Disc 1 and remove Disc 1 from the CD-ROM drive.

2. Insert Disc 2 into the CD-ROM drive.

The OmniPage Pro Installation menu opens automatically. If it does not open, see the note on page 9.

3. Select Install OmniPage Pro.

4. Follow the instructions on the screen to install OmniPage Pro.

DocuMate 520 Scanner User’s Guide 19

Installation

5. When installation is finished, return to the Installation menu above and click User Guide.

The OmniPage Pro User Guide opens for you to view and save to your computer.

NOTE: The OmniPage Pro User Guide is in Adobe

PDF format. If you do not have the Acrobat

Reader® software

Acrobat®

on your computer, a free version is on Disc 1 for you to download and install. See the section below, “Additional Applications Available with Your Scanner.”

6. When you are finished saving the OmniPage Pro User Guide, return to the Installation menu and click Exit.

7. Remove Disc 2 from the CD-ROM drive.

8. You can now install additional applications on Disc 1.

20 DocuMate 520 Scanner User’s Guide

Additional Applications Available with Your Scanner

Your scanner includes free, additional applications on the installation CD.

1. Reinsert Disc 1 into the CD-ROM drive.

The Installation menu opens.

Installation

The free Adobe Acrobat Reader software is located on the CD with the User Guides. See the steps on page 23 to install Adobe Acrobat Reader.

2. Click Install Products.

You will see the screen that shows the list of applications provided with your scanner. Applications already installed have

Installed! next to them.

DocuMate 520 Scanner User’s Guide 21

Installation

Software About the Software

3. See the following table to decide which software you would like to install.

4. Then, on the window shown above, click in the boxes of the other software you want to install, and click Install Now. Follow the instructions on the screen to install each of the additional products.

Adobe® Acrobat

Reader

Adobe Acrobat Reader is a stand-alone application that you use to open, view, search, and print PDF files. The User Guides on your scanner’s installation CD’s are in PDF format and require Adobe Acrobat Reader for you to view and save them. The Adobe Acrobat Reader software is available from the window you use to view the User Guides.

QuickScan™ A desktop imaging solution for scanning, image enhancement, and OCR,

QuickScan is a standalone, out-of-the-box imaging solution that provides all the necessary capabilities for high-speed scanning, image enhancement, viewing, annotation, printing, and storing images, for both black-and-white and color pages. It uses an ISIS-certified driver for scanning, and includes flexible job separation and barcode recognition. The Demo version lets you try the application first. You can use this software as an additional method to scan.

Kofax

and

Scan Demo

VRS

Kofax VRS automatically enhances scanned documents from less than perfect originals. It is an additional scanning interface that uses patented VRS (VirtualReScan) technology, and ensures your scanning is as efficient and easy as possible, while also improving both the quality of the scanned images. Kofax VRS uses an ISIS-certified driver for scanning. This software provides an additional method to scan from your scanner. The Demo version lets you try the application first.

If you install the Kofax VRS software, you may see the following message.

Please disregard this message and click OK. The Kofax VRS Certified

driver is installed correctly when you install it with your Xerox

ISIS DocuMate 520 scanner.

22 DocuMate 520 Scanner User’s Guide

Installation

5. To get the documentation for each of the additional products, return to the Main Menu window and click User Guides.

The User Guides window opens. Use this window to view and save the User Guides you want.

The User Guides are in Adobe® Acrobat® PDF format. The CD also includes a free copy of Acrobat® Reader® in case your computer does not have it already installed. The Scanner Readme file is in HTML format and will open in any standard browser.

If you need to, click Acrobat Reader to install it now. Follow the instructions on the installation windows.

If your computer already has Adobe Acrobat Reader installed, please do not select it unless the version provided on the installation CD is a newer version than the one currently installed on your computer.

DocuMate 520 Scanner User’s Guide 23

Installation

To view and save the User Guides:

1. Click the name of a User Guide you want to view and it will open in Acrobat Reader. Use the Acrobat Reader Save command to save that User Guide on your computer.

2. Return to the User Guides window and repeat the process to open, view, and save all the other User Guides you want. The

Scanner Readme file has late-breaking news about your scanner.

3. When you’re finished, click Main Menu to return to the Main Menu window and click Exit.

4. Remove the CD and store both CD’s in a safe place.

That’s it! Installation is finished and your Xerox DocuMate 520 scanner is ready to scan.

24 DocuMate 520 Scanner User’s Guide

Register Your Scanner and Check for Updates

Registering your scanner is important as it provides you with access to free telephone support service. Registration also gives you free access to software updates for your scanner.

To register your scanner:

1. Right-click on the One Touch icon in the Windows Notification Area (at the bottom right corner of the screen).

The One Touch Icon.

2. Choose Check for Online Updates from the pop-up menu.

Installation

3. Follow the instructions on the screen and register your scanner by entering your scanner’s serial number and your email address.

NOTE: A valid email address is required.

The serial number is located on the side of the scanner.

The Serial Number.

After registration is complete you will receive an email message with your RegID.

Your RegID is important as you will need it when accessing free telephone support, or checking for online updates.

4. After receiving your RegID, write it down on a piece of paper and keep it with your scanner so you will be able to find it easily.

DocuMate 520 Scanner User’s Guide 25

Scanning

If you selected the recommended Full Install option (see page 12), then you have several different options to scan with your Xerox DocuMate 520 scanner. Each method scans equally well, so use the one with appropriate options for the item you are scanning.

NOTE: During installation, the One Touch 4.0 software

searches your computer and links to all the applications (known as the Destination Applications) where it can send and open scanned documents. To make sure that all the Destination Applications are linked to One Touch 4.0, Xerox recommends that you refresh One Touch 4.0 before using your scanner for the first time. Please see “Check the Scan Settings Before Scanning” on page 32 for the steps to refresh One Touch 4.0.

• Scanner Buttons—When you press one of the scanner buttons, documents are scanned using the scan settings for that button. The scanned images are then sent to a software application on your computer. See “Scan with the Buttons on the Scanner” on page 29.

• One Touch—Use this scan option when you want to scan from the computer screen. Open the One Touch scan panel and window, adjust the scan settings as needed, put the document in the scanner, then click a button icon on the One Touch panel. Also use this One Touch method of scanning if you want to access the advanced features of Optical Character Recognition (OCR) available from the OmniPage Pro application. See “Scan from the One Touch Button Panel” on page 31.

• TWAIN Interface—This option uses your scanner’s TWAIN interface to scan. Select scanning options before scanning, put the document in the scanner, then click a button on the TWAIN interface window. See “Scanning with the TWAIN Interface from PaperPort” on page 89.

• Windows Image Acquisition (WIA)—This option uses the Microsoft Windows set of choices for scanning. Select the WIA scan settings, put the document in the scanner, then click a button on the WIA window. Scanning with WIA is only available if your computer is running Windows XP. See “Scanning with the WIA Interface” on page 113.

• ISIS Interface—This option uses the ISIS interface for scanning. Select the ISIS scan settings, put the document in the scanner, then click a button on the ISIS window. See “Scanning with the ISIS Interface” on page 117.

26 DocuMate 520 Scanner User’s Guide

Scanning Basics

Load a Stack of Documents

Scanning

You can use your Xerox DocuMate 520 to scan a single page on the Flatbed glass, or stacks of documents using the Automatic Document Feeder.

NOTE: Always remove any staples or paper clips from

documents before inserting them into the scanner’s Automatic Document Feeder. Staples and paper clips can jam the feed mechanism and scratch the internal components. Also remove any labels, stickers, or Post-It™ notes that may come off during the scanning process and get stuck in the scanner. Misuse as described here will void your scanner’s warranty.

1. Lift the scanner cover and make sure no pages have inadvertently been left on the Flatbed glass.

2. Unfold the Paper Guide Extension and adjust the Paper Guide for the size of paper.

Paper Stop Slide.

3. Adjust the Paper Stop at the back of the scanner for the size of the paper. Pull out the slide on the Paper Stop for letter-sized pages. Push it in for legal-sized pages.

DocuMate 520 Scanner User’s Guide 27

Scanning

4. Load the stack of documents face up, with their tops into the Automatic Document Feeder.

IMPORTANT: Items scanned using the Automatic Document

Feeder must be a minimum of 5 x 7 inches (12.7 x 17.8 cm).

5. You can now scan the documents using the scanner buttons,

Load a Single Page

1. Remove any paper in the Automatic Document Feeder.

2. Lift the scanner cover and place the document face down on

3. Align the item with the arrow on the reference frame then close

One Touch, or one of the other scanning interfaces.

The scanner automatically detects if paper is in the Automatic Document Feeder and will scan pages in it. You must remove these pages prior to scanning if you want to scan from the Flatbed.

the glass.

the cover.

4. You can now scan the document using the scanner buttons, One Touch, or one of the other scanning interfaces.

28 DocuMate 520 Scanner User’s Guide

Scan with the Buttons on the Scanner

Pressing a scanner button scans the item and then sends the image to the printer or a software application (known as the Destination Application) on your computer.

1. Load a stack of documents face up in the Automatic Document Feeder or place a single page face down on the Flatbed glass and close the cover.

2. Press a scanner button.

Scanning

A scan progress window opens and the image is sent to the selected application from the One Touch utility. In this example, the Destination Application is the PaperPort software.

To Cancel scanning, click the Cancel button.

DocuMate 520 Scanner User’s Guide 29

Scanning

About the Buttons on the Scanner

The scanner buttons are preconfigured to scan items at various settings and send the scanned image to a preselected Destination Application. You can change the settings for each button. See “Configuring the One Touch Buttons” on page 36.

The following table lists the scanner’s preconfigured button settings:

Button Preconfigured Settings

E-Mail Scans the document as a color photo and attaches

it to a new email message in your email application.

Copy Scans the document as an 8.5" x 11" black and

white page, then sends its image to your computer’s printer or copier.

Scan Scans the document as an 8.5" x 11" black and

white page and displays it in the PaperPort application.

NOTE: If you press a button that is not preconfigured, the One

Touch Properties window opens on your computer screen so you can configure it manually. For example, if your computer does not have email software installed, the E-mail button is not preconfigured so when you press the E-Mail button, the window opens so you can select other settings for the button.

30 DocuMate 520 Scanner User’s Guide

Scan from the One Touch Button Panel

Scanning from the One Touch Button Panel is just like pressing a scanner button, except you click a button on the computer screen. This method of scanning is especially helpful if the scanner is not located close to your computer.

1. Load a stack of documents in the Automatic Document Feeder, or place a document face-down on the Flatbed glass.

Scanning

The One Touch Icon.

2. Now click on the One Touch icon in the Windows Notification Area (at the bottom right corner of the screen).

The One Touch Button Panel opens.

Click the button you want to use to scan.

3. On the screen—not on the scanner—click the button you want to use to scan.

NOTE: The One Touch Properties window must be closed

before you can scan from the Button Panel.

For example, if you want to scan with the eMail button which attaches the scanned document to a blank eMail message, click here.

Or if you want to scan documents so they open in PaperPort, click here.

NOTE: Your scanner comes with 3 factory-preset One Touch

button settings. You can reconfigure all three.

The scanner begins scanning. When the process finishes, the scanned images appear in the Destination Application, just as if you scanned with the scanner buttons.

DocuMate 520 Scanner User’s Guide 31

Scanning

Check the Scan Settings Before Scanning

The One Touch Icon.

1. Click on the One Touch icon in the Windows System Tray (at the bottom right corner of the screen).

The One Touch Button Panel opens.

2. Right-click the button you want to check.

Right-click the button to see its scan settings.

The One Touch Properties window opens for you to view and change the settings before scanning. This sample shows the current description of the Scan Button.

The One Touch Button Panel also opens with the description of the selected settings.

The icon indicates the Destination Application for this setting.

32 DocuMate 520 Scanner User’s Guide

Your document will be scanned with these settings.

Scanning

To Refresh the One Touch 4.0 settings, click the Refresh button on the One Touch Properties window.

If you make changes in the One Touch Properties window, then click the Apply button, the information in the One Touch panel will update to show the new settings.

You can also click the tabs at the top of the One Touch Properties window to see the settings of the other buttons.

3. When you’re ready to scan, just click (not right-click) the button on the Button Panel.

NOTE: The One Touch Properties window must be closed

before you can scan from the Button Panel.

DocuMate 520 Scanner User’s Guide 33

Scanning

Using the One Touch Panel

The One Touch Panel is your on-screen control for the scanner. The One Touch Panel also shows information about the scanner and its settings.

1. To open the One Touch Button Panel, click the One Touch icon. It is located in the Windows Notification Area at the bottom right corner of the screen.

The One Touch Button Panel opens at its Button View, which shows the on-screen scanning buttons.

The Button View.

2. To scan from the panel, click the icon you want to use to scan.

3. To see the detailed settings for a button prior to scanning, click on the green arrows to navigate through the panel’s three views.

Click these arrows to navigate through the panel’s three views.

The Button View.

The Hardware View. The Detail View.

• The Button View is your main scanner control panel. Use it

to scan or to see all the buttons.

• The Detail View shows the current scan settings for a

button.

• The Hardware View shows the current scanners connected

to your computer.

4. From the Hardware View and Detail View, click the green arrow to return to the Button View. You can also click on the hardware icon to return to the Button View.

5. To close the One Touch Button Panel, click its close button.

34 DocuMate 520 Scanner User’s Guide

About the One Touch Button Panel’s Names and Icons

The names on the One Touch Button Panel correspond to the scanner buttons and indicate their original factory settings. But you can change the Destination Application and any other settings of a button.

The eMail button is set up to scan documents then immediately attach them to a new email message in your default eMail program. If you don’t have an email program on your computer, the button will have a question mark as its icon.

The Copy button is set up to send the scanned image directly to your computer’s printer, copier, or fax machine without opening the scanned image in an application. This essentially means you can use your scanner as if it is a copier.

The Scan button is pre-configured to scan your documents in the PDF format then open them in the PaperPort application that you received with your scanner. You can then use the features of PaperPort to work with the image.

Scanning

If you want to use another application to work with your scanned images you can change the Destination Application and settings of a button. For example, if you scan a lot of documents that have faint images, such as hand-drawn sketches in light pencil, you might want to change the Destination Application to Microsoft Paint®, or some other drawing program.

A special pre-configured setting for your scanner is the Transfer to Storage option, indicated by the folder icon on the Button Panel. This option is designed for archiving documents. When you scan with Transfer to Storage as the Destination Application, the scanner sends the scanned image directly to the default folder at

C:\Documents and Settings\<your user name>\My Documents\My One Touch Archive\PDF Documents without

first opening it in an application. The file will be named with the current date. Initially, none of the three scanner buttons are assigned this setting, but if you want to use the scanner for archiving documents, you can easily choose this pre-configured setting for a button.

See the next section, “Configuring the One Touch Buttons” on page 36, to change the settings of the buttons on the One Touch Button Panel.

DocuMate 520 Scanner User’s Guide 35

Scanning

Configuring the One Touch Buttons

When you first connect your scanner to a computer, the scanner’s software configures each button with appropriate settings. Each One Touch button configuration consists of a Destination

Application, a Scan Configuration, and a Document Format.

To open the One Touch Properties window:

1. Click the One Touch icon. It is located in the Windows Notification Area at the bottom right corner of the screen.

2. Right-click a button on the One Touch Button Panel.

REMINDER: Remember that left-clicking a button on the One

Touch Button Panel starts the scanner scanning. Right-clicking opens the One Touch Properties window.

The One Touch Properties window opens for that button.

This example shows the settings for the Scan button. The tabs across the top of the window correspond to the buttons. Clicking a tab shows the current settings for the corresponding button on the scanner and One Touch Button Panel.

Right-click on a button, for example the Scan button, and the One Touch Properties window opens for that button. The tab at the top of the One Touch Properties window shows which button’s settings are being displayed.

36 DocuMate 520 Scanner User’s Guide

About the One Touch Properties Window

The One Touch Properties window is where you can select new settings for the buttons. The One Touch Properties window also contains special scanning features such as scanning and burn to a CD, scanning and converting text directly into an HTML web page, and scanning with optical character recognition (OCR) that turns a scanned image into text that you can edit.

NOTE: Some of the options on the One Touch Properties

Window (and other One Touch windows and dialog boxes) are “grayed out” and are not available. Grayed out options are not appropriate for your Xerox DocuMate 520 scanner. If you use the One Touch application with other Xerox scanners, grayed out options become active, if appropriate.

The following example of the One Touch window shows the settings for Scan button. The button is set to scan with the configuration named US Letter then open PaperPort to display the scanned image. The Format option is set to scan in the PDF image format.

Scanning

The button name.

The Destination Application. This is the application that opens when you are finished scanning.

Click to select options.

The file format of the images of the scanned item.

The settings that the scanner uses when scanning with the currently selected button (in this case the Scan button).

The settings on the Properties window are:

Button Tabs—Click a tab to see the settings for that button.

Select Destination—The list of applications that can open to

display the scanned image for the selected button. To configure the list of available applications, click the Options tab at the top of the window and select the desired options. See “Selecting Options for a Button” on page 52 for more information.

To make sure all of your computer’s Destination Applications are linked to One Touch 4.0, click the Refresh button.

DocuMate 520 Scanner User’s Guide 37

Scanning

NOTE: Later on, If you install new software that can be used as

a Destination Application, click the Refresh button again to link the new software to One Touch 4.0.

Select Configuration—The list of available scan configurations for the selected button. The configuration’s basic settings include: scanning mode, resolution (dpi), page size, brightness (Br), and contrast (Cr). To see a selected scan configuration’s settings, click its icon. Click the icon again to close the detailed information.

Click the icon of a selected configuration to view its settings.

These icons next to each scan configuration indicate the scanning mode:

Color GrayscaleBlack and White

Configure Before Scan

NOTE: Use Configure Before Scan if you want to set the

scanning mode manually before scanning. See “Configuring Before Scanning” on page 64.

You can also click the Edit button or double-click the configuration to see more detailed information about the selected configuration.

Select Format—A set of file formats for the scanned image for the selected button. The formats are based on the type of destination application you select. This example shows the formats that apply to the PaperPort application.

The button names indicate their file types. See “Selecting Format Options” on page 47 for more information about the available formats.

Options tab—Displays a window for selecting options related to the selected destination application for the scanned image.

38 DocuMate 520 Scanner User’s Guide

Selecting New Settings for a Button

Click a tab to select a button.

Select a software application as the destination to send scanned documents.

Scanning

For each of the three One Touch buttons, you can select a new

Destination Application, Scan Configuration, and Document Format.

Select a format for the scanned image.

Select a configuration for scanning the item.

To select new settings for a Scanner Button:

1. Click the tab of the button you want to change.

Each button has its own settings. So, as you click the tabs, the available settings on the window change to show them for each button.

2. From the Select Destination list, select the application where you want documents sent when scanning is finished.

See “Selecting Options for a Button” on page 52 to display a full list of the Destination Applications that you can use with the scanner.

NOTE: If you select a word processing program such as

Microsoft WordPad or Microsoft Word and a format that can be used for OCR (such as TEXT, RTF, or DOC), the text in scanned images is automatically converted to word processing text. See “Scanning with Optical Character Recognition (OCR)” on page 65 for details.

3. From the Select Configuration list, select a scan configuration.

To scan in color, select one of the configurations indicated by the small color icon, such as the Color Document configuration.

To create your own scan configurations see “Creating a New Scan Configuration” on page 55.

DocuMate 520 Scanner User’s Guide 39

Scanning

4. Select a Format option.

The available options apply to the Destination Application you select. For example, if you select Microsoft Word as the Destination Application, the available formats are for text, such as .doc, .txt, and .rtf. However, if you select Microsoft Paint as the Destination Application, then the available formats are for graphics, such as .bmp, and .jpg.

5. Click OK to accept any changes and close the window.

To accept changes but keep the window open to work with other features, click Apply.

Note that while the One Touch Properties window is open, you cannot scan yet by clicking a button on the One Touch Panel. You must click OK or close the One Touch Properties window first. However, you can scan at any time by pressing a button on the scanner.

When you are finished selecting new settings for a button and you press or click a scanner button, the document is scanned using the newly configured settings for that button.

40 DocuMate 520 Scanner User’s Guide

Setting Destination Application Properties

The different types of Destination Applications have various properties that you can select.

1. On the One Touch Properties window, click a Destination Application.

2. Click the Properties button.

Click a Destination Application.

Scanning

Click the Properties button.

A One Touch 4.0 Link Properties dialog box opens for the type of Destination Application you selected, and the available options are for that type of application.

PaperPort Properties

These properties apply to PaperPort, and are for designating the folder to receive your scanned items.

DocuMate 520 Scanner User’s Guide 41

Scanning

1. Select the PaperPort folder where you want the file of the scanned image to be located.

2. Click OK.

3. Click OK or Apply on the One Touch Properties window.

When PaperPort opens after you finish scanning, the thumbnails of your scanned documents are on the Desktop in that folder.

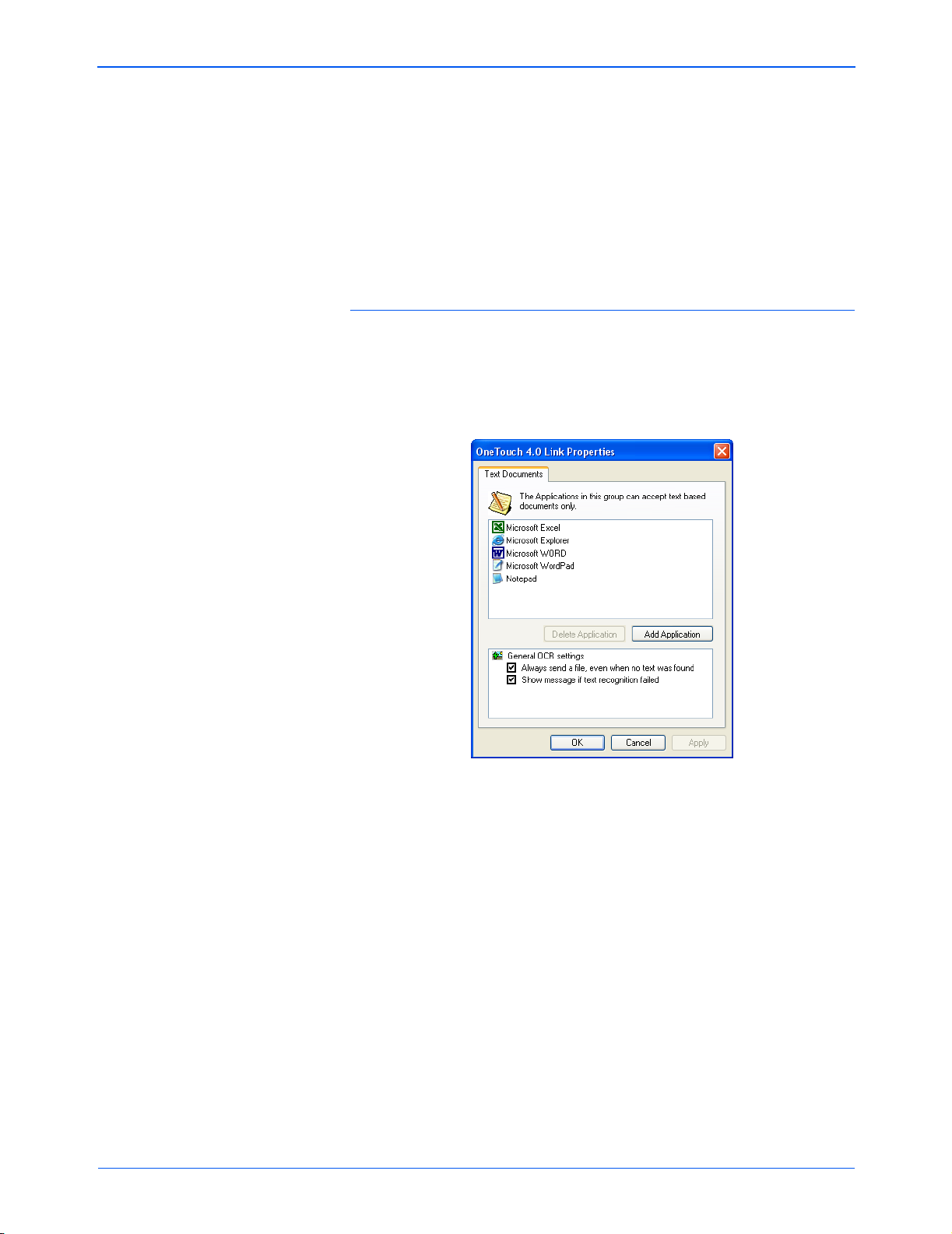

Text Documents Properties

These properties apply to Microsoft Word, Microsoft Excel®, and the other applications indicated by their icons in the list. The properties apply to the Optical Character Recognition (OCR) settings for the applications.

1. Click in the OCR settings boxes for the options you want.

The options will apply to all the applications in the group.

Always send a file, even when no text was found—The scanned file is sent to the OCR reader even if the image does not appear to contain text. This could occur if you scanned a photograph with a One Touch button set for text applications.

Show message if text recognition failed—A message will open on the screen if the OCR reader does not detect text in the image.

42 DocuMate 520 Scanner User’s Guide

Scanning

2. To add another application to the list, click the Add Application button.

The Add Text Based Link dialog box opens.

3. Click Browse to find the application you want to add to the list.

When you select the application using the Browse button, steps 1 and 2 on the dialog box are automatically filled in, and the application icon appears in step 3.

4. Select the icon in Step 3 of the dialog box. That is the icon that will appear in the One Touch Destination List.

5. In step 4 of the dialog box, select the file formats that the application will accept.

Refer to the documentation that you received with the application to see which text formats the application accepts.

The options you select under step 4 determine the format icons that appear in the One Touch Properties window for that group of applications.

6. Click the Add button.

7. Click OK or Apply on the Link Properties window.

8. Click Refresh on the One Touch Properties window.

9. Click OK or Apply on the One Touch Properties window.

DocuMate 520 Scanner User’s Guide 43

Scanning

Image Documents Properties

These properties apply to the OmniPage Pro software that you received with your scanner, plus Microsoft Paint and other image processing applications.

1. Click in the Color document handling settings boxes for the options you want.

The options will apply to all the applications in the group.

Convert Bitmaps using Screen Resolution—Use this option to ensure that an image will fit on the computer’s screen. When a computer screen is set to a lower resolution, bitmap images with a higher resolution may be too big to fit on the screen. Converting the bitmap image to match the screen resolution ensures that the image fits on the screen.

Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller file sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files.

2. To add another application to the list, click the Add Application button.

See the steps on page 43 to add an application to the list.

3. Click OK.

4. Click Refresh on the One Touch Properties window.

5. Click OK or Apply on the One Touch Properties window.

44 DocuMate 520 Scanner User’s Guide

Scanning

Storage Properties

These properties apply to the Destination Application named Transfer to Storage. If a CD burner is attached to your computer, and your computer is running Windows XP, you also use this dialog box to start the Burn to CD process. See the section “Scan and Burn to a CD” on page 74.

You can also set up multiple configurations to store scanned items in separate locations. See “The Storage Options Tab (Archive)” on page 61 and “Scanning to Multiple Folders” on page 82.

NOTE: If you do not have a CD burner attached to your

computer, the CD options are not shown on the dialog box.

1. Click the Storage Layout options you want.

All documents are in the root—The scanned documents are saved in the root of the folder specified in the Storage Location.

Documents are put into folders by month, week, or type— Folders are created based on your selection (month, week, or type) and the scanned documents are saved in those folders. New folders are created for each month and week so you can keep track of when you scanned the documents.

2. Click the Browse button to specify the location to store the scanned documents, or type a location directly into the box.

If you are scanning to a shared network drive, it must be a mapped drive. For more information about mapped drives, see your network administrator.

DocuMate 520 Scanner User’s Guide 45

Scanning

3. If you have a CD burner attached to your computer, the option Show message when ready to burn 5" CD (700MB), should also be selected so you will see a message when it’s time to click the Burn to CD button.

4. Click OK on the Link Properties window.

eMail Properties

These properties apply to email applications so you can specify the folder for documents that you will attach to an email message.

Microsoft Outlook blank email message as soon as scanning is finished, but other email applications may not. If you’re using one of those

applications, such as America Online which folder contains the scanned documents so you can manually attach them to your email messages.

will accept direct attachment of documents to a

(AOL), you need to know

1. Click the Browse button for Folder for storing attachments and choose a folder for your eMail attachments.

2. If you are using AOL on your computer, and the folder name for AOL is incorrect, click the Browse button and find the correct AOL folder.

For scanned images to be auto-attached to a blank email message, you must have the specific folder location AOL uses to find the attachments. Please contact AOL for more information about the folder location in which AOL stores attachments.

46 DocuMate 520 Scanner User’s Guide

Scanning

3. If you need to change your email client, or any other internet options, click the Internet Options button.

The Windows Internet Options Control Panel opens. Click the Programs tab and choose a new email client from the Email list. These are the standard Windows Internet options. Please see your Windows documentation for more information about Internet options. If you are using AOL, please see the AOL user manual for making changes to the Internet options applicable to AOL.

4. Select the options for color document handling.

Convert Bitmaps to JPEG—JPEG files can be compressed to produce smaller files sizes and, therefore, shorter transmission times. Use this option to provide that compression capability to image files.

5. Click OK.

6. Click OK or Apply on the One Touch Properties window.

Selecting Format Options

The Format options that you select determines the file format of the scanned document. Appropriate format options and file types are available for the type of Destination Application selected for the button.

The available options are for images and text.

The Text Formats are for text file types. The names of the formats indicate their file types. See “Text Formats” on page 49 for details.

Image Formats. Text Formats; sPDF is

only one of several text formats available.

DocuMate 520 Scanner User’s Guide 47

Scanning

Image Formats

Select an image file format for photos, artwork or other documents that you want to save as images. BMP and TIFF are standard image file formats generally used if you want to do additional image processing, such as photo touch-up or color correction. Both of those file formats tend to be larger than the JPEG format.

Because JPEG image files can be reduced in size, the JPEG format is often used for images on web pages, or if file size might be a problem when electronically sending the files. JPEG files are reduced in size by lowering their image quality, and you can select the degree of quality for your scanned images from the JPEG file format icon.

The PDF format is often used to create images of text pages. You may want to select PDF as the format when scanning text pages that do not require OCR processing or other processing. The PDF format is also used to put multi-page documents on web sites as pdf-readable files. As with the JPEG option, the PDF format can be reduced in size or quality.

NOTE: The two other PDF formats—nPDF and sPDF—are for

scanning with OCR processing and with the ability to search the scanned text. See the next section, “Text Formats,” and also “Scanning with sPDF or nPDF and Searching for Text” on page 72 for details.

To select a JPEG or PDF file size:

1. Select JPG or PDF as the format.

2. Right-click on the JPG or PDF icon.

A menu opens.

48 DocuMate 520 Scanner User’s Guide

3. Choose the file size/image quality option for your scanned images.

Minimize Size—Smallest file size, lowest image quality.

Normal—Medium file size, some loss of image quality.

Maximum Quality—Largest file size, no loss of image quality.

Your selection pertains only to the button currently selected on the One Touch Properties window. Other buttons that have JPG or PDF selected as the Format are not affected, so you can set the JPEG or PDF file size/image quality independently for each button.

4. Click OK or Apply on the One Touch Properties window.

Text Formats

Selecting the text format option also selects OCR processing as an automatic step for scanning. Therefore, when you scan a document with the text format selected, the text portions of the document are automatically converted to editable text. See “Scanning with Optical Character Recognition (OCR)” on page 65.

Scanning

Select a text format for documents with text or numbers, such as a business letter, report, or spreadsheet. The text format icon has several file formats available, depending on the Destination Application you select.

The specific file format is the file name extension on the text format icon.

The specific text format; this example is for Microsoft Word format (.doc).

As you select Destination Applications that are text applications, the text format icon changes to match the file type of the application. In some cases, the Destination Application supports several file types, and you can right-click on the icon to choose the particular file type for that application.

To select a file type for the text format:

1. Select the Destination Application.

2. Right-click on the text format icon.

DocuMate 520 Scanner User’s Guide 49

Scanning

A menu opens. The following figure shows samples for different Destination Applications.

Example menu for the TEXT format when the Destination Application is Microsoft Word.

Example menu for the TEXT format when the Destination Application is a Storage location.

3. Choose the file type that you want for the text format.

Your selection of a file type pertains only to the button currently selected on the One Touch Properties window. Other buttons that have a text option selected as the Format are not affected, so you can set the text file type independently for each button.

Simple Text—The .txt file format. Text with no formatting; used by the standard Microsoft Notepad application.

Rich Text Format—The .rtf file format. Text that retains formatting when converted. Available with Microsoft WordPad and Word.

Word Document—The .doc file format used by Microsoft Word. The .doc format is only available if you have installed OmniPage Pro on your computer.

Comma Delimited—The .csv file format; used for database or spreadsheet data with fields separated by commas. When the document is converted into editable text by the OCR software, the fields are maintained so you can copy and paste them to a database or spreadsheet application. The .csv file format is only available if you have installed OmniPage Pro on your computer.

Excel Spreadsheet—The .xls file format used by Microsoft Excel.

HTML Document—The .htm file format used to create web pages.

50 DocuMate 520 Scanner User’s Guide

Searchable PDF—The sPDF file format used by Adobe Acrobat and OmniPage Pro. This format converts scanned text into PDF with text search and OCR capabilities. It is only available if you have installed OmniPage Pro on your computer. See “Scanning with sPDF or nPDF and Searching for Text” on page 72 for details.

Normal PDF—The nPDF file format used by Adobe Acrobat and OmniPage Pro. This format also converts scanned text into PDF with text search and OCR capabilities, plus you can edit the text in an nPDF image if you have a PDF editing program. The nPDF format is also only available if you have installed OmniPage Pro on your computer. See “Scanning with sPDF or nPDF and Searching for Text” on page 72 for details.

4. To change the OmniPage OCR settings, choose OCR Options.

The OCR Options provide a series of selections for the OCR feature when you scan text. See “Selecting OmniPage OCR Options” on page 66 for details.

Scanning

Note that the OCR Options settings apply to all buttons. If you change them for one button, those changes apply to the other buttons as well.

5. Click OK or Apply on the One Touch Properties window.

DocuMate 520 Scanner User’s Guide 51

Scanning

Selecting Options for a Button

The One Touch Options determine the types of Destination Applications available for a button, as well as the location of the files of your scanned items.

To select options:

1. Open the One Touch Properties window and click the Options tab.

Options tab.

2. Click the Select Button menu arrow and select the button for new options. The example above shows the Scan button is selected.

3. Select button options as described below.

Show All Destinations—This option selects all the Destination Application categories. The list of Destination Applications available for the selected button will include all the applications on your computer that fall into these categories. The list also includes printers and other devices connected to your computer so, for example, you can scan an item and have it printed immediately.

Select Destinations—Select this option to individually choose the types of applications to include in the list of Destination Applications. Check the boxes for the type of application to include.

• Document Management includes PaperPort and other

applications for processing and keeping track of your scanned documents.

52 DocuMate 520 Scanner User’s Guide

Scanning

• Image Editors include Microsoft Paint and other drawing

and graphics applications.

• Text Editors include Microsoft Word and WordPad,

Microsoft Excel, and other word processing and spreadsheet applications. Select this option if you want OCR processing to convert your scanned documents to text that you can edit. See “Scanning with Optical Character Recognition (OCR)” on page 65 for more about OCR.

• PDF applications are for documents scanned to the PDF

format.

• Email includes Microsoft Outlook and other email

applications. See “eMail Properties” on page 46 for details about attaching scanned documents to your email messages.

• Storage and CD-R/W is for either storing scanned

documents in a folder, or sending them to a CD burner to create a CD containing the scanned documents. See “Transferring Scanned Documents to Storage” on page 81 and “Scan and Burn to a CD” on page 74 for details.

• Fax and Print is for sending your scanned documents

directly to your printer or fax software for faxing.

• Sti event forwarding is for using another application’s

interface for scanning. The One Touch Event Forwarding dialog box opens so you can select which application to use to continue scanning. See “Scanning with Event Forwarding” on page 77 for details.

4. After selecting a new category for the Destination Applications, click the tab of the button you’re working with to see which applications are added to the list. For example, if you selected new categories for the Scan button, click its tab at the top of the window.

Show Progress Window—Select this option to display the progress window of the document(s) during scanning.

Create copies of scanned documents—Sometimes the image of a scanned document is only saved as a temporary file until its Destination Application is finished using it. In those cases you may or may not want an additional, permanent copy saved on your hard drive.

For example, if you scan a picture to an email application, the scanned image is saved as a temporary file, then attached to the email, and the email is sent. Later, the temporary file of the scanned picture is deleted. The same situation may occur when you scan directly to a printer or scan to a fax application.

DocuMate 520 Scanner User’s Guide 53

Scanning

After a scanned item is printed or faxed, its temporary file is deleted. However, by selecting this Create copies of scanned documents option, you can choose to save permanent copies of the scanned items on your hard drive.

The copies will be saved in the folder specified in the Folder Copy Options section (see the figure and description below).

This option is not available if either Document Management or Storage and CD-R/W are selected because, by default, file copies for those types of Destination Applications are already automatically saved in the folder for copies.

For that reason, this option is not available if the Destination Application is PaperPort because it is a Document Management application.

Likewise, the option is not available if the Destination Application is set as Transfer to Storage because it uses

Storage and CD-R/W software.

Folder Copy Options—This section of the dialog box sets the

location for copies of your scanned documents and how you want to group them.

Click the Browse button and find the folder for the copies. Select the grouping option for the documents. The Group by button option groups the documents under the name of the One Touch button. Group by type arranges the scanned documents by the type of file, such as .doc or .jpg. If you also want to group them by date you can choose the week and month options.

The following example shows the folders when the selections are Group items by type and Group items by month.

5. Click OK to save the options for the selected button.

54 DocuMate 520 Scanner User’s Guide

Creating a New Scan Configuration

The scan configurations are where you select the scanning resolution, brightness, mode (color, black&white, or grayscale), and a number of other settings.

Scanning

Click the tab of the button to have the new configuration.

The Scan Configurations.

Click New to create a new Scan Configuration.

Note the lock icon on the preset configurations. Although you can unlock and edit the preset configurations, we recommend that you leave them locked, and only add new configurations. That way, you will always have the original factory-set configurations available.

When you create a new scan configuration, it will be listed for the buttons that are set for the same types of Destination Applications. For example, if you create a new configuration for a button that is set to show image editor applications, that new configuration is also listed for any other buttons set for image editors, but not for buttons set for text editing applications. Thus, you can create specific sets of scan configurations for specific functions and they are listed only when appropriate.

To create a new configuration:

1. Open the One Touch Properties window and click the tab of the button to have the new configuration.

2. Scroll through the applications in the Select Destination list and click the application you want for the new scan configuration.

3. Click the New button.

If you want to start from the settings of another configuration, select the configuration, then click the Copy button (not the Copy tab).

DocuMate 520 Scanner User’s Guide 55

Scanning

The Scan Configuration Properties dialog box opens. If the Scan Settings tab is not selected, click it.

Type a new name for the configuration.

Select the scan mode and drag the slider to set the resolution.

Drag the sliders to set the Brightness and Contrast.

If the configuration is locked, click the lock to unlock it. The icon becomes a key as shown here.

NOTE: If you select a printer or other device in the Select

Destinations list, the dialog box may have an additional Device Settings tab for setting specific options for the particular device.

4. Type a name for the new scan configuration.

5. Select scan settings for the new scan configuration.

Mode—Select a scanning mode:

• Black&White to scan in black and white. For example,

letters and memos are usually scanned in black and white. This scan mode produces the smallest file size.

• GrayScale to scan items such as documents containing

drawings or black and white photographs. This mode produces an image of up to 256 shades of gray.

• Color to scan color photographs and other color items.

Color scans have the largest file size.

Resolution—Drag the slider to the right or left to adjust the dots per inch (dpi) of the resolution. The maximum resolution is 600 dpi; the minimum is 50 dpi. The higher the dpi setting, the sharper and clearer the scanned image. However, higher dpi settings take longer to scan and produce larger files for the scanned images.

Brightness and Contrast—Sometimes an item is scanned with the brightness and contrast set too light or too dark. For example, a note written with a light pencil may need to be scanned darker to improve legibility.

Brightness refers to the lightness or darkness of the image. Contrast is the range between the darkest and lightest portions of the image. The greater the contrast, the more difference between the lighter and darker shades in the image.

56 DocuMate 520 Scanner User’s Guide

Scanning

Drag the sliders to the right or left to adjust the brightness and contrast of the scanned image. The Contrast setting does not apply to the Black&White mode.

6. If you want to lock the configuration, click the Key icon to change it from a Key to a Lock.

7. Click the Page Settings tab to select page settings.

Click to toggle between inches and millimeters.

Size—Click Standard, click the menu arrow and choose a page size from the list, or click Custom and enter the horizontal and vertical page dimensions in the boxes. The maximum size is 8.5" x 14". The units of measurement can be inches or millimeters. Click the name of the units, inches or millimeters, to toggle between them.

Improvements and Settings—Only the options that apply to the selected Destination Application are available.

• AutoCrop to Original—Select this option to let the

scanner automatically determine the size of the item being scanned. For example, if you scan a 5”x 7” photo, the scanner will determine the size of the photo.

When using the AutoCrop to Original option for a single page on the Flatbed Glass, make sure to align the top left corner of the item with the arrows at the top left corner of the Flatbed Glass.

DocuMate 520 Scanner User’s Guide 57

Scanning

When using the AutoCrop to Original option with the Automatic Document Feeder, make sure to adjust the paper guides on the scanner so the page is not skewed when it feeds into the scanner. Skewed pages may not crop properly.

• Reduce Moire Patterns—Moire patterns are wavy, rippled

lines that sometimes appear on the scanned images of photographs or illustrations, particularly newspaper and magazine illustrations. Selecting Reduce Moire Patterns will limit or eliminate moire patterns in the scanned image. This option is only available for the GrayScale or Color Mode at 300dpi or less.

• Straighten Image—Select this option to let the scanner

automatically determine if a page is skewed, then straighten its image. The scanner detects page edges and can sense when the page is fed through at an angle. However, if the page is fed through at too great an angle, the image may not straighten correctly. In that case, rescan the page using the paper guides to feed the paper in straight.

• Invert Image—Only available for Black&White Mode, this

option reverses the black and whites of an image.

Original Image. Inverted Image.

58 DocuMate 520 Scanner User’s Guide

Scanning

• Color Filter—Color filter is the ability of your scanner to

automatically remove a color from a scanned item. For example, if you are scanning a letter with a red watermark, you can choose to filter out the red so the scanned letter just shows the text and not the red watermark. Color filter applies to Black&White or GrayScale Mode.

The original with a red watermark over black text.

The scanned item with the red filtered out.

8. Click the Advanced Settings tab.

The options of the Advanced Settings tab are for the Color or GrayScale scanning mode.

Saturation is the strength or purity of a color, hue is the color your eyes see as reflected from the image, and gamma controls the brightness of the midtones of the color.

9. Drag the sliders to the left and right to change the color settings. As you do, the image changes to show the effects of the new settings.

10. Click OK to save the new configuration.

It will now appear in the list of Scan Configurations on the One Touch Properties window for the appropriate Destination Applications.

DocuMate 520 Scanner User’s Guide 59

Scanning

The Device Settings Tab

A Device Settings tab appears on the Scan Configurations dialog box when your selected Destination Application sends the scanned image to a printer, fax application, or other device. You use the options on the Device Settings tab to select settings for the device.

1. Click on the Device Settings tab.

Fit to page, reduce image if necessary—If the scanned image is too big to be printed or faxed on a single page, the image will automatically be reduced to fit the page.

Actual size, crop image if necessary—If the scanned image is too big to be printed or faxed on a single page, the image will automatically be cropped around its edges to fit on the page.

Center image on page—The image will be printed in the center of the page instead of at the top right corner.

Maintain aspect ratio—The aspect ratio is the length-to-width relationship of the image’s dimensions. Select this option so the image’s relative proportions remain constant.

AutoRotate image for best fit—If the image is a Landscape format and the device is printing in the Portrait mode, or vice versa, rotate the image to fit on the page.

Collate copies—If you’re printing more than one page, collate the copies. Enter the number of copies in the Copies box.

Advanced—Click to see additional settings for the device. The dialog box that opens is specific to the device. For example, if the device is your printer, the dialog box is your printer’s setup settings.

2. Click OK or Apply.

60 DocuMate 520 Scanner User’s Guide

The Storage Options Tab (Archive)

A Storage Options tab is on the Scan Configurations dialog box when the Destination Application is Transfer to Storage. You use the options on this tab to select where to save your scanned items for storage when scanning with that particular Scan Configuration.

NOTE: The selections on the Storage Options tab override the

Storage Properties options. This means that you can create separate Scan Configurations to store scanned items at various locations. See “Storage Properties” on page 45 and “Transferring Scanned Documents to Storage” on page 81 for more details.

1. Click on the Storage Options tab.

Scanning

2. Click the Storage Layout options you want.

All documents are in the root—The scanned documents are saved in the root of the folder specified in the Storage Location.

By default, the location of the archived documents is at

C:\Documents and Settings\<your user name>\My Documents\My One Touch Archive and in a folder based on

your selection for the Storage Layout. For example, if the file type is TIFF, and you select Documents are put into folders by type, the default location of scanned archive documents is at C:\Documents and Settings\<your user name>\My Documents\My One Touch Archive\TIFF Documents.

3. If you want to store your archive documents in some other location, click the Browse button to specify the new location.

4. Click OK or Apply.

DocuMate 520 Scanner User’s Guide 61

Scanning

Editing or Deleting Scan Configurations

NOTE: Your scanner comes with a number of configurations

pre-set at the factory. We recommend that you keep those configurations locked and do not edit or delete them. That way, you will always have the factory-settings available. If you do edit or delete them, and want to get the factory pre-sets back again, you will need to uninstall then re-install your scanner.

To edit or delete a scan configuration:

1. Open the One Touch Properties window and click the tab of the button that has the scan configuration to edit or delete.

2. Select the scan configuration you want to edit or delete.

Select the button that has the configuration you want to edit or delete.

Select the scan configuration to edit or delete. It must be unlocked, as indicated by not having a lock displayed here.

3. To delete the configuration, click the Delete button.

NOTE: If the Delete button is not available, the selected

configuration is locked and cannot be deleted. You must first click the Edit button and unlock the configuration, as explained in the next steps.

4. To edit the configuration, click the Edit button.

The Scan Configuration Properties dialog box opens for that configuration.

You can make changes to a configuration, but for the changes to be saved, the configuration must first be unlocked.

62 DocuMate 520 Scanner User’s Guide

Click the lock icon to unlock the configuration. Clicking it toggles between locking and unlocking the configuration. The key icon indicates the configuration is unlocked.

Click the Key/Lock icon to toggle between locked and unlocked.

5. Edit the settings and click OK.

Scanning

DocuMate 520 Scanner User’s Guide 63

Scanning

Configuring Before Scanning

Choosing Configure Before Scan simply opens a scanning interface when you press or click a button. You can then use the interface to change the Resolution, Scan Mode, and other settings. When you scan, the scanned image will still be sent as the file type and to the same Destination Application already selected in the One Touch Properties window for that button.

To configure before scanning:

1. Open the One Touch Properties window.

2. Select the scan configuration Configure Before Scan.

Select Configure Before Scan.

Right-click on Configure Before Scan to get the menu, and choose the interface to use for scanning.

3. Right-click on Configure Before Scan and choose an interface to use for configuring before scanning.

TWAIN—The TWAIN Interface opens for you to make changes prior to scanning. See “Scanning with the TWAIN Interface from PaperPort” on page 89.

ISIS—The ISIS Interface opens for you to make changes prior to scanning. See “Scanning with the ISIS Interface” on page 117.

WIA—The Windows Image Acquisition Interface (WIA) opens for you to make changes prior to scanning (available on Windows XP only). See “Scanning with the WIA Interface” on page 113.

4. Click OK or Apply on the One Touch Properties window.

64 DocuMate 520 Scanner User’s Guide

Scanning with Optical Character Recognition (OCR)

Optical Character Recognition (OCR) converts text and numbers on a scanned page into editable text and numbers. You can then work with the text and numbers to edit, spellcheck, change font or type size, sort, calculate, and so forth.

NOTE: Xerox recommends that all OCR processing use the

original factory settings for OCR scanning that came with your scanner. When scanning with other settings, use at least 300 dpi for the resolution. If the original documents are of poor quality or have a small type font, 400 dpi can be used as the maximum resolution.

You must have the OmniPage Pro software installed on your computer in order to use the OCR options with the One Touch 4.0 software and your scanner. OmniPage Pro is on the Disc 2 CD that you received with your scanner in case you haven’t installed it yet.

If OmniPage Pro is installed, the OCR process is automatic when the format on the One Touch Properties window is a text format, such as DOC, TEXT, XLS, HTML, RTF, sPDF, and nPDF.

Scanning

To scan with OCR:

1. Load the pages into the scanner.

2. Press the button on the scanner, or on the One Touch Button Panel, that has a text format set as its page format.

The Scan button is preset with PaperPort as the Destination Application and a text format for the page format. It will convert scanned documents to editable text.

3. Click the Scan button, or if you’ve set up one of the other buttons for scanning with a text format, click it instead.

Your scanned pages appear in the Destination Application with their text ready for editing and other text processing.

NOTE: OCR scanning is also for spreadsheets so you can work

in Microsoft Excel (or other spreadsheet applications) with the figures and text from the original spreadsheets. Set up a button with Microsoft Excel as the Destination Application and XLS as the page format. When you scan a spreadsheet, it will open in Excel with its text and figures ready to be edited.

DocuMate 520 Scanner User’s Guide 65

Scanning

Selecting OmniPage OCR Options

One Touch 4.0 and OmniPage Pro work together to combine scanning with OCR processing into one integrated step. You can select a range of options for the OCR process.

NOTE: OmniPage OCR options apply globally to all the One

Touch buttons that perform OCR. For example, the Scan button is set by default to OCR text, but the Copy button is not. If you reconfigure the Copy button to also OCR text, the OCR options you select for Scan button will also apply to the Copy button.

To select OmniPage OCR options:

1. Open the One Touch Properties window.

2. Click the Scan button, or one of the other buttons if you’ve set it up to use the text format as its file type.

3. Right-click on the format icon to see the menu.

4. Choose OCR Options from the menu.

66 DocuMate 520 Scanner User’s Guide

The OmniPage OCR Options window opens with the OCR tab selected.

5. Choose the options you want from the OCR window.

Languages in Document—Select the language(s) in the documents to be scanned. These are the languages that will be recognized during the OCR process. For faster and more reliable language recognition, select only the languages in the document.

Scanning

The languages at the top of the list are your recent choices. Below that the languages are in alphabetical order. Type a letter to jump to one of the languages in the list.

The dictionary icon indicates a language with dictionary support available. The dictionary is consulted to help in the OCR process. It can also offer suggestions during proofing.

User Dictionary—A user dictionary is your personal dictionary with words that you want the OCR proofreading process to recognize as legitimate words. For example, if you scan documents with highly technical terms not found in typical dictionaries, you can add them to your personal dictionary. You can also add names that you expect to be in the documents too. That way, when the OCR process proofreads the text, names will not be considered misspelled words.You can create multiple user dictionaries.

Click the menu arrow and select a user dictionary from the list. Any Microsoft Word user dictionaries detected on your computer system are also listed. A dictionary named Custom is your default Word dictionary.

DocuMate 520 Scanner User’s Guide 67

Scanning

To create a user dictionary, click the button next to the menu arrow. Click New, type a name for the dictionary, and click OK. Click Close and then choose your new dictionary from the list. It will be used during the OCR process. You add words to a dictionary during the proofreading process. To turn on the proofreading process for your scanned documents, see the OmniPage Pro documentation.

Professional Dictionaries—These are legal and medical dictionaries containing highly specialized words and phrases. The options are: Dutch Legal, Dutch Medical, English Legal, English Medical, French Legal, French Medical, German Legal, and German Medical. Click the checkbox next to a dictionary name to select it.

Reject Character—This is the character that the OCR process inserts for an unrecognizable text character. For example, if the OCR process cannot recognize the J in REJECT, and ~ is the reject character, the word would appear as RE~ECT in your document. The ~ is the default reject character.

Type the character you want to use in the Reject character box. Try to choose a character that will not appear in your documents.

Font Matching—Your computer system usually has a number of fonts available for the OCR process to use to recognize text. However, not all of the fonts may be selected for the OCR process. Using Font Matching you can select the fonts on your computer that match the fonts in your documents.

Click the Font Matching button to see the Font Matching dialog box.

The list on the left are the fonts available on your computer system. The list on the right are the fonts that will be used by the OCR process to recognize the text in your documents. If possible, the list of Fonts for your document should include all the fonts in the documents you plan to scan. To add new fonts to that list, select a font in the Fonts on System list and

68 DocuMate 520 Scanner User’s Guide

Scanning

click Add. Note that when you select a font, a sample appears in the text box so you can compare it with the fonts in your document to see if that’s the right font. To remove a font, select it and click Remove. To return the lists to their defaults, click Use Defaults. Click OK when you’re finished.

6. Click the Process tab and choose the options from the Process window.

When bringing in a new image—Click the menu arrow and select where you want new pages added to your current document. The choices are After last page, After current

page, Before current page, and Before first page.

Automatically prompt for more pages—Select this option if

the document is too big to fit into the scanner’s paper guide.

Automatically correct page orientation—Select this option to have the OCR process check orientation and automatically rotate an improperly oriented page image by 90, 180 or 270 degrees prior to recognition. All pages are automatically straightened (deskewed) if necessary.

Retain text and background color—If your document contains colored text or backgrounds, select this option to have them detected and displayed in the text editing application you have selected. The colored text and backgrounds will also be available for export. Deselect this option if you want color pictures in the document but do not want colored text and backgrounds. You can change the color of texts and backgrounds in the OmniPage Pro Text Editor.

Retain inverted text—Inverted text is white or pale letters on a black or dark background. Select this option to retain inverted text, deselect it to have inverted text transformed to normal text of black text on a white background.

DocuMate 520 Scanner User’s Guide 69

Scanning

Look for facing pages—Select this option if you want to scan two facing pages of an open book in one step, and then to recognize and store them as two separate pages (as if they had come from two separate scannings).

User interface language—Click the drop-down arrow and select the language to use on the OmniPage windows. The available languages may differ for different parts of the world.

7. Click the Format tab and choose the options you want from the Format window.

Note that as you select formats, the image changes to represent the selection so you can see, at a glance, what the layout will look like.

Automatic—Choose this option to let the OCR process determine the layout of the pages. It is the fastest type of format processing. Typically you select this option when the document has different or unknown types of layouts, pages with multiple columns and a table, or pages containing more than one table. The OCR process will then determine if text is in columns, an item is a graphic or text, and tables are present.

Single column no Table—Choose this option if the document contains only one column of text and no tables. Business letters are normally in this form. You can also use this option for documents with words or numbers in columns if you do not want them placed in a table or decolumnized or treated as separate columns.

Multiple columns, no Table—Choose this option if some document pages contain text in columns and you want it kept in separate columns, similar to the original layout. If table-like data is encountered, it is placed in columns, not in a gridded table.

70 DocuMate 520 Scanner User’s Guide

Scanning

Single column with Table—Choose this option if your document contains only one column of text and a table. The table will be placed in a grid in the text editing application you have selected. You can later specify whether to export it in a grid or as tab-separated text columns.

Spreadsheet—Choose this option if the entire document consists of a table that you want to export to a spreadsheet program, or have treated as a table. No flowing text or graphics zones will be detected.

Templ ate —If you created a zone template in OmniPage Pro, choose a zone template file to have its background value, zones and zone properties applied to all OCR scanned pages from now on.

No Formatting (NF)—The document will be plain text, decolumnized and left-aligned in a single font and font size. You can export plain text to nearly all file types and target applications, and graphics, tables and bullets can be retained. When exporting to Text or Unicode file types, graphics and tables are not supported.

Retain Fonts and Paragraphs (RFP)—This output format retains the font and paragraph styling, including graphics and tables without columnized text. This output format is available for nearly all file types.

Flowing Page (FP)—This format keeps the original layout of the pages, including columns. This is done wherever possible with column and indent settings, but not with text boxes or frames. Text will then flow from one column to the other, which does not happen when text boxes are present.

True Page (TP)—This output format keeps the original layout of the pages, including columns. This is done with text, picture and table boxes and frames. True page is offered only for target applications capable of handling the formatting.

8. When you’re finished selecting the OCR options, click OK on the Options window.

These options will now apply to the OCR processing when you select any scan button with a text format as the page format.

DocuMate 520 Scanner User’s Guide 71

Scanning

Scanning with sPDF or nPDF and Searching for Text

Searchable PDF (sPDF) and Normal PDF (nPDF) are special forms of an Adobe PDF file. sPDF converts scanned text into the PDF format with text search and OCR capabilities. nPDF has those same features, plus you can edit the text in an nPDF image if you have a PDF editing program.The two PDF formats can also produce images with different image quality, so you may want to experiment with them to determine which is better for your scanned documents. sPDF and nPDF are only available as format options if you have installed OmniPage Pro on your computer.

NOTE: If you did not install the OmniPage Pro software as part

of the scanner installation, and you choose to install it at this time, you may have to restart your computer before the sPDF and nPDF formats are available in the One Touch software.

To scan with sPDF or nPDF:

1. Open the One Touch Properties window.

2. Click the Scan button, or one of the other buttons if its Destination Application uses the text format as its page format.

3. Right-click on the text format icon.

This sample shows the menu when the Destination Application is Transfer to Storage. The menu for other Destination Applications, such as PaperPort, do not have as many options.

4. Choose the Searchable PDF or Normal PDF option for the format.

NOTE: Not all Destination Applications have the sPDF and

nPDF options. Microsoft Word, for example, does not have them as scanning options.

72 DocuMate 520 Scanner User’s Guide

Scanning

5. Choose a Scan Configuration.

6. Click OK.

The One Touch Properties window closes.

7. Now scan with that button and the scanned document will be in the sPDF or nPDF format you selected.

8. To search for the text, open Adobe Acrobat Reader or Adobe Acrobat.

9. From the Adobe Acrobat File menu choose Open. Open the file you just scanned, then from the Edit menu choose Find.

10. On the Find dialog box, enter the text to find, then click Find.

See the Adobe Acrobat user manual for more about finding text in a PDF file, or about editing PDF text.

DocuMate 520 Scanner User’s Guide 73

Scanning

Scan and Burn to a CD

If you have a CD burner attached to your computer, you can scan directly from your scanner onto a CD. This feature is available only on computers running Windows XP.

To scan and burn to a CD:

1. Put a blank CD into your computer’s CD Drive.

2. Open the One Touch Properties window.

3. Click the Copy button tab, or other button if you’ve set it up to scan and burn to a CD.

4. Select Burn to CD as the Destination Application.

The Burn to CD Destination Application is only available if you have a CD burner attached to your computer, but you do not need to have a CD in the burner to select the destination.

5. Choose a Format and a Scan Configuration.

6. Click OK.

The One Touch Properties window closes.

7. Now start scanning using the button you selected to use to scan and burn to CD.

When scanning is finished, a bubble message on the screen tells you that files are waiting to be burned to the CD.

8. Open the One Touch window and make sure that the Burn to

CD Destination Application is still selected and click the Properties button.

74 DocuMate 520 Scanner User’s Guide

The One Touch 4.0 Link Properties window opens.

9. Make sure a CD is in the CD burner.

Scanning

10. Click the Burn to CD button.

The CD burner begins and your scanned documents are written to the CD.

NOTE: Until you click Burn to CD these files are stored in your

computer at C:\Documents and Settings\<your user name>\Local Settings\Application Data\Microsoft\CD Burning. This is where Windows XP stores all files waiting to be

burned to a CD by the automatic CD writing wizard. If other files are also waiting in this location, they will get written with the One Touch files on the CD.

DocuMate 520 Scanner User’s Guide 75

Scanning

NOTE: When scanning items to burn to a CD, you should

always use one of the factory-set default configurations, or a custom configuration specifically set up for CD burning. The default configurations are already set up to send the scanned images to the proper storage location where the Windows XP CD writing wizard can find the files to burn to the CD. Likewise, when you create a custom configuration for CD burning, the One Touch software will automatically make sure the storage location is correct.

To create a custom configuration for CD burning, select Burn to CD as the Destination Application, then click the New button and create the new configuration. You won’t need to select a storage location because it will be correctly preset for you by the One Touch software.

Note however, that if you have created other custom configurations with different storage locations (for example, see “Scanning to Multiple Folders” on page 82), do not use them for the Burn to CD Destination Application. Otherwise, the Windows XP CD writing wizard will not be able to find the images to burn onto the CD.

76 DocuMate 520 Scanner User’s Guide

Scanning with Event Forwarding

If you want to specify an application to use for scanning at the start of the process, you can use event forwarding. The scanner will feed in the first page, but will then stop until you select the application to use. After you select the application, its interface will open and you can use it to continue with the scanning.

To scan with event forwarding:

1. Open the One Touch Properties window.

2. Click the button that you want to use for event forwarding.

If none of the buttons have Still Image Client as a Destination Application, click the Options tab, select Sti event forwarding, then click Apply and click the tab of the button again.

3. Select Still Image Client as the Destination Application.

Note that you cannot choose a format for this option because the actual Destination Application is not selected until after the scanner feeds in the first page of your document.

Scanning

4. Choose a Scan Configuration.

5. Click OK.

The One Touch Properties window closes.

DocuMate 520 Scanner User’s Guide 77

Scanning

6. Start scanning using the button you selected for event forwarding.

A dialog box opens for you to select the application to use for scanning.

7. Select the application in the box and click OK.

Now the application you selected opens and you can continue the scanning from that application’s TWAIN interface.

78 DocuMate 520 Scanner User’s Guide

Creating an HTML Web Page from Your Scanned Documents

If you scan a document, whether a single page or multiple pages, you can have the pages converted directly to HTML formatted pages for posting directly to your web site. Those pages are then viewable by visitors to your web site without the need for any internet plug-ins or other special processing. This is, essentially, from your scanner to a web-ready format in one automatic step.

To scan and create an HTML web page:

1. Open the One Touch Properties window.

2. Click a button that has Microsoft Explorer as one of its Destination Applications.

If none of the buttons have Microsoft Explorer as a Destination Application, click the Options tab, select Text editing applications (i.e. Word), then click Apply and click the tab of the button again.

Scanning

3. Select Microsoft Explorer as the Destination Application.

4. Choose HTML as the Format.

Choose HTML.

5. Choose a Scan Configuration that has the settings for the image on the HTML page.

For example, if you want the image to be in color on the HTML page, choose a color configuration.

6. Click OK.

The One Touch Properties window closes.

DocuMate 520 Scanner User’s Guide 79

Scanning

7. Now press the scanner button or the One Touch Button that you’ve set up for HTML.

When scanning is finished, the document is first converted to editable text using the OCR process, then is converted into an HTML format. Microsoft Internet Explorer then opens showing your converted page.

NOTE: Depending on the complexity of the document, its

conversion to the HTML format may take a few moments.

8. Choose Save As from the Internet Explorer File menu, give the page a name, and save it in the location you use for your web page files.

You may also want to write down the address shown in the Address bar to make sure you’ll know where to find your new HTML page later on.

9. You can now use Microsoft Internet Explorer or other application to post the document to your web page as you would any other HTML page.

80 DocuMate 520 Scanner User’s Guide

Transferring Scanned Documents to Storage

With the Transfer to Storage scanning process, you can scan documents and save them in a folder in one step. The process is ideal for archiving documents without having to manually save or process them in any other way. If you choose a text format for the file format, the documents are also automatically converted by the OCR process into editable text and numbers before being stored.

1. Open the One Touch Properties window.

2. Click a button that has Transfer to Storage as one of its Destination Applications.

If none of the buttons have Transfer to Storage as a Destination Application, click the Options tab, select the option Storage and CD-R/W, then click Apply and click the tab of the button again.

3. Select Transfer to Storage as the Destination Application.

4. Choose a text format as the Format if you want the OCR process to convert scanned text to editable text.

Scanning

Choose a text format to have the OCR process convert text to editable text before the scanned documents are stored in their archive location.

5. Choose a Scan Configuration for the documents you want to archive.

For example, if you want the archived documents to be in color, choose a color configuration.

DocuMate 520 Scanner User’s Guide 81

Scanning

6. Click OK.

The One Touch Properties window closes.

Your scanned pages are stored in the location that you specified on the One Touch 4.0 Link Properties window.

Your scanned documents will be stored at the location you specified on the One Touch 4.0 Link Properties window.

NOTE: The Storage Location shown in the example above is

the default place where your scanned documents are stored if you haven’t created any new scanning configurations or selected a new storage location. If you create a new scan configuration that has its own storage location and you use that configuration to scan, your scanned documents will be stored at the new location instead of the default. See the next section, “Scanning to Multiple Folders,” for examples of setting up new storage locations.

Scanning to Multiple Folders

When archiving documents with the Transfer to Storage option, you can scan them to multiple folders. For example, one folder might be for “Business Receipts,” a second folder might be for “Personal Receipts,” and a third folder might be for “Annual Receipts.”

To scan to multiple folders, you create multiple configurations, each with a different storage location for the scanned documents. Scan one set of documents using the scan configuration with the appropriate storage location for that set. Then switch to another scan configuration and scan the next set of documents to store them in their folder.

82 DocuMate 520 Scanner User’s Guide

Scanning

Setting up multiple folders for transfer to storage:

1. Using Microsoft Windows, create the folders that you want to use for storing scanned items. Note that you can also create the folders later while creating the new scan configurations.

2. Open the One Touch Properties window.

3. Click the tab of button to use for archiving to multiple folders.

4. Select Transfer to Storage as the Destination Application.

5. Click the New button.

Select Transfer to Storage.

Click the New button.

The Scan Configuration Properties dialog box opens.

6. To help you remember which folder it is, give the new configuration a name that indicates the folder name, such as “Storage for Business Receipts.”

7. Click the Scan Settings, Page Settings, and Advanced Settings tabs, and select the settings you want.

8. Click the Storage Options tab. This is where you set the different folder locations for the new configurations.

DocuMate 520 Scanner User’s Guide 83

Scanning

9. Click the Browse button.

10. Select the folder you created for storing the scanned documents.

If you haven’t created the folder yet, you can click the Make New Folder button and type the name for the new folder.

11. Click OK. The selected folder will now be set as the Storage Location, such as “Business Receipts.”

12. Click OK. The new configuration is now listed as a Transfer to Storage configuration.

13. Repeat the process to create additional new configurations, such as one named “Storage for Personal Receipts.”

84 DocuMate 520 Scanner User’s Guide

Scanning

14. Make sure to designate separate folders as the Storage Locations for the new configurations.

You will now have multiple configurations set up for the Transfer to Storage destination, and each configuration scans documents to separate folders.

The new configurations apply to the Transfer to Storage Destination Application.

Scan to multiple storage folders:

1. Load the documents into the scanner that you want to scan to multiple storage folders.

2. Open the One Touch Properties window.

3. Click the button you’ve set up for archiving documents. In the example above it’s the Copy button.

4. Select one of the configurations you created for storage.

5. Click OK. The One Touch Properties window closes.

6. Now either press the button on the scanner, or click it on the One Touch Button Panel.

The documents are scanned to the folder specified for the configuration.

7. When scanning is finished, open the One Touch Properties window again and select the other configuration you created for storage.

8. Click OK. The One Touch Properties window closes.

9. Now either press the button on the scanner again, or click it on the One Touch Button Panel.

When scanning is finished, the documents are stored in the two separate folders.

DocuMate 520 Scanner User’s Guide 85

Scanning

To Transfer Documents to a Server or Mapped Drive

When selecting the storage location for scanned documents, you can select a local folder, or a folder on a server or mapped drive.You select a mapped drive using the Browse button.

1. See “Scanning to Multiple Folders” on page 82 or “Transferring Scanned Documents to Storage” on page 81 for the steps to select the Transfer to Storage options.

2. On the One Touch 4.0 Link Properties window, or the Scan Configuration Properties window, click the Browse button.

The Browse For Folder window opens.

3. Select a storage location on the mapped drive or server for the scanned documents.

Servers and mapped drives are represented by an icon that indicates its network connection.

Select a mapped drive or server as indicated by the icon.

4. Click OK.

Now when you scan using Transfer to Storage as the Destination Application, the documents are stored on the server or mapped drive.

86 DocuMate 520 Scanner User’s Guide

Checking the Hardware and Setting the Lamp Power Saving

1. Right-click on the One Touch icon and choose Show Hardware from the pop-up menu.

You can also click the scanner icon at the top of the One Touch Button Panel.

The Hardware icon.

Scanning

If the Hardware View of the panel is open you can also rightclick on the DM 520 icon.

The Hardware Properties dialog box opens and shows information about your Xerox DocuMate 520 scanner.

DocuMate 520 Scanner User’s Guide 87

Scanning

2. Click the Properties button.

Your scanner has a built-in power saving feature that is set to power down after 15 minutes of idle time. You can change the time before the scanner powers down, from 1 minute to a maximum of 10 hours.

3. Click the arrows for the Lamp timeout setting and choose a time setting.

To turn the lamp on and off manually without turning off power to the scanner, click the Lamp On or Lamp Off buttons.

To return the scanner to its factory settings, click Reset Device.

4. Click OK to save the changes and close the dialog box.

88 DocuMate 520 Scanner User’s Guide

Scanning with the TWAIN Interface from PaperPort

Instead of using the scanner buttons or the One Touch Button Panel to scan, you can also scan from the TWAIN interface. The PaperPort application that you received with your scanner provides access to the TWAIN interface. This scanning method is particularly helpful when you’re already using PaperPort to file and save scanned items, or if you want to adjust scan settings prior to scanning.

A Note About Your Scanner and the TWAIN standard: TWAIN is a widely recognized procedure that software applications use to receive images from scanners, digital cameras, and other digital devices. The PaperPort software that you received with your scanner uses the TWAIN standard, and this guide shows how to scan with it. But you can also open the same TWAIN interface from many other graphics and imaging applications and scan from them as well. Because the TWAIN interface is the same regardless of the software you use to open it, you can still use the instructions in this User’s Guide for scanning with your Xerox DocuMate 520 scanner. To access the TWAIN interface from other software, please refer to their user’s guides, then return to this User’s Guide for the steps to scan.

NOTE: You can also access the TWAIN interface when you’re

scanning from the One Touch software. If the One Touch configuration you’re using to scan is set to Configure Before Scan, and the selected option is TWAIN, the TWAIN interface opens right away without opening PaperPort or any other TWAIN-compliant software first. See the section “Configuring Before Scanning” on page 64 for details.

DocuMate 520 Scanner User’s Guide 89

Scanning with the TWAIN Interface from PaperPort

Accessing the TWAIN Interface from PaperPort

The instructions in this section are for accessing the TWAIN interface from the PaperPort application.

To access the TWAIN interface from PaperPort:

1. On the Windows taskbar, click Start, point to Programs, point to PaperPort, then click PaperPort.

The PaperPort desktop opens.

Scan icon. Folders pane.

2. Click the Scan icon on the PaperPort command bar.

90 DocuMate 520 Scanner User’s Guide

Scanning with the TWAIN Interface from PaperPort

The Folders pane (which shows folders for organizing your scanned images) is replaced by the Scan pane.

Scan pane.

If this Scan button is not active, see the section on page 108 to set up your scanner to work with PaperPort.

NOTE: If the Scan button at the bottom of panel is not available

when you make a selection from the Scanner drop-down list, your scanner needs to be set up to work with PaperPort. See the section, “Setting Up Your Scanner to Work With PaperPort” on page 108.

3. Click the Scanner drop-down arrow, and select TWAIN: Xerox

DocuMate 520 from the drop-down list.

NOTE: Please wait a few moments for your selection from the

drop-down list to become active. This delay only occurs the first time you select from the list while PaperPort initializes the scanner. Later on, selecting from the list happens right away.

4. In the “Scan what?” section, choose to scan a Document or Photograph.

If you want to change the format of the scanned item’s file name or file type before you start scanning, click Settings. The default file type for documents is .pdf and the default for photographs is .jpg. The default name of the scanned image is the day, date, and number of scanned items that day. For example, the second item scanned on a day is followed by a (2), the third by a (3) and so on. See the PaperPort User’s

Guide for more information about the PaperPort Settings.

DocuMate 520 Scanner User’s Guide 91

Scanning with the TWAIN Interface from PaperPort

5. When scanning documents, use the Create single page items check box as follows:

• When the check box is selected, all pages in the Automatic

Document Feeder are scanned, the TWAIN interface closes, and each page is placed on the PaperPort Desktop as an individual file.

• When the check box is not selected, the scanned pages are

not placed on the PaperPort Desktop until you indicate the scanning job is finished by clicking Done on the TWAIN interface then clicking Done on the PaperPort-Scan window. Multiple pages are “stacked” on the PaperPort Desktop. Note that items scanned as .jpg files cannot be stacked on the desktop. Please see the PaperPort User’s Guide for more information about stacks.

6. The option Blank page is job separator is for when you load several separate scanning jobs into the Automatic Document Feeder at the same time. Insert a blank page between them and each job will become a separate stack on the PaperPort Desktop when scanning is finished.

Please see the PaperPort User’s Guide for more information about this option.

7. Make sure the option Display scanner dialog box is selected.

If this option is not selected, the TWAIN interface will not open when you click the Scan button. Instead, the items are scanned with the basic PaperPort settings. Documents are scanned in Black and White in the .pdf file format, and Photographs are scanned in Color in the .jpg file format.

8. Click the Scan button on the Scan pane.

The TWAIN interface opens and you are now ready to scan from it.

Getting Help with the PaperPort Software

The PaperPort software includes a complete set of help topics that answer questions about each feature of the software. To open the Help Topics window, press the F1 key or choose PaperPort Help from the Help menu.

You can also refer to the PaperPort Getting Started Guide and

PaperPort User’s Guide on the Disc 1 Installation CD.

92 DocuMate 520 Scanner User’s Guide

The Two TWAIN Interface Options

When scanning with TWAIN, you have two interface options:

• Basic Interface—Use the Basic Interface if you don’t need to make many adjustments to the image before scanning. You can adjust brightness, contrast, resolution, page size, and picture type. You can also choose to scan from the ADF or Flatbed. See “Scanning from the TWAIN Basic Interface” on page 94.

• Advanced Interface—The Advanced Interface includes all the settings of the Basic Interface, plus a wide range of more advanced settings, such as color saturation, gamma, and hue. See “Scanning from the TWAIN Advanced Interface” on page 96.

Scanning with the TWAIN Interface from PaperPort

The Basic Interface has the settings for scanning typical documents.

To switch between the Basic and Advanced Interfaces, click the Basic Interface or Advanced Interface button.

The Advanced Interface has all the scan settings of the Basic Interface, plus a range of additional settings for more advanced image adjustment.

DocuMate 520 Scanner User’s Guide 93

Scanning with the TWAIN Interface from PaperPort

Scanning from the TWAIN Basic Interface

The Basic Interface can scan a preview of the image so you can adjust its appearance before scanning the final image. After adjusting the appearance, you click the Scan button on the Basic Interface to scan.

Click the Advanced Interface button if you would rather scan with the Advanced Interface.

To scan from the Basic Interface:

1. From the Scan Type menu, choose the option to scan:

• Auto Document Feeder-Simplex—Scans documents

from the Automatic Document Feeder.

• Scan Reflective Using—Scans the document on the

Flatbed.

2. Choose the color, grayscale, or black and white option from the

Picture Type menu.

NOTE: If you want to preview the document before scanning

from the ADF, make sure only one page is loaded into the scanner.

3. Choose a resolution from the Resolution menu.

4. Choose a page size from the Page Size menu.

5. Click the Preview

button.

The scanner scans the item and displays a preview image.

You can now use the options on the Basic Interface to adjust the image.

94 DocuMate 520 Scanner User’s Guide

Scanning with the TWAIN Interface from PaperPort

NOTE: If you want to preview a stack of pages, use one of the

pages as a test page and load it into the scanner. Click the Preview button and adjust the scanner settings. Then replace the page on the stack at its original position and load the stack into the scanner. Then just click the Scan button.

6. Adjust the Brightness, Contrast, and Resolution until the picture is what you want. You can also change the picture type again, for example, from color to grayscale.

7. When you are satisfied with the preview image, remember to place the document into the ADF again if you’re scanning a stack of pages. Click Scan.

8. When you’re finished scanning items, click Done to close the Basic Interface.

9. The scanned images will appear in PaperPort, or the other TWAIN application you’re using.

DocuMate 520 Scanner User’s Guide 95

Xerox DocuMate 520 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

What’s in the Box

Welcome

The Xerox DocuMate 520 Scanner

What You Need

Documentation

Before You Begin

Installation

Step 1: Assemble the Scanner

Step 2: Install the Software

Step 3: Connect the Power Supply

Step 4: Connect the USB Cable and Turn on the Power

Additional Applications Available with Your Scanner

Register Your Scanner and Check for Updates

Scanning

Scanning Basics

Load a Stack of Documents

Load a Single Page

Scan with the Buttons on the Scanner

About the Buttons on the Scanner

Scan from the One Touch Button Panel

Check the Scan Settings Before Scanning

Using the One Touch Panel

About the One Touch Button Panel’s Names and Icons

Configuring the One Touch Buttons

About the One Touch Properties Window

Selecting New Settings for a Button

Setting Destination Application Properties

Selecting Format Options

Selecting Options for a Button

Creating a New Scan Configuration

Editing or Deleting Scan Configurations

Configuring Before Scanning

Scanning with Optical Character Recognition (OCR)

Scanning with sPDF or nPDF and Searching for Text

Scan and Burn to a CD

Scanning with Event Forwarding

Creating an HTML Web Page from Your Scanned Documents

Transferring Scanned Documents to Storage

Checking the Hardware and Setting the Lamp Power Saving

Scanning with the TWAIN Interface from PaperPort

Accessing the TWAIN Interface from PaperPort

The Two TWAIN Interface Options

Scanning from the TWAIN Basic Interface
