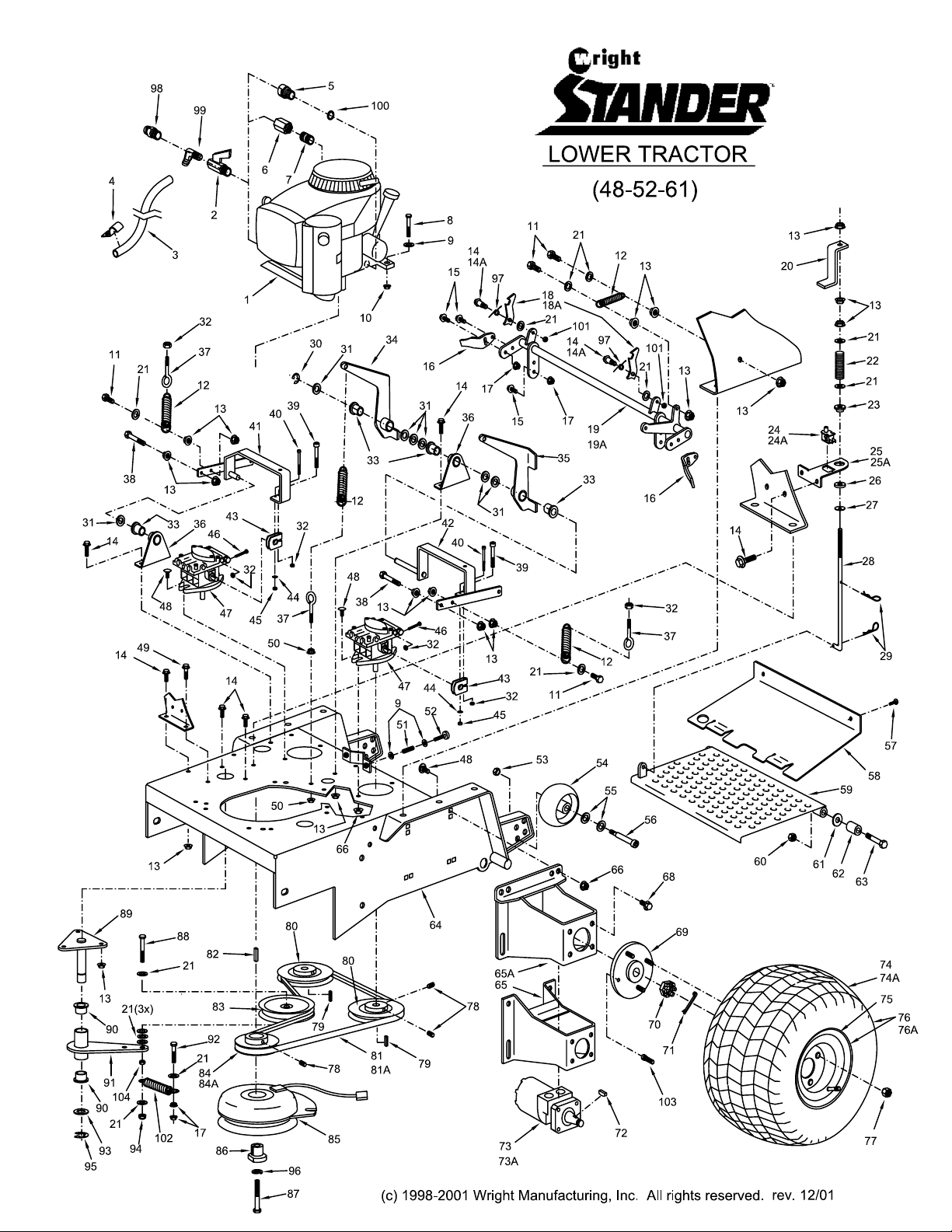

Wright Manufacturing Stander 48, Stander 52, Stander 61 User Manual

48", 52", 61" CUTTER DECKS

REF#PART # DESCRIPTION 48 52 61 REF # PART # DESCRIPTION 48 52 61

1 93430001 CUTTER DECK,48" W/CAPS(33) & DECALS X 41 11990030 BOLT, FLANGE 3/8-16 X 3/4 Z5 X X X

1 93440001 CUTTER DECK,52" W/CAPS(33) & DECALS X 57 15990003 MACHINE KEY 1/4X1/4X1 X X X

1 93450001 CUTTER DECK,61" W/CAPS(33) & DECALS X 58 71440002 BLADE, 16 1/2", FOR 48" DECK X

2 93430002 DECK COVER, 48" X 58 71440001 BLADE, 18", FOR 52" DECK X

2 93440002 DECK COVER, 52" X 58 71440003 BLADE, 21", FOR 61" DECK X

2 93450002 DECK COVER, 61" X 59 13990011 WASHER, FLAT USS 5/8 X X X

3 17460001 CAP, VINYL 2 1/2 X 1 1/2, DECK CVR X X X 60 11990014 BLADE BOLT, HEX 5/8-11 X 10 Z5 X X X

4 18410001 KNOB, BLACK PLASTIC FOR DECK COVER X X X 61 71460007 SPINDLE ASSEMBLY X X X

5 11990005 BOLT, HEX 3/8-16 X 2 Z5 X X X 62 71460014 EXTERNAL RETAINING RING X X X

6 13990010 WASHER, FLAT USS 5/16 Z X X X 63 71460015 INTERNAL RETAINING RING X X X

7 71460009 PULLEY, IDLER 5 3/4x1-1/16x3/8bore X X X 64 71460016 WASHER, LARGE X X X

8 24460001 STUD, THREADED, 3/8-24 X X X 64A 71460021 WASHER, SMALL X X X

9 15990007 HITCH PIN CLIP #213 X X X 65 71460017 BEARING X X X

10 15990010 E-CLIP 7/8 X X X 66 71460018 SPINDLE HOUSING X X X

11 13990017 MACHINE BUSHING 7/8 ID 1 3/8 OD 14GA X X X 67 71460019 ZERK FITTING X X X

12 14990001 BUSHING, BRONZE (VELKE# VPIVOTBUSH) X X X 68 71460020 SPINDLE SHAFT X X X

13 98490002 IDLER ARM W/BUSHINGS (12) X X X 69 WRJ300-3 STANDER GRASS GOBBLER (INCL 70 & 71) X X X

14 12990008 NUT, LOCK FLANGE 3/8-16 z X X X 70 GGL1-1 GRASS GOBBLER LATCH X X X

15 93490001 IDLER ARM BASE X X X 71 GGD4-4 DOOR X X X

16 11990012 BOLT, FLANGE 5/16x3/4 z5 X X X 72 LG1000 LEAF GOBBLER (4.6 CU. FT) X X X

17 12990007 NUT, LOCK FLANGE 5/16-18 z X X X 73 95430001 MULCH PLATE KIT, 48" X

18 12990021 NYLON LOCKNUT, 5/16-18 z X X X 73A 95440001 MULCH PLATE KIT, 52" X

19 85460014 IDLER ADJUSTMENT ROD, 3/8 X 7" X X X 73B 95450001 MULCH PLATE KIT, 61" X

19A 85460030 IDLER ADJUSTMENT ROD, 3/8 X 8" X X 74 16460005 SPRING, DECK IDLER X X X

20 71460006 PULLEY, IDLER 4 1/2 x 1 x 3/8 bore X X X 75 12990020 NYLON LOCKNUT 3/8-16 z X X

21 12990003 NUT, HEX 5/8-11 z FOR BLADES X X X 76 12990031 NUT, TOPLOCK 3/8-16 X X X

22 13990007 BLADE SPACER 5/8x1 1/2x1/4 X X X

23 11990033 BOLT, HEX 1/4-20 X 7/8 P5 X X X

24 71460008 BUSHING, SPLIT TAPERED 1" X X X

25 71460004 PULLEY, SINGLE GRV 5 3/4OD-A/B X X X

26 71460005 PULLEY, DOUBLE GRV 5 3/4 OD A/B X X X

27 71460011 BELT, ENGINE TO BLADE 48" WS X

27 71460003 BELT, ENGINE TO BLADE 52" WS X

27 71460013 BELT, ENGINE TO BLADE 61" WS X

28 71460010 BELT, BLADE TO BLADE 48" WS X

28 71460002 BELT, BLADE TO BLADE 52" WS X

28 71460012 BELT, BLADE TO BLADE 61" WS X

29 93460002 CHUTE DEFLECTOR, WS X X X

30 16460002 SPRING, TORSION, FOR CHUTE DEFLECTOR X X X

31 11990003 BOLT, HEX 5/16-18 X 4 1/2 Z5 X X X

32 11990027 BOLT, HEX 5/16-18 X 1 Z5 X X X

33 17460002 CAP, VINYL 3/8 x 1 X X X

34 12990010 NUT, LOCK FLANGE 1/2-13 z X X X

35 11990015 BOLT, FLANGE 1/2x1 1/4 z5 X X X

36 11990046 BOLT, FLANGE 3/8x1 z5 X X X

37 72490001 WHL, PLASTIC, 5"x2-3/4" w5/8"bore X X

38 12990022 NUT, NYLON, JAM 1/2-13, SCALP ROLLERS X X

39 13990016 MACH BUSH 5/8 ID 1 OD 14 GA X X

40 11990022 BOLT, SHLDR ALLN 5/8 X 2.75-ROLLERS X X

(c) 1998-2001 Wright Manufacturing, Inc. All rights reserved. rev. 12/01

CASTER PARTS

REF#PART # DESCRIPTION LS LT SS REF #PART # DESCRIPTION LS LT SS

1 98460013 L-S CASTER KIT W/O BRKT (SET OF 2) X 26 12990023 NUT, CASTLE 3/4-14 X

1A 98460005 L-T CASTER KIT W/O BRKT (SET OF 2) X 27 77460002 TAPERED BEARING FOR PIVOT X

2 93460006 CASTER ADJUSTMENT BRACKET X X 28 77460003 BEARING RACE FOR PIVOT X

3 98460016 L-S CASTER ARM (INCL 1-#20 & 2-#19) X 29 77460001 GREASE SEAL X

3A 93460005 L-T CASTER ARM WELDMENT X 30 13990021 BUSHING, MACHINE 7/8 ID X 1 3/8 OD X 1/4 X

4 93460008 L-S CASTER YOKE X 31 13990008 BUSHING, MACHINE 7/8 ID X 1 3/8 OD X 1/2 X

4A 93460004 L-T CASTER YOKE X 32 14990001 BUSHING, BRONZE(SAME AS VPIVOTBUSH) X

5 72460002 11X400-5 WHEEL ASSEMBLY COMPLETE X X 33 98460002 S-S CASTER ARM (INCL 2 #32 AND 1 #20) X

6 77460008 RIM ONLY X X 34 93460007 S-S CASTER YOKE X

7 77460009 TIRE ONLY X X 35 12990018 NUT, NYLOCK JAM 1/2-20 X

8 98460019 BEARING KIT (2 EACH #9, #10, #11, #12) X X 36 11990029 BOLT, HEX HD 1/2-20 X 5 Z5 X

9 77460004 WHEEL SPACER X X 37 13990019 BUSHING, MACHINE 3/4 X 1 1/4 X 14GA X

10 77460005 GREASE SEAL X X 38 13990018 BUSHING, MACHINE 3/4 X 1 1/4 X 10GA X

11 77460006 TAPERED ROLLER BEARING X X 39 72460003 9X350-4 PNEUMATIC WHEEL ASSEMBLY X

12 77460007 RACE, FOR BEARING X X 40 VKRLBRG ROLLER BEARING X

13 VKWHLZERK ZERK FITTING FOR WHEEL X X X 41 VKBRGRTNR ROLLER BEARING RETAINER X

14 11990034 BOLT, HEX HD 3/4-10 X 6 1/2 Z5 X X 42 VKSPNNR SPANNER X

15 12990026 NUT, NYLOCK JAM 3/4-10 X X 43 VKBRGKIT CASTER BEARING KIT (INCL #40, #41, #42) X

16 15990013 LYNCH PIN X X

17 13990023 MACHINE BUSHING 1 1/4 X 10 GA X

18 13990022 C- SPACER X

19 14990003 BRONZE BUSHING X

20 15990006 ZERK FITTING FOR CASTER ARM X X

21 98460018 CASTER BOLT KIT(8 BOLTS, 8 NUTS, 16 WASH.) X X

22 11990030 BOLT, FLANGE 3/8-16 X 3/4 Z5 X X X

23 12990008 NUT, FLANGELOCK 3/8-16 Z X X X

24 17460003 GREASE CAP X

25 15990012 PIN, COTTER 1/8 X 2 X

(c) 1998-2001 Wright Manufacturing, Inc. All rights reserved. rev. 12/01
