World Dryer DXA52-972 Specifications

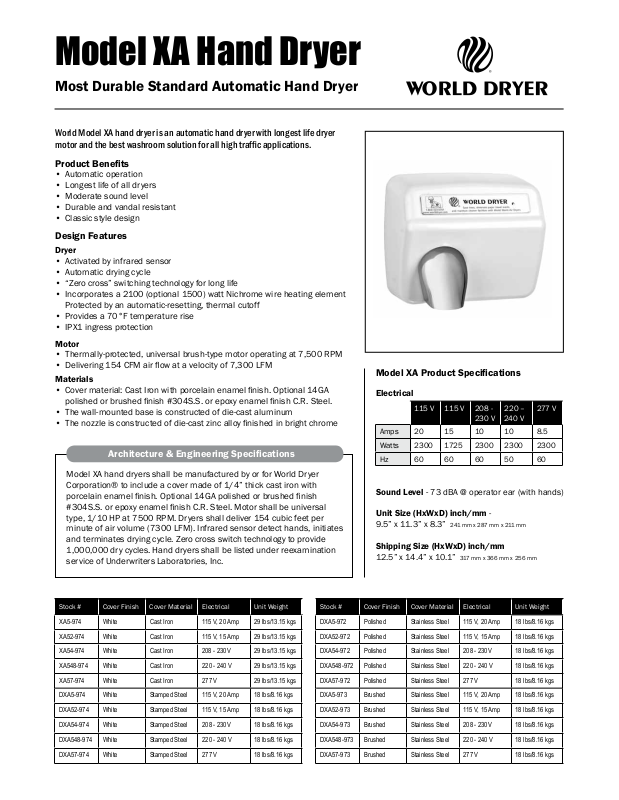

Model XA Hand Dryer

Most Durable Standard Automatic Hand Dryer

World Model XA hand dryer is an automatic hand dryer with longest life dryer
motor and the best washroom solution for all high trafc applications.

Product Benets

• Automatic operation

• Longest life of all dryers

• Moderate sound level

• Durable and vandal resistant

• Classic style design

Design Features

Dryer

• Activated by infrared sensor

• Automatic drying cycle

• “Zero cross” switching technology for long life

• Incorporates a 2100 (optional 1500) watt Nichrome wire heating element
Protected by an automatic-resetting, thermal cutoff

• Provides a 70°F temperature rise

• IPX1 ingress protection

Motor

• Thermally-protected, universal brush-type motor operating at 7,500 RPM

• Delivering 154 CFM air ow at a velocity of 7,300 LFM

Materials

• Cover material: Cast Iron with porcelain enamel nish. Optional 14GA
polished or brushed nish #304S.S. or epoxy enamel nish C.R. Steel.

• The wall-mounted base is constructed of die-cast aluminum

• The nozzle is constructed of die-cast zinc alloy nished in bright chrome

Architecture & Engineering Specications

Model XA hand dryers shall be manufactured by or for World Dryer
Corporation® to include a cover made of 1/4” thick cast iron with
porcelain enamel nish. Optional 14GA polished or brushed nish
#304S.S. or epoxy enamel nish C.R. Steel. Motor shall be universal
type, 1/10 HP at 7500 RPM. Dryers shall deliver 154 cubic feet per
minute of air volume (7300 LFM). Infrared sensor detect hands, initiates
and terminates drying cycle. Zero cross switch technology to provide
1,000,000 dry cycles. Hand dryers shall be listed under reexamination
service of Underwriters Laboratories, Inc.

Model XA Product Specications

Electrical

115 V 115 V 208 -

Amps 20 15 10 10 8.5

Watts 2300 1725 2300 2300 2300

Hz 60 60 60 50 60

Sound Level -

73 dBA @ operator ear (with hands)

Unit Size (HxWxD) inch/mm -

9.5” x 11.3” x 8.3” 241 mm x 287 mm x 211 mm

Shipping Size (HxWxD) inch/mm

12.5” x 14.4” x 10.1” 317 mm x 366 mm x 256 mm

230 V

220 –
240 V

277 V

Stock # Cover Finish Cover Material Electrical Unit Weight

XA5-974 White Cast Iron 115 V, 20 Amp 29 lbs/13.15 kgs

XA52-974 White Cast Iron 115 V, 15 Amp 29 lbs/13.15 kgs

XA54-974 White Cast Iron 208 - 230V 29 lbs/13.15 kgs

XA548-974 White Cast Iron 220 - 240 V 29 lbs/13.15 kgs

XA57-974 White Cast Iron 277 V 29 lbs/13.15 kgs

DXA5-974 White Stamped Steel 115 V, 20 Amp 18 lbs/8.16 kgs

DXA52-974 White Stamped Steel 115 V, 15 Amp 18 lbs/8.16 kgs

DXA54-974 White Stamped Steel 208 - 230V 18 lbs/8.16 kgs

DXA548-974 White Stamped Steel 220 - 240 V 18 lbs/8.16 kgs

DXA57-974 White Stamped Steel 277 V 18 lbs/8.16 kgs

Stock # Cover Finish Cover Material Electrical Unit Weight

DXA5-972 Polished Stainless Steel 115 V, 20 Amp 18 lbs/8.16 kgs

DXA52-972 Polished Stainless Steel 115 V, 15 Amp 18 lbs/8.16 kgs

DXA54-972 Polished Stainless Steel 208 - 230V 18 lbs/8.16 kgs

DXA548-972 Polished Stainless Steel 220 - 240 V 18 lbs/8.16 kgs

DXA57-972 Polished Stainless Steel 277 V 18 lbs/8.16 kgs

DXA5-973 Brushed Stainless Steel 115 V, 20 Amp 18 lbs/8.16 kgs

DXA52-973 Brushed Stainless Steel 115 V, 15 Amp 18 lbs/8.16 kgs

DXA54-973 Brushed Stainless Steel 208 - 230V 18 lbs/8.16 kgs

DXA548-973 Brushed Stainless Steel 220 - 240 V 18 lbs/8.16 kgs

DXA57-973 Brushed Stainless Steel 277 V 18 lbs/8.16 kgs

Front View Wall Mounting Side View

2.5"

(63 mm)

9.25"

(235 mm)

7.75"

(197 mm)

8.33"

(212 mm)

9.5"

(241 mm)

1.5"

(38 mm)

.87"

(22 mm)
HOLE

Placement Instruction

• Hand dryers should be spaced at least 2’ apart, near but not over the wash basin

• Automatic dryers should be located more than 18” above or away from any
reective surface that may interfere with the sensor operation.

• In congested areas, dryers should be located to create a ow from wash basin to
dryer to exit

• Dryer Quantity Recommendation:

Average Trafc: 1 dryer per 2 wash basins
Heavy Trafc: 1 dryer per wash basin
Industrial 54” Circular wash fountains: 4 dryers per sink

• Recommended mounting heights from oor to dryer bottom edge

Men’s washrooms 46” (117 cm)

Women’s washrooms 44” (112 cm)

Children’s washrooms, ages 4-7 32” (81 cm)

Children’s washrooms, ages 7-10 36” (91 cm)

Children’s washrooms, ages 10-13 40” (102 cm)

Children’s washrooms, ages 13-17 44” (112 cm)

Handicap Mounting Height 37” (94 cm)

Certication Approved

IPX1

Warranty

Installation Guide

• Model XA hand dryers require a dedicated 20 AMP circuit and must be properly
grounded

• GFI circuit protection is recommended.

• One side of dryer should be mounted to a stud

5700 McDermott Drive
Berkeley, IL 60163 U.S.A.
800-323-0701
www.worlddryer.com

5 year on sensor
3 year on motor brushes

10 year limited warranty

92-MT042 Rev01
