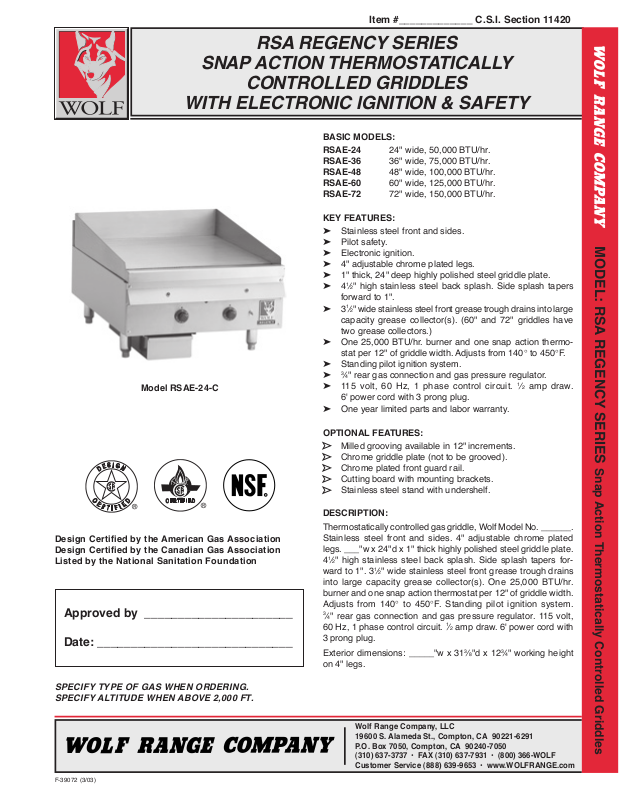

SNAP ACTION THERMOSTATICALLY
WITH ELECTRONIC IGNITION & SAFETY
Model RSAE-24-C
Item #_____________ C.S.I. Section 11420
RSA REGENCY SERIES
CONTROLLED GRIDDLES
BASIC MODELS:
RSAE-24 24" wide, 50,000 BTU/hr.
RSAE-36 36" wide, 75,000 BTU/hr.
RSAE-48 48" wide, 100,000 BTU/hr.
RSAE-60 60" wide, 125,000 BTU/hr.
RSAE-72 72" wide, 150,000 BTU/hr.
KEY FEATURES:
➤ Stainless steel front and sides.
➤ Pilot safety.
➤ Electronic ignition.
➤ 4" adjustable chrome plated legs.
➤ 1" thick, 24" deep highly polished steel griddle plate.
1
⁄2" high stainless steel back splash. Side splash tapers
➤ 4
forward to 1".
1
⁄2" wide stainless steel front grease trough drains into large
➤ 3
capacity grease collector(s). (60" and 72" griddles have
two grease collectors.)
➤ One 25,000 BTU/hr. burner and one snap action thermo-
stat per 12" of griddle width. Adjusts from 140° to 450°F.
➤ Standing pilot ignition system.
3
⁄4" rear gas connection and gas pressure regulator.
➤
➤ 115 volt, 60 Hz, 1 phase control circuit.
6' power cord with 3 prong plug.
➤ One year limited parts and labor warranty.
1
⁄2 amp draw.
MODEL: RSA REGENCY SERIES
Design Certified by the American Gas Association
Design Certified by the Canadian Gas Association
Listed by the National Sanitation Foundation
Approved by ______________________
Date: _____________________________
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
OPTIONAL FEATURES:
➤➤ Milled grooving available in 12" increments.
➤➤ Chrome griddle plate (not to be grooved).
➤➤ Chrome plated front guard rail.
➤➤ Cutting board with mounting brackets.
➤➤ Stainless steel stand with undershelf.
DESCRIPTION:
Thermostatically controlled gas griddle, Wolf Model No. ______.
Stainless steel front and sides. 4" adjustable chrome plated
legs. ___"w x 24"d x 1" thick highly polished steel griddle plate.
1
⁄2" high stainless steel back splash. Side splash tapers for-
4
ward to 1". 3
into large capacity grease collector(s). One 25,000 BTU/hr.
burner and one snap action thermostat per 12" of griddle width.
Adjusts from 140° to 450°F. Standing pilot ignition system.
3
⁄4" rear gas connection and gas pressure regulator. 115 volt,
60 Hz, 1 phase control circuit.
3 prong plug.
Exterior dimensions: _____"w x 313⁄8"d x 123⁄4" working height
on 4" legs.
1
⁄2" wide stainless steel front grease trough drains
1
⁄2 amp draw. 6' power cord with
Snap Action Thermostatically Controlled Griddles
F-39072 (3/03)
Wolf Range Company, LLC
19600 S. Alameda St., Compton, CA 90221-6291
P.O. Box 7050, Compton, CA 90240-7050
(310) 637-3737 • FAX (310) 637-7931 • (800) 366-WOLF
Customer Service (888) 639-9653 • www.WOLFRANGE.com
RSA Regency Series
Snap Action Thermostatically
Controlled Griddles
with Electronic Ignition & Safety
INSTALLATION REQUIREMENTS:
1. A gas pressure regulator sized for this unit is included.
Natural Gas 5.0" W.C. Propane Gas 10.0" W.C.
2. Gas line connecting to appliance must be
larger. If flexible connectors are used, the inside diameter
must be the same as the 3⁄4" iron pipe.
3. An adequate ventilation system is required for commercial cooking equipment. Information may be obtained
by writing to the National Fire Protection Association,
1 Batterymarch Park, Quincy, MA 02269, www.NFPA.org.
When writing, refer to NFPA No. 96.
3
⁄4" diameter or
4. These units are manufactured for installation in accordance with ANSZ223.1A (latest edition), National Fuel
Gas Code. Copies may be obtained from The American
Gas Association, 400 N Capitol St. NW, Washington, DC
20001, www.AGA.org.
5. Clearances:
Combustible Non-Combustible
Rear 6" 0"
Sides 6" 0"
GRIDDLE
MODEL GRIDDLE SURFACE OVERALL NO. OF
NO. BTU/HR. WIDTH DEPTH WIDTH CONTROLS
RSAE-24 50,000 24" x 24" 24" 2 265/119
RSAE-36 75,000 36" x 24" 36" 3 400/180
RSAE-48 100,000 48" x 24" 48" 4 480/216
RSAE-60 125,000 60" x 24" 60" 5 650/293
RSAE-72 150,000 72" x 24" 72" 6 790/356
115 volt, 60 Hz, 1 phase control circuit. 1⁄2 amp draw. Provided with 6' power cord with 3 prong plug.
NOTE: In line with its policy to continually improve its product, Wolf Range Company
reserves the right to change materials and specifications without notice.
This appliance is manufactured for commercial use only and is not intended for home use.
F-39072 (3/03)
APPROX. SHIP
WT. (LBS./KG)
COUNTER
