Wolf Outdoor Gas Grills 3
wolfappliance.com
Outdoor Grill Installation
ead this entire installation guide prior to installation and
R
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
The installation of this appliance must conform with local
codes or, in the absence of local codes, either the National
Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGAB149.1, Natural Gas Installation Code or CAN/CGAB149.2, Propane Installation Code.
The utilization of an external electrical source requires that
when installed, this outdoor cooking gas appliance must
be electrically grounded in accordance with the local
codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1. Keep any electrical supply cord, or the
rotisserie motor cord and the gas supply hose away from
any heated surfaces.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedicated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency and amperage ratings are listed on
the product rating plate.
ecord the model and serial numbers before installing the
R
outdoor product. Both numbers are listed on the product
rating plate. For the outdoor grill, the rating plate is
located above the drip tray, behind the logo. The drip tray
must be removed to view the rating plate. For the burner
module and side burner, the rating plate is located under

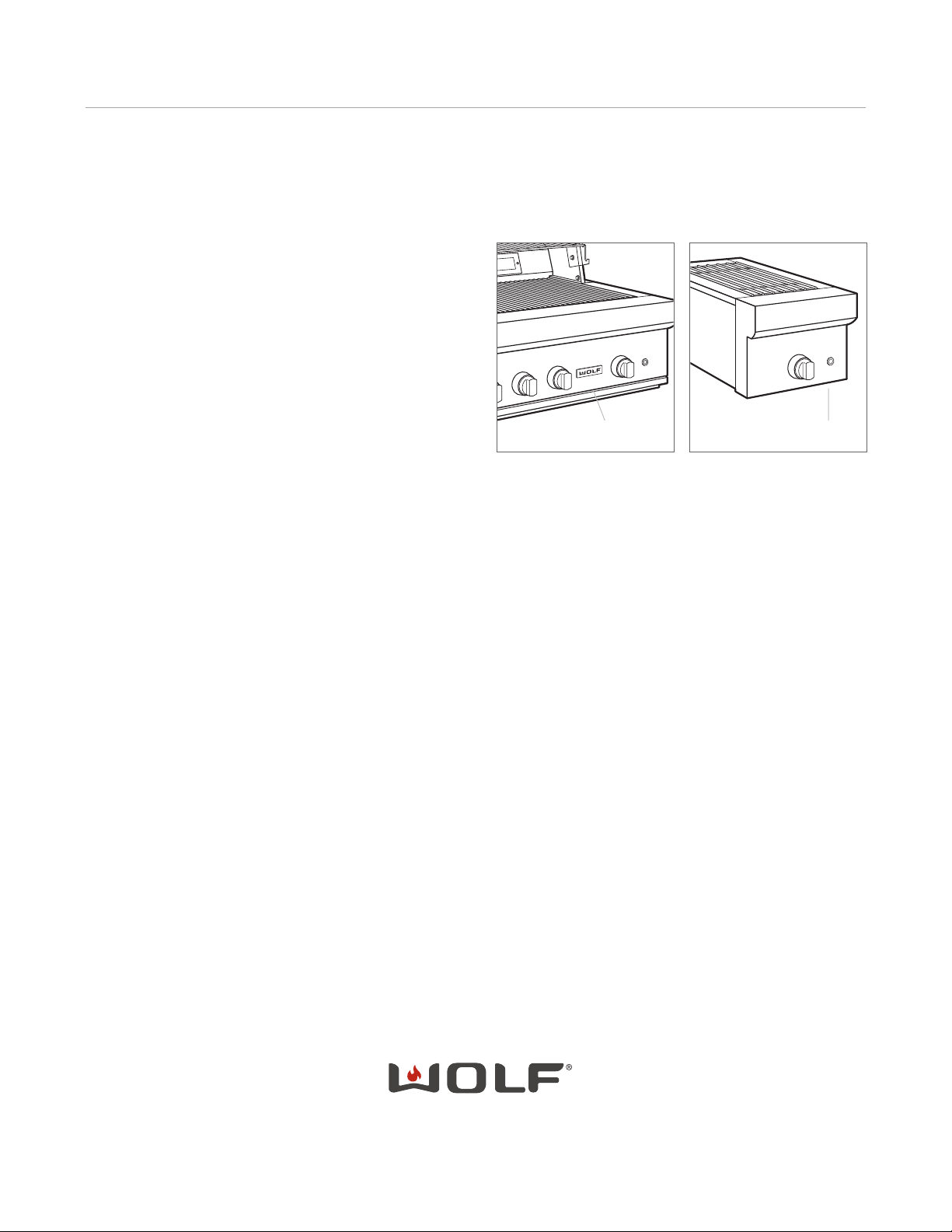

the bullnose on the right side. Refer to the illustrations
below.
Wolf Outdoor Product
Model Number
Serial Number
RATING PLATE
RATING PLATE
Outdoor grill. Burner module and side
burner.
Page 4
Safety Instructions 4
IMPORTANT INSTRUCTIONS
•
Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
•
Warranty service must be performed by Wolf factory
certified service.
•
Do not store or use gasoline or other flammable
liquids or vapors in the vicinity of this or any other
appliance. An LP gas cylinder not connected for use
shall not be stored in the vicinity of this or any other
appliance.
•
In Massachusetts: All gas products must be installed
using a “Massachusetts” licensed plumber or gasfitter. A “T” handle type manual gas valve must be
installed in the gas supply line to this appliance. This
applies to permanently installed natural gas and
propane installations. This does not apply to propane
portable installations using a 20-lb tank.
WHAT TO DO IF YOU SMELL GAS:
•
Shut off gas supply to the appliance.
•
Extinguish any open flame.
•
Open hood or remove cover.
•
If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
BEFORE LIGHTING:
•
Read instructions before lighting.
•
Open hood or remove cover before lighting.
•
If ignition does not occur in 5 seconds, turn the
control knob off, wait 5 minutes and repeat the
lighting procedure.
Page 5
Location Considerations 5
wolfappliance.com
Locating the Grill
IMPORTANT NOTE: T
certified for outdoor use only. Do not operate the outdoor
product inside a building, garage, recreation vehicle or any
enclosed area.
When choosing an area for the grill, whether a portable or
built-in application, consider exposure to wind, proximity
to traffic paths and length of gas supply line. Keep the gas
supply line as short as possible to reduce pressure drop.
Keep the outdoor product away from windy areas but in a
well ventilated area. Do not obstruct the flow of combustion and ventilation air around the outdoor product. Installation must be level and flat. The supporting countertop
structure should also be level and flat.
Do not locate outdoor product under overhead
combustible surfaces.
his gas appliance is designed and
Built-In Applications
olf outdoor grills and the burner module are designed for
W
easy placement into a built-in enclosure. For outdoor
grills, installation in a combustible enclosure requires an
insulating liner. For the burner module, an insulating liner
is not required. The enclosure should be built according to
specifications for your specific installation found on the
following pages. If the burner module is installed next to
an outdoor grill, a minimum of 12"
between units on the rotisserie motor side and 2"
the opposite side. A rotisserie side conversion kit is available from your authorized Wolf dealer. For local dealer
information, visit the find a showroom section of our
website, wolfappliance.com.
All outdoor grills in a built-in application require a countertop structure to support the grill. The countertop structure
should be level and flat and able to support 350 lbs
It is recommended that ventilation holes be provided in the
enclosure so that gas will not become entrapped in the
event of a leak.
(305) is required
(51) on
(159 kg).
Portable Applications
Wolf portable grill carts are available to fit Wolf outdoor
grill models OG30, OG36 and OG42 and the side burner.
Model OG54 is designed for built-in applications only.
MINIMUM CLEARANCES
A minimum clearance of 12" (305) from the sides and
12"
(305) from the back of the grill to adjacent vertical
combustible construction must be maintained.
1
A minimum clearance of 2
/2" (64) from the back of the grill
above cooking surface to non-combustible construction is
required.
A minimum of 6"
(152) clearance to the sides of the grill
above cooking surface to non-combustible construction is
recommended to provide space for the rotisserie motor
and the spit rod. The grill can be installed directly next to
non-combustible construction below the cooking surface.
Page 6
Outdoor Grill Specifications 6
WIDTH
MAX DOOR/DRAWER CLEARANCE 22" (559).
24" (610)
TO GRILL
PLATFORM
361/2"
(927)
273/4" (705)
12"
(305)
3"
(76)
30" (762)
OVERALL DEPTH
121/2" (318)
TO GRILLING
SURFACE
27"
(686)
OVERALL
HEIGHT
OVERALL WIDTH
273/4" (705)
21/2"
(64)
CLEARANCE
FOR OPEN
HOOD
Overall Dimensions
OUTDOOR GRILL
odel OG36 shown
M
GRILL CART
Model CART36 shown
Outdoor Grill
OVERALL WIDTH W
Model OG30 30" (762)
Model OG36 36" (914)
Model OG42 42" (1067)
Model OG54 54" (1372)
Grill Cart
OVERALL WIDTH W
Model CART30 30" (762)
Model CART36 36" (914)
Model CART42 42" (1067)
Page 7
Outdoor Grill Specifications 7
36"
(914)
OPENING WIDTH
TOP VIEW
FRONT VIEW
113/4"
(298)
OPENING
HEIGHT
6"(152) min T
O
NON-COMBUSTIBLE
SIDE SURFACES
6"(152) min T
O
NON-COMBUSTIBLE
SIDE SURFACES
OPENING WIDTH
FOR ACCESSORY DOORS
OR DRAWERS
OPENING
HEIGHT
1" (25) min
241/4"
(616)
OPENING
DEPTH
21/2" (64) min
T
O NON-COMBUSTIBLE REAR SURFACES
F
OR HOOD CLEARANCE
COUNTERTOP
O
VERHANG
O
PENING
F
OR GRILL
13
/16"
(21)
1
3"
(330)
31/2"
(89)
G
4"(102)
6"
(152)
G
G
RILL
OVERLAP
36"
(914)
OPENING WIDTH
T
OP VIEW
125/8" (321)
OPENING
HEIGHT
OPENING WIDTH
FOR ACCESSORY DOORS
OR DRAWERS
26"
(
660)
OPENING
DEPTH
OPENING
HEIGHT
12" (305) min
TO COMBUSTIBLE REAR SURFACES
12" (305) min TO
COMBUSTIBLE
S
IDE SURFACES
12" (305) min TO
COMBUSTIBLE
S
IDE SURFACES
1" (25) min
OPENING
FOR LINER
13
/16"
(21)
103/4"
(273)
5"
(127)
C
L
C
L
23/4" (70)
KNOCKOUT FOR
G
AS SUPPLY
FRONT VIEW
C
OUNTERTOP
OVERHANG
LINER
OVERLAP
wolfappliance.com
Outdoor Grill Built-In Installation
NON-COMBUSTIBLE ENCLOSURE
COMBUSTIBLE ENCLOSURE WITH LINER
Opening Width
NON- COMBUS TIBLE ENCL OSURE W
Model OG30 281/2" (724)
Model OG36 341/2" (876)
Model OG42 401/2" (1029)
Model OG54 521/2" (1334)
COMB USTIBL E ENCLOSURE W
Model OG30 331/2" (851)
Model OG36 391/2" (1003)
Model OG42 451/2" (1156)
Model OG54 571/2" (1461)
Optional Opening
ACCESSORY DOORS WH
18" (457) Single 161/4" (413) 19" (483)
30" (762) Double 281/4" (718) 19" (483)
36" (914) Double 341/4" (870) 19" (483)
42" (1067) Double 401/4" (1022) 19" (483)
54" (1372) Double 521/4" (1327) 19" (483)
ACCESSORY DRAWERS WH
30" (762) Single 271/4" (692) 93/4" (248)
13" (330) Double 121/8" (308) 19" (483)
13" (330) Triple 121/8" (308) 19" (483)
30" (762) Double with Door 291/4" (743) 19" (483)
Page 8
Outdoor Grill Specifications 8
103/4" (273)
OVERALL
HEIGHT
13" (330)
OVERALL
WIDTH
OVERLAP
7"
(178)
G
3"
(76)
8"
(203)
G
36"
(914)
12"
(305)
O
PENING
WIDTH
T
OP VIEW
10"(254)
OPENING
HEIGHT
6"(152) min
TO COMBUSTIBLE
SIDE SURFACES
6"(152) min
TO COMBUSTIBLE
SIDE SURFACES
241/4"
(616)
OPENING
DEPTH
C
OUNTERTOP
O
VERHANG
OPENING
FOR
MODULE
9
/16"
(14)
12" (305) min TO COMBUSTIBLE
R
EAR SURFACES
30" (762)
OVERALL DEPTH
273/4" (705)
Overall Dimensions
BURNER MODULE AND SIDE BURNER
Built-In Installation (Burner Module)
NON-COMBUSTIBLE OR COMBUSTIBLE ENCLOSURE
Page 9
Outdoor Grill Installation 9
wolfappliance.com
Electrical Requirements
INSTALL THE POWER TRANSFORMER
Wolf outdoor grills and the burner module have a power
transformer for the lights and igniters which is concealed
in a stainless steel box with an attached power supply
cord.
BUILT-IN APPLICATION: Secure the transformer box in a
dry location, away from the grill firebox and excessive heat
area, but within 2'
CART APPLICATION: Two mounting screws are provided
(.6 m) of the right rear grill opening.
to secure the transformer box, located at the bottom right
rear corner of the cart, behind the pull-out LP tank shelf.
If a side burner is being attached to a cart, it will utilize the
same transformer as the gas grill.
IMPORTANT NOTE: Do not install the transformer box
inside the insulating liner. The transformer box must be
secured away from excessive heat and in a dry location.
Make the transformer connections to the wire harness
located at the right rear of the grill to the harness of the
transformer box.
Plug the power cord from the transformer into a properly
grounded GFCI 120 V AC electrical outlet. The outlet must
be located within 6'
(1.8 m) of the transformer.
ELECTRICAL GROUNDING: The outdoor gas grill is
equipped with a 3-prong grounding plug for protection
against shock hazard. It should be plugged directly into
a properly grounded 3-prong outlet. Do not cut or
remove the grounding prong from the plug.
DO NOT use an extension cord or two-prong adapter.
ROTISSERIE MOTOR
The rotisserie motor requires a GFCI 120 V AC electrical
supply. The 9'
(2.7 m) power cord on the motor is equipped
with a 3-prong grounded plug for protection against shock
hazard.
IMPORTANT NOTE: The burner module must be installed
at least 12"
(305) from the rotisserie motor.
Page 10
Outdoor Grill Installation 10
OPEN POSITION
TO APPLIANCE
GAS SUPPLY
LINE
Gas Supply Requirements
IMPORTANT NOTE: T
he outdoor product must be
connected to a regulated gas supply by a qualified technician and in accordance with local codes and ordinances.
Each appliance is set and tested at the factory for the type
of gas supply to be used. Identify the type of gas, either
natural gas or LP gas, and make sure that the type of gas
specified on the product rating plate matches the gas
being supplied to the outdoor product. Refer to page 3 for
location of the rating plate.
GAS SUPPLY LINE
Connect the outdoor product to the gas supply line. The
gas supply line must be of adequate size to properly
service all gas appliances. Wolf recommends the use of a
minimum
gas supply line to the units
will operate on
All plumbing to the flex hose must be
1
/2" (13) ID commercial type flex hose from the
1
/2" NPT female inlet. The units
1
/2" (13) pipe to a maximum run of 30' (9 m).
3
/4" (19) minimum
ID pipe.
IMPORTANT NOTE: F
or complete gas shutdown, an
external gas shut-off valve must be located near the
outdoor product in an accessible location. Refer to the
illustration below.
Ensure that the gas supply line does not come in
contact with any hot surface of the outdoor product.
Gas supply shut-off valve.
Page 11
Outdoor Grill Installation 11
REGULATOR
REAR GAS
CONNECTION
BOTTOMGAS
CONNECTION
SHUT-OFF
VALVE
FROM GAS
SUPPLY
REGULATOR
TO GRILL
ADAPTER
CLOSE
NIPPLE
VENT
wolfappliance.com
Natural Gas Installations
he natural gas pressure regulator provided with natural
T
gas outdoor products is set for 4"
column) and is for use with natural gas only.
NATURAL GAS SAFETY REQUIREMENT
This gas appliance and its individual shut-off valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures greater than .5 psi
(3.5 kPa).
This gas appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than .5 psi
(3.5 kPa).
NATURAL GAS CONNECTION

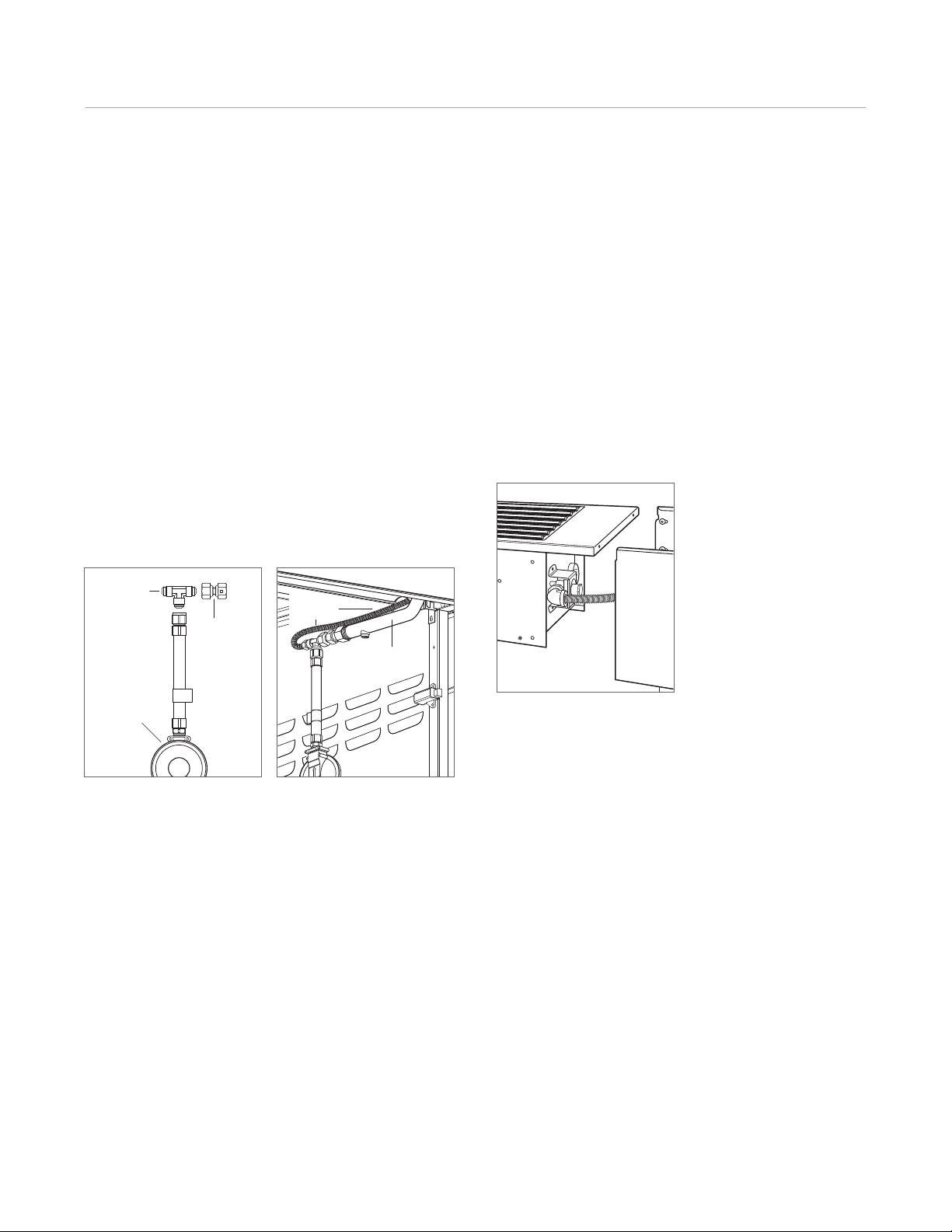

A typical natural gas installation is shown in the illustrations below. Make sure that the gas pressure regulator(s)
supplied with the outdoor product is used and installed
with the arrow on the regulator pointing towards the unit.
Do not use a replacement regulator other than that specified by Wolf. Use only gas piping that is approved for use
with natural and LP gases.
(10 mb) WC (water
LP Gas Installations
P (liquefied petroleum) gas is sometimes called propane,
L
butane or bottled gas. It is a flammable gas which
becomes liquid when stored under high pressure inside a
cylinder and it vaporizes when released.
The LP gas pressure regulator and hose provided with
LP outdoor gas grills (except model OG54) and SB13-LP
is set for 11"
LP gas only and a 20-lb LP gas cylinder. The LP gas regulator provided with OG54-LP and BM13-LP is set for 10"
(25 mb) WC.
LP GAS SAFETY REQUIREMENT
The LP gas cylinder must be provided with an approved
overfilling preventive device (OPD).
Any LP gas cylinder used with this appliance must be
constructed and marked in accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standards of Canada
CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods and Commission, as
applicable. Provided with a listed overfilling prevention
device and a cylinder connection device compatible with
the connection for outdoor cooking appliances.
The LP gas cylinder must be provided with a shut-off valve
terminating in the cylinder valve outlet. It must include a
collar to protect the cylinder valve. The cylinder supply
system must be arranged for vapor withdrawal. Do not use
a cylinder that is dented, rusted or has a damaged valve.
(27 mb) WC (water column) and is for use with
Natural gas connection. Natural gas regulator.
IMPORTANT NOTE: Do not operate the outdoor product
indoors or in any enclosed area. When not in use, the gas
must be turned off at the LP gas cylinder. If the outdoor
product is to be stored indoors, disconnect the cylinder
and leave it outdoors.
Page 12
Outdoor Grill Installation 12
REGULATOR
REAR GAS
CONNECTION
BOTTOMGAS
CONNECTION
SHUT-OFF
VALVE
FROM GAS
SUPPLY
REGULATOR
TO GRILL
ADAPTER
CLOSE
NIPPLE
VENT
LP TANK
RETENTION SCREW
GRILL
COUPLING
COUPLING
NUT
LP GAS
CYLINDER
REGULATOR
VENT
TO GRILL
LP Gas Installations

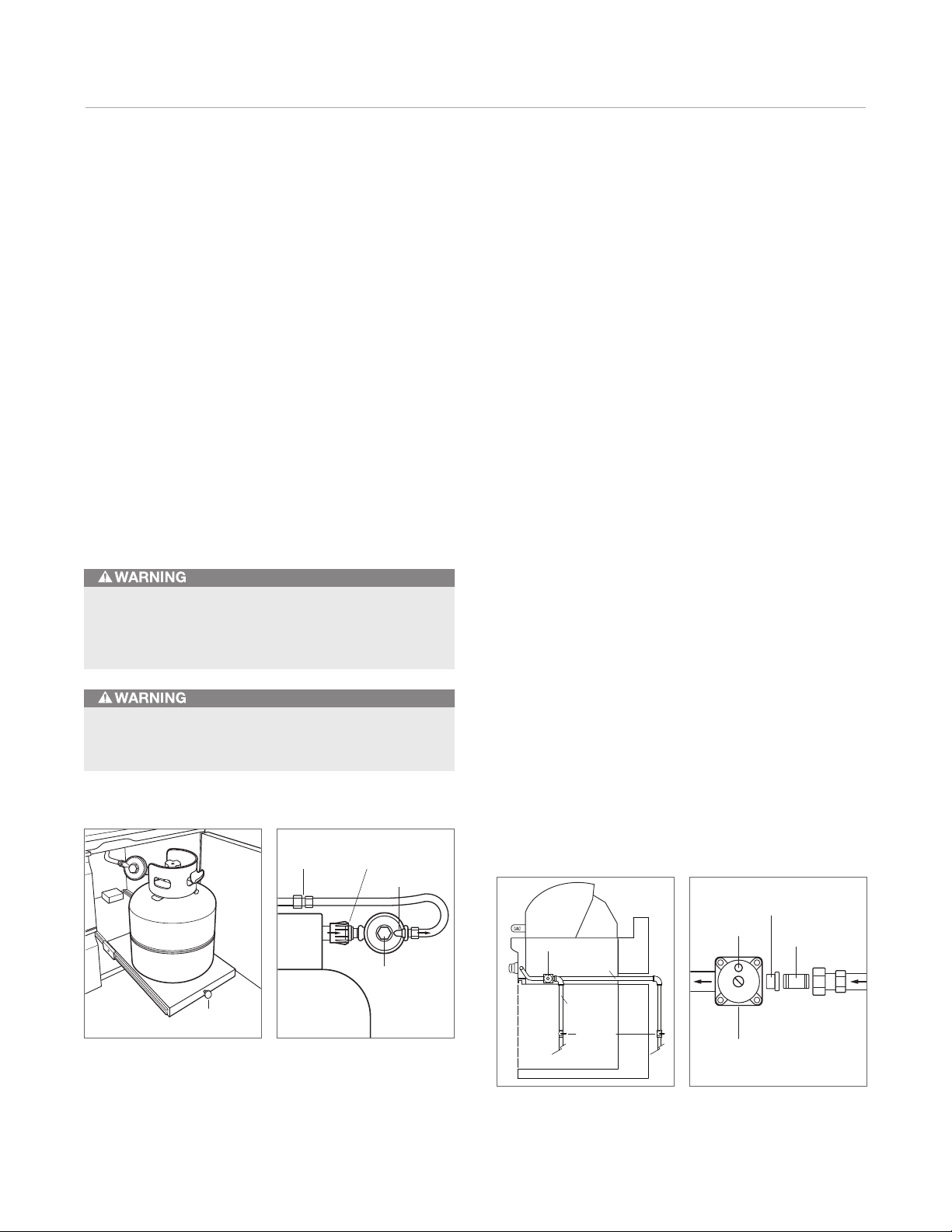

PORTABLE LP CONNECTION WITH TANK
1) Connect the3/8" flare end of the hose to the unit
coupling. Do not apply pipe sealant to the flare
connection.
2) Install the LP gas cylinder, pull out the shelf and place
the cylinder on it.
3) Check to ensure that the gas valve on top of the
cylinder is closed.
4) Connect the LP gas regulator to the cylinder and handtighten only. Open the cylinder valve. Check for gas
leaks as described on the following page.
5) Tighten the LP tank retention screw to secure the
cylinder to the shelf.
Always check for gas leaks after changing the LP gas
cylinder. Do not place more than one LP gas cylinder in
an enclosure at one time.
The LP pressure regulator and hose supplied with the
outdoor product must be used without alteration.
WHOLE HOUSE LP GAS CONNECTION
The LP gas pressure regulator is not provided. It can be
purchased from your authorized Wolf dealer. For local
dealer information, visit the find a showroom section of
our website, wolfappliance.com.
The LP regulator is set for 11"
(27 mb) WC (water column)
and is for use with LP only.
LP GAS SAFETY REQUIREMENT
This gas appliance and its individual shut-off valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures greater than .5 psi
(3.5 kPa).
This gas appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during pressure testing of the gas supply piping system at test pressures equal to or less than .5 psi
(3.5 kPa).
LP GAS CONNECTION
A typical LP gas installation is shown in the illustrations
below. Make sure that the gas pressure regulator(s)
supplied with the outdoor product is used and installed
with the arrow on the regulator pointing towards the unit.
Do not use a replacement regulator other than that specified by Wolf. Use only gas piping that is approved for use
with natural and LP gases.
Grill cart pull-out shelf. LP gas cylinder connection.
LP gas connection. LP gas regulator.
Page 13
Outdoor Grill Installation 13
wolfappliance.com
Gas Leak Testing
IMPORTANT NOTE: N
without first testing the gas line connections for gas leaks.
Perform a gas leak test each time the LP gas cylinder is
connected to the regulator and any time part of the gas
system is disconnected or replaced. This applies to
natural gas as well as LP gas. Perform a leak test at least
once each year whether the LP gas cylinder has been
disconnected or not.
IMPORTANT NOTE: To prevent fire or explosion hazard,
do not smoke or permit sources of ignition in the area
while performing a leak test. Perform the gas leak test
outdoors in a well ventilated area.
Have a dealer check the LP gas cylinder for deterioration
when the tank is filled in accordance with regulations.
Immediately replace the cylinder if any deterioration is
found.
DO NOT use an open flame to check for gas leaks.
Use of an open flame could result in a fire, explosion
and bodily harm.
ever use the outdoor product
GAS LEAK TESTING PROCEDURE
1) Prepare a leak testing solution of soapy water by
combining a mixture of half liquid soap and half water
in a spray bottle.
2) Verify that all control knobs are in the OFF position.
3) Turn the cylinder valve knob counterclockwise one turn
to open.
4) Apply the leak testing solution by spraying on the pipe
joints, fittings and hose. Bubbles in the soap and water
solution indicate that a gas leak is present.
5) Stop the leak by tightening the loose joint or by
replacing the faulty part with a replacement part
recommended by the Wolf. Do not attempt to repair the
cylinder valve if it should become damaged. The
cylinder must be replaced.
6) If you are unable to stop the leak, shut off the gas
supply at the cylinder valve. Remove the LP gas
cylinder. Call Wolf factory certified service. Do not use
the outdoor product until the leak has been fixed.
7) Push in and turn any control knob to the ON position to
release pressure in the hose and manifold.
8) Turn the control knob to the OFF position.
Page 14
Outdoor Grill Installation 14
FLASH TUBE
Outdoor Grill Assembly
olf outdoor products are produced fully assembled and
W
tested in the factory and require no major assembly in the
field. For the purpose of safe shipping and transit, some
parts such as the briquette trays, warming rack and rotisserie components are wrapped inside the grill and require
minor assembly.
Remove all packaging materials, labels and protective
plastic film from the grill.
IMPORTANT NOTE: Do not leave the grill or grill cart in the
sun with the protective plastic film on for an extended
period or it may be difficult to remove.
Verify that all grill components are included: control knobs,
burner grates, large and small briquette tray assemblies,
rotisserie motor with bracket, spit rod and meat forks,
natural gas or LP gas regulator, basting pan, warming rack
and smoker box assembly.
TO INSTALL BRIQUETTE TRAYS
1) Place the briquette trays into the grill above the
burners with the flash tube at the front as shown in the
illustration below.
Install Grill to Cart
olf portable grill carts are available to fit Wolf outdoor
W
grill models OG30, OG36 and OG42.
1) In a cart application, two mounting screws are
provided at the bottom right rear corner of the cart for
the transformer. If not provided, drill two holes using
the transformer box as a template. Install the transformer box.
2) Remove front mounting screws from cart. Place grill
onto cart. Leave enough room at the back right rear of
the cart to make connection to the transformer.
3) Once connection to the transformer is made, slide the
grill back until it is fully engaged with the cart.
4) With grill in position, secure grill to cart with four
screws provided. Mounting holes in the upper back
corners of the grill will align with holes in the cart.
Secure with two screws. Remove the drip tray. Install
two screws through side mounting holes below the grill
front panel and into the cart.
2) Place the burner grates directly above the briquette
trays and make sure the square openings on the grates
are at the front.
Flash tube position.
Page 15
Outdoor Grill Installation 15
REAR
BRACKET
CART PLUG
LOWER SCREW
UPPER
SCREW
SIDE SHELF
FRONT
BRACKET
wolfappliance.com
Install Side Burner to Cart
olf model SB13 side burner can be installed on the right
W
side of any Wolf portable grill cart. For ease of installation,
it is recommended that installation be performed by two
technicians. Gloves should be worn to protect hands.
TOOLS AND MATERIALS REQUIRED
• Phillips screwdriver.
• Set of standard hex wrenches and open end wrenches.
• Alignment tool (provided).
(305) minimum bar clamp.
• 12"
• Crescent wrench for LP gas installation.
REMOVE SIDE SHELF (IF INSTALLED) AND CART PLUG
Lift side shelf so lower front screw is exposed and
1)
remove screw. Refer to illus 1.
2) Lower shelf to down position and remove upper front
screw. Refer to illus 2.
3) Remove side shelf and front bracket. Refer to illus 2.
emove rear screws and bracket. Refer to illus 3.
4) R
5) Remove cart plug from access hole by pushing out
from inside of cart. Refer to illus 3.
6) Side burner is placed inside shroud for shipping. Lift
out to remove side burner from shroud. Refer to illus 4.
Illus 3. Illus 4.
Illus 1. Illus 2.
Page 16
Outdoor Grill Installation 16
SCREWS
SCREWS
REAR LEVER
DRIP TRAY
BUSHING
(INSERT THROUGH
INSIDE OF CART)
SCREWS
SCREWS
Install Side Burner to Cart
REMOVE REAR PANEL, DOOR AND DRIP TRAY
1)
Removing rear panel and door of grill cart will provide
easier access for installation. Remove rear panel by
removing four screws. Refer to illus 5.
2) Remove door by depressing rear lever on each hinge.
Refer to illus 6.
3) Removing grill drip tray will provide easier access for
installation. To remove drip tray, slide forward and lift
out. Refer to illus 6.
INSTALL SHROUD
1)
Push plastic bushing supplied with side burner through
access hole from inside cart. Bushing must be applied
in this direction. Refer to illus 7.
2) Hang shroud by hand-starting four 10-32 machine
screws through the upper slots of the shroud, into the
upper holes of the cart. Do not fully tighten these
screws until proper alignment has been achieved.
Refer to illus 8.
Illus 5. Illus 6.
Illus 7. Illus 8.
Page 17
Outdoor Grill Installation 17
ALIGNMENT
TOOL
SURFACES
FLUSH
UPPER
SCREW
ALIGNMENT
TOOL
SURFACES
FLUSH
UPPER
SCREW
SHOULDER
SCREWS
HEX NUT
(INSIDE CART)
wolfappliance.com
Install Side Burner to Cart
emove alignment tool and tighten two remaining
INSTALL SHROUD
4)
Place shroud alignment tool (provided) with lip placed
in gap between grill and side burner shroud as shown
in illus 9.
5) To properly align front of shroud, push alignment tool
back until center block of alignment tool is flush
against front vertical flange of shroud.
6) Align front of shroud (up and down) with alignment tool
until top of tool is flush with top surface of grill bullnose
(front ledge), and align shroud (front to back) with tool
until front of tool is flush with front of bullnose. Tighten
upper front 10-32 machine screw. Refer to illus 9.
7) Remove alignment tool from front of shroud and
replace at rear of shroud. Align rear of shroud (up and
down) with tool until top of tool is flush with top
surface of grill. Tighten upper rear 10-32 machine
screw. Refer to illus 10.
8) R
10-32 machine screws to slots just below the upper
screws.
9) Install two
5
/16x3/8 hex drive shoulder screws into
lower holes of shroud and through cart. Place two
1
/4–20 hex nuts from inside of cart and tighten. Refer
to illus 11.
IMPORTANT NOTE: Verify with alignment tool that front
of shroud did not move out of alignment. Realign if
necessary.
Illus 9. Illus 10.
Illus 11.
Page 18
Outdoor Grill Installation 18
ACCESS HOLE
HOLES
ALIGN
REAR
SCREWS
Install Side Burner to Cart
IMPORTANT NOTE: F
or natural gas installations, the gas
line connection must be made before installing the side
burner. Refer to page 20.
INSTALL SIDE BURNER
1)
Place side burner into shroud as shown in illus 12.
Guide flexible gas line and wire harness into cart
access hole. Alignment of unit should be verified at this
point, prior to attaching side burner to shroud. Refer to
alignment tips on the following page if desired alignment is not achieved.
2) Using a minimum 12" (305) bar clamp with protected
ends to avoid damage to stainless steel, place bar
clamp just behind bullnose on fire box and under
shroud. Do not include any part of bullnose within bar
clamp. Refer to illus 13.
ompress bar clamp until hole in bullnose aligns with
3) C
threaded hole in shroud. Alignment and placement of
this screw is very important to alignment and squareness of side burner. Refer to illus 14.
4) Attach side burner to shroud by first placing 8-32 hex
cap screw into right side of front underside of bullnose
and into shroud as shown. Then, place the left side hex
cap screw. Tighten both screws and remove bar clamp.
5) At rear of unit, push side burner toward grill to estab-
lish proper gap at rear. Loosen rear grill cart screws
and shift grill if necessary to achieve proper gap.
Attach two 8-18 pan head (sharp tip) screws into the
rear of the side burner and shroud as shown in illus 15.
Refer to alignment tips on the following page if desired
alignment is not achieved.

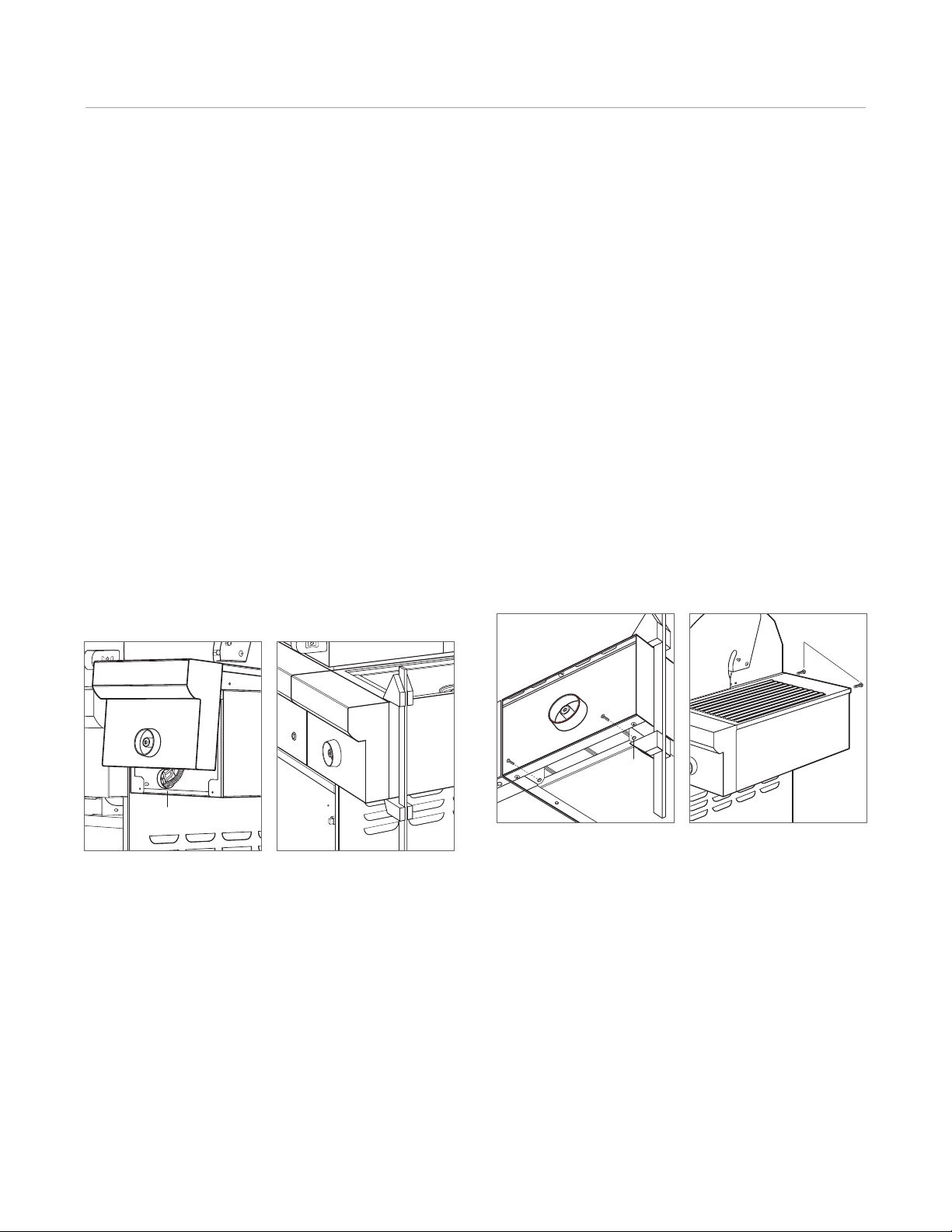

Illus 12. Illus 13.
Illus 14. Illus 15.
Page 19
Outdoor Grill Installation 19
UNPOPULATED
CONNECTORS
wolfappliance.com
Install Side Burner to Cart
ALIGNMENT TIPS
IMPORTANT NOTE:
There can be minimal variation in the
manufacturing process of these outdoor products, so the
alignment tool will not be precise in all applications.
• If side burner does not align front to back, remove unit,
loosen shroud screws and bolts and check with alignment tool. Nudge side burner forward or backward to
establish proper alignment. Verify that alignment up
and down is still accurate. Tighten screws and bolts.
Check alignment and adjust again, if necessary.
• If side burner does not align up and down near front of
unit, loosen hex cap screws under bullnose, lift up or
push down on unit to achieve desired alignment and
tighten screws.
• If side burner does not align up and down near rear of
unit, loosen pan head screws at rear of unit, lift up or
push down on unit to achieve desired alignment and
tighten screws.
• If side burner does not align side to side, loosen hex
cap screws under bullnose and pan head screws at
rear of unit. Push in or pull out on side burner to
achieve desired alignment. If necessary, loosen screws
at rear of grill where grill attaches to cart and align grill
with side burner. Tighten screws.
ELECTRICAL CONNECTION
1)
Depending on the serial number of the grill, there may
be one or two connectors near the front of the grill just
above the manifold. Refer to auxiliary harness section
for serial numbers. Locate the connector(s) by looking
above the manifold near the front of the grill.
2) Remove the unpopulated connector housing(s) from
the wire harness(es) coming from the grill as shown in
illus 16.
3) Attach the appropriate connector housing(s) from the
side burner to the grill. Refer to illus 17. If only one
connector is found on the grill, refer to the auxiliary
harness section for assembly of the second connector
housing.
Illus 16.
Illus 17.
Page 20
Outdoor Grill Installation 20
FLARE
SWIVEL
LP GAS
REGULATOR
FLARE TEE
FLEXIBLE
GAS LINE
GRILL
MANIFOLD
Install Side Burner to Cart
GAS LINE CONNECTION (LP GAS)
1)
Connect 2-stage LP gas regulator to flare tee at
location shown. Connect flare swivel connector to one
end of flare tee. Refer to illus 18.
2) Connect this assembly to flexible gas line coming into
grill cart from side burner as shown illus 19.
3) Connect this assembly to grill manifold at flare swivel
connector as shown illus 19.
4) Reinstall rear panel and door of grill cart. Reposition
grill drip tray. Place burner cap on burner head, place
grate on burner pan and affix knob to bezel with bezel
nylon liner.
GAS LINE CONNECTION (NATURAL GAS)
1)
Split high pressure natural gas line into two lines, one
to attach to outdoor grill natural gas regulator and one
to attach to side burner via flexible line and
1
/2" NPT
adapter. Make sure that flexible gas line is placed
through cart access hole. Attach flexible line to side
burner regulator at pipe elbow. Elbow may be rotated
to face downward for larger adapters. Do not rotate
elbow upward. Refer to illus 20.
Illus 18. Illus 19.
Illus 20.
Page 21
Outdoor Grill Installation 21
wolfappliance.com
Install Side Burner to Cart
AUXILIARY HARNESS (IF APPLICABLE)
If you purchased a Wolf outdoor grill with serial number
listed below, you will have received an auxiliary harness. If
this harness has not been provided with your side burner,
contact Wolf customer care 800-222-7820.
Auxiliary Harness
GRILL PRIOR TO SERIAL NUMBER
Model OG30 11364339
Model OG36 11363946
Model OG42 11363911
1) If still installed, rear panel of cart must be removed to
install auxiliary harness. Remove rear panel by
removing four screws. Refer to illus 5 on page 16.
2) With wire ties provided, attach auxiliary harness to fire
box fin or existing wire harness. 4-pin connector
cluster should be placed facing rear of grill and 2-pin
connector should be placed facing front. Harness must
be tied down tightly and must not touch grill fire box.
Refer to illus 21.
f connected, disconnect transformer 4-pin connector
3) I
at rear of grill. Attach one of 4-pin connectors to 4-pin
connector attached to grill. Attach other 4-pin connector to 4-pin connector from transformer.
4) Remove unpopulated connector housing from wire
harness coming from grill. Insert each connector
housing from side burner harness to corresponding
housing on grill harness and on auxiliary harness.
There are two connections to be made. Refer to illus 16
and 17 on page 19.
5) Reinstall rear panel of cart.

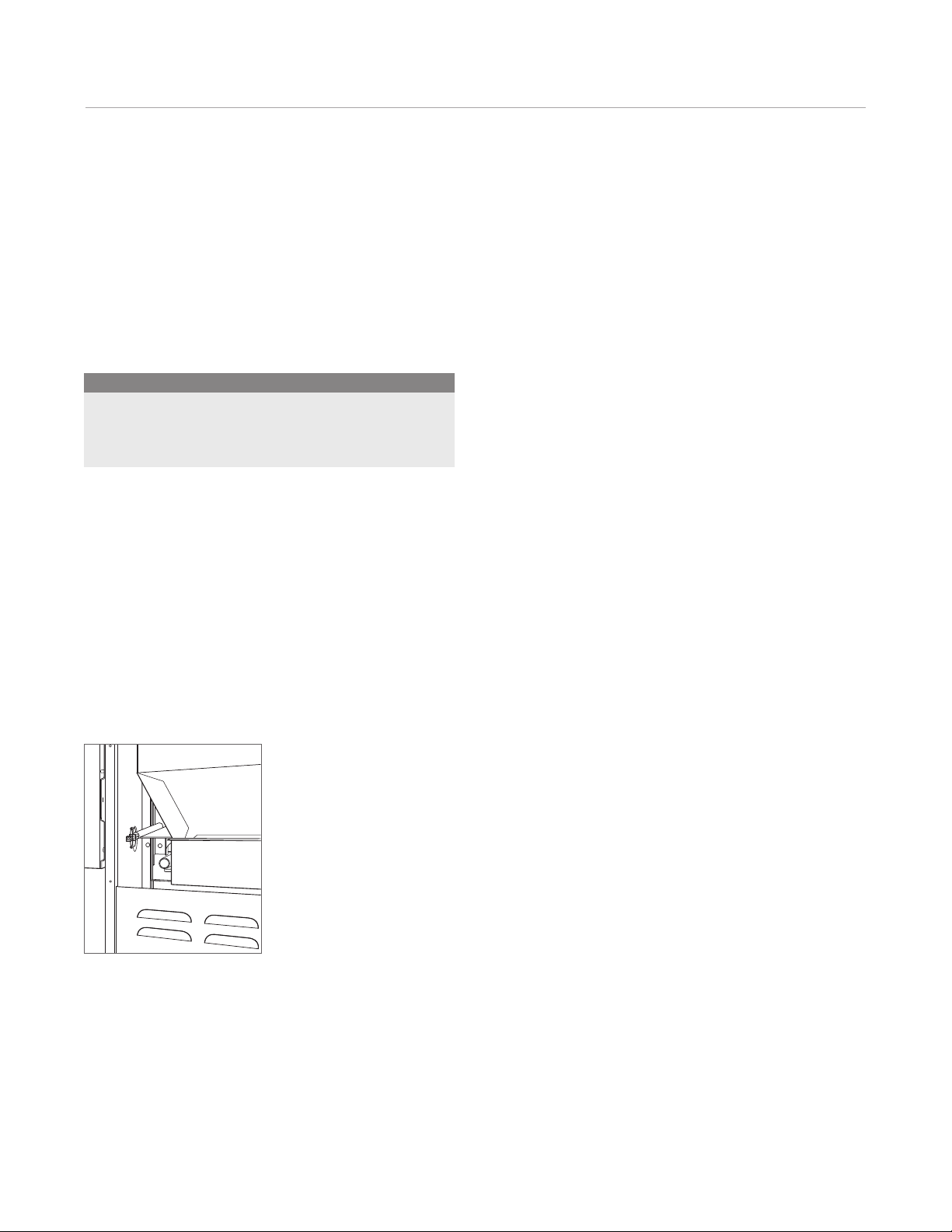

Illus 21.
Page 22
Outdoor Grill Installation 22
Installation Checklist
IMPORTANT NOTE: T
tion, the following checklist should be completed by the
installer to ensure that no part of the installation has been
overlooked.
Any questions or problems about the installation should
be directed to your authorized Wolf dealer or Wolf
customer care at 800-222-7820. You can also visit our
website at wolfappliance.com.
All packaging material has been removed.
Specified clearances to combustible materials have
been maintained.
All burners light properly, individually and with adjacent
burners lit.
All flames appear normal.
The drip tray slides freely and is properly placed.
The correct gas pressure regulator is connected for
natural or LP gas and set according to specifications
on page 11.
o ensure a safe and proper installa-
Troubleshooting
IMPORTANT NOTE: I
operate properly, follow these troubleshooting steps:
• Verify that gas is being supplied to the grill.
• Check the gas supply and electrical connections to
ensure that the installation has been completed
correctly.
• Check that control knobs are turned to the ON position
and held in to active the igniters.
• Follow troubleshooting procedures as described in the
Wolf outdoor gas grills use & care guide.
• If the outdoor grill still does not operate properly,
contact Wolf factory certified service. Do not attempt
to repair the grill yourself. Wolf is not responsible for
service required to correct a faulty installation.
Be sure to disconnect the electrical and gas supply
before servicing.
f the outdoor gas grill does not
The LP gas cylinder is in an upright position and the
hose is not kinked.
The outdoor product has been tested and is free of any
gas leak.
The homeowner has been informed of the gas supply
shut-off valve location.
Page 23
Service Information 23
wolfappliance.com
Service Information
f service is necessary, maintain the quality built into your
I
outdoor grill by contacting Wolf factory certified service.
For the name and number of Wolf factory certified service
nearest you, check the contact & support section of our
website, wolfappliance.com or call Wolf customer care at
800-222-7820.
When calling for service, you will need the model and
serial numbers of the outdoor product. Both numbers are
listed on the product rating plate. For the outdoor grill, the
rating plate is located above the drip tray, behind the logo.
The drip tray must be removed to view the rating plate.
For the burner module and side burner, the rating plate is
located under the bullnose on the right side. Refer to the
illustrations.
Outdoor grill. Burner module and side
RATING PLATE
burner.
ATING PLATE
R
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero &
Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. (collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Page 24
WO LF AP PLIAN CE, IN C. P. O . BOX 4 4848 MA DISON , W I 5374 4 WOL FAPPLI ANCE. COM 80 0.222 .7820
821 556 RE V-A 5/ 2012
Loading...
