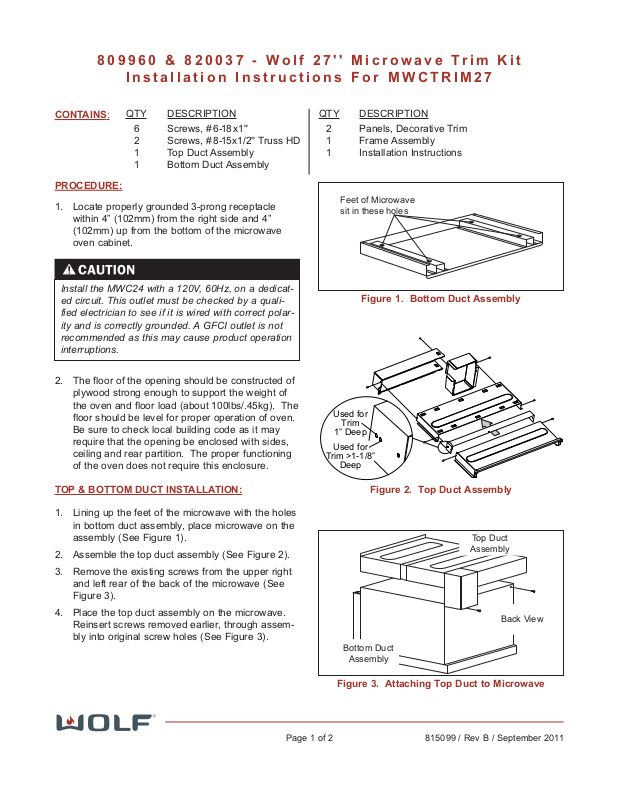

809960 & 820037 - Wolf 27'' Microwave Trim Kit
Installation Instructions For MWCTRIM27
815099 / Rev B / September 2011
PROCEDURE:
1. Locate properly grounded 3-prong receptacle
within 4” (102mm) from the right side and 4”
(102mm) up from the bottom of the microwave
oven cabinet.
2. The floor of the opening should be constructed of
plywood strong enough to support the weight of
the oven and floor load (about 100lbs/.45kg). The
floor should be level for proper operation of oven.
Be sure to check local building code as it may
require that the opening be enclosed with sides,
ceiling and rear partition. The proper functioning
of the oven does not require this enclosure.
T
OP & BOTTOM DUCT INSTALLATION:
1. Lining up the feet of the microwave with the holes
in bottom duct assembly, place microwave on the
assembly (See Figure 1).
2. Assemble the top duct assembly (See Figure 2).
3. Remove the existing screws from the upper right
and left rear of the back of the microwave (See
Figure 3).
4. Place the top duct assembly on the microwave.
Reinsert screws removed earlier, through assembly into original screw holes (See Figure 3).
CONT
AINS:
QTY DESCRIPTION
6 Screws, #6-18x1''
2 Screws, #8-15x1/2'' Truss HD
1 Top Duct Assembly
1 Bottom Duct Assembly
Page 1 of 2
QTY DESCRIPTION
2 Panels, Decorative Trim
1 Frame Assembly
1 Installation Instructions
Install the MWC24 with a 120V, 60Hz, on a dedicated circuit. This outlet must be checked by a qualified electrician to see if it is wired with correct polarity and is correctly grounded. A GFCI outlet is not
recommended as this may cause product operation
interruptions.
Feet of Microwave
sit in these holes
Figure 1. Bottom Duct Assembly
Figure 2. Top Duct Assembly
Used for
Trim
1” Deep
Used for
Trim >1-1/8”
Deep
Figure 3. Attaching Top Duct to Microwave
Bottom Duct
Assembly
Back View
Top Duct
Assembly
809960 & 820037 - Wolf 27'' Microwave Trim Kit
Installation Instructions For MWCTRIM27
815099 / Rev B / September 2011
Top Duct
Assembly
Bottom Duct
Assembly
Frame Assy
Figure 4. Placing Microwave in Cabinet Cutout
Page 2 of 2
5. Place the microwave oven adjacent to the wall or
cabinet opening. Plug power cord into outlet.
6. Carefully guide the completed assembly between
the bottom cleats and push the assembly back.
Slide the assembly approximately 1/4'' to the right
of the center of cabinet opening to allow proper
cleanrance for microwave door to open and close.
When both top and bottom ducts are assembled
and correctly placed, their flanges will be tight
against the top and bottom outer edge of opening
(See Figure 4).
7. Secure bottom duct assembly using the two #8-15
x 1/2'' screws.
NOTE: Verify that the power cord is not pinched
between the oven and the wall.
8. Attach the frame assembly directly to the cabinet
frame, using four #6-18 x 1'' wood screws. The
inside edges of side frames should coincide with
the edges of the cabinet cutout (See Figure 5).
NOTE: Always be sure to pre-drill a pilot hole
before installing screws to avoid damage to cabinet or trim kit hardware.
NOTE: The flanged side of the frame assembly
should be placed on the left side of the cabinet
opening.
9. Adhere the decorative trim panels to the side
brackets so that they are tight to the side and bottom of the frame (See Figure 6).
Decorative
Trim
Figure 5. Attaching Decorative Trim Panels
Decorative
Trim
(Sits tight to
side and bottom
of frame)
Figure 6. Decorative Trim / Frame Assembly
