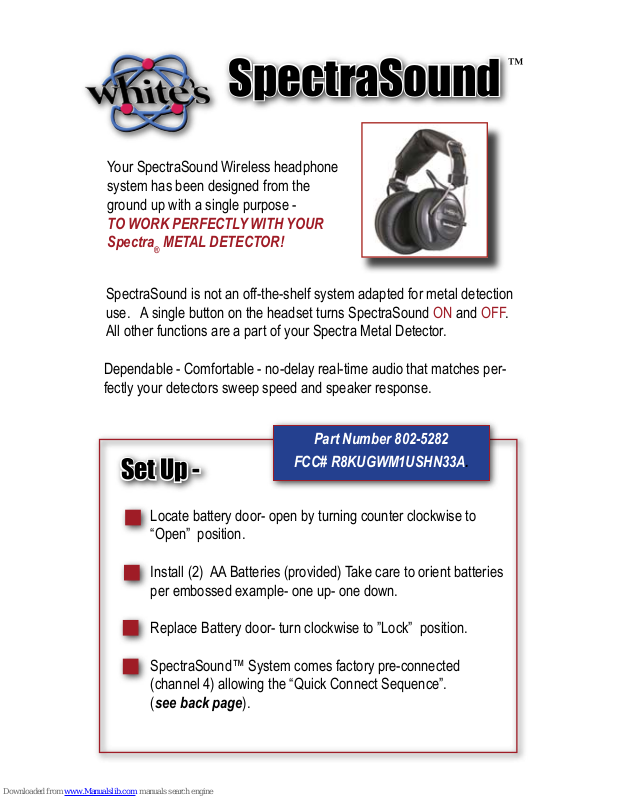

Your SpectraSound Wireless headphone
system has been designed from the
ground up with a single purpose -
TO WORK PERFECTLY WITH YOUR
Spectra® METAL DETECTOR!
Locate battery door- open by turning counter clockwise to
“Open” position.
Install (2) AA Batteries (provided) Take care to orient batteries
per embossed example- one up- one down.
Replace Battery door- turn clockwise to ”Lock” position.
SpectraSound™ System comes factory pre-connected
(channel 4) allowing the “Quick Connect Sequence”.
(see back page).
SpectraSound
Set Up -
SpectraSound is not an off-the-shelf system adapted for metal detection
use. A single button on the headset turns SpectraSound ON and OFF.
All other functions are a part of your Spectra Metal Detector.
Dependable - Comfortable - no-delay real-time audio that matches perfectly your detectors sweep speed and speaker response.
Part Number 802-5282
FCC# R8KUGWM1USHN33A.
™
When selecting a channel other than Channel 4,
an ENABLE/CONNECT sequence is required -
Select Wireless Headphones and press ENTER.
1. Press ENTER to Enable “X” in box” (turn on) Wireless Headphone
transmitter.
2. Press Wireless Headphone Power Button to turn ON Wireless
Headphone.
3. If there is significant wireless channel interference, the built in
speaker will occasionally sound. A different Wireless channel should
be considered. To avoid cross talk between additional V3 detectors
with Spectrasound headphones, set each to a different wireless
channel.
4. Connect Sequence “AFTER CHANNEL CHANGE” – MENU/TAB to
Connect, Press ENTER, Hold Power button on Wireless Headphone,
beep-BEEP, beep-BEEP, and display prompts indicates connection
made, squeeze and release trigger to search with wireless activated.
5. CHANNEL SELECTING a different wireless channel to overcome any
local wireless interference.
• Arrow down to Channel, Select (arrow left & right) to find
a Channel free of interference. Color Bar indicates level
of external interference for each channel choice. Green
representing clear channel, Red representing external
interference. Ideally, select the channel with the largest
portion of green within the bar.
6. POWER LEVEL is provided to drive the headphone transmitter with
enough power to overcome any reasonable distance or wireless
signal resistance. Arrow down to Power Level, Select (arrow left &
More on SpectraSound™
right) a power level strong enough to provide quality sound. In-field
operation at power levels less than 5 are not recommended.
7. When Monitor Battery Speaker is selected “X” interference in wire
less data for any reason will cause the built in speaker to sound.
When Monitor Battery Speaker is not selected “empty box”, built in
speaker will never sound. Plug-in headphones and wireless head
phones (enabled) continue to operate normally.
Spectra V3 will also provide Wireless battery voltage -
• Press MENU twice, Arrow down to Expert and press ENTER.
• Arrow down to Information, press ENTER.
• Note Wireless Voltage, at least 2 + volts.
• Wireless will operate between 2 - 3+ volts. Under 2 volts
wireless performance becomes uncertain.
For more information on SpectraSound system,
including connecting to two or more headphones, please see the
“Complete Owner’s Guide”.
TROUBLESHOOTING -
Substandard wireless sound, or built-in Speaker beeps when
Wireless are used.
• Select a different wireless channel.
• Increase Wireless Power
• Turn OFF Monitor Speaker.
• Check Wireless Battery.
• See above voltage - replace as needed.
Channel
Power
Level
Wireless Headphone - Quick Connect
• Select Audio or Zoom Audio
• to Wireless Headphone. Press
• Press to enable x
• Press headphone power button.
• Headphone is connected within five seconds
when you hear... .
Headphones automatically turn off with the detector. To manually
turn OFF headphones, press headphone power button. You will
hear
Audio Zoomed
• Trigger to search.
Quick Connect Sequence -
Quick Connect -
The metal detector speaker will connect within ten seconds.
More options available in “Complete Owner’s Guide”.
- SpectraSound™ Headphones Manufactured in
Sweet Home, Oregon USA
P/N 621-0513 Printed in USA 3/09
