Whirlpool SC 8630 User Manual
IMPORTANT:
Read and save
these instructions.
IMPORTANT:
Installer: Leave Installation Instructions
with the homeowner,
Homeowner: Keep Installation Instructions
for future reference.
Save Installation Instructions for local
electrical inspector’s use.
Note: This cookop is manufactured for use with Natural
gas. To convert for use with L.P./Propane gas
requires Kit No. 4372174 (for use with model
SC 8630 EB series only), available from your
Whirlpool dealer or authorbed parts drstributor.
Part No, 202887-l 100 Rev. 3/4372169 Rev. C
Sealed Burner
Cooktop

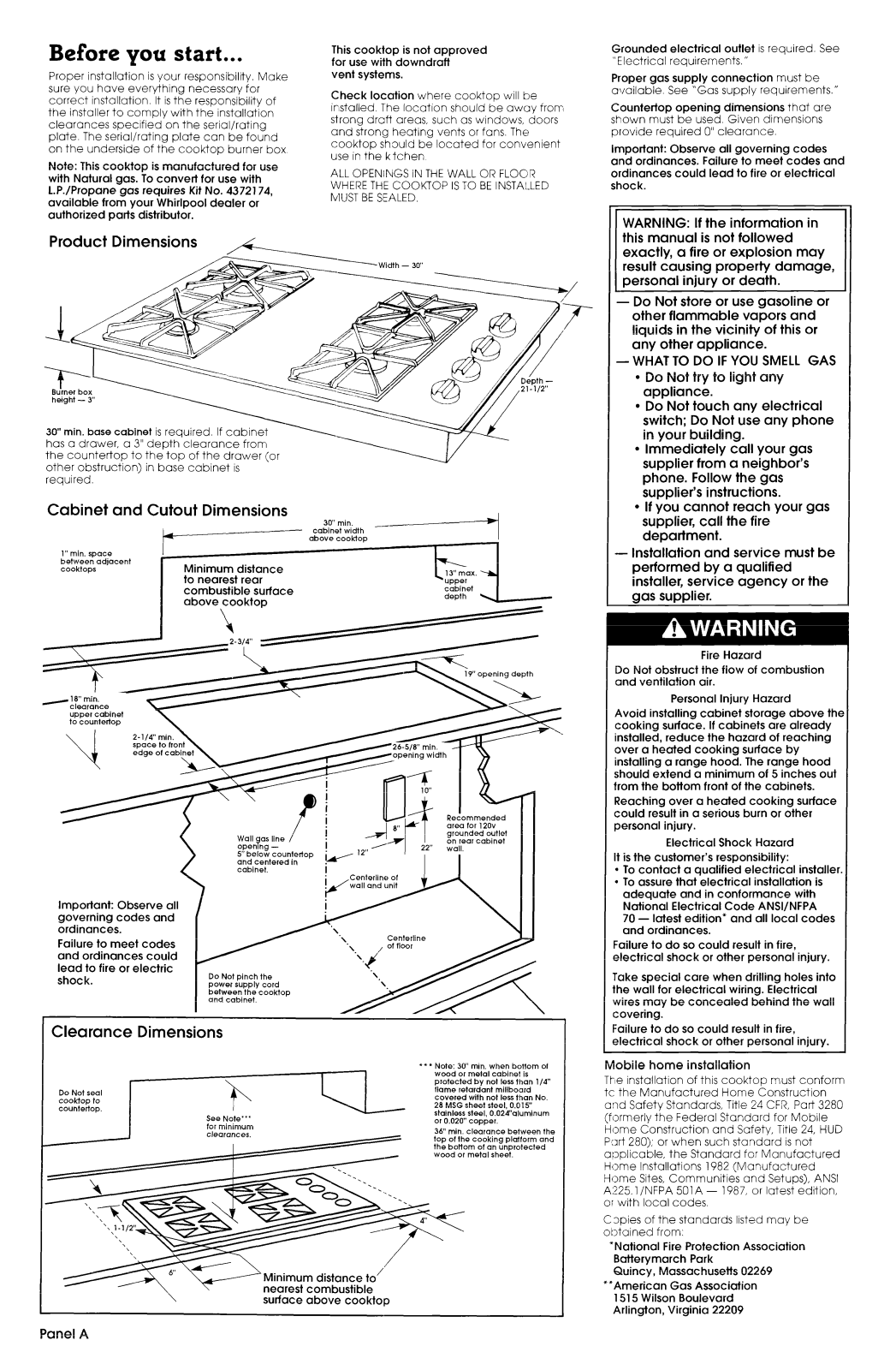

Before you start...
Proper installation is your responsibility. Make
sure you have everything necessary for
correct installation. It is the responsibility of
the installer to comply with the installation
clearances specified on the serial/rating
plate. The serial/rating plate can be found
on the underside of the cooktop burner box
Note: This cooktop is manufactured for use
with Natural gas. To convert for use with
L.P./Propane gas requires Kit No. 4372174,
available from your Whirlpool dealer or
authorized parts distributor.
Product Dimensions
height - 3”
30” min. base cabinet
has a drawer, a 3” depth clearance from
the countertop to the top of the drawer (or
other obstruction) in base cabinet is
required.
Cabinet and Cutout Dimensions
1” min. space
between adjacent
cooktops
is required. If cabine
Minimum distance
to nearest rear
combustible surface
above cooktop
I
This cooktop is not approved
for use with downdraft
vent systems.

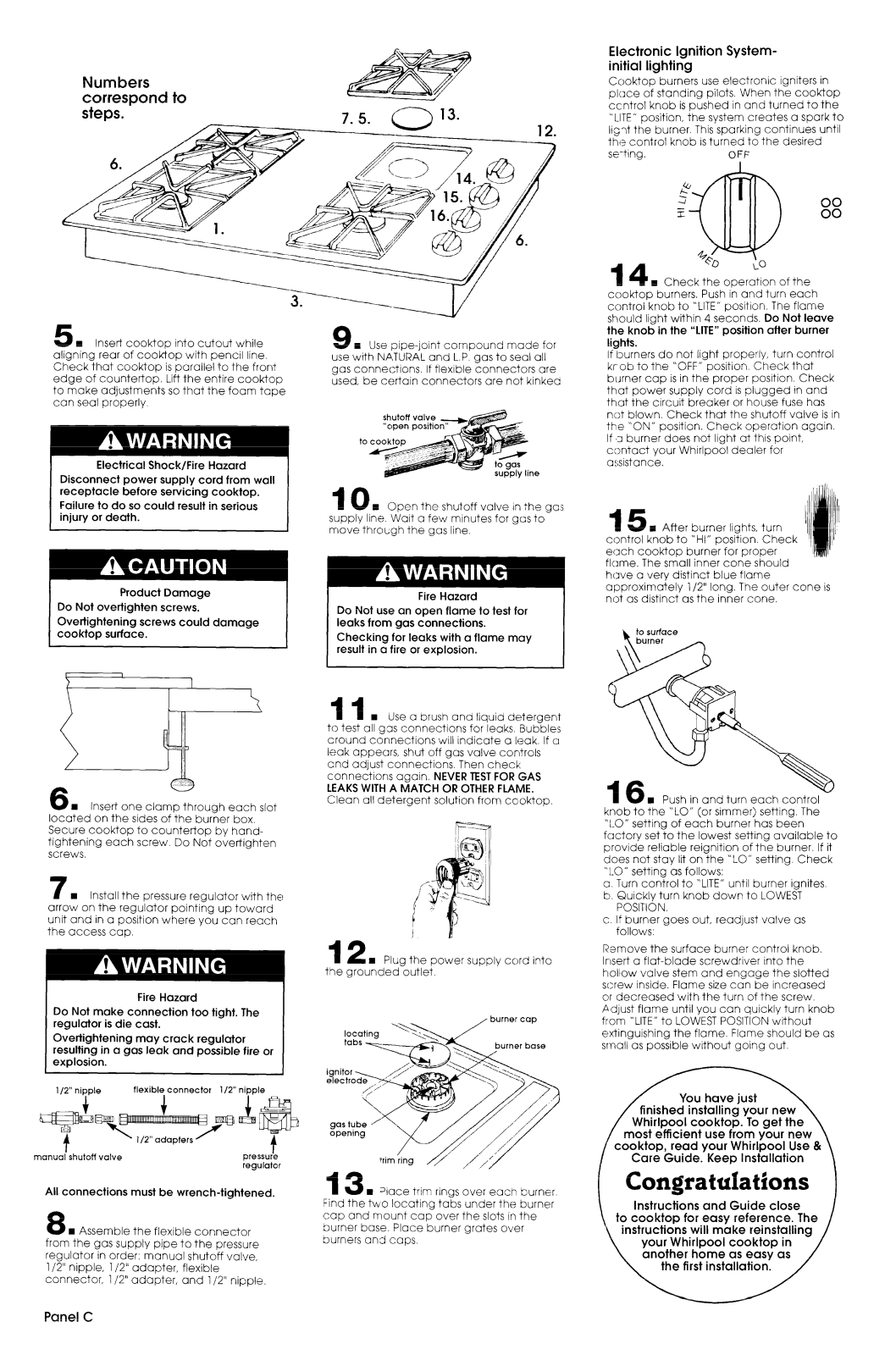

Check location where cooktop will be
installed. The location should be away frorri
strong draft areas, such as windows, doors
and strong heating vents or fans. The
cooktop should be located for convenient
use in the ktchen
ALL OPENINGS IN THE WALL OR FLOOR
WHERE THE COOKlOP IS TO BE INSTALLED
MUST BE SEALED.
-Width - 30”
30” min.
-_)
13” max.
-UDDer
p&d
\I
-

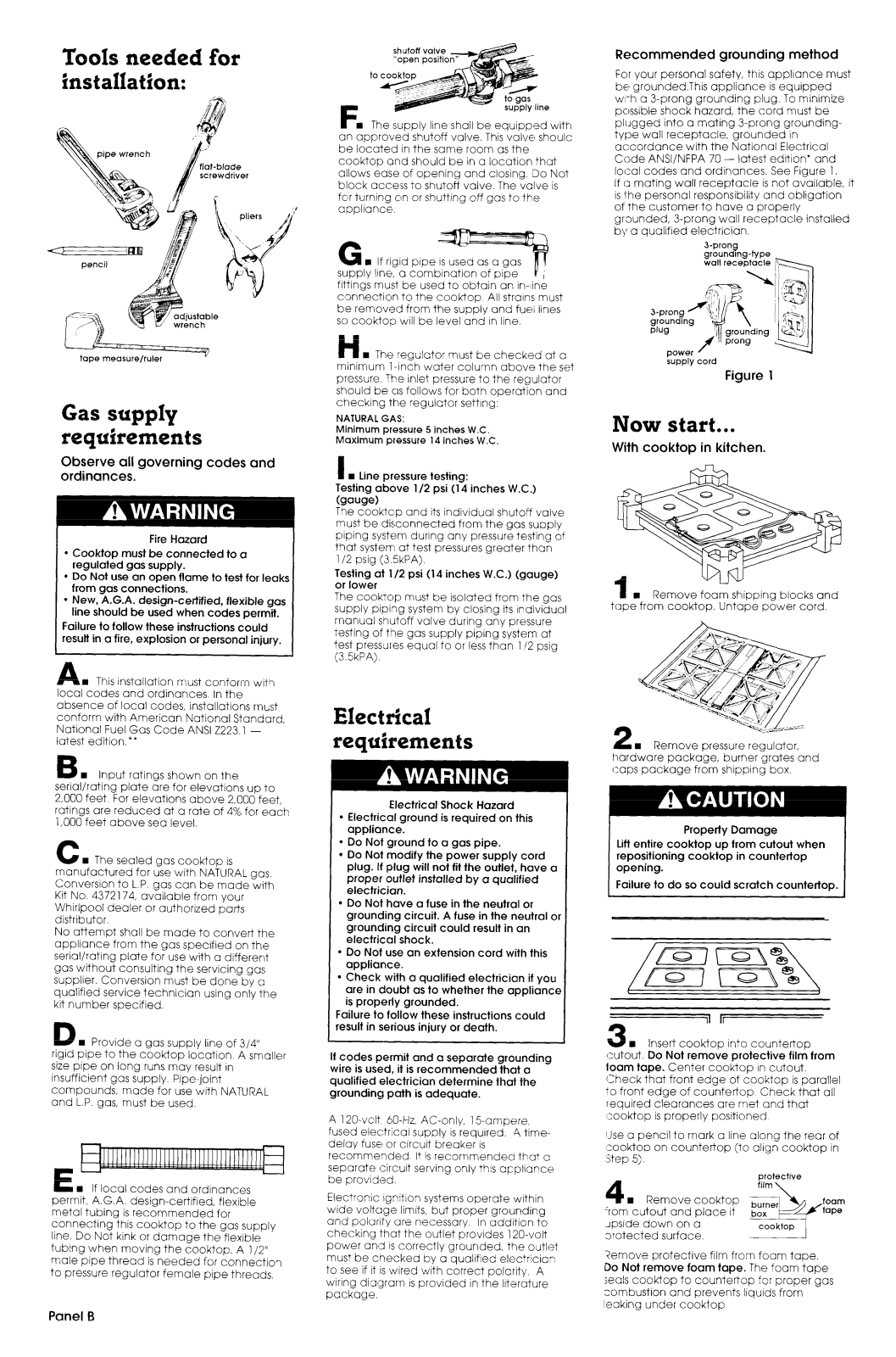

Grounded electrical outlet is required. See
“Electrical requirements.”
Proper gas supply connection must be
available. See “Gas supply requirements.”
Countertop opening dimensions that are
shown must be used. Given dimensions
provide required 0” clearance.
Important: Observe all governing codes
and ordinances. Failure to meet codes and
ordinances could lead to fire or electrical
shock.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
- Do Not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
l
Do Not try to light any
appliance.
l
Do Not touch any electrical
switch; Do Not use any phone
in your building.
l
Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
l
If you cannot reach your gas
supplier, call the fire
department.
- Installation and service must be
performed by a qualified
installer, service agency or the
gas supplier.
Important: Observe all
governing codes and
ordinances.
Failure to meet codes
and ordinances could
lead to fire or electric
shock.
nn Nnt ninrh +hn
-- ,.-. r”‘“” ,,,_
power supply cord
I
between the cooktoo
and cabinet.
I
Clearance Dimensions
19” opening depth
Fire Hazard
Do
Not obstruct the flow of combustion
and ventilation air.
Personal Injury Hazard
Avoid installing cabinet storage above thi
cooking surface. If cabinets are already
installed, reduce the hazard of reaching
over a heated cooking surface by
installing a range hood. The range hood
should extend a minimum of 5 inches out
from the bottom front of the cabinets.
Reaching over a heated cooking surface
could result in a serious burn or other
personal injury.
Electrical Shock Hazard
It is the customer’s responsibility:
l To contact a qualified electrical installer
l To assure that electrical installation is
adequate and in conformance with
National Electrical Code ANSI/NFPA
latest edition’ and all local codes
70 and ordinances.
Failure to do so could result in fire,
electrical shock or other personal injury.
Take special care when drilling holes into
the wall for electrical wiring. Electrical
wires may be concealed behind the wall
Eovering.
-ailure to do so could result in fire,
electrical shock or other personal injury.
Panel A
surface above cooktop
*** Note: 30” min. when bottom 01
36” min. clearance between the
wood or metal sheet
Mobile home installation
TFle installation of this cooktop must conform
tc the Manufactured Home Construction
and Safety Standards, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD
Pr~rt 280); or when such standard is not
applicable, the Standard for Manufactured
Home Installations 1982 (Manufactured
Home Sites, Communities and Setups), ANSI
A225 1 /NFPA 501 A - 1987, or latest edition,
or with local codes.
Copies of the standards listed may be
obtained from:
*National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
**American Gas Association
1515 Wilson Boulevard

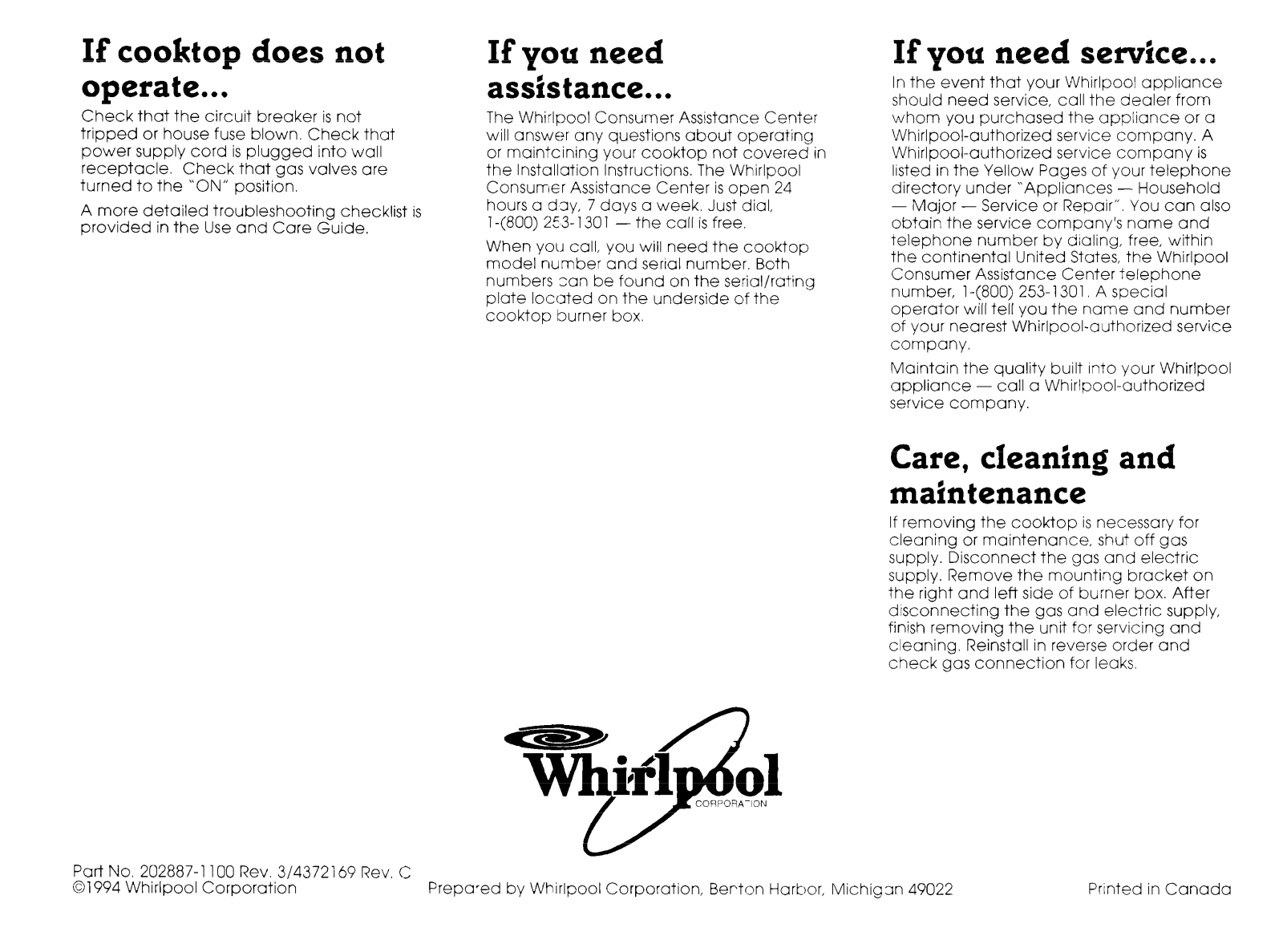

Arlington, Virginia 22209
