Whirlpool SB130PER User Manual

use&care guide

Whirlpool

BUILT-IN
GAS OVEN

Model SB130PER

rowave Ovens, Trash Compactors, Room Air Conditioners, Dehumidifiers. Automatic Washers, Clothes Dryers. Freezers. Refrigerator-Freez

Contents
Before You Use Your Oven

Important Safety Instructions . 3
Parts and Features

Using Your Oven

Setting the Clock
Using the Minute Timer

Using the Oven Control........ . 7

Baking

Broiling ..............................

Using the Automatic
MEALTIMER* Clock
Oven Vent

Caring for Your Oven

...............................

...................

......................

.................

.............

.............................

...............

©1986 Whirlpool Corporation

__

........

Page
. 2

. 5
. 6
. 6
. 6

. 7
. 8

. 8
. 10
. 10

Control Panel.......................

Oven Door............................

Continuous-Cleaning Oven
Cleaning Chart

Changing the Oven Light .
If You Need Service or

Assistance...............................

1. Before Calling for
Assistance

2. If You Need Assistance .

3. if You Need Service

4. If You Have a Problem ..

....................

.......................

........

Page
. 10

. 11
. 11
. 13

. 14

. 14

. 14

. 15

. 15

. 15

*Tmk.

Before you use your oven

Read and carefully follow the “INSTALLATION INSTRUCTIONS’’ packed
with your oven.

Read this Use & Care Guide and the Cooking Guide for important safety
information.

• FOR YOUR SAFETY •

TO PREVENT FIRE AND
EXPLOSION, DO NOT
STORE OR USE
GASOLINE OR OTHER

FLAMMABLE VAPORS
AND LIQUIDS IN THE
VICINITY OF THIS OR
ANY OTHER APPLIANCE.

• FOR YOUR SAFETY •

IF YOU SMELL GAS:

1. OPEN WINDOWS.

2. DON’T TOUCH
ELECTRICAL
SWITCHES.

3. EXTINGUISH ANY
OPEN FLAMES.

4. IMMEDIATELY CALL
YOUR GAS SUPPLIER.

• FOR YOUR SAFETY •

DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND

VENTILATION AIR.

You are personally responsible for:

• Reading and following all safety precautions in this Use & Care Guide and
the Cooking Guide.

• Having your oven installed by a qualified installer.

• Having your oven installed and leveled in a wall or cabinet that will hold the
weight.

• Having your oven properly connected to electrical supply and grounded.
(See "Installation Instructions.’’)

• Having your oven properly connected to the proper gas supply and
checked for leaks. (See “Installation Instructions.’’)

• Making sure the oven is not used by children or anyone unable to operate
it properly.

• Using the oven only for jobs expected of a home oven.

See “Cooking Guide” for important safety and use information.

IMPORTANT

SAFETY INSTRUCTIONS

WARNING - When using your oven, follow basic precautions, including the following:

1. DO NOT allow children to use

or play with any part of the
oven, or leave them unat
tended near it They could be
burned or injured.

2. DO NOT store things children

might want above the oven.
Children could be burned or
injured while climbing on it

3. KEEP children away from the

oven when it is on. The oven
walls, racks and doors can
get hot enough to cause

burns.

• Put oven racks where you
want them before turning on
the oven. Heated racks
could cause severe burns.

• Let steam and hot air es
cape from the oven before
removing food to prevent
burns.

4. DO NOT use the oven to heat

a room. Persons in the room

could be burned or injured, or
a fire could start.

5. DO NOT wear loose or hang

ing garments when using the
oven. They could ignite and
you could be burned.

6. DO NOT heat unopened con

tainers. They could explode.

The hot contents could burn
and container particles

could cause injury.

7. When adding or removing

food. MAKE SURE to open the
oven door all the way to

prevent burns.

8. DO NOT use a wet pot holder.

Steam burns can result.

DO NOT use a towel or bulky

cloth as a pot holder. They
could catch fire and burn
you.

9. MAKE SURE the utensils you

use are large enough to con
tain food and avoid boil
overs and spill-overs. This will
prevent hazardous build-ups
of food. Heavy splattering
and spill-overs left in the oven
can ignite and burn you.

continued on next page

10. GREASE is flamable and

should be handled carefully.
Let fat cool before attempting
to handle it. Do not allow

grease to collect around the
broiler oven or in the vents.

Wipe spill-overs immediately.

11. NEVER use a match or other

flame to look for a gas leak.
Explosion and injury could
result.

• FOR YOUR SAFETY •

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE

CAUSING EXPLOSION AND/OR FIRE.

12. DO NOT repairer replace

any parts unless specifically

recommended in this manual.

All other servicing should be

referred to a qualified service
technician

13. DO NOT use oven for storage.

Stored items and oven could be
damaged If oven Is turned on
accidentally.

- SAVE THESE INSTRUCTIONS -

Copy your Model and Serial Numbers here...

If you need service, or call with a
question, have this information
ready:

1. Complete Model and Serial

Numbers (from the plate located
as shown).

2. Purchase date from sales slip.

Copy this information in these
spaces. Keep this book, your war
ranty and sales slip together in a
handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

Parts and features

Model SB130PER

CLOCK/
MINUTE TIMER

OVEN BURNER

(not shown)

STOP TIME START TIME

OVEN LIGHT SWITCH

CONTROL PANEL

OVEN CONTROL

OVEN VENT

OVEN LIGHT

OVEN RACK
GUIDES

CONTINUOUS­CLEANING OVEN

BROILER
PAN RACK

MODEL AND SERIAL
NUMBER PLATE

BROILER OVEN

REMOVABLE
OVEN DOORS

Using your oven

This oven is equipped with an eiectronic ignitor. The eiectronic ignitor

automatically lights the oven burner each time it is used. This oven
cannot be used in case of prolonged power failure.

Setting the Clock

Push In and turn the Minute Timer Knob to set the Clock.

1. Push In Minute Timer Knob and
turn in either direction until clock

shows the right time of day.

Let the Minute Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF. The
clock setting will change ft you

push in the knob when turning.

Using the Minute Tinier

The Minute Timer does not start or stop the oven. It works like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.

DO NOT PUSH IN THE KNOB when setting the Minute Timer.

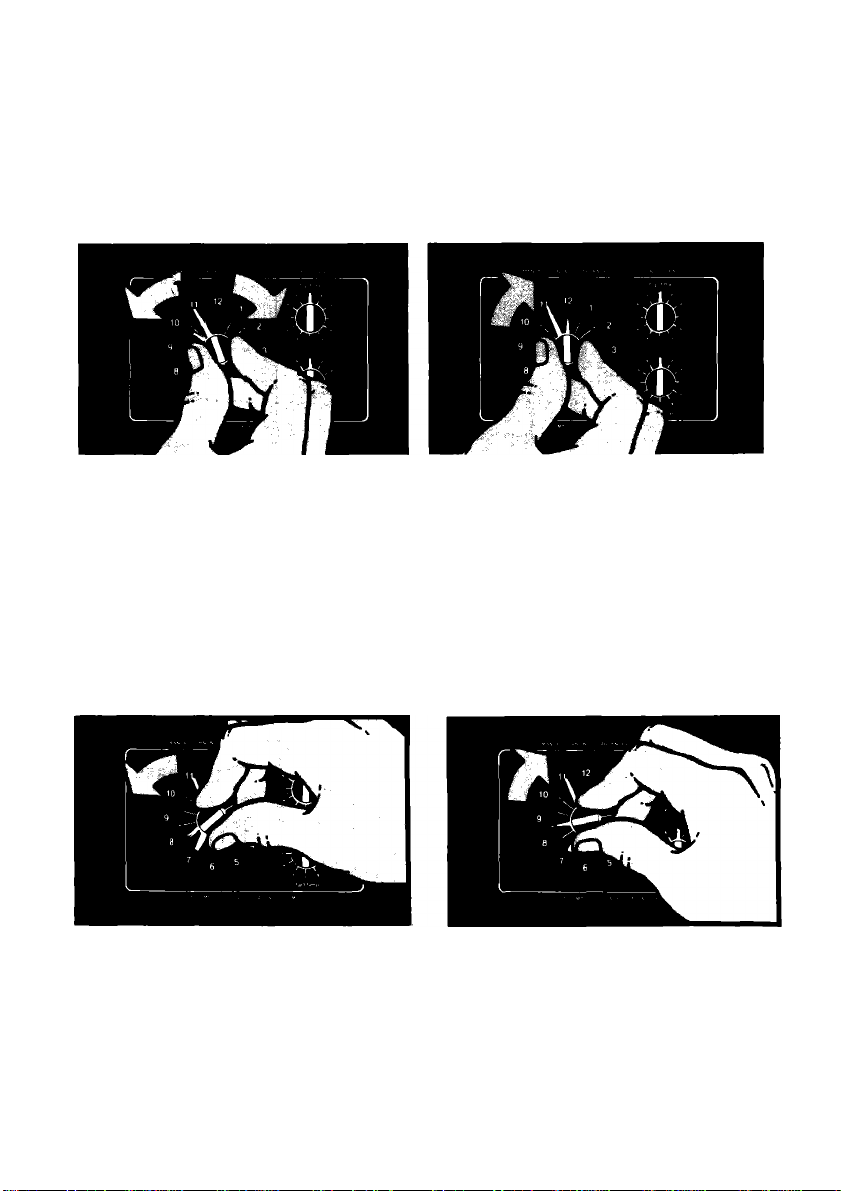

1. Without pushing it in, turn the
Minute Timer Knob until the hand
passes the setting you want.

2. Without pushing in, turn the knob

back to the setting you want

When the time is up, a buzzer will
sound. To stop the buzzer, turn the
Minute Timer hand to OFF.

PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK SETTING.

Using the Oven Control

The oven control is used to control the upper oven temperature or to broil in
the lower broiler oven. Baking and broiling can not be done at the same time.

Baking

Racks should be placed so the top
of the food will be centered in the
oven. Always leave at least IVi to 2
inches (4-5 cm) between the sides
of the pan and the oven walls and
other pans. For more information,
see the "Cooking Guidel'

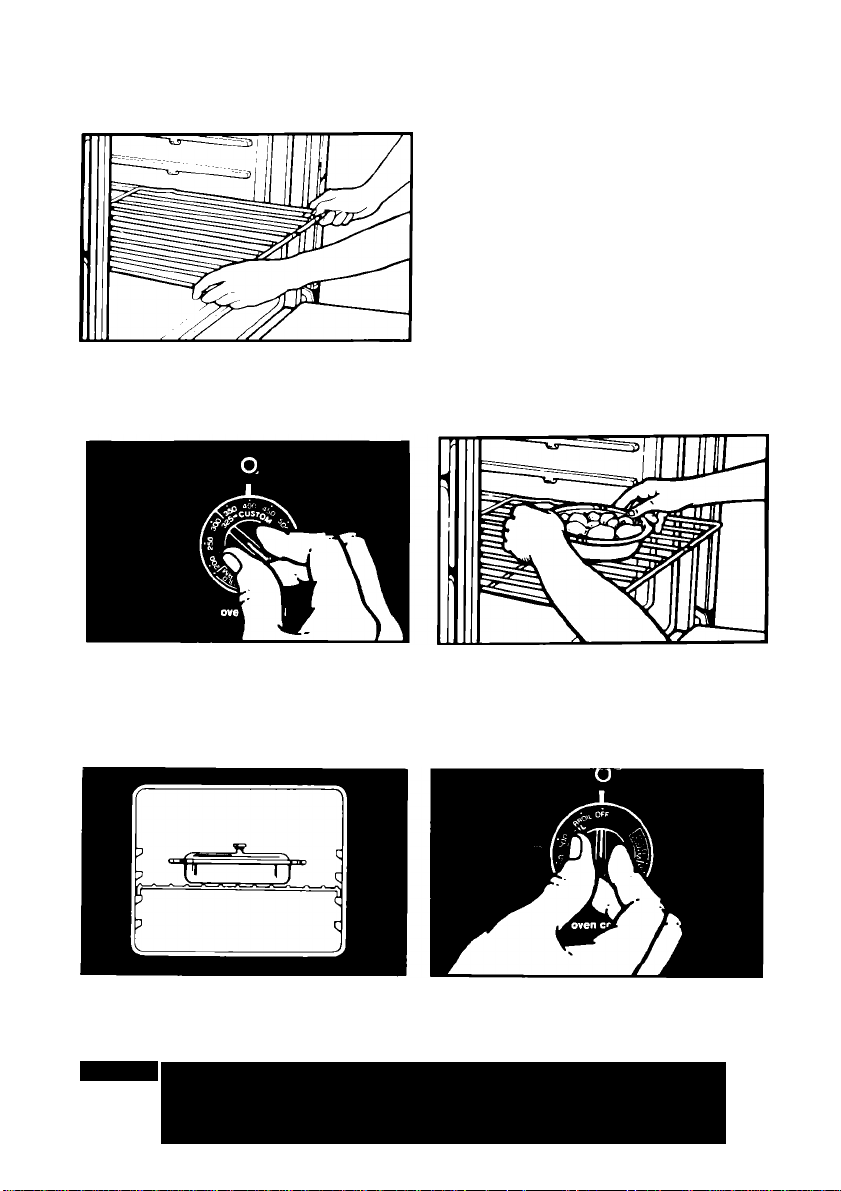

1. Position the racks properly before
turning on the oven. To change

rack position, pull rack out to

stop, raise front edge and lift out.

2. Set the Oven Control to the baking

temperature you want. The oven

burner will automatically light in

50-60 seconds.

4. During baking, the oven burner

will turn on and off to maintain the

temperature setting.

WARNING: If the flame should go out while cooking, or if
there is a strong gas odor, turn the oven burner OFF. Wait five
minutes for gas odor to disappear before relighting burner. IF
GAS ODOR IS STILL PRESENT, SEE SAFETY NOTE ON PAGE 2.

3. Preheat the oven fortO minutes

before adding food. NOTE: Oven

racks, walls and door will be hot.
Do not place food directly on
oven bottom.

5. When baking is done, turn the

Oven Control to OFF.

Broiling

The Blanket-O-Flame® Broiler Oven is located below the oven. It uses infra-red
rays to cook the food. Infra-red rays create fast, searing heat and consume
most smoke and spatters. Always broil with both oven doors completely

olosed.

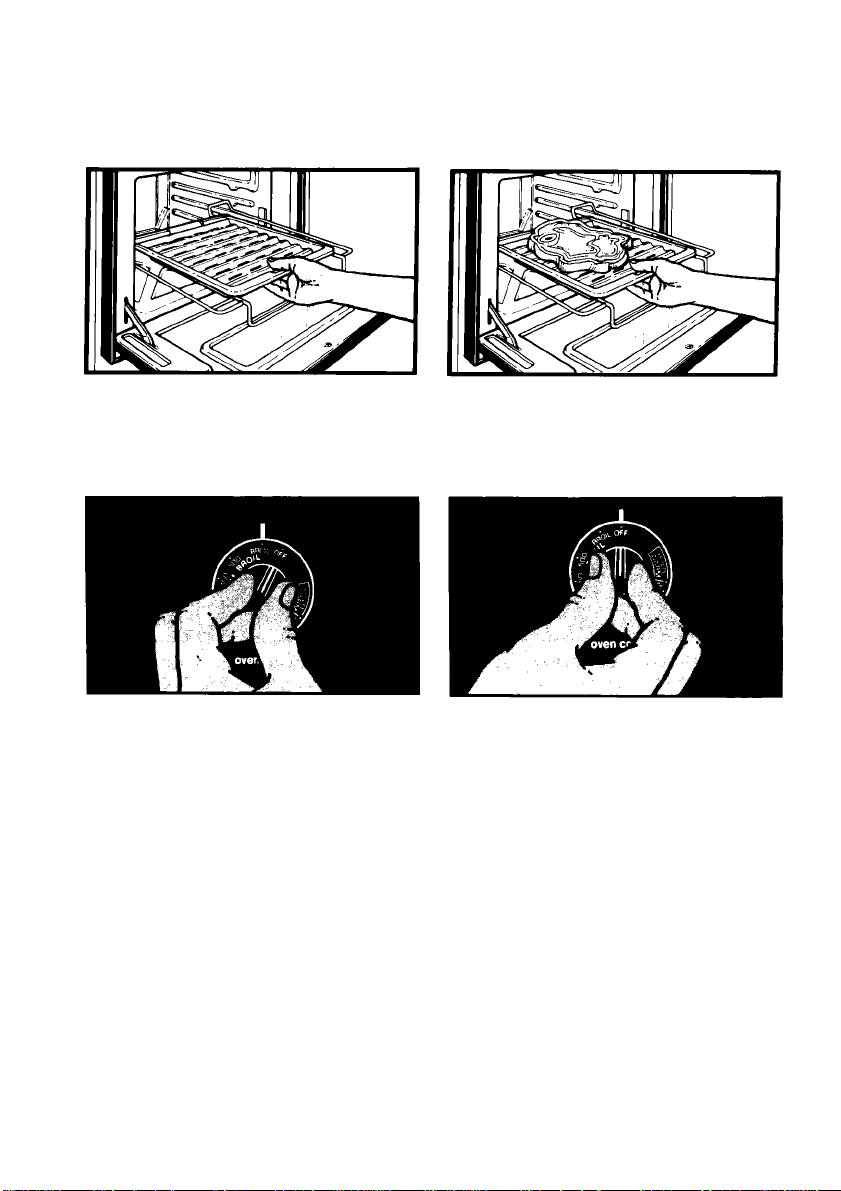

1. Position the broiler pan rack

before turning on the broiler.

See pan placement chart in the
"Cooking Guide" for recom
mended pan position.

3. Set the Oven Control to BROIL. The

broiler will automatically light in

50-60 seconds.

DO NOT PREHEAT THE BROILER OVEN BEFORE USING. COMPLETELY CLOSE
BOTH OVEN DOORS BEFORE BROILING.

2. Place food on the broiler pan.

4. When broiling is done, turn the

Oven Control to OFF.

Using the Automatic MEALTIMER* Clock

The automatic MEALTIMER* Clock is designed to turn the oven on and off at
times you set, even when you are not around.

Automatic baking is ideal for foods which do not require a preheated oven
such as meats and casseroles. Do not use the automatic cycle tor cakes,

cookies, etc...undercooking will result. *Tmk

To start and stop baking automatically:

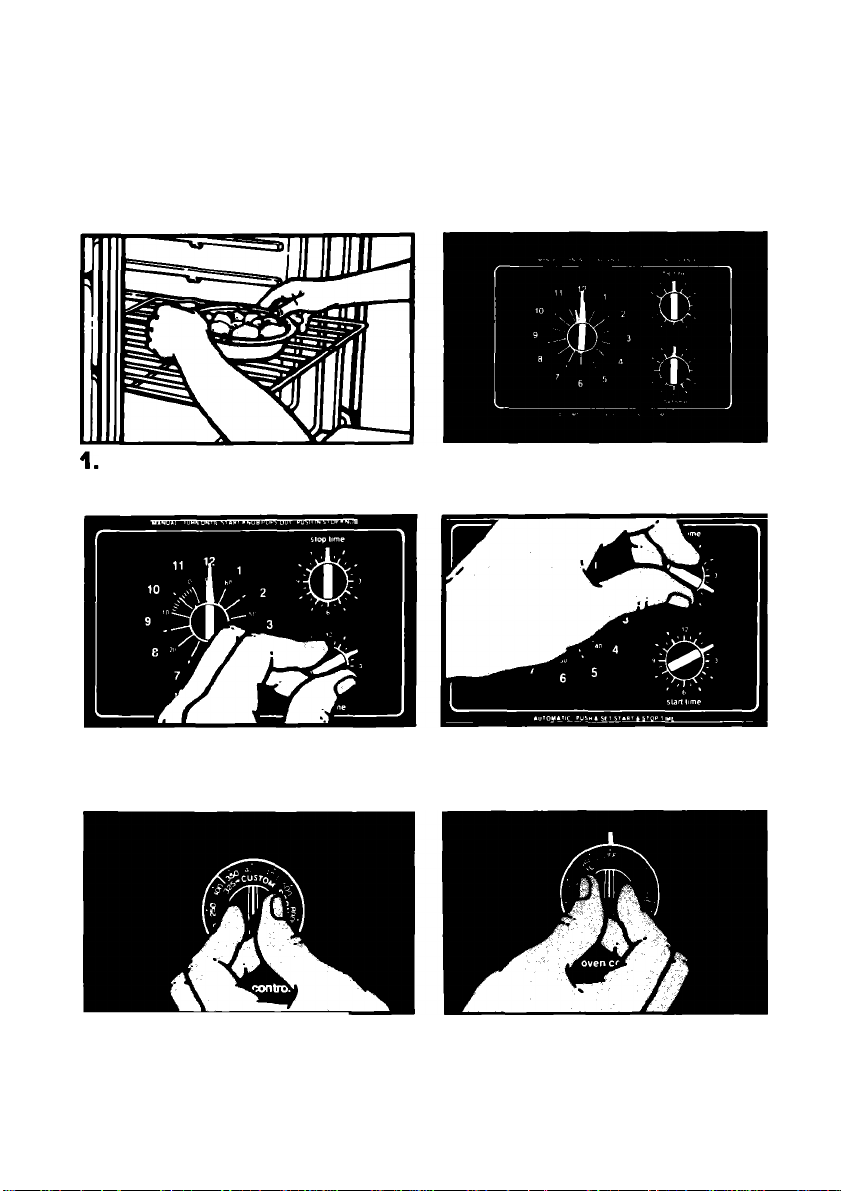

Position the oven rack(s) properly,
and place the food in the oven.

3. Push in and turn the Start Time

Knob clockwise to the time you
want baking to start.

5. Set the Oven Control on the

baking temperature you want
The oven will now start and
stop automatically.

2. Make sure the clock Is set to the

correct time ot day.

4. Push in and turn the Stop Time

Knob clockwise to the time you
want the oven to shut off.

6. After baking is done or to stop

the oven before preset time, turn

the Oven Control to OFF.

To start baking now and stop automatically:

1. Position rack(s) properly, and place the food in the oven.

2. Make sure the ciock is set to the correct time of day.

3. Push in and turn the Stop Time Knob clockwise to the time you want the

oven to shut off.

4. Set the Oven Controi on the baking temperature you want.

5. After baking is done or to stop the oven before the preset time, turn the

Oven Control to OFF.

WARNING: To avoid sickness and food waste.

O'

• Avoid using dishes with milk or eggs, cream soups, cooked meats or fish,

or any Item with baking powder or yeast.

• Any food that has to wait for cooking to start should be very cold or
frozen before it is put in the oven. MOST UNFROZEN FOODS SHOULD NEVER
STAND MORE THAN TWO HOURS BEFORE COOKING STARTS.

• Use foods that will not go bad or spoil while waiting for cook
ing to start.

The Oven Vent

Hot air and moisture escape from the
oven through a vent located under
the control panel. Do not block

vent. Poor baking will result.

Outside venting is available on this
model. (See "Installation Instructions.”)

Caring for your oven

Control Panel

WARNING: To avoid burns, be sure all controls are OFF and the
range is COOL.

10

The Continuous-Cleaning Oven

standard oven walls are coated with smooth porcelain. Your continuous­cleaning oven walls are coated with a special, rougher porcelain. A fat spat
ter beads up on the smooth surface, but spreads out on the rougher surface.
The bead of fat on the smooth surface chars and turns black. The spread-out
fat on the rough surface

temperatures so the oven can return to a presentably clean condition.

gradually burns away af medium to high baking

Fat Spatter
Spreads Out.
Burns Away.

Continuous-Cleaning
Porcelain.

Using Foil

To catch sugar or starchy spills from pies and casseroles, use a piece of

heavy-duty aluminum foil or a shallow pan on the lower rack, slightly larger

than the cooking container.

WARNING: To avoid
burns, be sure the
oven is OFF and COOL.

Position foil or pan under the
cooking container. Make sure the

foil is centered and large enough

to catch any spillovers.

CAUTION: DO iiM iiM foN to covor ovon floor or to eomplotoly covor a
rack. Oood e№ etomM№Hi Is itoodod tor tho oven to operate properly.
Poor еоЫП1101О$1йв and damago to the oven could occur.

The Oven Doors

Removing the oven doors will make it easier to clean the ovens.

1. WARNING: To avoid

Open a door to the first stop
position.

2. Hold the door at both sides and

lift off of hinges at bottom corners

of door.

3. To replace, fit the bottom corners

of the door over the ends of the
hinges.

Push the door down evenly. The
door will close only when it Is on

the hinges correctly.

burns, be sure the
ovens are OFF and
COOL.

Hand Cleaning

WARNING: DO NOT

KV^ ' R COMMERCIAL
A ^ OVEN CLEANERS

A IN YOUR OVEN.

They may become trapped in the
poroelain, damage the finish and
surface and give off harmful fumes.

RACKS - Use soapy steel wool pad

tor stubborn stains. Rinse well.

WINDOW - Keep clean with hot

sudsy water. Use a plastic scouring
pad tor stubborn spots. Rinse well.

Do not use steel wool or abrasive

cieaners.

WALLS AND DOOR - Wash with hot

soapy water. Use a soapy steel
wool pad for stubborn spots. Rinse
well.

12

Cleaning Chart

WARNING: To avoid burns, be sure the control is OFF and the
oven is COOL.

PART WHAT TO USE
Exterior Soft cloth and worm soapy

surfaces

Broiler pan, Warm soapy water or a
grid and
rack

Control knobs

Control panel

Oven racks

Oven door Spray glass cleaner;
glass warm soapy water and

Continuous­Cleaning soapy scrubbing pad.
oven

water or baking soda.
Nylon or plastic scrub

pad for stubborn spots.

soapy steel wool pad.

Warm soapy water and
soft cloth.

Wa rm soa py water or
baking soda, soft cloth
and spray glass cleaner.

Warm soapy water and
plastic scrub pad.

soft cloth.

Wa rm soa py water or

Heavy-duty aluminum foil • Place piece of foil or shallow
or shallow pan. pan, slightly largerthan the

Mast fat spatters on Continuous-Cleaning
porcelain Interior surface gradually reduce
to a presentably clean condition during normal
baking or roasting operations.

HOW TO CLEAN

• Wipe off regularly when both
ovens are cool.

• Do not allow food containing
acids (such as vinegar, tomatc,
lemcn juice or milk) to remain on
surface. Acids will remove the
finish.

• Do not use abrasive or harsh

cleansers.

• Clean after each use.

• Wash pan, grid and rack with

other utensils.

• After broiler oven Is cool,

wipe interior with warm damp
cloth. For stubborn spots, use a
soapy steel wool pad.

• Wash, rinse and dry well.

• Do not soak.

• Wash, rinse and dry well.

• Follow directions provided with

cleaner.

• Wash, rinse and dry well. Use
plastic scrub pad for stubborn

areas.

• Make sure oven Is cool.

• Follow directions provided with

cleaner.

• Wash, rinse and dry well.

• Clean stubborn spots or stains.
Rinse well with water.

cooking container, on lower rack
to catch spillovers.

• Do not use commercial oven

cleaners.

13

Changing the Oven Light

The oven light in the upper oven will only come on when you turn the Oven
Light switch on the control panel. Turn it again to turn off the light.

1.1

WARNING: To avoid
possible shock haz
ard, turn off electric
power at the main
power supply.

2. Remove the iight bulb from its

socket. Replace the bulb with a
40-watt appiiance buib.
Turn the power back on at the

main power supply.

If you need service or assistance,

we suggest you follow these four steps:

!• Before calling for

assistance...

Performance problems often result
from little things you can find and fix
without toois of any kind.

If nothing operates:

• is the oveh properly connected to
gas and electrical supplies? (See
"Installation Instructions!’)

• Have you checked your home's
main fuses or circuit breaker box?

• Is the flow of combustion and/or
ventilation air to the range
blocked? Do not biock the air flow

to and around the oven.

• Is the Oveh Control turned to a tem
perature setting or BROIL?

If oven burner falls to light:

• Is the oven connected to electrical
power?

• Have you checked your home's
main fuses or circuit breaker box?

If oooking results aren’t what you

expected:

• Is the oven level?

• Are you using pans recommended
in the “Cooking Guide’’?

• If baking, have you allowed Wi to 2
inches (4-5 cm) on all sides of the
pans for air circulation?

• Have you preheated the oven as the
recipe calls for?

• Are the pans the size called for in the
recipe?

• Are you following a tested recipe

from a reliable source?

See the Cooking Guide for more infor

mation on cooking problems and

how to solve them.

14

2« If you need

assistance"^...

Call Whirlpool COOL-LINE® serv

ice assistance telephone number.

Dial free from:

Continental U.S. . [phone]
Michigan
Aiaska & Hawaii [phone]

and talk with one of our trained Con
sultants. The Consultants can instruct
you in how to obtain satisfactory oper
ation from your appliance or, if serv

ice is necessary, recommend a
qualified service company in your
area.

3. If you need service"^...

are trained to fulfill the product war
ranty and provide after-warranty
service, anywhere in the United States.
To locate TECH-CARE service in your
area, call our COOL-LINE service as
sistance telephone number (see Step

2) or look in your telephone directory
Yellow Pages under:

..............

[phone]

Whirlpool has
a nationwide
network of fran
chised TECH­CARE® Service
Companies.
TECH-CARE serv
ice technicians

4

« If you have a

problem*...

Call our COOL-LINE service assistance
telephone number (see Step 2) and
talk with one of our Consultants, or if
you prefer, write to:

Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, Ml 49022

*lf you must call or write, please pro

vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor
mation is needed in order to better
respond to your request for
assistance.

FSP is a registered trademark
of Whirlpool Corporation for
quality parts. Look for this
symbol of quality whenever
you need a replacement part

® tor your Whirlpool appliance.

will fit right and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance. I

FSP replacement parts

APPLIANCES - HOUSEHOLD- ELECTRICAL APPLIANCES-

MAJOR- SERVICE 8 REPAIR MAJOR- REPAIRING A PARTS

WHIRLPOOL APPLIANCES WHIRLPOOL APPLIANCES

FRANCHISED TECH CARE SERVICE FRANCHISED TECH-CARE SERVICE

SERVICE COMPA MKS SERVICE COMPANIES

XYZ SERVICE CO XYZ SERVICE CO

123 Maple

................

WASHING MACHINES, DRYERS

WHIRLPOOL APPLIANCES

XYZ SERVICE CO

OR

999-9999 123 Maple.................. 999-9999

OR

& IRONERS- SERVICING

franchised TECH-CARE SERVICE

SERVICE COMPANIES

123 Maple

..................

999-9999

15

Home ^ Appliances

Making your world a little easier.

Part No. 36-061097-03-0/786778
©1986 Whirlpool Corporation

:matlc Washers, Clothes Dryers. Freezers. Refrieerator-Freezers, Ice Makers. Dishwashers, Built-In Dvens and Surface Units. Ranges. Mic

Printed in U.S.A.
