Whirlpool G2P 64 F SS/01 INSTALLATION

G2P 64F/01

GB IE

Highest

level

First

level

Wire Shelf: Grill pan set:

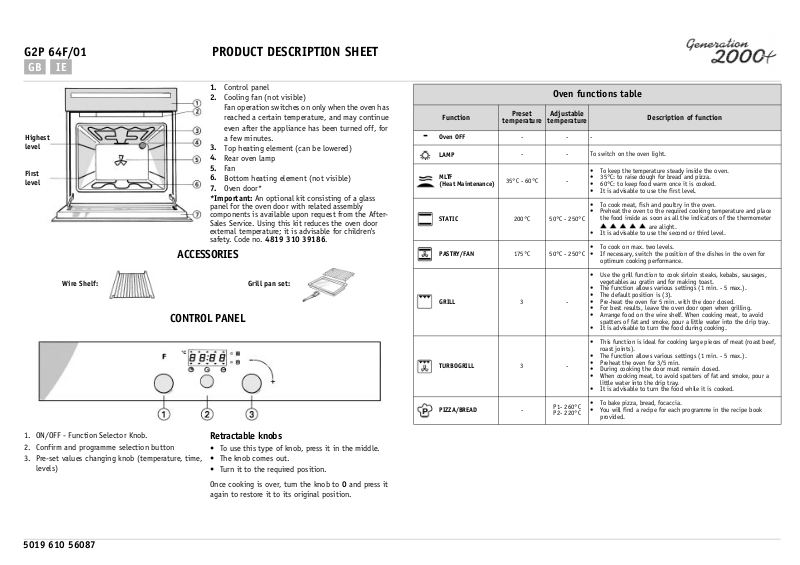

PRODUCT DESCRIPTION SHEET

1.

Control panel

2.

Cooling fan (not visible)

Fan operation switches on only when the oven has

reached a certain temperature, and may continue

even after the appliance has been turned off, for

a few minutes.

3.

Top heating element (can be lowered)

4.

Rear oven lamp

5.

Fan

6.

Bottom heating element (not visible)

7.

Oven door*

*Important:

panel for the oven door with related assembly

components is available upon request from the After-

Sales Service. Using this kit reduces the oven door

external temperature; it is advisable for children's

safety. Code no.

ACCESSORIES

CONTROL PANEL

An optional kit consisting of a glass

4819 310 39186

.

Function

Oven OFF

-

LAMP

MLTF

(Heat Maintenance)

STATIC

PASTRY/FAN

GRILL

Oven functions table

Preset

temperature

- - -

- - To switch on the oven light.

35°C - 60°C -

200°C 50°C - 250°C

175°C 50°C - 250°C

3 -

Adjustable

temperature

 To keep the temperature steady inside the oven.

 35°C: to raise dough for bread and pizza.

 60°C: to keep food warm once it is cooked.

 It is advisable to use the first level.

 To cook meat, fish and poultry in the oven.

 Preheat the oven to the required cooking temperature and place

the food inside as soon as all the indicators of the thermometer

 It is advisable to use the second or third level.

 To cook on max. two levels.

 If necessary, switch the position of the dishes in the oven for

optimum cooking performance.

 Use the grill function to cook sirloin steaks, kebabs, sausages,

vegetables au gratin and for making toast.

 The function allows various settings (1 min. - 5 max.).

 The default position is (3).

 Pre-heat the oven for 5 min. with the door closed.

 For best results, leave the oven door open when grilling.

 Arrange food on the wire shelf. When cooking meat, to avoid

spatters of fat and smoke, pour a little water into the drip tray.

 It is advisable to turn the food during cooking.

Description of function

are alight.

1. ON/OFF - Function Selector Knob.

2. Confirm and programme selection button

3. Pre-set values changing knob (temperature, time,

levels)

5019 610 56087

Retractable knobs

 To use this type of knob, press it in the middle.

 The knob comes out.

 Turn it to the required position.

Once cooking is over, turn the knob to 0 and press it

again to restore it to its original position.

TURBOGRILL

PIZZA/BREAD

3 -

-

P1- 260°C

P2- 220°C

 This function is ideal for cooking large pieces of meat (roast beef,

roast joints).

 The function allows various settings (1 min. - 5 max.).

 Preheat the oven for 3/5 min.

 During cooking the door must remain closed.

 When cooking meat, to avoid spatters of fat and smoke, pour a

little water into the drip tray.

 It is advisable to turn the food while it is cooked.

 To bake pizza, bread, focaccia.

 You will find a recipe for each programme in the recipe book

provided.

COOKING TABLES

Level

FOOD Function Preheating

MEAT

Lamb, Kid, Mutton

Roast

(Veal, Pork, Beef)

(kg. 1)

Chicken, Rabbit,

Duck

Turkey

(kg. 4-6) + level 3

browning

Goose (2 Kg)

FISH

(WHOLE)

(1-2 kg)

Gilt-head, Bass, Tuna,

Salmon, Cod

FISH

(CUTLETS)

(1 kg.)

Sword Fish, Tuna

VEGETABLES

Stuffed peppers and tomatoes

Baked potatoes X 2 3 220 50 - 60

SWEETS, PASTRIES, ETC.

Raising cakes

Filled pies

(with cheese)

Tart s

Applest rudel

Biscuits

Choux buns

Savoury pies

Lasagna

Filled fruit pies

e.g. Pineapple, Peach

Meringues

Vol-au-vents

Soufflés

X 2 2 200 95 - 110

X 2 - 200 100 - 110

X 2 2 200 95 - 110

X 2 - 200 90 - 100

X 2 3 200 80 - 90

X 2 - 200 85 - 95

X 1 3 200 160 - 180

X 1 - 210 180 - 190

X 2 3 210 100 - 130

X 2 - 200 100 - 130

X 2 1 200 45 - 55

X 2 - 200 50 - 60

X 2 2 200 40 - 50

X 3 - 200 40 - 50

X 2 - 220 50 - 60

X 2 - 200 50 - 60

X 2 - 190 40 - 50

X 2 - 180 40 - 50

X 2 - 190 80 - 90

X 2 - 180 80 - 90

X 2 - 190 40 - 50

X 2 - 180 40 - 50

X 2 - 200 50 - 55

X 2 - 200 50 - 55

X 2 - 170 20 - 30

X 2 - 200 20 - 30

X 2 - 180 35 - 45

X 2 - 180 40 - 50

X 2 - 200 40 - 50

X 2 - 190 40 - 50

X 2 1 200 45 - 60

X 2 - 200 45 - 60

X 2 - 190 50 - 60

X 2 - 190 40 - 50

X 2 - 120 120 - 150

- 2 - 120 120 - 150

X 2 - 200 35 - 45

X 2 - 190 35 - 45

X 2 - 200 40 - 50

X 2 - 190 45 - 55

(from the

bottom)

Browning

level

Tem perat ure

(°C)

Cooking time

(minutes)

COOKING TABLE FOR GRILL FUNCTION

FOOD Function Preheating

Sirloin steak X 4 5 35 - 45

Cutlets X 4 5 30 - 40

Sausages X 3 - 4 5 30 - 40

Pork c hops X 4 5 35 - 45

Fish (cutlets) X 3 - 4 5 35 - 45

Chicken legs X 3 - 4 5 40 - 50

Kebabs X 3 - 4 5 40 - 50

Spare ribs X 3 - 4 5 35 - 45

Chicken halves X 3 5 45 - 55

Chicken halves X 3 5 45 - 55

Whole chicken X 3 5 60 - 70

Roast

(pork, beef)

Duck X 2 5 70 - 80

Leg of lamb X 3 5 70 - 80

Roast beef X 3 5 50 - 60

Baked potatoes X 3 5 50 - 60

Fish (Gilt-head, Trout) X 3 5 50 - 60

X 2 5 60 - 70

Level

(from the bottom)

N.B.: when cooking meat with Fan and Static functions, it is advisable also to use the the Browning function (level 1 to 3).

Cooking times and temperatures are approximate only.

Power

level

Cooking time

(minutes)
