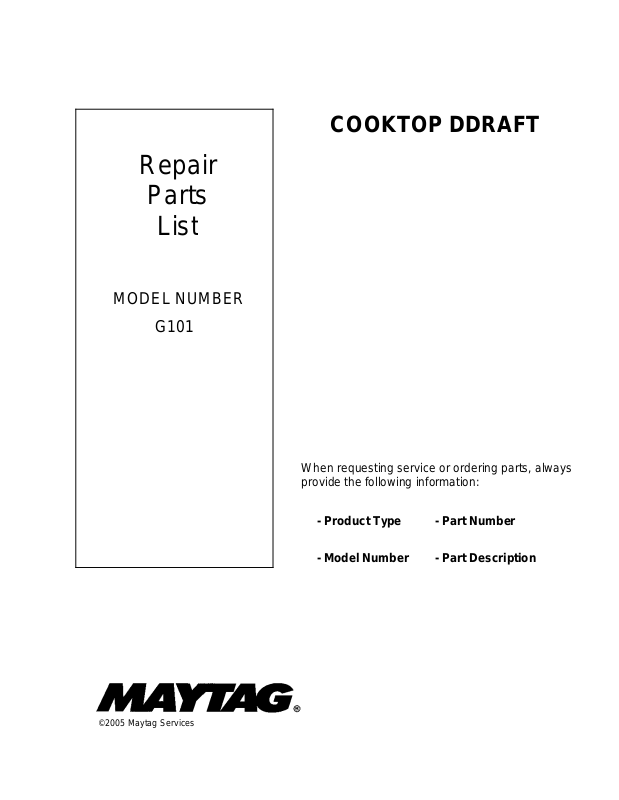

Page 1
Repair
List
Parts
MODEL NUMBER
G101
COOKTOP DDRAFT
©2005 Maytag Services
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
Page 2
Section: ESCUTCHEON ASSEMBLY
1
Model: G101
JAA1F1
Page 3
Section:
2
ESCUTCHEON ASSEM B LY
No. Part No. Description
1 N 701598 ESCUTCHEON (NEW W/CAS T LOGO) 1 1
2 ------ NOT REQUIRED PART OR SEE NOTE 1 0
3 700854 KNOB, SWITCH 11
3 N 703272 KNOB, SWITCH 51
4 ------ NOT REQUIRED PART OR SEE NOTE 1 0
5 700631 LENS, PILOT LIGHT 11
6 ------ NOT REQUIRED PART OR SEE NOTE 1 0
7 715396 PILOT LIGHT & LE NS 11
8 ------ NOT REQUIRED PART OR SEE NOTE 1 0
9 715397 SWITCH, FAN 11
11 ------ NOT REQUIRED PART OR SEE NOTE 1 0
12 703147 SWITCH, INFINITE 51
12 700855 SWITCH, INFINITE 11
13 700833 O RING 11
- N 712179 KIT, WIRE 51
- N 702026 ESCUT WR K IT 11
- 16000448 MANUAL, SERVICE-NO RE FUND 11
Series Qty
*Color Code (-)=Not Shown #=Series, Serial P re fix or Run No., N =Not Available
Page 4

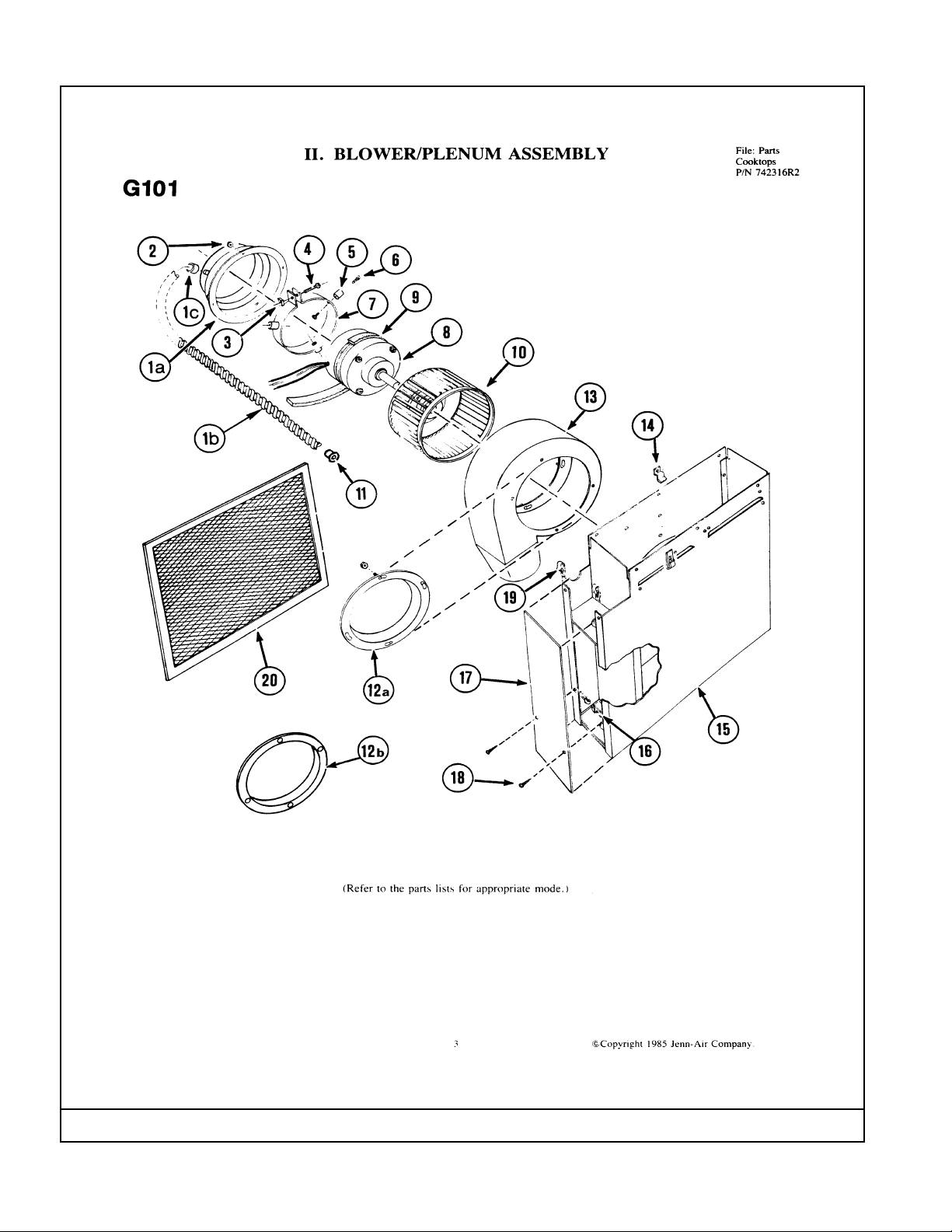

Section: BLOWER ASSEMBLY
3
Model: G101
JAA1F3
Page 5
Section:
4
BLOWER ASSEMBLY
No. Part No. Description
- 715780 CLAMP, CABLE 11
1 N 708863 COVER,MOTOR 11
1 700027 MOTOR COVER ASSEMBLY 11
1 707766 CONNECTOR 11
1 707758 CONDUIT 11
- 707335 CLIP 11
2 707702 LOCKNUT 18
3 N 707161 NUT 11
4 707402 SCREW 11
5 708926 ISOLATOR 13
6 707407 SCREW 16
7 707393 BAND, MOTOR 11
8 707704 MOTOR 11
9 715957 FOAM, URETHANE 11
10 707985 WHEEL, BLOWER 11
11 N 708185 BUSHING 11
12 N 786316 RING, INLET (WITH STUDS) 11
12 N 702295 RING, INLET 11
13 N 712053 BLOWER SCRO LL KIT 11
14 707688 RETAINER, FILTER 11
15 N 701840 PLENUM 11
16 701958 CLIP, TINNERMAN 12
17 707681 PLATE, COVER 11
18 707172 SCREW 12
19 707831 CLIP 11
20 707929 FILTER, GREASE 11
Series Qty
*Color Code (-)=Not Shown #=Series, Serial P re fix or Run No., N =Not Available
Page 6

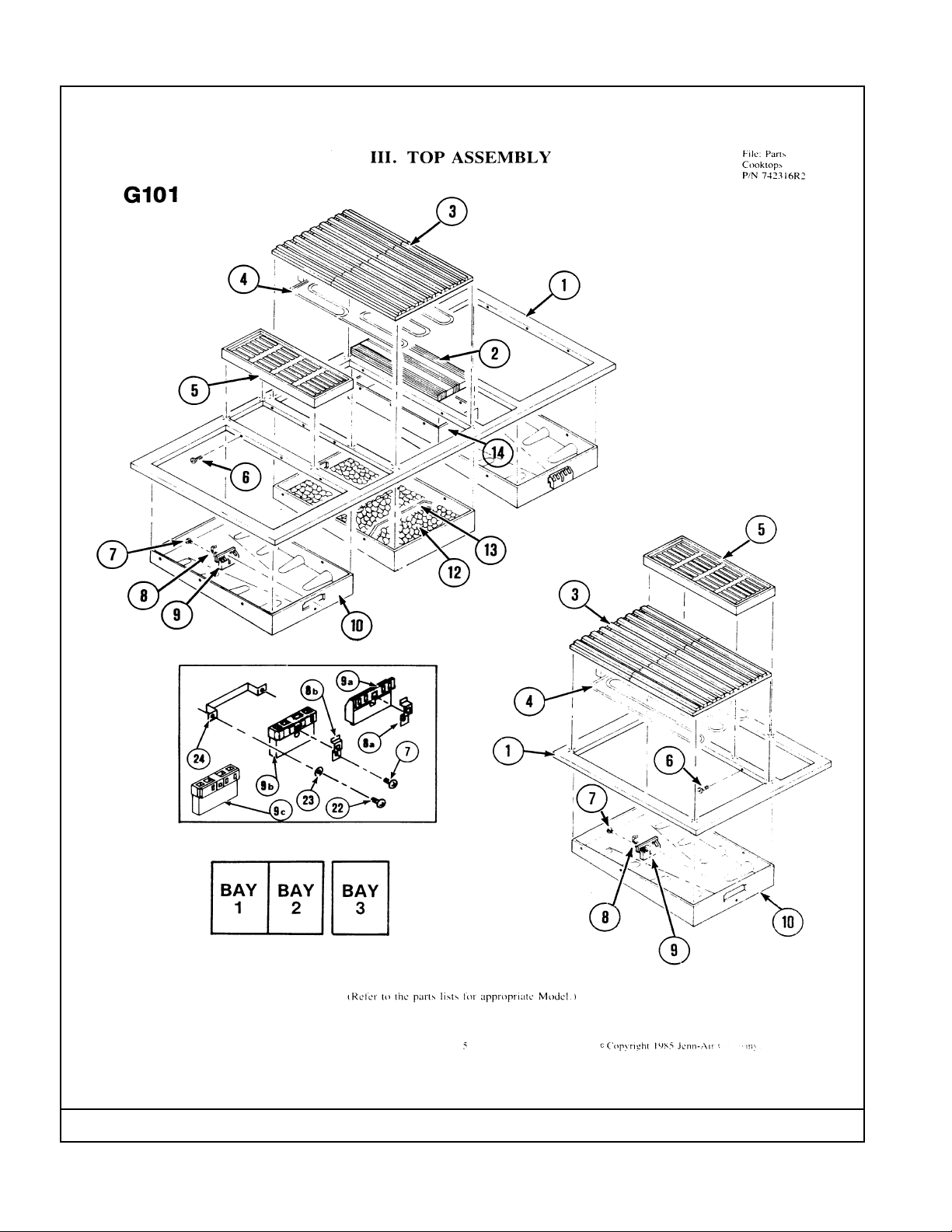

Section: TOP ASSEMBLY
5
Model: G101
JAA1F5
Page 7
Section:
6
TOP ASSEMBLY
No. Part No. Description
1 N 700668 TOP 2366 11
2 ------ NOT REQUIRED PART OR SEE NOTE 1 0
3 707886 GRATE 12
4 787834 ELEMENT, GRILL 31
4 700491 ELEMENT, GRILL 11
5 N 700667 GRILL, AIR 11
6 N 707347 SCREW 112
7 N 707341 SCREW 11
8 702699 CLIP 31
8 715121 CLIP 11
9 702434 RECEPTACLE (CERAMIC) 31
9 715120 RECEPTACLE 11
10 712017 WIRE, BLACK 31
10 N 701491 WIRE, RED 11
- 701955 PAN, GRILL (LT) 31
10 N 712015 WIRE, RED 31
10 N 701953 PAN, GRILL (W /BRACKETS) 11
10 N 701490 WIRE, B LA CK 11
12 708929 PLATE, ROCK 12
13 700819 SUPPORT, ROCK PLATE 12
22 707172 SCREW 32
23 707664 WASHER 32
24 702698 BRACKET 31
Series Qty
*Color Code (-)=Not Shown #=Series, Serial P re fix or Run No., N =Not Available
Page 8

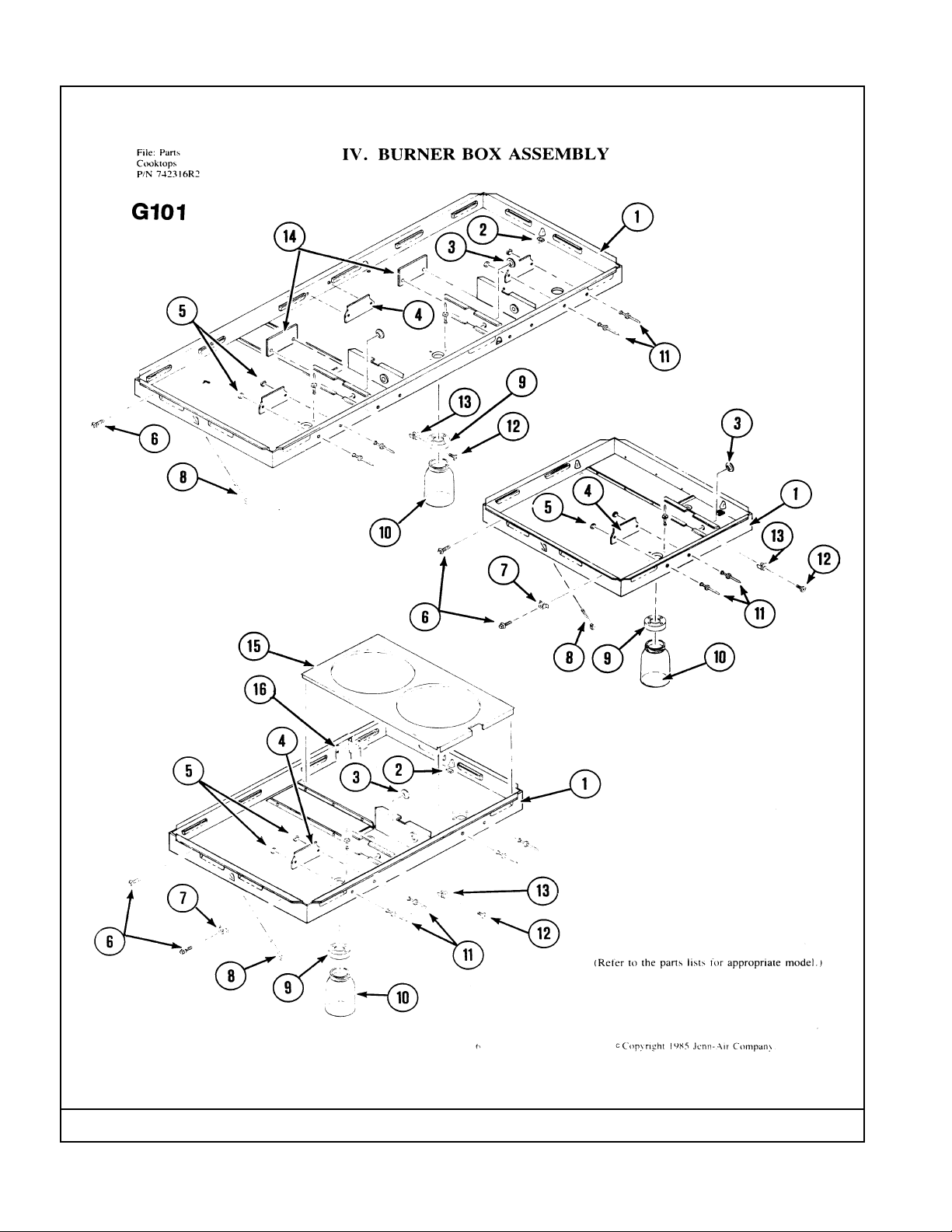

Section: BURNER BOX ASSEMBLY
7
Model: G101
JAA1F7
Page 9
Section:
8
BURNER BOX ASSEMBLY
No. Part No. Description
1 712056 BOX, BURNER 31
1 701994 BOX, BURNER 11
2 707124 NUT,SQUARE 13
4 N 701995 INSULATOR 12
5 707664 WASHER 12
6 700502 SCREW 12
7 700503 CLIP, RETAINER 12
8 707121 SCREW 13
9 N 707870 LID, JAR 11
10 707869 JAR, DRAIN 11
11 N 707128 RIVET, JAR LID 16
Series Qty
*Color Code (-)=Not Shown #=Series, Serial P re fix or Run No., N =Not Available
