Whirlpool EV 1045 INSTRUCTION FOR USE

GB

EV 1045

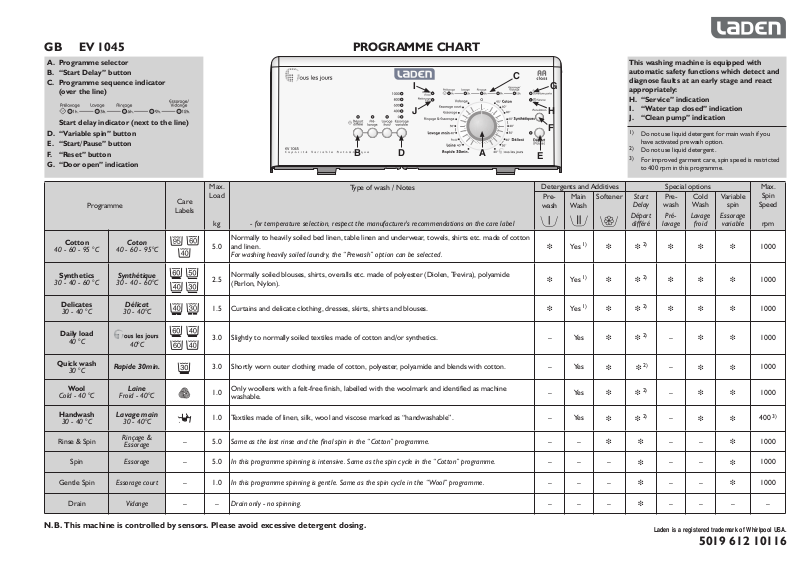

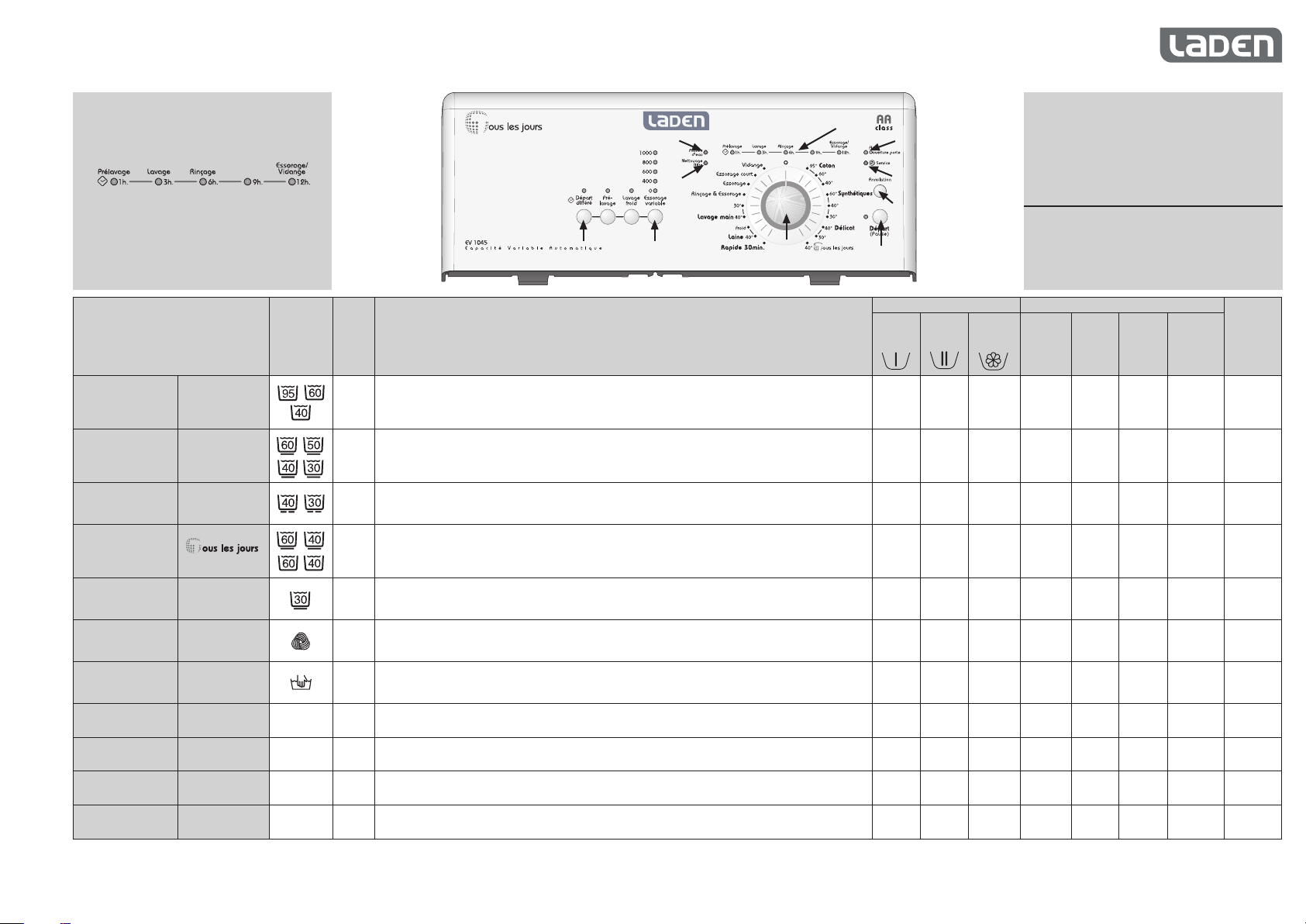

PROGRAMME CHART

A. Programme selector

This washing machine is equipped with

B. “Start Delay” button

C

automatic safety functions which detect and

C. Programme sequence indicator

I

G

diagnose faults at an early stage and react

appropriately:

(over the line)

H. “Service” indication

J

H

I.

“Water tap closed” indication

Start delay indicator (next to the line)

J.

“Clean pump” indication

F

D. “Variable spin” button

1)

Do not use liquid detergent for main wash if you

E. “Start/Pause” button

2)

have activated prewash option.

F. “Reset” button

B

D

A

E

Do not use liquid detergent.

3)

For improved garment care, spin speed is restricted

G. “Door open” indication

to 400 rpm in this programme.

Max.

Type of wash / Notes

Detergents and Additives

Special options

Max.

Care

Load

Pre-

Main

Softener

Start

Pre-

Cold

Variable

Spin

Programme

wash

Wash

Delay

wash

Wash

spin

Speed

Labels

Départ

Pré-

Lavage

Essorage

kg

rpm

- for temperature selection, respect the manufacturer's recommendations on the care label

différé

lavage

froid

variable

Cotton

Coton

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton

Yes 1)

i 2)

5.0

and linen.

i

i

i

i

i

1000

40 - 60 - 95 °C

40 - 60 - 95°C

For washing heavily soiled laundry, the “Prewash” option can be selected.

Synthetics

Synthétique

2.5

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide

i

Yes 1)

i

i 2)

i

i

i

1000

30 - 40 - 60 °C

30 - 40 - 60°C

(Perlon, Nylon).

Delicates

Délicat

1.5

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

i

Yes 1)

i

i 2)

i

i

i

1000

30 - 40 °C

30 - 40°C

Daily load

3.0

Slightly to normally soiled textiles made of cotton and/or synthetics.

–

Yes

i

i 2)

–

i

i

1000

40 °C

40°C

Quick wash

Rapide 30min.

3.0

Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.

–

Yes

i

i 2)

–

i

i

1000

30 °C

Wool

Laine

1.0

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine

–

Yes

i

i 2)

–

i

i

1000

Cold - 40 °C

Froid - 40°C

washable.

Handwash

Lavage main

1.0

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

–

Yes

i

i 2)

–

i

i

400 3)

30 - 40 °C

30 - 40°C

Rinse & Spin

Rinçage &

–

5.0

Same as the last rinse and the final spin in the “Cotton” programme.

–

–

i

i

–

–

i

1000

Essorage

Spin

Essorage

–

5.0

In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

–

–

–

i

–

–

i

1000

Gentle Spin

Essorage court

–

1.0

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

–

–

–

i

–

–

i

1000

Drain

Vidange

–

–

Drain only - no spinning.

–

–

–

i

–

–

–

–

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Laden is a registered trademark of Whirlpool USA.

5019 612 10116

CONSUMPTION DATA

	Temperature	Load	Water	Energy	Approx. Programme
Programme					Duration
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Cotton	95	5.0	50*	1.70	2:05
Cotton**	60	5.0	49	0.95	2:10
Cotton	40	5.0	55	0.55	2:00
Synthetics	60	2.5	50*	0.80	1:30
Synthetics	40	2.5	45	0.45	1:15
Delicates	40	1.5	50	0.55	0:45
Daily load	40	3.0	40	0.45	1:00
Quick wash	30	3.0	35	0.40	0:30
Wool	40	1.0	55	0.55	0:45
Handwash	40	1.0	40	0.40	0:35

Prewash cycle increases programme duration by aproximately 20 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

*To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

** Reference Programme for Energy Label.

PREPARATION OF THE WASH CYCLE

1.Load the machine, close the drum doors and check that they are properly locked.

2.Add detergent and additives into the dispenser to no more than the “MAX” level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

•Stain remover agents

•Anti-scale agents (if necessary) 3. Close the lid.

4. Turn the programme selector to the desired programme and temperature. The lamp next to the “Start/Pause” button flashes.

SELECT THE DESIRED OPTION(S)

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Prewash” button

•Only for heavily soiled loads (for example sand, granular dirt) sensible. Increases the cycle time by

approximately 20 min.

“Cold wash” button

•Water is heated only up to 20°C.

•Suitable for delicate laundry items with wash temperature recommendation of max. 30°C on the care label.

•Selectable only on the lowest temperature step of each programme.

“Variable spin” button

•Every programme has a predefined spin speed.

•Press the button to set another spin speed.

•If spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during the rinse. The water is drained out only.

START DELAY

The “Start delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

•Select programme, spin speed and options.

•Press the “Start Delay” button several times to select a delay time of 1, 3, 6, 9 or 12 hours. The corresponding indicator lamp lights up.

•Start the programme (see “Progremme Start”). The indication next to the “Start delay” button lights up and goes off when the programme starts.

•Once having pressed the “Start/Pause” button, the countdown of the time delay begins. When the programme starts, the start delay indicator light goes off and is replaced by the programme sequence indication.

•After the “Start/Pause” button has been pressed, the number of hours preselected can be reduced by pressing again the “Start delay” button.

To cancel the “Start delay”

..before you press the “Start/Pause” button:

•Turn the programme selector to another position or press the “Reset” button.

..after having pressed the “Start/Pause” button:

•Press the “Reset” button for at least 3 second. The start delay indicator light goes off.

PROGRAMME START

Open the tap and press the “Start/Pause” button. The indication lamp next to the “Start/Pause” button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain. When the programme phrase is finised, the corresponding indication goes out.

•Note: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show the the lid can be opened. As long as a wash programme is running, the lid remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap: if the indications still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned: in the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

•All the lights of the programme sequence indicator are off, and the “Door open” indication lights up.

1.Turn the programme selector to the “Off/O” position.

2.Close the water tap.

3.Open lid and drum and unload the machine.

4.Leave the lid open for some time to allow the interior of the machine to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1.Press the “Start/Pause” button to pause the programme. The light flashes.

2.Select the new programme, any options and another spin speed if you want.

3.Press the “Start/Pause” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The “Reset” button cancels a programme before the end. Press the “Reset” button for at least 3 seconds. Any existing water is drained out before the door can be opened.

Laden is a registered trademark of Whirlpool USA.

5019 612 10116
