hifmwl

J Hom^AfVlBneM

Use And Care

A Note To You Important Safety

Instructions

Parts And Features

Before Using Your Refrigerator

Using Your Refrigerator

Caring For Your Refrigerator

Food Storage Guide 18 If You Need

Assistance

Or Service

Warranty

1-800-253-1301

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZER

MODELS ET20ZK ET18ZK

Page 2

A NOTE TO YOU

A Note To You

Thank you for buying a Whirlpool* appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience went into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information on how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please com plete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.

Your safety Is Important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of each symbol.

Awarning

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

This symbol will help you avoid actions which could cause product damage (scratches, dents, etc.) and damage to your personal property.

acaution

Our Consumer Assistance Center number, 1-800-253-1301, is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If You Need Assistance Or Service" on page 20. If you need further help, feel free to call our Consumer Assistance Center. When calling, you will need to know your appliance’s complete model number and serial number. You can find this information on the model and serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name Dealer Phone

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Important Safety Instructions

ÀWARNING

• Read all instructions before using the

refrigerator.

• Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still danger ous ... even if they will “just sit in the garage a few days.”

If you are getting rid of your old refrig

erator, do it safely. Please read the enclosed safety booklet from the Asso ciation of Home Appliance Manufactur ers. Help prevent accidents.

To reduce the risk of fire, electricai shock, or injury when

using your refrigerator, follow these basic precautions:

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

• Install and level the refrigerator on a floor that will hold the weight and in an area suitable for its size and use.

• Do not install the refrigerator near an oven,

radiator or other heat source.

• Do not use the refrigerator in an area

where the room temperature will fall below 55°F(13°C).

• Keep the refrigerator out of the weather.

• Connect the refrigerator only to the proper kind of outlet, with the correct electrical supply and grounding. (Refer to the

Electrical Requirements and Grourvding Instructions Sheet.)

• Do not load the refrigerator with food before it has time to get properly cold.

• Use the refrigerator only for the uses described in this manual.

• Properly maintain the refrigerator.

• Be sure the refrigerator is not used by anyone unable to operate it properly.

• Never allow children to operate, play with,

or crawl inside the refrigerator.

• Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.

• FOR YOUR SAFETY •

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR

EXPLOSION.

Page 4

PARTS AND FEATURES

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. The model you pur chased may have all or some of the parts and features shown and they may not match the illustration exactly. This manual covers several models.

Freezer shelf

Ice cube trays

Ice bin

Control panel ___

Utility

compartment

Model and

serial number

label (on side wall)~

Meat drawer'

Crisper cover

Crispers

Leveling rollers (behind

base grille)

Control panel

Butter

compartment

Adjustable

wire shelves

Model ET18ZK shown

Refrigerator

control

Exterior moisture Light

control switch

Freezer

control

Page 5

BEFORE USING YOUR REFRIGERATOR

Before Using Your Refrigerator

In This Section

Cleaning your refrigerator......

Plugging it in

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

...........................

Page

...........

5 instaiiing it properiy 5

Leveiing it

...........................

..........

................

Cleaning your refrigerator

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining giue:

• Rub briskly with your thumb to make a ball,

then remove.

• Soak area with liquid hand-dishwashing

detergent before removing glue as de scribed above. Do not use sharp instru

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc

tions” on page 3.

NOTE: Do not remove any permanent instruction labels inside your refrigerator. Do not remove the Tech Sheet fastened under the refrigerator at the front.

Cleaning it before use

After removing all packaging materials, clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 14 and 15.

Page

6 6

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is required. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

See Electrical Requirements and Ground

ing Instructions Sheet in your Literature

Package.

3-prong grounding type wall receptacle

Refrigerator power cord

3-prong grounding piug

Page 6

BEFORE USING YOUR REFRIGERATOR

Installing it properly

1. Allow Уг inch (1.25 cm) space on each

side and at the top of the refrigerator for ease of installation.

2. If the hinge side of the refrigerator is to be against a wall, you might want to leave extra space so the door can be opened wider.

3. The refrigerator can be flush against the back wall.

Leveling it

Your refrigerator has 2 front leveling screws-one on the right and one on the left. To adjust one or both of these, foltow the directions below.

1. Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock wise.

4. Check with level.

5. Replace base grille. (See page 12.)

Right to raise;

Page 7

USING YOUR REFRIGERATOR

Using Your Refrigerator

In This Section

Page

Setting the controls............................7

Changing the control settings Adjusting the shelf glide

Adjusting the refrigerator shelves ....9

Removing the meat drawer

and cover.............................................9

Removing the crispers and

crisper cover

Removing the freezer shelf

To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

....................................

.........

...................

............

10 10

Using the ice cube trays Using the optional automatic

ice maker..........................................11

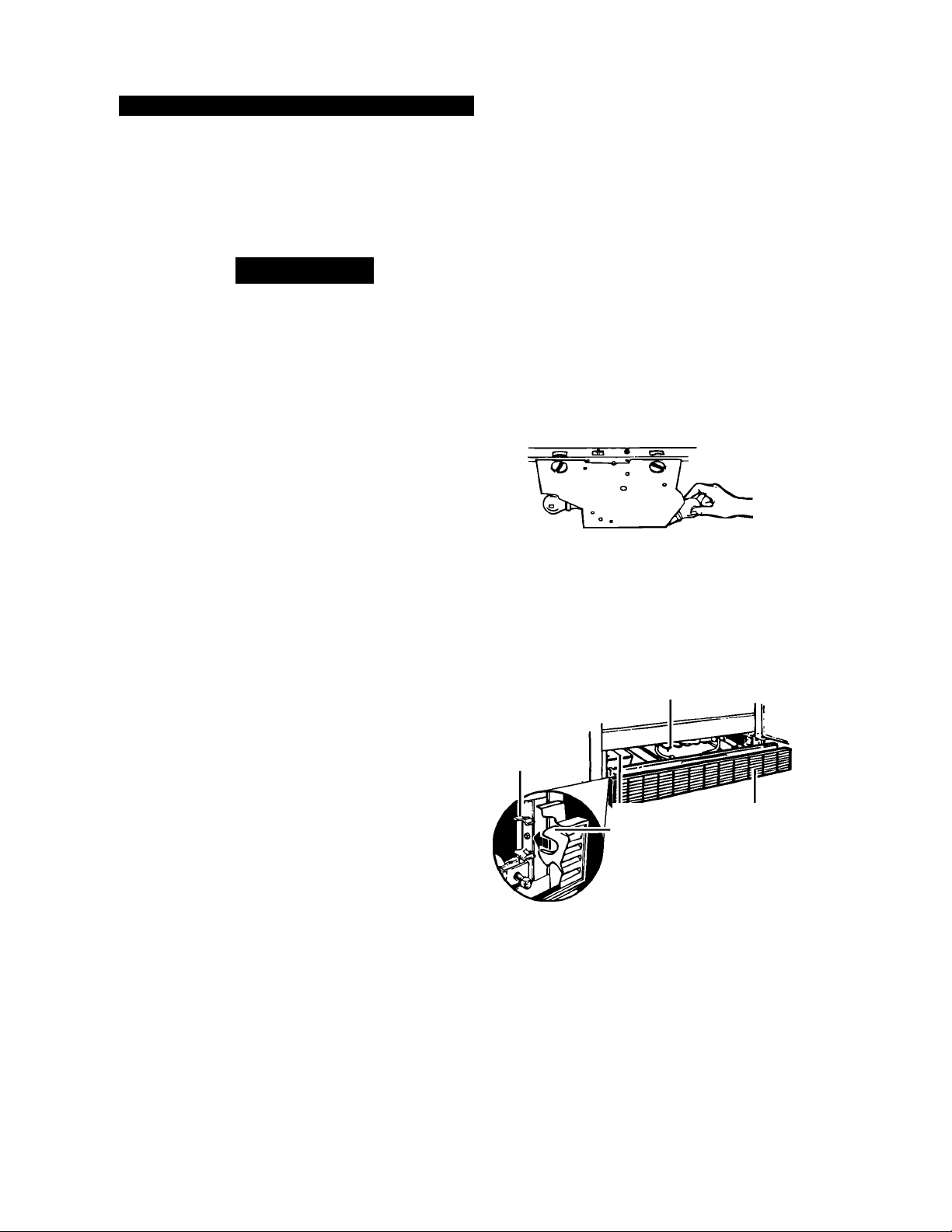

Changing the light bulbs Removing the base grille Reversing the door swing Understanding the sounds

you may hear....................................13

Saving energy

..................................

.................

................

..............

Page

12 12 13

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are

in the refrigerator. When you plug in the refrigerator for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range

from 1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down completely before adding food. This may take several hours.

The settings indicated above should be correct for normal, household refrigerator usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to adjust these settings, see “Changing the control settings” on page 8.

FREEZER

•4 WARMER ■■I C WKm COLDEHR-

Page 8

USING YOUR REFRIGERATOR

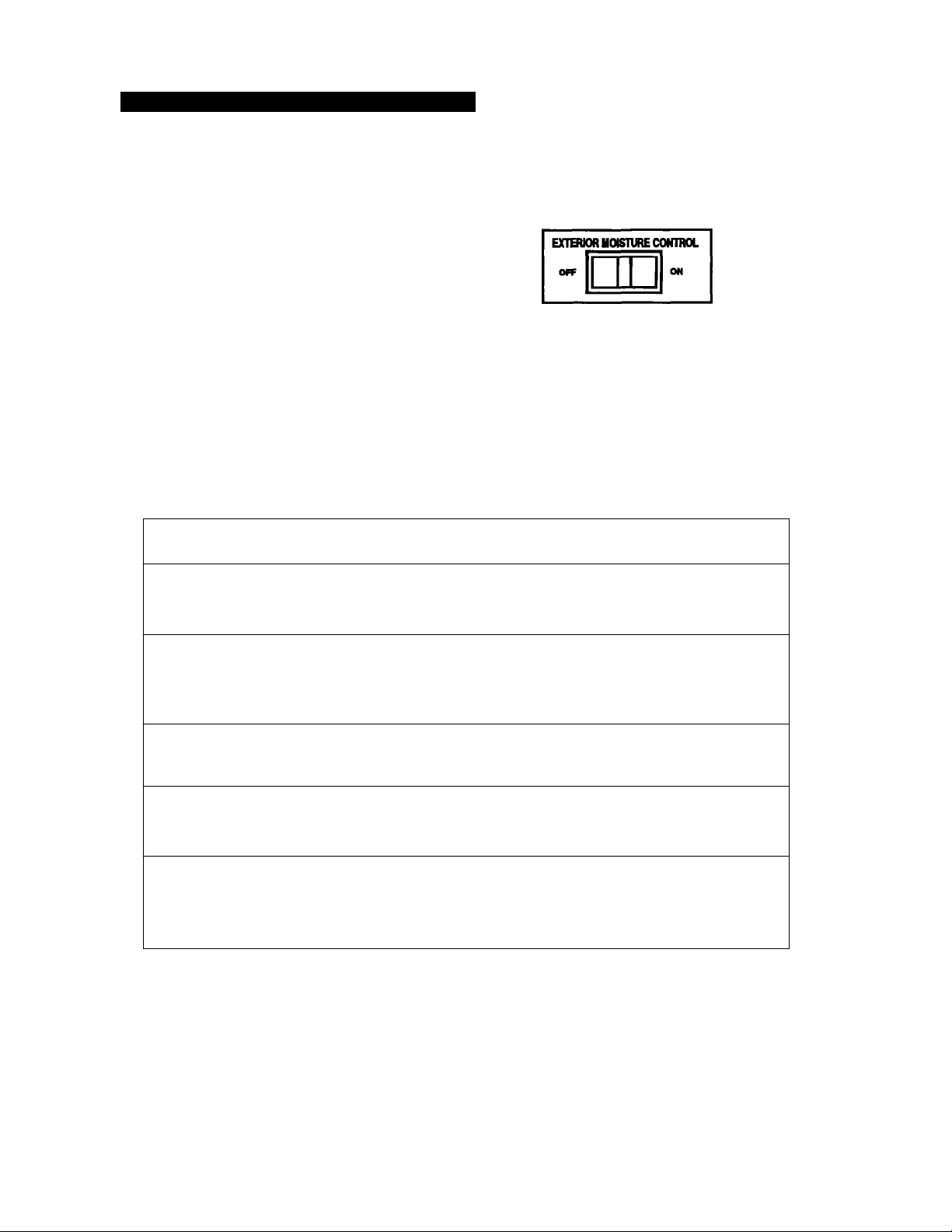

Exterior moisture control

The Exterior Moisture Control operates electric heaters around the door openings. These heaters help keep moisture from forming on the outside of the refrigerator cabinet.

• Use the OFF setting when humidity is low.

• Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

Changing the control settings

If you need to adjust temperatures in refrigerator or freezer, use the settings listed in the chart below as a guide. If you have questions, call our Consumer Assistance Center number, 1-800-253-1301.

CONDITION:

REASON:

• Adjust the Refrigerator Control first.

• Wait at least 24 hours between adjust ments.

• Then adjust the Freezer Control if needed.

RECOMMENDED CONTROL SETTINGS:

Refrigerator • Door opened often Refrigerator section too warm

Freezer section too warm

Refrigerator section

• Large amount of food added

• Room temperature too warm

• Door opened often Refrigerator

• Large amount of food added

• Very cold room temperature (can’t cycle often enough)

• Controls not set correctly Refrigerator

for your conditions

Freezer

Freezer A

too cold

Ice not made fast

enough

Both sections too warm

• Heavy ice usage Refrigerator 4

• Very cold room temperature (can't cycle often enough)

• Door opened often Refrigerator 6

• Large amount of food added

• Very warm or very cold room temperatures

Freezer A

Freezer

6 D

Page 9

USING YOUR REFRIGERATOR

Adjusting the shelf glide

Use the shelf glide to secure odd-shaped items or to separate other items.

To adjust the shelf glide:

1. Grasp glide.

2. Slide glide along track.

NOTE: The shelf glide cannot be removed.

Adjusting the refrigerator shelves

Adjust the shelves to match the way you use your refrigerator.

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear shelf hooks into the slots

in the shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into

slots. Lower front of shelf to level position.

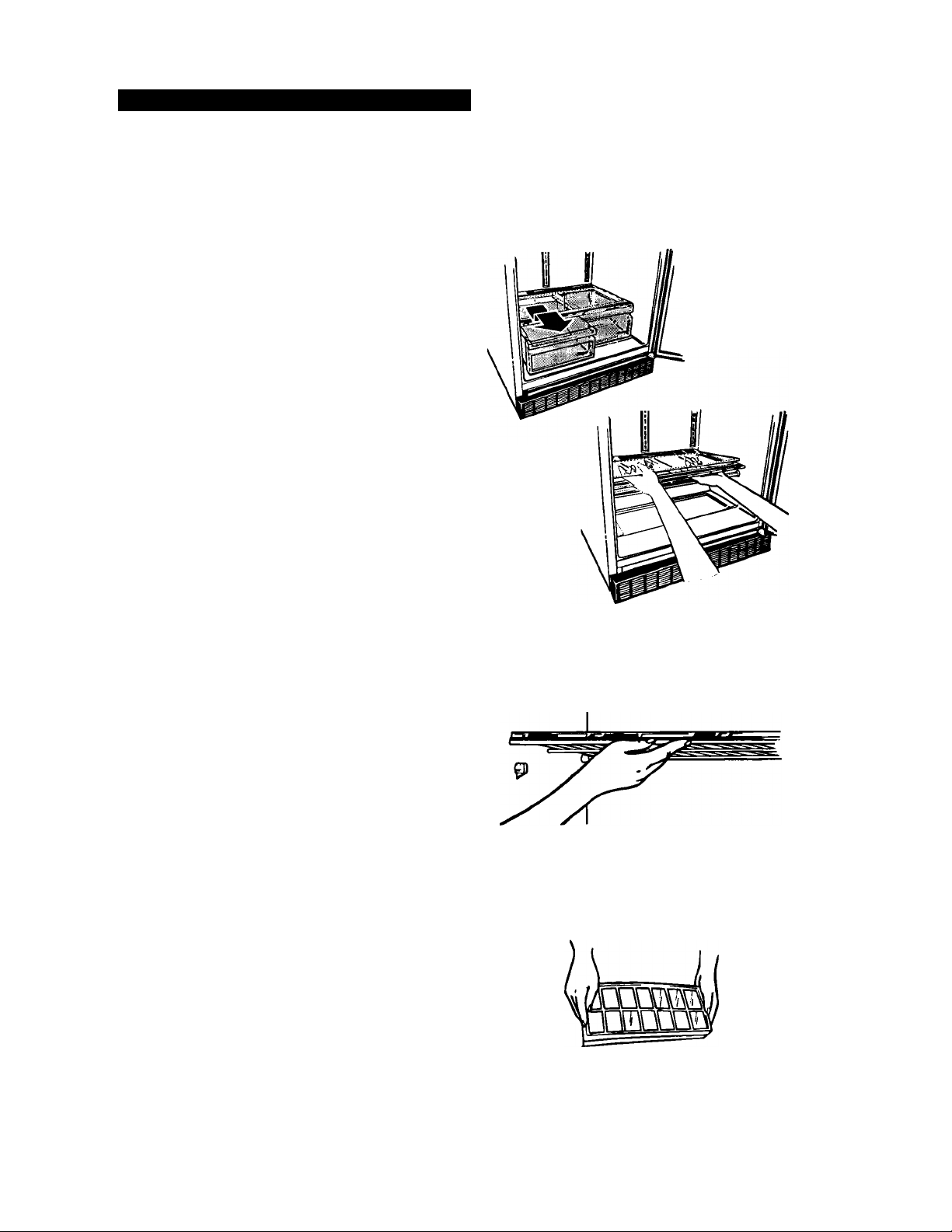

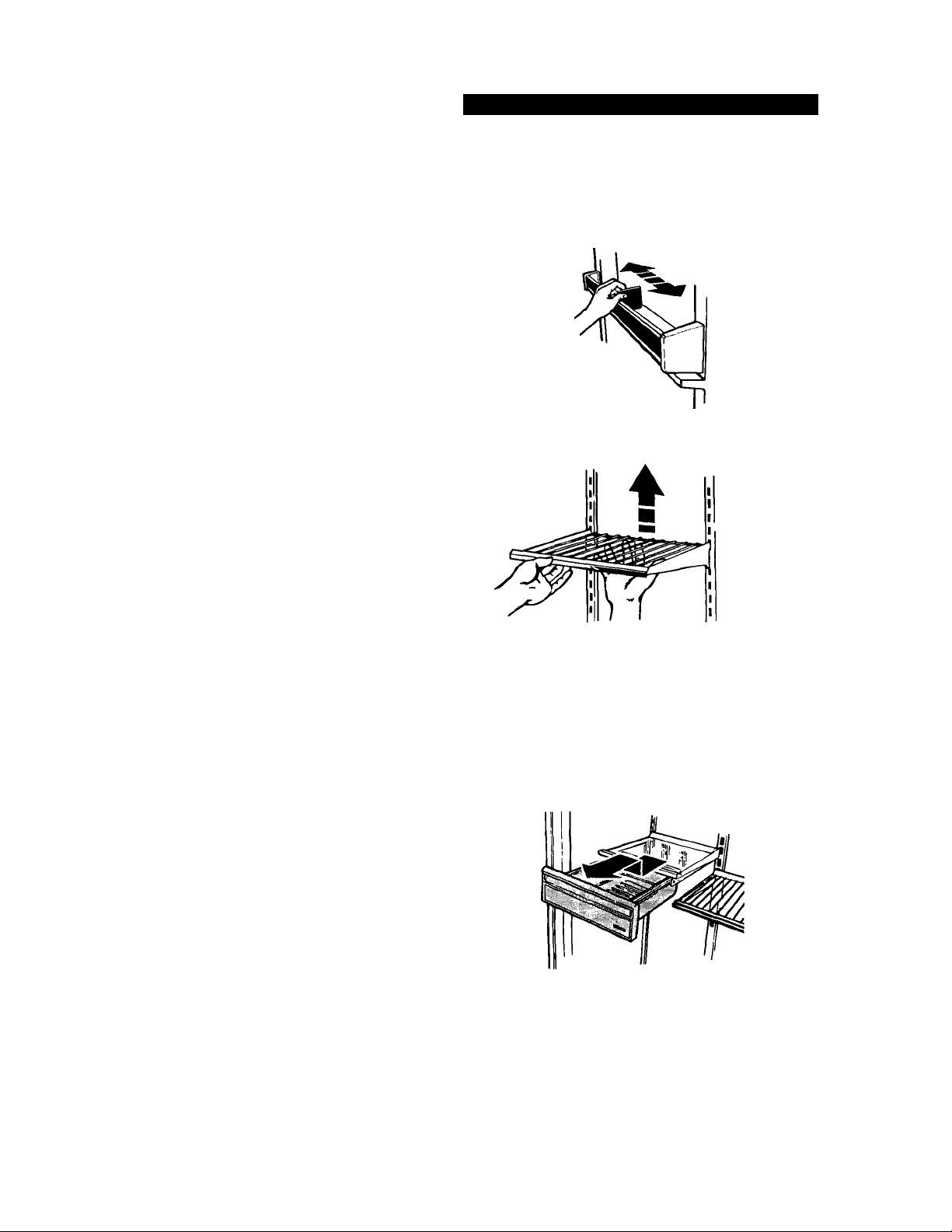

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Pull out to the stop, lift the front and pull again.

Page 10

USING YOUR REFRIGERATOR

Removing the crispers and crisper cover

To remove the crispers:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push up glass insert from the bottom,

then slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall

supports in front section of cabinet.

2. Fit back corners of cover frame into notch supports on walls of refrigerator, then lower front onto metal cover support.

3. Slide back of glass insert into cover frame. Then lower front to level position.

Remove the glass insert. Lift front of cover frame, then the back.

Pull out to the

stop, lift the front

and pull again.

Removing the freezer shelf

Remove the freezer shelf for easier cleaning.

To remove the shelf:

1. Lift front of shelf slightly.

2. Lift back of shelf off supports.

3. Replace in reverse order.

Using the ice cube trays

If you don’t use cubes, they may shrink. The moving cold air starts a slow evaporation. The longer you store cubes, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Page 11

USING YOUR REFRIGERATOR

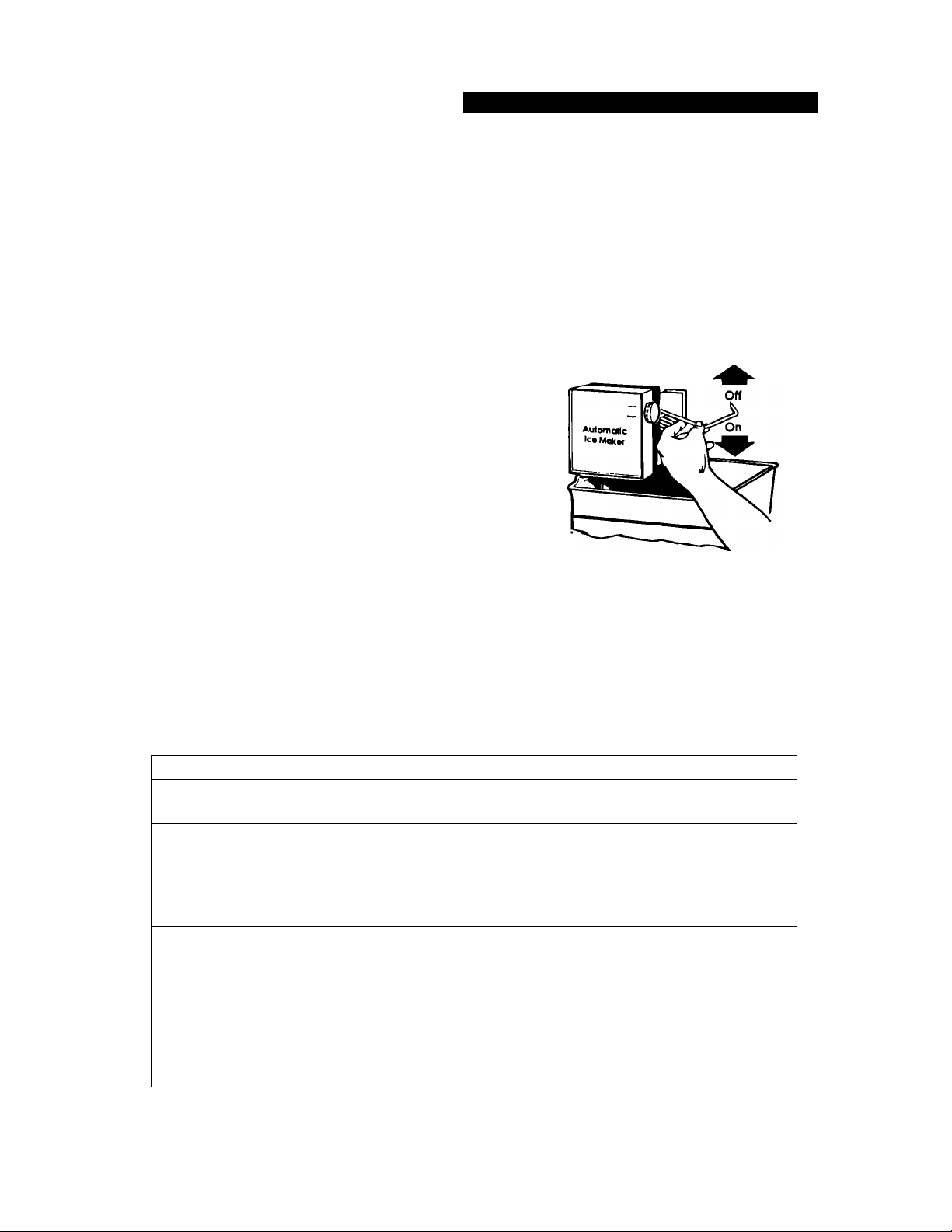

Using the optional automatic ice maker

If you have an automatic ice maker, or if you plan to add one later (contact dealer for ice maker kit number), there are a few things you will want to know:

• The ON/OFF lever is a wire signal arm.

DOWN to make ice automatically UP to shut off the ice maker

IMPORTANT: Do not turn ice maker on

until it is connected to the water supply.

Instructions for ice maker water supply hook up are attached to the back of the refrigerator cabinet.

• The dial or lever on the side of the ice

maker changes the size of the cubes.

• Good water quality is important for good

ice quality. Try to avoid connecting the ice maker to a softened water supply. Water softener chemicals, such as salt from a malfunctioning softener, can damage the ice maker mold and lead to poor ice quality. If a softened water supply cannot be avoided, make sure that the water softener is well maintained and operating properly.

Up to stop ice maker.

Down to start ice maker.

Solving common ice maker problems

PROBLEM POSSIBLE CAUSE/SOLUTION Ice crescents attached • This is normal. They break apart easily. Shake bin occasion-

at corners ally to keep cubes separated.

Ice maker will not • ON/OFF lever is in the OFF (up) position. Lower lever to the

operate or ice is not

made fast enough

Off-taste or odor in ice

ON (down) position.

• Freezer is not cold enough. Adjust temperature controls and

wait 24 hours. (See “Changing the control settings” on page 8.)

• New plumbing connections can cause discolored or off-

flavored ice. Discard the first few batches of ice.

• Cubes are stored too long. Throw them away and make a

new supply.

• Foods in freezer are not wrapped properly. See “Food

Storage Guide” on pages 18 and 19.

• Freezer and ice bin need to be cleaned. See pages 14 and 15.

Page 12

USING YOUR REFRIGERATOR

Changing the light bulbs

^WARNING

Electrical Shock Hazard

Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to the refrigerator at

the main power supply.

Failure to do so could result in electrical shock or personal injury.

To change the refrigerator light:

1. Disconnect refrigerator from power supply.

2. Reach behind the Control Panel to remove

bulb.

3. Replace with a 40-watt appliance bulb.

4. Reconnect refrigerator to power supply.

NOTE: Not all commercial appliance bulbs will

fit your refrigerator. Be sure to replace a bulb with one of the same size and shape.

Removing the base grille

To remove the grille:

1. Open refrigerator door.

2. Pull base grille fonward to release the

support tabs from the metal clips.

3. Do not remove Tech Sheet fastened

behind the grille.

To replace the grille:

1. Line up grille support tabs with metal clips.

2. Push firmly to snap into place.

3. Close refrigerator door. See cleaning instructions for defrost pan and

condenser coils on page 15.

Condenser coils

Metal clips

I— Defrost pan Base

Support tabs grille

Page 13

USING YOUR REFRIGERATOR

Reversing the door swing

You can change the hinges on your refrig erator so the doors open the other way. Refer to the instruction sheet included with

your refrigerator.

Understanding the sounds you may hear

Your new refrigerator may make sounds that

your old one didn’t. Because the sounds are

new to you, you might be concerned about

them. Don’t be. Most of the new sounds are

normal. Hard surfaces like the floor, walls and cabinets can make the sounds seem louder.

The following describes the kinds of

sounds that might be new to you, and what may be making them.

Slight hum, soft hiss

You may hear the refrigerator’s fan motor and moving air.

Clicking or snapping sounds

The thermostat makes a definite click when the refrigerator stops running. It also makes a sound when the refrigerator starts. The defrost timer will click when the defrost cycle starts.

Water sounds

When the refrigerator stops running, you may hear gurgling in the tubing for a few minutes after it stops. You may also hear defrost water running into the defrost water pan.

Ice maker sounds

• trickling water

• thud (clatter of ice) If your refrigerator has an ice maker, you

may hear buzzing (from the water valve), trickling water and the clatter of ice dumped into the bin.

Running sounds

Your refrigerator has a high-efficiency compressor and motor. It will run longer than older designs. It may even seem to run most of the time.

Saving energy

You can help your refrigerator use less electricity.

• Check door gaskets for a tight seal. Level

the cabinet to be sure of a good seal.

• Clean the condenser coils regularly.

• Open the door as few times as possible. Think about what you need before you open the door. Get everything out at one time. Keep food organized so you won’t have to search for what you want. Close door as soon as food is removed.

• Go ahead and fill up the refrigerator, but don’t overcrowd it so air movement is

blocked.

• It is a waste of electricity to set the refrig

erator and freezer to temperatures colder than they need to be. If ice cream is firm in the freezer and drinks are as cold as your family likes them, that’s cold enough.

• Make sure your refrigerator is not next to a heat source such as a range, water heater, furnace, radiator or in direct sunlight.

Page 14

CARING FOR YOUR REFRIGERATOR

Caring For Your Refrigerator

In This Section

Page

Cleaning your refrigerator Vacation and moving care

Your refrigerator is built to give you many years of dependable service. However, there are a few things you can do to extend its product life. This section tells you how to clean your refrigerator and what to do when going on vacation, moving or during a power outage.

...........

..........

Power interruptions...............

.................

Page

Cleaning your refrigerator

Both the refrigerator and freezer sections defrost automatically. However, clean both about once a month to help prevent odors from building up. Wipe up spills right away.

To clean your refrigerator, turn the Refrig

erator Control to OFF, unplug it, take out all

removable parts and clean the refrigerator

according to the following directions.

PART

WHAT TO USE HOWTO CLEAN

Refrigeration system tubes are located near the defrost pan and can become hot. Remove and install defrost pan carefully.

Failure to do so could result in personal injury.

^WARNING

Personal Injury Hazard

Removable parts (shelves, crisper, etc.)

Outside

Inside walls (allow freezer to warm up so cloth won’t stick)

Sponge or cloth with mild • Hand wash, rinse and dry detergent and warm water

Sponge, cloth or paper towel with mild detergent, warm water and an appliance wax (or good auto paste wax)

Sponge, soft cloth or • Wash with mixture of warm water paper towel with baking soda or mild detergent and warm water

thoroughly.

• Wash outside of cabinet. Oo not

use abrasive or harsh cleaners.

• Rinse and dry thoroughly.

• Wax painted metal surfaces at least twice a year. Apply wax with a clean, soft cloth. Waxing painted metal surfaces provides rust protection. Do not wax plastic parts.

and

- mild detergent, or

- baking soda (2 tablespoons

[26 g] to 1 quart [.95 L] of water).

• Rinse and dry thoroughly.

Page 15

CARING FOR YOUR REFRIGERATOR

PART WHAT TO USE Door liners

and gaskets

Plastic parts

(covers and panels)

Defrost pan

Condenser

coils

Sponge, soft cloth or paper towel with mild detergent and warm water

Soft, clean sponge or soft, clean cloth with mild detergent and warm water

Sponge or cloth with mild detergent and warm water

Vacuum cleaner with extended narrow attachment

HOW TO CLEAN

• Wash, rinse and dry thoroughly.

DO NOT USE cleaning waxes, concen trated detergents, bleaches or cleaners containing petroleum on plastic parts.

• Wash, rinse and dry thoroughly.

DO NOT USE paper towels, window sprays, scouring cleansers or flammable fluids. These can scratch or damage materiai. See “Important Safety Instruc tions” on page 3.

• Remove base grille. (See page 12.)

• To remove defrost pan, lift pan over wire

brace (remove tape; if any).

• Wash, rinse and dry thoroughly.

• Replace with notched corner to the rear.

Push it in all the way.

• Make sure defrost pan drain tube is

pointing into pan.

• Replace base grille.

• Remove base grille.

• Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.

• Replace base grille.

Floor under refrigerator

Floor cleaners • Roll refrigerator out only as far as the water

supply line allows.

• Clean floor.

• Roll refrigerator back into place.

• Check to see if the refrigerator is level.

Page 16

CARING FOR YOUR REFRIGERATOR

Vacation and moving care

Short vacations

No need to shut off the refrigerator if you will be away for less than four weeks.

1. Use up any perishables.

2. Freeze other items.

3. If your refrigerator has an automatic ice

maker:

• Raise signal arm to OFF (up) position.

• Shut off water supply to ice maker.

• Empty the ice bin.

Long vacations

If you will be gone a month or more:

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice

maker:

• Turn off the water supply to the ice

maker at least one day ahead of time.

• When the last load of ice drops, turn off

the ice maker. Make sure all ice is dis

pensed out of the ice maker mecha nism.

3. Unplug the refrigerator.

4. Clean it, rinse well and dry.

5. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving the refrigerator to a new home:

1. If your refrigerator has an automatic ice

maker:

• Turn off the water supply to the ice

maker at least one day ahead of time.

• Disconnect the water line.

• After the last load of ice drops, lift the

signal amn to the OFF (up) position.

2. Remove all food from the refrigerator.

3. Pack all frozen food in dry ice.

4. Unplug the refrigerator.

5. Clean it thoroughly. Rinse well and dry.

6. Take out all removable parts, wrap them well, and tape them together so they don’t

shift and rahle.

7. Screw in the leveling rollers.

8. Tape the doors shut and tape the power

supply cord to the cabinet.

When you get to your new home, put

everything back and refer to page 5. Also, if

your refrigerator has an automatic ice

maker, remember to reconnect the water supply line.

^WARNING

Personal Injury Hazard

Do not allow children to climb on, play near or climb inside the refrigerator

when the doors are blocked open. They may become injured or trapped.

To restart refrigerator, see “Using Your

Refrigerator” on page 7.

Page 17

CARING FOR YOUR REFRIGERATOR

Power interruptions

If electricity goes off, call the power com pany. Ask how long power will be off.

1. If service will be interrupted 24 hours or

less, keep both doors closed. This helps food stay frozen.

2. If service will be interrupted longer than

24 hours:

(a) Remove all frozen food and store in a

frozen food locker.

OR (b) Place 2 lbs. (0.9 kg) of dry ice in

freezer for every cubic foot of freezer space. This will keep food frozen for 2 to 4 days. Wear gloves to protect your hands from dry ice burns.

available, use or can perishable food at once.

3. A full freezer stays cold longer than a partly filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If food contains ice crystals, it may be safely refrozen, although the quality and flavor may be affected. If the condition of the food is poor, or if you feel it is unsafe, dispose of it.

Questions 7

Call our Consumer Assistance Center telephone number, 1-800-253-1301.

Page 18

FOOD STORAGE GUIDE

Food Storage Guide

There is a correct way to package and store refrigerated or frozen food. To keep food fresher, longer, take the time to study these recommended steps.

Storing fresh food

Wrap or store food placed in the refrigerator in airtight and moisture-proof material. This prevents food odor and taste transfer

throughout the refrigerator. For dated

products, check code date to ensure fresh ness.

Leafy vegetables

Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.

Vegetables with skins (carrots, peppers)

Store in crisper, plastic bags or plastic container.

Fruit

Wash, let dry and store in refrigerator in plastic bags or crisper. Do not wash or hull berries until they are ready to use. Sort and keep berries in their original container in a crisper, or store in a loosely closed paper

bag on a refrigerator shelf.

Eggs

Store in the original carton in the egg bin provided or on an interior shelf.

Milk

Wipe milk cartons. For best storage, place milk on interior shelf.

Butter or margarine

Keep opened butter in covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.

Cheese

Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.

Leftovers

Cover leftovers with plastic wrap or alumi num foil. Plastic containers with tight lids can also be used.

Meat

Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times.

APPROXIMATE TIME

TYPE Chicken Ground beef Steaks and roasts 3 to 5 Cured meats Bacon Cold cuts 3to5 Variety meats 1 to 2

*lf storing meat longer than the times given,

follow the directions for freezing.

NOTE: Use fresh fish and shellfish the same day as purchased.

(DAYS)*

1 to 2 1 to 2

7 to 10

5 to 7

Page 19

Storing frozen food

The freezer section is designed for storage of commercially frozen food and for freezing food at home.

NOTE: For further information about prepar

ing food for freezing or food storage times, contact your local Cooperative Extension Service or check a freezer guide or reliable cookbook.

Packaging

The secret of successful freezing is in the packaging. The way you close and seal the

package must not allow air or moisture in or out. Packaging done in any other way could cause food odor and taste transfer through out the refrigerator and drying of frozen food.

FOOD STORAGE GUIDE

Freezing

Do not expect your freezer to quick-freeze any large quantity of food. Put no more

unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 pounds of food per cubic foot of freezer

space). Leave enough space for air to

circulate around packages. Be careful to

leave enough room at the front so the door

can close tightly.

Storage times will vary according to the quality of the food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature, which should be 0°F(-17.8°C).

Packaging recommended for use:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps (made from

a saran film)

Follow package or container instructions for proper freezing methods.

Do not use:

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Waxed paper

• Waxed-coated freezer wrap

• Thin, semi-permeable wrap The use of these wrappings could cause

food odor, taste transfer and drying of frozen food.

Page 20

IF YOU NEED ASSISTANCE OR SERVICE

If You Need Assistance Or

Service

Performance problems often result from little things you can fix without tools. Please read the

chart below before calling for service on your appliance.

1. Before calling for assistance ...

Listed in this chart are the most common problems consumers run into with their appliances. Please read through this and see if it can solve your problem.

PROBLEM

Your refrigera tor will not

operate

The lights do

not work

The optional ice

maker does not

work

You hear unfa miliar sounds or a rattling/ jingling noise

There is water in

the defrost pan

The motor seems to run too much

CHECK THE FOLLOWING

Is the power supply cord firmly plugged into a live circuit with proper

voltage?

Has a household fuse or circuit breaker blown/tripped? Is the Refrigerator Control set to the OFF position? Is the power supply cord firmly plugged into a live circuit with proper

voltage?

Has a household fuse or circuit breaker blown/tripped? Is a bulb burned out? Is the freezer cold enough to make ice? It could take overnight for

the freezer to reach the proper temperature.

Is the ON/OFF lever in the ON (down) position? Is the water valve turned on? Does the water line have a clog or leak? Is something on top of or behind the refrigerator? Some new sounds are normal. See “Understanding the sounds you

may hear” on page 13.

This is normal on hot, muggy days. Make sure the refrigerator is level so the pan does not overflow.

Are the condenser coils dirty?

Has the door been opened often? Has a large amount of food been added at one time? The motor naturally runs longer if these things happen.

Is the room hot? If the room is too warm, the motor runs longer to keep the unit cool.

Page 21

IF YOU NEED ASSISTANCE OR SERVICE

2. If you need assistance* ...

Call Whirlpool Consumer Assistance Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-1301

and talk with one of our trained consuitants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recom

mend a qualified service company in your

area.

If you prefer, write to:

Mr. William Clark Consumer Assistance Representative Whirlpool Corporation 2000 M-63 Benton Harbor, Ml 49022

Please include a daytime phone number in your correspondence.

3. If you need service* ...

Whirlpool has a nationwide network of authorized Whirlpool® service companies. Whirlpool service technicians are trained to fulfill the product warranty and provide after warranty service, anywhere in the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone

number (see Step 2) or look in your tele phone directory Yellow Pages under:

4. If you need FSP* replace ment parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a

replacement part for your Whirlpool appliance. FSP replacement parts will fit

right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance.

To locate FSP replacement parts in your

area, refer to Step 3 above or call the

Whirlpool Consumer Assistance Center

number in Step 2.

5. If you are not satisfied with how the problem was

solved ...

• Contact the Major Appliance Consumer Action Panel (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

• Contact MACAP only when the dealer, authorized servicer and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Panel 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your action.

•APPUANCE-HOUSEHOLD-

MAJOR, SERVICE A REPAIR

• See: Whirlpool Appliances or Authorized Whirlpool Sen/ice {Sxamph: XYZ Service Co.)

•WASHING MACHINES A

DRYERS, SERVICE A REPAIR

- See: Whirlpool Appliances or Authorized Whirlpool Senrice {Example: XYZ ^rvlce Co.)

*When asking for help or service:

Please provide a detailed description of

the problem, your appliance's compiete

model and serial numbers, and the pur

chase date. (See page 2.) This informa tion will help us respond properly to your

request.

Page 22

WHIRLPOOL*

Refrigerator Warranty

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

From Date of Purchase FULL FIVE-YEAR

WARRANTY

From Date of Purchase

WHIRLPOOL WILL NOT PAY FOR A. Service calls to:

1. Correct the installation of your refrigerator.

2. Instruct you how to use your refrigerator.

3. Replace house fuses or correct house wiring or plumbing.

4. Replace light bulbs.

WHIRLPOOL WILL PAY FOR FSP® replacement parts and repair labor to correct

defects in materials or workmanship. Service must be provided by an authorized Whirlpool service company.

FSP replacement parts and repair labor to correct defects in materials or workmanship in the sealed refrigeration system. These parts are:

1. Compressor

2. Evaporator

3. Condenser

4. Drier

5. Connecting tubing

Service must be provided by an authorized Whirlpool service company.

B. Repairs when your refrigerator is used in other than normal, single-family household

use.

C. Pickup and delivery. Your refrigerator is designed to be repaired in the home. D. Damage to your refrigerator caused by accident, misuse, fire, flood, acts of God or use

of products not approved by Whirlpool.

E. Any food loss due to product failure. F. Repairs to parts or systems caused by unauthorized modifications made to the

appliance.

5/93

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange.

If you need service, first see the “Assistance or Service” section of this book. After checking “Assistance or Service,” additional help can be found by calling our Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.

Printed on recycled paper-

10% post-consumer waste

50% recovered materials

PART NO. 2170724 Rev. A

01M3 WNrIpool Corporation

9 Registered Trademark ol Whirlpool Corporation.

Printed In U.S.A.
