EMZD 6265

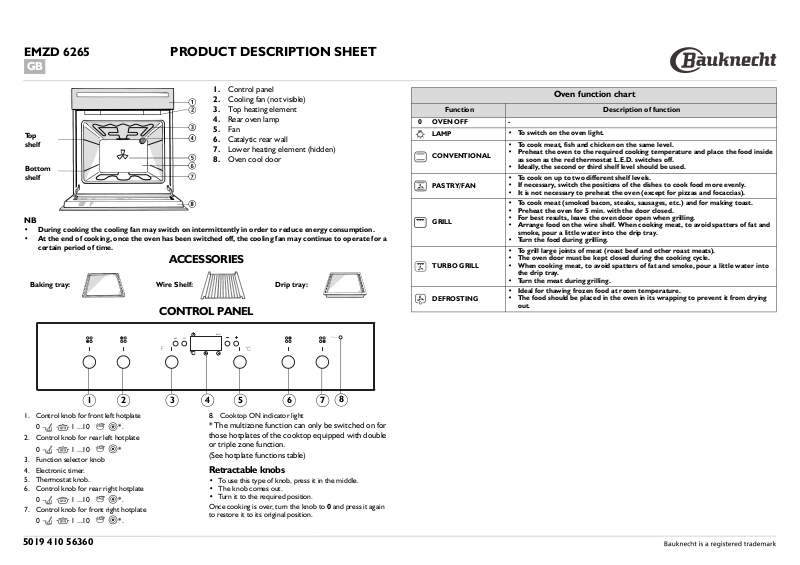

PRODUCT DESCRIPTION SHEET

GB

		1.	Control panel
		2.	Cooling fan (not visible)
		3.	Top heating element
		4.	Rear oven lamp
	Top	5.	Fan
		6.	Catalytic rear wall
	shelf
		7.	Lower heating element (hidden)
	Bottom	8.	Oven cool door
	shelf

NB

•During cooking the cooling fan may switch on intermittently in order to reduce energy consumption.

•At the end of cooking, once the oven has been switched off, the cooling fan may continue to operate for a certain period of time.

ACCESSORIES

Baking tray:

Wire Shelf:

Drip tray:

CONTROL PANEL

				Oven function chart
			Function	Description of function
	0 OVEN OFF			-
			LAMP	• To switch on the oven light.
				• To cook meat, fish and chicken on the same level.
			CONVENTIONAL	• Preheat the oven to the required cooking temperature and place the food inside
				as soon as the red thermostat L.E.D. switches off.
				• Ideally, the second or third shelf level should be used.
				• To cook on up to two different shelf levels.
			PASTRY/FAN	• If necessary, switch the positions of the dishes to cook food more evenly.
				• It is not necessary to preheat the oven (except for pizzas and focaccias).
				• To cook meat (smoked bacon, steaks, sausages, etc.) and for making toast.
				• Preheat the oven for 5 min. with the door closed.
			GRILL	• For best results, leave the oven door open when grilling.
				• Arrange food on the wire shelf. When cooking meat, to avoid spatters of fat and
				smoke, pour a little water into the drip tray.
				• Turn the food during grilling.
				• To grill large joints of meat (roast beef and other roast meats).
				• The oven door must be kept closed during the cooking cycle.
			TURBO GRILL	• When cooking meat, to avoid spatters of fat and smoke, pour a little water into
				the drip tray.
				• Turn the meat during grilling.
				• Ideal for thawing frozen food at room temperature.
			DEFROSTING	• The food should be placed in the oven in its wrapping to prevent it from drying
				out.

1		2		3		4		5		6		7		8

1.Control knob for front left hotplate 0 1 ...10 *.

2.Control knob for rear left hotplate 0 1 ...10 *

3.Function selector knob

4.Electronic timer.

5.Thermostat knob.

6.Control knob for rear right hotplate 0 1 ...10 *.

7.Control knob for front right hotplate 0 1 ...10 *.

8. Cooktop ON indicator light

* The multizone function can only be switched on for those hotplates of the cooktop equipped with double or triple zone function.

(See hotplate functions table)

Retractable knobs

•To use this type of knob, press it in the middle.

•The knob comes out.

•Turn it to the required position.

Once cooking is over, turn the knob to 0 and press it again to restore it to its original position.

5019 410 56360
