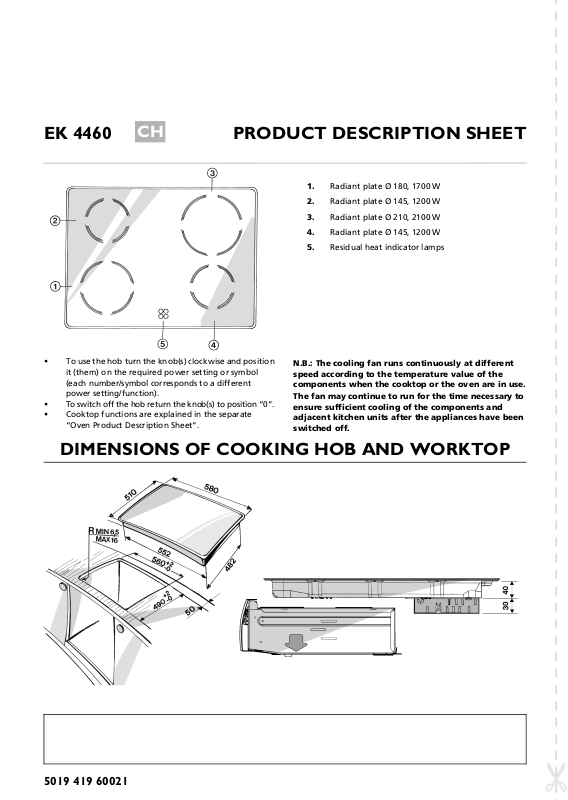

Whirlpool EK 4460IN PROGRAM CHART

EK 4460

PRODUCT DESCRIPTION SHEET

•To use the hob turn the knob(s) clockwise and position it (them) on the required power setting or symbol (each number/symbol corresponds to a different power setting/function).

•To switch off the hob return the knob(s) to position “0”.

•Cooktop functions are explained in the separate “Oven Product Description Sheet”.

1.Radiant plate Ø 180, 1700 W

2.Radiant plate Ø 145, 1200 W

3.Radiant plate Ø 210, 2100 W

4.Radiant plate Ø 145, 1200 W

5.Residual heat indicator lamps

N.B.: The cooling fan runs continuously at different speed according to the temperature value of the components when the cooktop or the oven are in use. The fan may continue to run for the time necessary to ensure sufficient cooling of the components and adjacent kitchen units after the appliances have been switched off.

DIMENSIONS OF COOKING HOB AND WORKTOP

5019 419 60021
