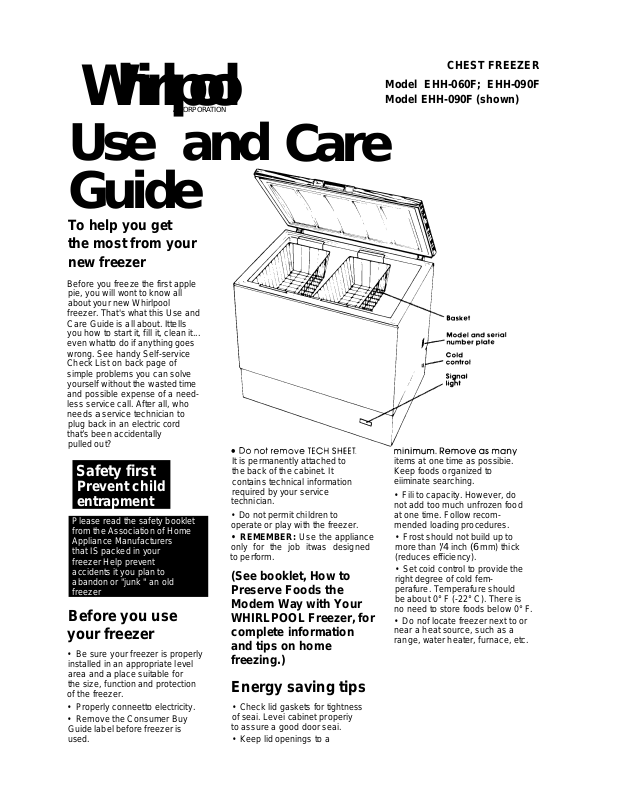

Whirlpool
A CORPORATION
CHEST FREEZER
Model EHH-060F; EHH-090F Model EHH-090F (shown)
Use and
Guide
To help you get
the most from your
new freezer
Before you freeze the first apple
pie, you will wont to know all
about your new Whirlpool
freezer. That's what this Use and
Care Guide is all about. Ittells
you how to start it, fill it, clean it...
even whatto do if anything goes
wrong. See handy Self-service
Check List on back page of
simple problems you can solve
yourself without the wasted time
and possible expense of a need
less service call. After all, who
needs a service technician to
plug back in an electric cord
that’s been accidentally
pulled out?
Care
Safety first
Prevent child
entrapment
Please read the safety booklet
from the Association of Home
Appliance Manufacturers
that IS packed in your
freezer Help prevent
accidents it you plan to
abandon or "junk " an old
freezer
Before you use your freezer
• Be sure your freezer is properly
installed in an appropriate level
area and a place suitable for
the size, function and protection
of the freezer.
• Properly conneetto electricity.
• Remove the Consumer Buy
Guide label before freezer is
used.
It is permanently attached to
the back of the cabinet. It
contains technical information
required by your service
technician.
• Do not permit children to
operate or play with the freezer.
• REMEMBER: Use the appliance
only for the job itwas designed
to perform.
(See booklet, How to
Preserve Foods the
Modern Way with Your
WHIRLPOOL Freezer, for
complete information
and tips on home
freezing.)
Energy saving tips
• Check lid gaskets for tightness
of seai. Levei cabinet properiy
to assure a good door seai.
• Keep lid openings to a
items at one time as possibie.
Keep foods organized to
eiiminate searching.
• Fili to capacity. However, do
not add too much unfrozen food
at one time. Follow recom
mended loading procedures.
• Frost should not build up to
more than '/4 inch (6 mm) thick
(reduces efficiency).
• Set coid control to provide the
right degree of cold femperafure. Temperafure should
be about 0° F (-22° C). There is
no need to store foods below 0° F.
• Do nof locate freezer next to or
near a heat source, such as a
range, water heater, furnace, etc.
Page 2
Before starting
your freezer
1. Locate it properly - For top
performance, locate your freezer
in a cool, dry, well-ventilated
place out of direct sunlight and
away from such heat sources as
radiators. Pick a safe place,
indoors, away from inflamma
bles such as gasoline.
proper air circulation allow
at least two inches (5 cm)
of air space at the back
and three inches (7.5 cm)
at the sides of the freezer. Do not
cover the freezer with such
items as blankets, sheets, table
cloths, etc. Check the strength
of the floor, make certain it can
support the weight of the freezer
when it is loaded. If hinges need
to be removed to get freezer
through a doorway, follow these
steps. Check the way the lid
makes contact with freezer
cabinet to help when replacing
lid. With the lid closed, remove
hinge screws from the cabinet
and lift off lid. To replace lid,
place it on the cabinet
then replace hinge screws.
Be sure the gasket on the lid is
making contact with the cabinet
around all four sides.
2. Keep if level — Level freezer
from end to end and from front to
back so that the lid will seal
properly. With the lid open, lay a
spirit level on the edge of the
freezer at the end and the
front of the cabinet. If it is
necessary to level cabinet, use
wood shims. Do not use card
board or other soft material.
For
3. Cleaning-Before starting,
wash the interior with a solution
of two tablespoons (26 g) of
baking soda to one quart (.95 L)
of warm water. Rinse and dry
Wash outside of freezer with
warm water and mild soap or
detergent, rinse thoroughly
and dry
NOTE: Cleaning waxes, con
centrated detergents, bleaches
and cleansers containing
petroleum products should nof
be used to clean door gasket or
plastic parts of the freezer.
To start freezer
Elecfrical Connecfion-Your
freezer should be connected to
its own individual receptacle,
one not controlled by a wall
switch. Make sure the
receptacle provides 120 volt, 15
amp, 60 Hz AC current. For your
safety, the power supply cord of
the freezer is equipped with a
three-pronged grounding plug.
It should be plugged into a
matching grounded three
pronged type wall receptacle.
Attach retaining clip for cord
plug. Do nof remove fhe ground
prong. See electrical require
ments and grounding in
structions sheet for complete
information.
Set cold control - Insert a coin
in the slot of the control to turn
it. To start, turn cold control to
Number 3. This position will main
tain zera zone temperatures
under narmal operating conditians. Turn the cold control
to a higher number for colder
temperatures or a lower
number for less cold
temperatures.
Lef freezer cool before filling -
Allow freezer to cool 6 to 8 hours
before filling with frozen food.
Let it cool overnight before add
ing a quantity of fresh food to be
frozen.
NOTE: When freezer first starts, the
compressor will run all the time
until the cabinet is cooled to a
safe storage temperature. This
first cooling may take 6 to 8
hours or longer, depending
upon the weather and number of
times the freezer lid is opened.
After the cabinet is caaled, the
compressor turns off. It will then
turn on and off as needed to
keep the freezer at a safe
storage temperature.
Exferior signal lighf - located
on the right front of the freezer at
the bottom, the signal light auto
matically warns of any un
expected power failure. When
power is being supplied the light
will glow. If light does not glow,
check immediately. The electric
current may be off; the freezer
may be disconnected from
the outlet; or the warning light
may be burned out.
Taking care of
your freezer
Defrosting and cleaning
When frost has built up to about
'/4 inch (6 mm) thickness, remove
by scraping. Use a plastic scrapei.
Do not use an ice pick, knife
or other sharp-pointed tool as
it could damage the liner of
the freezer.
Page 3
Page 4

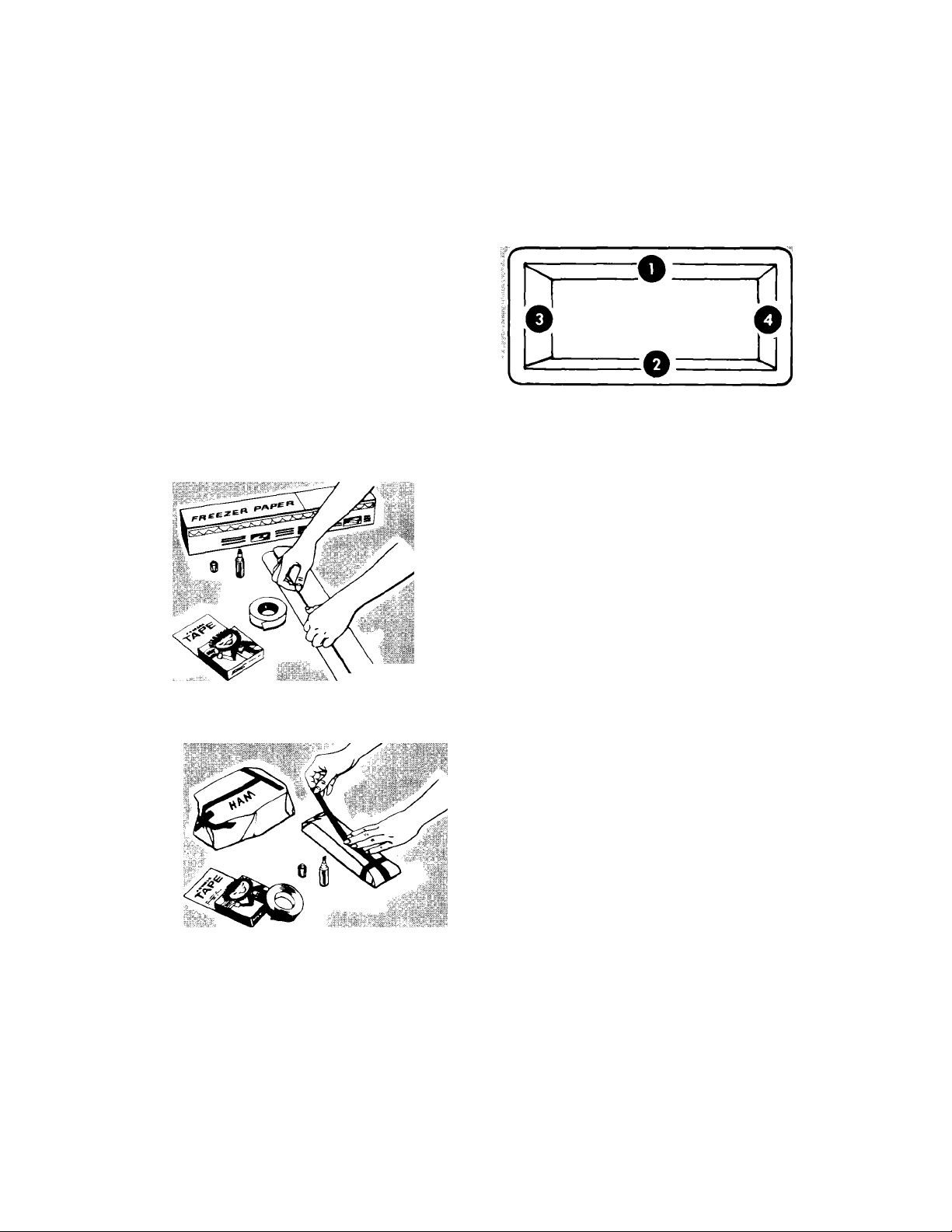

PACKAGE AND SEAL CAREFULLY
Airtight packaging is the secret of success
in freezing foods. Containers and
wrappings should be moisture-vaporproof and packages shouid be sealed
carefully to keep natural moisture in and
air out.
If food is not properly wrapped, freezer burn
will result. When this happens, food de
hydrates and is of poor quality.
The drugstore fold is recommended for
efficiency and economy. Bring the edges
of the papertogether and fold over until it
fits tightly around the articles being
wrapped (at least two folds).

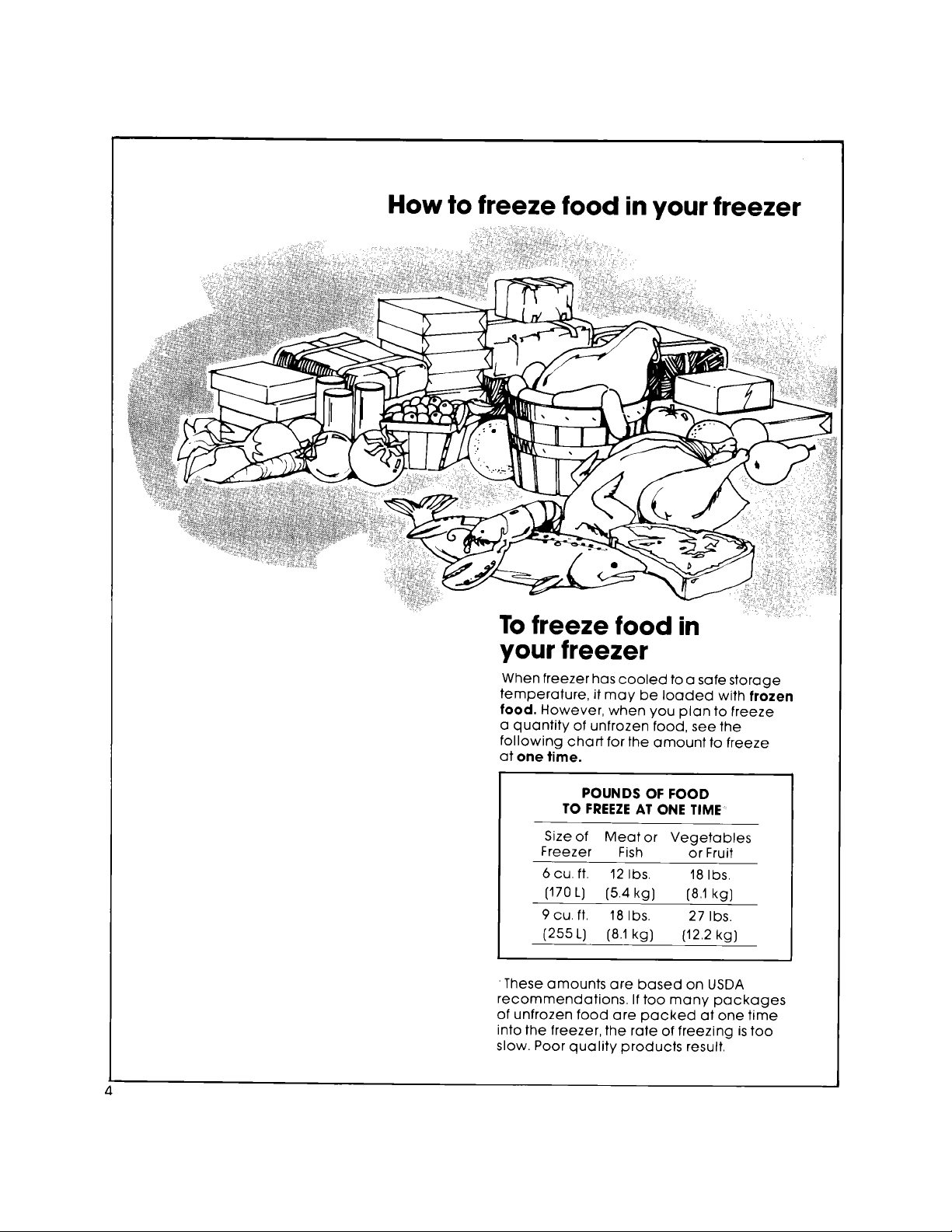

Loading
Before loading with unfrozen food, turn cold
control to coldest position (highest num
ber) and let freezer operate for several
hours. This will speed up the rate of freezing.
Lay packages to be frozen in a single layer
so each rests on the freezing surface of a
shelf. Allow space between packages for
cold air to circulate.
Food will be frozen in about 18 to 24 hours,
depending upon the kind of food, size and
shape of the package and the amount to be
frozen. Do not add more unfrozen food
until previous load is frozen. If in doubt, wait
24 hours before adding more unfrozen food.
When food is frozen, return cold control to
its usual setting.
Heavy-duty aluminum freezer foil, kraft
paper with cellophane bonded to it,
special freezer bags, jars, cartons and
special pressure-sensitive freezer sealing
tape are available at your supermarket or
freezer dealer. See your "How to Freeze
Book" for packaging material guide.
Storing frozen food
When food is frozen, stack packages any
where in the freezer. Make sure that
packages do not extend above the
cabinet edge as they may keep the
lid from closing and sealing.
Page 5
Caution Do not use any type of
electric defroster to speed the
defrosting of the freezer. The
heat con cause damage to
some of the interior parts.
Complete defrosting and
cleaning should be done at
least once a year. In high
humidity areas, a freezer may
need more frequent defrosting.
Follow these steps:
1. Disconnect service cord
from wall outlet.
wrap packages individually
in several thicknesses of
newspaper and cover with a
blanket. Food handled this
way will stay frozen several
hours.
3. Place pans of hot water inside
freezer to hasten melting of
frost. Leave lid open. As
ice softens and melts, it can
be removed in large pieces.
Direct air from an electric fan
into the freezer to speed
defrosting.
4. Remove defrost water with a
towel or sponge.
5. Wash inside of freezer with a
solution of two tablespoons
(26 g) of baking soda to one
quart (.95 L) of warm water.
Rinse and dry. Wash the
gasket strip around the lid
with warm, soapy water.
Rinse and dry.
6. Plug service cord baok into
wall outlet. Return food to
freezer.
NOTE: Cleaning waxes,
concentrated detergents,
bleaches and cleansers
containing petroleum products
should not be used to clean the
door gasket or plastic parts
of the freezer.
Vacation and
moving care
When you take a vacation
Arrange to have a periodic
check of your freezer to make
sure it is operating and
electricity to freezer has not
been interrupted.
moving freezer
If you shut the freezer off for a
period of time (more than
24 hours):
• Remove all food.
• Unplug freezer.
• Clean thoroughly using two
tablespoons (26 g) of baking
soda to one quart (.95 L) of
warm water. Rinse and dry
• Block lid open so air can
circulate freely to prevent
odor and mold growth. If
freezer has a lock, turn the
lock to the locked position with
the lid open. Place rubber
or wood blocks between lid
and cabinet. Tape blocks
securely in place using
self-adhesive filament
tape (strapping tape).
If you move the freezer:
• Remove all food, unplug
freezer and clean fhoroughly.
• Remove all baskets and
dividers.
• Do not place heavy objects
inside or on top of freezer as
damage may result.
• Level freezer when relocated
to insure lid sealing.
CAUTION: To help prevent
accidents, do not allow
children access to
freezer when lid is
blocked open.
Page 6
If you need
service or help,
we suggest you
follow these three
steps:
1. Before calling for service.
Performance problems often re
sult from little things you can
find and fix yourself without tools
of any kind.
If electricity goes off
Learn how long power will be off
by calling the power company.
1. If service is to be interrupted
24 hours or less, keep freezer
closed. Most food will stay
frozen.
2. If service Is to be interrupted
longer than 24 hours, do this:
(a) Remove all frozen food
and store in a frozen food
locker. Or...
(b) Place dry ice on top of
food, using as large
pieces as possible. Protect
your hands with gloves
when using dry ice.
(c) If neither food locker stor
age nor dry ice is avail
able, use or can
perishable food at once.
3. The length of time food will
stay frozen depends on sev
eral factors. For instance: a full
freezer will remain coid
longer than a freezer only
partially filled. And a freezer
full of meat will stay cold
longer than a freezer filled
with baked goods. Also, if the
food still contains ice crystals,
it may be safely refrozen, al
though the quality and flavor
may be affected. Use this food
as soon as convenient. If the
condition of the food is poor
or is any way questionable, it
is wise to dispose of it.
If freezer sfops running
1. Check to see if power cord is
plugged into the outlet.
2. Check fuse box or circuit
breaker.
3. Check electric company for a
power failure.
If motor seems to run too long
1. If large amounts of unfrozen
food have been put into the
freezer, motor will run longer.
2. On hot summer days or if room
is hot, motor will run longer to
provide correct amount of
cooling.
Part No, 753272 Rev, A
If frost builds up on the trim
strip around top of cabinet
1. Check the fit of the lid to make
sure it Is sealing. With the lid
closed, press down firmly on
the edges or at the center of
the lid. This pressure will cause
the flexible lid to fit flat
against the cabinet and seal.
2. Do not open or close the lid
by grasping a corner. Use the
handle.
2. If you need service...
Whirlpool
Franchised
TECH-CARE
Service...
rfC^-CA/t?£
SYMBOL OF QUALITY SERVICE
It Is reassuring to know that
Whirlpool stands behind your
new applianoe with its network
of franchised TECH-CARE« ser
vice companies. TECH-CARE
service is designed to fulfill your
warranty and provide the after
warranty service and mainte
nance to keep your new appli
ance in top notch condition,
anywhere in the United States.
Whirlpool wants you to get the
service that you would expect
on quality home appliances.
If you move...
To make sure that your appli
ance is correctly installed and
to insure its continued satisfac
tory operation, please
telephone your nearest
TECH-CARE service company
for installation or to get the
name of a qualified installer.
(Installation cost will, of course,
be paid by you.)
Or, if you need service...
1. Call the dealer from whom
you purchased the appliance
ora Whirlpool franchised
TECH-CARE service company.
He is in the Yellow Pages of your
telephone directory listed
under Refrigerators and Freez
ers - Repairing or Servicing.
(Also under Washers, Dryers -
Repairing or Servicing.)
2. Should you not find a listing,
diai free, the Whiripool '
COOL-LINE - service assistance
teiephone number (800)
253-1301. When calling from:
Michigan .... (800) 632-2243
Alaska &
Hawaii
..........
(800) 253-1121
3. If you have a problem...
Call Whirlpool Corporation in
Benton Harbor at the COOL-LiNE
service assistance teiephone
number (see Step 2) or write:
Mr. Stephen E. Upton
Vice President
Whirlpool Corporation
Administrative Center
2000 U.S. 33, North
Benton Harbor, Michigan 49022
Remember...If you must call or
write, please provide: your
name, address, telephone num
ber, type of applianoe, brand,
model, serial number, date of
purchase, the dealer's name,
and a complete description of
the problem. This information is
needed in order to better re
spond to your request for
assistance.
Helpful Hint...The model and
serial number plate is located
on the lower right side corner of
the freezer (see illustration on
front page).
FSP® IS a registered trademark
of Whirlpool Corporation for
quality parts Look for this
symbol of quality whenever
you need a replacement part
for your Whirlpool appliance
will fit right and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance
FSP replacement parts
Whirlpool
Benton Harbor, Michigan Aulomaiic Washers, Clothes Dryers,
Freezers, Retngeiaior Freezers, Ice Makers, Dishwashers
Built m Ovens and Surface Units, Ranges. Microwave Ovens.
Compaciois, Room An Conditioners, Dehiimiditiers, Central
Heating and Air Conditioning Systems
Printed in U.S,A,
Loading...
